Mobicool T35 User manual

GB
D
F
E
I
NL
DK
N
S
FIN
T35
W35
Thermoelectric cooler
Instruction Manual 6
Thermoelektrische Kühlbox
Bedienungsanleitung 16
Glacière thermoélectrique
Notice d’emploi 27
Nevera termoeléctrica
Instrucciones de uso 38
Frigorifero termoelettrico
Istruzioni per l’uso 49
Thermo-elektrische koelbox
Gebruiksaanwijzingen 60
Termoelektrisk køleboks
Betjeningsanvisning 70
Termoelektrisk kjøleboks
Bruksanvisning 79
Termoelektrisk kylbox
Bruksanvisning 89
Sähkökäyttöinen kylmälaukku
Käyttöohjeet 98
_T35_W35.book Seite 1 Dienstag, 17. Oktober 2006 2:01 14

_T35_W35.book Seite 2 Dienstag, 17. Oktober 2006 2:01 14

T35/W35
1
2
W35
T35
3
1

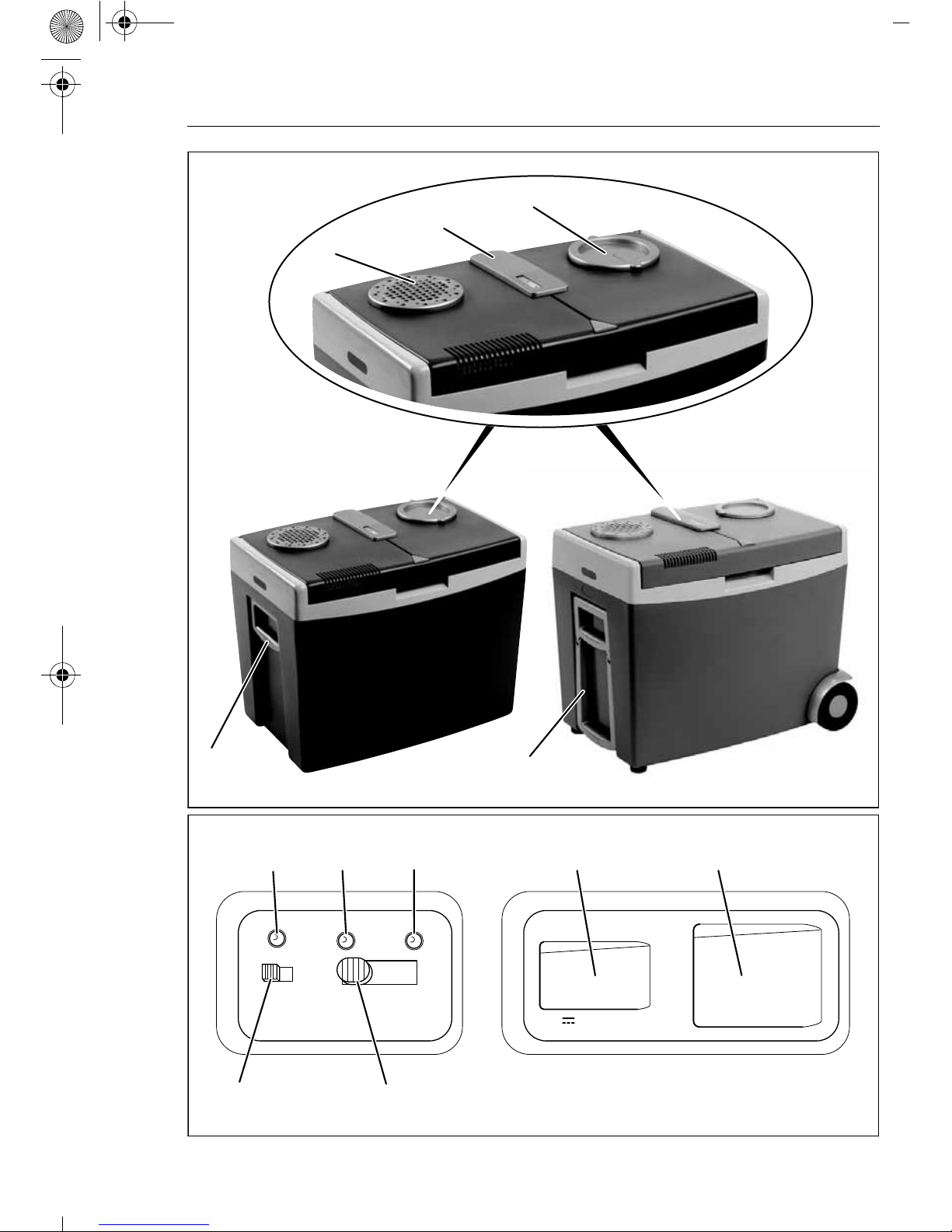

_T35_W35.book Seite 3 Dienstag, 17. Oktober 2006 2:01 14

T35/W35
11
2
3
4
T35 W35
2
12V DC 220-
240V~AC
LOW BAT.
OFF ON HOT OFF COLD
3
2
4
1
5 6 7
3

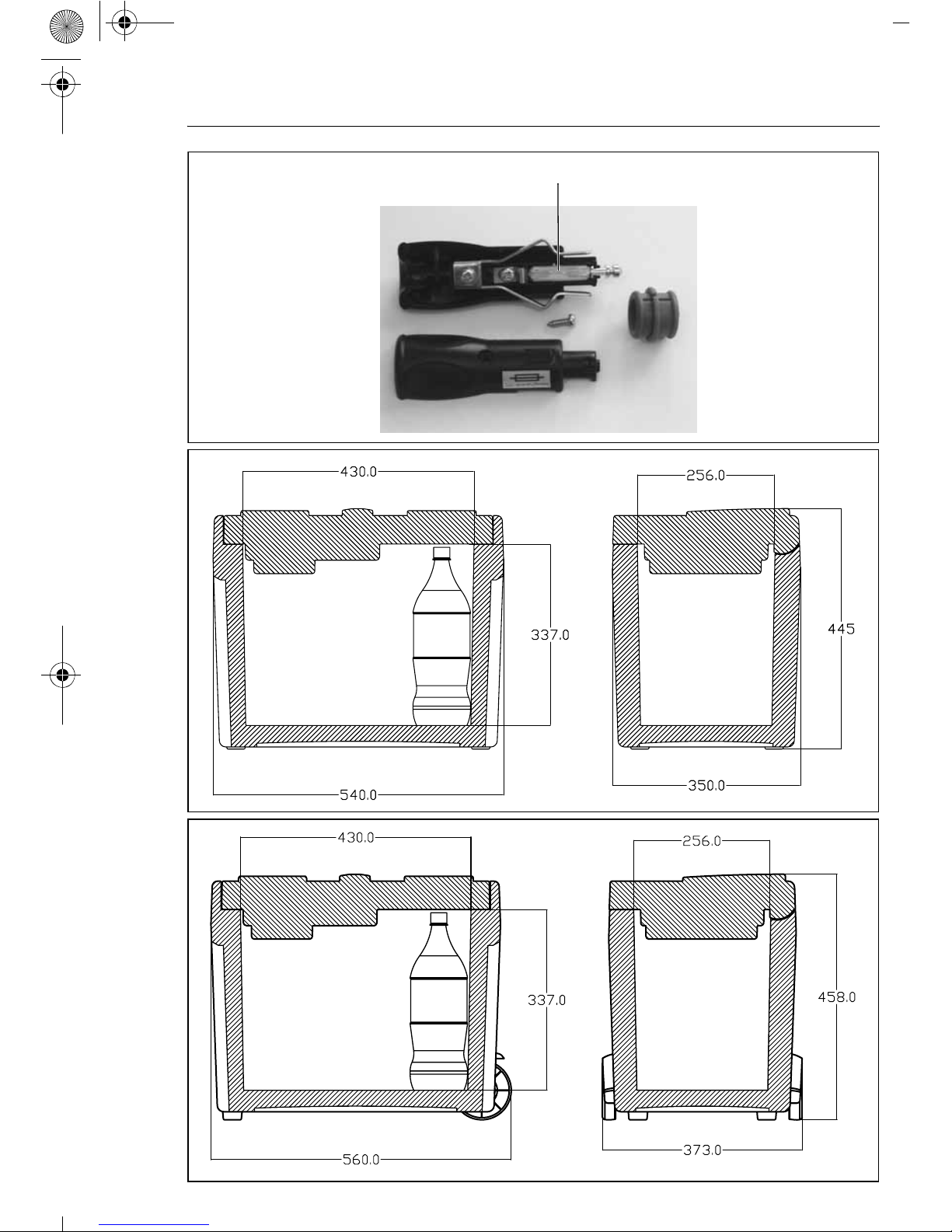

_T35_W35.book Seite 4 Dienstag, 17. Oktober 2006 2:01 14

T35/W35
1
4
5T35
6W35
_T35_W35.book Seite 5 Dienstag, 17. Oktober 2006 2:01 14

Safety instructions T35/W35
Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is resold, this
operating manual must be handed over to the purchaser along with it.
Contents
1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
8 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
9 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Please observe the following safety instructions.
1 Safety instructions
1.1 General safety
azDo not operate the device if it is visibly damaged.
zEnsure that the ventilation slots are not covered.
zThis device may only be repaired by qualified personnel. Inade-
quate repairs can lead to considerable hazards.
zPersons (including children) whose physical, sensory or mental
capabilities or lack of experience and knowledge prevents them
from using the appliance safely should not use this appliance
without initial supervision or instruction by a responsible person.
zElectronic devices are not toys.
Always keep and use the device out of the reach of children.
zChildren must be supervised to ensure that they do not play with
the device.
zFood may only be stored in its original packaging or in suitable
containers.
zThe cooling device is not suitable for transporting caustic mate-
rials or materials containing solvents.
_T35_W35.book Seite 6 Dienstag, 17. Oktober 2006 2:01 14

T35/W35 Safety instructions
ezOnly connect the device as follows:
– With the cable supplied (fig. 12, page 3) to the cigarette
lighter in the vehicle or a 12 V plug socket in the vehicle
– Or with the cable supplied (fig. 12, page 3) to the cigarette
lighter in the vehicle or a 24 V plug socket in the vehicle (on-
ly for 12/24)
– Or with the connection cable supplied (fig. 13, page 3) to
the 220–240 V AC mains supply (only for DC/AC).
zDo not pull the plug out of the 12 V, 24 V or 220–240 V socket
by the cable.
zIf the connection cable is damaged, it must be replaced with
the cable of the same type and specifications.
zPull out the connection cable:
– Before cleaning and maintenance
– After use
zOn boats: if the device is powered by the mains, ensure that the
power supply has a ground fault interrupter circuit. Danger of
fatal injuries!
zDisconnect the cooling device and other power consuming de-
vices from the battery before connecting the quick charging de-
vice.
zCheck that the voltage specification on the type plate corre-
sponds to that of the energy supply.
1.2 Operating the device safely
zBefore starting the device, ensure that the power supply line
and the plug are dry.
zDo not place the device near naked flames or other heat sourc-
es (heaters, direct sunlight, gas ovens etc.).
zCaution! Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the
heat that arises during operation does not build up. Make sure
that the device is sufficiently far away from walls and other ob-
jects so that the air can circulate.
zDo not fill the inner container with ice or fluid.
zNever immerse the device in water.
zProtect the device and the cable against heat and moisture.
_T35_W35.book Seite 7 Dienstag, 17. Oktober 2006 2:01 14

Intended use T35/W35
zDo not touch exposed cables with your bare hands. This espe-
cially applies when operating the device with an AC mains pow-
er supply. Danger of fatal injuries!
zMobicool cannot be held liable for damage resulting from
improper usage or incorrect operation.
2 Intended use
The cooling device is suitable for cooling and warming foodstuffs. There is a
switch to change between heating and cooling modes.
The device is designed for operation on:
zA 12 V DC vehicle-electrics socket of a car (cigarette lighter), boat or
caravan.
zA 24 V DC vehicle-electrics socket of a car (cigarette lighter), boat or
caravan (12/24 V version only).
zA 220–240-V AC mains supply (DC/AC version only)
The appliance may also be used for camping use. The appliance shall not to
be exposed to rain. The appliance shall not to be exposed to rain. It can be
used as a box or cupboard.
aCaution!
If you wish to cool medicines, please check if the cooling capacity
of the device is suitable for the medicine in question.
An integrated battery monitor can be switched on to protect your vehicle bat-
tery from discharging to dangerously low levels (see “Using the battery mon-
itor” on page 12).
_T35_W35.book Seite 8 Dienstag, 17. Oktober 2006 2:01 14

T35/W35 Scope of delivery
3 Scope of delivery
4 Technical description
The cooler is suitable for mobile use. You can cool products to a maximum
of 20 °C under the ambient temperature or warm them to a maximum of
65 °C.
The device has an integrated mains adapter with a priority circuit. The device
switches automatically to mains operation when the device is connected to a
220–240 V AC mains supply even if the 12 V or 24 V connection cable is still
connected.
A grid divider can be used to separate foodstuffs, e.g. bottles and fruit.
A single drinks bottle can be removed via the bottle hatch.
The W35 has two wheels and a multi-function handle so that it can be pulled
along. Alternatively, you can carry with two hands.
Its cooling system is a non-wearing and CFC-free Peltier cooling, the heat is
discharged by a fan.
No. in
fig. 1, page 3 Quantity Description
1 1 Cooling device
T35 DC, T35 12/24, T35 DC/AC
W35 DC, W35 12/24, W35 DC/AC
21DC version: Connection cable for 12 V DC
connection
12/24-V version: cable for 12 V DC supply or
24 V DC supply
31DC/AC version only: Connection cable for
220–240 V AC connection
_T35_W35.book Seite 9 Dienstag, 17. Oktober 2006 2:01 14

Operation T35/W35
4.1 Description of the device
Your cooler consists of the following parts:
5 Operation
The cooler is switched on and off via an operating panel with a cover
(fig. 23, page 4). The operating displays are visible at all times.
INote
Before starting your new cooling device for the first time, you
should clean it inside and outside with a damp cloth for hygienic
reasons (please also refer to the “Cleaning and maintenance”
chapter on page 13).
5.1 Energy saving tips
zChoose a well ventilated installation location which is protected against di-
rect sunlight.
zAllow warm food to cool down first before placing it in the device to keep
cool.
zDo not open the cooling device more often than necessary.
zRemove individual drinks bottles through the bottle hatch (fig. 24,
page 4).
zDo not leave the lid or door open for longer than necessary.
5.2 Using the cooler
INote
Like every cooling device, your cooler must be properly ventilated
so that any heat created can dissipate. Otherwise proper function-
ing cannot be ensured.
➤Place the cooler on a firm base.
No. in
fig. 2, page 4 Description
1 Handle
2 Ventilation slots
3 Operating panel and connection sockets for voltage
supply (fig. 3, page 4)
4 Bottle hatch
_T35_W35.book Seite 10 Dienstag, 17. Oktober 2006 2:01 14

T35/W35 Operation
➤Plug the 12 V connection cable (fig. 12, page 3) in into the DC socket
(fig. 16, page 3) and connect it to the cigarette lighter or a 12 V plug
socket in the vehicle.
or …
➤Plug the 24 V cord (fig. 12, page 3) (12/24-V version only) into the DC
socket (fig. 36, page 4) and connect it to the cigarette lighter or a 24 V
socket in the vehicle.
or …
➤Plug the 220–240 V connection cable (fig. 13, page 3) (only for DC/
AC) into the AC voltage socket (fig. 37, page 4) and connect it to the
220–240 V AC mains supply.
Switch the battery monitor (fig. 32, page 4) to “OFF”.
➤Push the switch (fig. 31, page 4) on the operating panel to “HOT” (Heat-
ing) or “COLD” (Cooling) to switch on the cooler.
INote
Close the box tightly by pushing down the lid.
✓The indicators on the control panel show you the operating mode:
✓The cooler starts cooling/heating the interior.
aCaution!
Ensure that the objects placed in the cooler are suitable for cooling/
warming to the selected temperature.
➤If you wish to switch the cooler off:
– Slide the switch (fig. 31, page 4) to the "OFF" position
– Unplug the connection cable.
Operating display Betriebsmodus
Red (fig. 34, page 4) Warming
Green (fig. 35, page 4) Cooling
_T35_W35.book Seite 11 Dienstag, 17. Oktober 2006 2:01 14

Operation T35/W35
5.3 Using the battery monitor
aCaution!
If you have connected your cooler to the 220–240 V AC mains
supply, switch the battery monitor off.
The battery monitor protects your vehicle battery against discharging too
much when the device is connected to the on-board 12 V or 24 V supply.
➤Push the switch (fig. 32, page 4) on the operating panel to “ON” to
switch on the battery monitor.
✓The red LED (fig. 33, page 4) on the operating panel displays the status
of the battery monitor:
➤Push the switch (fig. 32, page 4) on the operating panel to “OFF” to
switch off the battery monitor.
5.4 Connecting to a cigarette lighter
INote
If you connect the device to the cigarette lighter of your vehicle, re-
member that the ignition must be turned on to supply the device
with power.
Operating
display Operating mode
LED glows The switch-on voltage (13.1 V ± 0.2 V) is available
and the cooler is in operation.
LED flashes The switch-off voltage (11.7 V ± 0.2 V) has been
reached and the battery monitor has switched off the
cooler.
_T35_W35.book Seite 12 Dienstag, 17. Oktober 2006 2:01 14

T35/W35 Cleaning and maintenance
6 Cleaning and maintenance
eCaution!
Before cleaning the cooler, pull the cable out of the socket or the
cigarette lighter.
aCaution!
Do not clean the cooler under running water or in dish water.
aCaution!
Do not use abrasive cleaning agents or hard objects during clean-
ing as these can damage the cooler.
➤Occasionally clean the device interior and exterior with a damp cloth.
7 Troubleshooting
Fault Possible cause Suggested remedy
Your cooler does not func-
tion (plug is inserted, LED
(fig. 34 or 5, page 4)
does not glow).
There is no voltage
present in the 12/24 V
socket (cigarette
lighter) in your vehicle.
The ignition must be switched on in most
vehicles for voltage to flow at the ciga-
rette lighter.
No voltage present in
the AC voltage socket.
Try using another plug socket.
Your cooler does not cool
(plug is inserted, LED
(fig. 35, page 4) glows).
The inner fan or the
cooling element is
defective.
This can only be repaired by an author-
ised customer services unit.
Your box does not heat
(plug is inserted, LED
(fig. 34, page 4) lights
up).
The inner fan or the
cooling element is
defective.
This can only be repaired by an author-
ised customer services unit.
When operating from the
12/24 V socket (cigarette
lighter):
The ignition is on and the
cooler is not working.
Pull the plug out of the
socket and make the fol-
lowing checks.
The fitting of the
12/24 V plug is dirty.
This results in a poor
electrical contact.
If the plug of your cooler becomes very
warm in the 12/24 V socket fitting, either
the fitting must be cleaned or the plug
has not been assembled correctly.
The fuse of the 12/24 V
plug has blown.
Replace the fuse (5 A) in the 12/24 V
plug (fig. 41, page 5).
The vehicle fuse has
blown.
Replace the vehicle's 12/24 V socket
fuse (usually 15 A). Please refer to the
operating manual of your vehicle.
_T35_W35.book Seite 13 Dienstag, 17. Oktober 2006 2:01 14

Disposal T35/W35
8 Disposal
➤Place the packaging material in the appropriate recycling waste bins
wherever possible.
If you wish to finally dispose of the device, ask your local recycling
centre or specialist dealer for details about how to do this in accord-
ance with the applicable disposal regulations.
9 Technical data
T35 DC T35 12/24
Gross capacity: 35 litres
Connection voltage: 12 V DC 12/24 V DC
Power consumption: Cooling: 46 W
Warming: 41 W
Cooling: 46 W
Warming: 41 W
Cooling capacity: Max. 20 °C under ambient temperature
Heating capacity: approx. 65 °C interior temperature
(fixed-point thermostat)
Weight: approx. 7.8 kg approx. 8.0 kg
Dimensions: fig. 5, page 5
Testing/certification:
_T35_W35.book Seite 14 Dienstag, 17. Oktober 2006 2:01 14

T35/W35 Technical data
This device carries the GS symbol to indicate tested and proven safety.
Versions, technical modifications and delivery options reserved.
T35 DC/AC W35 DC
Gross capacity: 35 litres
Connection voltage: 12 V DC
220–240VAC~50Hz
12 V DC
Power consumption: DC: Cooling: 46 W
DC: Warming: 41 W
AC: Cooling: 45 W
AC: Warming: 42 W
Cooling: 46 W
Warming: 41 W
Cooling capacity: Max. 20 °C under ambient temperature
Heating capacity: approx. 65 °C interior temperature
(fixed-point thermostat)
Weight: approx. 8.1 kg approx. 8.5 kg
Dimensions: fig. 5, page 5 fig. 6, page 5
Testing/certification:
W35 12/24 W35 DC/AC
Gross capacity: 35 litres
Connection voltage: 12/24 V DC 12 V DC
220–240 V AC ~50 Hz
Power consumption: Cooling: 46 W
Warming: 41 W
DC: Cooling: 46 W
DC: Warming: 41 W
AC: Cooling: 45 W
AC: Warming: 42 W
Cooling capacity: Max. 20 °C under ambient temperature
Heating capacity: approx. 65 °C interior temperature
(fixed-point thermostat)
Weight: approx. 8,7 kg approx. 8,8 kg
Dimensions: fig. 6, page 5
Testing/certification:
_T35_W35.book Seite 15 Dienstag, 17. Oktober 2006 2:01 14
