Moffat HC2E Instruction and safety manual

Manual 003 Issue 001 October 2019
Operating & Service Manual

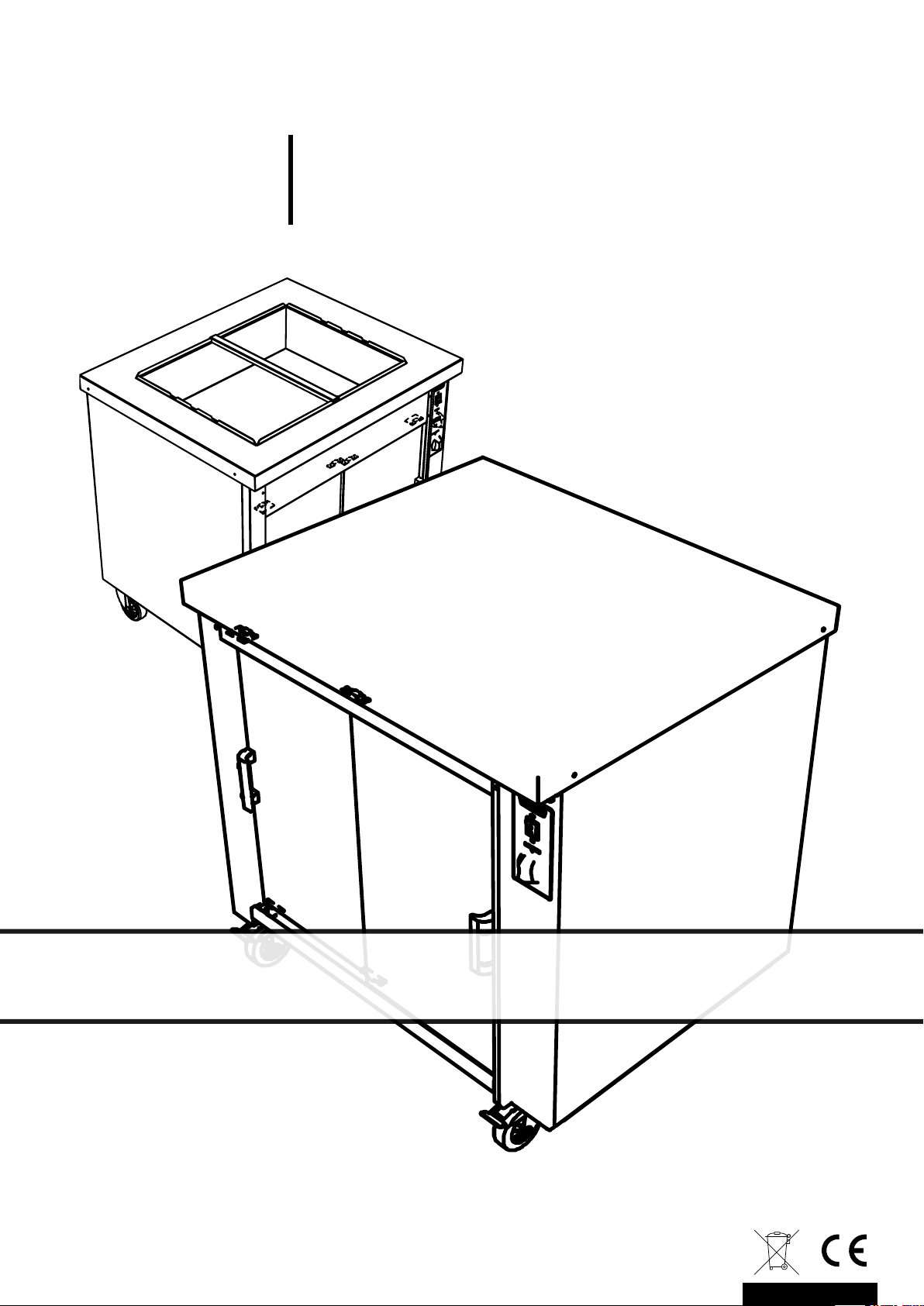

Premier Hot Cupboard &
Bain-Marie/Hot Cupboard

2
The appliance must only be used for the purpose it was designed for and may
become unsafe if used for any other purpose. Operators should be trained.
The room where this trolley is used must be dry, clean with temperatures
between 3°C and 26°C and with a maximum relative humidity of 60%.
This unit is for indoor use only and has an IPX4 rating.
Prior to ANY service calls please:
• Consult manual for basic fault-finding advice
and information required to place the call
• Check warranty/maintenance terms and conditions
To ensure the best results from this unit please take the time
to read and follow all safety, installation and maintenance
guidelines carefully before proceeding to install. Keep this
manual in a safe place for future consultation.
These appliances are CE-marked in compliance
with the relevant Low Voltage & EMC Directives.
Voltage stated on unit data plate.
Warning! Please pay attention to sections
of the manual displaying this symbol.
Warning! Do not attempt to use a hose or water jet to
clean this unit. For cleaning instructions, refer to section 6.

3
Contents
Electrical
Operation
Door Installation & Removal
Sahara Fan Installation & Removal
Bain-Marie Operation
Specifications & Dimensions
1
2
3
4
5
6
page
4
6
7
8
10
12

4
• The green/yellow wire must be connected
to terminal marked E or coloured green
• The blue wire must be connected to terminal marked N or coloured black
• The brown wire must be connected to terminal marked L or coloured red
Electrical ratings are shown on the unit ‘Data Plate’ (Typically fitted to
side of unit). As a rule, all Stand alone appliances/units are supplied with
a mains cable and the appropriate socket interface (Note: Although rare
there are exceptions: e.g. Units intended as part of a built in counter).
Appliances/units with an electrical load under 3kw are supplied with a
two metre long mains lead, type ‘y’, and moulded fused 13-amp plug
(BS 1363) Warning: Damaged supply cords must be replaced before use.
These units are designed for connection to a single-phase AC supply. The
wires are coloured with the following codes. In accordance with (BS 7671).
As the colours of the wires in the mains lead may not correspond with the
coloured markings identifying the terminals in your plug proceed as follows:
Should the supplied plug not be suitable for your socket outlet, it should be
removed from the cable by a qualified electrician and replaced with the
appropriate type, ensuring it’s protected with the correct rating of fuse.
Live (L1)
L2
L3
Neutral
Earth
1 Phase Cable 3 Phase Cable
Brown
X
X
Blue
Yellow & Green (Striped)
Brown
Black
Grey
Blue
Yellow & Green (Striped)
1: Electrical
Before commencing, ensure that all
regulations for fire are complied with.

5
Electrical supply cable type CEN LEC H07 RN-F must
be installed using a suitable isolating switch which has
a minimum contact separation of 3mm in all poles.
Units that are part of a counter are pre wired in the factory
for connection on site, these counters depending on
the customers specification may be fitted with either an
isolator or MCB unit. In accordance with health and safety
at work acts, BS codes of practice, IEE regulations, building
standards, fire precautions act, and local authority and
building regulatiowwns etc. all appliances/units over 3Kw
require a qualified electrician to install them.
Do not connect to a dierent power supply from
stated on the data badge. This could damage
the unit. If you are in any doubt about the
correct supplies, contact a qualified electrician.

6

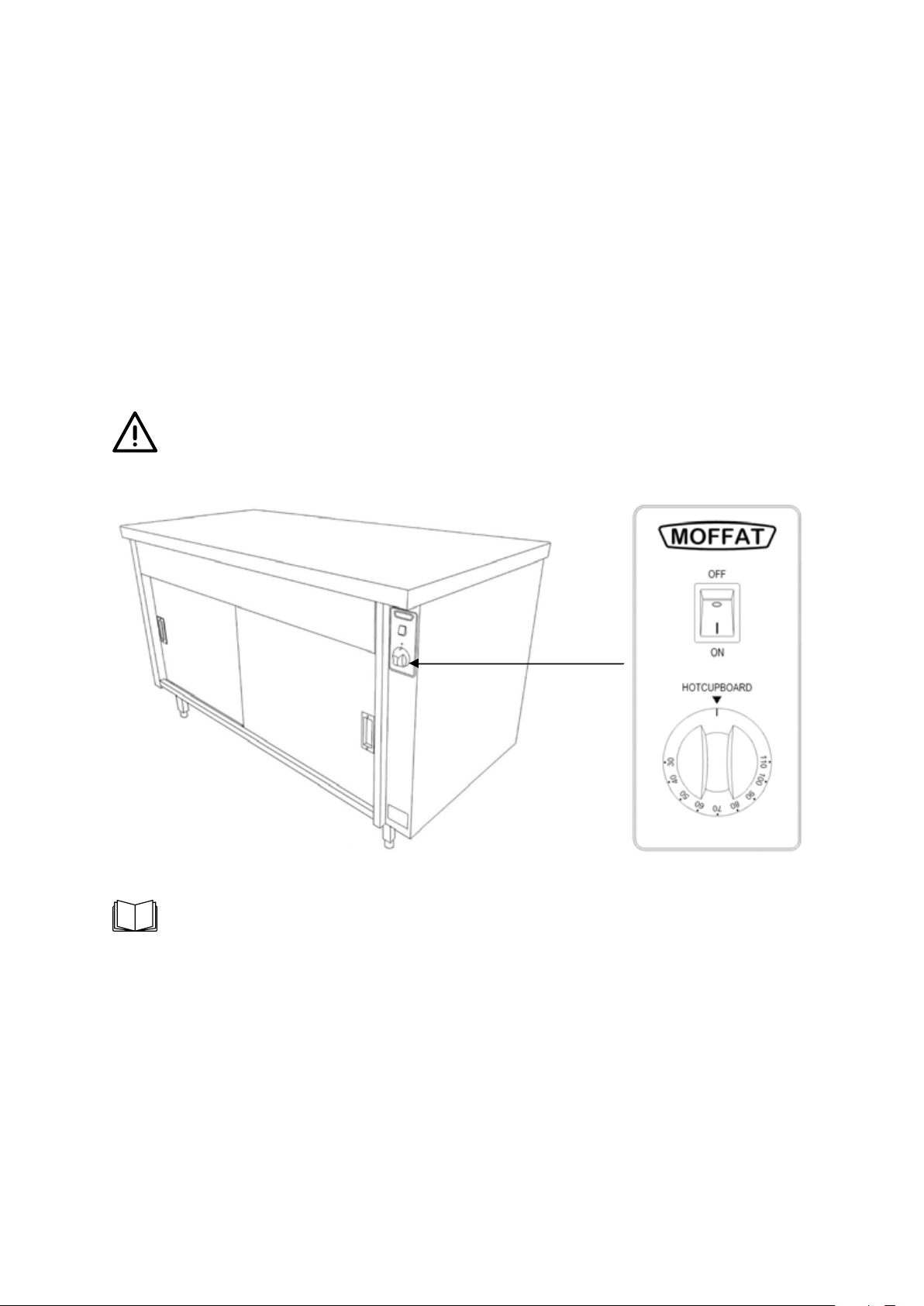

1. Connect plug to 13-Amp socket and switch on at mains socket.
2. Close doors & click the green neon on/o ’Mains’
switch to the on position (The switch will illuminate)
3. Turn the control knob ‘fully’ clockwise to
highest temperature & leave for 30mins.
2: Operation
These units are not designed to heat up or cook cold food.
The correct Holding temperature is dependent on the food type,
amount of food in serving container, etc. Keep Doors Closed at
all times, only opening to load/unload cupboard contents.
Before using the unit for the first time, it
needs to be checked that it’s perfectly level.
Hot storage cupboard with removable assisted ‘Sahara’ fan heating
unit (Refer to page 6 for details on how to remove Sahara fan). Unit is
fitted with removable sliding doors & removable rodded shelves, which
are split into manageable sections to ease cleaning and maintenance.
The hot cupboard is excellent for preheating Plates & Dishes, as well as
the temporary storage of precooked food whilst service is in progress
e.g. Cooked meats/poultry, vegetables, sauces, etc.

7
1. Hold the door at a slight angle (Fig 3) & locate the door fully into the top track.
2. Holding the door in the top track, swing the bottom of the door inwards until it
comes in contact with the rear of the bottom track.
3. Gently lower the door into the bottom track, & slide the door fully to the left.
3: Door Installation & Removal
The fitment of the outer door
(Door B) is the same as above,
except when lowered into the
bottom track slide it fully to
the right. Note: It’s imperative
the doors must be fitted in
correct order as shown in fig 2
Door ‘A’ first then Door ‘B’.
Door removal is a reverse of
the above.
4. After this time period has elapse, readjust the cupboard temperature by
turning knob anti-clockwise to desired holding temperature. Containers
with ‘cooked’ food can now be loaded (Remember to close doors)
5. When serving is complete all switches should be turned
o and the 13-Amp plug removed from the socket.
6. To maintain the life of this product, all surfaces need cleaning regularly with
a damp cloth. Refer to page 12 of this manual for more info on cleaning.

8
4: Sahara Fan Installation & Removal
The Sahara-Fan heater fitted provides excellent balanced heating
coupled with energy savings. The unit can be easily removed & replaced
for cleaning or maintenance as it has a simple bayonet & clip fastening
system. The diagrams below demonstrate the removal of the hot
cupboard Sahara fan. As the fan is located in the base of the cupboard,
access to the Plug & socket is via the underside of the unit (fig 4).
1. Locate the fixing clip on the ‘Male’ plug fitted to the
Sahara fan & unclip as shown in (fig 4a)
2. Prise the female socket o the plug (fig 4b)
3. Remove as many rodded shelf sections as needed to allow
access to the Sahara fan. Lift out at a slight angle taking
care not to damage the plug attached to the fan (fig 5)
Although not shown in figure 5; the Sahara fan supplied has
a protective St/steel cover over the top air intake. This shields
the fan innards from any food or liquid spillage from above.
Fitting is a reversal of the above.
When fitting the socket into the plug on the fan, take
care to line up the locating protrusion on the ‘Male’ plug
with the locating cut-out on the Female socket (Fig 4c).

9

10
5: Bain-Marie Operation
This Bain-Marie well can be used either dry or wet heat with an
inset well designed to accomodate various combinations of
interchangable gastronome type pans up to 150mm deep. Bain-marie
units are designed to keep pre-cooked food at serving temperature
and are suitable for the display of most types of hot foods.
1. First check the drain valve inside the left-hand
door of the hot-cupboard is in the closed position.
2. Remove the Bain-Marie container situated
directly above the ‘water level indicator’.
3. Carefully fill well with water up to the water level
indicator [approximately 20mm deep].
These units are not designed to cook
raw food or to heat up cold food.
E&R Moat Ltd. were the originators of a Bain-Marie that could be
either wet or dry heat. This type of system was designed to oer
flexibility and was developed to eliminate the need to fit a low water
level warning system or the expense of replacing burned out elements.
Wet Heat:
Water level is an economic, 20mm deep [water level mark
on side of well], complete with drain valve and swing-out, run-o
tube for easy emptying & cleaning.
Before using the unit for the first time, check the unit is level.
Filling Well:
If required to top up the water level in mid
service, use suitable heat insulated gloves
when removing the hot Bain-Marie container.
Do not over fill with water. Too much water
will impinge on performance and eciency.

11
4. Replace container and switch on.
5. Turn Bain-Marie control knob to No. 3 (No. 3 is full on).
6. Turn Hot-Cupboard control knob to 110°C.
7. Leave to heat up for approximately 45 minutes
before filling containers with cooked food produce.
The correct serving temperature is dependant on
the food type, amount of food in container, etc. Do
not remove lids until service is due to commence.
8. After 45 minutes, adjust control knobs to the desired settings.
Recommended settings are Bain-Marie 2 or 3 and Hot-Cupboard to 90°C.
9. When serving is complete, all switches should be turned o.
10. To maintain the life of this product, all surfaces need
cleaning regularly with a damp cloth.
Dry Heat:
Dry heat works in the same way without any water in the
well. Heat up time will be around 30 min.
The base of the well will distort slightly and discolour
when used dry. This is normal.
Draining well:
1. Switch o & disconnect unit from mains power,
then wait until water cools down to room temperature.
2. Open to the hot cupboard left hand door fully & securely
place a suitable size container under the flexible drain hose.
3. Open drain valve & fill container.
4. Switch o valve & empty container when full
in a suitable place. Repeat until well is empty.
5. Close drain valve then close hot cupboard door.
6. The well can now be cleaned (See page 12 for cleaning instructions).

12
9: Specifications & Dimensions
Standard Hot-Cupboard
Model
HC2E
HC3E
HC4E
HC5E
HC6E
Weight
(kg)
63
78
95
111
130
Length
884
1212
1540
1865
2196
Width
750
750
750
750
750
Height
900
900
900
900
900
Power
Rating
(Kw)
1
1.5
1.5
1.9
2
Electrical
Supply
13amp
13amp
13amp
13amp
13amp
Hot-Cupboard & Bain-Marie (Wet Heat)
Model
HB2E
HB3E
HB4E
HB5E
HB6E
Weight
(kg)
65
81
100
118
138
Length
884
1212
1540
1865
2196
Width
750
750
750
750
750
Height
900
900
900
900
900
Power
Rating
(Kw)
2.4
2.9
2.9
3.5
3.8
Electrical
Supply
13amp
13amp
13amp
16amp
32amp
1/1
Gastronorm
Container
Cutouts
2
3
4
5
6
Gastronorm Containers are not supplied with Bain Marie units.

13
1/1
Gastronorm
Container
Cutouts
2
3
4
5
6

E&R Moat Ltd.
Bonnybridge
FK4 2BS
Scotland
Scan the QR code below to visit the
E&R Moat website for further information:
www.ermoat.co.uk
[phone]
sales@ermoat.co.uk
Thank you for choosing E&R Moat!
