BA310/BA400/BA410
Multi Viewing System
Instruction Manual
MVH - 2 Two observers (Side Side)
MVH - 3 Three observers (Side Side)
MVH - 5 Five observers (Side Side for BA400/BA410)
MVH - 2 Two observers (Face Face)

1
To ensure correct usage, read this manual and the instruction manual specific
to the microscope being utilized.
We are constantly endeavouring to improve our instruments and to adapt them to the
requirements of modern research techniques and testing methods. This involves
modification to the mechanical structure and optical design of our instruments.
Therefore, all descriptions and illustrations in this instruction manual, including all
specifications are subject to change without notice.

2
Table of Contents
I. Nomenclature 3
II. Assembly 7
MVH – 2 Two observers (SideSide) 7
MVH – 3 Three observers (SideSide) 10
MVH – 5 Five observers (SideSide) 12
MVH – 2 Two observers (FaceFace) 14
III. Observation 17
IV. Troubleshooting 18

3
I. Nomenclature
For MVH-2 (SideSide)

4
MVH-2 (FaceFace)

5

6

7
II. Assembly
Assembly for MVH–2 Two observers (SideSide)
The following drawing illustrates the configuration of the viewing attachment.
▲▲Convey the image orientation of each field of view.
This viewing head configuration does not allow the attachment of additional
intermediate parts.
Tools Needed: Allen Hex Wrench provided with the Viewing Head.
Steps in Assembly Process:
Step 1. Main Observation Head
Step 2. Sub-Observation Head
Step 3. Support Stand
Step 4. Eyepiece Tube Sub-Observation Head
Step 5. Eyepiece Tube Main Observation Head
Step 6. Input Plug for the Arrow Illuminator
Step 7. AC Adapter

8
Step 1. Main Observation Head
Install the main observation head with the arrow control knob facing the main user.
Fasten with the clamp screw located on the right hand side of the microscope arm.
Step 2. Sub-Observation Head
Slot in the relay lens unit (with sub-observation head attached) into the relay lens opening
on the main head. Secure with the relay lens unit clamping ring.
The relay lens unit can be slot in either side of the main observation head

9
Step 3. Support Stand
Adjust the height of the support stand to ensure the main head and the sub-
observation head are horizontal when attached.
Release the height adjustment clamp knob, and let the centre rod float up with the aid
of the built-in spring.
Adjust the height of the centre rod to bring the spherical surface of the rod in
coincidence with the spherical base of the sub-observation head.
Tighten the height adjustment clamp knob while maintaining the horizontal
alignment of the sub-observation head.
Tighten the support stand clamp ring to the spherical base of sub-observation head
Step 4. Binocular Tube Sub-Observation Head
Mount the Binocular tube on the sub-observation head and fasten in position using the
eyepiece clamp screw.
Step 5. Trinocular / Binocular Tube Main Observation Head
Mount the Trinocular / Binocular tube on the Main observation head and fasten it in
position, using eyepiece clamp screw.
Step 6. Input Plug for the Arrow Illuminator
Step 7. AC Adapter
Connect the AC adapter output jack plug to input jack socket on the left side of the
main observation head
Plug AC adapter into the power source receptacle

10
Assembly for MVH–3 Three observers (SideSide)
The following drawing illustrates the configuration of the viewing attachment.
▲▲Convey the image orientation of each field of view.
This viewing head configuration does not allow the attachment of additional
intermediate parts.
Tools Needed: Allen Hex Wrench provided with the Viewing Head.
Steps in Assembly Process: MVH–3 Three observers (SideSide)
Step 1. Main Observation Head
Step 2. Sub-Observation Head
Step 3. Support Stand
Step 4. Binocular Tube Sub-Observation Head
Step 5. Trinocular / Binocular Tube Main Observation Head
Step 6. Input Plug for the Arrow Illuminator
Step 7. AC Adapter

11
Step 1. Main Observation Head
Please refer to Assembly instruction under MVH-2
Step 2. Sub-Observation Head
Please refer to Assembly instruction under MVH-2
Step 3. Support Stand
Please refer to Assembly instruction under MVH-2
Step 4. Binocular Tubes Sub-Observation Head
Mount the Binocular tubes on the sub-observation head
and fasten in position using the clamp screw.
Step 5. Trinocular / Binocular Tube Main Observation Head
Mount the Trinocular / Binocular eyepiece tube on the Main observation head and fasten
it in position using clamp screw.
Step 6. Input Plug for the Arrow Illuminator
Please refer to Assembly instruction under MVH-2
Step 7. AC Adapter
Please refer to Assembly instruction under MVH-2

12
Assembly for MVH–5 Five observers (SideSide)
The following drawing illustrates the configuration of the viewing attachment.
▲▲Convey the image orientation of each field of view.
This viewing head configuration does not allow the attachment of additional intermediate
parts.
Tools Needed: Allen Hex Wrench provided with the Viewing Head.
Steps in Assembly Process: MVH–5 Five observers (SideSide)
Step 1. Main Observation Head
Step 2. Sub-Observation Head
Step 3. Support Stand
Step 4. Binocular Tubes Sub-Observation Head
Step 5. Trinocular / Binocular Tube Main Observation Head
Step 6. Input Plug for the Arrow Illuminator
Step 7. AC Adapter

13
Step 1. Main Observation Head
Please refer to Assembly instruction under
MVH-2
Step 2. Sub-Observation Head
Slot in the relay lens unit (with sub-observation
head attached) into the relay lens opening on
either side of the main head. Secure with the
relay lens unit clamping ring.
Step 3. Support Stand
Please refer to Assembly instruction under MVH-2
Step 4. Binocular Tubes Sub-Observation Head
Mount the Binocular tubes on the sub-observation heads and fasten in position using the
clamp screw.
Step 5. Trinocular / Binocular Tube Main Observation Head
Mount the Trinocular / Binocular eyepiece tube on the Main observation head and fasten
it in position using clamp screw.

14
Step 6. Input Plug for the Arrow Illuminator
Please refer to Assembly instruction under MVH-2
Step 7. AC Adapter
Please refer to Assembly instruction under MVH-2
Assembly for MVH–2 Two observers (FaceFace)
Tools Needed: Allen Hex Wrench provided with the Viewing Head.
Steps in Assembly Process:

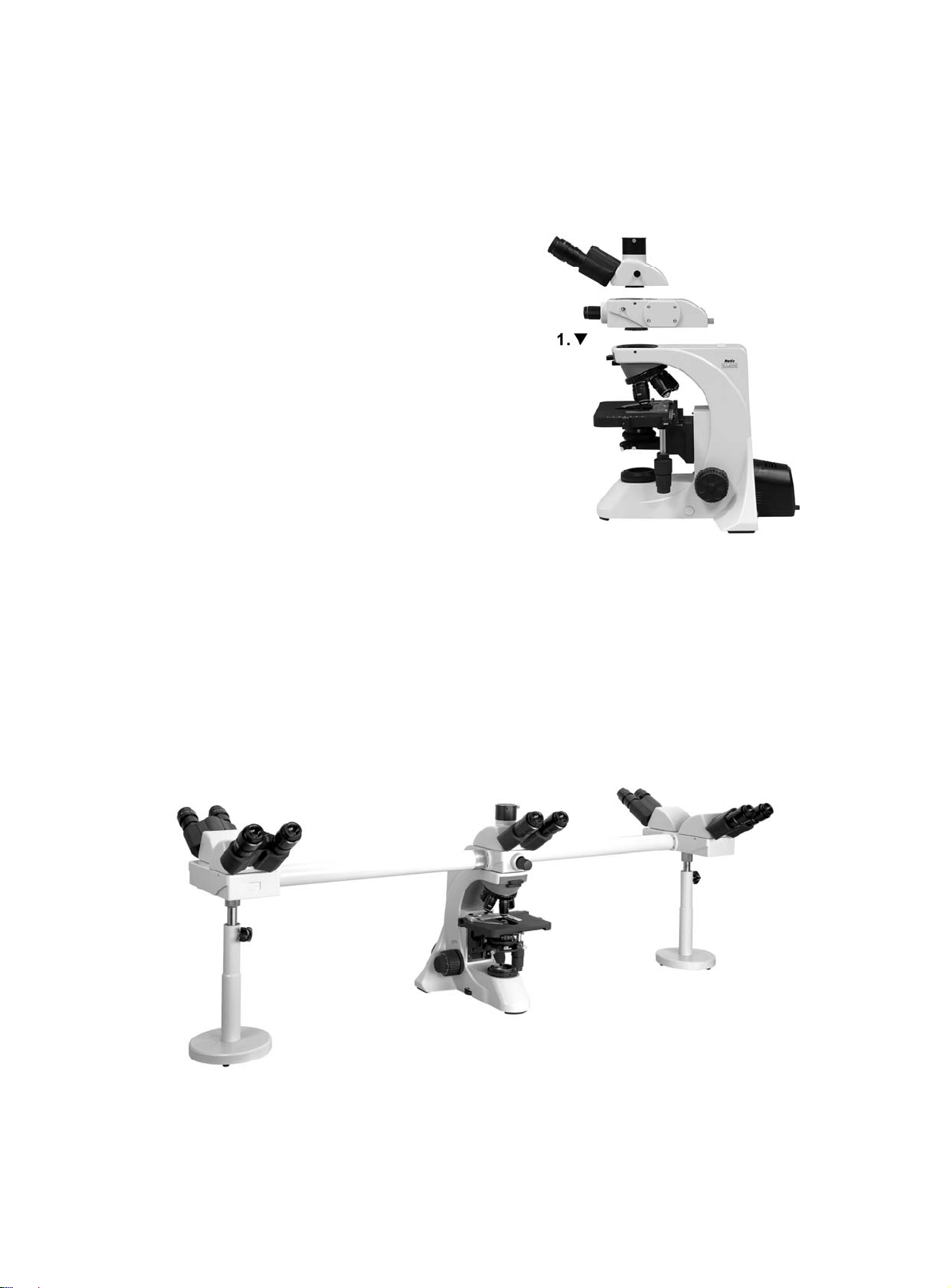

Step 1. Optical Bridge Unit
Step 2. Support Stand
Step 3. Binocular Tube Sub-Observation Head
Step 4. Trinocular / Binocular Tube Main Observation Head
Step 5. Input Plug for the Arrow Illuminator
Step 6. AC Adapter
Step 1.Optical Bridge Unit
Slot in the optical bridge uniit (with sub-observation attached) into the microscope body
with the arrow control knob facing the main user. Fasten with the clamp screw located on
the right hand side of the microscope arm.

15
Step 2. Support Stand
Please refer to Assembly instruction under MVH-2
Step 3. Binocular Tubes Sub-Observation Head
Mount the Binocular tubes on the sub-observation heads and fasten in position using the
clamp screw.
Step 4. Trinocular / Binocular Tube Main Observation Head
Mount the Trinocular / Binocular eyepiece tube on the Main observation head and fasten
it in position using clamp screw.
Step 6. Input Plug for the Arrow Illuminator
Please refer to Assembly instruction under MVH-2
Step 7. AC Adapter
Please refer to Assembly instruction under MVH-2
Rechargeable Batteries - Nickel-Metal Hydride (NiMH)
No memory effect! - NiMH's do not develop a 'memory' like NiCad rechargeable
batteries. The memory effect occurs when a rechargeable battery is recharged before it is
fully depleted. Over time, the battery will have to be re-charged much sooner than before.

16
Install new batteries according to the specific instructions and warnings provided.
Remove the battery cover by partially unscrewing the knurled thumb screws
with a coin or screwdriver.
Motic instructions for replacing the new batteries may be slightly different than the
instructions provided by the manufacturer of the batteries. When in doubt, contact
your local Motic representative for assistance.
For the first time the battery is charged, charge overnight or for a minimum of 10
hours. The viewing head can be used during the charging process.
Do not remove the viewing head from AC Power until the first charge is complete.
This is critical to the overall life of your battery.
CAUTION: All batteries can explode causing injury if shorted or mishandled. Take
precautions to protect yourself when installing. Always charge batteries with a charger
designed for your battery size. Always consult the manufacturer of your equipment for
proper installation, handling, safety, and charging instructions.
When in doubt, seek the help of a professional technician for installation and charging.

17
III. Observation
The sub-head observer will view the same image as the main observer if the main
observer has adjusted the diopter settings according to the microscope instruction
manual.
Diopter adjustment
Project the arrow into the field of view.
The main observer should set the diopter adjustment rings for both the left and right
eye to bring the arrow into focus.
After the main observer has brought the arrow into focus, the secondary observer
should bring the image of the arrow into focus.
This completes the diopter setting.
Selecting the Pointer Colour
Using the pointer colour switch, select a colour which is visibly distinguishable from
the specimen colour.

18
IV. Troubleshooting
The field of view of the sub-
observation head is cut off. 
Adjust the height of the support
stand so that the main head and the
sub-observation head are horizontal
when attached.
Specimen and arrow are not
simultaneously focused. Adjust the diopter settings refer to Diopter
adjustment.
The arrow is not visible when
pointer is used. The pointer colour switch is in
intermediate position.
The arrow is not visible when
pointer is used. Allow the battery to charge
overnight.
