Motorino Xpi Use and care manual

Assembly and User's Manual

Model: XPi/XPh

For the most recent version of this user's manual and for all updated

product information please visit www.motorino.ca or call

Customer Service / Technical Support at:

604-331-0555

GREENWIT TECHNOLOGIES Inc. 2007

READ THIS MANUAL BEFORE OPERATING YOUR

GREENWIT Ltd. STRONGLY SUGGESTS THE

OPERATOR OF THIS PRODUCT BE 16 YEARS OF AGE OR OLDER.

MOTORINOTM

YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS

INVOLVING THE USE OF THE . TO DETERMINE IF COVERAGE IS

PROVIDED YOU SHOULD CONTACT YOUR INSURANCE COMPANY OR AGENT.

MOTORINOTM

Table of Contents ..................................................................................................................

Features and Specifications ...............................................................................................

 Contents of the box ..............................................................................................................

General safety guidelines ....................................................................................................

................

 Before each ride .....................................................................................................

 After each ride ........................................................................................................

Assembly Instructions..........................................................................................................

Battery........................................................................................................................................

General Usage Notes............................................................................................................

Maintenance............................................................................................................................

 Break Maintenance................................................................................................

 Flat Tire Repair ........................................................................................................

Operating Instructions.....................................................................................................

 Key and Throttle operation................................................................................

 Display........................................................................................................................

 Main Components................................................................................................

Troubleshooting ...................................................................................................................

Warranty..................................................................................................................................

Warranty Service .................................................................................................................

Return Policy...........................................................................................................................

Notes..........................................................................................................................................

TABLE OF CONTENTS

FEATURES & SPECIFICATIONS

FEATURES AND SPECIFICATIONS

- Motor Specs: Brushless DC Motor, Rotated Peak Power: 500W, Speed: 400r/min

- Recharge Time for the Battery: 4-6 Hours

- Battery Holds 4-6 Hours of ride Time

- One Full Charge Lasts up to 50 km with single battery and 80 km with dual.

- Speeds up to 32km/h on level pavement with 75 kg rider

- Weight of MOTORINO: 75 kg

* More details available at www.motorino.ca

CONTENTS OF THE BOX

- with 48V battery installed (charging required)

- Left and right pedals (to be attached, no tool required)

- 48V charger for 110V AC outlet

- Rain cape and bike rain cover

- Two Ignition Keys (also used for under seat storage and main battery compartment)

- Two remote alarm controllers

- Two mirrors (left and right)

- Two Storage Box Keys

UNDERSTANDING THIS MANUAL

This Manual contains many notes concerning the consequences of failure to

maintain or inspect your

MOTORINOTM

. A means that failure to follow the

instructions following it may result in injury to the rider or others during use, which may

include loosing control and falling. Because any fall can result in serious injury or even death,

we do not repeat the warning of possible injury or death whenever the risk of falling is

mentioned. A on the other hand means that failure to follow the instructions

may result in damage to the MOTORINO™ or component during installation or use.

(I.e. risk of property (product) damage only)

Thank you for purchasing the low speed electrically powered

MOTORINOTM

The

MOTORINOTM

complies with the Canadian Motor Vehicle Safety Regulation Act

(CMVSRA).It is classified as Power Assisted Bicycle in section 1.2.1 in the above mentioned

act.

MOTORINOTM

GENERAL SAFETY GUIDELINES & RESTRICTIONS

Your province motor vehicle branch, or the city or county where it will be used, may regulate the

use of devices like the

MOTORINOTM

. Some provinces or states may require a driver's license or

minimum age to use the

MOTORINOTM

. In some provinces it may be referred to as an "power

assisted bicycle" or "restricted use motorcycle". Please check with your local motor vehicle

branch or insurance company on requirements for using the

MOTORINOTM

If your province or state allows the

MOTORINOTM

to be used on vehicle roadways please make

sure you are familiar with all traffic laws, such as yielding to pedestrians and other motorists,

signaling, riding as far to the right edge of the roadway as possible, obeying traffic signs etc.Your

province MVB or state DOT can provide you with materials related to these traffic laws.

In addition to those traffic laws abide by the following general principals:

1. You are sharing the road or the path with others - motorists, pedestrians and other cyclists.

Respect their rights, and be tolerant if they infringe on yours.

2. Ride defensively.

3. Look ahead of where you're going, and be ready to avoid:

- Vehicles slowing or turning in front of you, entering the road or your lane ahead of you, or

coming up behind you.

- Parked car doors opening in front of you.

- Pedestrians stepping out in front of you.

- Children or dogs playing near the road.

- Pot holes, sewer grating, railroad tracks, expansion joints, road or sidewalk construction,

debris and other obstructions that could cause you to swerve into traffic, catch your wheel or

otherwise cause you to lose control and have an accident.

- The many other hazards and distractions which can occur while using the

MOTORINOTM

during a ride.

4. Ride on the right side of the road, in the same direction as vehicle traffic and as close

to the edge of the road as possible.

5. Stop at stop signs and traffic lights; slow down and look both ways at street intersections.

Remember that the

MOTORINOTM

will always lose in a collision with a motor vehicle, so be

prepared to yield even if you have the right of way.

6. Always use signal lights or hand signals for turning and stopping. Learn the local vehicle code

for the correct signal.

GENERAL SAFETY GUIDELINES & RESTRICTIONS

ALWAYS USE A HELMET WHILE RIDING THE

IN ADDITION TO THE REQUIREMENTS ABOVE, THE IS NOT

TO BE RIDDEN / USED:

1. on any roadways where the speed limit is

in excess of 50 km/h

2. on any sidewalks or pedestrian walkways

3. on any bumpy, rough or unpaved surfaces

4. in darkness without lights on

5. on sandy or gravel covered surfaces

6. by any person weighing more than 310 lbs

7. by any person with an inseam of less than 22"

MOTORINOTM

7. Don't weave through traffic or make any moves that may surprise people with whom

you are sharing the road.

8. Never carry anything which obstructs your vision or your complete control of the

or which could become entangled in the moving parts of the

9. Never hitch a ride by holding on to another vehicle.

NEITHER GREENWIT Ltd. NOR THE RETAIL SELLER OF THE

IS RESPONSIBLE FOR THE CONSEQUENCES OF FAILURE TO COMPLY WITH

FEDERAL AND PROVINCIAL ORDINANCES RELATING TO THE USE OF THE

US and Canadian safety regulations require that you

use a helmet like those used by human powered bike

riders while riding the

should not be used under any

circumstances without properly wearing a helmet.

MOTORINO

MOTORINOTM

1" inch

22" inch

8.by any physically or mentally challenged person

9.by any person with vision,balance,hearing or coordination impairments

10.by any person using headphones or a cellular phone [They mask traffic sounds

and emergency vehicle sirens, distract you from concentrating on what's going on

around you, and their wires can tangle in the moving parts of the ,

causing you to lose control]

11.to carry more than 10 lbs of cargo in the cargo compartment (in addition to the rider)

12.in excess of 20 mph (with or without the motor activated)

13.by barefoot riders or those wearing sandals, open toed,high heeled, platform or

slip on footwear

14.by any person who has ingested any alcohol or drug that could impair their ability

to operate the

15.without 2 hands on the handle bar

16.while not seated on the seat

17.to jump ramps, curbs,or objects or attempt any stunts

18.with excessive speed for the terrain, circumstances or maneuver with clothing or

extremities in close proximity to the drive chain or any moving parts

19.beyond your ability or prior experience

20.by stopping with only the front brake.Use both brakes simultaneously

21.Do not try to accelerate and have the brake (s) on at the same time.

[This may cause damage to the motor or drive train or cause the motor or drive

train to overheat.]

BEFORE EACH RIDE:

1. Make sure you properly wear a helmet

2. Wear protective clothing and gloves

3. Wear eye protection that does not interfere with your peripheral vision

4. Check local and state laws before operating the in any area

5. Make sure all tail/brake lights, turn signals and headlight are operational

6. Make sure the horn is operational

7. Make sure the brakes are properly adjusted and working correctly (see further

detailed instructions).

8. Make sure you understand how the brakes work and that your hands can reach

and squeeze the levers comfortably and hard enough to stop the

safely.

9. Make sure the chain is properly adjusted (see further detailed instructions).

GENERAL SAFETY GUIDELINES & RESTRICTIONS

MOTORINO

GENERAL SAFETY GUIDELINES & RESTRICTIONS

10.Make sure all parts of the are properly and securely fastened and adjusted,

including but not limited to pedals, crank arms,wheels,all controls and cargo

(Please refer to Assembly Instructions)

11.Make sure the tires are not excessively worn, do not have tears or cuts, and are properly

seated on the rim and inflated to the proper pressure on the sidewall

(DO NOT USE GAS STATION PUMPS FOR INFLATION)

12.Make sure the wheels spin straight and that the rims are not bent or damaged

(front wheel must be undamaged for front brake to work properly)

13.Make sure the throttle is in the "OFF" position before turning key on.

This will prevent the from moving forward without notice once the

ignition key is turned.

AFTER EACHRIDE:

1. Make sure that the ignition key is turned OFF and that all keys are removed and

kept in a safe place

2. Make sure to plug the battery on charge

3. Make sure the throttle is rotated to the off position

4. Ensure that the kickstand is used so the will not fall over and get damaged

5. Ensure the is not kept outdoors or where moisture can damage it

6. Do not charge or store the closer than 20 feet from any flame

(e.g. furnace, fireplace, water heater, space heater)

7. Do not allow children under 16 to play on or near the unattended



 FAILURE TO FOLLOW THESE OPERATION INSTRUCTIONS CAN RESULT IN

SERIOUS INJURY OR DEATH OR COULD RESULT IN AN ELECTRICAL SHORT AND OR

FIRE.



DONOTMAKE ANYALTERATIONSORMODIFICATIONSTOTHE ,

OR ADD ANY PARTS NOT AUTHORIZED BY GREENWIT Ltd. EXCEPT THOSE

DISCUSSED IN THIS MANUAL OR THOSE REQUIRED BY LAW. DO NOT REMOVE ANY

REFLECTORS, LIGHTS OR OTHER STANDARD EQUIPMENT. DOING THAT WILL VOID

YOUR WARRANTY.

All authorized replacement parts are listed on the parts list enclosed

or available at www.greenwit.com  and www.motorino.ca or by calling your local

- dealer.

MOTORINOTM

ASSEMBLY INSTRUCTIONS

  FRONT PANEL

MOTORINO XPi

Locate the front panel and connect the head light

wire plug to the correspondent plug at the front of

the bike as shown on the picture. Insert the plastic

fins of the front panel at the corresponding channels

of the base (see the picture) and slide it upwards

untill the holes of the back black cover match the

screw holes of the cover. Insert the screws into the

holes of the black back cover and screw them onto

the front cover.



MOTORINO XPh

Locate the front panel and connect the head light

wire plug to the correspondent plug at the front

of the bike as shown on the picture. Locate the

front hole in the middle of the panel and use the

included short bolt to attach it to the body .

Locate all attachment points of the cover, insert

the screws into the holes of the black cover and

screw them onto the front cover.

HANDLE BAR

Insert the top part of the handlebar into the handlebar

post as shown on the picture. Locate the attachment bolt

with the nut and the spacer and insert the bolt in the hole

from back to front. Slide the spacer into the bolt with the

round side facing the handlebar post. Screw the nut on top

and tighten it. After attached, the handlebar should look as

on the picture on the right.

ASSEMBLY INSTRUCTIONS

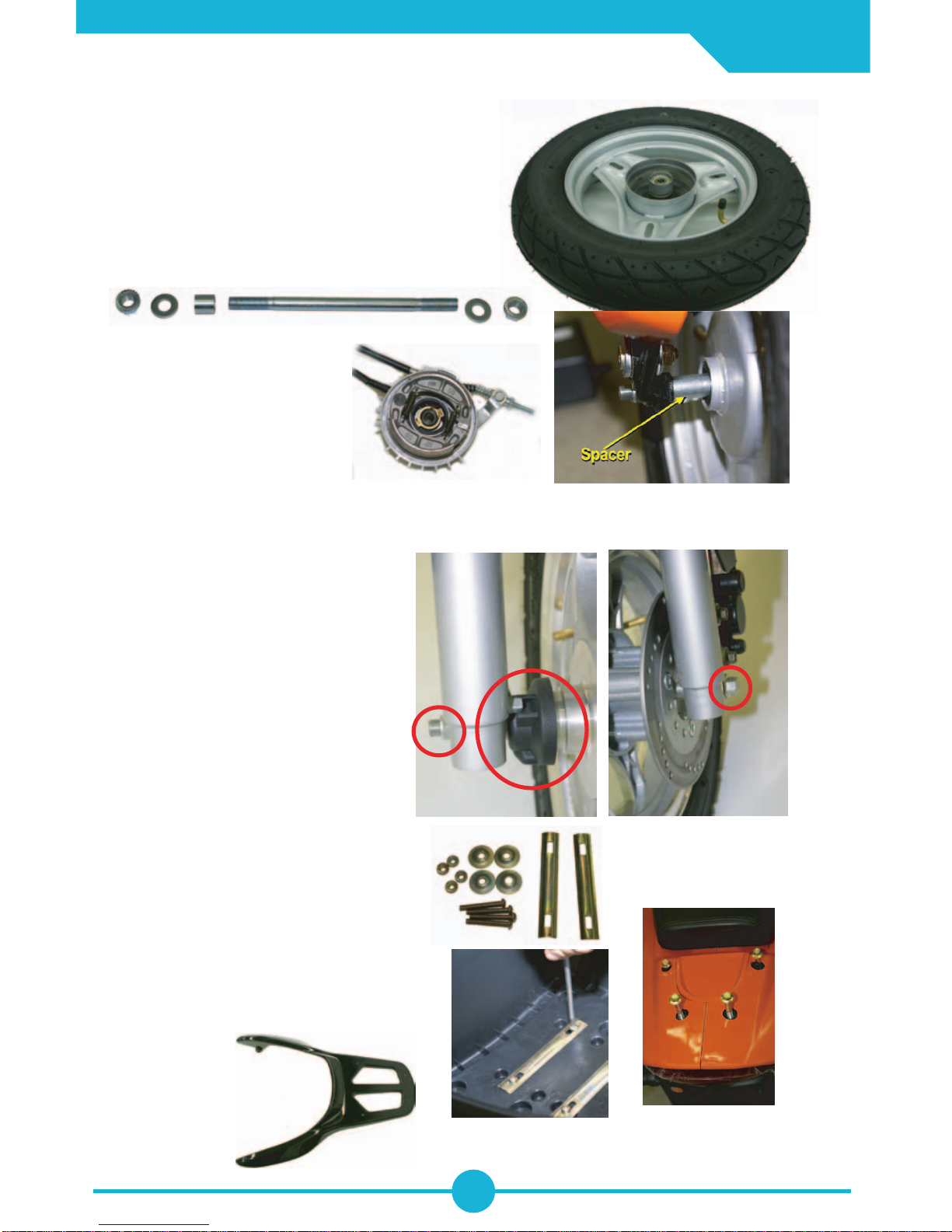

FRONT WHEEL WITH DRUM BREAK

The front end of the bike is attached to the crate

with a bolt which is the original axle. Unscrew

the nut carefully and remove the axle. Locate the

front wheel and insurt the break mechanism

into it.

nsert the axle first in the swing

arm of the front fork and then

in the break drum and the wheel.

Make sure to apply the spacer

before inserting the axle in the

other side of the fork.Tighten the

nuts firmly.

FRONT WHEEL WITH DISK BREAK

Before installing the front wheel

gently take appart disk break pads

using a wide flat screwdriver so the

wheel disk can squeeze between the

pads. Push the speedometer black

cap against the wheel and possition

it in the way that the axle bolt can go

through it. Tighten firmly the nut at

the oposite side.

STORAGE BOX

Locate the storage box and the hardware

necessary to mount it on the back of the

scooter. Mount the bike rack using the

bolts and the nuts in the package. Install

the box on the top of the rack using the

metal bracked and bolts.

ASSEMBLY INSTRUCTIONS

side of the (your left side as if

seated on the ). The inside surface

of the crank arms are labeled "L" and "R" like the pedals. The Left pedal has reverse threading

meaning it tightens by turning it to the left (counter-clockwise). The Right pedal has normal

threading and tightens by turning it to the right (clockwise). After threading the pedals into the

crank arms as far as possible with your fingers (to avoid cross threading), tighten them snugly

with an adjustable wrench.

REARVIEW MIRRORS

PEDALS

Locate Pedals (Set of 2). The pedals are labeled

left and right near the threads. They are not

interchangeable. The left pedal goes into the

threaded hole on the left crank arm on the left

MOTORINOTM

When you are sitting on the scooter you

can adjust the mirrors by pushing the

mirror surface up, down, left and right.

The mirror needs to be tightened fully for assembly to be safe.

Repeat the process for the other mirror. Once mirrors are installed,

they should look like the picture below. Make sure to adjust the

mirrors before use so that you can see behind you as you ride.

Locate the mirrors included with your MOTORINO scooter .

Connect the three wires of the mirrors to the same color

wires coming out of the mirror holes. Use a hexagonal

("Allen" or "Hex" wrench) to attach the mirrors as shown in

the pictures. Make sure you use the included spacer under

the mirror base if necessary. Then screw the bolt onto the

threaded ends as shown on picture below.

BATTERY

BEFORE OPERATING YOUR NEW FOR THE FIRST TIME, CHARGE THE BATTERY

FOR 8-12 HOURS, BUT UNDER NO CIRCUMSTANCES IN EXCESS OF 18HOURS.

Be sure to charge the after each use. Keeping the battery properly charged

will help extend the battery life. Do not use the while the power indicator on

the instrument panel shows low energy. If the is over-used the battery's life

will be reduced.The uses a 48V (volt) battery pack.To charge the battery,

connect the 3-pin plug into the charging receptacle located directly below the front seat.

The battery must be charged while installed in the . If you notice anything

unusual about the battery such as a cracked or leaking battery case, a battery that gets hot

while being used or charged, a battery case that appears "puffy" or

"bloated" etc, or there are any other problems with the battery,

please contact your local Motorino dealer.The battery is sealed

and is NOT user serviceable. Do not attempt to repair, remove,

adjust or in any way alter any internal or electrical components,

controls or wiring without first speaking with a customer service

representative.

The main battery weighs approximately fourty eight (48) pounds.

There is no need to remove it from the unless you are

replacing it. Use caution on removal.To replace the main battery pack,

lift the foot mat and unlock the lock located

on the left side of the (using the

ignition key). Proceed to pull the battery out utilizing the

handle. Disconnect the battery cable.The

is equipped with a 48V battery charger that will interrupt

the charging process once the battery has received a sufficient

charge. Greeenwit Ltd strongly suggests that the charger not

be used in excess of 18 hours to prevent any unnecessary

wear on the battery or charger itself. Charging for periods

greater than 18 hours may reduce the overall life expectancy

and efficiency of these items.

1. DO NOT CHARGE OR STORE THE CLOSER THAN 20 FEET

FROM ANY FLAME (E.G. FURNACE, FIREPLACE,WATER HEATER, SPACE HEATER)

2. Be sure to only use 110V AC with the charger. Also make sure the plug is

inserted into a three prong grounded AC outlet.

3. PLUG the POWER INPUT CORD into the charging receptacle located below

the front of the seat. See picture above.

4. Plug the 48V battery charger into a 110V AC power source.

5.The CHARGER INDICATOR LIGHT will illuminate confirming that power is connected to the

charger. If the light does not come on check all connections. If it still does not come on after

checking all connections, fuses and that your AC plug is working, unplug the charger and call

your local dealer.

TO AVOID DAMAGE TO THE BATTERY WHEN CHARGING, USE ONLY THE

CHARGER PROVIDED WITH YOUR .

MOTORINOTM

MOTORINOTM MOTORINOTM

MOTORINOTM

DO NOT DROP THE BATTERY

6.  DO NOT KEEP THE CONNECTED TO THE CHARGER

FOR LONGER THAN 18 HOURS UNDER ANY CIRCUMSTANCES! DOING SO COULD

CAUSE THE BATTERY OR CHARGER TO OVERHEAT AND CAUSE A FIRE.

When the light on the 48V charger is red, the

battery is being properly

charged. When the

MOTORINOTM

battery is fully charged, the light will turn green. If this

 does not occur after 16 hours of charging, unplug the charger and call your local

  dealer. Normal recharge time for the main battery is 4-6 hours

(assuming it is not 100% discharged).

8. Disconnect the charger from the 110V Power Source.

9. Disconnect the Input Cord from the Charging Receptacle.

10.  NEVER LEAVE THE BATTERY CHARGER CONNECTED TO THE 110V

POWER SOURCE OR THE WHEN NOT CHARGING THE BATTERY.

KEEPING THE CHARGER PLUGGED INTO THE 110V POWER SOURCE AND NOT

THE BATTERY COULD CAUSE THE CHARGER TO OVERHEAT AND OR CAUSE

A FIRE.

11.When storing your for lengthy periods of time, the battery should

be charged at least once a month to avoid full depletion.



FAILURE TO KEEP THE BATTERY CHARGED WILL

CAUSE TOTAL BATTERY FAILURE. DO NOT ALLOW BATTERY TO BECOME FULLY

DISCHARGED!!! ALWAYS RECHARGE THE BATTERY BEFORE THE POWER INDICATOR

ON THE INSTRUMENT PANEL SHOWS NO POWER. ALLOWING THE BATTERY TO FULLY

DISCHARGE WILL REDUCE BATTERY LIFE AND MAY RUIN THE BATTERY OR COULD

CAUSE THE BATTERY OR CHARGER TO OVERHEAT AND CAUSE A FIRE THE NEXT TIME

THE IS CHARGED.

BATTERY POSTS, TERMINALS, POWER CORDS AND BRAKE CABLES MAY CONTAIN

LEAD AND LEAD COMPOUNDS, AND OTHER CHEMICALS. WASH HANDS AFTER

HANDLING.

BATTERY

MOTORINOTM

BATTERY

BATTERY RECYCLING

When maintained and used properly, (by following charging and storage guidelines),

the Lead Acid Battery Pack used in this product has a normal lifespan of two to three

years. When the battery pack no longer holds a charge or is unable to be charged

properly, it should be removed from the and delivered to a recycling

facility. Federal Laws prohibit disposal of lead-acid batteries in everyday trash. Please

contact your local solid waste or recycling authority for recycling information in your

area.

Break-in Period: Your will last longer and work better when it is broken in

properly. Brake control cables, chains and axle nuts may get loose when a new

is first used and may require an adjustment. We suggest that the brakes

and axle nuts be checked every 30 days and adjusted if necessary.

The scooter can be use without pedals but pedaling the upon

starting will save battery life and will make it easier to balance. The can

also be pedaled in situation where the battery power is too low due to a failure to

charge or exceeding its distance range. The rider can also rest his or her feet on the

pedals while riding the

MOTORINOTM

. Turning the throttle all the way up and riding

the scooter all the time on a full throttle will aslo reduce the range and the battery life.

We suugest you to start smoothly and turn the throttle 1/4turn down when you have

built a momentum.

It is a good idea to keep a tool kit with you when you ride. You should also carry 2

spare inner tubes that fit the wheel and tire size as well as a manual air pump (with

gauge) to re-inflate the tire if you have a flat or it becomes low during use.

If your sustains an impact:

 A CRASH OR OTHER IMPACT CAN PUT EXTRAORDINARY STRESS ON

COMPONENTS, CAUSING THEM TO FATIGUE PREMATURELY. COMPONENTS

SUFFERING FROM STRESS FATIGUE CAN FAIL SUDDENLY AND CATASTROPHICALLY,

CAUSING LOSS OF CONTROL, SERIOUS INJURY OR DEATH.

First, check yourself for injuries, and take care of them as best you can.

Seek medical help if necessary. Next, if your is damaged, perform the

checks described in this manual. If you are unable to fix any or all damage/problems,

or if you find any bent, scored, or discolored parts, please call your local

dealer

 IF YOU HAVE ANY DOUBT ABOUT THE CONDITION OF THE

MOTORINOTM

OR ANY OF ITS PARTS, DONT USE IT . CALL YOUR DEALER

GENERAL USAGE NOTES

MOTORINOTM

MOTORINOTM MOTORINOTM

MOTORINOTM

MAINTENANCE

BRAKES MAINTENANCE

MOTORINOTM

Front Break

Adjustment

nut

Rear Axle nuts - Check them regularly

Technological breakthroughs have made components more complex than ever before, and the

pace of innovation is increasing. This on-going revolution makes it impossible for this manual to

provide all the information required to properly repair and/or maintain your

In order to help minimize the chances of an accident and possible injury, it is critical that you

have all repair and maintenance work performed regularly.

For more detailed maintenance instructions or for ordering replacement parts please contact

your dealer. Local bicycle retail stores, which have service facilities in your area,

can also assist you with certain non-electrical repairs or adjustments that you are not qualified to

make or for which you do not have the specific or specialized tools needed for repair.

The fact that these scooters have no combustion engine, no transmission, no belts, no chains, no

clutch, no ignition plugs, no carburetor, and uses no gasoline and no lubricants means it requires

basically no maintenance. The unique design of the direct drive system and the use of

regenerative brushless motor braking system confign all friction in scooters only

in the two bearings of the front axle and the two bearings in the motor and make it much easier

to maintain than other electric scooters.

In generally all the regular mechanic maintenance is to:



- Adjust the brakes

- Check the nuts and bolts

- Check tire presure

- Check the chain



Front and rear break cables may get stretched.Tighten the nuts at the of the threaded end of

the cable to adjust them. If the breaking power decrease, check the break pads. If necessary

clean them with sand paper. If the break pads are worn out, replace them. If the break cable is

streached to the point that there is no more threads left at the end, unscrew the lever and

turned it away from the cable.

Check both axle nuts regularly and

especially the rear one. Make sure to

tighten the nuts firmly when you change

a tube.

MAINTENANCE

FLAT TIRE REPAIR

1. Depress the tire valve to let all the air out of the tube, which will assist in removing the wheel

from the .

2. Remove the wheel from the using a wrench. Loosen the nuts counterclockwise

and make sure to remove the wheel retention clips on the front wheel. Be sure to remember

where all the spacers and washers belong. For rear tire removal you will also need to slip the

chain off the rear sprocket to remove the wheel. The chain must be properly reinstalled and re-

tensioned when reinstalling the rear wheel. Make certain the chain is properly positioned on both

front and rear sprockets before re-tightening rear wheel.

3. Remove one bead of the tire from the rim by grasping it at a point opposite the valve stem with

both hands and, at the same time, lifting and peeling one side of the tire off the rim. If the bead is

on too tight for you to unseat it with your hands use tire levers to lift the bead carefully over the

tire rim. Tire levers can be purchased at any local bike shop. Push the valve stem through the

wheel rim. Remove the inner tube.

4. Carefully check the outside and inside of the tire for the cause of the puncture and remove any

debris or damaging material from the inside or outside of the tire.

IF THE TIRE IS CUT, YOU MUST REPLACE THE TIRE TO PREVENT ANY SUDDEN

AND CATASTROPHIC FAILURE CAUSING LOSS OF CONTROL, SERIOUS INJURY OR DEATH.

Replacement parts are available at your local dealer

PATCHING A TUBE IS AN EMERGENCY REPAIR. CARELESS PATCHING OR APPLYING

SEVERAL PATCHES CAN SERIOUSLY WEAKEN THE TUBE, RESULTING IN POSSIBLE TUBE FAILURE,

WHICH COULD CAUSE YOU TO LOOSE CONTROL AND FALL. REPLACE A PATCHED TUBE AS

SOON AS POSSIBLE.

5. Reinstall the tire and tube. Slip one tire bead over the rim. Insert the tube valve through its hole

in the rim. Feed the tube carefully into the cavity of the tire. Inflate the tube just enough to give it

some shape. Starting at the valve stem and working around both sides of the rim to the side

opposite the valve stem, use your thumbs to push and seat the other bead of the tire inside the

rim. Be careful not to pinch the tube between the tire bead and the wheel rim. If you have trouble

getting the last few inches of bead over the edge of the rim with thumb pressure, use a tire lever

and be careful not to pinch the tube.

IF YOU USE A SCREWDRIVER OR ANY TOOL OTHER THAN A TIRE LEVER, YOU ARE

LIKELY TO PUNCTURE THE TUBE.

6. Check to make sure that the tire is evenly seated around both sides of the rim and that the tube

is inside the tire beads. Push the valve stem into the tire to make sure that its base is seated within

the tire's beads. Inflate the tube slowly to the recommended pressure on the tire sidewall, all the

way while checking to make sure that the tire beads stay seated in the rim. Replace the valve

cap. Replace the wheel..

MOTORINO TM

OPERATING INSTRUCTIONS

KEY AND THROTTLE OPERATION

ON/OFF/LOCK Switch: (ignition)

BEFORE OPERATING YOUR MAKE SURE THAT THE THROTTLE GRIP IS NOT ROTATED

TO THE "ON" POSITION!!! MAKE ALSO SURETHAT YOURTHROTTLE IS NOT "STICKY" AND ROTATES

FREELY BACK TO THE INITIAL POSSITION

SEE PICTURE FOR CORRECT PLACEMENT OF LEVER BEFORE USAGE!!!

THROTTLE CONTROL

The uses a speed changing throttle grip. It is on the right side of the

handlebar. Rotate the throttle grip toward the seat to accelerate and rotate forward

away from the seat to slow down.

MOTORINO

MOTORINOTM

is ON. Turn it ON only when you are ready

to go.Turn it OFF when you are not riding and remove key.

2. is OFF.Turn it OFF when not in use to preserve

the battery.

3. Turn the handlebar all the way to the left, push the key in on

this possition to lock the handlebar and

turn it to possition 4.

4. Handlebar is locked.The key can be removed.

MOTORINO

MOTORINO XPi

control switches

and throttle

MOTORINO XPh

control switches

and throttle

It is suggested after acceleration to turn back 1/4 turn the throttle.This will increase your range

and increase your battery life.

OPERATING INSTRUCTIONS

BEFORE OPERATING YOUR MAKE SURE THAT THE THROTTLE GRIP IS NOT ROTATED

TO THE "ON" POSITION!!! MAKE ALSO SURE THAT YOUR THROTTLE IS NOT "STICKY" AND ROTATES

FREELY BACK TO THE INITIAL POSSITION

MOTORINO

1.Turn the key to the 'ON' position, then

turn the Throttle gradually to accelerate.

2.To prevent losing control of the

vehicle, please turn the Throttle slowly

until the speed increases.

3. Do not turn the Throttle until you are

in the position to drive.

4.To stop, release the throttle and apply

the front and rear brake simultaneously.

You can decelerate by slightly pressing

the brakes to start regeneration mode

5.To move, release the brakes and turn

the Throttle gradually.

6.When you turn move the turn signal

switch left or right and don't forget to

press it to turn it off.

7. The Brushless motor makes a small

electromagnetic noise when turning the

Throttle to start.This is normal.

8. Please, for your safety and security,

take the key out when you are not riding.

The distance and speed depend upon various elements of the rider's style and the road

conditions. A constant speed and less stops will ensure longer range. Other factors include

weather, vehicle condition, and battery charge. Drivers must be cautious when driving on

rough roads, in poor weather, or when the battery charge is low. Always check the battery

gauge while you are riding and be sure that it does not get too low too often.

OPERATING INSTRUCTIONS

MOTORINO

MAIN BATTERY

MAIN BREAKER

SECOND BATTERY

CABLE

48/12V DC/DC INVERTER

ALARM

The scooters driving system

consist of four main components:

 - Battery

 - Controller

 - Throttle

 - Motor

When the throttle is twisted, a signal goes

to the controller, relevant to the angle of

turning.Then the controller draws from the

battery current, relevant to the required

speed, controlled by the throttle and the

power necessary to start the scooter or

drive it uphill.

The higher the driving speed is and the

steeper the hill is, the lower the range of the

scooter is. A second battery can

be connected to the extra battery cable to

extend the range.

The main breaker under the seat works as a

high current protector.

48V DC to 12V DC invertor inverts the voltage

to 12V. All light bulbs work on 12V.

The alarm works on 48V. It is vibration sensitive.

No matter that it consumes very little amount of

power, it is recommended when the

is stored for a long period of time the main breaker

to be turned OFF.

CONTROLLER

MOTOR

THROTTLE

MOTORINO

Troubleshooting

Problem

Condition

Check

Solution

When I turn my

vehicle on nothing

happens.

1. No any light

indications on the

display.

1. Check the main

breaker under the seat

if it is on “ON” position.

2. Check power

connection and battery

level.

1. Flip the breaker lever

on “ON”

2. Fasten connections.

2. Power indication

light is on

3. Check battery and

motor connection.

3. Clean and fasten

battery terminal

connectors

4. Fasten the motor

connections with the

controller under seat

3. Power indication

light is on and the

break light is on

4. Check the break

levers if they return to

normal position.

5. Loosen the break. If

there is any corrosion

replace. Contact the

supplier.

5. Battery voltage is

below 42 volts.

6. Charge or replace

battery. Contact the

supplier.

The Throttle does

not work or switch

on, the vehicle

moves without

acceleration.

1. The Throttle does

not return to stop

position.

1. Check the grip for

damage

2. Check the Throttle

spring.

3.The Throttle handle if

it is loose

1.Use a flat head

screwdriver to adjust

the gap between the

rubber handle and the

cover.

2. Readjust the Throttle

spring position. Contact

the supplier

3. Check Throttle

connections. Contact

the supplier.

The range is low

Charger light is off

1. Bad connection

between the charger

and the battery.

2. Charger doesn’t

charge

1. Check the charger

plug position.

2. Replace the charger

Battery doesn’t hold

the charge

1. Connections between

the batteries are not

good

2. Bad battery cell

1.Check all connections

between the batteries

2. Replace the bad

battery cell

The breaks are not

working properly

1. Break levers go

too deep

2. No breaking

power

1. Needs adjustment

2. Break pads are dirty

or need replacement

1. Adjust the break

cable – see instructions

2. Clean break pads

using sand paper or

replace

This manual suits for next models

Table of contents

Popular Scooter manuals by other brands

Medion

Medion S89047 instruction manual

Affordable

Affordable ABG-585 Instruction booklet

Vivobike

Vivobike M-VCITY26B user manual

BIRD RIDES

BIRD RIDES Bird Air Instruction booklet

Yukon Trail

Yukon Trail Outback 26 Assembly manual

Ride VOLO

Ride VOLO T01 user manual

Trikke

Trikke T5 JOGO owner's manual

Hiboy

Hiboy S2 Pro user manual

PIAGGIO

PIAGGIO MP3 2014 Instructions for assembling

Fuzion

Fuzion Z300 owner's manual

SkyLine

SkyLine Tube+ user manual

Roketa

Roketa MC-46-150 user manual

Hudora

Hudora Exklusiv Edition BigWheel 14119/00 INSTRUCTIONS ON ASSEMBLY AND USE

Tomoloo

Tomoloo L1 Pro Operation and installation manual

CareCo

CareCo TITAN owner's manual

GLOBBER

GLOBBER ONE K 165 DELUXE owner's manual

Askoll

Askoll eB1M user manual

SoFlow

SoFlow SO4 PRO Genuine operating instruction

Motorino XPi Use and care manual

Popular Scooter manuals by other brands
