Motorola solutions ADVISOR TPG2200 TETRA User manual

www.motorolasolutions.com www.motorolasolutions.com
1
6
15
6
14
7
812
10
11
2
3
5
2
1
3
2
2
2
1
2
1
13
49
90% Charged
Advisor™ TPG2200
QUICK START GUIDE
Controls and Indicators
Getting Started
Installing the Battery
1. Insert the bottom part of the battery into the compatment.
2. Press down the top part of the battery into the compartment until it clicks.
LED Message and Status Indicators
Indication
Solid green
Blinking
green
Solid red
Blinking
red
Blinking
orange
No indication
Battery Capacity Information
Information Description
Full (80% – 100% capacity)
Middle (60% – 80% capacity)
Low (25% – 60% capacity)
Very low (5% – 25% capacity)
Less than 5% capacity
Battery Cover
Menu Key
Mute/Shortcut Button
Display
Down Navigation Key
USB-C Connector
Home Station Connector
LED Status Indicator
Speaker
Soft Keys
Power/Sleep/Wake Button
Landyard Holes
Connecting to a network
Entering DMO
Not applicable
Pager powered off
Fully Charged
Rapid Charge
Faulty or Invalid
Battery
Battery waiting
to charge
Looking After the Pager
Never leave the pager or battery in extreme temperatures (over +85 °C), for
example, behind a windscreen in direct sunlight.
The pager is not submersible (compliant with the IP54 standard, only when the
battery cover is attached).
To clean the pager, use a moistened or antistatic cloth.
Up Navigation Key
LED Message Indicator
Lock Key
Not applicable
Removing the Battery Cover
1. Slide the Lock key to the left to unlock the battery cover.
2. Lift up the battery cover.
1. Insert the bottom part of the battery cover into the slot.
2. Press down the top part of the battery cover.
3. Slide the Lock key to the right to lock the battery cover.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Solid orange Transmit Inhibit in service
Channel busy in DMO Not applicable
Attaching the Battery Cover
Status LED
In service
Out of service*
Charging
Status
Blinking
blue
Message LED
In use
Not applicable Not applicable
Not applicable
Not applicable
Not applicable
Not applicable
Not applicable
Not applicable
Not applicable
Message/Call Out
received or missing*
* The LED indication and flashing pattern can be configured in the Customer
Programming Software (CPS).

www.motorolasolutions.com www.motorolasolutions.com
m
Advisor™ TPG2200
QUICK START GUIDE
Icons
Using the Terminal
More Information on the Radio
Learning Experience Portal
*MN003455A01*
MN003455A01-AB
This document is copyright protected. Duplications for the purpose of the use of Motorola Solutions products
are permitted to an appropriate extent. Duplications for other purposes, changes, additions or other
processing of this document are not permitted. Only this electronically-saved document is considered to be
the original. Duplications are considered merely copies. Motorola Solutions, Inc., and its subsidiaries and
affiliates do not vouch for the correctness of such kinds of copies.
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered
trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the
property of their respective owners.
© 2017 and 2020 Motorola Solutions, Inc. All rights reserved.
User documentation available at:
https://learning.motorolasolutions.com/
Open Source Software Legal Notices
Available in Customer Programming Software Plus (CPS Plus) DVD.
Visit the Motorola Solutions Web site at:
http://www.motorolasolutions.com/

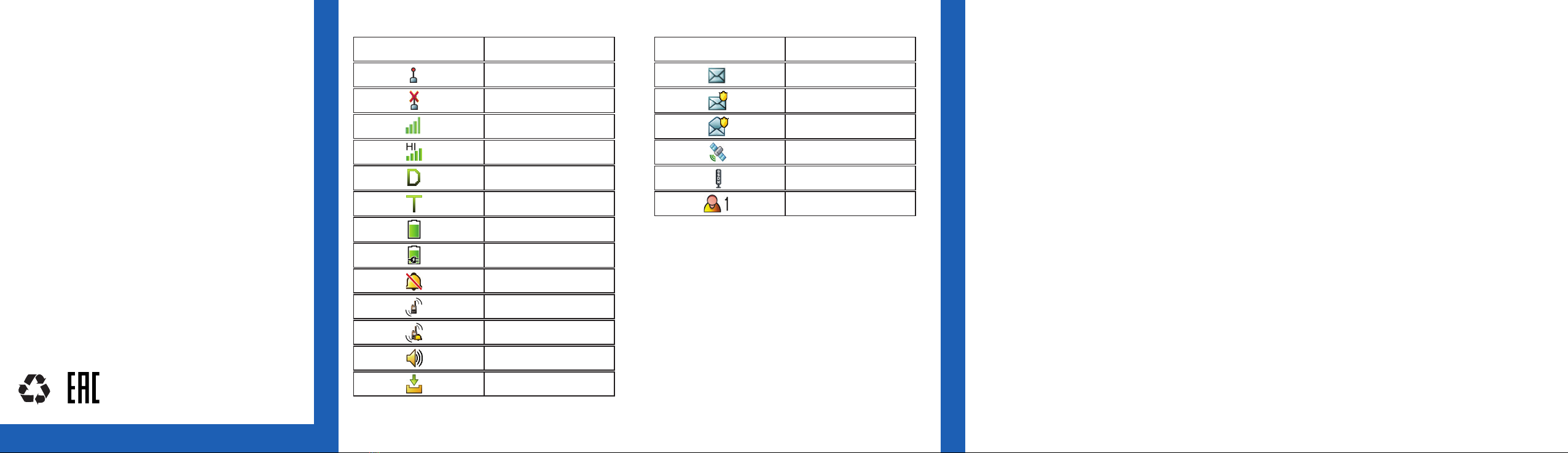

Icons
Icon Description
In Service (TMO)
No Service (TMO)
Signal Strength
Battery Level
All Ring Muted
High Audio
New Message Has Arrived
Battery Charging
Turning the Pager On/Off
Using the Pager Menu
To enter the menu, press the Menu key.
To scroll through the menu, press the Up or Down Navigation key.
To select a menu item, press Select or the Left soft key.
To return to the previous level, press Back or the Right soft key.
To exit the menu, press and hold the Menu key.
Selecting Trunked/Direct Mode Operation
From the Home Screen, enter the Menu. Scroll to and select
Networks → Trunked Mode or Direct Mode.
To turn the pager on/off, press and hold the Power button.
Location
Icon Description
High RF Power
Direct Mode (DMO)
Receiving Call Out Messages
To accept, press the Left soft key.
To reject, press the Right soft key.
To temporarily mute the Call Out alert indication, press the Mute button.
To see more options, press the Menu key.
Trunked Mode (TMO)
Graceful Service Degradation Mode
(GSDM)
User Profile
Unread (New) Message
Vibrate Only
Vibrate then Ring
Adjusting the Volume in Idle Mode
When the Pager displays the idle screen, press the Up or Down Navigation key to
adjust the volume.
Changing to Sleep or Wake Mode
To change the pager to sleep/wake mode, press the Power button.
When the pager is in sleep mode, the display is turned off and the keypad is
locked.
Using the Programmable Buttons
The Up and Down Navigation keys also function as programmable buttons.
When the Pager displays the idle screen, press and hold the Up or Down
Navigation key to apply the function of the programmable button (if configured).
Unread (New) Protected Message
Message Protected
