Motorola PMLN6521 User manual

Accessories
Vehicular
Charger/Holder
PMLN6521, PMLN6522,
PMLN6432, PMLN6433,
PMLN6434, PMLN6431
EN KO DE FR
ES IT PR NL SV RU
Installation Manual
68012009013-A
FrontCover.fm Page 1 Tuesday, May 14, 2013 5:27 PM

FrontCover.fm Page 2 Tuesday, May 14, 2013 5:27 PM

1
English
INTRODUCTION
This Installation Manual provides a description of the Vehicular
Charger/Holder Kit package components, power connection and
installation procedure.
The Vehicular Charger Kit and Vehicular Radio Holder Kit listed
below comprises of the following parts:
PMLN6521 Vehicular Cradle Kit
- Vehicular Cradle (0104058J64)
- Remote Speaker Microphone (RSM) Bracket (PMLN6240)
- Mounting Bracket (FTN6376)
- User Guide (68012009012)
- Installation Manual (68012009013)
PMLN6432 Vehicular Cradle with Vehicular Power Adaptor Charging
Kit
- Vehicular Cradle (0104058J64)
- Remote Speaker Microphone (RSM) Bracket (PMLN6240)
- Mounting Bracket (FTN6376)
- Vehicular Power Adaptor Holder Adaptor (PMLN6075)
- User Guide (68012009012)
- Installation Manual (68012009013)
Note: Vehicular Power Adaptor (NNTN8040A) to be ordered
separately.
PMLN6434 Vehicular Cradle with Vehicular Power Module Charging
Kit
- Vehicular Cradle (0104058J64)
- Remote Speaker Microphone (RSM) Bracket (PMLN6240)
- Mounting Bracket (FTN6376)
- Vehicular Power Module (PMLN7017)
- User Guide (68012009012)
- Installation Manual (68012009013)
68012009013.book Page 1 Monday, September 9, 2013 9:47 AM

2
English
PMLN6522 Vehicular RF Cradle Kit
- Vehicular Cradle (0104058J18)
- Remote Speaker Microphone (RSM) Bracket (PMLN6240)
- Mounting Bracket (FTN6376)
- User Guide (68012009012)
- Installation Manual (68012009013)
PMLN6433 Vehicular RF Cradle with Vehicular Power Adaptor
Charging Kit
- Vehicular Cradle (0104058J18)
- Remote Speaker Microphone (RSM) Bracket (PMLN6240)
- Mounting Bracket (FTN6376)
- Vehicular Power Adaptor Holder Adaptor (PMLN6075)
- User Guide (68012009012)
- Installation Manual (68012009013)
Note: Vehicular Power Adaptor (NNTN8040A) to be ordered
separately.
PMLN6431 Vehicular RF Cradle with Vehicular Power Module
Charging Kit
- Vehicular Cradle (0104058J18)
- Remote Speaker Microphone (RSM) Bracket (PMLN6240)
- Mounting Bracket (FTN6376)
- Vehicular Power Module (PMLN7017)
- User Guide (68012009012)
- Installation Manual (68012009013)
68012009013.book Page 2 Monday, September 9, 2013 9:47 AM

3
English
Figure 1. Vehicular Charger/Holder Kit Components
IMPORTANT SAFETY INSTRUCTIONS
This document contains important safety and operating instructions
and should be read in conjunction with the product safety information
supplied with the mobile or portable radios, used with the
accessories. Please read these instructions carefully and save them
for future reference. Installation of communications equipment should
be performed by qualified personnel only.
Before using the Vehicular Charger/Holder Kit, read all the
instructions and cautionary markings on all other items. Consult
vehicle manufacturer’s guidance on mounting equipment in vehicles.
Vehicular Cradle with RF
(0104058J18)
RSM Bracket
(PMLN6240)
MountingBracket
(FTN6376)
Vehicular Power
Adaptor Holder
(PMLN6075)
Vehicular Power Module
(PMLN7017)
Vehicular Cradle
(0104058J64)
68012009013.book Page 3 Monday, September 9, 2013 9:47 AM

4
English
OPERATIONAL CAUTION
1. To reduce risk of injury, use only Motorola approved items with
your mobile or portable radios.
2. It is essential to mount the equipment in locations where it will
not cause any injury in the event of a collision.
3. A vehicle air bag inflates with great force. DO NOT place
objects, including communications equipment, in the area over
the vehicle air bag or in the air bag deployment area. If the
communication equipment is improperly installed and the vehicle
air bag inflates, this could cause serious injury. If necessary,
contact the vehicle manufacturer for air bag information specific
to the vehicle.
4. Verify that none of the vehicle’s systems are affected by use of
the portable radio e.g. cruise control, ABS braking, traction
control, engine management, direction indicators, lights etc.
5. Use existing openings through the bulkhead to avoid drilling. If
drilling is necessary, ensure that no damage is incurred to the
Vehicle Electronic Control Modules (ECM’s), fuel pipes, brake
pipes, and/or cable looms.
6. DO NOT transport or store flammable gas, flammable liquids or
explosives in the compartment of your vehicle that contains your
equipment.
7. To avoid possible interference with blasting operations, turn your
radio OFF before entering an area where you maybe close to
electrical blasting caps, in a “blasting area” or in areas posted as
“Turn OFF two-way radios”. Obey all signs and instructions.
!
Caution
68012009013.book Page 4 Monday, September 9, 2013 9:47 AM

5
English
OPERATING SPECIFICATIONS
Vehicular Power Adaptor (NNTN8040)
Input voltage range: 10.8 to 33 VDC
Vehicular Power Module (PMLN7017)
Input voltage range: 10.8 to 16.6 VDC
SAFETY AND GENERAL INFORMATION
A properly installed Vehicular Charger/Holder Kit minimizes service
calls. When mounting the components of the Vehicular Charger/
Holder Kit, consider the following factors:
• The mounting surface must have sufficient strength to support
the item being mounted to prevent it from becoming loose over
time.
• DO NOT attach components to any part of the vehicle that is
subject to excessive vibration.
• The proposed location of the item being mounted or wires/cables
attached must not interfere with driver/passenger seating or leg
space.
• Use the supplied mounting hardware.
• Ensure that the cables are not stretched, and not subject to heat
from the engine, transmission housing or heating ducts.
• Crimp connectors securely.
• DO NOT run cables over sharp edges that may cause excessive
wear or chaffing of the cable insulation.
• DO NOT install components in locations where they may cause
interference to the operation of the vehicle's controls.
Check the required mounting locations. Modern cars are equipped
with power supply connections for mobile phone inside the
passengers cabin. It is preferable to connect the power cable to
these connections.
On some vehicles, it is necessary to penetrate the bulkhead to reach
the battery. Ensure that there is cable clearance on the opposite side
of the bulkhead and that vehicle’s Electronic Control Modules
(ECM’s) are not installed on the opposite side of the bulkhead before
drilling commences. Protect the cable where it passes through the
bulkhead by using a grommet or similar protective measures.
68012009013.book Page 5 Monday, September 9, 2013 9:47 AM

6
English
INSTALLATION PROCEDURES
OPERATIONAL CAUTION
• An air bag inflates with great force. DO NOT place objects,
including communications equipment, in the area over the air
bag or in the air bag deployment area. If the communication
equipment is improperly installed and the air bag inflates, this
could cause serious injury.
If necessary, contact the vehicle manufacturer for air bag
information specific to the vehicle.
• Verify that none of the vehicle’s systems are affected by use of
the TETRA Handportable Terminal e.g. cruise control, ABS
braking, traction control, engine management, direction
indicators, lights etc.
• Use existing openings through the bulkhead to avoid drilling. If
drilling is a must, verify that no damage is done to the Vehicle
Electronic Control Modules (ECMs), fuel pipes, brake pipes and/
or cable looms.
VEHICULAR CHARGING CRADLE/RADIO
HOLDER INSTALLATION
Note: Always use the supplied fastening hardware to rigidly
secure the cradle. An unsecured cradle could cause a unit
to move and interfere with the proper operation of the
vehicle and the charging cradle/radio holder must be
mounted in such a way that the TETRA Handportable
terminal is within easy reach of the driver during normal
operation of the vehicle.
Sufficient room should be allowed to permit the insertion of
the TETRA Handportable terminal and provide easy access
to the release mechanism of the TETRA Handportable
terminal from the cradle/holder.
!
Caution
68012009013.book Page 6 Monday, September 9, 2013 9:47 AM

7
English
Figure 2. When installing the cradle, use the following procedure or
modify to suit the particular vehicle
When installing the PMLN6521 & PMLN6522 Passive Vehicular
Holder Kit, use the following procedure or modify to suit the particular
vehicle. See Figure 2 above:
1. Open the hinge screw and separate the two halves of the
mounting bracket.
2. Use the lower half of the bracket as a template. Position it so that
the pivot end of the bracket is toward the bottom of the cradle.
3. Using an awl or similar device, make four holes in the carpet at
marked locations. This must be done prior to drilling to avoid
damaging the carpet.
4. Mark and drill holes. Securely mount the bracket half using the
four #8x.625” self tapping screws (supplied with the mounting
bracket).
5. Secure the cradle/holder to the other half of the bracket using
the four M4x10 mm screws, you may choose to sandwich the
RSM bracket in between or install it separate as shown in
Figure 2.
6. Connect the two parts of the mounting bracket and secure the
hinge screw.
7. Align the RSM bracket & the cradle to the mounting bracket four
holes, then secure with four M4x10mm screws.
8. RSM bracket allows user to clip on the RSM as shown in
Figure 3 below.
Note: DO NOT connect the power cable to the cradle until the
power cable is fully installed.
M4x10mm
Screw (x4)
Hinge screw
Wipe clean flat
surface before
using adhesive pad
#8x.625” Self
Tapping Screw (x4)
68012009013.book Page 7 Monday, September 9, 2013 9:47 AM

8
English
Figure 3. Clipping the RSM on the bracket.
Figure 4. Installing the Vehicular Power Adaptor Holder onto the
cradle.
When installing the PMLN6432 & PMLN6433 Vehicular Charging
Cradle with Vehicular Power Adaptor Kit, use the following
procedure. See Figure 4:
1. Place the NNTN8040 Vehicular Power Adaptor on the holder
adaptor as show in Figure 4.
2. Push the Adaptor Holder Top to engage onto the Adaptor Holder
bottom.
3. Secure the Adaptor Holder onto the bottom of the cradle pocket
by screwing the jack screws into the insert nuts.
Jack Screw
(x2)
Vehicular Power Adaptor
(NTNN8040)
Vehicular Power Adaptor
Holder PMLN6075
Insert Nut
(x2)
68012009013.book Page 8 Monday, September 9, 2013 9:47 AM

9
English
Figure 5. Installing the Vehicular Power Module onto the cradle.
When installing the PMLN6434 & PMLN6431 Vehicular Charging
Cradle with Vehicular Power Module Kit, use the following procedure.
See Figure 5 above:
1. Secure the Vehicular Power Module onto the bottom of the
cradle pocket by screwing the jack screw onto the insert nut.
Note: DO NOT connect the power cable to the cradle until the
power cable is fully installed.
Jack Screw
(x2)
Vehicular Power Module
(PMLN7017)
Insert Nut
(x2)
68012009013.book Page 9 Monday, September 9, 2013 9:47 AM

10
English

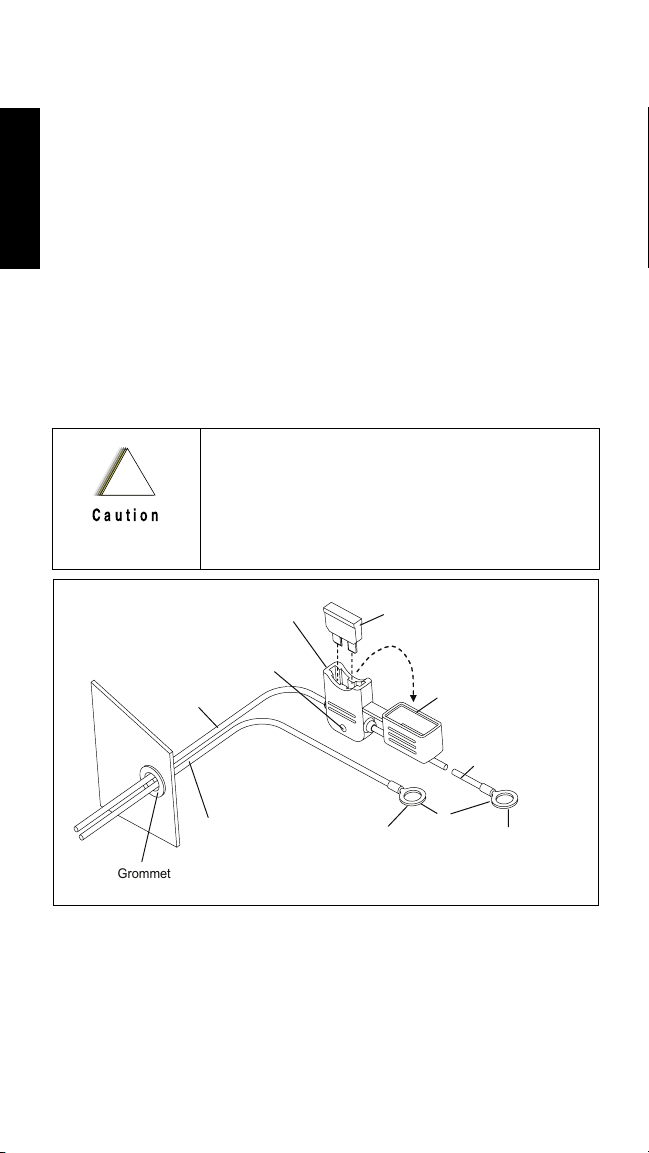

POWER CABLE INSTALLATION
Note: This installation procedure is applicable to PMLN6434 &
PMLN6431 Vehicular Charging Cradle with Vehicular Power
Module Kit only. The PMLN6434 & PMLN6431 Vehicular
Charging Cradle with Vehicular Power Module Kit supports
12 VDC vehicular batteries only.
The Vehicular Charger Kit power cable is equipped with
5-Ampere fuse for battery positive terminal and 1-Ampere fuse for
ignition. Verify that the vehicle electrical system can support current
values larger than the fuse ratings.
The fuse in the red wire should be connected to the power source
using the shortest practical length.
The Vehicular Charger Kit is only for use with a negative ground
system.
Figure 6. Power Cable Routing Into Engine Compartment
Remove the fuse from the power cable’s red and
blue (ignition) wires before proceeding and tape
them to their respective fuse holders before
making any connection. DO NOT insert fuses
until all connections have been made and
carefully inspected.
!
Caution
Grommet
Terminal
Lugs To Battery (+)
To Vehicle
Chassis Ground
Fuse
Bulkhead Engine
Compartment
Black Lead
Red Lead
Red Lead
Mounting
Hole
Cover
Molded In-Line
Fuse Holder
68012009013.book Page 10 Monday, September 9, 2013 9:47 AM

11
English
Figure 7. PMLN6434 & PMLN6431 Vehicular Charger Kit
Interconnection Diagram
Refer to Figure 6 on page 10 and Figure 7 on page 11 before routing
or connecting the power cable and use the following procedure:
1. If the car is not equipped with an internal power supply
connection, route the main power cable’s red and black leads
through the bulkhead and into the engine compartment. Use an
existing opening or, if necessary, drill a 2 cm (26/32 inch)
diameter hole through the bulkhead. Insert a grommet into the
hole to prevent damage to the power cable. The red and black
leads should be inserted one by one into the hole.
2. Cut the black lead to the desired length and connect it to the
chassis of the vehicle. Verify that the fuse is at a distance of 20
to 30 cm away from the connection point.
3. On the engine side of the bulkhead, connect the red (A+) lead to
the vehicle’s battery as follows:
a. Cut the long red lead to the desired length, strip the edge and
crimp a terminal lug (not included) to the lead. Verify that the
fuse is at a distance of 20 to 30 cm away from the connection
point.
b. Connect the red lead to the positive (+) terminal on the
vehicle’s battery. Cable tie the wire every 10 cm (4 inches)
along its length.
4. Verify that the cables in the engine compartment do not obstruct
any of the vehicle controls or touch hot or moveable parts of the
engine.
Power Cable
Grommet
5-AMP Fuse
Red
Vehicle
Battery
Black
Bulkhead
Blue
1-AMP Fuse
Vehicle
Chassis
Ignition
Switch
68012009013.book Page 11 Monday, September 9, 2013 9:47 AM

12
English
5. For ignition installation, perform the following steps:
a. Cut the long blue lead to the desired length, strip the edge
and crimp a terminal lug (not included) to the lead. Verify that
the fuse is at a distance of 20 to 30 cm away from the
connection point. It is not good practice to connect the leads
to the battery pillars; use the closest battery connection
provided. The Vehicular Charger Kit could be damaged if
there was a malfunction in the vehicle’s electrical system.
b. Connect the blue lead to the ignition switch. Verify that the
voltage is high with ignition on, during cranking and while
vehicle is running. When ignition is off, the voltage is low.
6. Connect the RF cable into the FME cable connector (see
Figure 8 and “Antenna Kit Installation” on page 13). Applicable to
PMLN6522, PMLN6433 & PMLN6431 for Vehicular Charging RF
Cradle.

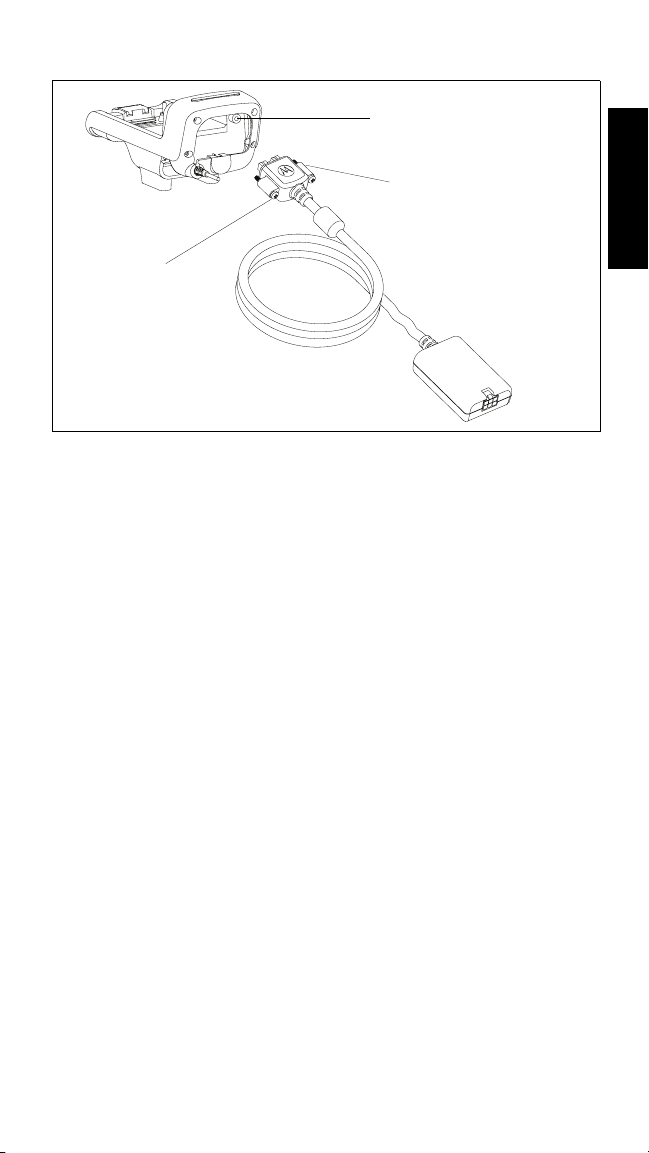

Figure 8. PMLN6522, PMLN6433 & PMLN6431 Vehicular Charger
RF Connection
Connect to FME cable connector
68012009013.book Page 12 Monday, September 9, 2013 9:47 AM

13
English
ANTENNA KIT INSTALLATION
Use only a Motorola approved roof antenna and refer to the antenna
installation instruction provided in the antenna kit.
Avoid visual or physical obstruction, route the antenna cable down
inside the door moulding and beneath the carpets and seat(s). Allow
sufficient slack at the connector end of the cable to reach the cradle’s
FME connector.
Position the antenna in such a way to maintain a separation distance
of at least 8 inches (20 cm) between the antenna connected to the
Car Kit and the body of any user, or nearby person, to assure
compliance with regulations on RF exposure.
Note: Antennas with a gain exceeding 6db do not comply with
ETSI RF exposures and are not allowed to be used with this
product.
ROOFTOP COMBINED GPS/TETRA ANTENNA KIT
To install a combined GPS/TETRA antenna kit, refer to the
installation manual provided in the antenna kit and to the
explanations below.
KIT COMPONENTS
See Figure 9.
1. Combined GPS/TETRA typical antenna
2. 5 m RG58 FME to unterminated loose FME cable, supplied in kit
3. 5 m RG174 MFME to FME cable
4. Duplexer
5. 2.4 m DC Adapter Cable (FTN6790)
6. 1 m FME cable
Installation procedures
Install the kit components in the following suggested order:
1. Antenna
2. 5 m RG58 FME to unterminated loose FME cable, supplied in kit
3. 5 m FME to FME RG58 RF cable
4. Duplexer
5. 2.4 m DC Adapter Cable (FTN6790)
6. 1 m FME cable
68012009013.book Page 13 Monday, September 9, 2013 9:47 AM

14
English

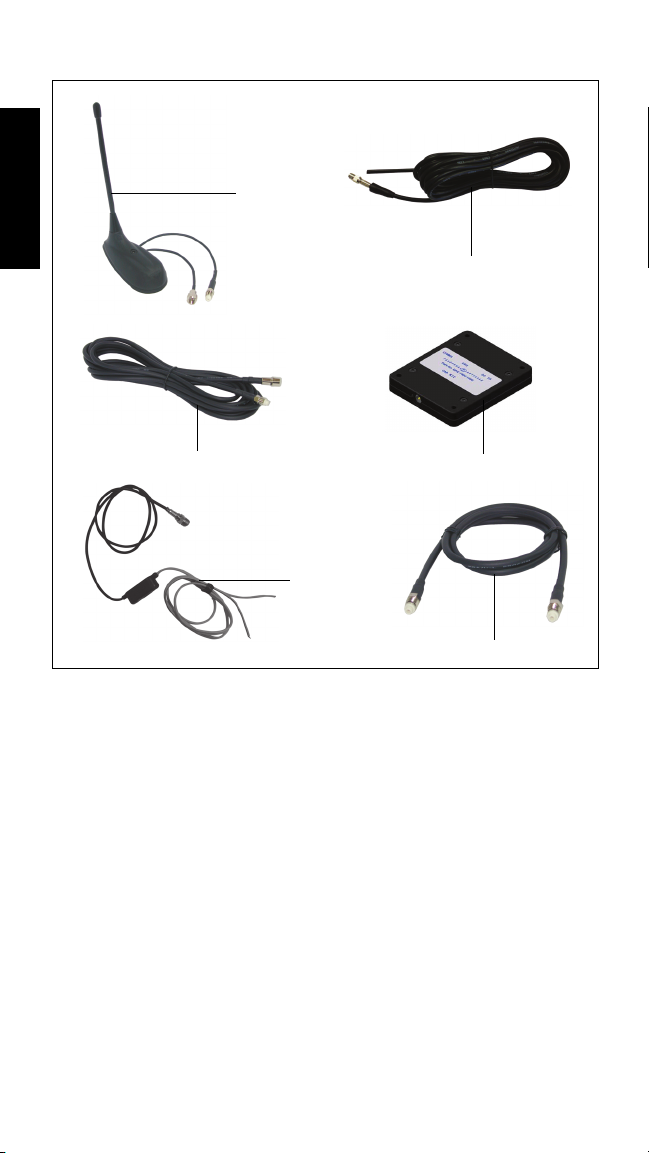

Figure 9. Combined GPS/TETRA Typical Antenna Kit
1
3
5
2
4
6
68012009013.book Page 14 Monday, September 9, 2013 9:47 AM

15
English
CABLING
To avoid visual or physical obstruction, route the cables down inside
the door moulding and beneath the carpets and seat(s). Allow
sufficient slack at the connector ends of the cables to reach the
duplexer or cradle connectors.
See Figure 10 before routing or connecting the cables.
1. Connect the 5 m MFME RG174 cable to the antenna GPS
connection.
2. Connect the 5 m FME RG58 cable to the antenna TETRA
connection.
3. Connect the 5 m FME RG174 cable to the duplexer “GPS” input.
4. Connect the 5 m FME RG58 cable to the duplexer “COMMS
ANTENNA” input.
5. Connect DC adapter cable (FTN6790) to 12 V supply.
6. Connect the 1 m FME cable from the duplexer “CAR KIT” input
to the cradle's RF cable.
68012009013.book Page 15 Monday, September 9, 2013 9:47 AM

16
English
Figure 10. Combined GPS/TETRA Typical Antenna Kit Connection
Diagram
Cradle
5m MFME-FME
5m FME-FME
DC
INPUT
GPS
ANTENNA
COMMS
ANTENNA
CAR KIT RF
1m FME
GPS/ TETRA Antenna
FME
FME
FME
FME
RG58 RG174
MFME
GPSCOMMS
CAR KIT
DC IN
Duplexer
FME FME
To 12 V supply
68012009013.book Page 16 Monday, September 9, 2013 9:47 AM

17
English
POST INSTALLATION CHECKS
Perform the following post installation checks to verify installation
integrity on PMLN6432, PMLN6433, PMLN6434 & PMLN6431
Vehicular Charger Kit:
TROUBLESHOOTING
This paragraph provides typical malfunctions that can occur during
the first operation of the PMLN6432, PMLN6433, PMLN6434 and
PMLN6431 Vehicular Charger Kit. The paragraph also suggests
corrective actions.
Prior to troubleshooting the malfunction, verify the following:
• Your TETRA Handportable Terminal functions properly outside
the cradle.
• The cable to the cradle is properly connected.
Table 1: Post Installation Checks
No. Procedure Expected Result
1 Insert the TETRA
Handportable Terminal
into the cradle.
Connection established and
charging begins.
2 Turn ignition key to ON. The TETRA Handportable
Terminal displays an icon of the
battery in charging mode only if
the TETRA Handportable
Terminal is ON when
connecting to the vehicular
Charger/Holder. If the TETRA
Handportable Terminal is OFF,
the display shows an icon of the
battery in charging mode and a
“CHARGER MODE” message
appears.
Battery Charge Progress
68012009013.book Page 17 Monday, September 9, 2013 9:47 AM

18
English
Identify the malfunction in accordance to Table 2 on page 18.
Follow Table 2 steps after inserting the TETRA Handportable
Terminal into the cradle and turning the ignition switch to ON.
Table 2: Troubleshooting Procedures
No. Malfunction Corrective Action
1Display
message
“Charger/
Holder
Connected”
does not exist.
1. Remove the TETRA Handportable
Terminal from the cradle and install it
again.
2. Check the cradle accessory connector.
Ensure the cradle is connected
properly.
2Charging
Indication does
not exist.
1. Verify that the ignition switch is in the
ON position.
2. Check the power cable. Verify that the
red wire is connected to the positive (+)
terminal on the vehicle’s battery, the
black wire is connected to the vehicle’s
chassis and the blue wire is connected
to the ignition line.
3. Check the fuses installed on the red
and blue wires. Verify their
serviceability and replace if required.
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are
trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are
used under license. All other trademarks are the property of their respective owners.
© 2013 Motorola Solutions, Inc. All rights reserved.
68012009013.book Page 18 Monday, September 9, 2013 9:47 AM
