1Congratulations
Congratulations
Your Motorola EX109 phone is loaded with premium
features, including music, photos, videos, browsing,
and more—with an easy to use QWERTY keypad.
• Dual SIM slots. No need to change SIM cards, use
two SIM cards at the same time.
•Music.Instantly play your music. Just open your
media player and select a playlist.
• Photos. Take photos and send them to your friends.
We’ve crammed all the main features of your phone
into this handy guide, and in a matter of minutes we’ll
show you just how easy your phone is to use. You may
be surprised at what you discover.
Note: Certain apps and features may not be available
in all countries.
Caution: Before assembling, charging, or using your
phone for the first time, please read the important
legal and safety information at the back of this guide.
68016189001_no_Warranty.fm Page 1 Thursday, May 26, 2011 8:10 AM

2Congratulations
More
• Support: Go to www.motorola.com/support.
• Accessories: Find accessories for your phone at
www.motorola.com/products.
68016189001_no_Warranty.fm Page 2 Thursday, May 26, 2011 8:10 AM

3Your phone

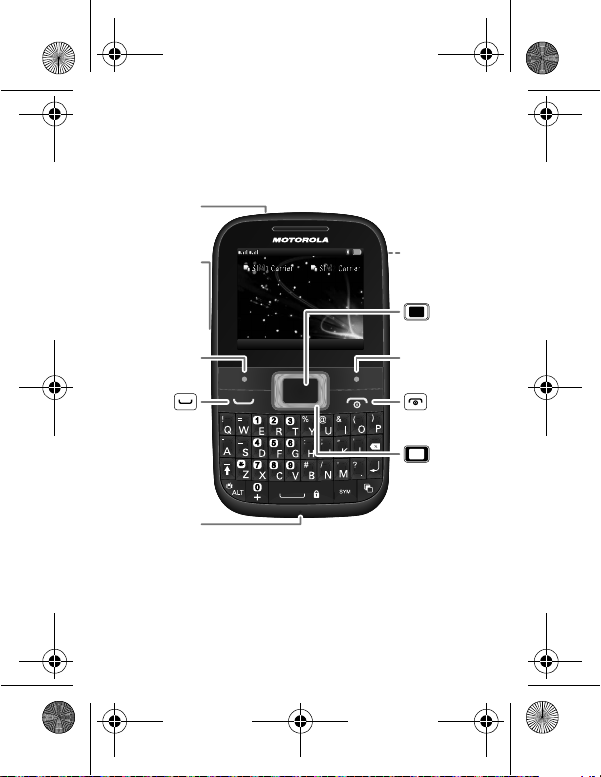

Your phone
the important keys & connectors
Note: Your phone might look a little different.
12:30
PM
Main MenuMessaging
12
2
1
SIM1 Carrier
S
Carrie
IM1 Carrier
SIM2 Carrier
S
Carrie
IM2 Carrie
r
12:30 PM
3.5mm
Headset
Micro USB
Connector
Charge or
connect to
PC.
Camera
(on back)
Microphone
Left Soft Key Right
Soft Key
Power/
End Key
Call Key
Select
Key
Navigation
Key
68016189001_no_Warranty.fm Page 3 Thursday, May 26, 2011 8:10 AM

4Contents
Contents
Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Photos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Manage your life . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Bluetooth™ wireless . . . . . . . . . . . . . . . . . . . . . . . 36
Memory card & file transfer . . . . . . . . . . . . . . . . . . 38
Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . 44
68016189001_no_Warranty.fm Page 4 Thursday, May 26, 2011 8:10 AM

5Let’s go
Let’s go
let’s get you up and running

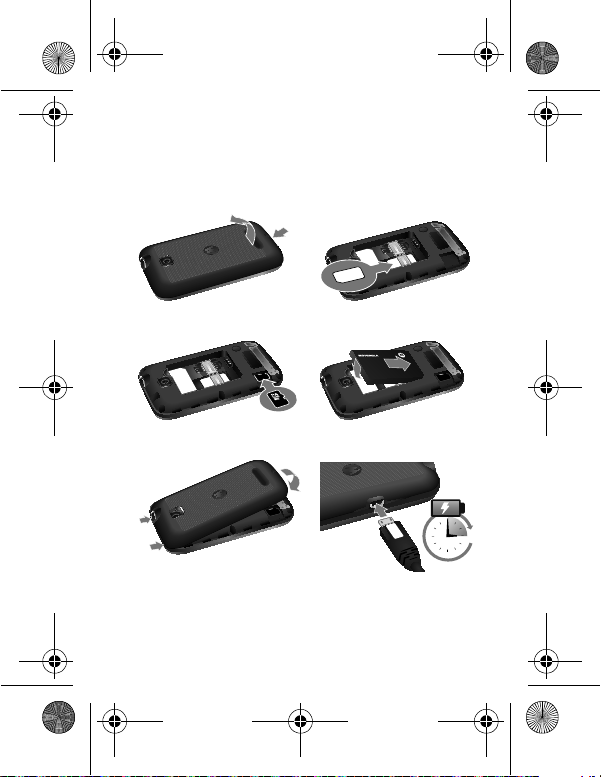

Assemble & charge
