Motorola MOTOKRZR K1 User manual

1
HELLOMOTO
Introducing your new MOTO KRZR™ K1 GSM wireless phone. Here’s a quick anatomy lesson.
Left Soft Key
Volume Keys
Charge up or
go handsfree.
Make &
answer calls.
Smart/PTT Key
Go online.
Scroll up,
down, left, or
right.
Open menu
and select.
Right Soft Key
Clear/Back Key
Voice
Command Key
Turn on & off,
hang up, exit
menus.

2
To change your home screen shortcuts and your main menu appearance, see page 48.
Home Screen Main Menu

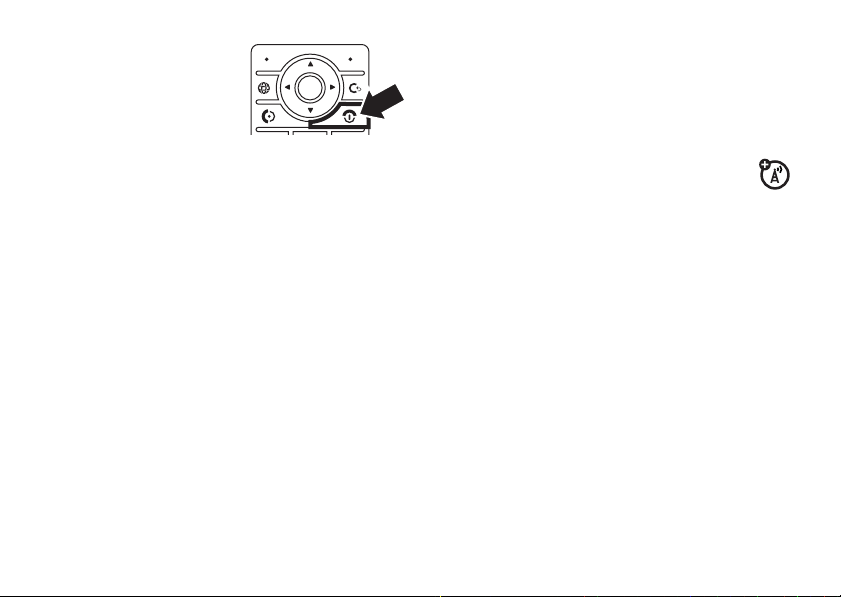

Press and hold the Power
Key
O for a few
seconds or until the
display lights up to turn
on your phone.
1
Press the Navigation Key
up, down, left, or right
(
S ) to highlight a menu
feature.
3
Press the Center Key
(
s ) to select it.
4
Press the Center Key s
key to open the
Main Menu .
2
Shortcuts Main Menu
T-Mobile 12:00pm
Select Exit
Messages

3
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user's guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. The Bluetooth trademarks
are owned by their proprietor and used by Motorola, Inc. under
license. Java and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries. Microsoft, Windows and Windows Me are
registered trademarks of Microsoft Corporation; and Windows XP
is a trademark of Microsoft Corporation.
© Motorola, Inc., 2006.
Caution: Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to
operate the equipment.
Manual Number: 6809506A76-O

4
contents
contents
menu map . . . . . . . . . . . . 6
Use and Care . . . . . . . . . . 8
essentials . . . . . . . . . . . . . 9
about this guide. . . . . . . 9
SIM card . . . . . . . . . . . 10
battery . . . . . . . . . . . . . 10
turn it on & off . . . . . . . 12
make a call. . . . . . . . . . 13
answer a call . . . . . . . . 13
store a phone
number . . . . . . . . . . . . 13
call a stored phone
number . . . . . . . . . . . . 14
your phone number . . . . 15
main attractions . . . . . . 16
myFaves . . . . . . . . . . . 16
Bluetooth® wireless . . . 19
audio player . . . . . . . . . 22
photos . . . . . . . . . . . . . 22
videos . . . . . . . . . . . . . 25
text messages. . . . . . . 26
memory card . . . . . . . . 28
cable connections . . . . 30
phone updates. . . . . . . 32
basics . . . . . . . . . . . . . . . 33
display . . . . . . . . . . . . . 33
text entry . . . . . . . . . . . 36
volume. . . . . . . . . . . . . 39
navigation key . . . . . . . 40
smart key. . . . . . . . . . . 40
voice commands . . . . . 40
external display . . . . . . 42
handsfree speaker. . . . 42
codes & passwords. . . 43
lock & unlock phone. . . . 43
lock & unlock
external keys . . . . . . . . 44
customize. . . . . . . . . . . . 45
ring style . . . . . . . . . . . 45
time & date . . . . . . . . . 46
wallpaper . . . . . . . . . . . 46
screen saver . . . . . . . . 47
themes . . . . . . . . . . . . 47
shortcuts and
main menu . . . . . . . . . 48
display appearance . . . 49
answer options . . . . . . 49
calls. . . . . . . . . . . . . . . . . 50
turn off a call alert . . . . 50
delay answering. . . . . . 50
recent calls . . . . . . . . . 50

contents
5
redial. . . . . . . . . . . . . . 52
return a call. . . . . . . . . 52
caller ID . . . . . . . . . . . 53
emergency calls . . . . . 53
voicemail . . . . . . . . . . 54
other features . . . . . . . . 55
advanced calling . . . . . 55
phonebook . . . . . . . . . 58
messages. . . . . . . . . . 63
instant messaging . . . 65
personalizing. . . . . . . . 66
call times & costs. . . . 67
handsfree . . . . . . . . . . 68
data calls . . . . . . . . . . 69
network . . . . . . . . . . . 70
personal organizer . . . 70
security. . . . . . . . . . . . 73
fun & games. . . . . . . . . 74
service and repairs . . . . 78
SAR Data. . . . . . . . . . . . 79
Safety Information . . . . 82
Industry Canada
Notice . . . . . . . . . . . . . . 87
FCC Notice . . . . . . . . . . 88
Warranty . . . . . . . . . . . . 89
Hearing Aids . . . . . . . . . 93
WHO Information . . . . . 94
Registration . . . . . . . . . 94
Export Law . . . . . . . . . . 95
Recycling. . . . . . . . . . . . 95
Perchlorate Label . . . . . 96
Driving Safety. . . . . . . . 97
index . . . . . . . . . . . . . . . 99

6
menu map
menu map
main menu
% Voice Records
s Recent Calls
• (press the * or # to scroll
through the call lists)
# t-zones
•MyAlbum
• My Journal
•MyEmail
•Games
• HiFi Ringers
• Wallpapers
ã IM *
e Messages
• Create Message
• Message Inbox
•Voicemail
• Templates
•Drafts
• Outbox
• Browser Msgs
h Fun & Apps
• Games & Apps
•Camera
•Pictures
• Sounds
• Videos
• Video Camera
& Help
n Phonebook
w Settings
• (see next page)
* optional features
This is the standard main menu layout.
Your phone’s menu may be different.
To change your home screen shortcuts
and your main menu appearance, see
page 48.
Tip:
Press D to exit the current menu, or
u
to exit all menus.

menu map
7
settings menu
É Tools
• Calculator
• Datebook
• Voice Records
•AlarmClock
• Dialing Services
• Fixed Dial *
• Web Access
• World Clock
l Personalize
• Home Screen
• Main Menu
•VoiceDialSetup
•Skin
• Greeting
• Wallpaper
• Screen Saver
myFaves Settings *
t Ring Styles
•Style
•(style) Detail
E Bluetooth® Link
• [Find Me]
• [Add Audio Devices]
• Device History
• Setup
8 USB Settings
H Call Forward *
•VoiceCalls
• Fax Calls
• Data Calls
• Cancel All
• Forward Status
U In-Call Setup
• In-Call Timer
• My Caller ID
• Answer Options
• Call Waiting
Z Initial Setup
• Time and Date
• Speed Dial
• Display Timeout
• Backlight
•Scroll
• Text Marquee
• Language
• Brightness
•DTMF
• Master Reset
• Master Clear
m Phone Status
•MyTel.Numbers
•BatteryMeter
• Download Location
• Storage Devices
• Software Update *
• Other Information
S Headset
• Auto Answer
•VoiceDial
J Car Settings
• Auto Answer
• Auto Handsfree
• Power-Off Delay
• Charger Time
j Network
•NewNetwork
•NetworkSetup
• Available Networks
• Network Jingle *
• Call Drop Tone
u Security
• Phone Lock
• External Key Lock
• Lock Application
• Fixed Dial *
• SIM PIN
• New Passwords
• Certificate Mgmt *
c Java™ Settings
• Java System
• Delete All Apps
• App Vibration
• App Volume
% Airplane Mode
• Airplane Mode
• Prompt at Power Up
* optional features

8
Use and Care
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture. Don’t expose your phone to dust, dirt, sand, food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below -10°C/14°F or
above 45°C/113°F. To clean your phone, use only a dry soft cloth. Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven. Don’t drop your phone.

9
essentials
essentials
about this guide
This guide shows how to open a menu
feature as follows:
Find it: s > eMessages > Create Message
This means that, from the home screen:
1 Press the center key s to open the
menu.
2 Press the navigation key S to scroll to
eMessages , and press the center key s
to select it.
3 Press the navigation key S to scroll to
Create Message , and press the center key s
to select it.
CAUTION: Before using the
phone for the first time, read the
Important Safety and Legal
Information
included in the gray-
edged pages at the back of this
guide.
symbols
This means a feature is network,
SIM card, or subscription
dependent and may not be available
in all areas. Contact your service
provider for more information.

10
essentials
SIM card
Caution: Don’t bend or scratch your SIM card.
Keep it away from static electricity, water, and
dirt.
You r Subscriber Identity Module (SIM) card
contains personal information like your phone
number and phonebook entries.
To insert and use a
memory card , see
page 28.
Turn off your phone and remove your
battery before you install or remove a SIM
card.
battery
battery installation
This means a feature requires an
optional accessory.
symbols 12
12

11
essentials
battery charging
New batteries
are not fully
charged. Plug
the battery
charger into
your phone
and an
electrical outlet. Your phone might take
several seconds to start charging the battery.
When finished, your display shows
ChargeComplete .
Tip: Relax, you can’t overcharge your battery.
It will perform best after you fully charge and
discharge it a few times.
You can charge your battery by
connecting a
cable from your
phone's mini-USB port to a USB
port on a computer. Both your
phone and the computer must be turned on,
and your computer must have the correct
software drivers installed. Cables and
software drivers are available in
Motorola Original data kits, sold separately.
battery tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
• Always use Motorola
Original batteries and
chargers. The warranty does
3

12
essentials
not cover damage caused by
non-Motorola batteries and/or chargers.
• New batteries or batteries stored for a
long time may take more time to
charge.
• When charging your battery, keep it
near room temperature.
When storing your battery, keep it
uncharged in a cool, dark, dry place.
• Never expose batteries to
temperatures below -10°C (14°F) or
above 45°C (113°F). Always take your
phone with you when you leave your
vehicle.
• It is normal for batteries to gradually
wear down and require longer charging
times. If you notice a change in your
battery life, it is probably time to
purchase a new battery.
Contact your local recycling center for
proper battery disposal.
Warning: Never dispose of batteries in a fire
because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information” section included in this guide.
turn it on & off
Caution: Some phones ask for your SIM card
PIN code when you turn them on. If you enter
an incorrect PIN code three times before the
correct code, your SIM card is disabled, and
your display shows
SIM Blocked . Contact your
service provider.
032375o

13
essentials
To turn on your
phone
, press and
hold
u for a few
seconds or until the
keypad or display
lights up. If prompted, enter your eight-digit
SIM card PIN code and/or four-digit unlock
code.
To turn off your phone , press and hold u
for a few seconds.
make a call
To ma ke a c al l , enter a phone number and
press
U . To “hang up,” close the flip or
press
u .
To use voice commands for calling, see
page 40.
answer a call
To answer a call when your phone rings
and/or vibrates, just open the flip or press
U .
To “hang up,” close the flip or press u .
Note: Your phone cannot receive data
over an EDGE network while it is
playing videos or some sound files. The
EDGE
, status indicator appears at the top of
your display when you can receive data over
an EDGE network.
store a phone number
You can store a phone number in your
Phonebook :
Find it: s > nPhonebook , then press Options
>
Create New > Phone Contact or SIM Contact
Note: You can store new contacts in your
phone’s memory or on your SIM card .

14
essentials
Contacts on the SIM card only have a Name
and
Number .
1 Enter a name and other details for the
phone number. To select a highlighted
item, press the center key
s .
2 Press the Done key to store the number.
To
edit or delete a Phonebook entry, see
page 59.
To store an
email address from the home
screen, press
s > nPhonebook > New Entry .
Enter the new contact’s name and
Email
information.
Shortcut: Enter a phone number in the home
screen, then press the
Store key to create a
contact. To choose whether your phone
stores these contacts in your phone’s
memory or on your SIM card, go back to the
home screen and press
s > nPhonebook ,
then press
Options > Setup > Default Storage
>
Phone or SIM Card .
call a stored phone
number
Find it: s > nPhonebook
1 Scroll to the phonebook entry.
Shortcut: In the phonebook, press
keypad keys to enter the first letters of an
entry you want.
2 Press U to call the entry.
Note: You can show contacts stored in your
phone’s memory or on your SIM card. To
choose which contacts you see, press
s > nPhonebook , then press Options > View .
You can select
Phone & SIM Card , SIM Card , or
Phone Contacts .

15
essentials
To use voice commands for calling, see
page 40.
your phone number
From the home screen, press
the clear key
D then # to see your
number.
Tip: Want to see your phone number while
you’re on a call? Press
Options > My Tel. Number .
You can edit the name and phone
number stored on your SIM card. From
the home screen, press
D# , select an
entry, press the
View key, press the Options key,
and select
Edit . If you don’t know your phone
number, contact your service provider.

16
main attractions
main attractions
You can do much more with your phone than
make and receive calls!
myFaves
You can use the myFaves service to
assign your five favorite contacts to
quick-access locations on your phone’s
home screen. To call a myFaves contact, just
select the contact’s picture icon in the home
screen and press the send key
U . You can
quickly send messages to your myFaves
contacts, and share photos and voice notes
with them.
create myFaves contacts
The myFaves icons appear in the home
screen shortly after you turn on your phone.
Add Add
Add Add
Add
Press to add myFave
Press S
left/right to
rotate
contacts &
move unused
contact to
front position.
Press the
center key
s to add
information for
front contact.
Shortcuts Main Menu
T-Mobile 12:00pm

17
main attractions
To add a new myFaves contact:
1 Press S left or right to move an unused
contact icon to the front position.
2 Press the center key s to add
information for the front contact.
3 Select Create New to create a new myFaves
contact.
or
Select Get From Phonebook to use an existing
phonebook contact.
4 Scroll to Name and press Change to enter the
contact’s name, if necessary. Press
keypad keys to enter the contact’s name
(for more information about text entry,
see page 36).
5 Scroll to Number and press Change to enter
the contact’s phone number, if necessary.
Press keypad keys to enter the number.
6 Scroll to Icon and press Change to add a
photo or select an icon for the contact.
If you take a new photo or use an existing
photo, your phone crops the photo to fit
the circular picture icon in the home
screen.
7 Scroll to Ringtone and press Change to assign
a distinctive ringtone to the contact.
8 Press Save to save the contact.
9 Press Yes to confirm the save.
T-Mobile sends you a text message to
confirm when the myFaves contact is
updated. Press
Save to save the message, or
Delete to delete it.
In the home screen, press
S left or right to
move other unused contact icons to the front
and add contact information for them.

18
main attractions
Your myFaves contacts are automatically
stored in the
Phonebook (if they’re not already
stored), and are tagged as myFaves contacts.
use myFaves contacts
In the home screen, press S left or right to
select a contact. Your phone shows if you’ve
missed any calls or messages from the
selected contact.
• To call the contact, press the
send key
U .
• To sen d a message , photo , or
voice note to the contact, press the
center key
s > Send Message ,
Share Picture , or Send Voice Note .
• To edit the contact, press the
center key
s > Options to select the
following contact options:
myFaves settings
You can turn off or change the myFaves
picture icons in the home screen.
Note: The myFaves Settings option only appears if
you have myFaves enabled on your account.
Find it: s > wSettings > myFaves Settings
options
Edit Profile Edit contact information.
Change
Order
Change the location of the
contact icon in the home
screen.
Replace
Contact
Replace the contact with a new
contact.
options
Display Select to Show or Hide contact
icons in the home screen.
