Before you begin
See figure 1 on page 1.
Take a moment before you get started to familiarize yourself with your new
H680 Bluetooth Hands-free Headset. Along with your headset, a charger
case is provided for both charging and storage.
Bluetooth headset
1. Power button
2. Call button
3. Indicator light
4. Microphone
5. Charging contacts
6. Volume buttons
7. Speaker
Charger case
1. Charger port
2. Charging contacts
3. Charger cover
English

7
Wearing your headset
See figure 2 on page 2.
Your H680 headset is supplied with multiple ear buds. The ear bud is fitted
onto the end of your headset’s earpiece speaker, and placed onto your ear
when using your headset. Your headset’s performance is greatly dependent
upon achieving a good fit on your ear. Therefore, we recommend trying all
the supplied ear buds with your headset.
You can wear your H680 headset on your left of right ear. The headset comes
ready for the right ear.
Placing the headset on your ear: see figure 3 on page 2.
Placing the headset on the left ear: see figure 4 on page 2.

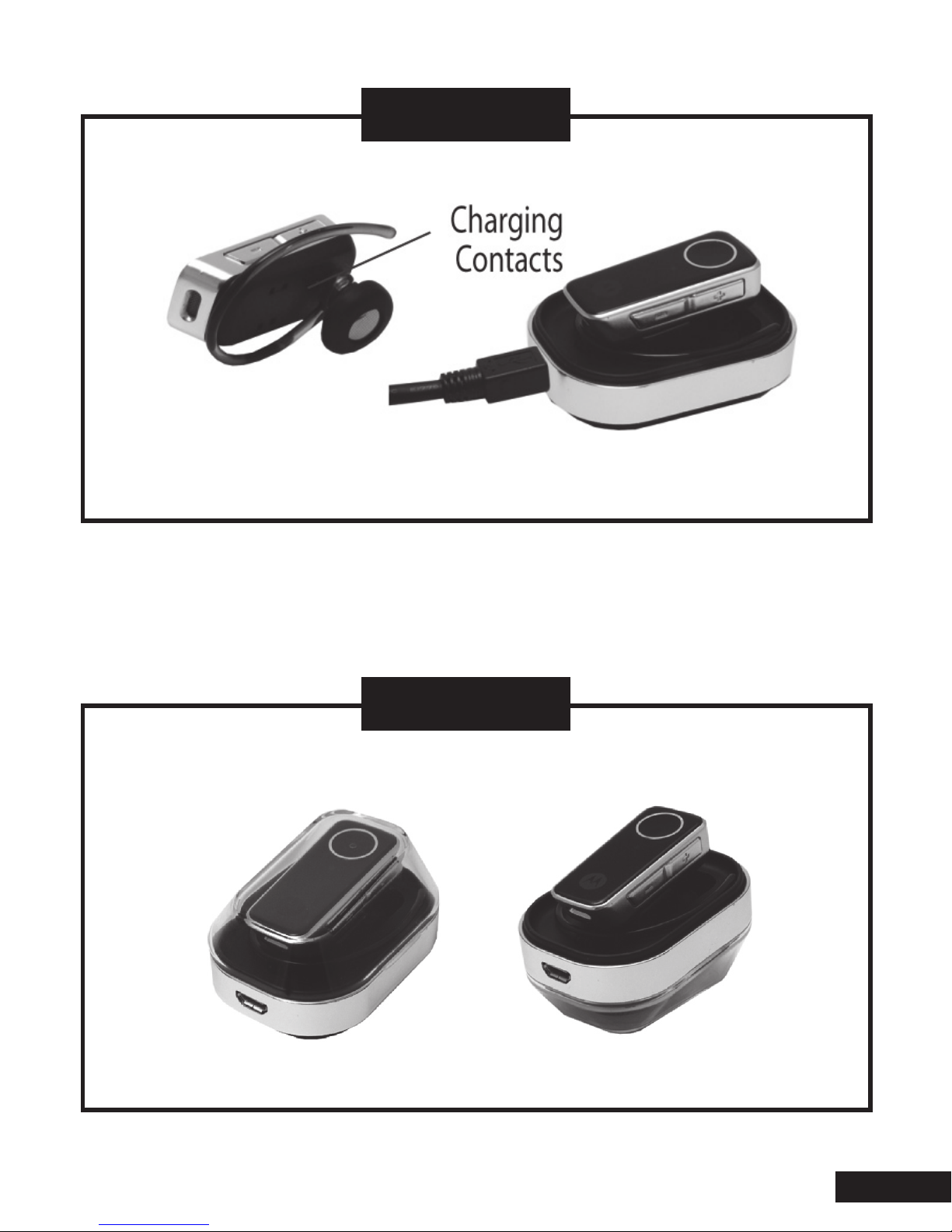

Charging your headset
See figure 5 on page 3.
Important: Your headset must be turned off when charging.
1. Plug the Motorola charger into the port on the charger case.
2. Place the headset into the charger case ensuring that charging contacts
on the headset and charging case connect.
The indicator light turns red when the battery is charging. It may take up to
1 minute for the indicator light to turn on. When the headset’s battery is fully
charged (about 2.5 hours), the indicator light turns off.
Note: Headset is NOT functional while charging.
English

8
Storing your headset
See figure 6 on page 3.
The charger case provided is used to charge and store your headset.
When not using your headset, you should place it in the charger base. Be
sure to turn the headset off before placing it into the charger case.
The charger cover can be placed on top of the charger case, or underneath
it to provide support for desktop placement.
Turning headset on and off
See figure 7 on page 4.
To turn your headset on, slide the Power switch on (towards Power symbol
on headset). The indicator light is steadily purple for several seconds, then
flashes blue (if paired and connected with another device) or is steadily blue
(if ready to be paired).
To turn your headset off, slide the Power switch off. The indicator light will
turn off.
English

9
Pairing your headset
Your phone’s Bluetooth feature is off by default. To use your headset, you
must turn on the Bluetooth feature in your phone. Please check your phone’s
user’s guide.
Note: The Bluetooth feature remains on until you turn the feature off.
Before you can use your headset, you must pair it with your phone.
1. Ensure headset is in pairing mode
Remove headset from charging base and power it on.
The indicator light flashes to initiate easy pairing. After a few moments,
the indicator light will be steadily lit in blue to indicate headset is in pairing
mode.
If the headset does not enter into pairing mode, see “Troubleshooting”
section.
2. Set your phone to look for your headset
• Perform a device discovery from the phone. For details about device
discovery, consult your phone’s user’s guide. The phone lists Bluetooth
devices it finds.
• Select Motorola H680 in the list of discovered devices and confirm by
following the on-screen prompts.
• When prompted by the phone, enter the passkey 0000 and confirm.
Pairing is successful when the headset indicator changes from steadily lit
to flashing blue.
