MRC PC-6011SD User manual

micro SD card real time data logger
CLAMP POWER ANALYZER
Model : PC-6011SD
Your purchase of this
CLAMP POWER ANALYZER
with micro SD CARD
DATA LOGGER marks a
step forward for you
into the field of
precision measurement.
Although this meter a
complex and delicate
instrument, its durable
structure will allow
many years of use if
proper operating
techniques are
developed. Please read
the following
instructions carefully
and always keep this
manual within easy
reach.
OPERATION MANUAL
3, Hagavish st. Israel 58817 Tel: [phone], Fax: [phone]
[email protected]
MRC. 2.23
3, Hagavish st. Israel 58817 Tel: [phone], Fax: [phone]
[email protected]
MRC. 2.23
3, Hagavish st. Israel 58817 Tel: [phone], Fax: [phone]
[email protected]
MRC. 2.23

Caution Symbol
Caution :
*
Risk of electric shock !
* During the measurement ,
do not open the cabinet.
Caution :
* Do not apply the overload
voltage, current to the input
terminal !
* Remove test leads before open
the battery cover !
* Cleaning - Only use the dry
cloth to clean the plastic case !
*
Double insulation
Environment Conditions
*
Installation Categories III-1000V , IV-600V
* Pollution Degree 2.
* Altitude up to 2000 meters.
* Indoor use.
* Relative humidity 80% max.

TABLE OF CONTENTS
1. FEATURES.................................................................................................................
1
2. SPECIFICATIONS................................................................................................
2
3. FRONT PANEL DESCRIPTION.............................................................................
5
4. MEASURING PROCEDURE.........................................................................................
6
4-1. The original screen.........................................................................
6
4-2. Entry the measurement Screen....................................................................................................................................
6
4-3. The summary description of keyboard................................................................................................................
6
4-4.SETUP KEY description……………………………………………….
7
4-5 Setting function description before measuring…………………………..
7
5.MEASURING PROCEDURES....................................................................................................
18
5-1 Single-phase power quality measurements........................................................
18
5-2 Balanced three-phase power quality measurements.....................................................
20
5-3 Maximum demand metering zero............................................
22
5-4 Watt-hour zero...............................................................................................
22
5-5 Voltage Harmonics Measurement...............................................................................................
23
5-6 Current Harmonics Measurement………………………………….
24
5-7 Voltage and Current Waveforms Measured…………………………………
25
5-8 Transient Measurement……………………………………………..
26
5-9 Temperature Measurements………………………………………….
26
5-10 Data Logger Function……………………………………………..
27
5-11 Hard copy function………………………………………………..
28
5-12 Data HOLD Function…………………………………………….
29
5-13 EXIT( ) KEY…………………………………………………………………
29
5-14 LOWBAT screen……………………………………………………
29
6. Download the saving data from the micro SD card
to the computer ( EXCEL software ).………………………………….
30
7. POWER SUPPLY from DC ADAPTER..........................................................................
32
8. BATTERY REPLACEMENT.....................................................................
32
9. RS232 PC SERIAL OUTPUT................................................................................
33
10. OPTIONAL ACCESSORIES....................................................................
35
11. PATENT.................................................................................................
35
12. THE ADDRESS OF AFTER SERVICE………………...…………..
36

1 FEATURES
* Power quality analyzer for single-phase or balanced three-phase system.
* Voltage and Current are the True RMS value.
* ACV input impedance is 10 Mega ohms.
* True Power(KW、MW、GW) measurement.
* Apparent Power (KVA、MVA、GVA) measurement.
* Reactive Power (KVAR、MVAR、GVAR) measurement.
* Power Factor (PF)、Phase Angle ( ∮) measurement.
* Energy(KWh、KVAh、KVARh、PFh) measurement.
* Voltage measurement range: 10 to 600 ACV
* Current measurement range: 5 to 2000 ACA
* Graphic Phasor Diagram.
* Voltage and Current harmonic analysis (1-50th order).
* Voltage and Current Total Harmonic Distortion analysis (THD)
measurement.
* Voltage and Current waveforms show.
* Peak-to-Peak voltage and current measurement.
* Capture Transient events (including Dip, Swell and Outage ) with
programmable threshold ( % ).
* Thermocouple Temp. sensor:Type K(-100.0℃〜199.9℃/200℃〜1300℃),℃/℉.
* Programmable PT ratio ( 1 to 1000 ).
* Safety Standard : IEC 1010, CAT IV 600V.
* Built-in clock and Calendar, real time data record with micro SD memory card ,
sampling time set from 2 to 7200 seconds. Just slot in the micro SD card
into the computer, it can down load the all the measured value with
to the Excel directly, then user can make the further data analysis by themselves.
* micro SD CARD 32 GB maximum supported capacity.
* Powered by AA ( UM-3 ) DC 1.5 V X 2 batteries ( Alkaline type ) or
DC 9V adapter. (linear 110V / 220V )
* Computer data output, can cooperate with optional USB Cable/USB-01,
RS232 cable/UPCB-02 and Data Acquisition software, SW-U811-WIN.
* Optional type K probe: TP-11.
1

2. SPECIFICATIONS
2-1. General Specifications:
Circuit
Custom single-chip microprocessor LSI circuit
54.6 X 32.0 mm (2.15 X 1.26 ")
Display LCD Size Dot Matrix backlit LCD (128 X 64 pixels)
Measurements ACV,ACA
KW / KVA / KVAR / PF / KWH / KVAH / KVARH / PFH
Power factor
Phase angle
Frequency
Harmonics display
Temperature
Wire 1 Phase, 3 Phase
configurations
Voltage ranges 10 ACV to 600 ACV (Auto Range)
Current ranges 5 ACA to 2000 ACA (Auto Range)
Safety standard IEC1010 CAT IV 600 V
ACV input impedance 10M ohms
Clamp frequency
40 Hz to 1 KHz
response
Tested clamp 45 to 65 Hz
Over-load ACV 720 ACV RMS
protection ACA 2100 ACA with clamp probe
Over-range * LCD display show " OL ".
* The data save into the micro SD card will show " 9999 " or
" 999 " (overleap the decimal point).
Data Hold Freezes displayed reading
Data Recording micro SD memory card
Sampling Time(LCD) Approx. 1 second
Datalogger * Real time data logger, saved the data into micro SD memory
card and down load the all the measured value with the time
information ( year/month/date/ hour/minute/second )
down load to the Excel.
* Sampling time for data logger : 2 seconds to 7200 seconds,
the during of setting step are 2 seconds.
* When the system detects micro SD format does not match with the
machine that will be mandatory for reformatting to ensure that
data records can be normal.
* Data error no. ≦0.1% no. of total saved data typically.
2

Data Output USB/RS232 RS232 computer serial interface :
Computer interface * Connect the optional USB cable USB-01 will get the USB plug.
*Connect the optional RS232 cable UPCB-02 will get the
RS232 plug.
Operating Temperature
0 to 50℃( 32 to 122℉).
Operating Humidity 80% Relative Humidity max.
Power Supply * DC 1.5V, AA ( UM-3 ) Battery X 2 PCs
(Alkaline or heavy-duty battery).
* AC to DC 9V power adapter.(linear 110V / 220V )
Power Consumption 60 mA DC
Max. Conductor size Clamp can accommodate up to 2.0” (50 mm) diameter
Weight 595 g (meter only)
Dimensions 11.0 X 4.2 X 1.9” (280 X 106 X 47mm)
Clamp Jaw: 2,0” (50 mm)
Accessories Included
Instruction manual……………………………………………………
1 PC
Test Leads…………………………………………………
1 Set
Alligator clips……………………………………………………
1 Set
AC to DC 9V adapter (linear 110V / 220V )……………………………………………………
1 PC
micro SD card (8 G )……………………………………………………
1 PC
Soft Carrying case (CA-05B)……………………………………………………
1 PC
2-2. Electrical Specifications ( 23±5 ℃):
ACV: Peak to Peak ( Rms Value >20 V ), Crest Factor < 4
Range Resolution
Accuracy
10 to 600 V(RMS) 0.1 V ±(0.5%+3d)
Peak to Peak ±(5%+30d)
ACA: Peak to Peak ( Rms Value > 20 A ), Crest Factor < 4
Range Resolution
Accuracy
5.00A to 2000A 0.01A < 100A
±( 1%+0.5A) ≦200A
100A ≦0.1A < 1000A
±( 1% + 5 A) > 200A
Peak to Peak
1A ≧1000A ±(5%+30d)
Power factor: ACV > 10V,ACA > 5A
Range Resolution
Accuracy
0.000 to 1.000 0 ±0.04
∮(Phase angle):
Range Resolution
Accuracy
-180 ﾟto 180 ﾟ0.1ﾟ
±1ﾟ* ACOS(PF)
3

Frequency:
Range Resolution
Accuracy
45 to 65 Hz 0.1 Hz ±0.2 Hz
Active/Apparent/Reactive POWER:PF 0.1~1.0 , PT = 1, ACV >10V,ACA > 5 A
Range Resolution
Accuracy
0.0 to 9.999M (W/VA/VAR) 0.1-0.001M(W/VA/VAR) ± (1.5% +20d )
Active/Apparent/Reactive POWER Hour:(WH/SH/QH):
Range Resolution
Accuracy
0.000K to 9.999M (WH/VAH/VARH)
0.001K-0.001M(W/VA/VAR)H ± (1.5% +20d )
Harmonics Magnitude: ACV > 80V,ACA > 20A
Function Range Resolution
Accuracy
ACV 1 ~20 th 0.1V ±(2%+5d)
21 ~50 th ±(4%+5d)
ACA 1 ~20 th 0.01A < 100A ±(2%+5d)
21 ~50 th
100A ≦0.1A <1000A ±(4%+5d)
1A ≧1000A
Harmonics Percentage :ACV > 80V,ACA > 20A
Function Range Resolution
Accuracy
ACV 1 ~20 th # ±(2%+10d)
21 ~50 th ±(4%+20d)
ACA 1 ~20 th # ±(2%+10d)
21 ~50 th ±(4%+20d)
Total Harmonic Distortion: ACV > 80V, ACA > 20A
Range Resolution
Accuracy
0 ~ 20 % # ±(2%+5d)
20.1 ~ 100 % ±(6%+10d)
Type K Temperature
Range Resolution
Accuracy
-100.0 ℃to 199.9 ℃
0.1℃±(1%+1℃)
200 ℃to 1300 ℃1℃±(1%+2℃)
-148.0℉to 391.8℉0.1℉
±(1%+1.8℉)
392℉to 2372℉1℉±(1%+4℉)
4

3. FRONT PANEL DESCRIPTION
Fig.1
3-1 Current Sense Jaws 3-13 Function rotary switch
3-2 Trigger 3-14 RS232 socket
3-3 Display 3-15 DC 9V power adapter socket
3-4 FUNC key button 3-16 Voltage input terminals
3-5 HOLD key button 3-17 Battery Cover/Battery compartment
3-6 REC key button
3-18 micro SD card socket
3-7 SETUP(ENTER) key button
3-8 ▲key button
3-9 EXIT( ) key button
3-10 ◄ key button
3-11 ▼key button
3-12 ► key button
5

4. MEASURING PREPARATION
4-1. The original screen
4-2. Entry the measurement Screen
SCREEN 1(4-2) SCREEN 2(4-2)
1) When the bottom right corner "NO DISK" and showed flashing, it indicates the
SD CARD is not inserted (as SCREEN 1)
2) The bottom left display of screen 2 will show as " SD Check "along with
blinking while inserting SD CARD then disappears after several seconds that
indicates the data from SD CARD has been read completed.
4-3. The summary description of keyboard
1) Function Rotary switch(3-13,Fig.1):Select the measurement function rotary
switch.
2) FUNC KEY (3-4,Fig.1): Press the key to select the screen display.
3) HOLD KEY (3-5,Fig.1): Press the key to freeze the display reading.
4) REC KEY (3-6,Fig.1): The data record key for Sd Card.
5) SETUP(ENTER) KEY (3-7,Fig.1): Press the key to setup the function before
measuring or select function input determine.
6) EXIT( ) KEY (3-9,Fig.1): Press the key to exit setting screen or
measurement screen LCD backlight key .
7) ▲KEY (3-8,Fig.1): Press the key to move the cursor up in setting screen.
8) ▼KEY (3-11,Fig.1): Press the key to move the cursor down in setting
screen.
9) ◄ KEY (3-10,Fig.1): Press the key to move the cursor left in setting screen
or harmonic analysis left Key.
10) ► KEY (3-12,Fig.1): Press the key to move the cursor right in setting
screen or harmonic analysis right Key.
6

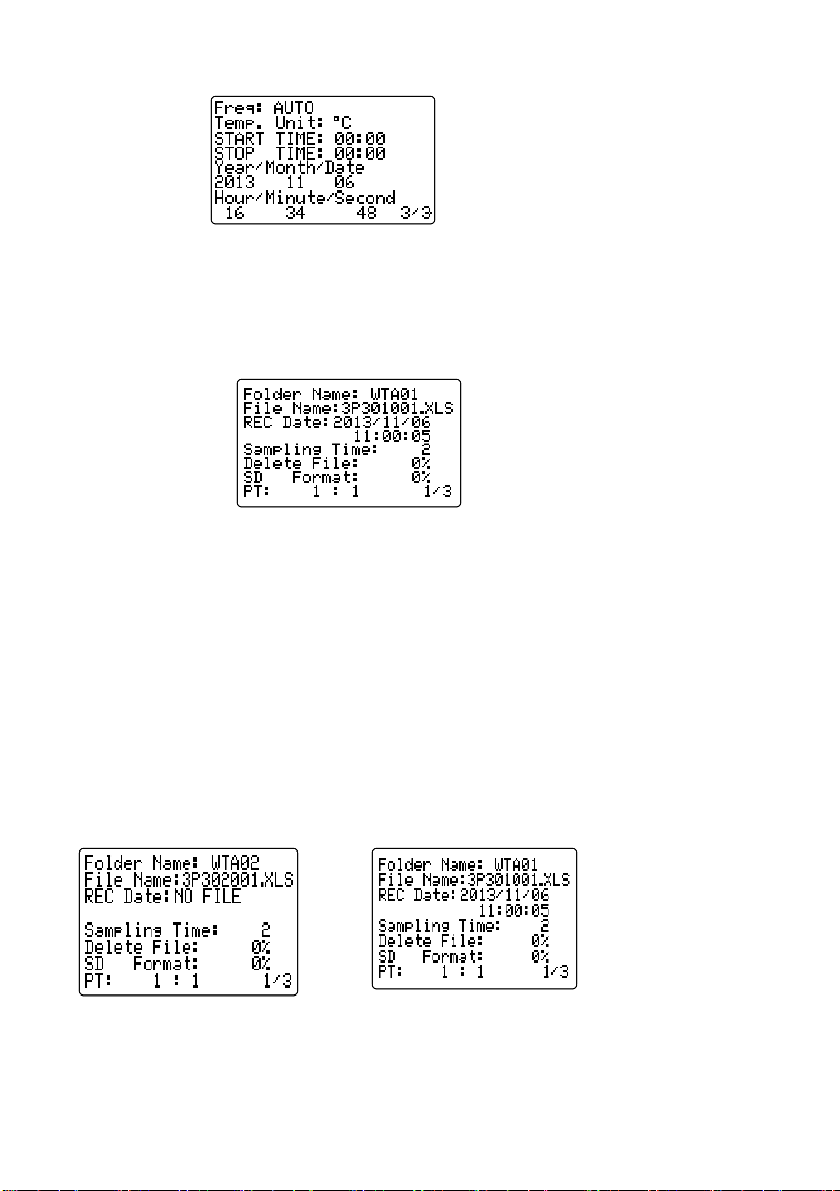

4-4.SETUP KEY description:
4-4-1 Setting Feature List:

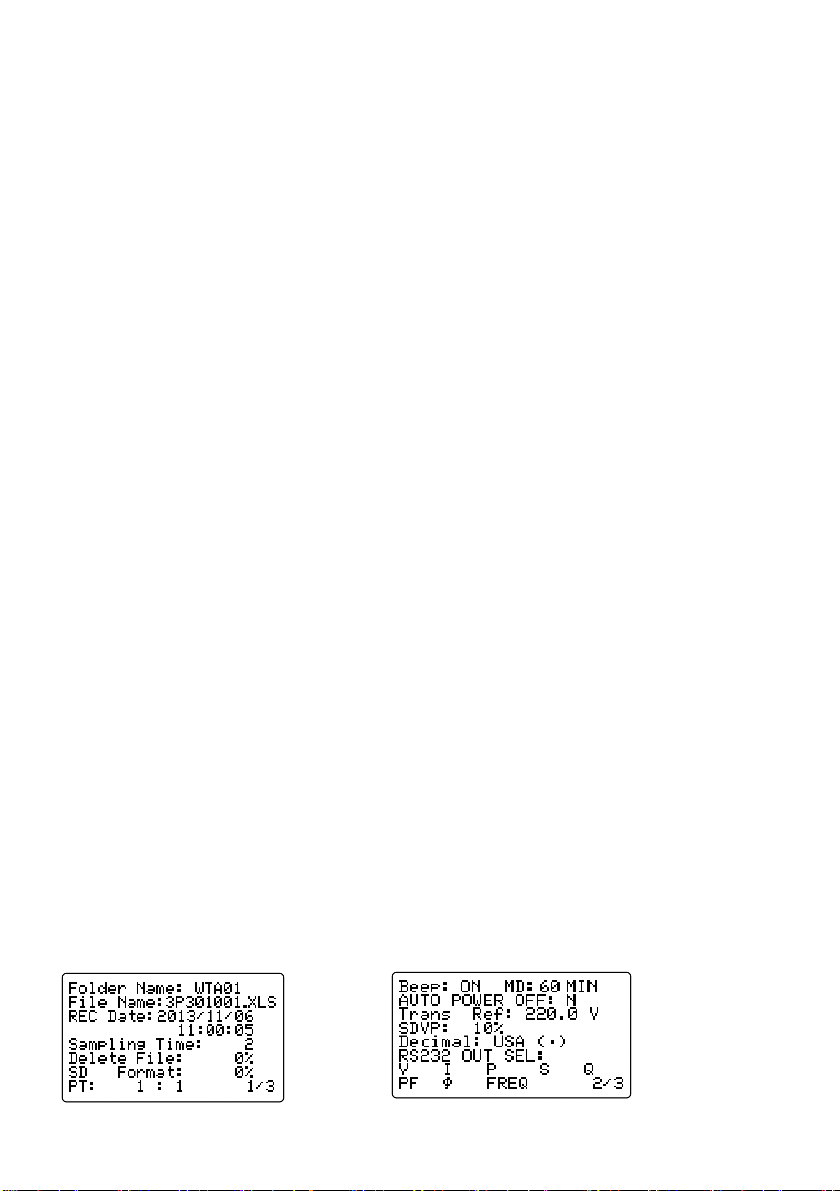

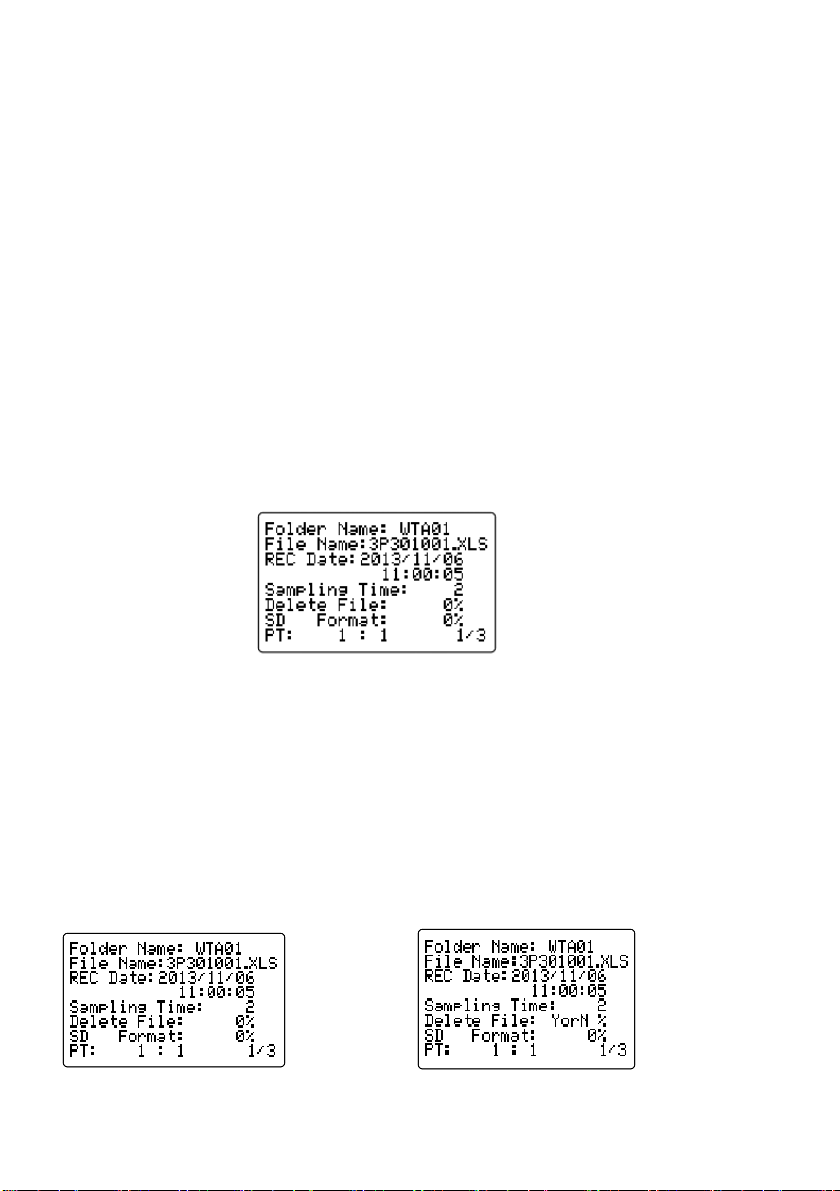

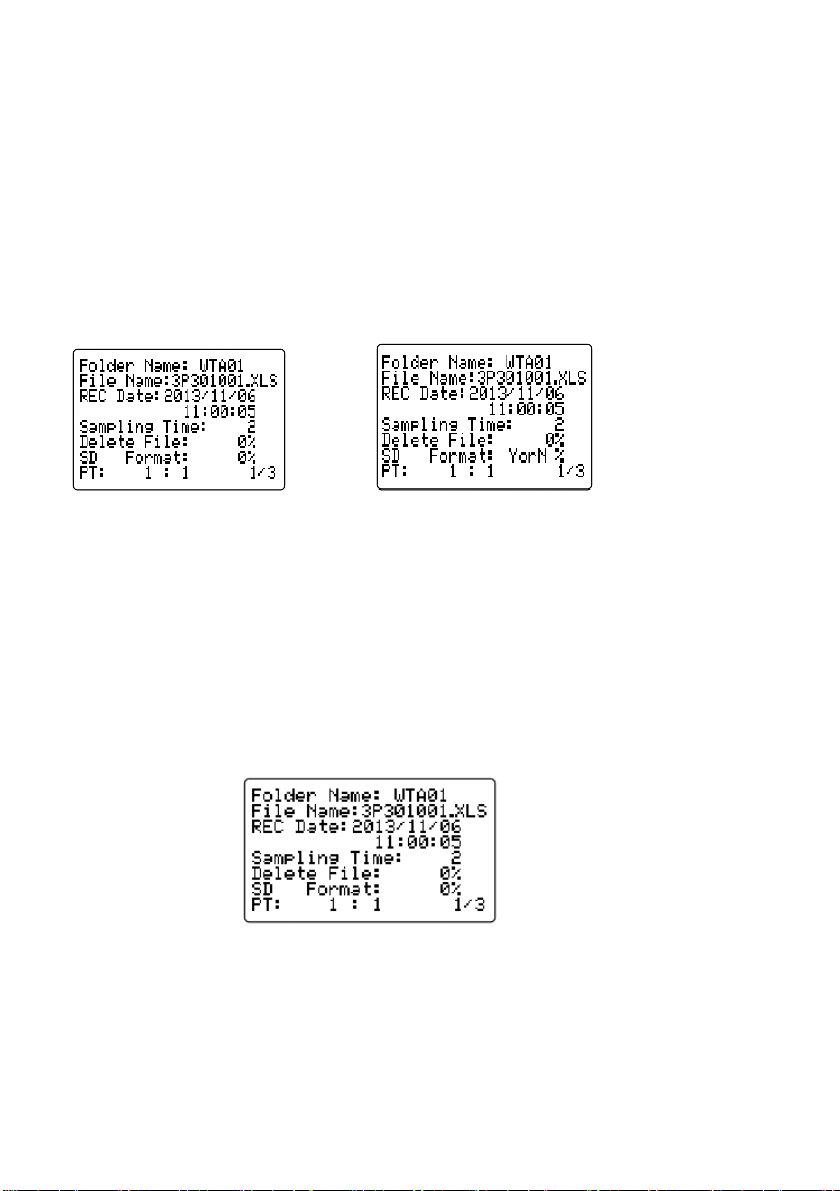

* Folder Name:Set the expect folder name for Sd Card, the range is between
WTA01 to WTA10.
* File Name:Set the file name for SD CARD, It allows setting 50 filenames in
this function.
* REC Date:Show the recorded time of existing files ( Year/Month/Date,
Hour/Min./Sec. )
* Sampling Time:Set the sampling time from 2 to 7200 seconds.
* Delete File:To delete the existing data from SD CARD.
* SD Format:To Format SD CARD fast.
* PT:Set the potential transformer from 1 to 1000.
* Beep:Set to ON/OFF for buzzer.
* MD:Maximum demand metering setting (1-60 minutes), initially set to
15 minutes.
* AUTO POWER OFF:Set auto power off function.
* Trans Ref:Nominal voltage for transient detection reference.
* SVDP:Set up upper and low limits % of transient voltage detection.
* Decimal:set the Decimal type to USA ( .) or Euro ( , )
* RS232 OUT SEL:RS232 output function setting, maximum output option set to
9
* Temp. Unit:Setting the temperature unit ℃/℉
* START TIME:Data logging, the scheduled start time setting records
* STOP TIME:Data logging, scheduled to end recording time settings
* Year:Set the year.
* Month:Set the month.
* Date:Set the date.
* Hour:Set the hour.
* Minute:Set the minute.
* Second:Set the second.
4-5 Setting function description before measuring
SCREEN 1(4-5) SCREEN 2(4-5)
7

SCREEN 3(4-5)
A: Press SETUP(ENTER) KEY to enter setting function screen ,total 3 page
(SCREEN 1〜SCREEN 3).
B: The selected item will be displayed in flashing.
4-5-1 Folder Name: Set the folder name for SD
SCREEN 1(4-5-1)
A:Folder Name range: WTA01 to WTA10
B:At this time Folder Name flashes,When you press or key its Folder number
will flash , press ▲or ▼KEY choice Folder number, its number from
"01 to 10" (as SCREEN 1)
C: Press ▲or ▼KEY> 2 SEC then the number will quickly change
D:Press ◄ or ► KEY will return to Folder Name function, and this was flashing ,
press ▼KEY then go to the next option as SCREEN 1
(Folder Name →File Name)
4-5-2 File Name: Set the file name for SD
SCREEN 1(4-5-2) SCREEN 2(4-5-2)
A: The screen will show " NO File " indicator in REC Date option when the
selected file is new ( as SCREEN 1 ).
B. The screen will show recording date and time in REC Date option when the
selected file has been recorded (as SCREEN 2).
8

C:When entering the File Name option will flash, then go to File on ◄ or ► KEY
digital adjustment and flashes. press ▲or ▼KEY select File numbers, their
numbers from "001-050" (as SCREEN 2)
Remark: Press ▲or ▼KEY> 2 SEC then the number will quickly change
* 1P201001 : 1P2 means one phase.
* 3P301001 : 3P3 means three phases.
* HAV01001 : HAV means voltage harmonic measurement.
* HAA01001 : HAA means current harmonic measurement.
* SIN01001 : SIN means voltage & current waveform measurement.
* TRA01001 : TRA means transient measurement.
* TMP01001 : TMP means temprature measurement.
D: Press ◄ or ► KEY will return to File Name function, and this was flashing.
press ▼KEY then go to the next option as screen 2
(File Name→Sampling Time)
4-5-3 Sampling Time: Set the data logger sampling time for SD
SCREEN 1(4-5-3)
A: When entering the Sampling Time option and is flashing(as SCREEN1).
B: When you press ◄ or ► KEY then enter the digital adjustment and
showed flashes, press ▲or ▼KEY can be adjusted.
Remark: Press ▲or ▼KEY> 2 SEC then the number will quickly change.
C: Press ◄ or ► KEY then returned Sampling Time function, this time is
flashing , press ▼KEY then go to the next option (Sampling Time→
Delete File).
4-5-4 Delete File: Delete the files for SD
SCREEN 1(4-5-4) SCREEN 2(4-5-4)
A : When entering the Delete File option and is flashing(as SCREEN1).
9

B : When you press ◄ or ► KEY> 2 Sec will show "Y or N" and "N" is flashing
(as SCREEN 2), Press ▲or ▼KEY select "Y" and press SETUP(ENTER)
KEY perform the Delete action (ex: 3P301001.XLS) will also return to
SCREEN 1 or select "N" and press SETUP(ENTER) KEY then returned
SCREEN 1.
C : Press ◄ or ► KEY will return to Delete File option and is flashing , press
▼KEY then go to the next option as SCREEN1 (Delete File→SD Format)
4-5-5 SD Format: Formatting function for SD CARD
SCREEN 1(4-5-5) SCREEN 2(4-5-5)
A : When entering the SD Format option and is flashing(as SCREEN1).
B : When you press ◄ or ► KEY> 2 Sec will show "Y or N" and "N" is flashing
(as SCREEN 2) , Press ▲or ▼KEY select "Y" and press SETUP(ENTER)
KEY proceed to Format the action, execution is completed then returned
SCREEN 1 or select "N" and press SETUP(ENTER) KEY then returned
SCREEN 1.
C : Press ◄ or ► KEY will return to SD Format option and is flashing , press
▼KEY then go to the next option as SCREEN1(SD Format→PT)
4-5-6 PT: Set the Potential Transformer
SCREEN 1(4-5-6)
A : When entering the PT option and is flashing(as SCREEN1).
B : When you press ◄ or ► KEY then enter the digital adjustment and
showed flashes, press ▲or ▼KEY can be adjusted.
Remark: Press ▲or ▼KEY> 2 SEC then the number will quickly change.
C : Press ◄ or ► KEY will return to PT option and is flashing , press ▼KEY
then go to the next option (PT→Beep)
10

4-5-7 Beep: Set the buzzer ON or OFF
SCREEN 1(4-5-7)
A : When entering the Beep option and is flashing(as SCREEN1).
B : When you press ◄ or ► KEY then enter the "ON" function and is flashing,
press ▲or ▼KEY then enter the "OFF" Function and is flashing
C : Press ◄ or ► KEY will return to Beep option and is flashing , press ▼KEY
then go to the next option as SCREEN1(Beep→MD)
4-5-8 MD(Maximum Demand): Maximum demand metering settings
SCREEN 1(4-5-8)
A : When entering the MD option and is flashing(as SCREEN1).
B : When you press ◄ or ► KEY then enter the digital adjustment and
showed flashes, press ▲or ▼KEY can be adjusted.(1 MIN〜60 MIN)
Remark: Press ▲or ▼KEY> 2 SEC then the number will quickly change.
C : Press ◄ or ► KEY will return to MD option and is flashing , press ▼KEY
then go to the next option as SCREEN1 (MD→AUTO POWER OFF)

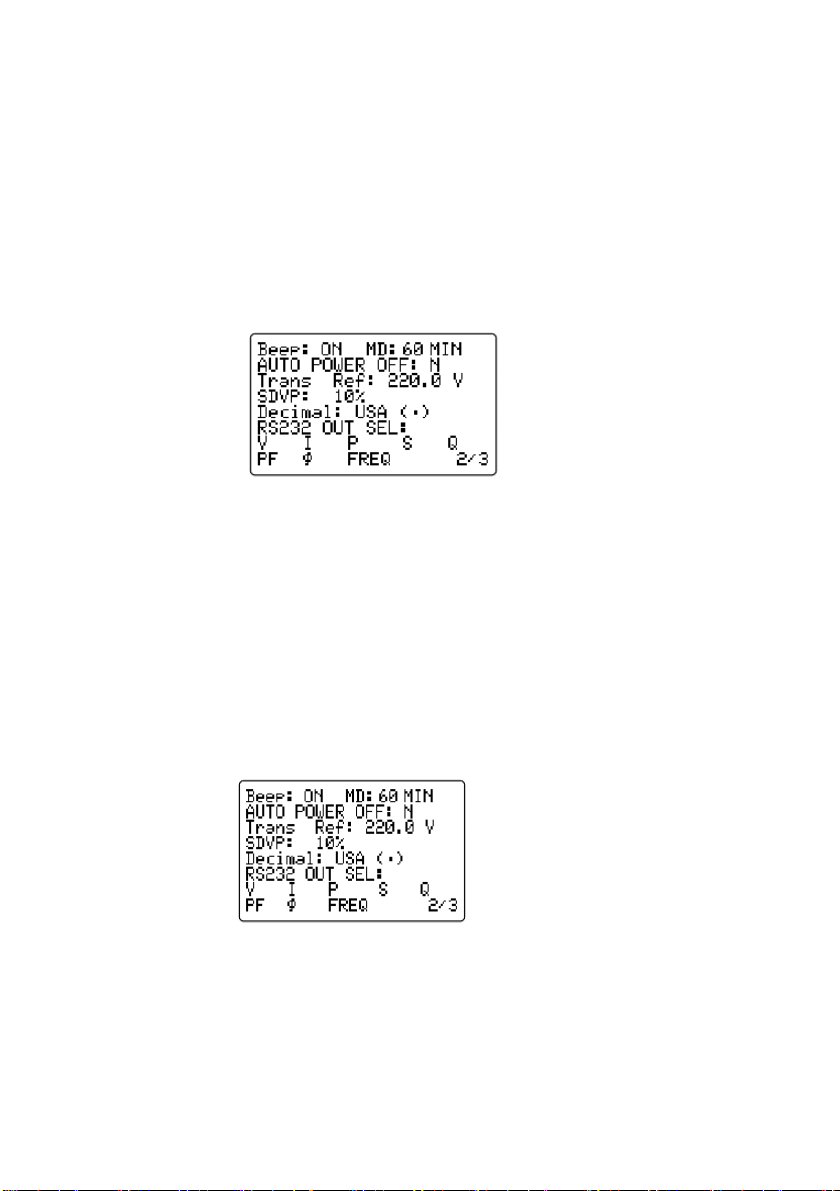

4-5-9 AUTO POWER OFF : AUTO POWER OFF Function Setting
SCREEN 1(4-5-9)
A : When entering the AUTO POWER OFF option and is flashing(as SCREEN1) ,
while the AUTO POWER OFF Choose the instrument will start in 10 minutes
automatically shut down when you turn the dial switch and enter the boot
state measurements, when connected Adapter is automatically canceled
when AUTO POWER OFF function.
11

B : Press ◄ or ► KEY then enter "N" option is selected and flashes, press ▲
or ▼KEY then enter "Y" option and is now flashing
C : Press ◄ or ► KEY will return to AUTO POWER OFF option and is flashing ,
press ▼KEY then go to the next option as SCREEN1
(AUTO POWER OFF→Trans Ref)
4-5-10 Trans Ref: Nominal voltage for transient detection reference
SCREEN 1(4-5-10)
A : When entering the Trans Ref option and is flashing(as SCREEN1).
B : When you press ◄ or ► KEY then enter the digital adjustment and showed
flashes, press ▲or ▼KEY can be adjusted its range(50.0V ~ 850.0V)
Remark: Press ▲or ▼KEY> 2 SEC then the number will quickly change.
C : Press ◄ or ► KEY will return to AUTO POWER OFF option and is
flashing , press ▼KEY then go to the next option(Trans Ref→SVDP)
4-5-11 SVDP:Set up upper and low limits % of transient voltage detection
SCREEN 1(4-5-11)
A : When entering the SVDP option and is flashing(as SCREEN1).
B : Press ◄ or ► KEY then enter the digital adjustment and showed flashes,
press ▲or ▼KEY can be adjusted its range (1%〜100%)
12

Remark: Press ▲or ▼KEY> 2 SEC then the number will quickly change.
C : Press ◄ or ► KEY will return to SVDP option and is flashing , press ▼
KEY then go to the next to the next option (SVDP→Decimal)
4-5-12 Decimal: set the Decimal type to USA ( .) or Euro ( , )
SCREEN 1(4-5-12)
A : When entering the Decimal option and is flashing(as SCREEN1).
B : Press ◄ or ► KEY then enter "USA (.)" function and flashes, press ▲or ▼
KEY then enter "EURO (,) "function and is flashing
C : Press ◄ or ► KEY will return to Decimal option and is flashing , press ▼
KEY then go to the next option (Decimal→RS232 OUT SEL:RS232)
4-5-13 RS232 OUT SEL: RS232 output setting

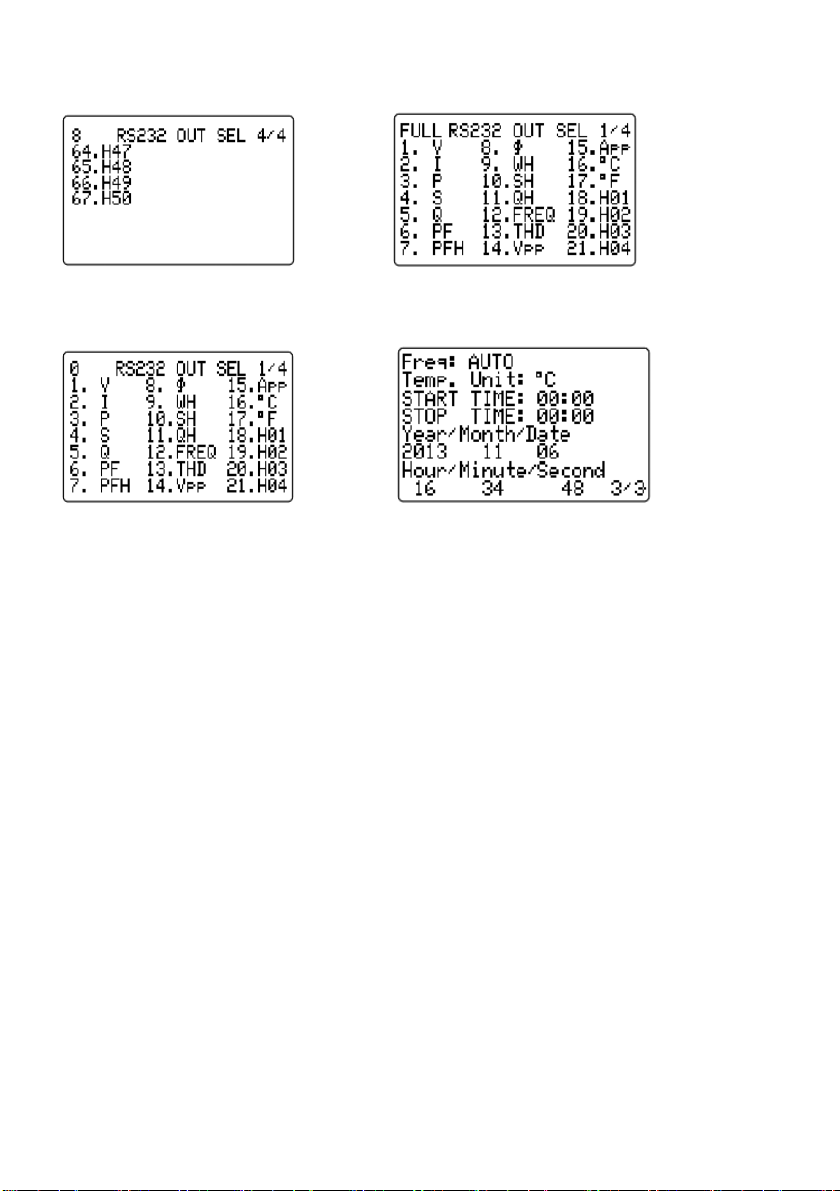

SCREEN 1(4-5-13) SCREEN 2(4-5-13)
SCREEN 3(4-5-13) SCREEN 4(4-5-13)
13

SCREEN 5(4-5-13) SCREEN 6(4-5-13)
SCREEN 7(4-5-13) SCREEN 8(4-5-13)
A : When entering the RS232 OUT SEL option and is flashing(as SCREEN1).
B :When you press ◄ or ► KEY> 2 Sec enters SCREEN 2, press ▲or ▼
KEY to select the desired option total 4 Page (as SCREEN 2 ~ SCREEN 5 ,
1 ~ 67 item), then the digital option is flashing when press the SETUP(ENTER)
KEY option content is flashing while digital options appear stationary state
indicates options have been identified, while upper left corner of the LCD will
display the total number of the currently selected (as SCREEN 2),when you
choose to nine pen upper left corner of the LCD appears "FULL"
(as SCREEN 6), the upper right corner displays the current number of pages
Remark:
* Press ▲KEY> 2 Sec selected items are cleared to zero (as SCREEN 7)
* Press ▼KEY> 2 Sec enters pages selection function (as SCREEN 2 ~
SCREEN 5),the number of pages for the top right corner of the LCD flashing
(as SCREEN 2), when you press or KEY then begin Pages selection, and
then press ▼KEY> 2 Sec is then lifted pages options. while the LCD top
right corner of pages were static state.
C : Press ◄ or ► KEY will return to RS232 OUT SEL option and is flashing ,
press ▼KEY then go to the next option as SCREEN8
(RS232 OUT SEL→Freq)
14

4-5-14 Freq:

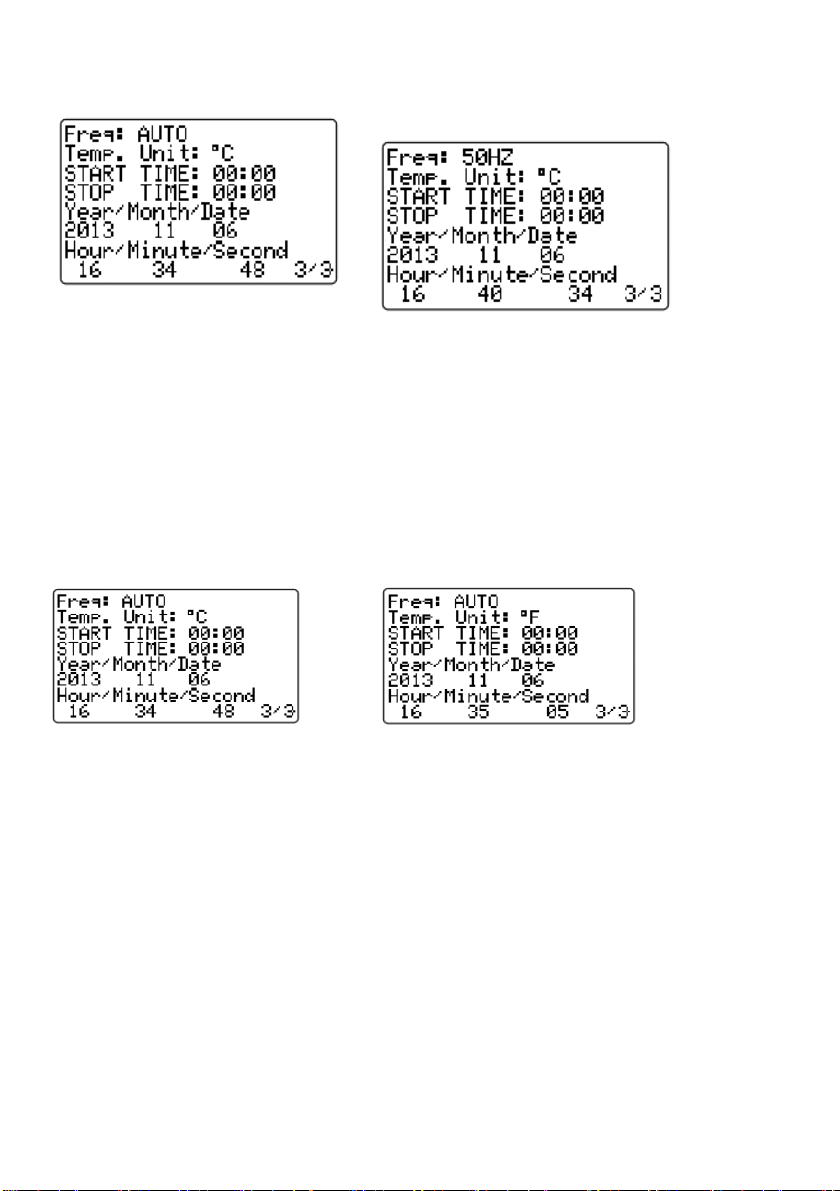

SCREEN 1(4-5-14) SCREEN 2(4-5-14)
A:When entering the Freq option and is flashing(as SCREEN 1).
B:Press ◄ or ► KEY then enter "AUTO" option and is flashing, press ▲or ▼
KEY then enter Into "50HZ" feature and showed flashes state (as SCREEN 2)
C:Press ◄ or ► KEY will return to Freq option and is flashing , press ▼KEY then
go to the next option as SCREEN1 (Freq→Temp Unit)
4-5-15 Temp. Unit:Temp. Unit Setting
SCREEN 1(4-5-15) SCREEN 2(4-5-15)
A : When entering the Temp Unit option and is flashing(as SCREEN 1).
B : Press ◄ or ► KEY then enter "℃" option and is flashing, press ▲or ▼
KEY then enter Into "℉" feature and showed flashes state (as SCREEN 2)
C : Press ◄ or ► KEY will return to Temp. Unit option and is flashing , press ▼
KEY then go to the next option as SCREEN1 (Temp. Unit→START TIME)
15

4-5-16 START TIME/STOP TIME:Data Record Function ,Scheduled start
and end records time settings.

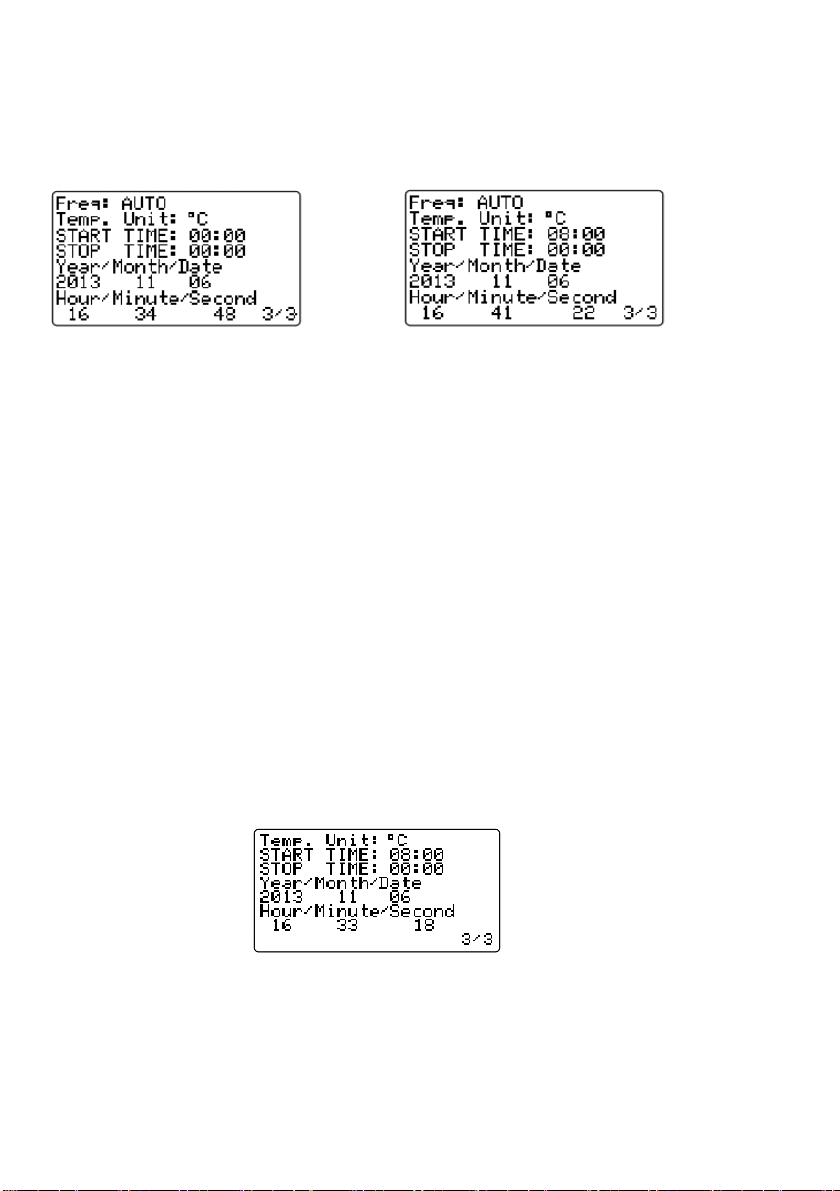

SCREEN 1(4-5-16) SCREEN 2(4-5-16)
A : When entering the START TIME or STOP TIME option and is flashing
(as SCREEN 1)
B : Press once ◄ or ► KEY then enter the hours adjustment options and is
flashing (as SCREEN 2), then press ▲or ▼KEY to adjust its range (0 to 23)
and press again ◄ or ► KEY then enter minute adjustment function and is
flashing , you can press the ▲or ▼KEY to adjust its range (0 to 59) and
press again ◄ or ► KEY returns START TIME or STOP TIME option and is
flashing
Remark:Press ▲or ▼KEY> 2 SEC then the number will quickly change.
C : Press ◄ or ► KEY will return to START TIME or STOP TIME option and is
flashing.When the STOP TIME option mode ,press ▼KEY then go to the
next option (STOP TIME→Year)
* Remark:When the START TIME or STOP TIME content options, press ◄
or ► KEY> 5 Sec is the setting options quickly cleared to zero.
4-5-17 Year/Month/Date/Hour/Minute/Second Setting
SCREEN 1(4-5-17)
A : When entering the Year option and is flashing(as SCREEN 1).
B : When the option is in the Year goes to press once ◄ or ► KEY Year
adjustment function and is flashing, press ▲or ▼KEY is to be adjusted.
Then returns Year ◄ or ► KEY option and is flashing.
Remark: Press ▲or ▼KEY> 2 SEC then the number will quickly change.
16

C : Press ▲or ▼KEY is carried (Year →Month), (Month →Date), (Date →Hour),
(Hour →Minute) , (Minute →Second) and other options to adjust,
in accordance with "B" item to make adjustments to the figures.
D :Second option when press once ◄ or ► KEY then enter the Second
adjustment function and is flashing, then press ▲or ▼KEY adjusted figures
showed a stationary state at this time when the press SETUP(ENTER) KEY
settings will be saved and when the figure was flashing, press ◄ or ► KEY
returns Second option and is flashing.
4-5-18 When all settings are completed, press EXIT ( ) KEY
17
