MUND CLIMA MUP-062X4C User manual

MUND CLIMA®
Series 2000
Multisplit 4x1
User's manual
COOL ONLY:
MUP-062X4C

1
The instructions before use
Don’t insert your hands or
stickintotheairintakeoroutlet
vents.
It can cause danger.
Never splice the power cord
or use an extended cord.
It can cause overheating or fire.
The power plug must be
inserted tightly.
Otherwise,it can cause an
electric shockoverheating or
fire.
WARNING
Don’t apply the cold wind to
the body for a longtime.
It cause the physical condition
deferioration and health
problems.
When having a burning smell
or smoke,please turn off the
power supply and contact with
the service center.
Don’t use fuse excluding the
fuse of correct capacity.
Improper wire could cause the
break down or fire.
danger
OFF
Switch off
Wire

2
OFF
Switch off
Keep combustible spray
away from the units.
It is likely to ignite.
Don’t place a space heater
near the air conditioner.
Air flow from the air
conditioner can cause incomplete
combustion to the space heater.
When cleaning,it is nece-
ssary to stop driving and turn
off the power suply.
It occasionally cause the
electric shock.
Don’t block the air intake or
outlet vents of both the outdoor
and indoor units.
It can decrease the air cond-
itioning capacity or cause a mal-
function.
Don’t step on the top of the
outdoor unit.
As falling off the outdoor unit
can be dangerous.
Please note whether the in-
stalled stand is firm enough or
not.
It leads to the fall of the unit
causes the injury etc. occasi-
onally.

3
Indoor unit
Outdoor unit
Name and function of each part
Operation indicator (GREEN)light up when the unit is on, and flashing
when the unit is defrosting.
Air in
SET
TEMP. RUN SIGNAL
RECEPTOP
Air out
Air out
STOP
23Air in
14
6
78
5
9
RUN
AUTO
TEST
4
6
12
10
11
11
12

4

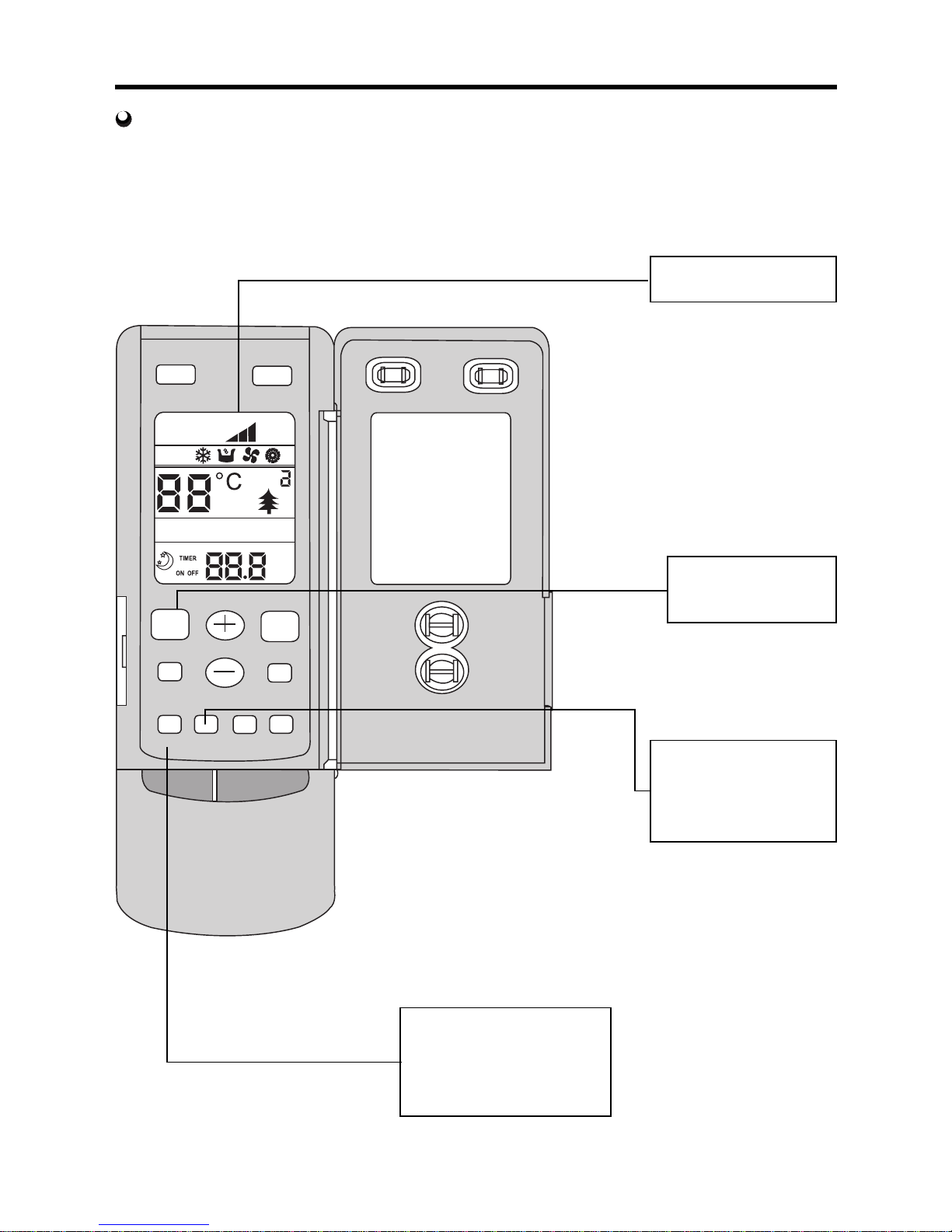

Name and Function-Remote control
MODE button
Press this button to change
the operation mode in or-
der of mode morder of
FAN button
Presse this button to
change the fan speed of:
“ ” COOL mode
“ ” DRY mode
“ ” FAN mode
“ ” HEAT mode
C
SWING
FAN
AUTO FAN
OPER
AUTO
AIR
SWING HUMID LIGHT SAVE
TIMER
ON OFF
HR.
1 / 0
MODE
Remote control operation procedure
SWINGbutton
When it is pressed, the
louvers start to rotate au-
tomatically and stop when
repressed.
TEMP.button
SETTEMP.increases 1by
pressing button once,and
decreases 1by pressing
button once.
At COOL mode operation,
SET TEMP. can be selected
from 16to 30.
At DRY mode operation, SET
TEMP. can be selected from
16to 30.
AUTO
AUTO FAN
1/0 button
Press this button to turn on
or turn off the unit.
Note:


Be sure that there are no obstructions.


The remote control signal can be received at a distance of up to about 10m.


Don’t drop or throw the remote control.


Don’t place the remote control in a location exposed to direct sunlight.


This type is just useful to cool mode only.

5
Liquid crystal displayer.
It shows all set contents.
SLEEP button
Press this button to set
SLEEP operation.
TIMER OFF button
At operating, press TIMER
OFF button, set OFF TIME
in range of 0 to 24 hour to
stop the unit automatically.
TIMER ON button
At stopping, press TIMER ON
button, set ON TIME in range of
0 to 24 hour to start the unit
automatically.
SWING FAN
SLEEP
MODE 1 / 0
AIR
HUMID
LIGHT
TIMER ON TIMER OFF ANION SAVE
SWING HUMID LIGHT SAVE
AUTO
AIR
HR.
AUTO FAN
OPER

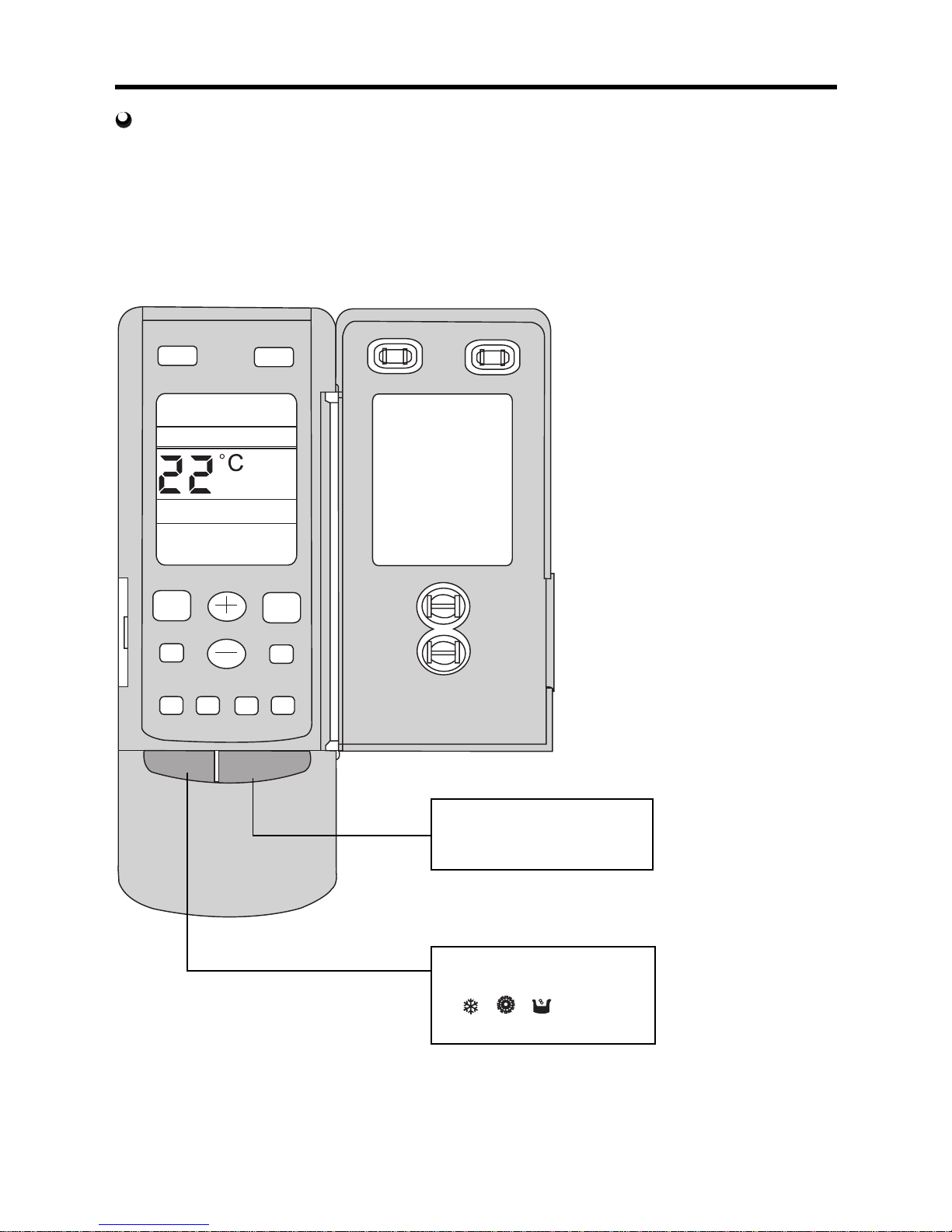

Name and Function-Remote control (Remove the cover)
Note: This type of remote controller is a kind of new current controller.Some buttons
of the controller which are not available to this Air conditioner will not be
described below.

6
SWING FAN
SLEEP
MODE 1 / 0
AIR
HUMID
LIGHT
TIMER ON TIMER OFF ANION SAVE
SWING
AUTO FAN
OPER
COOL mode operation procedure
4.Press FAN button, set
fan speed.
5.Press TEMP. but-
ton, set suitable SET
TEMP.
2.Press MODE button,
set operation
mode.
3.Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress.
1.Plug in, press 1/0 button,then air
conditioner is turned on.


 According to difference between room temp. and set temp., microcomputer can control
cooling on or not.


If room temp. is higher than set temp., compressor runs at COOL mode.


If room temp. is lower than set temp., compressor stops and only indoor fan motor runs.


SET TEMP. should be in range of 16

to 30

KK
KK
K

7
DRY mode operation procedure


 If room temp. is lower than set temp., compressor ,outdoor and indoor fan mortor stop. If
room temp. is between 

2

of set temp.,Air conditioner is drying.If room temp. is higher
than set temp. it’s at COOL mode.


 SET TEMP. should be in range of 16

to 30

KK
KK
K
3.Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress it.
4.Press TEMP. button,
set suitable SET
TEMP.
2.Press MODEbutton,set
operation mode.
1.Plug in,press 1/0 button,then air
conditioner is turned on.
SWING FAN
SLEEP
MODE 1 / 0
AIR
HUMID
LIGHT
TIMER ON TIMER OFF ANION SAVE
SWING
AUTO FAN
OPER

8
AUTO mode operation procedure


 At AUTO mode operation, standard SET TEMP. is 25

for COOL mode .
Remote control operation procedure
11
2.According to room temp.,micro-
computer can automatically set
  operation mode,
so as for best effect.
1.Plug in,Press 1/0 button, then
air conditioner is turned on.
SWING FAN
SLEEP
MODE 1 / 0
AIR
HUMID
LIGHT
TIMER ON TIMER OFF ANION SAVE
SWING
AUTO FAN
OPER
AUTO

9
TIMER mode operation procedure
At stopping,press TIMER ON
button, set ONTIME in range
of 0 to 24 hour to start the unit
automatically.
At operating,press TIMER
OFF button.set OFF TIME
in range of 0 to 24 hour to stop
the unit automatically.
SWING FAN
SLEEP
MODE 1 / 0
AIR
HUMID
LIGHT
TIMER ON TIMER OFF ANION SAVE
TIMER
ON OFF
SWING
HR.
AUTO FAN

10
SLEEP mode operation procedure
4.Press FAN button, set
fan speed.
5.Press TEMP. but-
ton, set suitable
SET TEMP.
1.Plug in, press 1/0 button,then air
conditioner is turned on.
2.Press MODE button,
set  or op-
eration mode.
3.Press SWING button,
the louvers start to rotate
automatically, and stop
when repress.
6.SLEEP button
Press it to set SLEEP
operation.
SWING FAN
SLEEP
MODE 1 / 0
AIR
HUMID
LIGHT
TIMER ON TIMER OFF ANION SAVE
SWING
AUTO FAN
OPER


When the unit is cooling or drying, if SLEEPoperation is set, SET TEMP. would increase
1

in 1 hour and 2

in 2 hour. Indoor fan motor runs at low speed.


When the unit is heating , if SLEEP operation is set,SET TEMP. would decrease 1

II
II
Iin 1
hour and 1

2 hours. Indoor fan motor runs at low speed.

11
ACL
OPEN
2.Insert the 7
#
batteries
1. Remove the cover
3. Re-attach the cover.
1. Remove the cover from the
back of the remote control.
2. Insert the two batteries ( Two
AAA dry - cell batteries ) and
press button “ACL”.
3. Re - attach the cover.
NOTE:
Don’t confuse the
new and worn or
different batteries.
Remove batteries
when not in use for a
longtime.
The remote control
signal can be receiv-
ed at a distance of up
to about 10m.
14
How to insert batteries

12
Select the most appropriate temperature.
It can preclude the electricity wasted.
Don’t leave windows and doors open while
operating the air conditioner for a longtime.
It can decrease the air conditioning capacity.
Splashing water on the air conditioner can cause
an electric shock and mal-function.
Air conditioner should be operated with stable
voltage in range of 206-244V 1ph.otherwise,
compressor would vibrate terribly to damage
refrigeration system.
Don’t blow the wind to animals and plants directly.
It can cause a bad influence to them.
The ground must be connected.
Don’t connect the earth wire to gas orwater pipes.
lightning rods or telephone earth lines.
Don’t use the air conditioner for other purposes,
such as drying clothes, preserving foods, etc.
The air flow direction can be adjusted appropria-
tely.The louvers can be adjusted downward at heat-
ing operation, and upward at cooling operation.
Note:The climate type is T1 (18

43


USER NOTICES
50Hz
220-230V


COOL
COOL

13
Turn power off and pull out the power plug before cleaning air conditioner.
Don’t sprinkle water on the indoor unit and the outdoor unit for cleaning.
Wipe the units with a dry soft cloth, or a cloth slightly moistened with water or cleanser.
Cleaning the Air Filters (Recommended once every three weeks)
1. Open the surface panel,hold the tab of Air Filter and
raise it slightly, and then take it out.
2. Cleaning
To clear the dust adhering to the filters, you can either
use a vacuum cleaner, or wash them with water and dry
it in the shade.
NOTE:
Never use water above 45

to wash the filters, or
it could cause deformation or discoloration.
Cleaning surface panel
1. Pull along the direction of arrows to take down surface
panel.
2. Washing
Wipe with a cloth slightly moistened with water or
cleanser, and then dry it in the shade.
NOTE: Never use water above 45to wash the panel,
or it could cause deformation or discoloration.
3. Install surface panel
Cover the surface panel and clasp it.
CAUTION
Care and Maintenance
Air Filter
Slot

14
3.Reinsert the filters
Reinsert the filters with side marked “FRONT”
facing forward.
Preparation before use
1.Be sure that nothing obstructs the air outlet and in-
take vents.
2.Check that whether ground wire is properly connected
or not.
3.Replace filters if necessary.
4.Turn main power on at least 6 hours before starting
actual operation.This will ensure a smooth starting
of the units.
Maintain after use
1.Clean filters and other parts.
2.Turn main power off.
3.Clean dust from the outdoor unit.
4.Repaint the rubiginous place on the outdoor unit to
prevent it from spreading.
Replacement of Air cleaner
Recommended once every Six months,and the alternate filters can be found in the service center.
1.Remove the Air Filters
2.Replace the Air cleaner
Take off the packed bag ofAir purifying Filters,and
then put new Filters into the Filter frame.
3.Reinsert the filters.
(Refer to the first step of “cleaning the Air Filters”)
(Refer to the third step of “cleaning the Air Filters”)
Air cleaner
NOTE:Be careful not to injure yourself on the fins

15
Check the following before requesting on service center if the malfunction occurs.
Troubleshooting
Phenomenon
Wireless remote con-
troller is not available.
Trouble Shooting
.Is the remote control unit out of effective distance to
the indoor unit?
.Replace the worn batteries of wireless remote
controller.
.Are there any obstructions between the wireless re-
mote controller and the signal receptor?
Indoor unit does not
operate immediately
when the air condi-
tioner is restarted.
There’s unusual smell
blowing from the out-
let after operation is
started.
Sound of water flow
can be heard during
operation.
Mist emitted during
cooling operation.
Creaking noise can
be heard when start
or stop the unit.
Air conditioner
does not operate
at all.
Cooling Heating effi-
ciency is not good.
Once the air conditioner is stopped, it will not operate in
approximately 3 minutes to protect itself.
This is caused by the odors in the room which have been
breathed into the air conditioner.
This is caused by the refrigerant flowing inside the unit.
Because the air of the room is cooled down rapidly by the
cold wind and it looks like the fog.
This is caused by the deformation of plastic due to the
change of temperature.
.Has the power been shut down?
.Is the wiring loose?
.Is the leakage protection switch in operation?
.Is voltage higher than 244V or lower than 206V?
.Is TIMER ON in operation?
.Is SET TEMP. suitable?
.Is air inlet or outlet obstructed?
.Are air filters dirty?
.Is indoor fan speed set at low speed?
.Is there any other heat sourse in your room?
Waitting
OFF
OFF

16
Immediately stop all operations and plug out,contact with
service center of MUNDOCLIMA in following situations.
Unusual noise can be heard during operation.
Power fuse or switch often breaks.
Carelessly splash water or something into air conditioner.
Electrical lines and power plug are very hot.
Wind blowing from the outlet smells terrible during operation.

17
Circuit Diagram
circuit diagram of MUP-062X4C

18
* Be sure to use the exclusive accessories list above in the installation, or it will lead to water leakage ,electric
shock, fire,etc.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Part name
Rear panel
Wireless remote controller
Battery
Power connection cord
Control cord
Tapping screw
Plastics drain hose
Gum type sealer
Piping-hole sleeve
Wrapping tape
Connection piping
Thermal insulation hose
Air cleaner
Plastic square ring
Diagram specification
7# 1.5V
4G 1.0
ST4.2 25
L = 2m
120 65 25
30 10
6/ 9.5
35 500
Memo
Fix the rear panel
Qty
N
N
O
N
Q
NM
N
N
N
O
N
N
O
N
Accessories (Check that all accessory parts are present before installation)
Accessories and Installation diagram
YZW300/500
32.5
Packaged with
connection piping
Packaged with
connection piping
Packaged with
connection piping
Packaged with
connection piping
Packaged with
indoor unit
Packaged with
Outdoor unit

19
IMPORTANT NOTES
The installation must be done by trained and qualified service
personnel with reliability according to this manual.
Contact with service center of MUNDOLIMA before installation
to avoid the mal-function due to unprofessional installation.
When picking up and moving the units, you must be guided by
trained and qualified personnel.
*
*
*
Installation dimension diagram
30cm or more
Space to the wall
Air outlet side
15cm or more
15cm or more
230cm or more
Space to the ceiling
Space to the wall
Piping -hole sleeve
Wrapping tape
Space to the wall
Space to the floor
Space to the cover
Space to the wall
Air outlet side
30cm or more
50cm or more
200cm or more
30cm or more
15cm or more
