MUND CLIMA MUP-07 CN User manual

User´s manual
MUND CLIMA
®
COOL ONLY:
HEAT PUMP:
MUP-07 CN
MUP-09 CN
MUP-12 CN
MUP-16 CN
MUP-07 HN
MUP-09 HN
MUP-12 HN
MUP-16 HN
Series 2000
Wall-mounted Split

– 1 –
The instructions before use
Never splice the power cord
or use an extended cord.
It can cause overheating or
fire.
Don’t pull out the power
plug during operating.
It can cause an electric shock
or fire.
The power plug must be in-
serted tightly.
Otherwise, it can cause an
electric shock, overheating or
fire.
Don’t operate the Air con-
ditioner with wet hands.
It can cause an electric shock.
Don’t use longer power
lines and don’t share a same
socket with other electric ap-
pliances.
It can cause an electric shock
or fire.
WARNING
Don’t apply the cold wind
to the body for a longtime.
It cause the physical
condition deferioration and
health problems.
When having a burning
smell or smoke, please turn
off the power supply and
contact with the Service
center of MUNDOCLIMA.
Don’t attempt to repair the
air conditioner by yourself.
You may cause further mal-
functions.
Don’t insert your hands or
stick into the air intake or
outlet vents.
It can cause danger.

– 2 –
When cleaning, it is neces-
sary to stop driving and turn
off the power suply.
It occasionally cause the elec-
tric shock.
Be sure to pull out the power
plug when not using the Air
Conditioner for a longtime.
There must be electricity leak-
age protection switch of enough
power capacity and air switch in
the circuit.
Keep combustible spray
away from the units.
It is likely to ignite.
Don’t place a space heater
near the air conditioner.
Air flow from the air condi-
tioner can cause incomplete
combustion to the space heater.
Don’t pull the power cord
to pull out the power plug.
It can cause fire.
Don’t block the air intake
or outlet vents of both the
outdoor and indoor units.
It can decrease the air condi-
tioning capacity or cause a mal-
function.
Don’t step on the top of the
outdoor unit.
As falling off the outdoor unit
can be dangerous.
Please note whether the in-
stalled stand is firm enough or
not.
It leads to the fall of the unit
causes the injury etc. occasion-
ally.

– 3 –
Indoor unit
Outdoor unit
NAME AND FUNCTION OF EACH PART

– 4 –

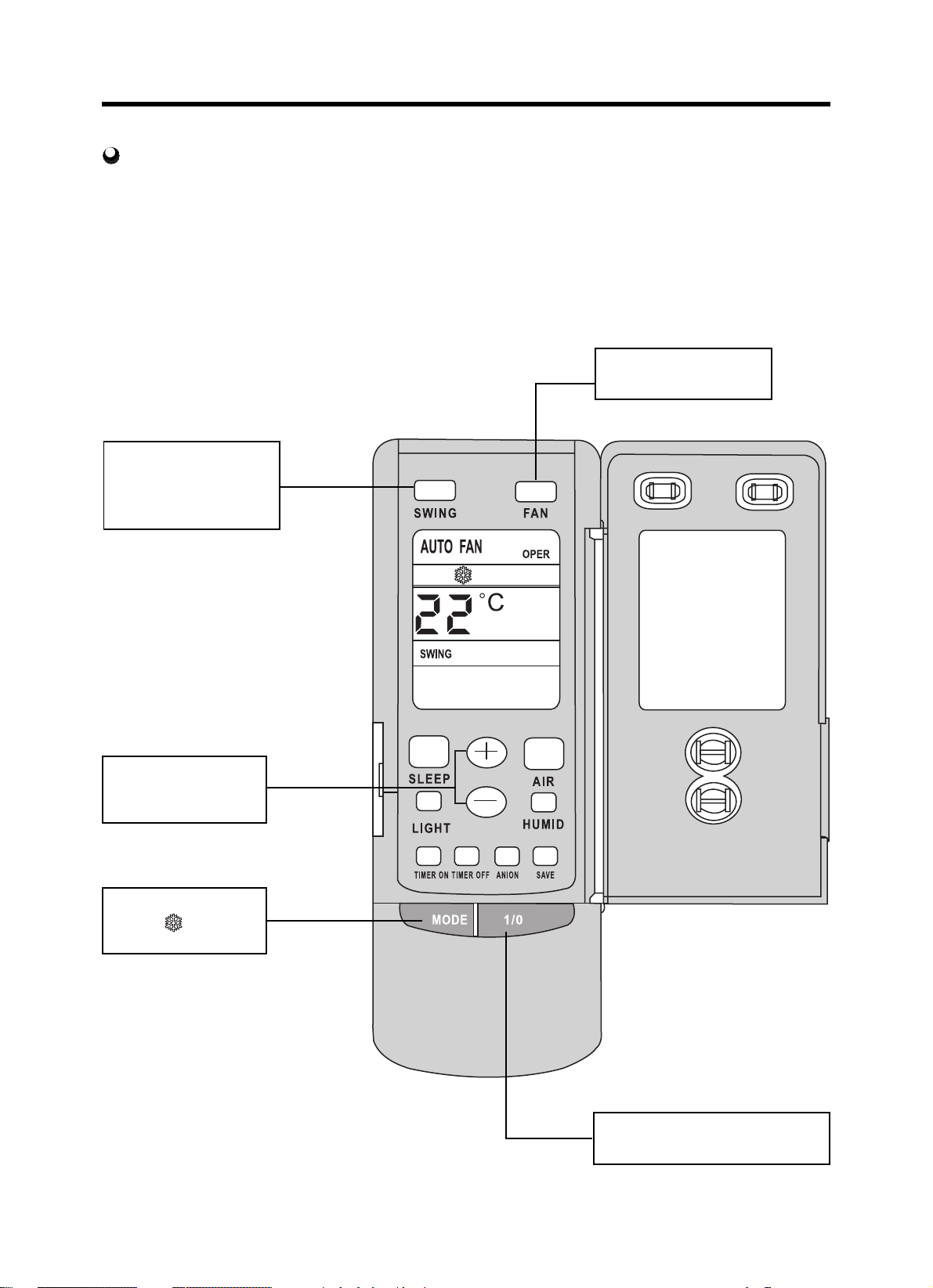

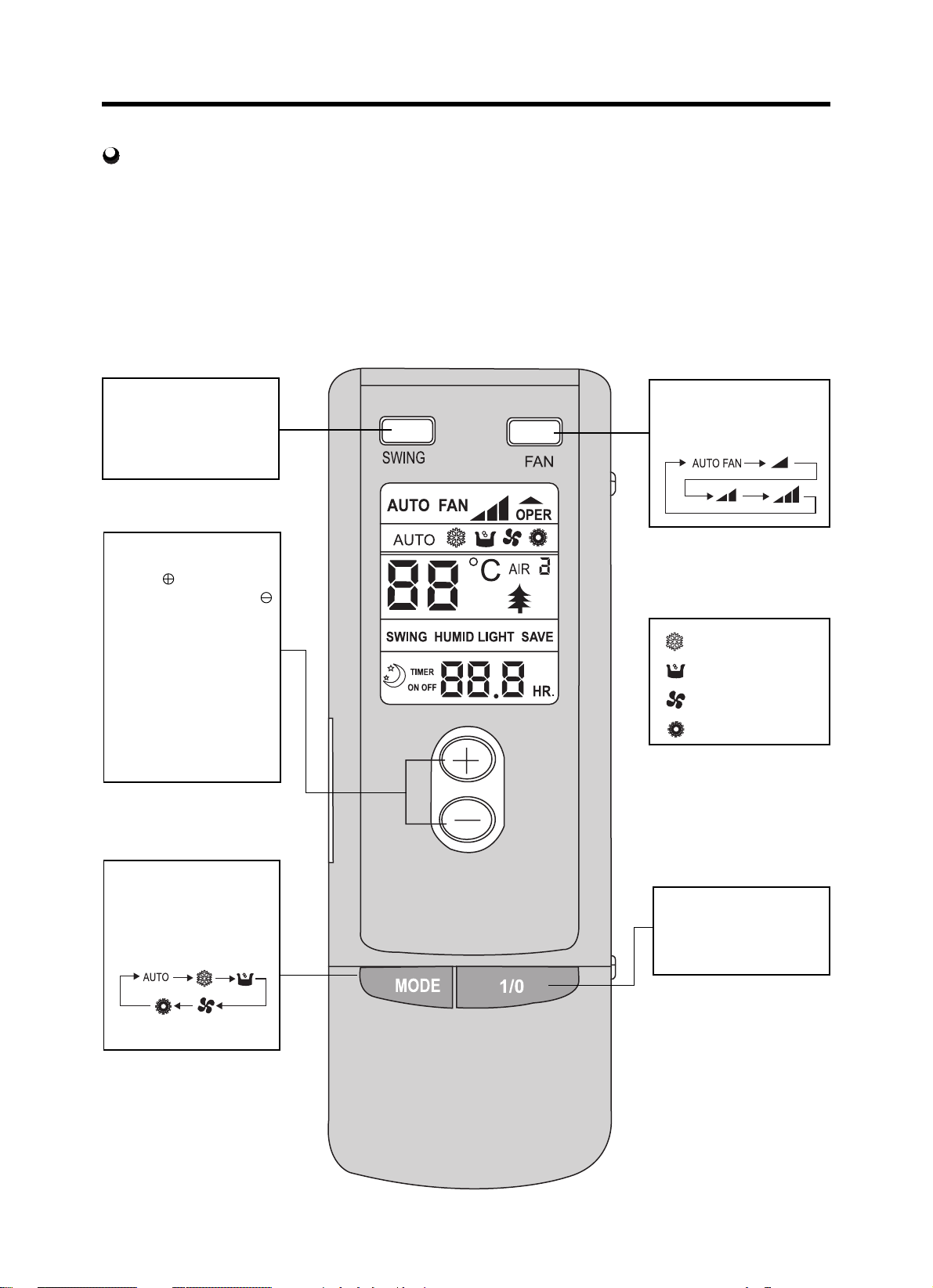

Name and Function-Remote control
MODE button
Press this button to
change the operation
mode in order of
FAN button
Presse this button to
change the fan speed of:
“ ” COOL mode
“ ” DRY mode
“ ” FAN mode
“ ” HEAT mode
Remote control operation procedure
SWING button
When it is pressed, the
louvers start to rotate au-
tomatically and stop when
repressed.
TEMP.button
SET TEMP. increases 1°C by
pressing button once, and
decreases 1°C by pressing
button once.
At COOL mode operation,
SET TEMP. can be selected
from 16°C to 30.
AtDRY modeoperation,SET
TEMP. can be selected from
16°C to 30°C.
At HEAT mode operation,
SET TEMP. can be selected
from 16°C to 30°C.
1/0 button
Press this button to turn
on or turn off the unit
•
Be surethat thereareno obstructions.
•
The remote control signal can be received at a distance of up to about 10m.
•
Don’t drop or throwtheremote control.
•
Don’t place the remote controlin alocation exposed todirect sunlight.
Note:

– 5 –
Liquid crystal displayer
It shows all set contents.
AIR button
Press this button to change
the Air Refreshing mode in
order of
SLEEP button
Press this button to set
SLEEP operation.
TIMER ON button
At stopping, press TIMER ON
button, set ON TIME in range of
0 to 24 hour to start the unit auto-
matically.
Name and Function-Remote control. (Remove the cover)
Note: This type of remote controller is a kind of new current controller. some
buttons of the controller which are not available to this Air conditioner
will not be described below.
TIMER OFF button
At operating, press TIMER
OFF button, set OFF
TIME in range of 0 to 24
hour to stop the unit auto-
matically.

– 6 –

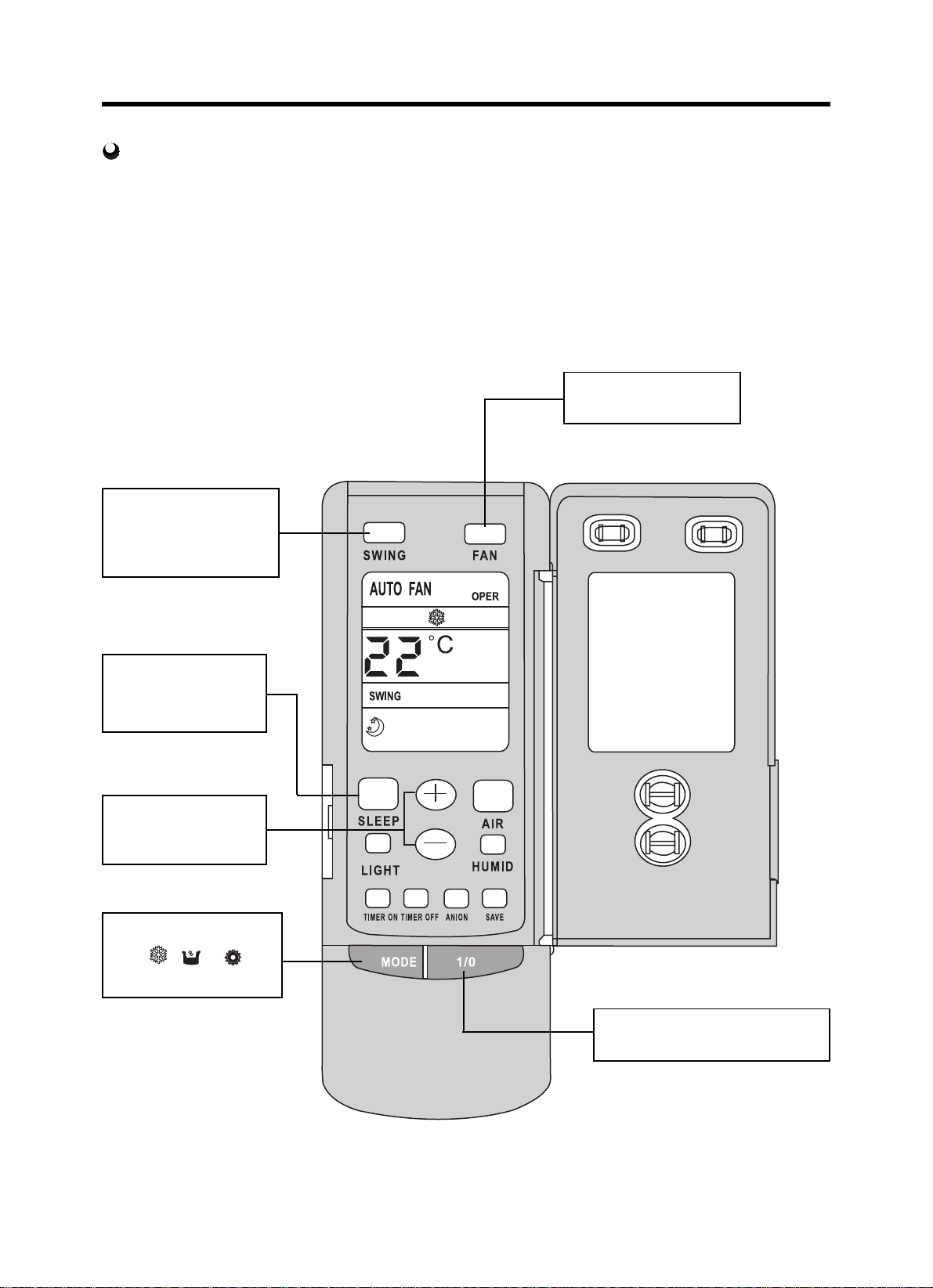

COOL mode operation procedure
4.Press FAN button, set
fan speed.
5.Press TEMP. but-
ton, set suitable SET
TEMP.
2.Press MODE button,
set operation
mode.
3.Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress.
1.Plug in, press 1/0 button,then air
conditioner is turned on.
•According to difference between room temp.and settemp., microcomputer can control
cooling on or not.
•If room temp. ishigher thanset temp.,compressor runsat COOLmode.
•If room temp. is lower than set temp., compressor stops and only indoor fan motor
runs.
•SETTEMP. shouldbe inrange of 16°C to 30°C.

– 7 –
HEAT mode operation procedure
•Ifroom temp.islower thansettemp.,compressorrunsatHEATmode;
• If room temp. is higher than set temp., compressor and outdoor fan mortor stop, only
indoor fan mortor runs.
•SET TEMP.should bein rangeof16°C to 30°C.
¡æ
2.Press MODE button,
set operation
mode.
3.Press SWINGbutton, the
louvers start to rotate au-
tomatically, and stop
when repress it.
4.Press FAN button, set
fan speed.
5.Press TEMP button, set
suitable SET TEMP.
1.Plug in, press 1/0
button,then air condi-
tioner is turned on.

– 8 –
DRY mode operation procedure
•If room temp. is lowerthanset temp.,compressor,outdoorand indoor fanmortor
stop. If room temp. is between ±2°C of set temp., air conditioner is drying. If room
temp. is higher than set temp., it’s at COOL mode.
•SET TEMP. should be in range of 16°C to 30°C.
3.Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress it.
4.Press TEMP. button,set
suitable SET TEMP.
2.Press MODEbutton, set
operation mode.
1.Plug in,press 1/0 button,then air
conditioner is turned on.

– 9 –
AUTO mode operation procedure
•AtAUTOmode operation, standard SET TEMP. is 25°C for COOL mode and 20°C
¡æ
for HEAT mode.
2.According to room temp., micro-
computer can automatically set
,¡¢ or operation
mode, so as for best effect.
1.Plug in,Press 1/0 button, then
air conditioner is turned on.

– 10 –
TIMER mode operation procedure
At stopping,press TIME
ON button, set ON TIME
in range of 0 to 24 hour to
start the unit automatically.
At operating,press TIMER
OFF button.set OFF TIME
in range of 0 to 24 hour to stop
the unit automatically.

– 11 –
SLEEP mode operation procedure
4.Press FAN button, set
fan speed.
5.Press TEMP. but-
ton, set suitable
SET TEMP.
1.Plug in, press 1/0 button,then air
conditioner is turned on.
2.Press MODE button,
set ,or
operation mode.
3.Press SWING button,
the louvers start to rotate
automatically, and stop
when repress.
6. SLEEP button
Press it to set SLEEP
operation.
•Whentheunitiscoolingor drying, if SLEEPoperationisset, SET TEMP.would
increase 1°C in 1 hour and 2°C in 2 hour. Indoor fan motor runs at low speed.
•When the unitis heating , if SLEEP operation is set,SET TEMP. woulddecrease 1°C,
in 1 hour and 2°C in 2 hours. Indoor fan motor runs at low speed.

– 12 –

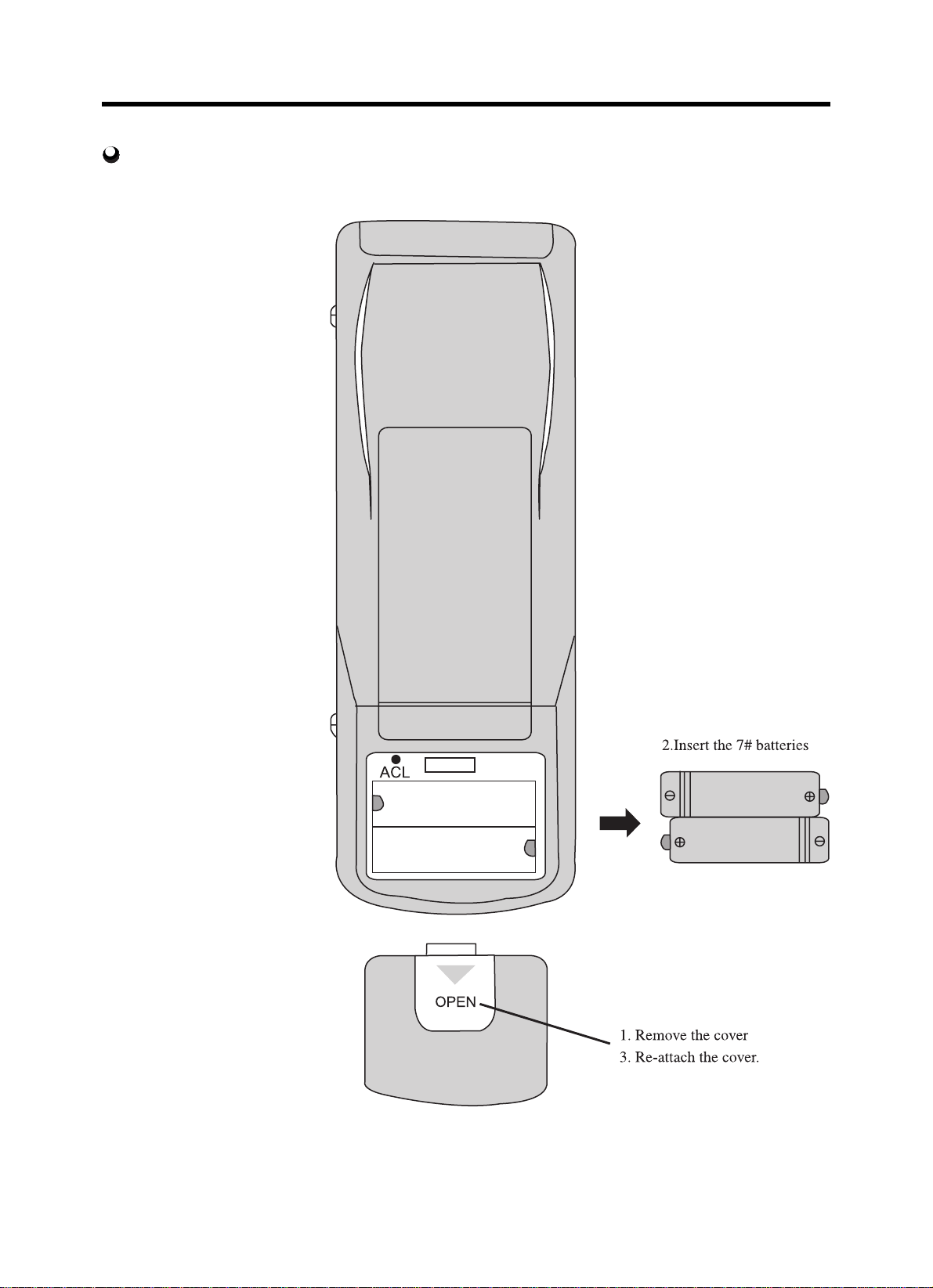

How to install batteries
1. Remove the cover from the
back of the remote control.
2. Insert the two batteries ( Two
AAA dry - cell batteries ) and
press button “ACL”.
3. Re - attach the cover.
NOTE:
•Don’t confusethe new
and worn or different
batteries.
•Remove batteries when
not in usefor a longtime.
•The remote control
signal can be received at
a distance of up to about
10m.
14

– 13 –
Select the most appropriate temperature. It can
preclude the electricity wasted.
Don’t leave windows and doors open while
operating the air conditioner for a longtime.
It can decrease the air conditioning capacity.
Splashing water on the air conditioner can cause
an electric shock and mal-function.
Air conditioner should be operated with stable
voltage in range of 206-244V 1ph. Otherwise,
compressor would vibrate terribly to damage
refrigeration system.
Don’t blow the wind to animals and plants
directly. It can cause a bad influence to them.
The ground must be connected.
Don’t connect the earth wire to gas or water
pipes. lightning rods or telephone earth lines.
Don’t use the air conditioner for other purposes,
such as drying clothes, preserving foods, etc.
The air flow direction can be adjusted appro-
priately.The louvers can be adjusted downward
at heating operation, and upward at cooling
operation.
USER NOTICES

– 14 –
Turn power off and pull out the power plug before cleaning air conditioner.
Don’t sprinkle water on the indoor unit and the outdoor unit for cleaning.
Wipe the units with a dry soft cloth, or a cloth slightly moistened with water or cleaner.
CAUTION
Care and Maintenance
Cleaning surface panel
1. Pull along the direction of arrows to take down
surface panel.
2. Washing
Wipe with a cloth slightly moistened with water or
cleaner, and then dry it in the shade.
NOTE: Never use water above 45°C to wash the
panel, oritcould cause deformation or
discolouration.
3. Install surface panel
Cover the surface panel and clasp it.
Cleaning the Air Filters (Recommended once every three weeks)
1. Open the surface panel, hold the tab of Air Filter
and raise it slightly, and then take it out.
2. Cleaning
To clear the dust adhering to the filters, you can either
use a vacuum cleaner, or wash them with water and
dry it in the shade.
NOTE:
•Never use water above 45°C to wash the filters, or
it could cause deformation or discolourtio.

– 15 –
1. Remove the Air Filters
2. Install the Air cleaner.
Take off the packed bags of Air cleaners, and then
put them into the filter frames.
3. Reinsert the filters.
(Refer to the first step of “cleaning the Air Filters”)
(Refer to the third step of “cleaning the Air filters”)
Air cleaner
NOTE: Be careful not to injure yourself on the
fins
3.Reinsert the filters
Reinsert the filters with side marked “FRONT”
facing forward.
¡ñ¡ñ
¡ñ¡ñ
¡ñ Installation of Air cleaner
1.Be sure that nothing obstructs the air outlet and in-
take vents.
2.Check that whether ground wire is properly con-
nected or not.
3.Replace filters if necessary.
Preparation before use
Maintain after use
1.Clean filters and other parts.
2.Turn main power off.
3.Clear dust from the outdoor unit.
4.Repaint the rubiginous place on the outdoor unit
to prevent it from spreading.

– 16 –
Check the following before requesting on service center if the malfunction occurs.
Wireless remote con-
troller is not avai-
lable.
Indoor unit does not
operate immediately
when the air condi-
tioner is restarted.
There’s unusual
smell blowing from
the outlet after opera-
tion is started.
Sound of water flow
can be heard during
operation.
Mist is emitted du-
ring cooling ope-
ration.
Creaking noise can
be heard when start
or stop the unit.
Air conditioner
does not operate
at all.
Cooling (Heating)
efficiency is not
good.
Troubleshooting
Once the air conditioner is stopped, it will not ope-
rate in approximately 3 minutes to protect itself.
Phenomenon Trouble Shooting
Is the remote control unit out of effective distance to
the indoor unit?
Replace the worn batteries of wireless remote con-
troller.
Are there any obstructions between the wireless re-
mote controller and the signal receptor?
This is caused by the odors in the room which have
been breathed into the air conditioner.
This is caused by the refrigerant flowing inside the
unit.
Because the air of the room is cooled down rapidly
by the cold wind and it looks like the fog.
This is caused by the deformation of plastic due to
the change of temperature.
Has the power been shut down?
Is the wiring loose?
Is the leakage protection switch in operation?
Is voltage higher than 244V or lower than 206V?
Is TIMER ON in operation?
Is SET TEMP. suitable?
Is air inlet or outlet obstructed?
Are air filters dirty?
Is indoor fan speed set at low speed?
Is there any other heat source in your room?

– 17 –
Immediately stop all operations and plug out, contact with
service center of MUNDOCLIMA in following situations.
Unusual noise can be heard during operation.
Power fuse or switch often breaks.
Carelessly splash water or something into air conditioner.
Electrical lines and power plug are very hot.
Wind blowing from the outlet smells terrible during operation.
NOTE:
Equipment subject to notification to or consent by the supply authority before connection to the system (consent
by the supply authority may be requested for high-power appliances which are intended to be used only in systems
having impedances considerably lower than the reference impedance. General consent mqy declared for use of a
type of appliance in a defined part of the supply system):
1. Equipment intended exclusively for professional purposes;
2. Appliances and equipment without automatic control means;
3. Appliances producing less than one voltage change per hour;
4. Appliances producing more than 1800 voltage changes per minute;
5. Disturbances caused by manual switching.

–
18
–
Technical specifications
I
Technical specifications
• Allabove aretestaccording toCHINA NATIONAL STANDARDGB/T7725-1996.
• Allaboveshouldbe changed withoutnotice, thereare latestand accuratespecifications on thenameplate of your air conditioner.
Model
Functions
Accessory
Cooling capacity (W)
Heating capacity (W)
Power supply
Input Power (W)
Type of power cord
Type of power connection cord
Air Flow Volume (m
3
/h)
Refrigerant
Noise (Indoor/Outdoor) dB (A)
Climate type
Isolation
Weight(kg)
Indoor unit/
Outdoor unit
Dimension(cm)
(W X H X D
Working temperature range
Maximum cooling
Minimum cooling
Maximum heating
Minimum heating
Indoor side DB/WB(°C)
32/23
21/15
27/-
20/-
Outdoor side DB/WB(°C)
43/26
21/-
24/18
-5/-6
Air cleaner
Indoor unit 83.0 X 28.5 X 18.9
Outdoorunit88.8 X 54.0 X 32.0
MUP-07 CN MUP-07 HN
Cool Heat
2000
2300
940/1050
MUP-09 CN
Cool
2500
–
1200/-
MUP-09 HN
Cool Heat
2500
2900
1200/1080
Cool
3500
–
1620/-
MUP-12 CN
11/32
Cool Heat
3500
3900
1620/1820
MUP-12 HN
Cool
2000
–
940/-
220-230V~50Hz
H05VV-F 3G1.0
H05RN-F 3G1.0
420
34/52
H05VV-F 3G1.5
H05RN-F 3G1.5
520
38/57
R-407C
A
11/40

– 19 –
* Be sure to use the exclusive accessories list above in the installation, or it will lead to water leakage ,electric
shock, fire, etc.
Accessories (Check that all accessory parts are present before installation)
Accessories and Installation diagram
Diagram specification
7#
1.5V
5
x 1.0
3
x 0.75
ST4.2
x 25
L = 2m
120
x 65 x 25
30
x 10
6/ 9.5(12)
35
x 500
Memo
Heat pump type only
Heat pump type only
Fix the rear panel
Packaged with
connection piping
Packaged with
connection piping
Packaged with
connection piping
Packaged with
connection piping
Packaged with
indoor unit
Qty
1
1
2
1
1
1
10
1
1
1
2
1
1
2
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Part name
Rear panel
Wireless remote
controller
Battery
Power connection
cord
Control cord
Control cord
Tapping screw
Plastics drain hose
Gum type sealer
Piping-hole sleeve
Wrapping tape
Connection piping
Thermal insulation
hose
Air cleaner
