MUND CLIMA MUR-12 H User manual

MUND CLIMA®
CORNER SPLIT
User's manual
COOL ONLY:
HEAT PUMP:
MUR-12 C
MUR-12 H

-- 1 --
WARNING
Ensure the power plug is In-
serted tightly
or it will cause electric shock
overheating or fire.
Never turn off the power sup-
ply in the process of operation
or it will cause electric shock
overheating or fire.
Never damage the power
cable or use the non-particu-
lar kinds. or it will cause elec-
tric shock overheating or fire.
Never share the same socket
with other electrical appli-
ances. or it will cause electric
shock overheating or fire.
Never operate with wet hand
or it will cause electric shock.
Never make firgers or stock
into the air intake or outlet
vents, or it will bring harm.
Never blow the cold wind to
the body for a long time or it
will damge the health.
If something unnormal
happaned (burning smell)
Please turn off the power soon
then contact with service cen-
ter of MUNDOCLIMA.
Never repair the air condi-
tioner by yourself.
Turn off Power
Theinstructions before use

-- 2 --
Don’t use fuse with differ-
ent capacity.
use iron to replace fuse will
cause malfunction or fire.
Never climb air conditioner Turn off the power supply
when cleaning the air
conditioner,otherwise,it’ll
cause electric shock or do harm
to you.
Never pull out the power plug
by pulling the power cable. Oth-
erwise, it will lead to fire caused
by overheating of electrical wire.
Chemical Spray should be
placed be one meter away
from the units or it will cause
fire or explosion.
Keep an eye on the chassis
of outside unit is damage or
not. If ignore the damage,
units may be fall down and do
harm to people.
Don’t step on the top of the
outdoor units. Don’t block the air intake
or outlet vents of indoor units
and outdoor units.
This will decrease the effi-
ciency or even break down
Never let the air conditioner
to blow to the heater, Other-
wise, it’ll cause non-completely
burning lead to carbon-monoxide
poisoning.
Wire

-- 3 --
Name and funciton of each part
Indoor unit
Outdoor unit
Big/small air intake grill
louver
liquid crystral displayer
Power plug
drainage hose
front grille
remote controller
big handle
Air in
Air in

-- 4 --
Name and Function-Remote control
COOL mode
DRY mode
FAN mode
HEAT mode
AUTO
Remote control operation procedure
Note:
Be sure that there are no obstructions between reciever and remote controller.
Don’t drop or throw the remote control.
Don’t let any liquid in the remote controller and put the remote controller
directly under the sunlight or any place where is very hot.
SWING button
When it is pressed, the
louvers start to rotate
automatically and stop
when repressed.
TEMP.button
SET TEMP.increases 1oC
by pressing button once,
and decreases 1oC by press-
ing button once.
At COOL mode operation,
SET TEMP. can be selected
from16oCto30oC.
At DRY mode operation,
SET TEMP. can be selected
from16oCto30oC
At HEAT mode operation,
SET TEMP. can be selected
from16oCto30oC.
MODE button
Press this button to
change the operation
mode in order of
FAN button
Presse this button to
change the fan speed of:
AUTO FAN
1/0 button
Press this button to turn
on or turn off the unit.
1/0

-- 5 --
Liquid crystal displayer
It shows all set contents.
SLEEPbutton
Press this button to set
SLEEP operation. and
stop when repressed
TIMER OFF button
At operating, press TIMER
OFF button, set OFF
TIME in range of 0 to 24
hour to stop the unit auto-
matically.
TIMER ON button
At stopping, press TIME ON but-
ton, set ON TIME in range of 0 to
24 hour at the interral of 0.5h to
start the unit automatically.
Name and Function-Remote control .(Remove the cover)
This type of remote controller is a kind of new current controller. some
buttons of the controller which are not available to this Air conditioner
will not be described below.
Operate on unmentioned buttons would not impact on the normal use.
1/0
Note:
024h
Timer
cancellation
024h
Timer
cancellation

-- 6 --
4. Press FAN button, set fan
speed.
3. PressSWING button, the
louvers start to rotate au-
tomatically,and stop when
repress.
5. Press TEMP. button, set
suitable SET TEMP.
2. Press MODE button, set
operation mode.
1. Plug in, press 1/0 button, then
air conditioner is turned on.
COOL mode operation procedure
1/0
According to difference between room temp., and set temp. microcomputer can control
cooling on or not.
If room temp. is higher than set temp. , compressor runs at COOL mode.
If room temp. is lower than set temp., compressor stops and only indoor fan motor runs.
SET TEMP. should be in range of 16oC to 30oC.

-- 7 --
HEAT mode operation procedure
3.Press SWING button, the
louvers start to rotate auto-
matically, and stop when re-
press it.
4.Press FAN button, set fan
speed.
5.Press TEMP. button, set
suitable SET TEMP.
1.Plug in, press 1/0 button,
then air conditioner is turned
on.
2.Press MODE button, set
operation mode.
1/0
If room temp. is lower than set temp. , compressor runs at HEAT mode.
If room temp. is higher than set temp., compressor and outdoor fan motor stop, only indoor
fan motor runs a while and stop.
SET TEMP. should be in range of 16oC to 30oC.
When the unit (cool only) recieved the con-
trol signal which is used under the heat mode,
it will operate according to the fan mode.

-- 8 --

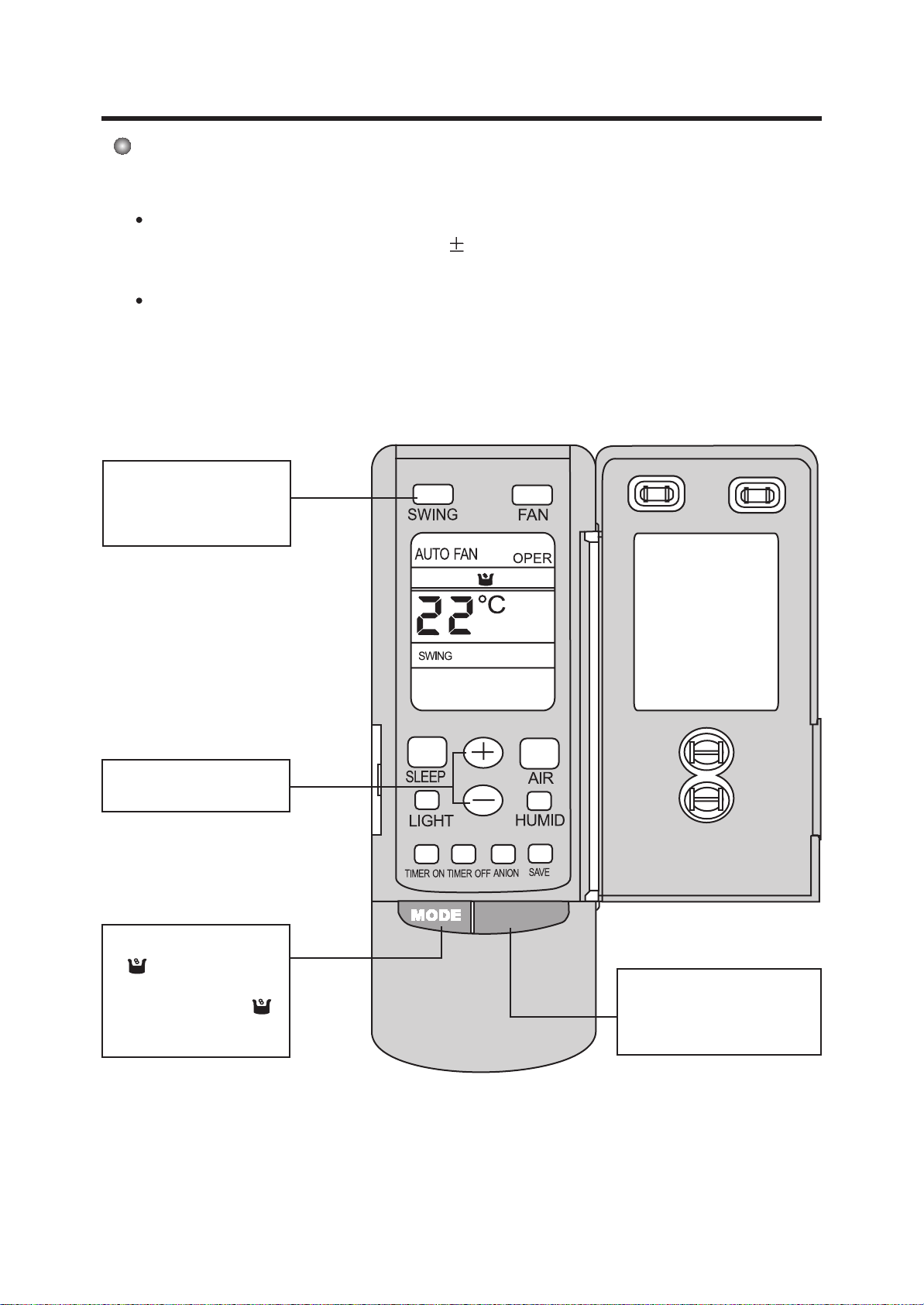

DRY mode operation procedure
If room temp. is lower than set temp. much more, compressor outdoor and indoor fan
motor stop. If room temp. is between 2oC of set temp., Air conditioner is drying. If
room temp. is higher than set temp., it’s at COOL mode.
SET TEMP. should be in range of 16oC to 30oC.
3. PressSWING button, the
louvers start to rotate au-
tomatically, and stop
when repress it.
4. Press TEMP. button, set
suitableSETTEMP.
2. Press MODE button, set
operation mode.
FAN speed couldn’t be
changed after the “ ”
being set.
1. Plug in, press 1/0 button,
then air conditioner is
turned on.
1/0

-- 9 --

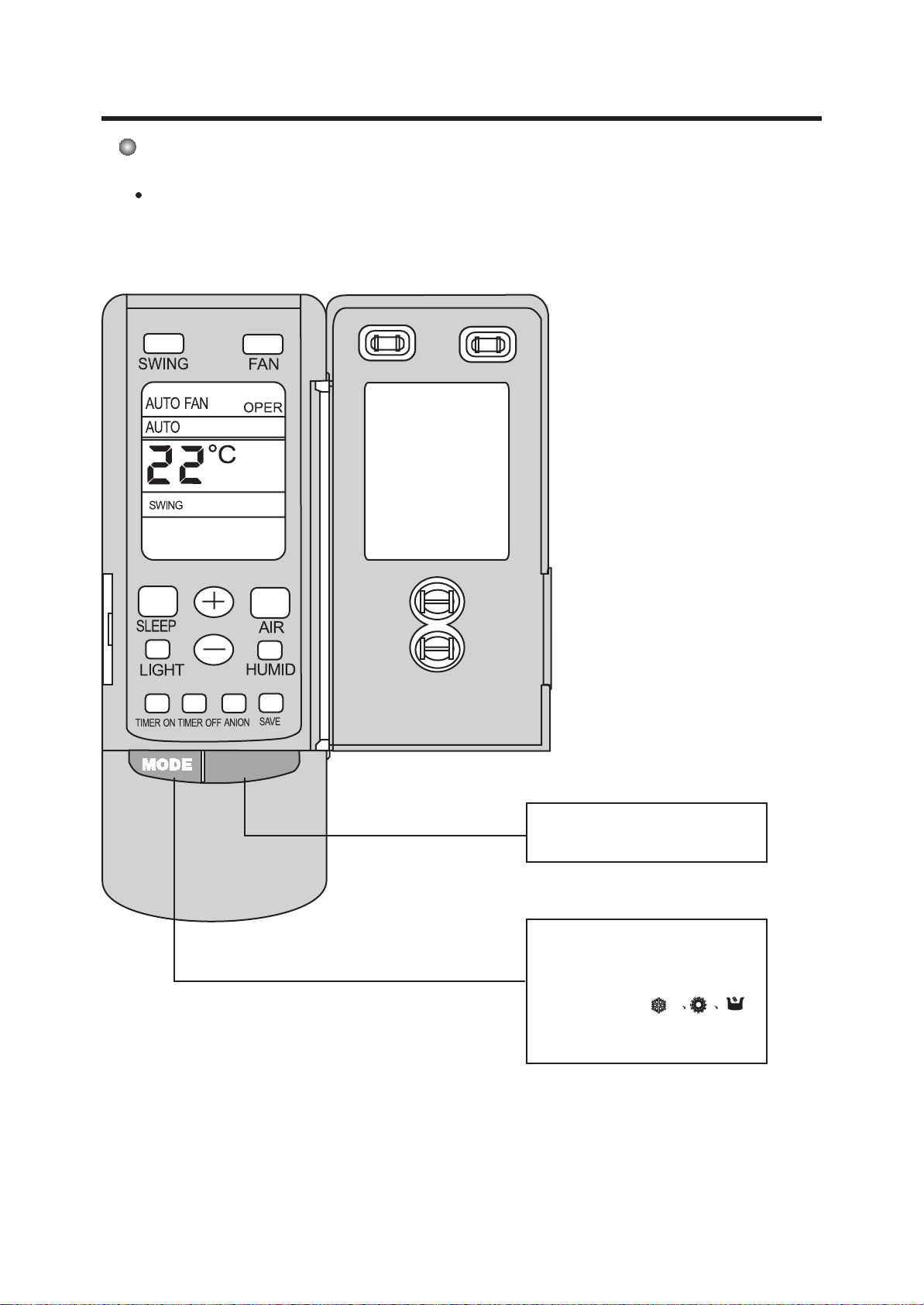

AUTO mode operation procedure
UnderAutomodeoperation,standardSETTEMP.is 25oCforCOOLmodeand20oCfor
HEAT mode .
1. Plug in, Press 1/0 button, then
air conditioner is turned on.
2. Press MODE button, set AUTO
operation mode.According to
room temp., microcomputer can
automatically set
operation mode, so as for best ef-
fect.
1/0

-- 10 --
TIMER mode operation procedure
TIMERON button
At stopping, press TIME
ON button, set ON TIME
in range of 0 to 24 hour to
start the unit automatially.
TIMER OFF button.
At operating, press TIME OFF
button. set OFF TIME in range
of 0 to 24 hour to stop the unit
automatically.
1/0
024h
cancel TIMER
024h
cancel TIMER

-- 11 --
SLEEP mode operation procedure
As the unit is cooling or drying, if SLEEP operation is set, SET TEMP. would
increase 1oC in 1 hour and 2oC in 2 hours.
As the unit is heating, if SLEEP operation is set, SET TEMP. would decrease
1oC in 1 hour and 2oC in 2 hours.
4. PressFAN button, set fan
speed.
3. Press SWING button,
the louvers start to rotate
automatically, and stop
when repress.
6. SLEEP button
Press it to set SLEEP op-
eration.
5. Press TEMP. button, set
suitable SET TEMP.
2. Press MODE button, set
or operation
mode.
1. Plug in, Press ON/OFF
button,then air conditioner is
turned on.
1/0

-- 12 --
1. Remove the cover from the
back of the remote control.
2. Insert the two batteries (Two
AAA dry - cell batteries)
and press button “ACL”.
3. Re - attach the cover.
NOTE:
Don’t confuse the new
and worn or different
batteries.
Remove batteries
when not in use for a
long time.
2 Insert the 7# batteries
1 Remove the cover.
3 Re - attach the cover.
How to insert batteries

-- 13 --
Theoptimum usage
In order to save electricity,use it Conveniently and safely
Earth wire
Earth wire should be connected with specific equipment of constructures, if not, please turn to
the professionals for instruction. The socket must connect to the earth reliable and it has
enough capacity leakage breaker and air switch (16A), Don’t connect the earth wire to gas or
water pipes, lightening rods or telephone earth wire.
Set an appropriate room
temparatrue,overcold is
harmful to health Be sure to turn off the
power socket when
do not use in a long
time.
Clean the air filter and
change a new one or
apply to sunlight
reqularly.
Please take out the
batteries when do
notuseinalongtime.
Avoid direct sunright,
and leakage of cold air.

-- 14 --
Select the most appropriate temperature. It
can avoid the electricity wasting. The airflow direction can be adjusted appro-
priately. The louvers can be adjusted downward
at heating operation, and upward at cooling op-
eration.
Don’t leave windows and doors open while the
air conditioner is on for a longtime. It can
decrease the air conditioning capacity.
Splashing water on the air conditioner can
cause an electric shock and mal - function.
Air conditioner should be operated with stable
voltage in range of 198 -- 242V 1ph. other-
wise, compressor would vibrate terribly to
damage refrigeration system.
Don’t blow the wind to animals and plants
directly. It can cause a bad influence to them.
The ground must be connected.
Don’t connect the earth wire to gas or water
pipes. lighting rods or telephone earth lines.
Don’t use the air conditioner for other pur-
poses, such as drying clothes, preserving
foods, etc.
USERNOTICES

-- 15 --

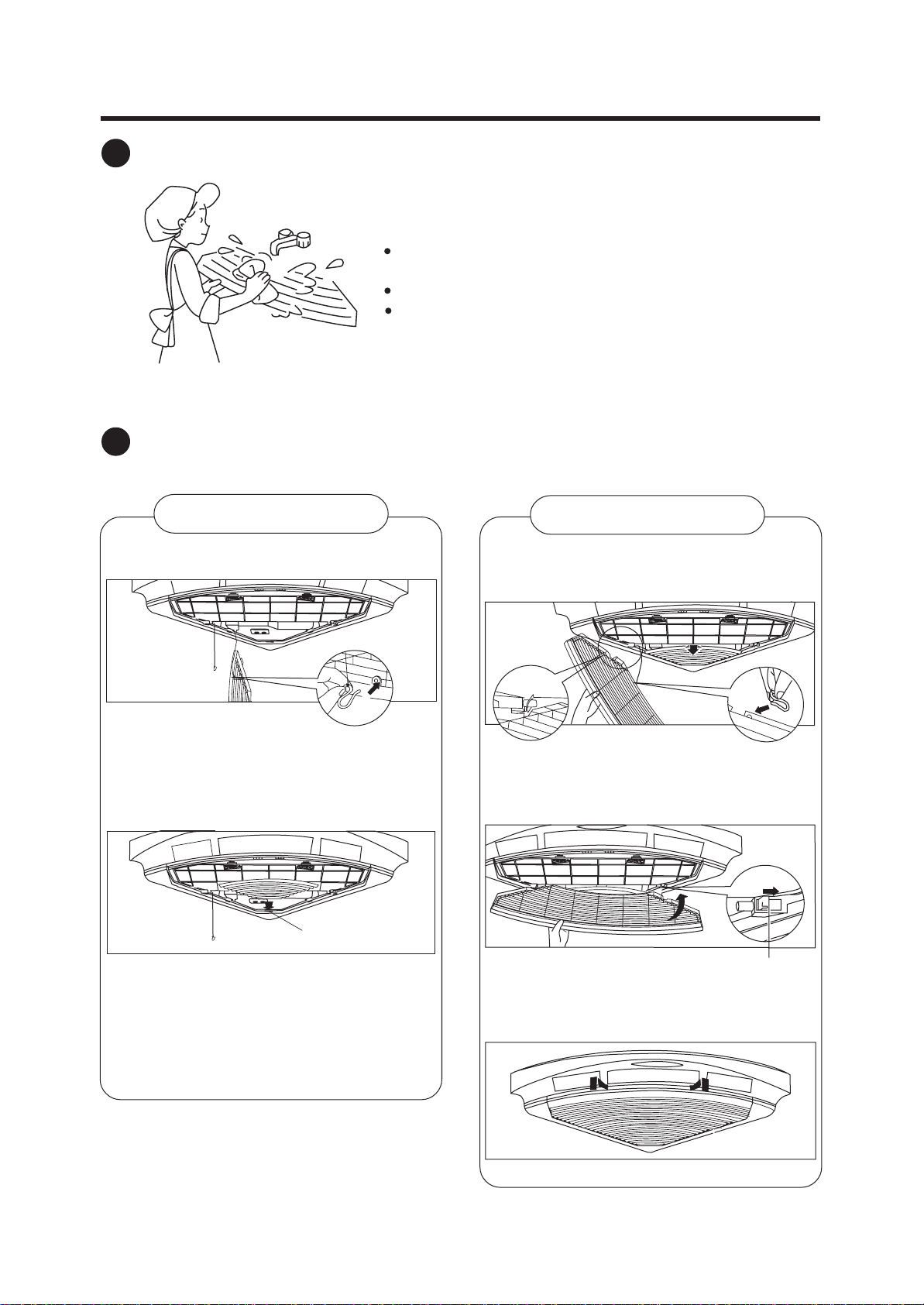

Replacement of Air cleaner
Remove the air intake grill
Stop the units, and turn off the power plug, Press
it as following, drawing the grill outside then it
can slip from the body.
Press the button,then the big air intake grill can be
taken down from the body.
Take down the hook of big air intake grill
enable to clean it.
Draw it along horizontal and slighthy downward.
Take down the hook enable to clean.
Notices:
Don’t let grill hit with wall and other things to
avoid surface damage.
fastener of
leftside grill
1
Remove the big air intake grill
(front)
Care and Maintance
hook
(to avoid falling
down of the grill)
fasterof rightside grill
button
Central front panel
small air intake grill (rear)
big air intake grill (front)
Remove the small air intake grill
(rear)
button

-- 16 --
Notices:
Don’t clean the surface with brush to avoid the damage of sur-
face.
If the grill is too dirty, you can wash it with mild detergent.
Don’t dry it under direct sunlight or heater, or it will cause decol-
oration and deformation of grill.
Hang the hooks on the piping hole of small air
intake grill. Hang the hooks on the piping hole of big air intake
grill,placing the leftside hole of leftside grill into
the left fastener.
Place small air intake grill facing central panel
Installation groove, inseting slightly downward
and horizontlly.
Press the fastener of rightside body as following,
facing the fastener. then unclinching the button.so
as to let fastener insert into the hole.
Raise the big air intake grill slightlhy, then push the
body horizontally.
Clean the air intake grill.
2
Assemble air intake grill (hook is used to avoid falling down of grill, so it is necessary)
3
Assemble the small air intake grill
(rear)
button
Assemble big air intake grill
hook central panel

-- 17 --
Stop operation and turn off the power,or the
high-speed moter may cause damage to
people.
Attention
It doesn’t need too much strength,making this
manual as reference,or it will damage to inter-
nal parts.
Cleaning the air filter
Stop operation and turn off
the power plug.
Disassemblethefrontbigairintakegrill
Pressingthelocationasfollowing,drawthe
bigairintakegrill,makingitfalldownofthe
body.
Disassemble the air filter
Press two buttons,then slightly upward
after discharge from the hole, stretch
forward the air filter.
Assemble the air filter
fix into the air filter along the di-
rection groore.
Placing two buttons into the hole.
Assemble the big air intake grill
Drag the grill horizontally then push into the
body.
Turn on the power plug
Notices:
1. The blockage of filter may decrease the efficiency of cooling and heat further more it will increase the electric charge by 5-10%.
2. Make sure not damage the filter of the grill, while cleaning it, Otherwise it will have an impact on filtrarion. If damaged, please
purchase from the local dealer.
1
4
78
Clean the air-filter
To clean the dust adhering to
the filter,you can either use a
cleaner,or wash them with wa-
ter.
5 6
23
Button Hole
Button
Direction
groove
Hole

-- 18 --
Installation and rechange of air cleaner
The air cleaner combined with a low-temperature asepsis accelerant (white-green) and an active carbon(black).
The former can deodorize and kill the bacillus of the air. The latter can adsorb the atom of air, enhancing the quality
of air in the room.
If the air-cleaner is dirty, you can wash it with water and dry it by nature. Normally clean it once half a year.
If Air-cleaner use for a longtime, the efficiency will be decreased. Normally it should be changed per three years.
Disassemble the big air-intake grill.
Stop operation and turn off the power plug.As
following,draw the grill outside then it will fall down
from the body.
Disassenble the air-cleaner
Hold the handles of air cleaner,then pull it along the
direction groove.
rechange the air-conditioner
Press the button then the upper cover will loosen.Take
out the air-cleaner you have the option to change a new
one or clean the old one.
assemble the air-cleaner.
Insert the air cleaner into groove of fixer. Assemble the air-filter
Insert the air-filter into the groove direction groove.
Put two button of air filter into the piping hole.
12Disansembk the air filter
Hold two buttons then press it slightly upward.After it
disassemble from the hole, then draw it forward.
34
56
78Assemble big air intake grill.
Draw the air intake grill horizontally then push it into
the body.
Button
Hole
groove
groove
rail

-- 19 --
Check the following points before requesting on service center of MUNDOCLIMA if the
malfunction persist, it saves your time and money.
Phenomenon Trouble Shooting
Indoor unit does not
operateimmediately
when the air condi-
tioner is restarted.
Once the air conditioner is stopped, it will not oper-
ate in approximately 3 minutes to protect itself.
There’s unusual
smell blowing from
the outlet after op-
eration is started.
This is caused by the odors in the room which have
been breathed into the air conditioner.
Sound of water
flow can be heard
during operation.
This is caused by the refrigerant flowing inside the
unit.
Mist is emitted dur-
ingcoolingoperation. Because the air of the room is cooled down rapidly
by the cold wind and it looks like the fog.
Creaking noise can
be heard when start
or stop the unit.
This is caused by the deformation of plastic due to
the change of temperature.
Air condi-
tioner does
not operate
at all.
Has the power been shut down?
Is the wiring loose?
Is the leakage protection switch in operation?
Is voltage higher than 242V or lower than 198V?
Is TIMER ON in operation?
Cooling (Heating)
efficiency is not
good.
Is SET TEMP. suitable?
Is air inlet or outlet obstructed?
Are air filters dirty?
Is indoor fan speed set at low speed?
Is there any other heat sourse in your room?
Wireless remote
controller is not
available.
Is the remote control unit out of effective distance
to the indoor unit?
Replace the worn batteries of wireless remote con-
troller.
Are there any obstructions between the wireless
remote controller and the signal receptor?
Troubleshooting
Please
waiting
shut off
