Muvi Torrot T L3e-A1 User manual

Owner's Manual
Maintenance+Warranty muvi
https://www.motomanuals.net/

https://www.motomanuals.net/

Welcome to Torrot
Thank you for acquiring our MUVI electric
scooter! We are pleased to welcome you to
the family of Torrot Electric product users.
This manual contains information regarding the
correct use and maintenance of your MUVI. For your
security and comfort, we recommend you read these
instructions carefully.
https://www.motomanuals.net/

https://www.motomanuals.net/

5
MUVI
Owner's Manual
Table of
contents
INTRODUCTION 06
PRE-OPERATION CHECKS 07
CLOTHING 07
RIDING SAFELY 07
CHARACTERISTICS 08
COMPONENTS 09
CONTROLS 10
DASHBOARD 12
EXTRA DISPLAYS AVAILABLE 13
DASHBOARD WARNING LIGHTS AND SYMBOLS 14
RIDING MODES 16
IGNITION SWITCH 17
START SCREENS 19
SET BUTTON 21
SETTING THE TIME 21
BLUETOOTH APP 22
STORAGE COMPARTMENT 25
USING THE CENTRE STAND 26
USAGE AND PRECAUTIONS 27
TURN-ON SEQUENCE 28
REMOVING THE BATTERIES 29
INSERTING THE BATTERIES 29
CHARGING THE BATTERIES 30
BATTERY PRECAUTIONS 31
MAINTENANCE 32
BELT TENSION 32
TYRE PRESSURE 33
BRAKE FLUID 34
BRAKE CALLIPERS 34
ACCESSING THE HEADLIGHT 35
CHANGING THE LIGHT BULB 36
ADJUSTING THE HEADLIGHT 37
CLEANING 38
STICKER LOCATIONS 39
VIN NUMBER 40
WARRANTY TERMS AND CONDITIONS 41
https://www.motomanuals.net/

6
MUVI
Owner's Manual
INTRODUCTION
The rst lightweight electric scooter designed to move you from here to there in a breeze: it's easy to ride and very
comfortable. It comes with a small space under the seat for a jet helmet, front and rear LED daytime running lights,
disc brakes and everything else you need to get around town safely, enjoyably and efciently. It's extrovert, laid-
back design has been created for people like you, who value time and practicality above all else.
https://www.motomanuals.net/

7
MUVI
Owner's Manual
PRE-OPERATION CHECKS
Before riding, check that:
• The charger is disconnected
• The battery has sufcient charge
• The lights and horn work properly, check the headlight, blinkers and brake light.
• The brakes work properly
• The tyres have the correct pressure
• The rear-view mirrors are correctly positioned
• The belt has the correct tension.
CLOTHING
Riding motorcycles has its risks, and prevention is better than cure, so it's best to be protected:
• Always fasten the helmet
• Wear comfortable, snug-tting clothes. Loose-tting clothes can complicate manoeuvres and become tangled
in the motorbike's parts.
• Wear comfortable, snug-tting footwear so they don't fall off while riding. Avoid heels that are too high or
thongs.
RIDING SAFELY
• Always carry your driving licence and a valid insurance policy
• Always grasp the handlebar with both hands
• Always remain seated, do not stand.
• Always obey trafc signs and police ofcers
• Do not let an inexperienced person ride your motorbike.
https://www.motomanuals.net/

8
MUVI
Owner's Manual

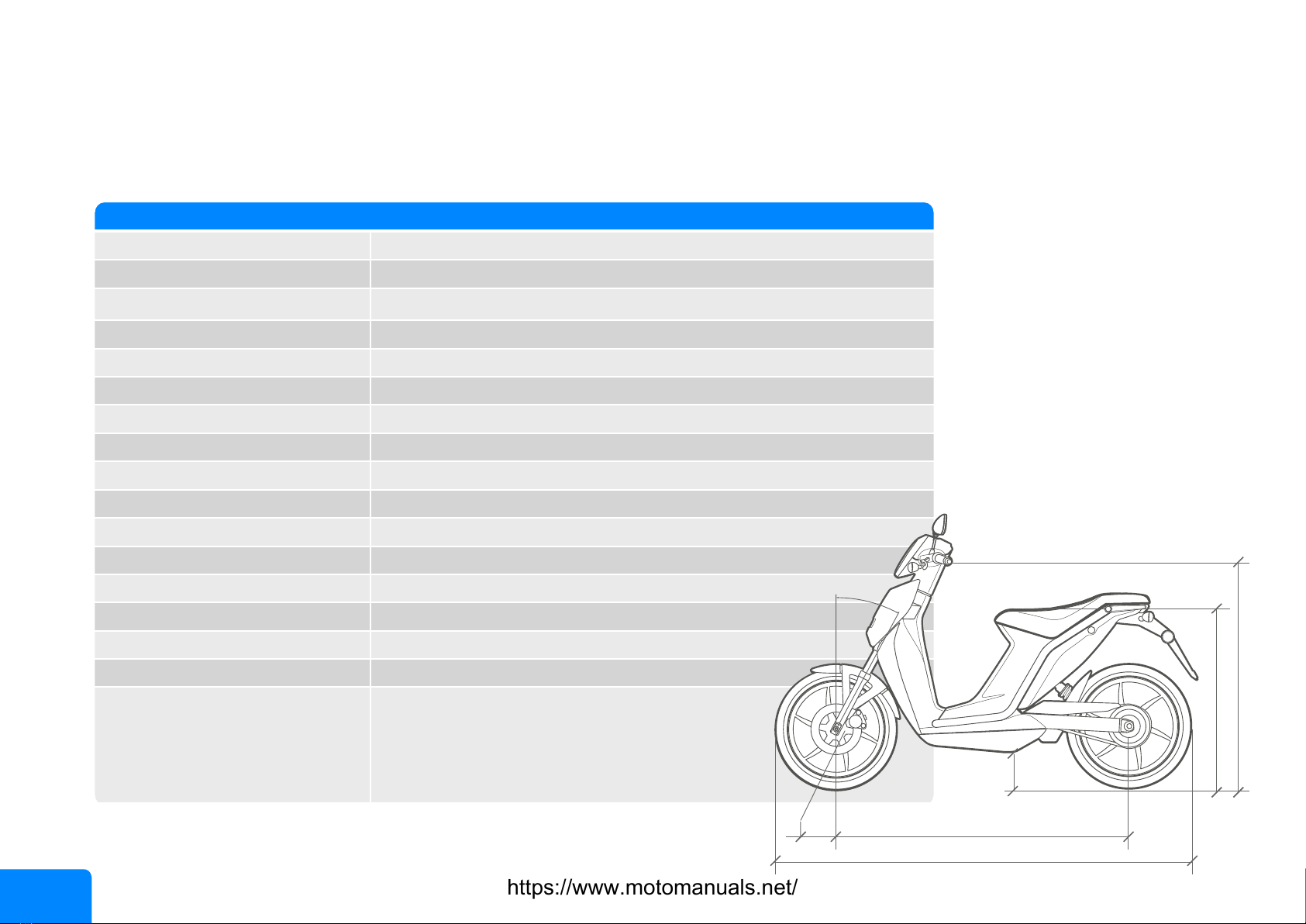

CHARACTERISTICS
MUVI SPECIFICATIONS
CHASSIS TUBULAR STEEL
FRONT SUSPENSION HYDRAULIC TELESCOPIC FORK
REAR SUSPENSION SIDE MONOSHOCK WITH PRELOAD ADJUSTMENT
BRAKES HYDRAULIC COMBINED BRAKING SYSTEM 220mm FRONT - 200mm REAR
TRANSMISSION HTD 1:5 TOOTHED BELT
MOTOR TORROT BRUSHLESS AC PMSM
POWER / TORQUE (L3e-A1 = 3kw / L1e-B = 2.65kw) / 35Nm
MAXIMUM SPEED L3e 70 km/h / L1e 45 km/h
BATTERY REMOVABLE 2 x 48V 35.2Ah LiNiCoMn / RANGE UP TO 110km *
DIAGNOSTICS - CONNECTIVITY ECU (Electronic Control Unit) CAN-BUS / BLUETOOTH
DASHBOARD INTELLIGENT, 320x240 4” LCD CUSTOMISABLE VIA APP (iOS/Android)
RIMS ALUMINIUM 16”x2.15
TYRES 90/80-R16
WEIGHT 96KG (WITH BATTERIES)
MAXIMUM WEIGHT 275kg
CHARGER 54.6V 5A DUAL CHARGER (7 HOURS)
OPTIONAL
54.6V 10A DUAL CHARGER (4 HOURS)
HIGH WINDSCREEN
LOW WINDSCREEN
LUGGAGE RACK
TOP CASE 29L
TOP CASE 40L
810mm
172
1.290mm
16”16”
96,9mm
27,6º
HANDLEBAR WIDE / ANCHO MANILLAR 680mm
1.855mm
1025mm
* L3e-A1 approved up to 85km in accordance with WMTC-2
L1e-B approved up to 93km in accordance with CEPE R47
L1e-25 approved up to 110km in accordance with CEPE R47
https://www.motomanuals.net/

9
MUVI
Owner's Manual
COMPONENTS
ACCELERATOR
BRAKES
CENTRE STAND
BELT
1
2
3
5
MOTOR
HEADLIGHT
LOCK
BATTERY
IGNITION SWITCH
6
7
9
8
10
95
8
10
7
2
3
1
4DASHBOARD
4
11
11 LUGGAGE HOOK
https://www.motomanuals.net/

10
MUVI
Owner's Manual
CONTROLS
1
2
3
4
5
6
7
8
9
