MuxLab 500456 User manual

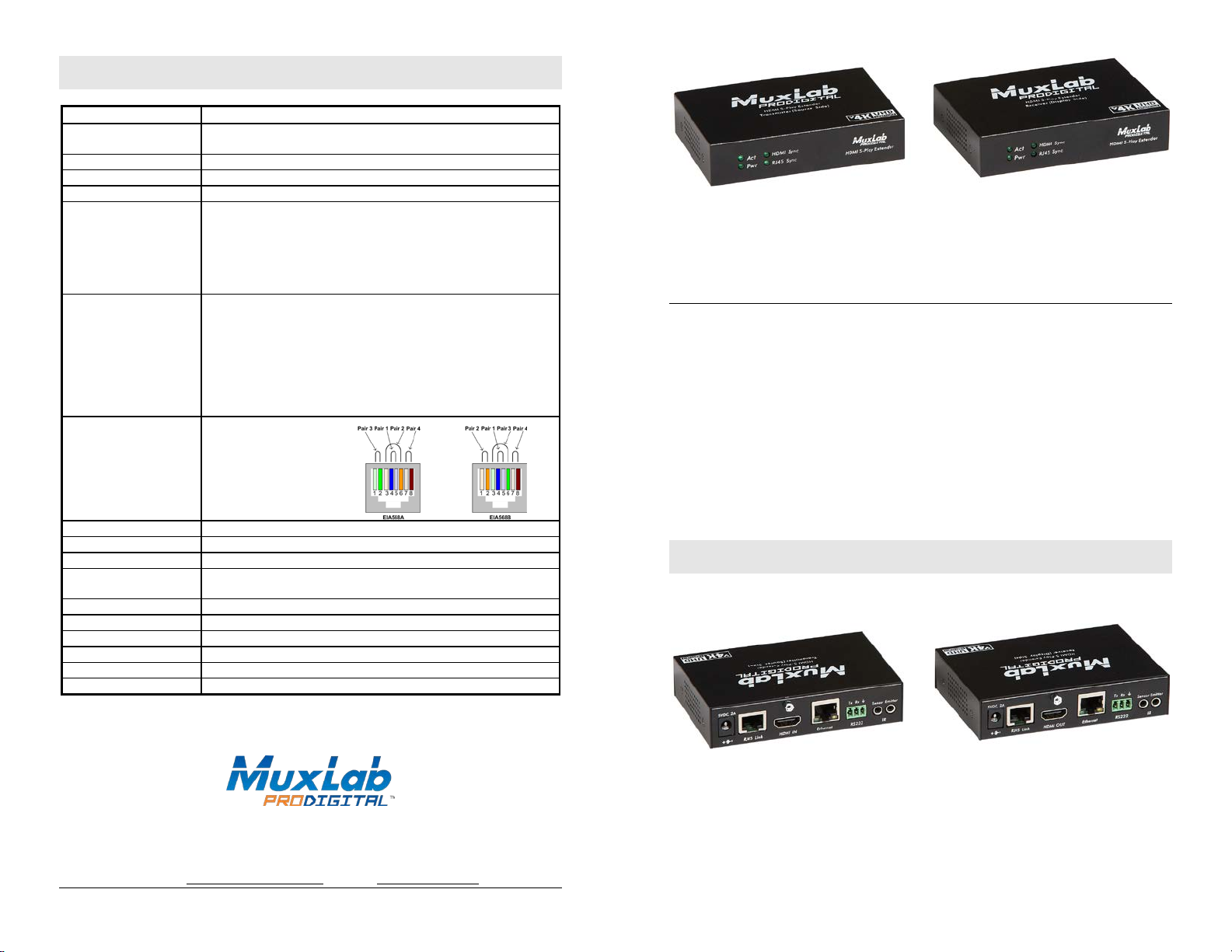

Specifications
Environment
HDMI 1.3a (Supports the 3D feature of HDMI 1.4)
Devices
DVD, plasma, projectors, monitors, TV, PC, laptops, servers
supporting HDMI.
Transmission
Transparent to the user
Bandwidth
340 MHz
Signals
HDMI 1.3a protocol
Connectors
One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
One (1) RJ45S for LAN (10/100BaseT) connection.
One (1) three position terminal block for RS-232
Two (2) 3.5mm jacks for IR emitter and sensor.
Note: HDMI cables not included.
Maximum Distance
Based on a maximum
length of 6.6 ft (2 m) of
HDMI cable per end.
480i/p: Cat 5e/6: 330 ft (100 m)
720p, 1080i: Cat 5e/6: 330 ft (100 m)
1080p: Cat 5e/6: 330 ft (100 m)
1080p Deep Color: Cat 5e/6: 330 ft (100 m)
4K @ 24, 25, 30 Hz: Cat 5e/6: 230 ft (70 m)
Note: When installed in an electrically noisy environment, an STP
cable must be used. Also, cross-connection reduces the effective
distance depending on the grade of twisted cable used.
RJ45 Pin
Configuration
Reverse Polarity
Sensitive. Use EIA/TIA
568A or 586B straight-
through wiring.
RJ45 Link
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
Cable
One (1) Cat 5e/6 or better twisted pair cables required
Power Supply
Two (2) 110-240V/5VDC power supplies with interchangeable blades
Power Consumption
Transmitter: 2.75 Watt Receiver: 5.15 Watt
Temperature
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure
Metal
Dimensions
4.40” x 3.00” x 1.00” (11.2 x 7.6 x 2.5 cm)
Weight
1.4 lb (0.6 kg)
Compliance
Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty
2 years
Order Information
500456 HDMI 4-Play Extender Kit
HDMI 4-Play Extender Kit
500456
Quick Installation Guide
Overview
The HDMI 4-Play Extender Kit (500456) allows HDMI equipment to be connected up
to 330 ft (100 m) @ 1080p Deep Color via one (1) Cat 5e/6 unshielded twisted pair
cables in a point-to-point configuration. The product also features one LAN port for
interconnecting Ethernet equipment and a RS-232 port for control via the same Cat5e/6
cable. The kit comes with one (1) Transmitter and one (1) Receiver as well as an IR
Emitter (500998) and IR Sensor (500999) for remote control applications.
Applications
Applications include commercial and residential AV systems, classroom projector
systems, digital signage, boardroom systems, collaborative PC systems, and medical
information systems.
Installation
1. Identify the connectors on the Transmitter and Receiver as indicated on the product labels.
2. Verify that the distance between the HDMI Transmitter and Receiver is within MuxLab
specifications (see Specifications table).
3. To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant cable.
3b. Connect one (1) lengths of Cat 5e/6 (or higher) grade UTP cables to RJ45 LINK
connectors on the Transmitter.
© MuxLab Inc. 94-000783-A SE-000783-A
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: [phone] Fax: [phone]
Toll Free (North America): [phone]
E-mail: [email protected]m URL: www.muxlab.com

To install the Receiver:
4a. Connect the Receiver to the HDMI display equipment with an HDMI compliant cable.
4b. Connect the one (1) Cat 5e/6 cables to RJ45 LINK connectors on the Receiver.
4. Connect the 5 VDC power supply to the Receiver first, and then plug the power supply into
an AC power outlet. Connect the 5 VDC power supply to the Transmitter first, and then plug
the power supply into an AC power outlet. If power is present, the green power LED of the
Transmitter and the Receiver will be ON.
Note: Power the HDMI 4-Play Extender only after all connections are made.
5. Power the HDMI equipment and verify the image quality.
6. This product support bidirectional IR control. If infrared remote control is needed to control
the Source equipment from the Display, connect the IR Sensor to the 3.5mm Stereo Jack of
the receiver and the IR Emitter to the 3.5mm Mono Jack of the Transmitter.
Note: You can differentiate the IR Sensor and the IR Emitter by looking at the 3.5 mm
plug. The IR Sensor is using a Stereo Plug (3 Contacts) and the IR Emitter a
mono plug (2 Contacts).
7. Position the IR Sensor so that it is directed to the hand-held remote control. For a clear IR
signal reception, aim the hand-held remote control to the top of the IR Sensor enclosure.
8. Position the IR Emitter as close as possible to the source’s IR Sensor (i.e. DVD player). For a
clear IR signal reception, the IR Emitter can be glued on the source’s IR Sensor. The IR
Emitter’s signal is transmitted from the side of the enclosure.
9. If infrared remote control is needed to control the Display equipment from the Source,
connect the IR Emitter to the 3.5mm Stereo Jack of the receiver and the IR Sensor to the
3.5mm Mono Jack of the Transmitter.
10. If an Ethernet 10/100 LAN connection is required, connect Cat5e/6 jumper cables between
the LAN equipment and the RJ45 LAN connectors on the Transmitter and Receiver.
11. If a serial communication is required, the product also supports RS232 pass-thru in order to
allow a device such as commercial monitors to be controlled as in digital signage application.
Please refer to the following diagram for the cabling connection.
12. The following diagram shows the final configuration.
Troubleshooting
The following table describes some of the symptoms, probable causes and possible solutions
in respect to the installation of the HDMI 4-Play Extender Kit:
Symptom
Tx LEDs
Rx LEDs
Probable
Cause Possible Solutions
Power
HDMI
RJ45
Power
HDMI
RJ45
No Image
OFF
OFF
OFF
OFF
OFF
OFF
No power
• Check power
connections
No Image
ON
OFF
OFF
ON
OFF
OFF
UTP Cable
• Check the UTP
cables.
No Image
ON
OFF
ON
ON
OFF
ON
HDMI Cable
• Check the HDMI
Cable.
No Image
ON
ON
ON
ON
ON
ON
Synchronization
• Check cable length.
Flickering
ON
ON
ON
ON
ON
ON
Synchronization
• Check cable length
• Check the HDMI
Cable Quality.
Choppy sound
ON
ON
ON
ON
ON
ON
Synchronization
• Check cable length
• Check the HDMI
Cable Quality.
Green or pink
hue
ON
ON
ON
ON
ON
ON
DDC
communication
• Cycle power of the
HDMI Extender.
• Check UTP cables
and replace.
Image flickers
when powering
up nearby
equipment
ON
ON
ON
ON
ON
ON
Interference
• Use STP cables
IR not
functioning
ON
ON
ON
ON
ON
ON
Remote control
not directed to
the IR Sensor or
IR Emitter not
directed to the
source.
• Make sure the IR
Sensor is directed
towards the remote
and the IR Emitter
to the equipment
IR not
functioning
ON
ON
ON
ON
ON
ON
Interference
from sunlight,
Fluorescent,
Neon or
Halogen lights
• Place the IR
equipment away for
the interfering light
IR not
functioning
ON
OFF
ON
ON
OFF
ON
Interference
from RF
radiation from
the TV
• Place the IR
equipment away for
the RF radiation
LAN not
functioning
ON
ON
ON
ON
ON
ON
UTP Cable,
internet
unreachable
• Check that the Link
LED is ON
• Check the UTP
Cable
If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at
877-689-5228 (toll-free in North America) or ([phone] (International).
