MuxLab 500449 User manual

HDMI 2.0 KVM HDBT Extender Kit, 100m
User Manual
500449
© MuxLab Inc. 2023 1 94-001010-A/SE-001010-A

HDMI 2.0 KVM HDBT Extender Kit, 100m
Table of Contents
1. Safety Precautions....................................................................................................................................................3
2. Introduction................................................................................................................................................................4
3. Features.......................................................................................................................................................................4
4. Package Contents...................................................................................................................................................4
5. Specifications............................................................................................................................................................5
6. Operation Controls and Functions....................................................................................................................6
6.1. Transmitter Panel..............................................................................................................................................6
6.2. Receiver Panel..................................................................................................................................................7
7. IR Pin Definition.........................................................................................................................................................8
8. Application Diagram..............................................................................................................................................9
© MuxLab Inc. 2023 2 94-001010-A/SE-001010-A

Follow basic safety precautions to reduce the risk of fire, electrical shock, and injury.
Do not dismantle the housing or modify the module. It may result in electrical shock or
burns.
Do not open or remove the housing of the device as you may be exposed to dangerous
voltage or other hazards.
To prevent fire or shock hazard, do not expose the unit to rain, moisture and do not install
this product near water. Keep the product away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If an
object or liquid falls or spills on the housing, unplug the module immediately.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
Using supplies or parts not meeting the product specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
Install the device in a place with adequate ventilation to avoid damage caused by
overheat.
Unplug the power when left unused for a long period of time.
Information on disposal of devices: do not burn or mix with general household waste,
please treat them as normal electrical waste.
1. Safety Precautions
To ensure the best performance from the product, please read all instructions carefully before
using the device. Save this manual for future reference.
Copyright Notice
All contents in this manual are copyrighted, and cannot be cloned, copied, or translated
without the express permission of MuxLab Inc. Product specifications and information in this
document are for reference only, and the content may be updated from time to time without
prior notice.
HDMI 2.0 KVM HDBT Extender Kit, 100m
© MuxLab Inc. 2023 3 94-001010-A/SE-001010-A

HDMI 2.0b and HDCP 2.2 compliant
Supports 18Gbps video bandwidth
Supports video resolution up to 4K/60Hz (YUV 4:4:4)
Supports HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass through
Supports LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High
Res, DTS-HD Master Audio and DSD pass through
Supports 4K transmission distance up to 328ft/100m via a single CAT 6A/7 cable
Supports 1080P transmission distance up to 492ft/150m via a single CAT 6/6A/7 cable
Supports bidirectional POC (Power over Cable), when TX or RX gets power, the other end
does not need an external power supply
Supports 3.5mm analog audio de-embedding at TX and RX
Supports bi-directional RS-232 signal pass-through, bi-directional IR signal control, and
USB2.0 signal transmission
EDID management
3. Features
2. Introduction
The MuxLab HDMI 2.0 KVM HDBT Extender Kit, 100m (model: 500449) allows one HDMI
channel, one USB2.0 signal, one RS232 signal and one bi-directional IR signal to be
transmitted over distances of up to 328ft (100m) at 4K/60Hz (4:4:4) resolution via one (1) Cat
6a/7 unshielded twisted pair cable in a point-to-point configuration.
The MuxLab HDMI 2.0 KVM HDBT Extender Kit, 100m includes one (1) transmitter and one (1)
receiver. The Extender supports EDID management, bi-directional PoC function and can switch
between HDBT Standard Mode (as factory default) and HDBT Long Reach Mode. The
extender features, in both the Transmitter and Receiver, a 1x2 USB hub for transferring USB
data transmissions and analog audio port, used for audio de-embedding output.
One (1) HDBaseT 3.0 Extender (Transmitter)
One (1) HDBaseT 3.0 Extender (Receiver)
One (1) IR Blaster Cable (1.5 meters)
One (1) IR Receiver Cable (1.5 meters)
Two (2) 3pin-3.81mm Phoenix Connectors (Male)
Four (4) Mounting Ears
Eight (8) Machine Screws (KM3*4)
One (1) 24V/1A LockingPower Adapter
One (1) User manual (available via download)
4. Package Contents
Notes ： Confirm that the product and accessories are all included. If not, please contact the
supplier from which you purchased the unit.
© MuxLab Inc. 2023 4 94-001010-A/SE-001010-A
HDMI 2.0 KVM HDBT Extender Kit, 100m

5. Specifications
© MuxLab Inc. 2023 5 94-001010-A/SE-001010-A
HDMI 2.0 KVM HDBT Extender Kit, 100m
HDMI Compliance HDMI 2.0b
HDCP 2.2
18Gbps
Up to 4K/60Hz
HDR, HDR10, HDR10+, Dolby Vision, HLG
8/10/12-bit
12Vp-p
Technical
HDCP Compliance
Video Bandwidth
Video Resolution
Color Space
Color Depth
IR Level
HDBT Standard Mode: 4K60/100m; 1080P/100m (CAT6A/7 cable)
Transmission Distance
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
HDR
Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24,
DTS High Res, DTS-HD Master Audio, DSD
Connection
Transmitter
1 x HDMI Input [Type A, 19-pin female]
1 x HDBaseT Output [RJ45 connector]
1 x L/R Output [3.5mm Stereo Mini-jack]
1 x IR Input [3.5mm Stereo Mini-jack]
1 x IR Output [3.5mm Stereo Mini-jack]
1 x RS-232 [3pin-3.81mm Phoenix jack]
1 x SERVICE [Micro USB, 5-pin female]
1 x USB HOST [USB Type B]
2 x USB DEVICES [USB Type A]
Input:
Outputs:
Controls
:
Receiver
Inputs:
Outputs:
Controls:
1 x HDBaseT Input [RJ45, 8-pin female]
1 x HDMI Output [Type A, 19-pin female]
1 x L/R Output [3.5mm Stereo Mini-jack]
1 x IR Input [3.5mm Stereo Mini-jack]
1 x IR Output [3.5mm Stereo Mini-jack]
1 x RS-232 [3pin-3.81mm Phoenix jack]
1 x SERVICE [Micro USB, 5-pin female]
2 x USB DEVICES [USB Type A]
Mechanical
Generic Specification
Housing Metal Enclosure
Color Black
Dimensions (WxDxH) Transmitter/Receiver: 144mm x 78mm x 23mm
Weight Transmitter: 323g, Receiver: 319g
Power Supply Input: AC 100 - 240V 50/60Hz
Power Consumption 14.28W (POC)
Operating Temperature 32 - 104°F / 0 - 40°C
Storage Temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20~90% RH (non-condensing)
Compliance
Warranty
Order Information
Regulatory: FCC, CE, RoHS
2 years
500449 HDMI 2.0 KVM HDBT Extender Kit 100m (UPC:627699004494)
HDBT Long Reach Mode: 1080P/150m (CAT6/6A/7 cable)
Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)

5
6. Operation Controls and Functions

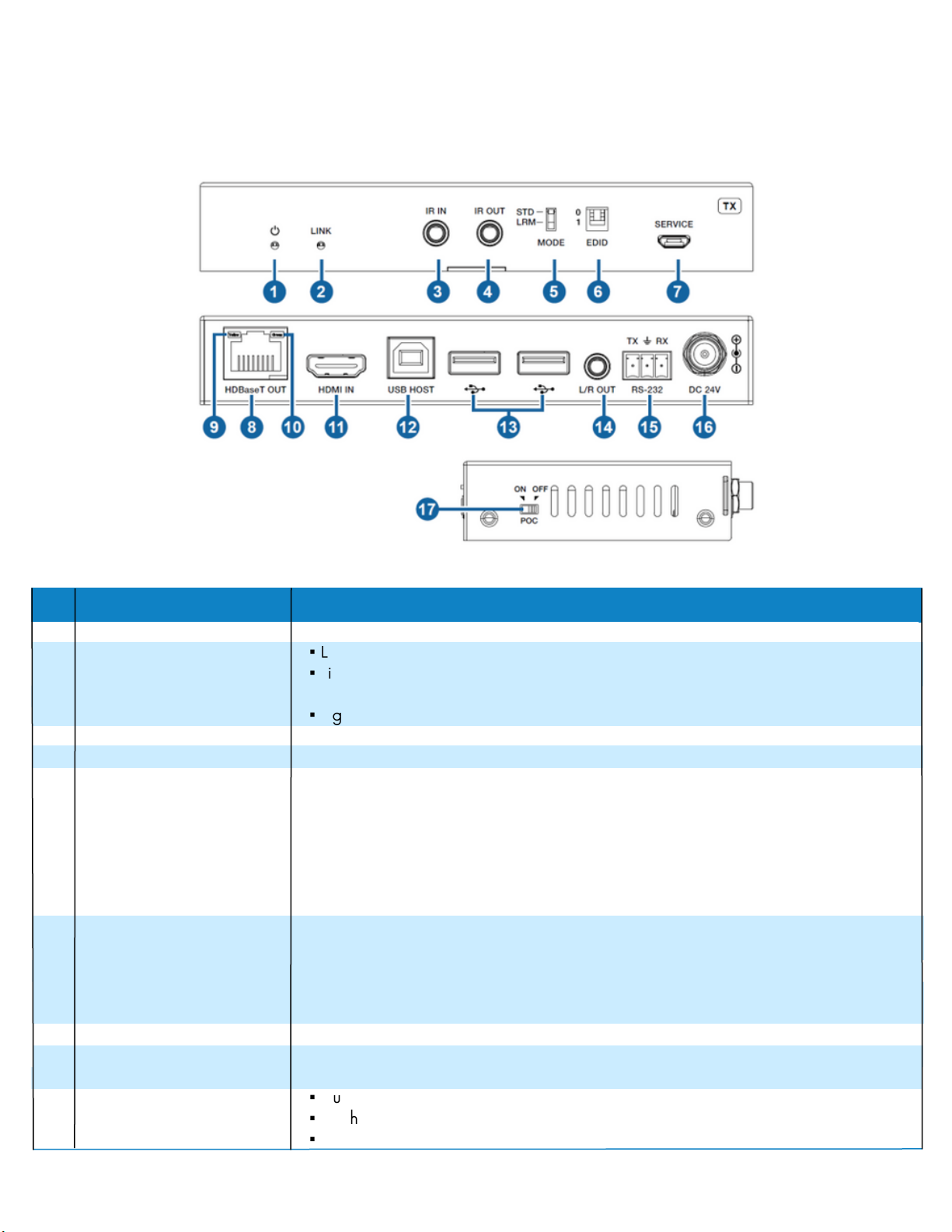

6.1 Transmitter Panel
1
Used to switch HDBT mode.
Switch to "STD": The HDBT Standard Mode (as factory default) is enabled, it
can extend 4K/60 signal between the transmitter and the receiver up to 100m
via a single CAT 6A/7 cable.
Switch to "LRM": The HDBT Long Reach Mode is enabled, it can extend 1080p
signal between the transmitter and the receiver up to 150m via a single
CAT6/6A/7 cable.
No Name Function Description
Red LED indicates that the Transmitter is powered on.Power LED
MODE Switch
© MuxLab Inc. 2023 6 94-001010-A/SE-001010-A
HDMI 2.0 KVM HDBT Extender Kit, 100m
▪ Light on: Transmitter and Receiver are in good connection status.
▪ Light flashing: Transmitter and Receiver are in poor connection status or
connected to the same device.
▪ Light off: Transmitter and Receiver are not connected.
LINK LED
2
IR signal input port, connected to IR Receiver cable.
3IR IN
4IR OUT IR signal output port, connected to IR Blaster cable.
6EDID DIP Switch
Used for EDID setting:
00: Copy display’s EDID (as factory default)
01: 4K30 4:4:4
10: 1080p/60 4:4:4
11: 1200p/60 4:4:4
7SERVICE Firmware update port.
HDBaseT output port, connected to the HDBaseT IN port of Receiver with a
CAT6A/7 cable. It is used for various signals pass-through.
8HDBaseT OUT
9Data Signal Indicator
(Yellow)
▪ Illuminating: HDMI signal with HDCP.
▪ Flashing: HDMI signal without HDCP.
▪ Dark: No HDMI signal.

HDMI IN
10
13 USB DEVICES Two USB device ports, connected to USB disk, mouse or keyboard.
© MuxLab Inc. 2023 7 94-001010-A/SE-001010-A
HDMI 2.0 KVM HDBT Extender Kit, 100m

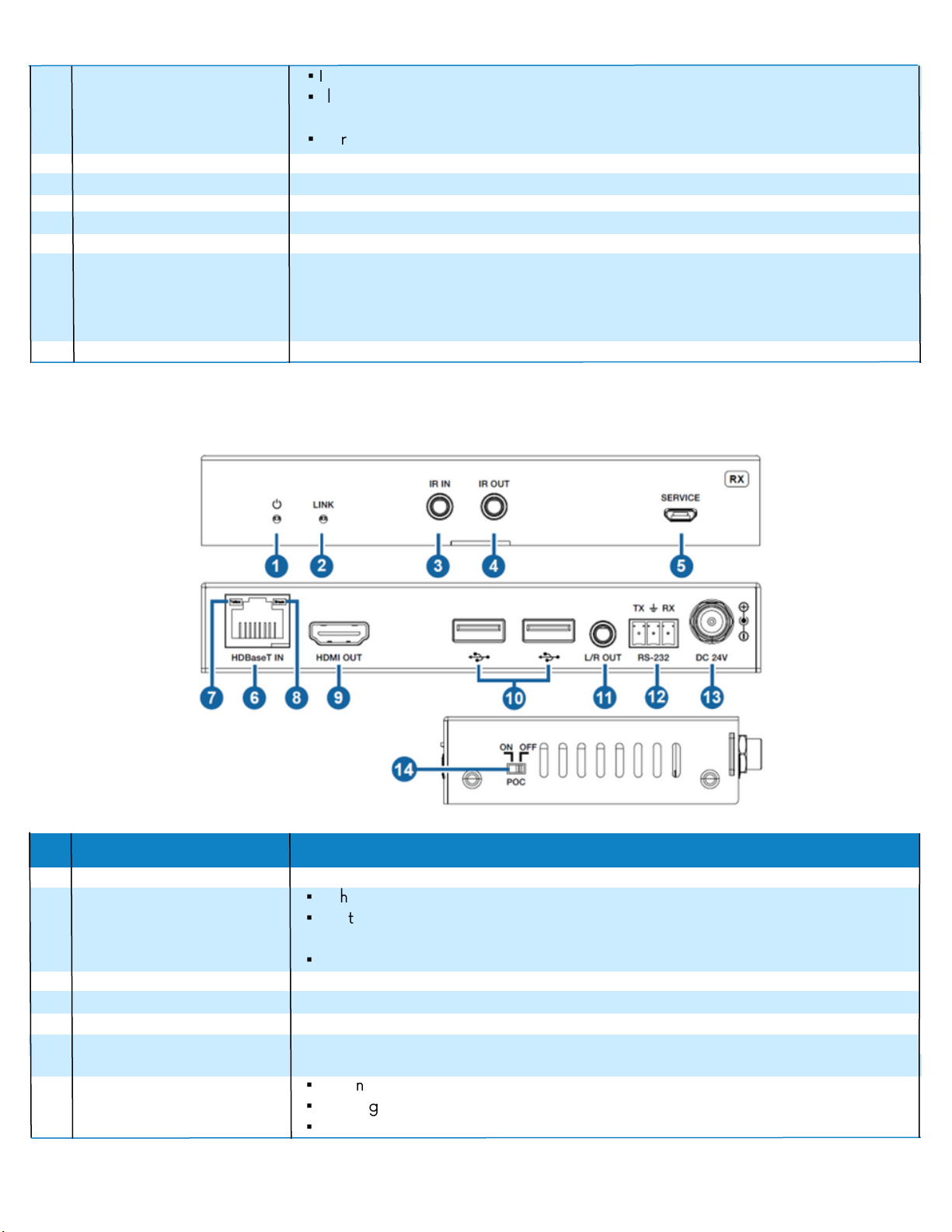

6.2 Receiver Panel
11
▪ Illuminating: Transmitter and Receiver are in good connection status.
▪ Flashing: Transmitter and Receiver are in poor connection status or connected
to the same device.
▪ Dark: Transmitter and Receiver are not connected.
15 RS-232 RS-232 serial port, used for serial port command transmission.
Use the switch to turn on/off POC function.
17 POC Switch
Link Signal Indicator
(Green)
HDMI signal input port, connected to signal source device.
12 USB HOST USB extension host port, connected to PC.
14 L/R OUT Analog audio output port, used for audio de-embedding output.
DC 24V/1A power supply input port.
Note that the extender supports POC function, it means that either transmitter or
receiver is powered on by 24V/1A power adapter, the other one doesn’t need
power supply.
16 DC 24V
5
1
Firmware update port.
No Name Function Description
Red LED indicates that the Receiver is powered on.Power LED
SERVICE
▪ Light on: Transmitter and Receiver are in good connection status.
▪ Light flashing: Transmitter and Receiver are in poor connection status or
connected to the same device.
▪ Light off: Transmitter and Receiver are not connected.
LINK LED
2
IR signal input port, connected to IR Receiver cable.
3IR IN
4IR OUT IR signal output port, connected to IR Blaster cable.
HDBaseT input port, connected to the HDBaseT OUT port of Transmitter with a
CAT 6A/7 cable. It is used for various signals pass-through.
6HDBaseT IN
▪ Illuminating: HDMI signal with HDCP.
▪ Flashing: HDMI signal without HDCP.
▪ Dark: No HDMI signal.
7Data Signal Indicator
(Yellow)

HDMI OUT
8
11 L/R OUT Analog audio output port, used for audio de-embedding output.
© MuxLab Inc. 2023 8 94-001010-A/SE-001010-A
HDMI 2.0 KVM HDBT Extender Kit, 100m

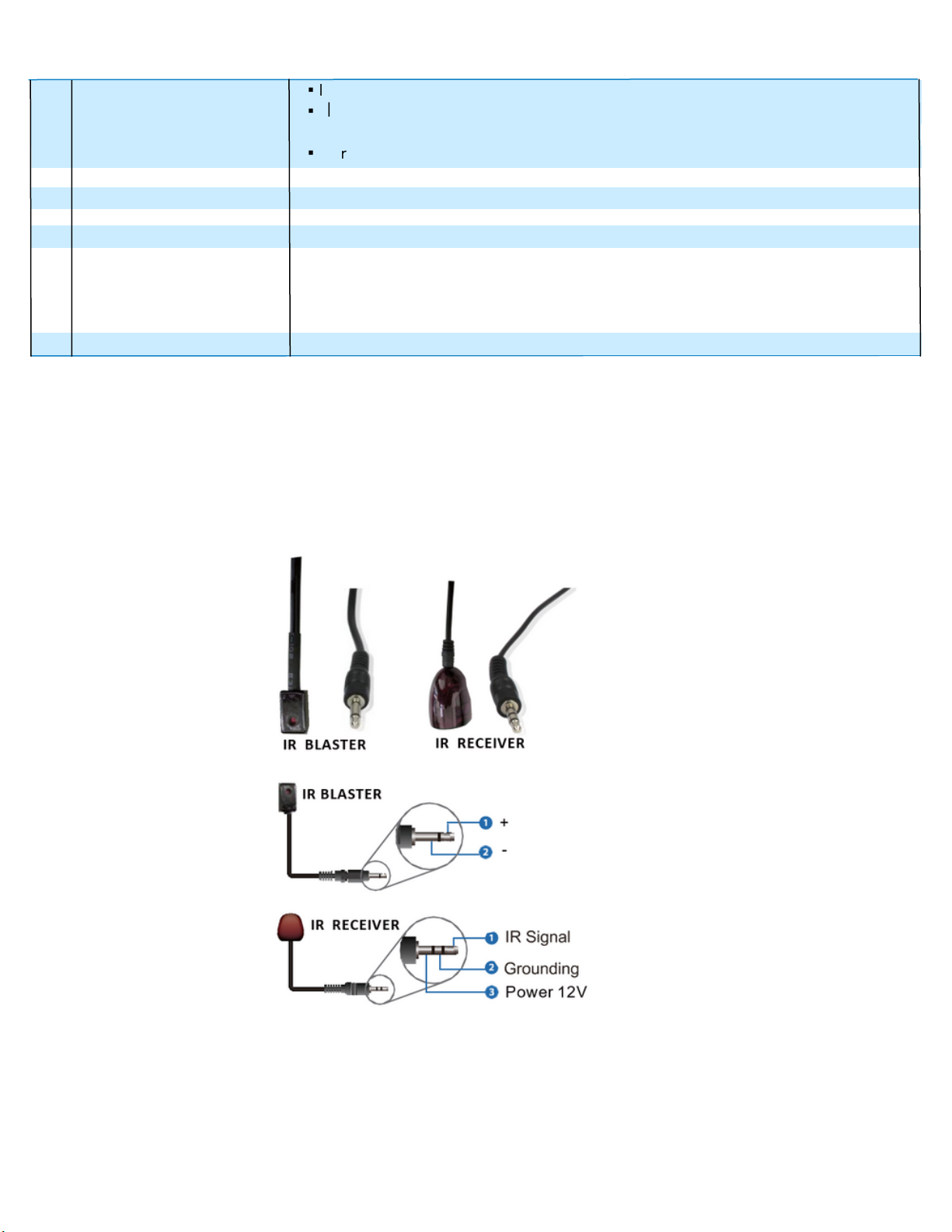

IR Receiver and Blaster pin’s definition as below:
7. IR Pin Definition
9
▪ Illuminating: Transmitter and Receiver are in good connection status.
▪ Flashing: Transmitter and Receiver are in poor connection status or connected
to the same device.
▪ Dark: Transmitter and Receiver are not connected.
13 DC 24V
Use the switch to turn on/off POC function.
14 POC Switch
Link Signal Indicator
(Green)
HDMI signal output port, connected to HDMI display device.
10 USB DEVICES Two USB device ports, connected to USB disk, mouse or keyboard.
12 RS-232 RS-232 serial port, used for serial port command transmission.
DC 24V/1A power supply input port.
Note that the extender supports POC function, it means that either transmitter or
receiver is powered on by 24V/1A power adapter, the other one doesn’t need
power supply.
Note: When the angle between the IR receiver and the remote control is ± 45°, the
transmission distance is 0-5 meters; when the angle between the IR receiver and the remote
control is ± 90°, the transmission distance is 0-8 meters.
