MuxLab 500730 User manual

P/N: 94-000764-A SE-000764-A
6G-SDI EXTENDER OVER UTP
500730
Installation
Guide

© MuxLab Inc. 6G-SDI Extender Over UTP
Page 2
Copyright Notice:
Copyright © 2014 MuxLab Inc. All rights reserved.
Printed in Canada. No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or
otherwise without prior written permission of the author.
Trademarks:
MuxLab Broadcast is a registered trademark of MuxLab Inc.

© MuxLab Inc. 6G-SDI Extender Over UTP
Page 3
Table of Contents
1. Overview ..................................................................... 4
1.1. Description...........................................................4
1.2. Features................................................................6
2. Technical Specifications.............................................. 7
3. Installation Procedure ................................................ 9
3.1. Parts List...............................................................9
3.2. Product Overview ............................................... 10
3.3. Physical Installation............................................ 12
3.4. Installation & Power-up Procedure...................... 13
3.5. Supported SDI Modes.........................................14
3.6. Supported Video Modes......................................15
3.7. SDI Input Connection .........................................16
3.8. SDI Output Connection.......................................16
4. Firmware Upgrade Procedure ..................................17
4.1. Firmware Upgrade Procedure..............................17
4.2. USB Driver Setup...............................................20
5. Unit Control and Status.............................................23
6. Troubleshooting.........................................................24
7. Appendix....................................................................26
A. ASCII Command Set ..........................................26
8. Product Warranty Policy...........................................29

© MuxLab Inc. 6G-SDI Extender Over UTP
Page 4
1.
Overview
1.1.
Description
The 6G-SDI Extender is a unique new solution from Muxlab for
extending SDI based cameras* or other SDI sources* up to 4K
resolution with the added benefit of extending the Hi Resolution
signal up to 330 feet (100M).
Standard Cat5e/6 UTP cable is used for the extension. The pair
(Transmitter, Receiver) uses PoE for power and only requires the
Receiver (Rx) side to be powered. The input source for the 6G-SDI
Extender over UTP is either HD-SDI using four coax cables, 3G-
SDI using two coax cables, and 6G-SDI using a single coax cable.

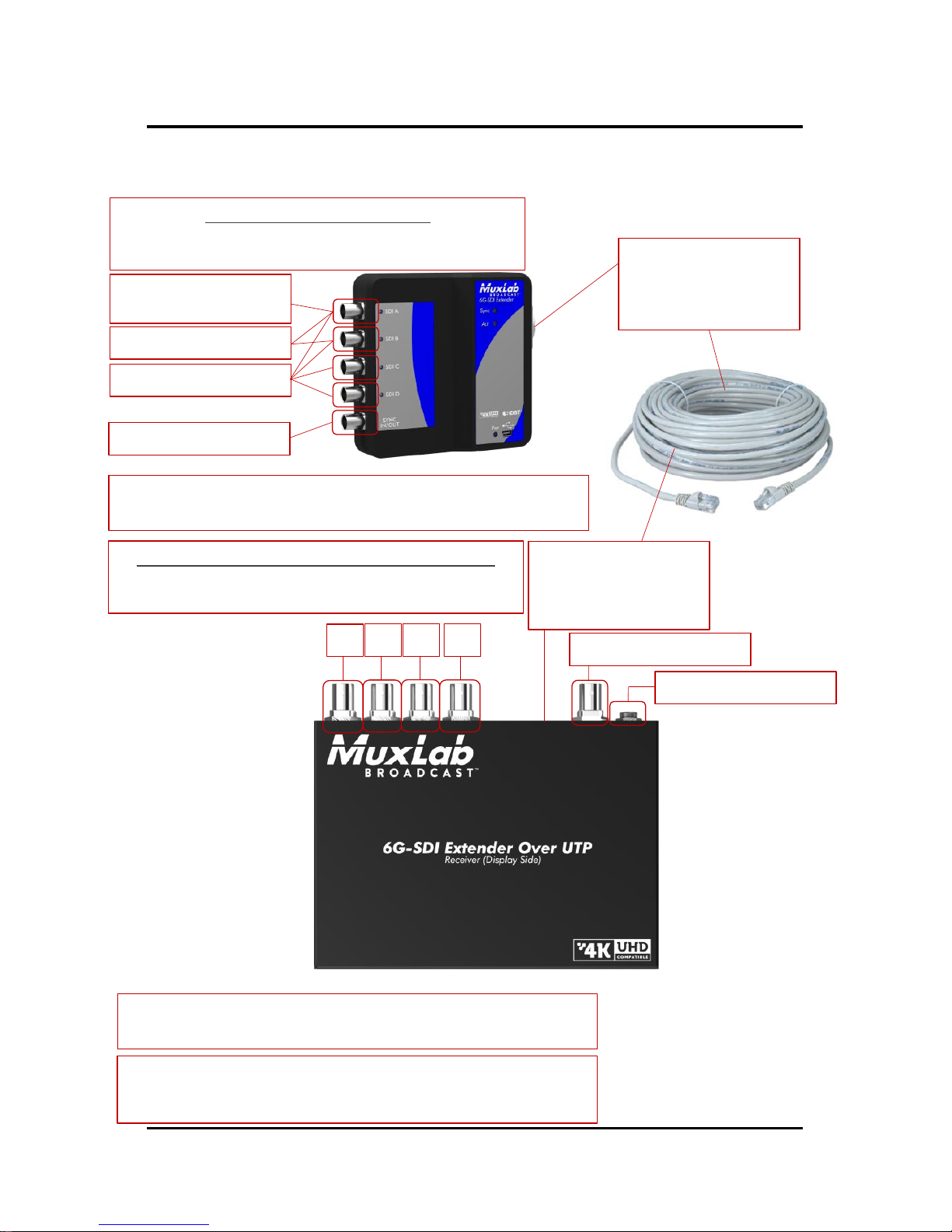

Figure 1: System Overview
Applications:

© MuxLab Inc. 6G-SDI Extender Over UTP
Page 5
• Cinema recording
• Movie making
• Studio production
• News coverage / live reporting

© MuxLab Inc. 6G-SDI Extender Over UTP
Page 6
1.2.
Features
Up to 330 feet (100m).
HD-SDI using single, two or four coax cables, 3G-
SDI using single or two coax cables, 6G-SDI using
a single coax cable HDMI 3D support.
Maximum resolution supported:
4096x2160@24/25Fps, 3840x2160@30Fps
Supported SMPTE Standards:
SMPTE-292M, SMPTE-296M, SMPTE-372M,
SMPTE-424M, SMPTE-425M
Supports all 6G channel configurations (1/2/4).
Automatic SDI Link recognition and configuration
Firmware is field upgradable.
Automatic turn on of the long reach mode
(150meters) when HD signal is detected.
USB interface for field upgradable firmware and
diagnostics.
PoE to power the Transmitter .
Ethercon connectivity and solid Aluminum
enclosure for ruggedized use.
Multiple ¼”-20 threads for Camera mounting or
equipment attachment.

© MuxLab Inc. 6G-SDI Extender Over UTP
Page 7
2.
Technical Specifications
Specifications
Environment
6G-SDI Digital Signal Transmission
Enclosures
Measurements
Tx: 110mm (4.3”) x 110mm (4.3”) x 32mm (1.250”)
Rx: 146mm (5.75”) x 105mm (4.13”) x 26mm
(1.02”)
Color
Black Enamel (Rx Unit)
Black Electrophoresis (Tx Unit)
Control
Serial Console Emulation with USB Interface
Compliance
FCC, CE, RoHS
Power
48VDC, 0.7Amp
External Power Supply with US, UK and Euro
blades
Table 1 - Specifications

© MuxLab Inc. 6G-SDI Extender Over UTP
Page 8
Connectivity - Transmitter
Front Side
4x BNC SDI Input Connectors (0.8V pp, 75Ohms)
1x BNC Sync Output Connector
Rear Side
1x RJ-45 Ethercon Connector (Compatible with NE8MC
System)
Top Side
Mini USB for firmware updates (and control & status)
Table 2 –Connectivity Transmitter
Connectivity - Receiver
Front Side
Mini USB for firmware updates (and control & status)
Rear Side
1x RJ-45/UTP Connector
4x BNC SDI Output Connectors (0.8V pp, 75Ohms)
1x BNC Sync Input Connector
1x Power Connector (5.5mm x 2.1mm)
Table 3 –Connectivity Receiver

© MuxLab Inc. 6G-SDI Extender Over UTP
Page 9
3.
Installation Procedure
3.1.
Parts List
The 6G-SDI Extender over UTP Kit (500730) comes
with the following parts:
1x Transmitter Unit (Tx)
1x Receiver Unit (Rx)
1x 48VDC Wall-mount Power Supply
Blades for the Wall-mount Power Supply

© MuxLab Inc. 6G-SDI Extender Over UTP
Page 10
3.2.
Product Overview
3.2.1.
Transmitter
The external connections and light indicators of the
transmitter unit are detailed in Figure 2. Please
familiarize yourself with them before installing the unit.
Figure 2: Front Transmitter Unit
6G/3G/HD-SDI Input
Compatible
LED Indicator
When SDI Link
is established
Power
LED
Indicator
Mini-USB Port
Firmware Upgrade
Unit Control
Flashing LED
Indicator
When
information
Is passing
through the link
LED Indicator
when the
HDBase-T link is
established
Sync
Output
RJ45/UTP
Ethercon Connector
3G/HD-SDI Input
Compatible
HD-SDI Input
Compatible
