MV Sports & Leisure Li-Fe 250 Air User manual

User Manual
Li-Fe 250 Air | Foldable Electric Scooter

Contents

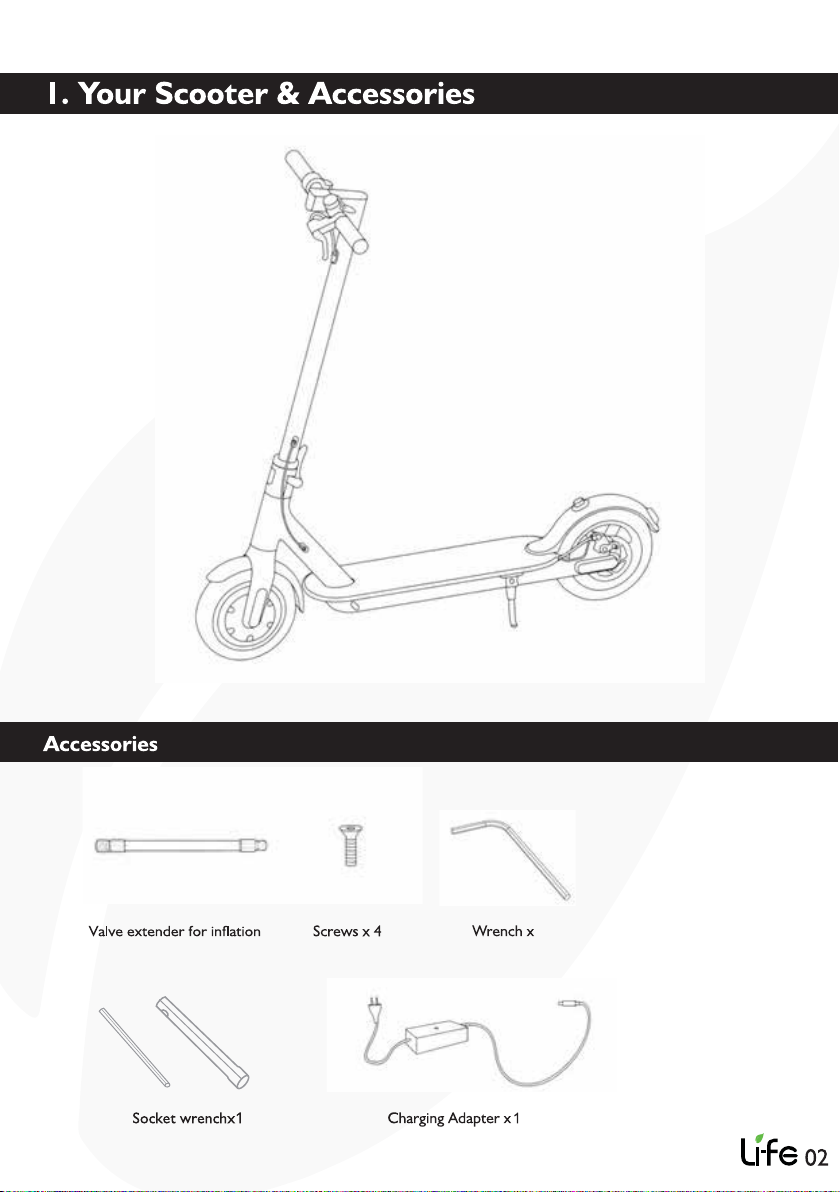

1. Your Scooter & Accessories Page. 02
Page. 03
Page. 04
Page. 04
Page. 05
Page. 06
Page. 06
Page. 07
Page. 08
Page. 10
2. Functions
3. Assembling
4. Charging
5. How to use
6. Safety Recommendations
7. Folding & Transportation
8. Daily Maintenance and Storage
9. Model Specications
10. Warranty
Got a question? Contact us on [email protected]
NOTE:
All our scooters are tted with
a “push-start” safety feature,
this means the scooter must be travelling
at 3kmh+ before the throttle will activate

3
3*19*51mm
4*22.7*65mm
5*27.6*77mm

2. Functions
03

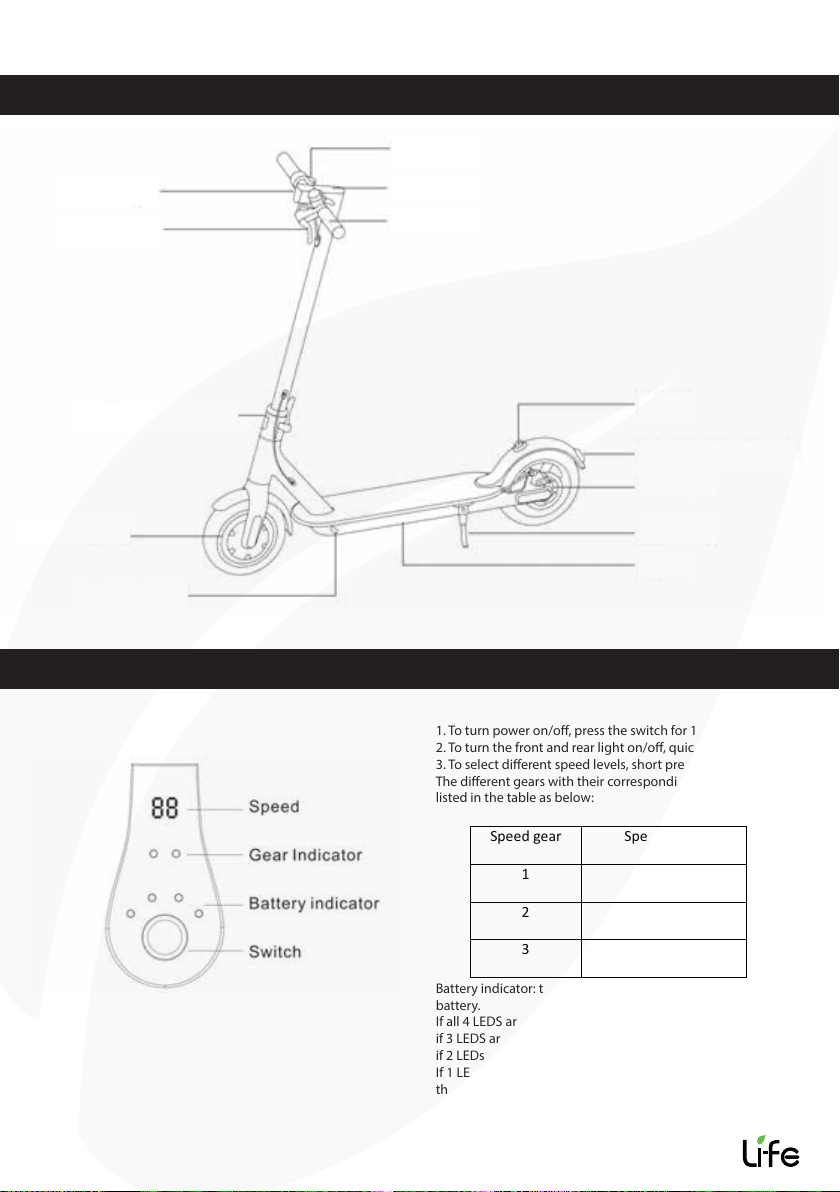

1. To turn power on/o, press the switch for 1 second.
2. To turn the front and rear light on/o, quick press the switch twice.
3. To select dierent speed levels, short press the switch.
The dierent gears with their corresponding speeds are
listed in the table as below:
Battery indicator: there is total 4 LEDS indicating a level of
battery.
If all 4 LEDS are lit,a battery level is 70%-100%;
if 3 LEDS are lit, battery level is 50%-69%;
if 2 LEDs are lit, battery level is 10%- 30%.
If 1 LED is lit, the battery level is less than 10%, please charge
the product.
4. Your scooter is tted with a rear brake light which will
illuminate automatically whenever you pull the brake lever.
Speed gear
Speed range
1
0-6 km/h
2
7-15km/h
3
15-25km/h
Mode Indicators
Handlebar Clamp
Disc brake
Kickstand
Charging port
Motor
Folding mechanism
Handlebar lever
Headlight
Accelerator
Display
Handlebar
Deck
Rear light, with brake light

3. Assembling your scooter
04

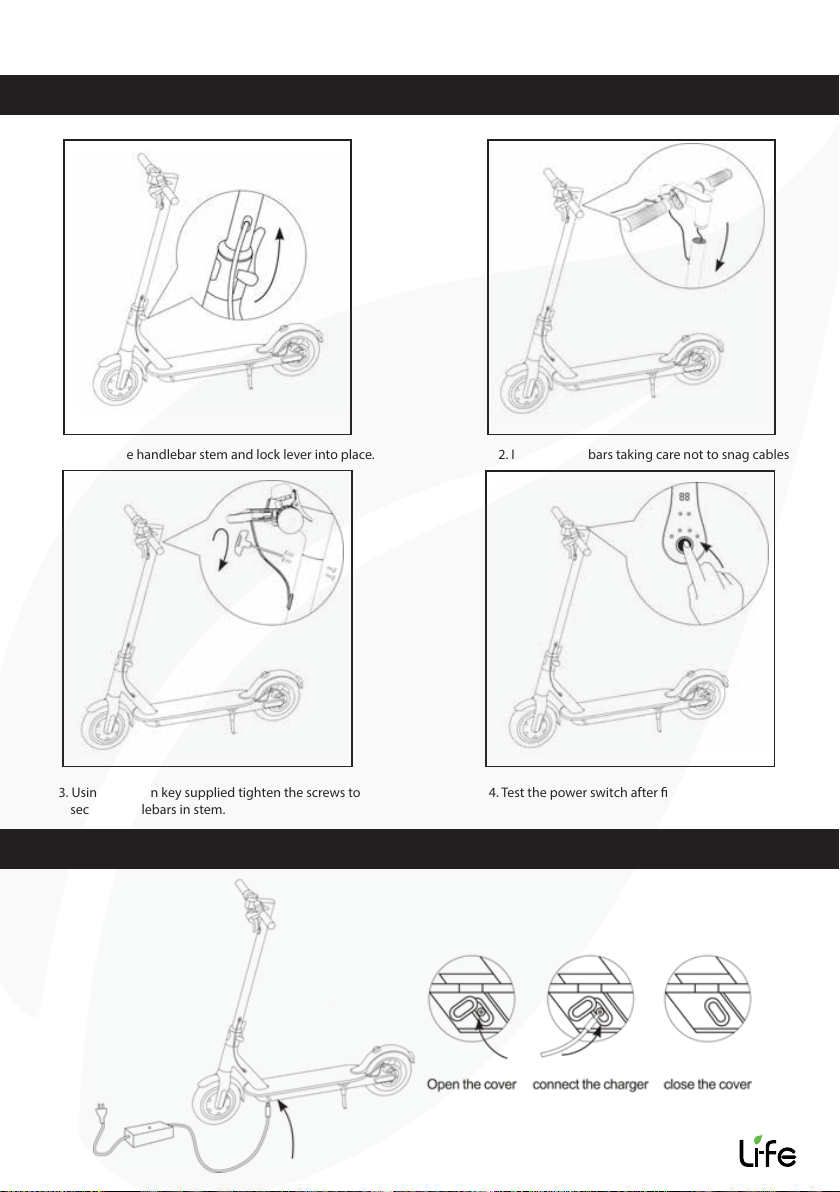

1. Unfold the handlebar stem and lock lever into place.
3. Using the allen key supplied tighten the screws to
secure handlebars in stem.
2. Insert handlebars taking care not to snag cables
4. Test the power switch after nish assembling
4. Charging the scooter

05
PLEASE WEAR PROTECTIVE GEAR 1. Power on and check the battery LED

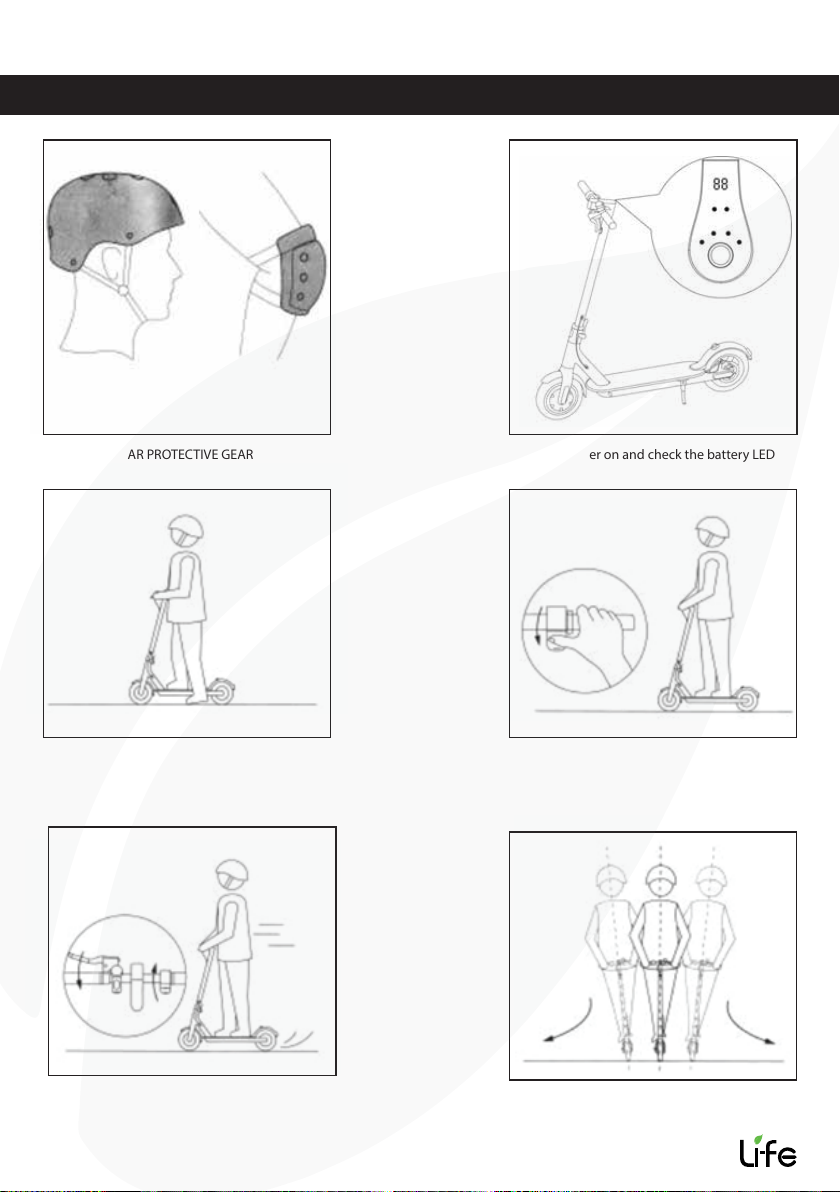

5. How to use
2. Stand with one leg rmly on the ground 3. Gently push yourself to start moving
and gradually push the accelerator.
(Motor will only accelerate when the scooter
is travelling beyond 3km/h)
5. To steer, lean very slightly into the corner and turn
the handlebars slightly – be aware of sensitive steering.
4. Release accelerator button to slow down.
Energy recovery systems will then operate to
also help slow you down.
Pull the brake lever if you need to slow down quickly.

06
Avoid safety Hazards
6. Safety Instructions
Your scooter is easy to carry, but ensure the handlebar is securely fastened to rear mudguard latch
before doing so
Do not carry your scooter
using the mudguards
06

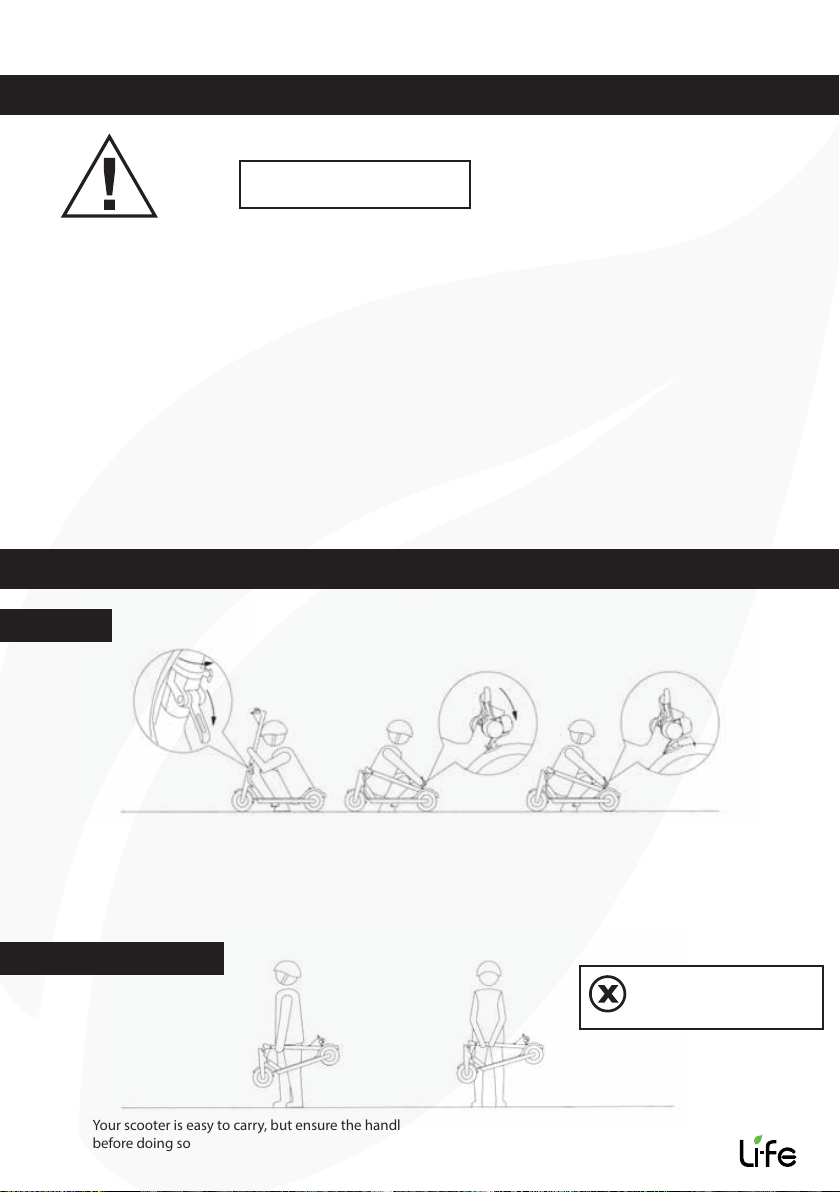

7. Fold & Transportation
Folding
Transportation
Make sure your scooter is switched o.
To fold; hold the handlebar stem, loosen the lock-lever and gently lower the handlebar stem.
There is a latch on the rear mudguard to securely fasten the handlebars to for carrying.
To unfold; disconnect the handlebars from the rear mudguard latch, lift stem into upright position
and push lock-lever into place.
1 It is not recommended to use your scooter in the rain
2 It is recommend to slightly bend your knees to better absorb bumps in the road. If you are travelling on a rough road
reduce your speed to remain in control at all times
3 Slow down when entering conned spaces
4 Please do not add speed when descending a hill
5 While walking with a scooter, do not press the accelerator
6 When riding, take care to avoid obstacles
7 Keep two feet on the scooter at all times (apart from set-o)
8 Please do not hang rucksacks and other heavy objects on handlebars
9Currently it is illegal to use this scooter on public highways, bridleways and footpaths. Electric scooters should only be used
on private land with permission from the land owner. Please check local legislation in your area for updates

07
8. Care & Storage
•Ensure your scooter is turned OFF.
•Clean your scooter using a damp cloth and non-abrasive cleaners only.
•If you scratch any plastic parts of your scooter, you can gently rub with sandpaper to help
smooth the surface.
•Do not use a pressure washer on any part of the scooter.
•Store your scooter in a secure, dry and sheltered area and out of direct sunlight.
•Do not leave your scooter outside, in the rain or in damp areas.
WARNING : Do not use alcohol, petrol,kerosene or other corrosive solutions,
volatile chemical solvents to clean the scooter.
Otherwise, it will cause serious damage to the scooter body and can disrupt a
structure of internal elements.
Ensure power socket is covered at all times to avoid water/moisture/dirt
penetrating the socket.
Clean and store Scooter

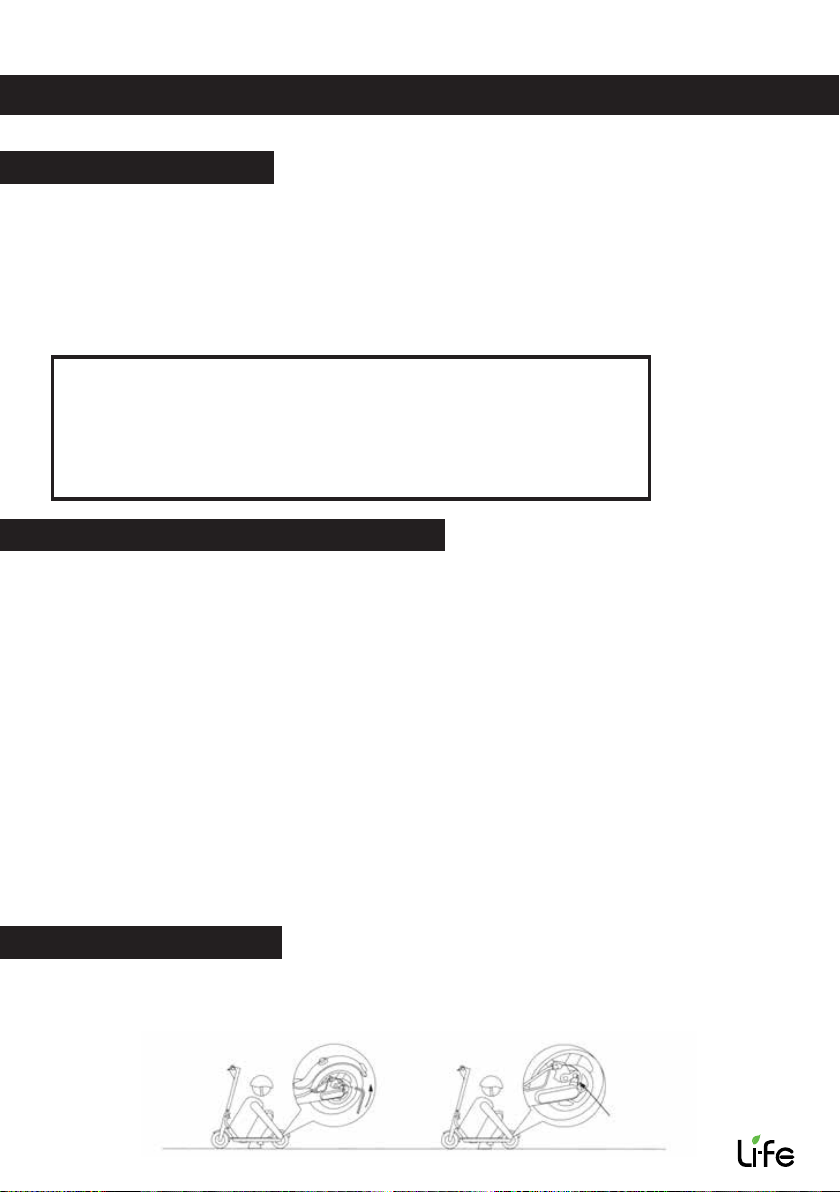

Adjusting your disc brake
Maintenance of Your Scooter`s Battery
• Do not use batteries from other brands in order to avoid a dangerous situation;
• Do not open or disassemble the battery to prevent electric shock.
Avoid contact with metal objects to prevent an occurrence of a short circuit.
Otherwise, the battery may have malfunction or can injure the user;
• It is recommended to use an AC adapter that comes in original configuration of the device
to prevent an occurrence of an accident or fire of the vehicle;
• Improper disposal of used batteries and accumulators is the cause of severe environmental pollution.
Please dispose of batteries in accordance with local laws.
Please do not dispose of batteries together with food waste.
Let’s help protect the environment together!
• After each use of the scooter, charge the battery to prolong its service life.
• Do not store the battery with depleted charge.
• Do not store the scooter battery in a temperature that above 50 degrees or below -20 degrees.
• Do not leave the battery near fire.
These actions may deteriorate the battery by overheating and can even cause fire.
Please charge your scooter within the first 30 days of purchase, and ensure it is charged at least every 60 days if not in use.
This will help prolong the life of your battery.
1: To tighten brake/remove slack from brake lever, use 5mm allen key supplied to loosen brake cable bolt
shown below. While loose, pull cable through the caliper and slightly close caliper arms together. To retighten
5mm bolt. To loosen brake, do the exact opposite.

08

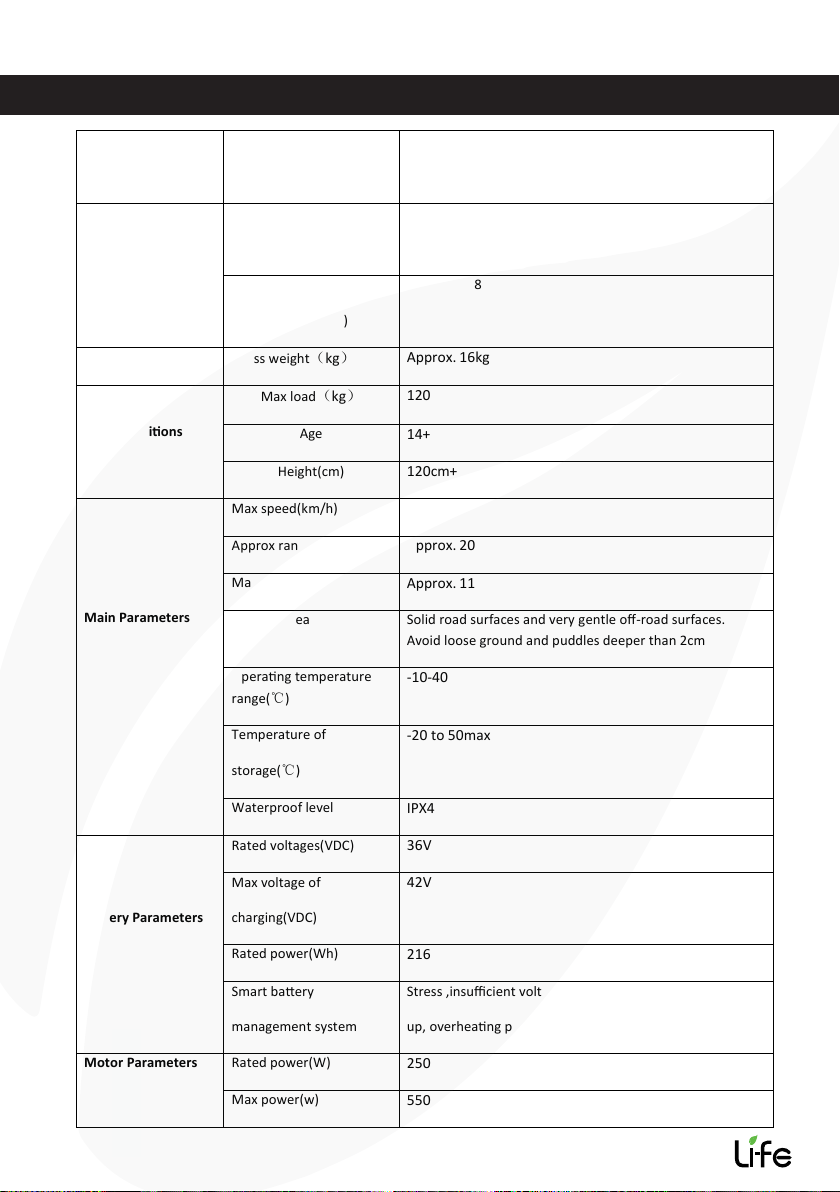

9. Model Specication
Operang
parameters
Name
parameters
Dimensions
Length x Width x
Height[1] (cm)
106 x 42 x 115
Folded:Length x
Width x Height(cm)
106 x 42 x48
weight
Gross weight
（
kg
）
Approx. 16kg
Condions
Max load
（
kg
）
120
Age
14+
Height(cm)
120cm+
Main Parameters
Max speed(km/h)
About 25
Approx range (km)
Approx. 20
Maximum slope(%)
Approx. 11
Suitable area
Solid road surfaces and very gentle o-road surfaces.
Avoid loose ground and puddles deeper than 2cm
Operang temperature
range(℃)
-10-40
Temperature of
storage(℃)
-20 to 50max
Waterproof level
IPX4
Baery Parameters
Rated voltages(VDC)
36V
Max voltage of
charging(VDC)
42V
Rated power(Wh)
216
Smart baery
management system
Stress ,insucient voltage, short circuit, auto sleep/wake
up, overheang protecon.
Motor Parameters
Rated power(W)
250
Max power(w)
550
• Do not use batteries from other brands in order to avoid a dangerous situation;
• Do not open or disassemble the battery to prevent electric shock.
Avoid contact with metal objects to prevent an occurrence of a short circuit.
Otherwise, the battery may have malfunction or can injure the user;
• It is recommended to use an AC adapter that comes in original configuration of the device
to prevent an occurrence of an accident or fire of the vehicle;
• Improper disposal of used batteries and accumulators is the cause of severe environmental pollution.
Please dispose of batteries in accordance with local laws.
Please do not dispose of batteries together with food waste.
Let’s help protect the environment together!
• After each use of the scooter, charge the battery to prolong its service life.
• Do not store the battery with depleted charge.
• Do not store the scooter battery in a temperature that above 50 degrees or below -20 degrees.
• Do not leave the battery near fire.
These actions may deteriorate the battery by overheating and can even cause fire.
Please charge your scooter within the first 30 days of purchase, and ensure it is charged at least every 60 days if not in use.
This will help prolong the life of your battery.

09
Baery Parameters
Rated voltages(VDC)
36V
Max voltage of
charging(VDC)
42V
Rated power(Wh)
216
Smart baery
management system
Stress ,insucient voltage, short circuit, auto sleep/wake
up, overheang protecon.
Motor Parameters
Rated power(W)
250
Max power(w)
550

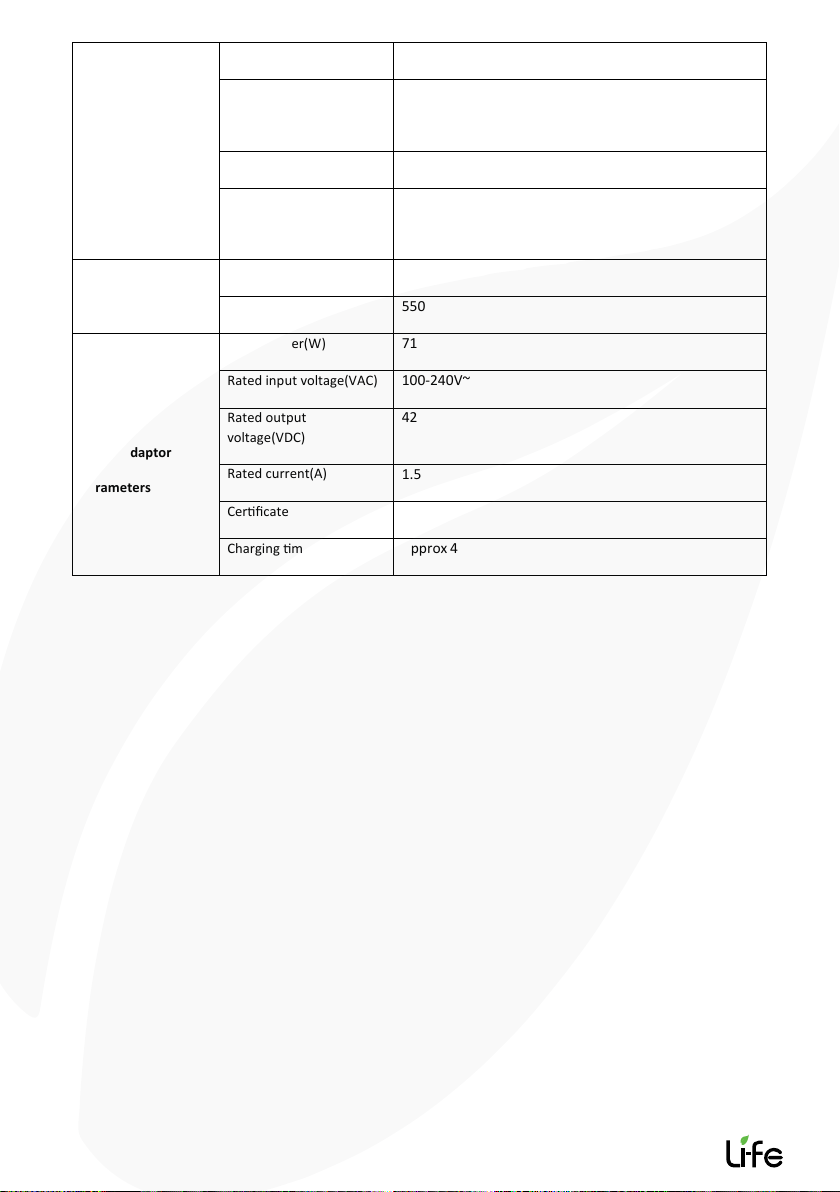

power adaptor
parameters
Rated power(W)
71
Rated input voltage(VAC)
100-240V~
Rated output
voltage(VDC)
42
Rated current(A)
1.5
Cercate
CE,ROHS
Charging me(hrs)
Approx 4

10
10. Warranty
Your new Li-Fe scooter is covered by a 12 month warranty. Any claims should be made through your retailer.
WARRANTY TERMS
*Please note, general“wear and tear” and accident damage is not included in this warranty.
Name
Informaon on warranty maintenance
Term
Main Unit
Frame, hub motor, controller, steering Wheel,
handlebar, control panel, rear hub, brakes, disc brakes
1 year
Accessories
Baery, power supply, brake level, switching gears
6 months
Exterior& Service
consumables
Lights, instrument cover, tyres*, inner tubes*, bell,
fender, propstand, baery compartment cover, foot
pad,
charging port
3 months

Distributed by:
MV Sports & Leisure
35 Tameside Drive
Castle Bromwich
Birmingham
B35 7AG
Contact: [email protected]
www.tgc.bike
Helpline : 0121-748-8017
