NANOLUX CMH 630NC 1000W User manual

OPERATING
MANUAL
DIGITAL ELECTRONIC
BALLAST
CMH 630NC
315x2
Illuminating Your Grow
www.nanoluxtech.com
Nanolux Technology warrants the mechanical and electronic components
of this product to be free of defects in material and workmanship if used
under normal operating conditions for a period of three (3) years from the
original date of purchase. If the product shows any defects within this
period and that defect is not due to user error or improper use Nanolux
Technology shall, at its discretion, either replace or repair the product using
suitable new or refurbished parts. For Nanolux DE HPS lamps and reflector
the warranty period is one (1) year from the original date of purchase. In
case Nanolux decides to replace the entire product, this limited warranty
shall apply to the replacement ballast for the remaining initial warranty
period, i.e. three (3) years from the date of purchase of the original product.
For service return the ballast to your shop with the original sales receipt.
For more information about Nanolux product please visit nanoluxtech.com
WARRANTY
ADJUSTABLE
POWER+
SOFT DIM
Designed by NANOLUX in California
Made in China
PATENTED PRODUCTS, COUNTERFEITING NOT ALLOWED.
The Nanolux DE fixture should be handled with care. If it is damaged or
deformed you should replace it. We recommend to change the reflector
every year for optimal results. Replacement reflectors are available through
your Nanolux Technology reseller.
To replace the reflector, you must remove the lamp first as described above
in how to install the lamp. Let the reflector cool down if it has been operating
to prevent an injury. At the end of the reflector bracket, you will find a
chrome knob. Pull the knob outward to release the pin holding the reflector
in place (a-1). The reflector can then be pulled away from the ballast end of
the bracket to remove it from the two pins holding it in place (a-2 & a-3).
When inserting the new reflector, slide it into the two pins (a-2 & a-3) and
then release the pin (a-1) to secure it in place.

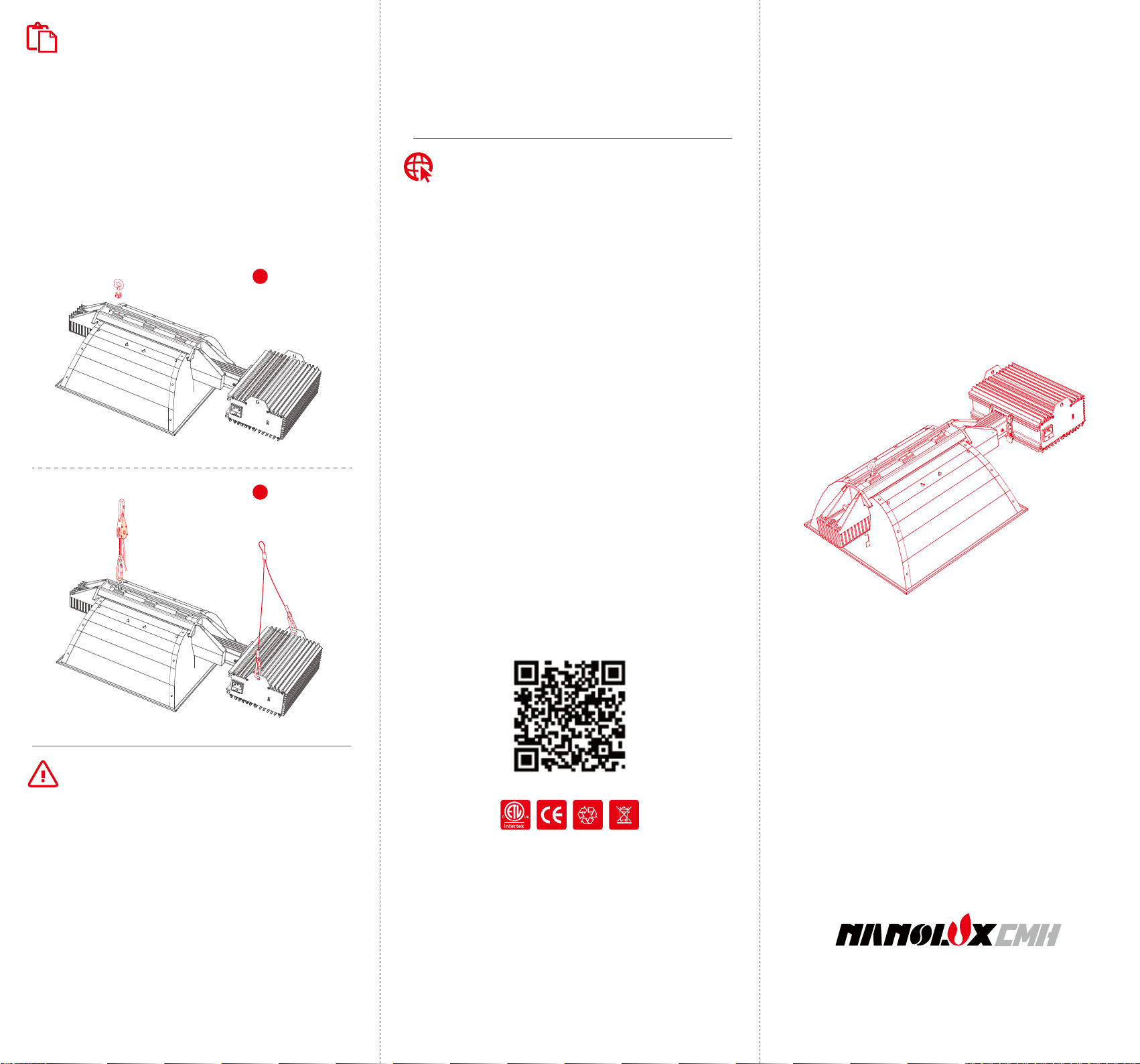

FIXTURE HANGING
The Nanolux DE fixture should be handled with care. If it is damaged or
deformed you should replace it. We recommend to change the reflector
every year for optimal results. Replacement reflectors are available through
your Nanolux Technology reseller.
To replace the reflector, you must remove the lamp first as described above
in how to install the lamp. Let the reflector cool down if it has been operating
to prevent an injury. At the end of the reflector bracket, you will find a
chrome knob. Pull the knob outward to release the pin holding the reflector
in place (a-1). The reflector can then be pulled away from the ballast end of
the bracket to remove it from the two pins holding it in place (a-2 & a-3).
When inserting the new reflector, slide it into the two pins (a-2 & a-3) and
then release the pin (a-1) to secure it in place.
The Nanolux DE fixture should be handled with care. If it is damaged or
deformed you should replace it. We recommend to change the reflector
every year for optimal results. Replacement reflectors are available through
your Nanolux Technology reseller
There are no serviceable parts inside the luminaire. Opening the luminaire
will void warranty. Keep housing clean from dust and dirt with a dry or
damp cloth to ensure optimal cooling. When using a damp cloth discon-
nect from the power first. Check your electrical connections regularly.from
dust and dirt with a dry or damp cloth to ensure optimal cooling. When
using a damp cloth disconnect from the power first. Check your electrical
connections regularly.
CAUTION
-04-
bThe text cotent
aThe text cotent

PLEASE READ THESE INSTRUCTIONS
FIRST BEFORE INSTALLATION
Congratulations on the purchase of your new Nanolux DE FIXTURE 1000W
and 600W luminaire. We have done everything to insure a long life and safe
operations, but the installations and use of the ballast is the responsibility of
the user. Incorrect use or installations can lead to failure and damage to the
ballast. Damage to the luminaire and electronic circuitry as a result of
incorrect installations and use revokes your warranty. Read this manual
carefully before installing your luminaire.
The Nanolux DE fixture ballasts are designed to drive horticultural high
frequency HPS lamps for plant cultivation. They are intended for climate
room use. They are suited for a damp location but should not be used
outdoors or in wet environments.
High Intensity Discharge lamps generate intense heat. Installations of HID
lamps should follow local installation and safety regulations.
The Nanolux DE fixture ballasts are designed to drive horticultural high
frequency HPS lamps for plant cultivation. They are intended for climate
room use. They are suited for a damp location but should not be used
outdoors or in wet environments.
High Intensity Discharge lamps generate intense heat. Installations of HID
lamps should follow local installation and safety regulations.
INSTALLATION
COMPLY WITH LOCAL INSTALLATION REGULATIONS
These luminaires are suitable for a damp indoor location. Do not install your
luminaires in a wet environment or outdoors.
Do not operate these luminaires close to combustible materials. The lamp and
reflector will get hot during operation. Do not touch the reflector or lamp
during or right after operation. Make sure the power cord does not touch any
hot part of the luminaire. Make sure the lamp is clean and inserted correctly.
A normal operating environment temperature should be below 122°F. Exceed-
ing the maximum environmental temperature will stress electronic compo-
nents, which will lead to shorter lifetime and decreased reliability.
When using a NCCS RTU in the USB port of a Nanolux ballast, the Dimming
function control dial on the ballast will be taken out of function.
TECHNICAL SPECIFICATIONS
1000W 600W
No Fan Fan No Fan Fan
208VAC-240VAC 120VAC-240VAC 208VAC-240VAC 120VAC/240VAC
200V-300V
50-60Hz
1200W Max
≥0.99
＜1.7
≤10%
80V-150V
50-60Hz
600W Max
≥0.99
＜1.7
≤10%
670*301*115mm
26.4*11.8*4.5 inch
670*330*115mm
26.4*13*4.5 inch
670*240*115mm
26.4*9.4*4.5 inch
670*270*115mm
26.4* 10.6*4.5 inch
600W-660W-750W-825W-1000W
-1200W
Double Ended Lamp Double Ended Lamp
300W-450W-600W
-Super-Lux
Over Temperature Protection; Over/Under Voltage Protection;
Open/Short Circuit Protection;
5.54 kgs
12.21 lbs
5.88 kgs
12.96 lbs
4.62 kgs
10.2 lbs
4.95 kgs
10.91 lbs
Size
(L*W*H)
Model
Weight
Protection
Function
Dimming
Strike Lamp
Input Voltage
Output Voltage
Input Frequency
Output Power
Power Factor
Crest Factor
THD
The Nanolux DE fixture should be handled with care. If it is damaged or
deformed you should replace it. We recommend to change the reflector
every year for optimal results. Replacement reflectors are available through
your Nanolux Technology reseller.
To replace the reflector, you must remove the lamp first as described above
in how to install the lamp. Let the reflector cool down if it has been operating
to prevent an injury. At the end of the reflector bracket, you will find a
chrome knob. Pull the knob outward to release the pin holding the reflector
in place (a-1). The reflector can then be pulled away from the ballast end of
the bracket to remove it from the two pins holding it in place (a-2 & a-3).
When inserting the new reflector, slide it into the two pins (a-2 & a-3) and
then release the pin (a-1) to secure it in place.
REFLECTOR/LAMP HOLDER
INSTALLMENT
HOW TO INSTALL LAMP HOLDER
ON BALLAST
LAMP INSTALLMENT
a
b-2
a-2
b-3
a-3
a-1 b-1
b
b-1 a-1
b-2 a-2
b-3 a-3
c
a
b
c
d
a
b
c
d
-01- -02- -03-
