NANOLUX SUPER DE 600Wx2 User manual

The Nanolux DE fixture should be handled with care. If it is damaged or
deformed you should replace it. We recommend to change the reflector
every year for optimal results. Replacement reflectors are available through
your Nanolux Technology reseller.
To replace the reflector, you must remove the lamp first as described above
in how to install the lamp. Let the reflector cool down if it has been operating
to prevent an injury. At the end of the reflector bracket, you will find a
chrome knob. Pull the knob outward to release the pin holding the reflector
in place (a-1). The reflector can then be pulled away from the ballast end of
the bracket to remove it from the two pins holding it in place (a-2 & a-3).
When inserting the new reflector, slide it into the two pins (a-2 & a-3) and
then release the pin (a-1) to secure it in place.

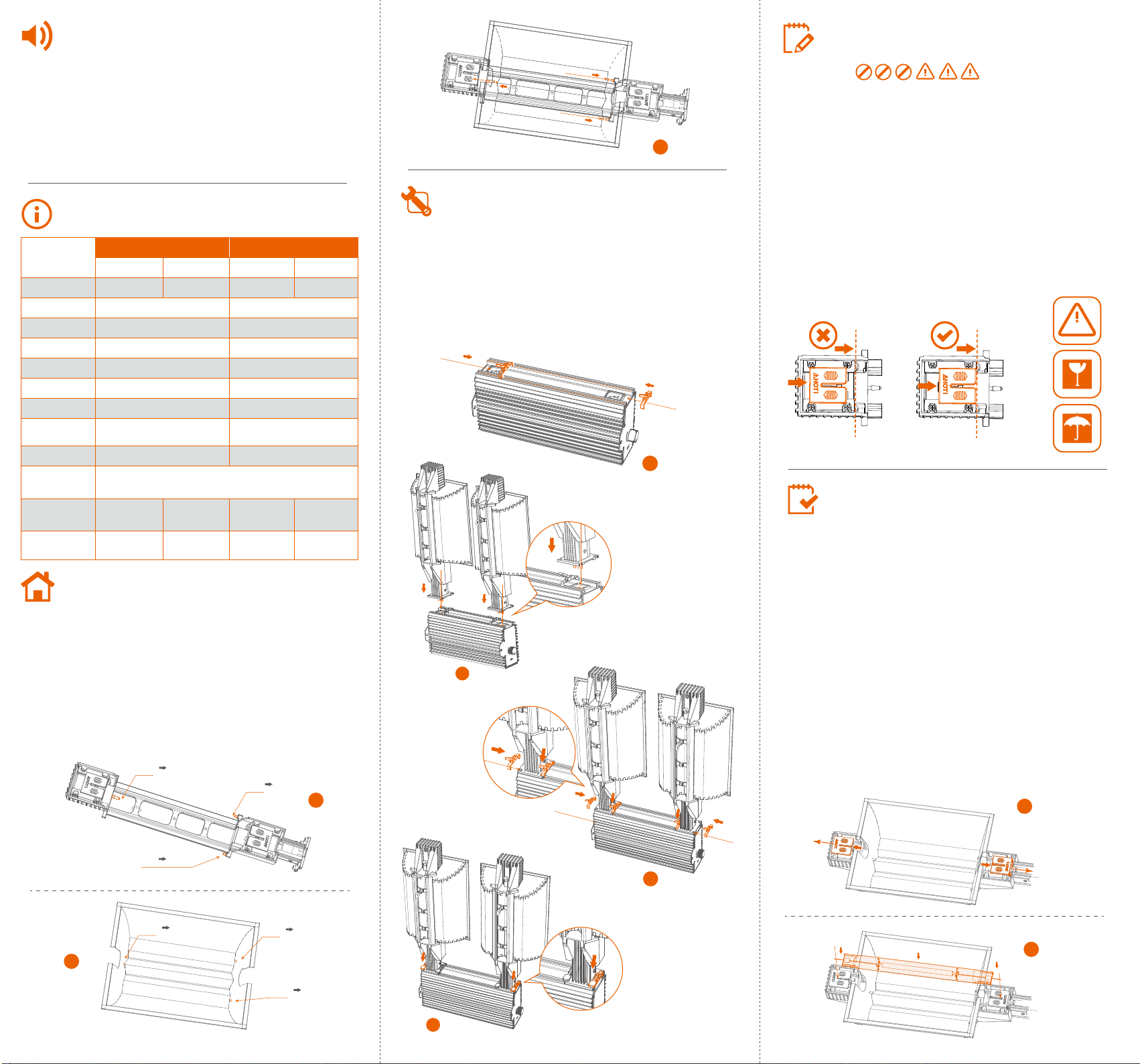

REFLECTOR REPLACEMENT
The Nanolux DE 1000W and 600W luminaires are designed and tested to
drive High Pressure Sodium (HPS) Electronic lamps. Using regular 1000W
and 600W HPS lamps can cause damage to your ballast and lamp.
SUITABLE LAMPS
There are no serviceable parts inside the luminaire. Opening the luminaire
will void warranty. Keep housing clean from dust and dirt with a dry or
damp cloth to ensure optimal cooling. When using a damp cloth discon-
nect from the power first. Check your electrical connections regularly.
MAINTENANCE
Fixture hanging equipment included with unit for necessary mounting.
1. Attach the ring bolt to the reflector support frame(a).
2. Attach the carbineers on the steel wire hanger to ballast hanging holes(b).
3. Hang the fixture in the desired location(c).
FIXTURE HANGING
c
-04-
b
c
OPERATING
MANUAL
DIGITAL ELECTRONIC
BALLAST
SUPER DE 600Wx2
Illuminating Your Grow
www.nanoluxtech.com
Nanolux Technology warrants the mechanical and electronic components
of this product to be free of defects in material and workmanship if used
under normal operating conditions for a period of three (3) years from the
original date of purchase. If the product shows any defects within this
period and that defect is not due to user error or improper use Nanolux
Technology shall, at its discretion, either replace or repair the product using
suitable new or refurbished parts. For Nanolux DE HPS lamps and reflector
the warranty period is one (1) year from the original date of purchase. In
case Nanolux decides to replace the entire product, this limited warranty
shall apply to the replacement ballast for the remaining initial warranty
period, i.e. three (3) years from the date of purchase of the original product.
For service return the ballast to your shop with the original sales receipt.
For more information about Nanolux product please visit nanoluxtech.com
WARRANTY
ADJUSTABLE
POWER+
SOFT DIM
300Wx2
450Wx2
630Wx2
Super-Lux
600Wx2
Designed by NANOLUX in California
Made in China
PATENTED PRODUCTS, COUNTERFEITING NOT ALLOWED.
a

-01- -02- -03-
TO INSTALL A NEW LAMP:
• DISCONNECT FROM MAINS FIRST
• Make sure the lamp is clean, wear cotton gloves and clean the lamp
after installation with a dry soft cloth. Never use detergents to clean
a lamp, use pure alcohol or whip clean with a dry clean soft cloth.
• Make sure the end wires are straight.
• Open the lamp holders by sliding them outward. Press the lamp in the
fitting until the metal springs hold the lamp, with the glass vacuum
seal pointed downward.
• Close the lamp holders by sliding them inward.
• Wipe the lamp with a clean soft cloth.
• Be sure not to touch the reflective material of the reflector with your
bare hands.
TO TAKE OUT A LAMP:
• DISCONNECT THE MAINS FIRST
• Open the lamp holders by sliding them outward. The lamp is held by a
metal spring at each side, though it is recommended to hold the lamp
while opening the lamp holders to prevent the lamp from falling.
a
b
b
c
b-1 a-1 b-2 a-2
b-3 a-3
a
a-1 b-1
b-2
b-3
a-2
a-3
TECHNICAL SPECIFICATIONS
1000W 600W
No Fan Fan No Fan Fan
208VAC-240VAC 120VAC-240VAC 208VAC-240VAC 120VAC/240VAC
200V-300V
50-60Hz
1200W Max
≥0.99
＜1.7
≤10%
80V-150V
50-60Hz
600W Max
≥0.99
＜1.7
≤10%
670*301*115mm
26.4*11.8*4.5 inch
670*330*115mm
26.4*13*4.5 inch
670*240*115mm
26.4*9.4*4.5 inch
670*270*115mm
26.4* 10.6*4.5 inch
600W-660W-750W-825W-1000W
-1200W
Double Ended Lamp Double Ended Lamp
300W-450W-600W
-Super-Lux
Over Temperature Protection; Over/Under Voltage Protection;
Open/Short Circuit Protection;
5.54 kgs
12.21 lbs
5.88 kgs
12.96 lbs
4.62 kgs
10.2 lbs
4.95 kgs
10.91 lbs
Size
(L*W*H)
Model
Weight
Protection
Function
Dimming
Strike Lamp
Input Voltage
Output Voltage
Input Frequency
Output Power
Power Factor
Crest Factor
THD
The Nanolux DE fixture ballasts are designed to drive horticultural high
frequency HPS lamps for plant cultivation. They are intended for climate
room use. They are suited for a damp location but should not be used
outdoors or in wet environments.
High Intensity Discharge lamps generate intense heat. Installations of HID
lamps should follow local installation and safety regulations.
HOW TO INSTALL LAMP HOLDER
ON BALLAST
a
b
c
d
CAUTION:
• Always install the lamp before connecting your luminaire to mains.
• Allow lamp to cool 30 minutes before restarting (hot restrike).
• When changing the lamp always disconnect the luminaire from mains
by removing the mains plug. Let the lamp and reflector cool down for
30 minutes before changing as they are very hot. When replacing a
defect lamp without disconnecting mains the lamp will not start.
Disconnecting the power will restart the ballast.
• DO NOT touch hot Ceramic socket.
• Make sure the DE lamp wires are correctly within the socket copper
wire clamps.
• Make sure to fully close the ceramic socket to the correct position and
keep the socket clean to provide proper function.
• Fragile !! Be careful and do not exert excessive force while moving the
ceramic slider on the ceramic socket connection
• Keep away from water.
HOT RESTRIKE
LAMP REPLACEMENT
HOT
PLEASE READ THESE INSTRUCTIONS
FIRST BEFORE INSTALLATION
Congratulations on the purchase of your new Nanolux DE FIXTURE 1000W
and 600W luminaire. We have done everything to insure a long life and safe
operations, but the installations and use of the ballast is the responsibility of
the user. Incorrect use or installations can lead to failure and damage to the
ballast. Damage to the luminaire and electronic circuitry as a result of
incorrect installations and use revokes your warranty. Read this manual
carefully before installing your luminaire.
PRODUCT DESCRIPTION
The Nanolux DE FIXTURE 1000W and 600W are state of the art adjustable
horticultural quality luminaire. They are designed to drive the 1000W and
600W Double Ended electronic high frequency HPS lamps. Professional
electronic HPS lamps operate at very high frequency to prevent acoustic
resonance and to optimize lamp life.The NCCS system is also incorporated.
The fanless luminaire housing is sealed. The housing allows warm air to exit
the housing, cool air to enter the housing when cooling down while
preventing dust and moisture to enter.
