NanoVibronix UROSHIELD User manual

UROSHIELD
®
QUIC K GUIDE
Please read the complete UroShield manual before using
the device and pay attention to provided warnings.
Clip-on
Actuator
Urinary catheter
(Not included)
The UroShield can be used with Foley catheters made
of any material in sized 14 - 22 French, up to 30 days
Driver
ON/OFF
button
Important Notes
UroShield should only be installed on a newly
inserted catheter
The UroShield should not be used to treat an
active urinary infection

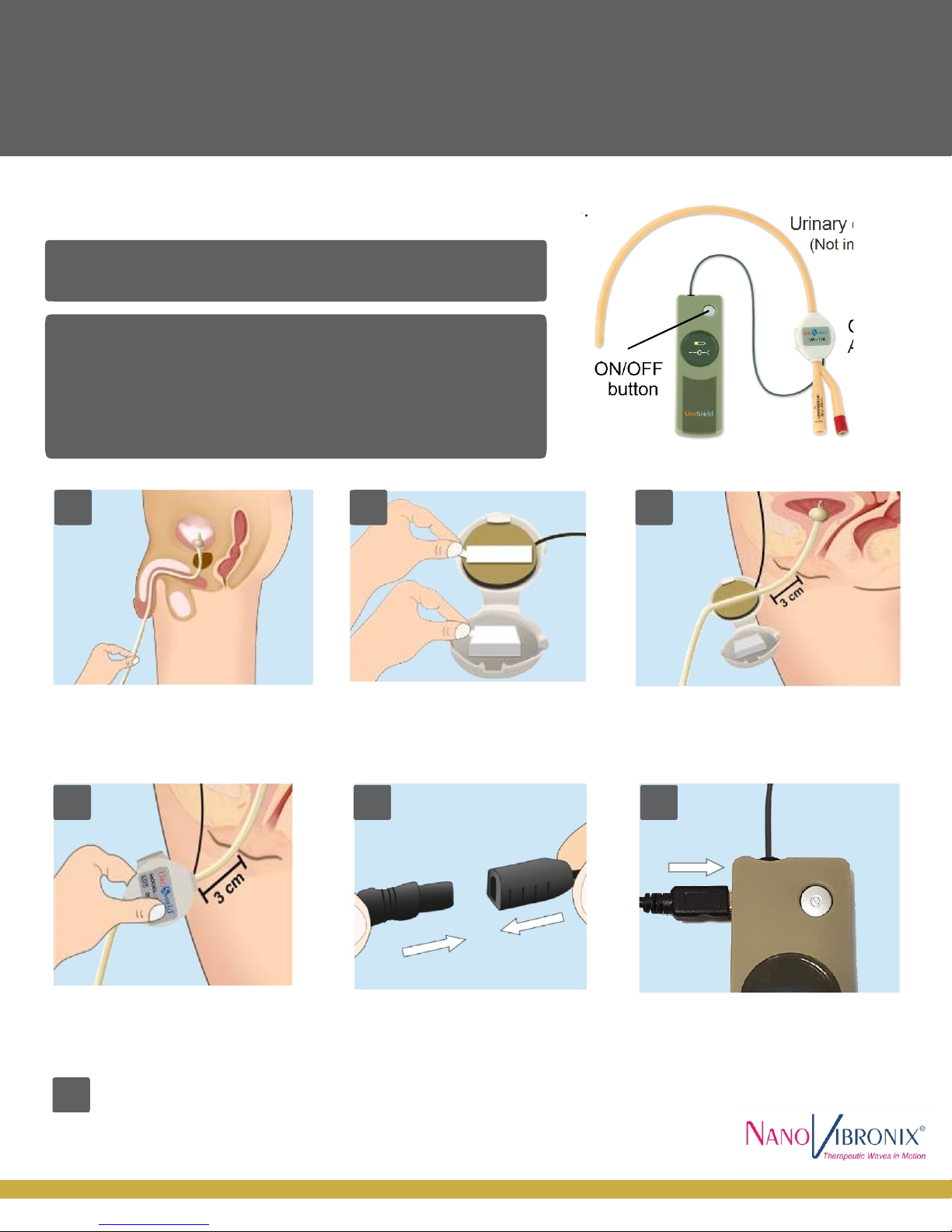

Gently pull on the catheter until
you feel slight resistance.
Peel off the protective strips
from the inside of both halves
of the actuator.
Place the actuator on the catheter
about 3 cm from the point the catheter
exits the body, with the connection
cable towards the patient.
Align the catheter with the
actuator grooves and close it until
both sides snap together.
Connect the actuator cable to
the device cable in correct
alignment.
Connect the supplied charger to the
driver charging port and plug the
charger to the mains socket.
Press the device ON/OFF button for about 2 seconds until beeping sound is heard.
The device requires a few seconds to initialize and then displays the information screen.
1
2
3
4
5
6
7

PainShield
UROSHIELD
®
QUICK GUIDE
Working mode
Disconnect the actuator by pulling the connector sides apart as
shown
Battery level
Actuator working
Screensaver screen
[USIFU013 rev. 01]
UroShield
Warning screens
Actuator disconnected
or damaged
Battery blinking – below 10%
charge - Reconnect to mains
Disconnecting the
Actuator
UroShield should be used continuously connected to a main power socket.
For portability disconnect from power socket to use battery for up to 6 hours.
A visual and audible alert will indicate when battery capacity drops below 0.5-hour.
Note: Driver works intermittently in cycles of 15 min active followed by 5 min Idle.
