Napoleon GSS42CFN User manual

FRENCH PG. 31
W415-2975 / 09.02.21
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • www.napoleon.com • [email protected]
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES
ENGLISH
$10.00
SAFETY INFORMATION
- Do not store or use gasoline or other
fl ammable vapors and liquids in the vicinity of this
or any other appliance.
- An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Shut off gas to the appliance.
• Extinguish any open fl ame.
• If odour continues, leave the area immediately.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a neigh-
bour’s phone. Follow the gas supplier’s instruc-
tions.
• If you cannot reach your gas supplier, call the fi re
department.
Failure to follow these instructions could result in
fi re or explosion, which could cause property dam-
age, personal injury, or death.
- Installation and service must be performed
by a qualifi ed installer, service agency, or the
gas supplier.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certifi ed kit is used.
If the information in these instructions are not
followed exactly, a fi re or explosion may result
causing property damage, personal injury or
loss of life. Read the installation, operating and
maintenance instructions thoroughly before
installing or servicing this equipment.
WARNING
!
INSTALLER:
Leave this manual with the appliance
CONSUMER:
Retain this manual for future reference

W415-2975 / 09.02.21
EN
2

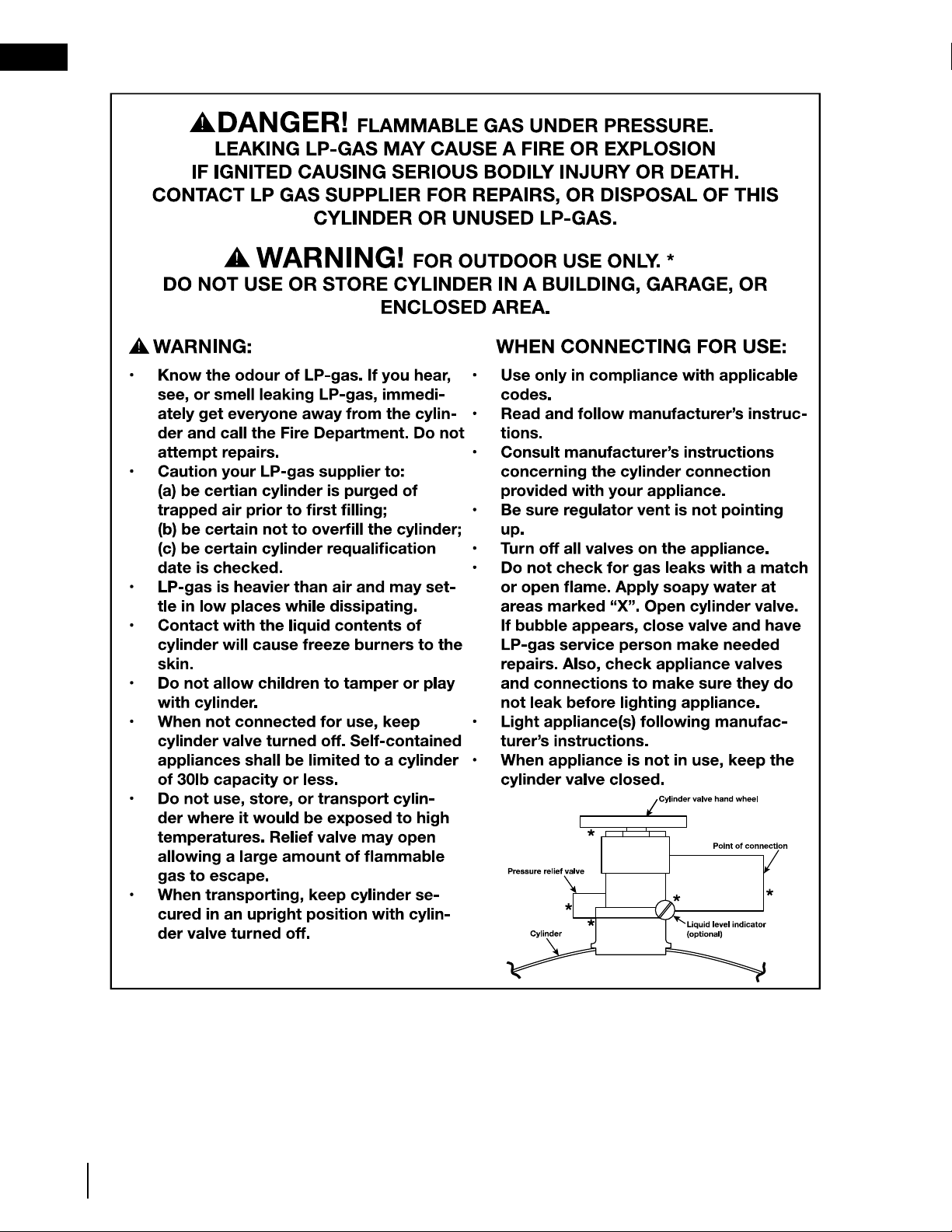

safety information

EN
W415-2975 / 09.02.21 3

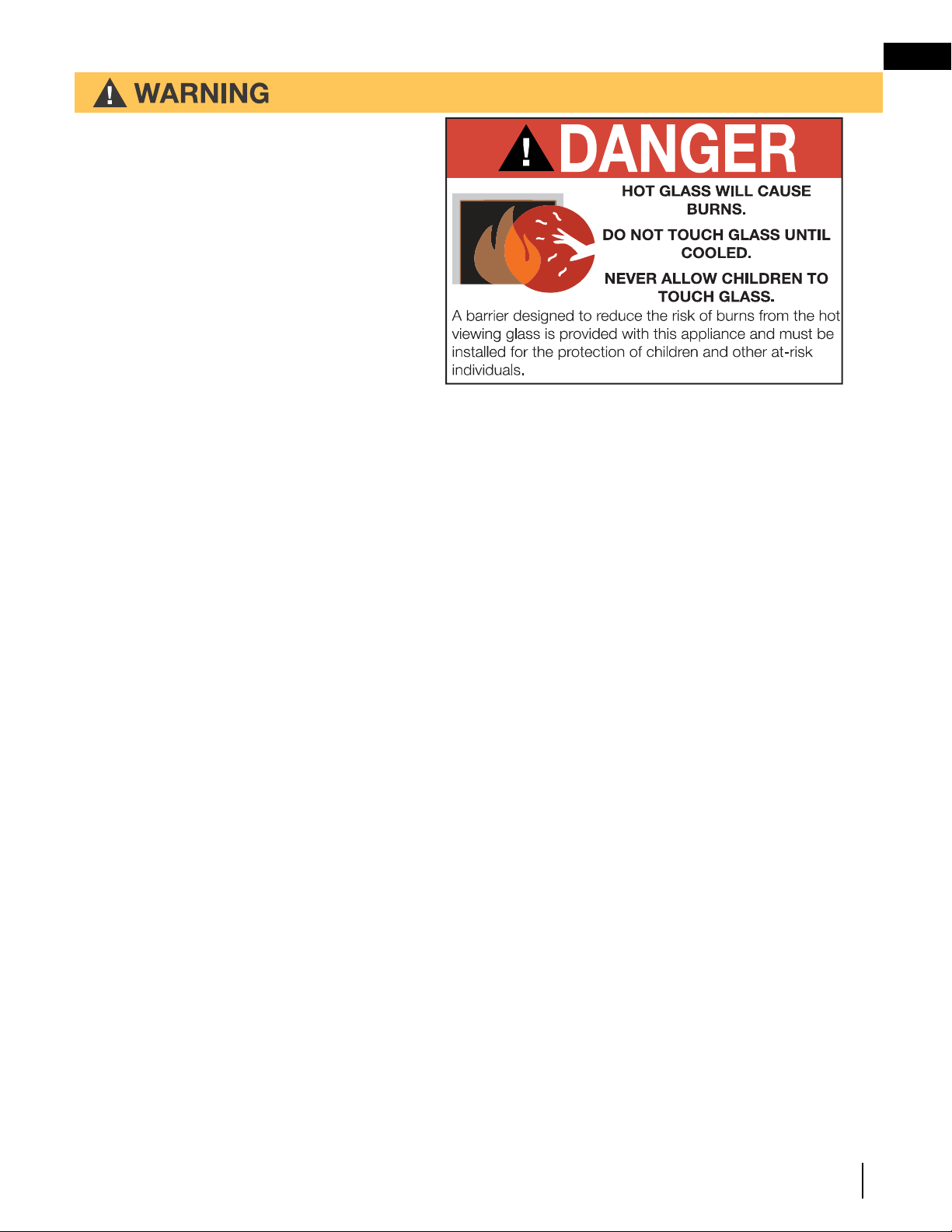

safety information
• This appliance is hot when operated and
can cause severe burns if contacted.
• Any changes or alterations to this
appliance or its controls can be
dangerous and is prohibited.
• Do not operate appliance before reading and
understanding operating instructions. Failure
to operate appliance according to operating
instructions could cause fi re or injury.
• Ensure the glass door is opened or removed
when lighting the pilot for the fi rst time and
when the gas supply has run out.
• Risk of fi re or asphyxiation, do not operate
appliance with fi xed glass removed and never
obstruct the front opening of the appliance.
• Do not connect 110 volts to the control valve,
with the exception of models; GSST8 and
GT8.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves, protective footwear, and safety glasses during
installation. Sheet metal edges may be sharp.
• Do not burn wood or other materials in this appliance.
• Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing
and operating the appliance.
• High pressure will damage valve. Disconnect gas supply piping before pressure testing gas line at
test pressures above 1/2 psig. Close the manual shut-off valve before pressure testing gas line at test
pressures equal to or less than 1/2 psig (35mb).
• The appliance must not be operated at temperatures below freezing (32°F / 0°C). Allow the appliance
to warm to above freezing prior to operation, with the exception of models; GSS36, GSS42; these
appliances are suitable for 0°F / -18°C.
• Children and adults should be alerted to hazards of high surface temperature and should stay
away to avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the
appliance. Toddlers, young children and others may be susceptible to accidental contact
burns. A physical barrier is recommended if there are at risk individuals in the house. To
restrict access to an appliance or stove, install an adjustable safety gate to keep toddlers,
young children and other at risk individuals out of the room and away from hot surfaces.
• Clothing or other fl ammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffi c and away from
furniture and draperies.
• Furniture or other objects must be kept a minimum of 4 feet (1.22m) away from the front of the appliance.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot
surfaces.
• Even after the appliance is off, it will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children
from hot surfaces. These screens and guards must be fastened to the fl oor.
• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior
to operating the appliance.
• It is imperative that the control compartments, burners and circulating blower and its passageway in the
appliance and venting system are kept clean. The appliance and its venting system should be inspected
before use and at least annually by a qualifi ed service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc. The appliance area must be kept clear and
free from combustible materials, gasoline and other fl ammable vapors and liquids.
• If the appliance shuts off, do not re-light until you provide fresh air. If appliance keeps shutting off, have it
serviced. Keep burner and control compartment clean.
• Under no circumstances should this appliance be modifi ed.
• Do not allow wind or fans to blow directly into the appliance. Avoid any drafts that alter burner fl ame
patterns.

W415-2975 / 09.02.21
EN
4
safety information
• Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this
appliance.
• This appliance must not be connected to a chimney fl ue pipe serving a separate solid fuel burning
appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualifi ed service technician
to inspect the appliance and to replace any part of the control system and any gas control which has
been under water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualifi ed service person, if equipped.
• Do not strike or slam shut the appliance glass door, if equipped.
• Only doors / optional fronts certifi ed with the appliance are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As
with all plastic bags, these are not toys and should be kept away from children and infants.
• Carbon or soot should not occur in a vent free appliance as it can distribute into the living area of your
home. If you notice any signs of carbon or soot, immediately turn off your appliance and arrange to have
it serviced by a qualifi ed technician before operating it again.
• If equipped, the screen must be in place (closed) when the appliance is in operation.
• When equipped with pressure relief doors, they must be kept closed while the appliance is operating
to prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of
the exhaust escaping through these openings can also cause the surrounding combustible materials to
overheat and catch fi re.
• Carbon monoxide poisoning may lead to death; early signs of carbon monoxide poisoning resemble the
fl u, with headache, dizziness and/or nausea. If you have these signs, the appliance may not be working
properly. Get fresh air at once! Have appliance serviced. Some people; pregnant women, persons with
heart or lung disease, anemia, those under the infl uence of alcohol, those at high altitudes are more
affected by carbon monoxide than others. Failure to keep the primary air opening(s) of the burner(s) clean
may result in sooting and property damage.
• As with any combustion appliance, we recommend having your appliance regularly inspected and
serviced as well as having a Carbon Monoxide Detector installed in the same area to defend you and
your family against Carbon Monoxide (not applicable for outdoor appliances).
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the
appliance. Elevated temperatures on the wall or in the air above the appliance can cause melting,
discolouration or damage to decorations, a TV or other electronic components.
• For appliances equipped with a safety barrier; if the barrier becomes damaged, the barrier
shall be replaced with the manufacturer’s barrier for this appliance.
• Installation and repair should be done by a qualifi ed service person. It is imperative that control
compartments, burners and circulating air passageways of the appliance be kept clean.
• For outdoor products only: this appliance must not be installed indoors or within any structure that
prevents or inhibits the exhaust gases from dissipating in the outside atmosphere.
• If applicable, the millivolt version of this appliance uses and requires a fast acting thermocouple. Replace
only with a fast acting thermocouple supplied by Wolf Steel Ltd.
Add California Prop 65 warning

EN
W415-2975 / 09.02.21 5
table of contents
1.0 general information 6
1.1 combustion and ventilation air 6
1.2 rates and effi ciencies 7
1.3 general instructions 7

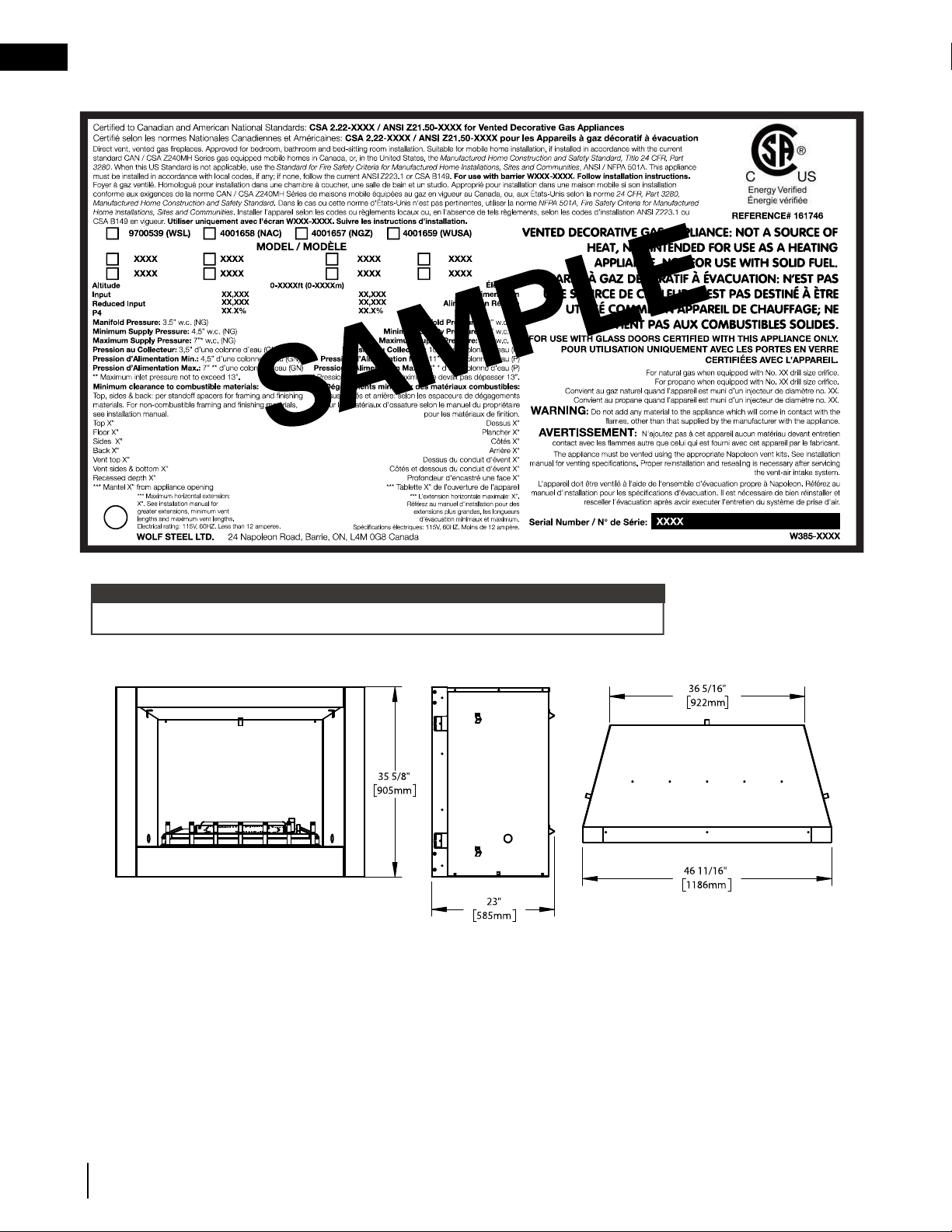

1.4 rating plate information 8
1.5 dimensions 8
2.0 location 9
3.0 framing 10
3.1 gas inlet locations 10
3.2 minimum framing dimensions 11
3.3 minimum enclosure clearances 12
3.4 minimum clearance to combustible enclosures 13
4.0 electrical information 14
4.1 optional wall switch installation 14
5.0 gas installation 14
6.0 operation 15
7.0 nailing tabs 16
8.0 finishing 17
8.1 log placement 17
8.2 glowing embers (optional) 18
8.3 charcoal lumps / lava rock 18
8.4 optional front installation 18
8.5 logo placement 19
8.6 minimum mantel clearances 19
9.0 optional remote installation 20
10.1 venturi adjustment 21
10.2 fl ame characteristics 21
10.0 adjustment 21
11.0 maintenance 22
12.0 replacement parts 23
12.1 overview and valve train assembly 24
13.0 accessories 25
14.0 troubleshooting 26
15.0 warranty 28
16.0 service history 29
The information throughout this manual is believed to be correct at the time of printing. Wolf Steel Ltd. reserves
the right to change or modify any information within the manual at any time without notice. Changes, other than
editorial, are denoted by a vertical line in the margin.
note:

W415-2975 / 09.02.21
EN
6
general information
1.0 general information
Installer, please fi ll out the following information:
Customer: ____________________________________________________________________
Address: ____________________________________________________________________
Date of Installation: ____________________________________________________________________
Location of Appliance: ____________________________________________________________________
Installer: ____________________________________________________________________
Dealer/Distributor
Contact Number : ____________________________________________________________________
Serial #: ____________________________________________________________________
Model:
Natural Gas: GSS42CFN Propane: GSS42CFP
When the appliance is installed at elevations above 4,500ft (1370m), and in the absence of specifi c recommenda-
tions from the local authority having jurisdiction, the certifi ed high altitude input rating shall be reduced at the rate
of 4% for each additional 1,000ft (305m). Expansion / contraction noises during heating up and cooling down
cycles are normal and to be expected. Change in fl ame appearance from “HI” to “LO” is more evident in natural
gas than in propane.
It is highly recommended to protect the logs from moisutre (i.e. rain, snow). Cover the enclosure opening when not
in use.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certifi ed kit is used.
No external electricity (110 volts or 24 volts) is required for the millivolt operating system.
The protective wrap on plated parts is best removed when the assembly is at room temperature but this can be
improved if the assembly is warmed, using a hair dryer or similar heat source. The protective wrap must be re-
moved before operating the appliance.
This appliance is a decorative product. It is not a source of heat and not intended to burn solid fuel.
1.1 combustion and ventilation air
This appliance is intended for installation on an outdoor patio or in your yard. It must never be installed inside the
warm air envelope of your structure.
It is highly recommended that this appliance be installed in a “sheltered” area. Direct wind will cause an erratic
fl ame and possible pilot of main burner outage.
An erratic fl ame could also lead to excessive carboning (black soot) which is not a safety issue but is visually un-
desirable.

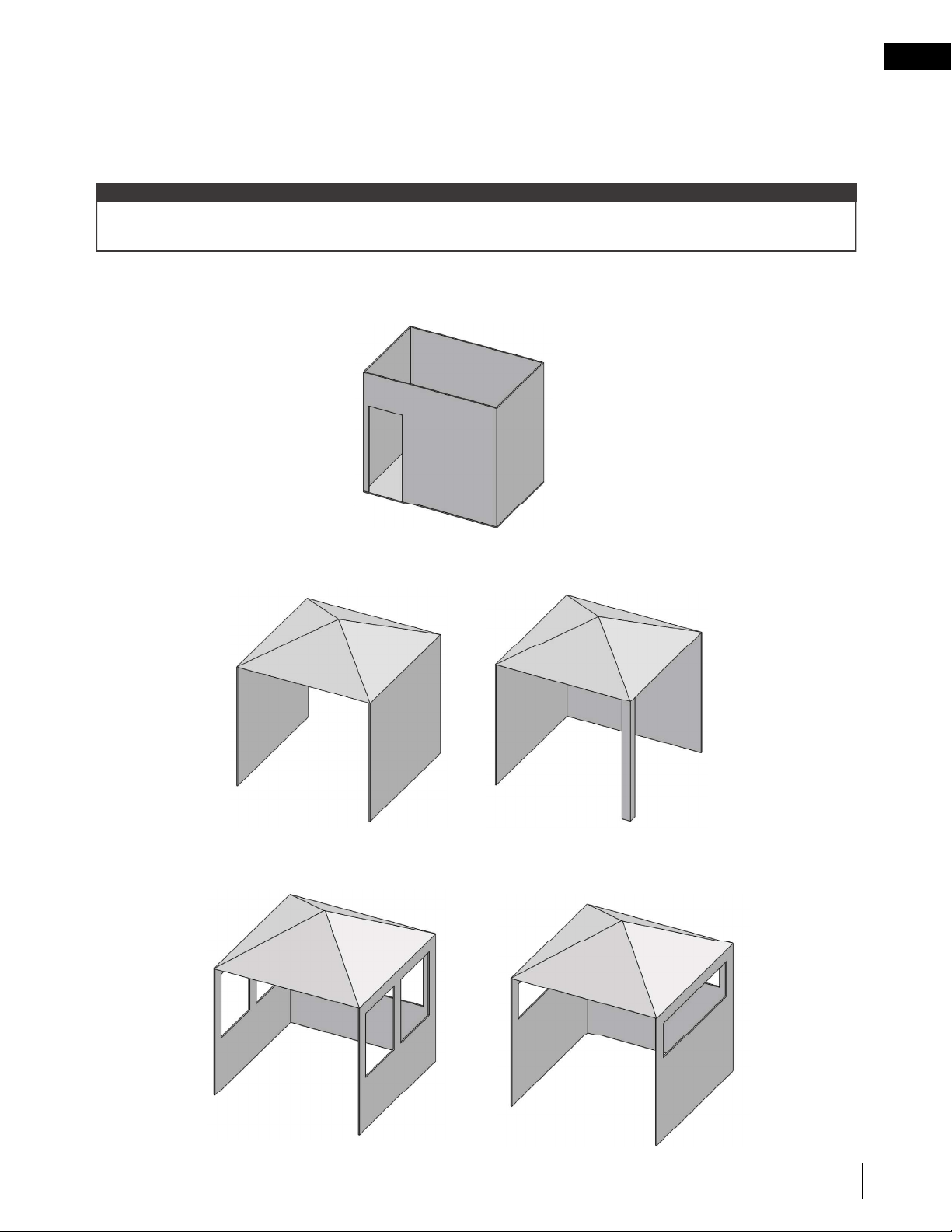

Typical installation may include covered patio, screened porch, gazebo, or on an outside wall of a house.
If installing a propane appliance, the propane cylinder must always be on the exterior of such a
structure.
Ensure the area has adequate ventilation.
Some components and/or media are packaged separately and must be installed in accordance with the informa-
tion in this manual.
note:

EN
W415-2975 / 09.02.21 7
general information
1.2 rates and effi ciencies
1.3 general instructions
For your satisfaction, this appliance has been test-fi red to assure its operation and quality!
RATES AND EFFICIENCIES
NG P
Altitude (FT) 0-4,500
Max. Input (BTU/HR) 65,000
Min. Inlet Gas Supply Pressure 4.5" (11mb) w.c. 11" (27mb) w.c.
Max. Inlet Gas Supply Pressure 7" * (17mb) w.c. 13" (32mb) w.c.
Manifold Pressure (Under Flow Conditions) 3.5" (9mb) w.c. 10" (25mb) w.c.
• Never obstruct the front opening of the appliance.
• Objects placed in front of the appliance must be kept a minimum of 48” (121.9cm) from the front face of the
appliance.
• Fire risk. Explosion hazard.
• High pressure will damage valve. Disconnect gas supply piping before pressure testing gas line at test
pressures about 1/2 PSIG. Close the manual shut-off valve before pressure testing gas line at pressures equal
to or less than 1/2 PSIG (35mb).
• Use only Wolf Steel approved optional accessories and replacement parts with this appliance. Using non-
listed accessories (blowers, doors, louvres, trims, gas components, venting components, etc.) could result in
a safety hazard and will void the warranty and certifi cation.
THIS GAS APPLIANCE SHOULD BE INSTALLED AND
SERVICED BY A QUALIFIED INSTALLER to conform with
local codes. Installation practices vary from region to region
and it is important to know the specifi cs that apply to your
area, for example in Massachusetts State:
• The appliance off valve must be a “T” handle gas cock.
• The fl exible connector must not be longer than 36”
(91.4cm).
The installation must conform with local codes or, in absence
of local codes, the National Gas and Propane Installation Code CSA B149.1 in Canada, or the National Fuel Gas
Code, ANSI Z223.1 / NFPA 54 in the United States.
The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of 1/2 psig (35 mb). The appliance must be
isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure
testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (35 mb). When installed
with a blower or fan, the junction box must be electrically connected and grounded in accordance with local
codes. In the absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the
ANSI / NFPA 70 National Electric Code in the United States. In the case where the blower is equipped with
a power cord it must be connected into a properly grounded receptacle. The grounding prong must not be
removed from the cord plug.
When the appliance is installed directly on combustible material other than wood fl ooring, the appliance shall be
installed on a metal or wood panel extending the full width and depth.
Solid fuels shall not be burned in this appliance.
* Maximum inlet pressure not to exceed 13”.

W415-2975 / 09.02.21
EN
8
general information
1.4 rating plate information
1.5 dimensions
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.
note:
The rating plate must remain with the appliance at all times. It must not be removed.

EN
W415-2975 / 09.02.21 9
It is important when selecting a location for your appliance to ensure clearances to adjacent combustibles are
met. This appliance is intended for installation on an outdoor patio or in your yard. It is highly recommended that
this appliance be installed in a sheltered area (following the guidelines outlined below). Direct wind will cause an
erratic fl ame and possible pilot or main burner outage. An erratic fl ame could also lead to excessive carboning
(black soot), which is not a safety issue but is visually undesirable.
Any enclosure (shelter) in which the appliance is used must comply with one of the following:
With walls on all sides, but at least one permanent opening at ground level and no overhead cover (Fig. 1).
2.0 location
note:
When choosing a location for your appliance, care must be taken to avoid areas where excessive moisture or
running water may be a problem.
Within a partial enclosure which includes an overhead cover and no more than two sidewalls. These sidewalls may
be parallel, as in a breezeway, or at right angles to each other (Fig. 2).
Within a partial enclosure which includes an overhead cover and three sidewalls, as long as 30 percent or more of
the horizontal periphery of the enclosure is permanently open (Fig. 3).
Fig. 1
Fig. 2
Fig. 3

W415-2975 / 09.02.21
EN
10
3.0 framing
• Risk of fi re!
• In order to avoid the possibility of exposed insulation or vapour barrier coming in contact with the appliance
body, it is recommended that the walls of the appliance enclosure be “fi nished” (i.e. drywall / sheetrock),
as you would fi nish any other outside wall of a home. This will ensure that clearance to combustibles is
maintained within the cavity.
• Do not notch the framing around the appliance stand offs. Failure to maintain air space clearance may cause
over heating and fi re. Prevent contact with sagging or loose insulation or framing and other combustible
materials. Block opening into the chase to prevent entry of blown-in insulation. Make sure insulation and
other materials are secured.
• When constructing the enclosure, allow for fi nishing material thickness to maintain clearances. Framing or
fi nishing material closer than the minimums listed must be constructed entirely of non-combustible materials.
Materials consisting entirely of steel, iron, brick, tile, concrete, slate, glass or plasters, or any combination
thereof are suitable. Materials that are reported as passing ASTM E136, standard test method for behaviour
of materials in a vertical tube furnace at 1382ºF (750ºC) and UL763 shall be considered non-combustible
materials.
• Minimum clearance to combusibles must be maintained or a serious fi re hazard could result.
• The appliance requires a minimum enclosure height. Measure from the appliance base.
• If steel stud framing kits with cement board are provided, or specifi ed in the installation instructions, they
must be installed.
• If specifi ed in the installation instruction, fi nishing must be done using a non-combustible board, ceramic tile,
marble, etc. Do NOT use wood or drywall. Any fi re rated drywall is not acceptable.
When using optional fi nishing accessories, the framing dimensions and fi nishing materials may differ from
what is outlined in the section below; refer to the leafl et instructions supplied in the accessory kit for specifi c
framing and fi nishing specifi cations.
note:
It is recommended that the walls of the appliance enclosure be fi nished. This would ensure that clearance to
combustibles is maintained within the cavity. It is best to frame your appliance after it is positioned. Use 2 x 4’s
and frame to local building codes.

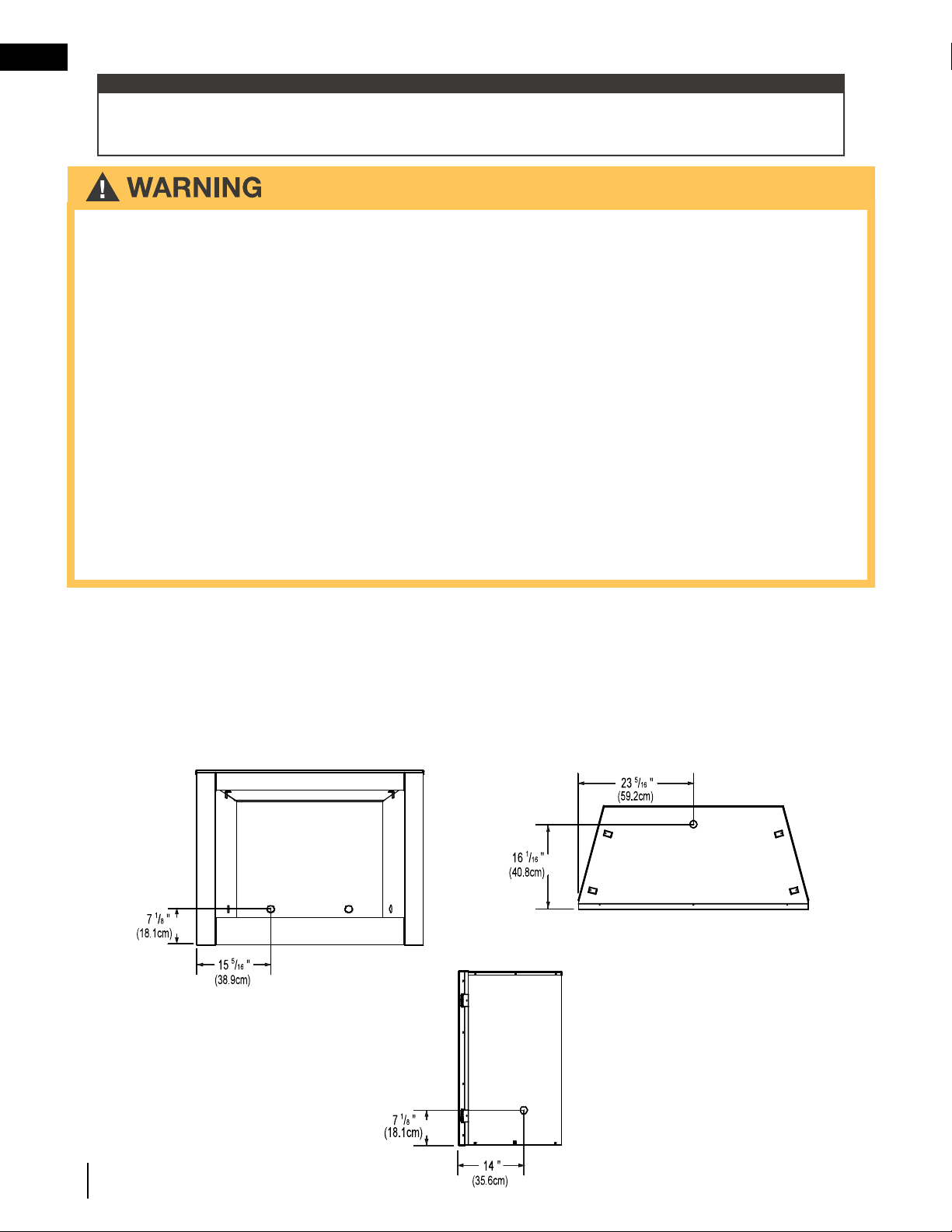

3.1 gas inlet locations

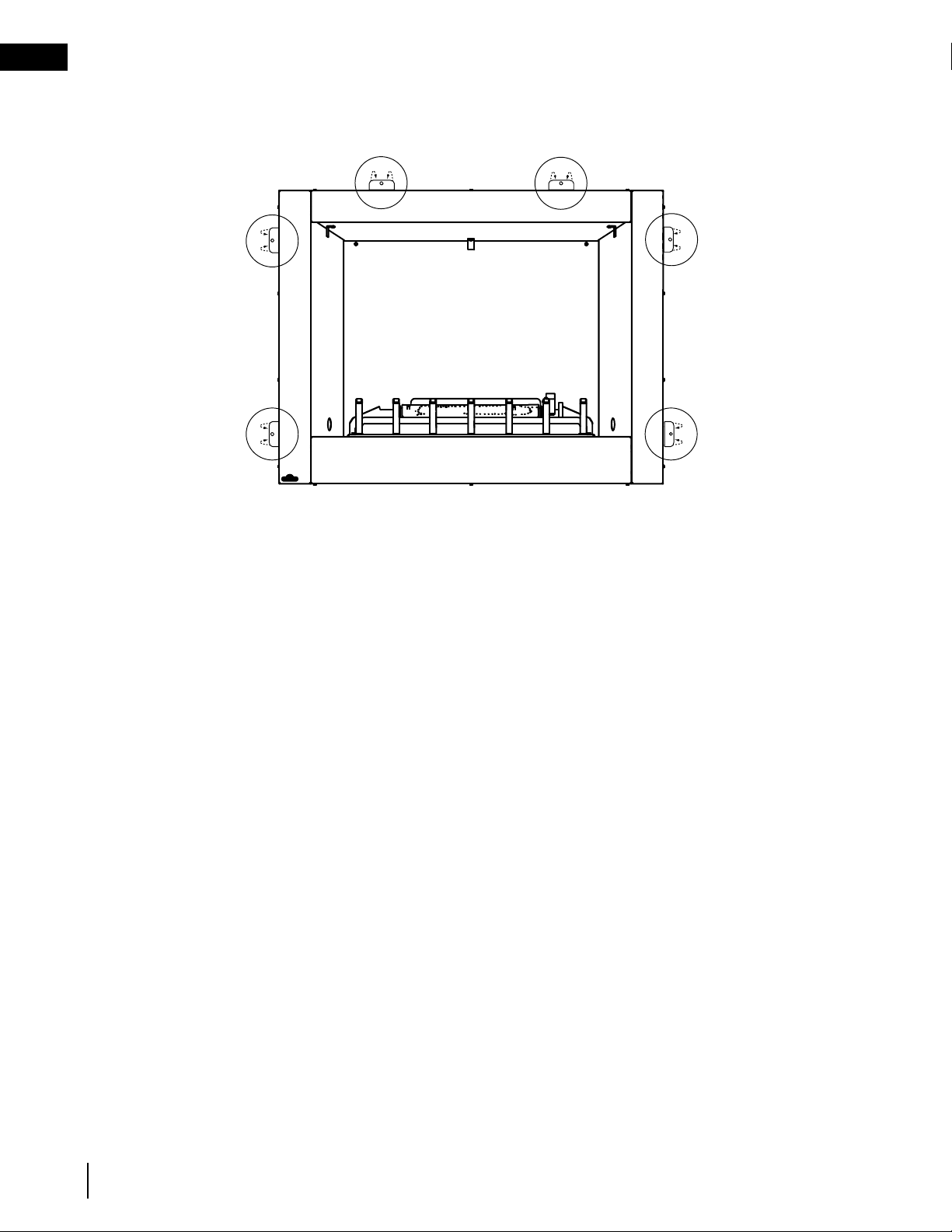

There are fi ve gas inlet locations on the ventless fi rebox enclosure. One on each side of the appliance, two at the
rear, and one on the bottom. Using the following illustrations identify the preferred inlet and remove corresponding
knock out.

EN
W415-2975 / 09.02.21 11
framing
3.2 minimum framing dimensions
Minimum Clearance to Combustibles construction from appliance and vent surfaces:
Framing 0” (0mm) to stand-offs (rear and sides only)
Use a steel header for the top and two steel studs on the sides.
Finishing 1” (25mm) to back and sides
Non-combustible fi nishing 18” (45.7cm) to top
4”(102mm) to sides of appliance opening
Non-combustible fi nishing material (ie. cement board, brick, stone, tile) may
be used to fi nish the front of the appliance.
Recessed depth 23 1/4” (58.7cm)
Enclosure top 58 1/2” (148.6cm) from bottom of appliance
Clearance to ceiling 84” (213.4cm) from bottom of appliance.

W415-2975 / 09.02.21
EN
12
framing
3.3 minimum enclosure clearances
This appliance requires a minimum enclosure height of 58 1/2” (148.6cm).
For temperature requirements, the enclosure space around and above the appliance must be left unobstructed.

EN
W415-2975 / 09.02.21 13
framing

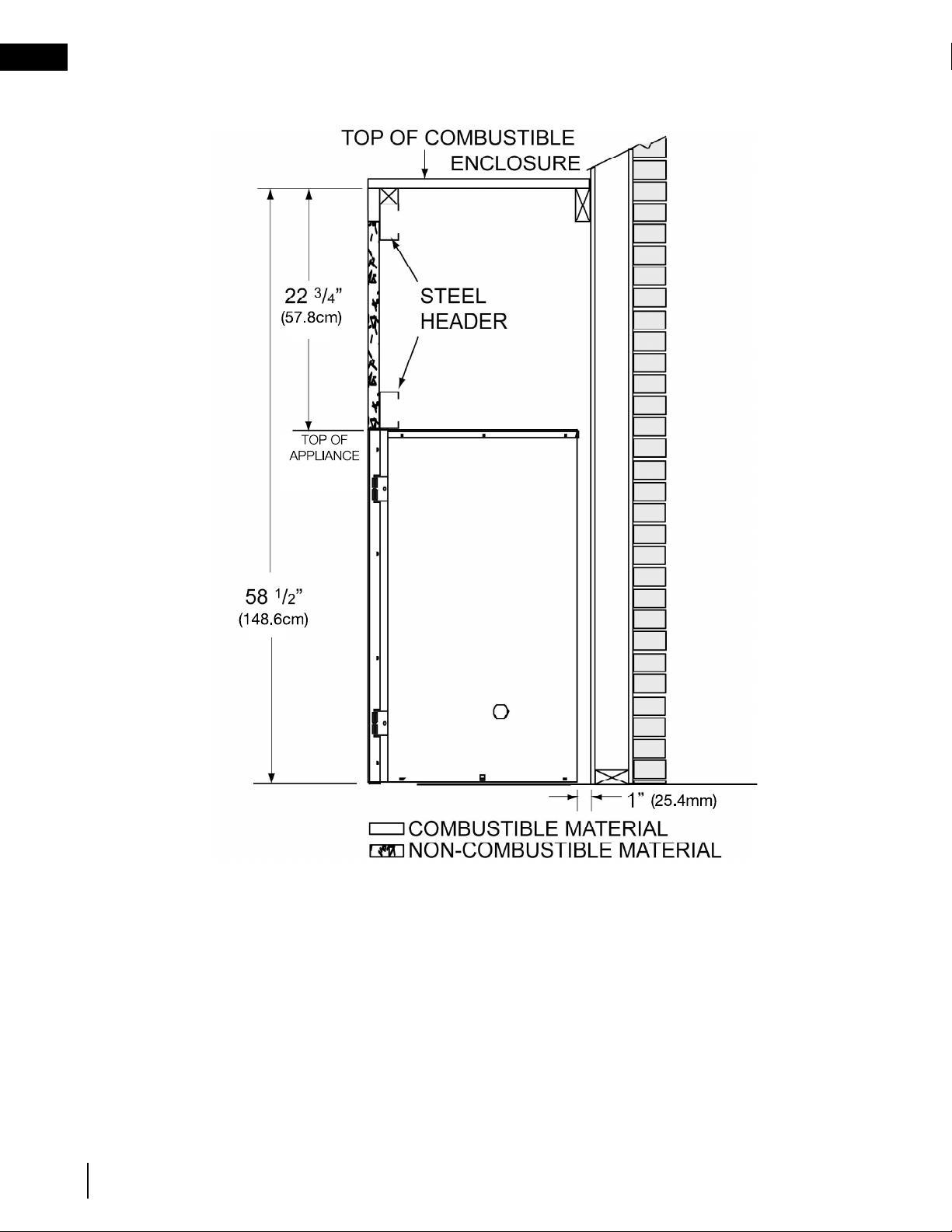

3.4 minimum clearance to combustible enclosures
* From top of appliance.
** An outdoor sealant must be used along the edge of the appliance and the non-combustible material to keep water
from entering the chase.
• Use only non-combustible material such as cement board, ceramic tiles, marble, etc. when fi nishing to the
appliance. Do not use wood or drywall.

W415-2975 / 09.02.21
EN
14
4.0 electrical information
4.1 optional wall switch installation
• Do not connect either the wall switch, thermostat or gas valve directly to 110 volt electricity.
For ease of accessibility, an optional remote wall switch or millivolt thermostat may be installed in a convenient
location. Route a 2 strand, solid core millivolt wire from the valve to the wall switch or millivolt thermostat. The
recommended maximum lead length depends on wire size:
WIRE SIZE MAX. LENGTH
14 gauge (1.8mm) 100 feet (30.5m)
16 gauge (1.5mm) 60 feet (18.3m)
18 gauge (1.2mm) 40 feet (12.2m)
Disconnect the existing wires from terminals 1 and 3 (from the
ON/OFF switch) and replace with the leads from the wall switch / millivolt thermostat.
ADD IMAGE
HERE
5.0 gas installation
• Risk of fi re, explosion, or asphyxiation. Ensure there are no ignition sources such as sparks or open fl ames.
• Support gas control when attaching gas supply pipe to prevent damaging gas line.
• Purging of the gas supply line should be performed by a qualifi ed service technician. Ensure that a continuous
gas fl ow is at the burner before closing the door. Ensure adequate ventilation. For gas and electrical locations,
see “dimensions” section.
• All gas connections must be contained within the appliance when complete.
• High pressure will damage valve. Disconnect gas supply piping before testing gas line at test pressures above
1/2 PSIG.
• Valve settings have been factory set. Do not change.
Installation and servicing to be done by a qualifi ed installer.
• Move the appliance into position and secure.
• If equipped with a fl ex connector the appliance is designed to accept a 1/2” (13mm) gas supply. Without
the connector it is designed to accept a 3/8” (9.5mm) gas supply. The appliance is equipped with a
manual shut off valve to turn off the gas supply to the appliance.
• Connect the gas supply in accordance to local codes. In the absence of local codes, install to the current
CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI Z223.1 /
NFPA 54 in the United States.
• When fl exing any gas line, support the gas valve so that the lines are not bent or kinked.
• The gas line fl ex-connector should be installed to provide suffi cient movement for shifting the burner
assembly on its side to aid with servicing components.
• Check for gas leaks by brushing on a soap and water solution. Do not use open fl ame.

EN
W415-2975 / 09.02.21 15
6.0 operation
• Do not turn on if children or other at risk individuals are near the appliance.
• This appliance is equipped with a pilot which must be lit by hand while following these instructions exactly.
• Before operating, smell all around the appliance area for gas and next to the fl oor because some gas is heavier
than air and will settle on the fl oor.
• Use only your hand to turn the gas control knob. Never use tools. If the knob will not turn by hand, do not try
to repair it. Call a qualifi ed service technician. Force or attempted repair may result in a fi re or explosion.
• Do not use this appliance if any part has been under water. Immediately call a qualifi ed service technician
to inspect the appliance and replace any part of the control system and any gas control which has been
underwater.
FOR YOUR SAFETY READ BEFORE LIGHTING
WHAT TO DO IF YOU SMELL GAS
LIGHTING INSTRUCTIONS
TO TURN OFF GAS
A. Stop! Read the above safety information on this label.
B. Remove batteries from the transmitter and set thermostat to lowest setting, if equipped.
C. Turn off all electrical power to the appliance.
D. Open the glass door, if equipped.
E. Turn the gas knob clockwise to the “OFF” position.
F. Wait fi ve (5) minutes to clear out any gas. If you smell gas including near the fl oor, STOP!
Follow the instructions above in the “WHAT TO DO IF YOU SMELL GAS” section. If you
don’t smell gas; close the glass door and go to the next step.
G. If the appliance is equipped with fl ame adjustment valve turn clockwise to “OFF”.
H. Turn gas knob counter-clockwise to the “PILOT” position. (If the appliance is equipped
with an “ON/OFF” switch, ensure it is in the “ON” position.
I. Depress and hold gas knob while lighting the pilot with the push button ignitor. Keep knob
fully depressed for one minute, then release. If pilot does not continue to burn, repeat steps
E through I.
J. With pilot lit, turn gas knob counter-clockwise to the “ON” position.
K. If equipped with the fl ame adjustment valve, push and turn the knob to high.
L. Turn on all electrical power to the appliance and re-install the batteries into the transmitter, if
equipped. Set thermostat to desired setting, if equipped.
A. Set thermostat to desired setting, if equipped.
B. Turn off all electrical power to the appliance if service is to be performed.
C. Push in gas knob slightly and turn clockwise to the “OFF” position. Do not force.
• Turn off all gas to the appliance.
• Open windows.
• Do not try to light any appliance.
• Do not touch any electric switch; do not use
any phone in your building
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call
the fi re department.
• If you do not follow these instructions exactly, a fi re or explosion may result causing property damage, personal
injury, or loss of life.
• If applicable, always light the pilot whether for the fi rst time or if the gas supply has run out with the glass door
opened or removed.
add gas knob
add gas valve
Ensure that a continuous gas fl ow is at the burner before installing the door. When lit for the fi rst time, the appliance
will emit an odor for a few hours. This is a normal temporary condition caused by the “burn-in” of paints and
lubricants used in the manufacturing process and will not occur again. After extended periods of non-operation
such as following a vacation or a warm weather season, the appliance may emit a slight odor for a few hours. This
is caused by dust particles in the heat exchanger burning off. In both cases, open a window to suffi ciently ventilate
the room.
For vent free appliances ONLY: if the appliance shuts off, do not relight until you provide fresh air. If appliance
keeps shutting off, have it serviced. Keep burner and control compartment clean.
note:
When lighting and re-lighting, the gas knob cannot be turned from pilot to off unless the knob is
depressed.

W415-2975 / 09.02.21
EN
16
7.0 nailing tabs
To install the appliance face fl ush with the fi nished surface, position the framework to accommodate the thickness
of the fi nished surface. Bend out the six nailing tabs, attached on top and on either side of the appliance and
secure to the 2x4 framing. The tabs will facilitate the installation of either a 1/2” (12.7mm) or 3/4” (19.1mm) fi nished
surface thickness.

EN
W415-2975 / 09.02.21 17
8.0 fi nishing
• Failure to position the logs in accordance with these diagrams or failure to use only logs specifi cally approved
with this appliance may result in property damage or personal injury.
• Logs must be placed in their exact location in the appliance. Do not modify the proper log positions, since
appliance may not function properly and delated ignition may occur.
• The logs are fragile and should be handled with care.

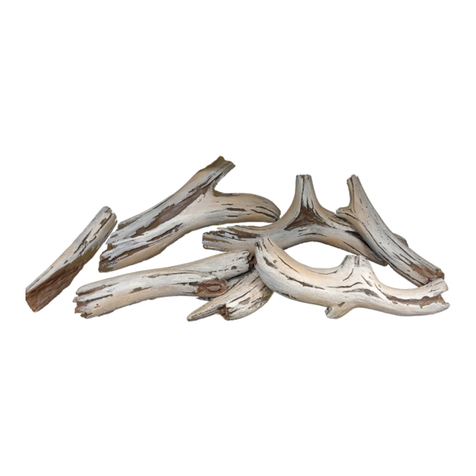

PHAZERTM logs and glowing embers exclusive to Napoleon, provide a unique and realistic glowing effect that is
different in every installation. Take the time to carefully position the glowing embers for a maximum glowing effect.
Log colours may vary. During the initial use of the appliance, the colours will become more uniform as colour
pigments burn in during the heat activated curing process.
8.1 log placement

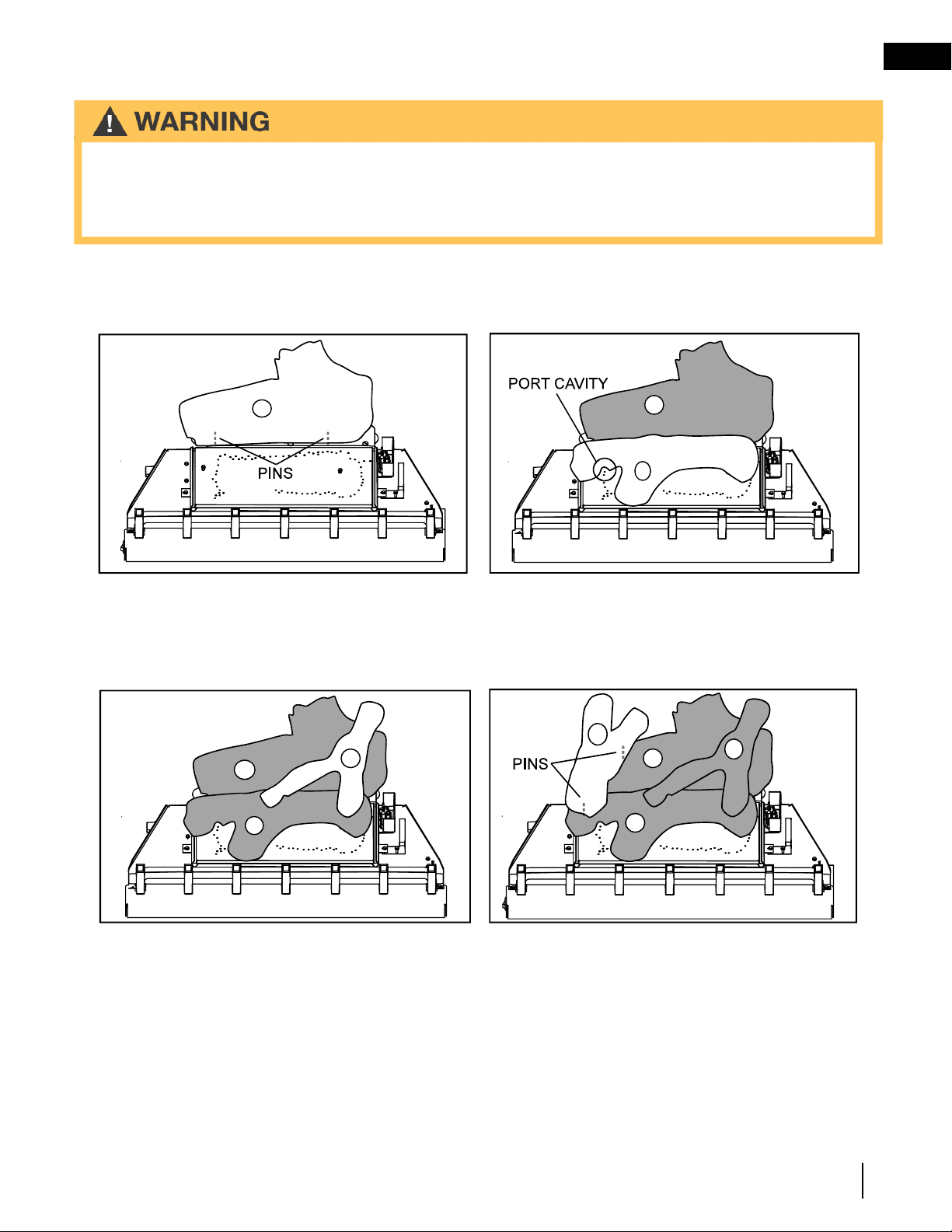

A. Place the rear log (W135-0668) onto the locat-
ing pins along the back edge of the burner. B. Position the middle log (W135-0669) onto the locator pins on the burner. Ensure the port
cavity on the underside of the log is positioned
such that it runs over the ports allowing them
to be exposed.
C. Place the end of the crossover log
(W135-0672) on the right side of the knot of
log A. The “Y” in the log should straddle the
knot on top of log B.
D. Place one pin into the left side of log A and one
into the left side of log B. Place the left side log
(W135-0671) onto the pins located in the left
side of logs A and B.
AA
B
A
B
CA
B
C
D

W415-2975 / 09.02.21
EN
18
fi nishing
E. Position the slot in the bottom of the right log
(W135-0670) onto the bracket beside the
burner on the right, with the charred face of the
log to the front.
A
B
C
D
E
A
B
C
D
E
F
F. Position log F (W135-0481) in front of the front
row of burner ports, and allow it to rest against
the backside of the grate assembly.
note:
It is highly recommended to protect the logs from moisture. Cover the fi reboc when not is use.
8.2 glowing embers (optional)
Tear the embers into pieces and loosely layer above the burner ports covering the burner area. Care should be
taken to shred the embers into thin, small irregular pieces as only the exposed edges of the fi bre hairs will glow.
The ember material will only glow when exposed to direct fl ame; however, care should be taken to not
block off the burner ports.
Blocked burner ports can cause an incorrect fl ame pattern, carbon deposits and delayed ignition. PHAZER™
logs glow when exposed to direct fl ame. Use only certifi ed “glowing embers” and PHAZER™ logs available from
your local authorized dealer / distributor.
• Completely blocking the burner ports can cause an incorrect fl ame pattern, carbon deposits and delayed
ignition.
8.3 charcoal lumps / lava rock
Place the lumps in front of the logs in a realistic manner taking care not to block or close off any of the burner ports.
• Do not block or close off the burner ports. Blocked ports can cause an incorrect fl ame pattern, carbon
deposits and delayed ignition.
• When supplied, charcoal embers, charcoal lumps and vermiculite are not to be placed on the burner.
8.4 optional front installation
When using optional fi nishing accessories, the framing dimensions and fi nishing materials may differ from what is
outlined in the “framing” section of this manual; refer to the leafl et instructions supplied in the accessory kit for spe-
cifi c framing and fi nishing specifi cations.

EN
W415-2975 / 09.02.21 19
fi nishing
8.5 logo placement

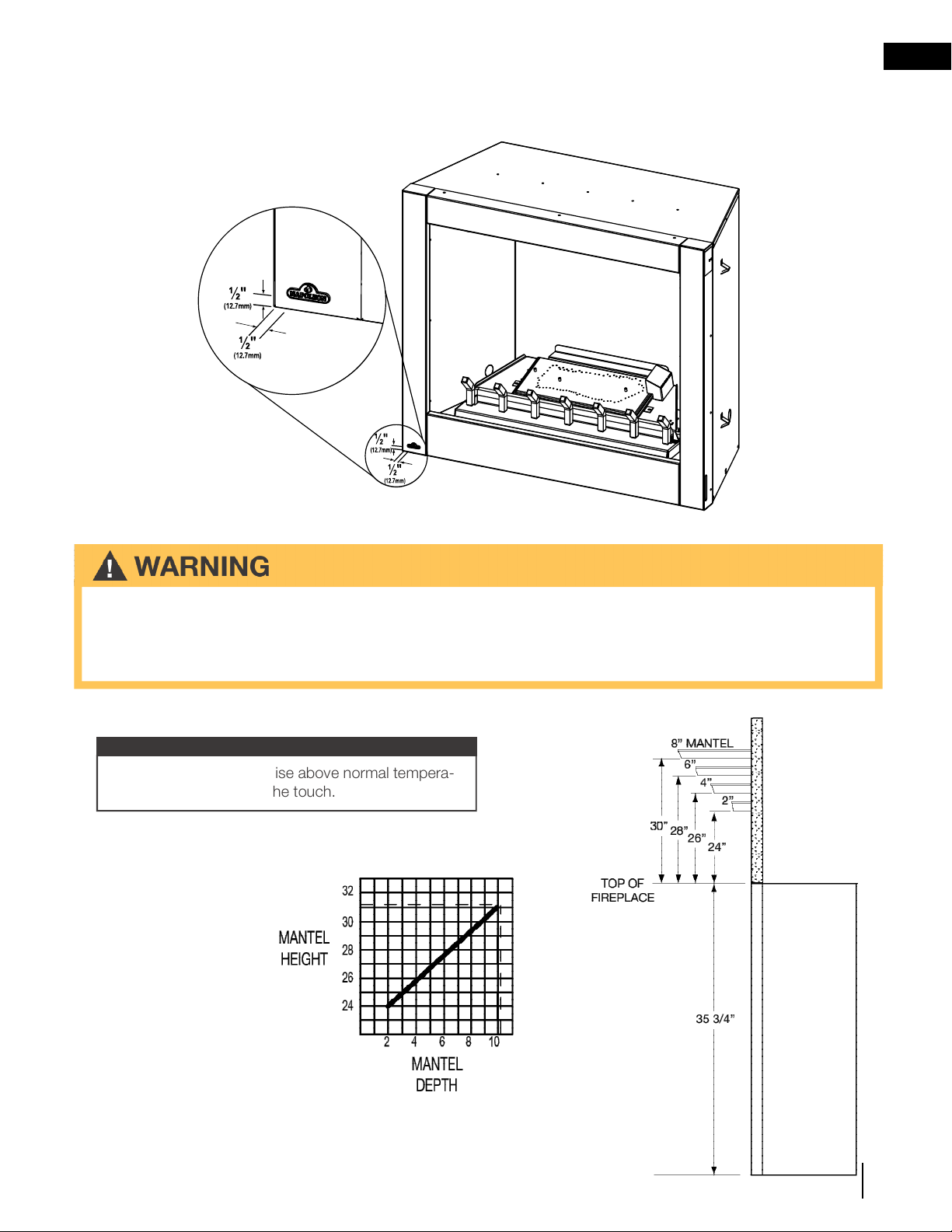

We recommend all mantels made from non-combustible material. If using combustible materials, follow the chart
below.
8.6 minimum mantel clearances
Remove the backing of the logo supplied. Centre the logo on the front of the appliance, ½” (12.7mm) in from the
left side, as shown.
• Risk of fi re. Maintain specifi ed air space clearances to combustibles. Failure to comply with these instructions
may cause a fi re or cause the appliance to overheat. Ensure all clearances (i.e. back, side, top, vent, mantel,
front, etc.) are clearly maintained.
• When using paint or lacquer to fi nish the mantel, the paint or lacquer must be heat resistant to prevent
discolouration.
note:
Mantel temperatures will rise above normal tempera-
tures and may be hot to the touch.

W415-2975 / 09.02.21
EN
20
9.0 optional remote installation
A. Remove the battery pack from the receiver. Then by pulling down, remove the receiver cover and slide
the receiver into the hole located at the rear of the burner base. Secure using the two screws provided.
B. Secure the faceplate to the receiver with two of the screws provided.
C. Insert the battery pack (with batteries installed) through the opening in the faceplate and into the
receiver. The battery pack is secured and released with a catch mechanism. Push the receiver into the
catch to secure.
D. Insert the slide switch into its marked position on the faceplate.
E. Replace the existing switch wires connected to the terminals on the valve marked TH/TP and TH with
those running from the receiver.
• The transmitter and receiver are not waterproof. Ensure both components are not exposed to water.
note:
The remote switch on the side of the appliance is no longer operational.
