NEC DSX CORDLESS LITE II User manual

DSX Cordless Lite II
Telephone User Guide
P/N 1093092
Rev 2, June 2006
Printed in U.S.A
.
01.00.00
– Please Read –
Important DSX Cordless Lite II Telephone Installation Information
DSX Cordless Lite II Telephone Installation Tips
Important
• Only connect the cordless base unit to a DSX-80/160 16ESIU PCB port or a DSX-40 digital
station port. Do not plug the base into an analog port or a DS-2000 16DSTU PCB.
• For best results, the base unit should be placed in line-of-site with its handset.
• Cordless telephone range and reception can vary from site to site. Some of the things that
may adversely affect range and reception are:
- Placing the base against or close to a wall (particularly if the wall has metal studs).
- Positioning the base close to a device that emits Electromagnetic Interference (EMI),
such as a TV, radio, computer, fluorescent light, fax machine, or printer.
- Installing the base close to other 900 Mhz devices, such as Symbol or Telex hand-held
inventory devices.
- Installing the base above a ceiling that uses foil-backed insulation.
- Installing the base behind a door which can be closed, tinted windows, or one-way glass
which will separate the base from the handset.
• Always raise the base unit antenna to its full vertical position.
• When installing more than one cordless telephone in the same site:
- Be sure the base units are at least 15 feet apart.
- Do not install more than 12 cordless telephones in an area of close proximity.
- After installation, change each telephone’s channel by pressing CH on the handset. This will
minimize interference between your cordless telephones. There are 30 available channels.
• The handset must charge 5-8 hours in its charger prior to initial use.
• The Nickel Metal Hydride Rechargeable Battery Pack is recyclable. If you replace a battery
pack, always dispose of the old pack along with your other recyclable materials.
1
2
Empowered by Innovation

This manual has been developed by NEC Unified Solutions, Inc. It is intended for the use of its customers and service
personnel, and should be read in its entirety before attempting to install or program the system. Any comments or suggestions
for improving this manual would be appreciated. Forward your remarks to:
NEC Unified Solutions, Inc.
4 Forest Parkway
Shelton, CT 06484
www.necunifiedsolutions.com
Nothing contained in this manual shall be deemed to be, and this manual does not constitute, a warranty of, or representation
with respect to, any of the equipment covered. This manual is subject to change without notice and NEC Unified Solutions,
Inc. has no obligation to provide any updates or corrections to this manual. Further, NEC Unified Solutions, Inc. also reserves
the right, without prior notice, to make changes in equipment design or components as it deems appropriate. No
representation is made that this manual is complete or accurate in all respects and NEC Unified Solutions, Inc. shall not be
liable for any errors or omissions. In no event shall NEC Unified Solutions, Inc. be liable for any incidental or consequential
damages in connection with the use of this manual. This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be photocopied or reproduced without prior written consent
of NEC Unified Solutions, Inc.
©2006 by NEC Unified Solutions, Inc. All Rights Reserved.
Printed in U.S.A.

Table of Contents
DSX Cordless Lite IITelephone User Guide Table of Contents ◆ i
Table of Contents
Chapter 1: Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
The Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Using the Basic Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Placing Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Hanging Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Changing Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Traveling Out Of Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Using the Base Cordless and Desk Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Low Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

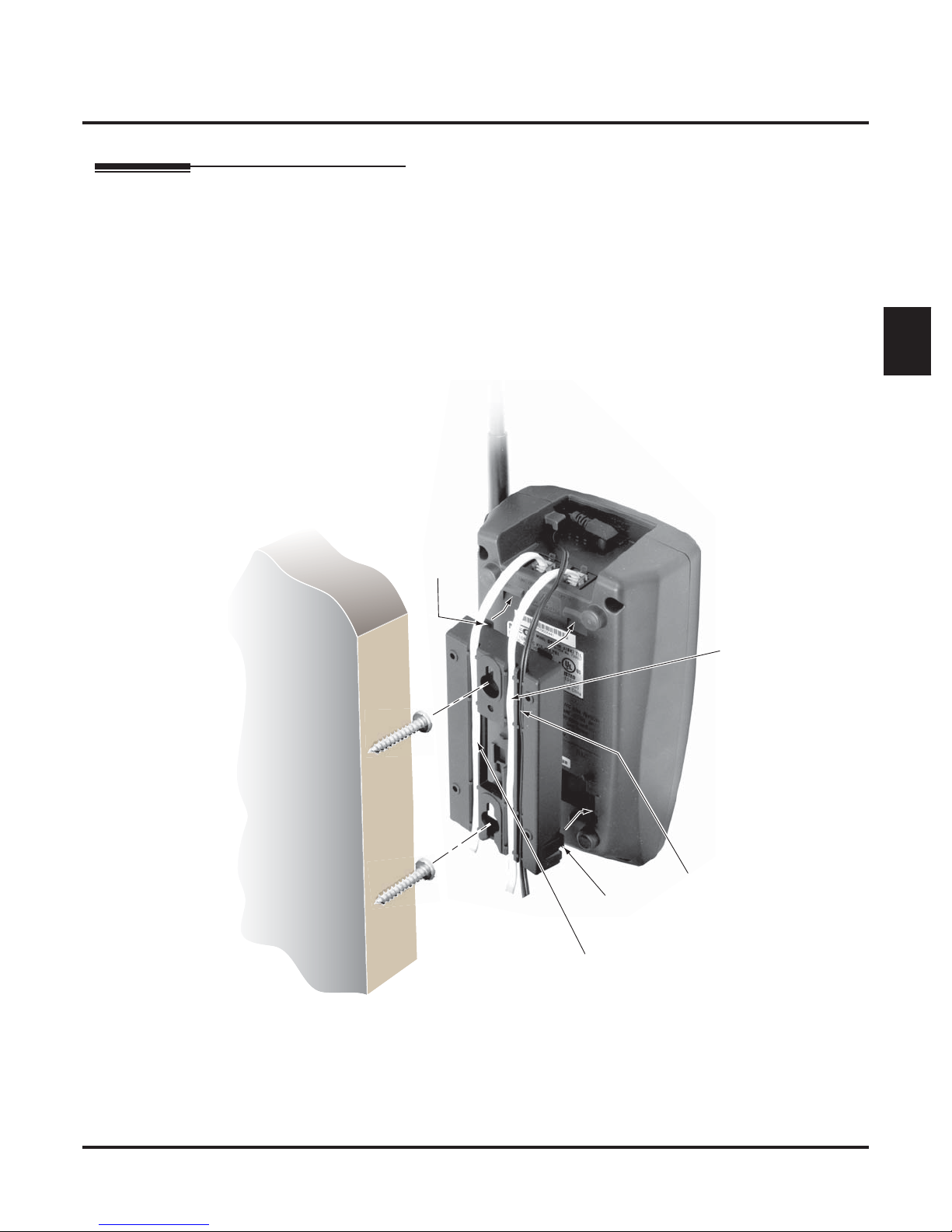

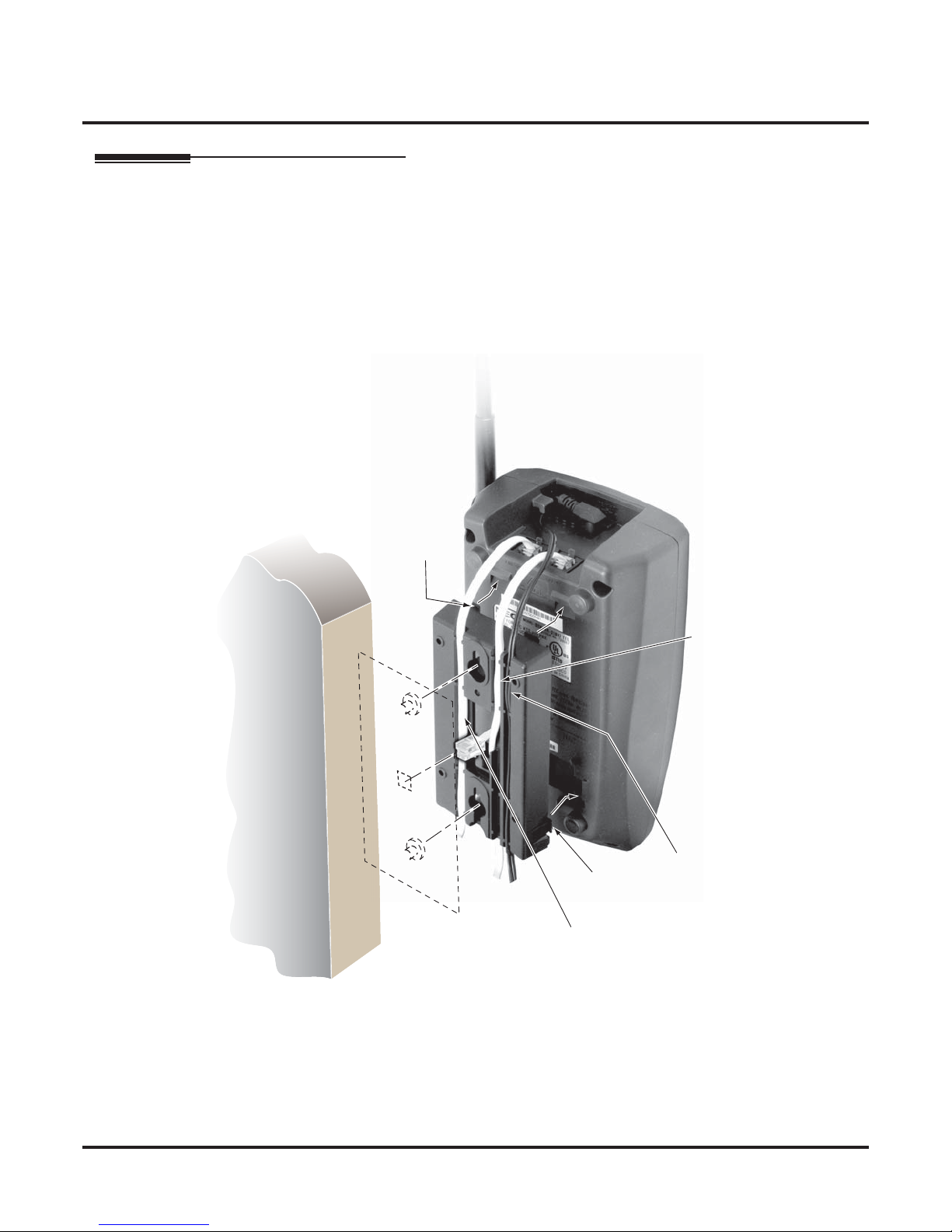

Mounting the Base on the Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing the Battery in your Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

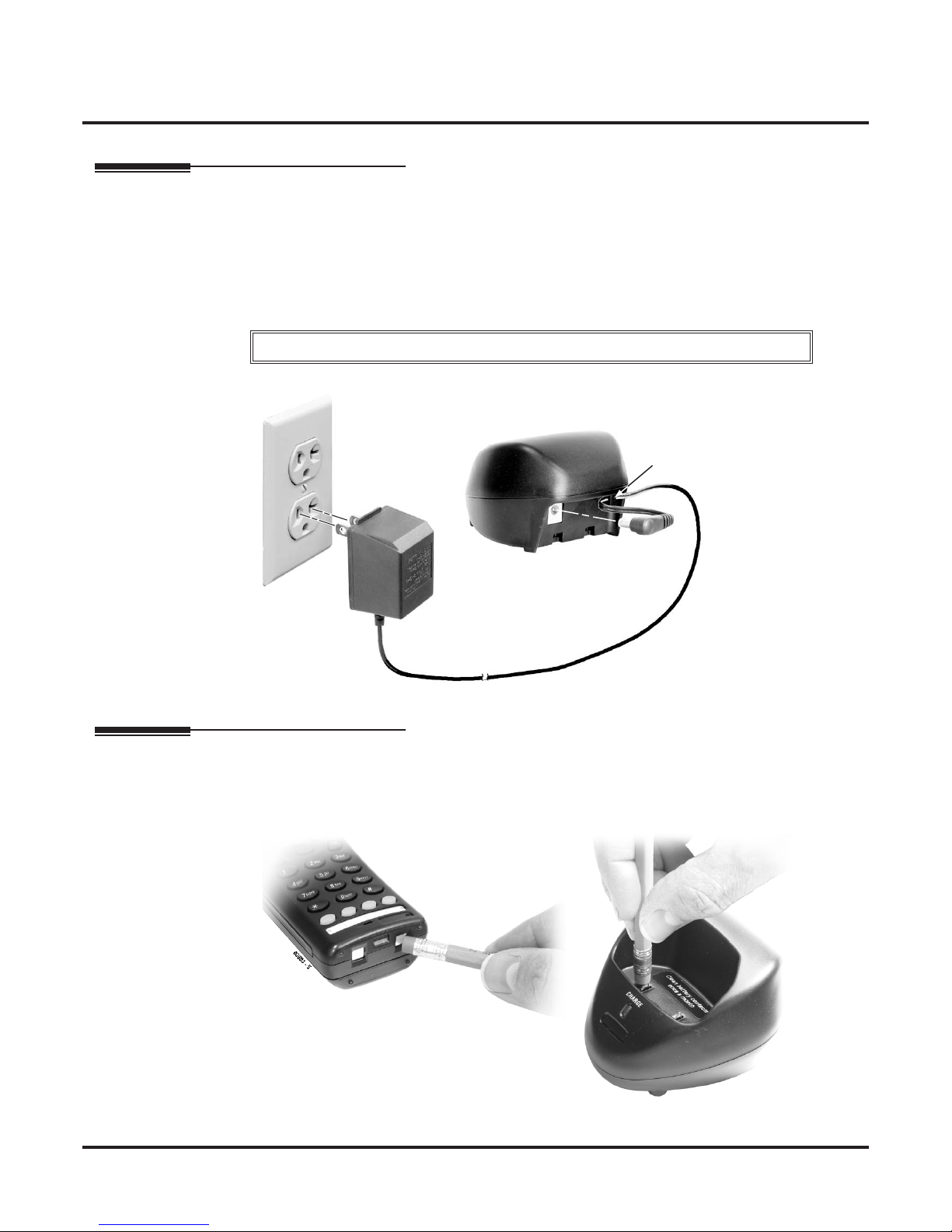

Installing the Charger and Charging the Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning the Battery Charger Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

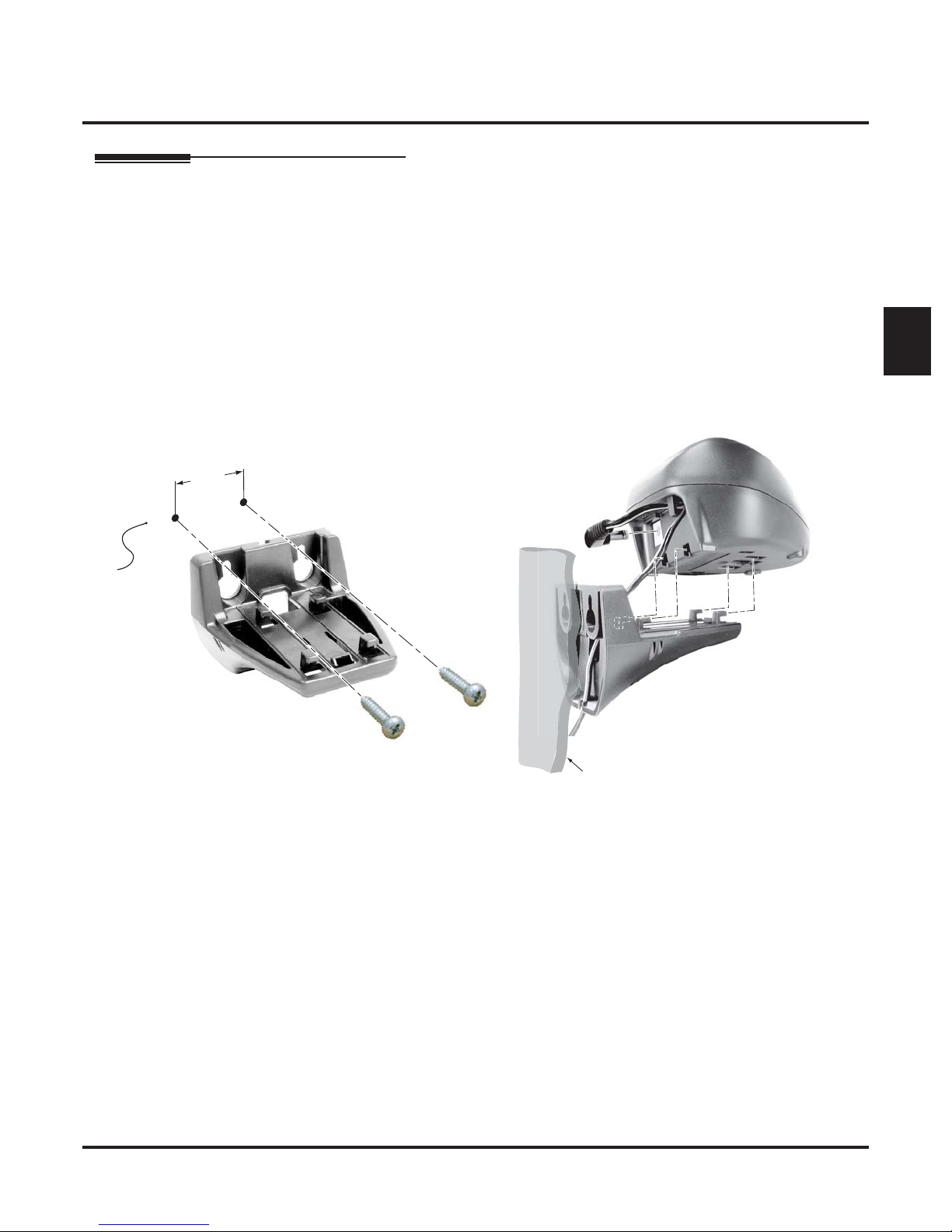

Wall-Mounting the Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installing the Belt Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installing Headset P/N 750642 (MX150 Earloop Style) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

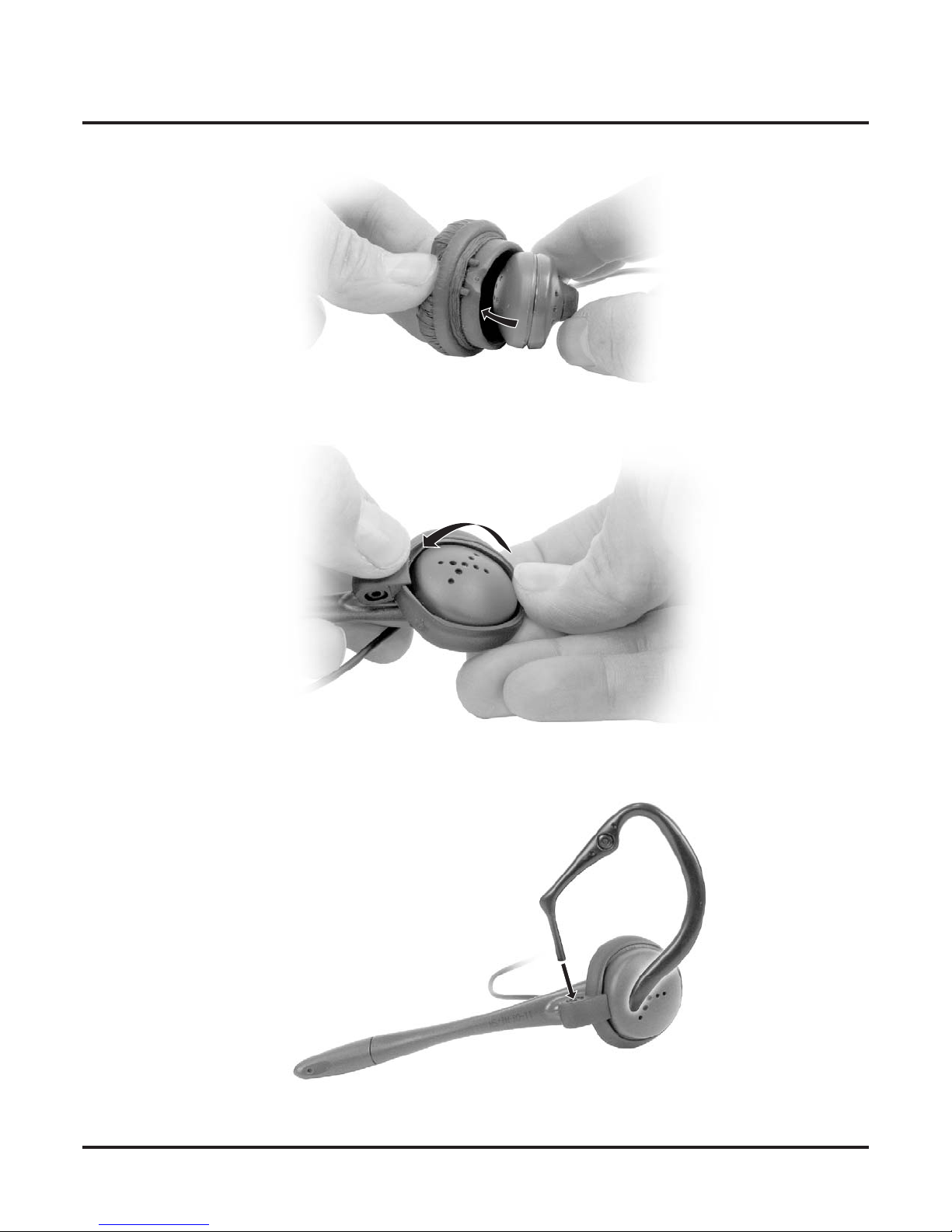

Ear Cushion Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

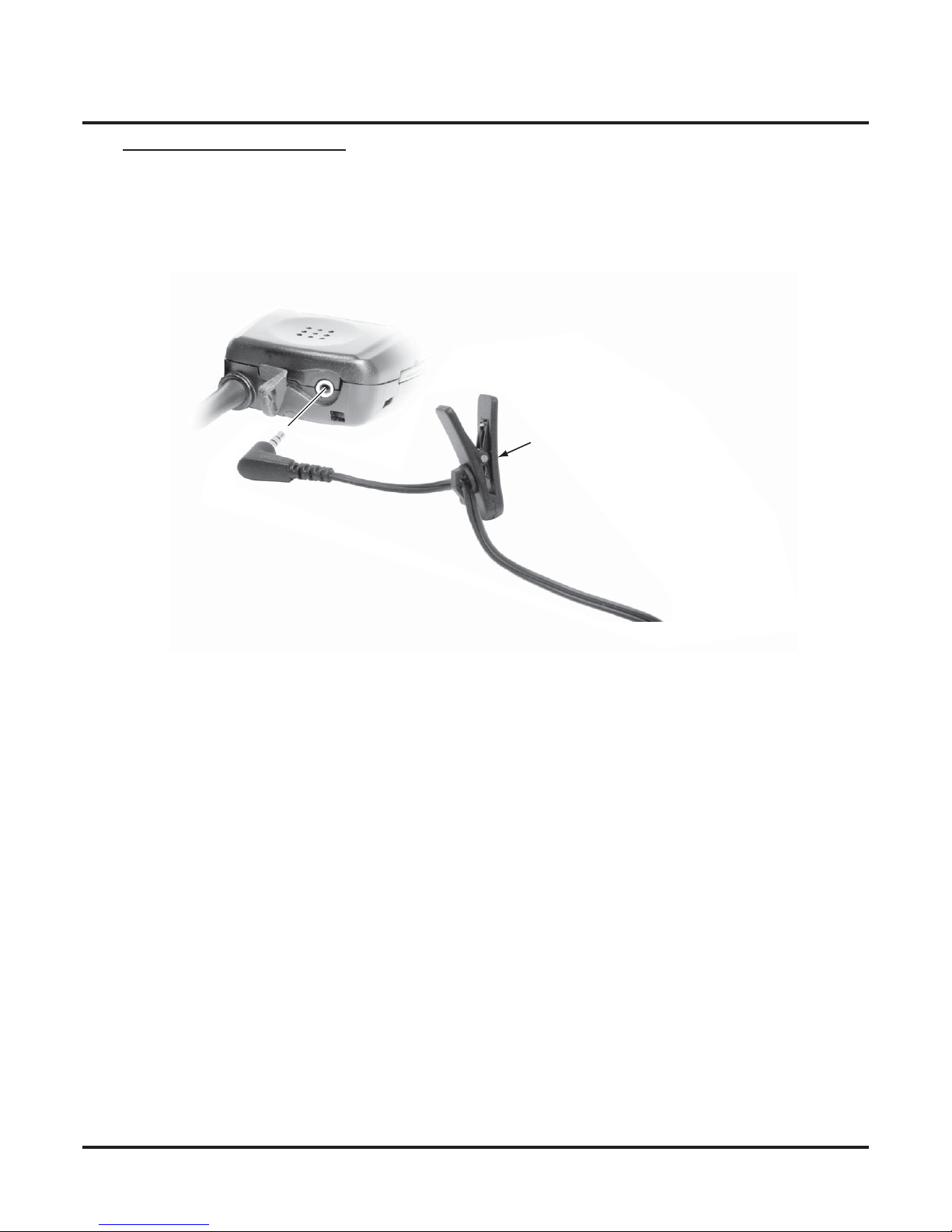

Connecting the Headset and Using the Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing Headset P/N 750637 (M175 Headband Style) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Optional Earloop Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connecting the Headset and using the Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Chapter 2: Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Feature Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Barge In. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Call Coverage Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Call Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Call Forwarding Off Premises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Call Waiting / Camp On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Callback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Central Office Calls, Answering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Central Office Calls, Placing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Conference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Directed Call Pickup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Distinctive Ringing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Do Not Disturb Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Extension Hunting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Feature Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Forced Line Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Group Call Pickup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Group Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table of Contents
ii ◆ Table of Contents
DSX Cordless Lite IITelephone User Guide
Hold. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Hotline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Intercom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Last Number Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Line Queuing and Callback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Meet-Me Conference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Message Waiting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Microphone Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Monitor / Silent Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Night Service / Night Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Off-Hook Signaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Prime Line Preference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Privacy Release Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Removing Lines and Extensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Ringing Line Preference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Save Number Dialed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Speed Dial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Split. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Tandem Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Voice Over . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Feature Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
DSX Cordless Lite II Telephone Feature Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Introduction
DSX Cordless Lite IITelephone User Guide Chapter 1: Installation ◆ 1
1
Chapter 1:
Installation
Introduction
DSX Cordless Lite II Telephone
DSX Cordless Lite II 900 Mhz Cordless Telephone
Overview
The DSX Cordless Lite II Telephone (P/N 730087) is a 900 Mhz digital narrow band
FM cordless telephone that provides mobility, flexibility and convenience for those who
spend much of the workday away from their desk. Fully integrated with the DSX sys-
tem, the DSX Cordless Lite II Telephone offers many standard features such as Call For-
warding, Call Coverage, Hotline, and Voice Mail. Complemented by 4 fully
programmable function keys (with LEDs), the DSX Cordless Lite II Telephone achieves
a whole new level of convenience and mobility. An easy-to-read 16-character by 2-line
LCD display (with four status icons), volume controls, a rechargeable Nickel Metal
Hydride Battery Pack, and a handy belt clip round out the elegant and affordable DSX
Cordless Lite II Telephone.
The DSX Cordless Lite II Telephone auto-IDs in 2101-01: Station Type with circuit type
08. No additional programming is required.
Programming
None.

The Basics
Basic Operation
2 ◆ Chapter 1: Installation
DSX Cordless Lite IITelephone User Guide
The Basics
Basic Operation
Using the Basic Features
Answering Calls
❥ Outside calls: Ring with 2 short rings followed by a long ring.
❥ Intercom calls: Ring with 1 long ring.
❥ To answer a call: Press TALK or the flashing line key.
- If your handset is in the charger, lifting the handset answers the incoming call.
Placing Calls
❥
Intercom calls : Press TALK + Dial co-worker’s extension or *8 for Voice Mail.
❥
Outside calls: Press TALK + Dial line access code + Dial outside number, or
Press line key + Dial outside number
Hanging Up
❥ Press TALK or place the handset in the charger.
Changing Channels
If the installation site has more than one DSX Cordless Lite II Telephone, set up each telephone to operate
on its own channel.
❥
While on a call, press CH .
- The TALK icon flashes briefly while the handset changes channels. There are 30 channels max.
- If you select a channel that is already in use, you see SYSTEM BUSY .
Standby Mode
❥ When the handset is out of the charger, it will go into Standby Mode after about 5 minutes. Standby
mode blanks the display to conserve power.
❥ Placing or answering a call automatically cancels Standby Mode.
Traveling Out Of Range
❥
If you try to place a call while out of range (beyond the range of your handset):
- ACQUIRING LINK flashes in your display.
- You hear five quick beeps.
- NO SERVICE flashes in your display.
❥
If you travel out of range while on a call:
- You hear five quick beeps.
- Your handset goes into standby mode.
- The call disconnects.
Using the Base
Cordless and Desk Buttons
❥ While idle at your cordless handset : Press Desk to switch your extension to your desk keyset.
❥ While idle at your desk keyset : Press Cordless to switch your extension to your cordless handset.
❥ If you press Desk or Cordless to switch telephones while on a call, the active call will ring the cordless
or keyset as soon as the telephone activates.
Low Battery
If the LOW icon displays:
❥
If on a call, press TALK to hang up as soon as possible so your call is not interrupted.
❥
Recharge or replace the battery before placing or answering another call.

The Basics
Basic Operation
DSX Cordless Lite IITelephone User Guide Chapter 1: Installation ◆ 3
1
Using Your Cordless Telephone
Figure 1: Using Your Cordless Telephone
Voice Mail
On if you have
a Voice Mail message
or Message Waiting.
Dial *8 to respond
Battery
On when
battery is low
Ringer
On when ring is turned off
Talk
Off while idle
On while on a call
Flashes while
microphone muted
Headset jack
While idle, Press TALK
for Intercom dial tone
While busy, press
TALK to hang up
Hold
Press HOLD to put
your call on hold
Talk
Last Number Redial
Press REDIAL to
redial your last call
While idle, press
to select ring type
or vibrate
While on a call, press to mute
microphone
While idle, press and hold
5 seconds to turn ringer on or off
Ring Volume
Ring On/Off Mute
TRANSFER + Extension number
transfers call to a co-worker
TRANSFER + 700 transfers
call to Voice Mail
Transfer
Press CH to change channels
if you hear interference
30 separate channels
Channel
Line keys 1-4 by default
Can optionally be
programmed for
other features
Feature keys
Conference
While on a call,
press CONF to set up
a conference
Microphone
Picks up your voice
Line1 Line2 Line3 Line4
2-line, 16
character display
Note: ACQUIRING LINK
means your handset
is setting up a
connection
with the base
While on a call, press
to change handset
receiving volume
1093092 - 1
Press to switch to the
cordless telephone
Press to switch to the
connected DSX keyset
While idle
Important
If you press Desk or Cordless to switch
telephones while on a call, the active call
will ring the cordless or keyset as
soon as the telephone activates.

Installation
Installing the Base
4 ◆ Chapter 1: Installation
DSX Cordless Lite IITelephone User Guide
Installation
Installing the Base
Connecting the Base
To connect the base to the DSX system (Figure 2: Installing the Base) :
1. Install a modular jack within 6 feet of the base and within 6 feet of an available standard (NEMA 5-15R)
120 VAC outlet.
2. Run a single pair of 24 AWG station cable from an available 16ESIU PCB digital station port on a sta-
tion block to the modular jack.
3. Terminate the station cable WHT/BLU - BLU/WHT leads to the RED and GRN lugs on the modular jack.
4. Plug one end of a modular line cord into the base LINE IN jack; plug the other end of the line cord into
the modular jack.
5. (Optional) Plug an accompanying DSX keyset into the LINE OUT jack in the base.
- While the keyset and the cordless handset are idle, you can press Cordless and Desk on the base
to activate either phone (and deactivate the other).
To connect the AC Adaptor to the base:
1. Run the AC adaptor cord under the strain relief on the back of the base as shown.
2. Plug the AC adaptor into AC outlet.
3. Be sure the base antenna is in the vertical position.
Checking the Base LEDs
Normal Operation when the cordless handset is operational
❥
When the cordless handset is operational, the Power and Cordless LEDs are on.
❥
When the keyset is operational, the Power and Desk LEDs are on.
Troubleshooting
❥
If the Power LED is off, the base power supply is not properly connected.
Be sure to review Guidelines for Placing the Base, Figure 3: Correct Installation Methods, and Figure 4:
Incorrect Installation Methods prior to connecting the base unit to the system.
Guidelines for Placing the Base
1. For best results, the base unit should be placed in line-of-site with its handset.
2. Cordless telephone range and reception can vary from site to site. Some of the things that may
adversely affect range and reception are:
• Placing the base against or close to a wall (particularly if the wall has metal studs).
• Positioning the base close to a device that emits Electromagnetic Interference (EMI), such as a TV,
radio, computer, fluorescent light, fax machine, or printer.
• Installing the base close to other 900 Mhz devices, such as Symbol or Telex hand-held inventory
devices.
• Installing the base above a ceiling that uses foil-backed insulation.
• Installing the base behind a door which can be closed, tinted windows, or one-way glass which will
separate the base from the handset.
3. Always raise the base unit antenna to its full vertical position.
4. When installing more than one cordless in the same site:
• Be sure the base units are at least 15 feet apart.
5. After installation, change each telephone’s channel by pressing CH on the handset. This will minimize
interference between your cordless telephones.

Installation
Installing the Base
DSX Cordless Lite IITelephone User Guide Chapter 1: Installation ◆5
1
Figure 2: Installing the Base
625
Modular
Jack
BLK
YEL
RED GRN
BLU-WHT WHT-BLU
Station
Block
1093092 - 2
AC Adaptor
DSX Digital Keyset Jack
Line in
Line
out
(Optional) Line out
to DSX Keyset
DSX
16ESIU
PCB

Installation
Installing the Base
6◆Chapter 1: Installation DSX Cordless Lite IITelephone User Guide
Figure 3: Correct Installation Methods
Figure 4: Incorrect Installation Methods
80683 - 7
Correct line-of-site installation, away
from devices that cause interference or
locations that block signal.
80683 - 6
Too close to another
device that emits EMI
Too close to other
900 Mhz devices
Metal studs
Foil backed insulated ceiling
Behind a door that
can be closed, tinted windows
or one way glass

Installation
Wall-Mounting the Base
DSX Cordless Lite IITelephone User Guide Chapter 1: Installation ◆7
1
Wall-Mounting the Base
Mounting the Base on the Wall
To mount the base on the wall (Figure 5: Mounting the Base on the Wall):
1. Run the base line cord in the wide wire channel as shown, but do not plug it into the base.
2. Run the AC adaptor cord in the narrow wire channel as shown, but do not plug it into the base.
3. Using suitable fasteners, attach the wall-mount bracket to the wall in the desired location.
- To make the base easier to remove later on, consider not tightening the fasteners all the way.
4. Snap the base onto the wall-mount bracket.
- Make sure the mounting ears fit all the way into their slots and the mounting tabs snap into place.
5. Connect the base line cord and AC adaptor cord to the base.
Figure 5: Mounting the Base on the Wall
To remove the base from the wall:
- If you did not tighten the fasteners, you can slide the base off the wall before going to the next step.
1. Unplug the line cord and AC adaptor cord from the base.
2. Press the mounting tabs to release the wall-mount bracket from the base.
Wall
1093092 - 7
AC adaptor cord
in narrow channel
Mounting tab
Mounting ear
Line cord
in wide
channel
(Optional) Line out to
DSX Keyset

Installation
Wall-Mounting the Base
8◆Chapter 1: Installation DSX Cordless Lite IITelephone User Guide
Mounting the Base to a Wall Plate
To mount the base on a standard wall plate (Figure 6: Mounting the Base to a Standard Wall Plate):
1. Snap the base onto the wall-mount bracket.
- Make sure the mounting ears fit all the way into their slots and the mounting tabs snap into place.
2. Run a customer-provided short line cord in the wide wire channel as shown and plug it into the base.
3. Run the AC adaptor cord in the narrow wire channel as shown and plug it into the base.
4. Plug the other end of the short line cord into the wall plate modular jack.
5. Slide the wall-mount bracket onto the wall plate.
Figure 6: Mounting the Base to a Standard Wall Plate
To remove the base from the wall:
1. Slide the wall-mount bracket off of the wall plate.
2. Unplug the short line cord from the wall plate.
3. Unplug the short line cord and AC adaptor cord from the base.
4. Press the mounting tabs to release the wall-mount bracket from the base.
Wall
Wall Plate
AC adaptor cord
in narrow channel
Mounting tab
Line cord
in wide
channel
Mounting ear
1093092 - 6
(Optional) Line out to
DSX Keyset

Installation
Installing the Battery
DSX Cordless Lite IITelephone User Guide Chapter 1: Installation ◆9
1
Installing the Battery
Installing the Battery in your Handset
To install the battery in your handset (Figure 7: Installing the Handset Battery):
1. Slide the battery cover off of the handset.
2. Insert the battery lead into the battery connector. Be sure to observe the polarity of the connection by lin-
ing up the black dot with the black wire.
3. Turn the battery around so it fits into the battery compartment.
4. Slide the battery cover back onto the handset until it snaps into place.
Figure 7: Installing the Handset Battery
80683 - 2
White wire
Red
wire
Black wire
After inserting jack,
turn battery to fit into
battery compartment

Installation
Charging the Handset
10 ◆Chapter 1: Installation DSX Cordless Lite IITelephone User Guide
Charging the Handset
Installing the Charger and Charging the Handset
To connect the AC Adaptor to the charger (Figure 8: Installing the Charger):
1. Run the AC adaptor cord under the strain relief on the back of the charger as shown.
2. Plug the AC adaptor cord into the charger.
3. Plug the AC adaptor into AC outlet.
4. Insert the handset into the charger.
- When the handset is correctly inserted into the charger, the CHARGE LED on the charger is on.
Figure 8: Installing the Charger
Cleaning the Battery Charger Contacts
To clean the battery charger contacts (Figure 9: Cleaning the Battery Charger Contacts):
1. Use a pencil eraser or soft cloth to periodically (once a month) clean the battery contacts.
Figure 9: Cleaning the Battery Charger Contacts
The handset must charge 5-8 hours in its charger prior to initial use.
80683 - 4
AC Adaptor
Strain Relief

Installation
Charging the Handset
DSX Cordless Lite IITelephone User Guide Chapter 1: Installation ◆11
1
Wall-Mounting the Charger
To wall-mount the charger (Figure 10: Wall-Mounting the Charger):
1. Choose a suitable location for the charger wall-mount bracket within 6 feet of an AC outlet.
2. Install suitable fasteners 1 3/16” apart, leaving the heads out about 1/4”.
3. Run the AC adaptor cord through the notch in the bottom of the wall-mount bracket and up through the
rectangular cutout in the bracket.
4. Place the wall-mount bracket on the fasteners and tighten.
5. Run the AC adaptor cord through the strain relief on the back of the charger, then plug the cord into the
charger.
6. Snap the charger onto the wall-mount bracket.
7. Plug the AC adaptor into the AC outlet.
Figure 10: Wall-Mounting the Charger
80683 - 13
1-3/16"
Wall
80683 - 11
Wall

Installation
Using the Belt Clip
12 ◆Chapter 1: Installation DSX Cordless Lite IITelephone User Guide
Using the Belt Clip
Installing the Belt Clip
To install the belt clip (Figure 11: Installing the Belt Clip):
1. With the open end of the clip facing away from the antenna, snap the belt clip onto the handset.
Figure 11: Installing the Belt Clip
To remove the belt clip (Figure 12: Removing the Belt Clip):
1. Gently pry the belt clip prongs out of the slots in the handset.
Figure 12: Removing the Belt Clip
80683 - 8
Snap prongs into slots
80683 - 9
Snap prongs into slots
on other side
80683 - 10
Pry prongs up from slots

Installation
Using the Earloop Style Headset with your Cordless Telephone
DSX Cordless Lite IITelephone User Guide Chapter 1: Installation ◆13
1
Using the Earloop StyleHeadset with your CordlessTelephone
Installing Headset P/N 750642 (MX150 Earloop Style)
Figure 13: Headset P/N 750642 (MX150 Earloop Style)
Ear Cushion Installation
To install the ear cushion (Figure 14: Installing the Ear Cushion):
1. Pull the ear cushion over the earpiece.
Figure 14: Installing the Ear Cushion
1093092 - 5
Ear cushion
Pull over
earpiece

Installation
Using the Earloop Style Headset with your Cordless Telephone
14 ◆Chapter 1: Installation DSX Cordless Lite IITelephone User Guide
Connecting the Headset and Using the Controls
To connect the headset and use the controls (Figure 15: Connecting the Headset):
1. Plug the headset into the Headset Jack on the top of the handset.
2. Clip the Belt/Lapel Clip to your belt or lapel to secure the headset cord.
Figure 15: Connecting the Headset
1093092 - 3
Belt/lapel clip

Installation
Using the Headband Style Headset with your Cordless Telephone
DSX Cordless Lite IITelephone User Guide Chapter 1: Installation ◆15
1
Using the Headband Style Headset with your CordlessTelephone
Installing Headset P/N 750637 (M175 Headband Style)
Figure 16: Headset P/N 750637 (M175 Headband Style)
Optional Earloop Installation
To install the optional earloop:
1. Snap the head band out of the ear piece.
Figure 17: Installing the Optional Earloop
80683 - 19

Installation
Using the Headband Style Headset with your Cordless Telephone
16 ◆Chapter 1: Installation DSX Cordless Lite IITelephone User Guide
2. Remove the ear cushion.
Figure 18: Removing the Ear Cushion
3. Snap on the earloop ring. (Make sure the earloop ring lies flat against the microphone boom as shown.)
Figure 19: Snapping on the Earloop Ring
4. Insert the earloop into the earloop ring. (Installation for the right ear is shown. For the left ear, insert the
earloop from underneath the earloop ring.)
Figure 20: Inserting the Earloop into the Earloop Ring
80683 - 20
80683 - 21
80683 - 22
