NEC Univerge SV9100 Quick start guide

Configuration Note
AudioCodes Professional Services - Interoperability Lab
Connecting SV9100 IP-PBX to BroadCloud SIP
Trunk using AudioCodes Mediant™ E-SBC
Version 7.0

Configuration Note Contents
Version 7.0 3 AudioCodes Mediant E-SBC
Table of Contents
1Introduction .........................................................................................................7
1.1 Intended Audience .................................................................................................7
1.2 About AudioCodes E-SBC Product Series..............................................................7
2Component Information......................................................................................9
2.1 IP-PBX Version ......................................................................................................9
2.2 AudioCodes E-SBC Version...................................................................................9
2.3 BroadCloud SIP Trunking Version.........................................................................9
2.4 Interoperability Test Topology ..............................................................................10
2.4.1 Environment Setup..................................................................................................11
2.4.2 Known Limitations....................................................................................................11
3Configuring NEC SV9100 IP-PBX.....................................................................13
3.1 Basic Configuration Parameters...........................................................................13
4Configuring AudioCodes E-SBC......................................................................23
4.1 Step 1: IP Network Interfaces Configuration.........................................................24
4.1.1 Step 1a: Configure VLANs.......................................................................................25
4.1.2 Step 1b: Configure Network Interfaces....................................................................25
4.2 Step 2: Enable the SBC Application .....................................................................27
4.3 Step 3: Configure Media Realms..........................................................................28
4.4 Step 4: Configure SIP Signaling Interfaces...........................................................30
4.5 Step 5: Configure Proxy Sets ...............................................................................32
4.6 Step 6: Configure IP Profiles ................................................................................36
4.7 Step 7: Configure IP Groups.................................................................................42
4.8 Step 8: Configure IP-to-IP Call Routing Rules ......................................................44
4.9 Step 9: Configure IP-to-IP Manipulation Rules......................................................51
4.10 Step 10: Configure Message Manipulation Rules .................................................54
4.11 Step 11: Configure Registration Accounts............................................................60
4.12 Step 12: Miscellaneous Configuration...................................................................61
4.12.1 Step 12a: Configure SBC Alternative Routing Reasons .........................................61
4.13 Step 13: Reset the E-SBC....................................................................................62
AAudioCodes INI File ..........................................................................................63

AudioCodes Mediant E-SBC 4 Document #: LTRT-12490
SV9100 IP-PBX & BroadCloud SIP Trunk
This page is intentionally left blank.

Configuration Note Notices
Version 7.0 5 AudioCodes Mediant E-SBC
Notice
This document describes how to connect the IP-PBX and BroadCloud SIP Trunk using
AudioCodes Mediant E-SBC product series.
Information contained in this document is believed to be accurate and reliable at the time of
printing. However, due to ongoing product improvements and revisions, AudioCodes cannot
guarantee accuracy of printed material after the Date Published, nor can it accept
responsibility for errors or omissions. Updates to this document and other documents as well
as software files can be viewed by registered customers at
http://www.audiocodes.com/downloads.
© Copyright 2015 AudioCodes Ltd. All rights reserved.
This document is subject to change without notice.
Date Published: November-08-2015
Trademarks
AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s
Inside Matters, OSN, SmartTAP, VMAS, VoIPerfect, VoIPerfectHD, Your Gateway To
VoIP, 3GX, VocaNOM and One Box 365 are trademarks or registered trademarks of
AudioCodes Limited All other products or trademarks are property of their respective
owners. Product specifications are subject to change without notice.
WEEE EU Directive
Pursuant to the WEEE EU Directive, electronic and electrical waste must not be disposed
of with unsorted waste. Please contact your local recycling authority for disposal of this
product.
Customer Support
Customer technical support and services are provided by AudioCodes or by an authorized
AudioCodes Service Partner. For more information on how to buy technical support for
AudioCodes products and for contact information, please visit our Web site at
www.audiocodes.com/support.

AudioCodes Mediant E-SBC 6 Document #: LTRT-12490
SV9100 IP-PBX & BroadCloud SIP Trunk
Document Revision Record
LTRT Description
12490 Initial document release for Version 7.0.
Documentation Feedback
AudioCodes continually strives to produce high quality documentation. If you have any
comments (suggestions or errors) regarding this document, please fill out the
Documentation Feedback form on our Web site at http://www.audiocodes.com/downloads.

Configuration Note 1. Introduction
Version 7.0 7 AudioCodes Mediant E-SBC
1 Introduction
This Configuration Note describes how to set up AudioCodes Enterprise Session Border
Controller (hereafter, referred to as E-SBC) for interworking between BroadCloud's SIP
Trunk and IP-PBX environment.
1.1 Intended Audience
The document is intended for engineers, or AudioCodes and BroadCloud Partners who
are responsible for installing and configuring BroadCloud's SIP Trunk and IP-PBX for
enabling VoIP calls using AudioCodes E-SBC.
1.2 About AudioCodes E-SBC Product Series
AudioCodes' family of E-SBC devices enables reliable connectivity and security between
the Enterprise's and the service provider's VoIP networks.
The E-SBC provides perimeter defense as a way of protecting Enterprises from malicious
VoIP attacks; mediation for allowing the connection of any PBX and/or IP-PBX to any
service provider; and Service Assurance for service quality and manageability.
Designed as a cost-effective appliance, the E-SBC is based on field-proven VoIP and
network services with a native host processor, allowing the creation of purpose-built
multiservice appliances, providing smooth connectivity to cloud services, with integrated
quality of service, SLA monitoring, security and manageability. The native implementation
of SBC provides a host of additional capabilities that are not possible with standalone SBC
appliances such as VoIP mediation, PSTN access survivability, and third-party value-
added services applications. This enables Enterprises to utilize the advantages of
converged networks and eliminate the need for standalone appliances.
AudioCodes E-SBC is available as an integrated solution running on top of its field-proven
Mediant Media Gateway and Multi-Service Business Router platforms, or as a software-
only solution for deployment with third-party hardware.

AudioCodes Mediant E-SBC 8 Document #: LTRT-12490
SV9100 IP-PBX & BroadCloud SIP Trunk
This page is intentionally left blank.

Configuration Note 2. Component Information
Version 7.0 9 AudioCodes Mediant E-SBC
2 Component Information
2.1 IP-PBX Version
Table 2-1: IP-PBX Version
Vendor NEC
Model SV9100
Software Version
Protocol SIP/UDP
Additional Notes None
2.2 AudioCodes E-SBC Version
Table 2-2: AudioCodes E-SBC Version
SBC Vendor AudioCodes
Models Mediant 500 E-SBC
Mediant 800 Gateway & E-SBC
Mediant 1000B Gateway & E-SBC
Mediant 3000 Gateway & E-SBC
Mediant 2600 E-SBC
Mediant 4000 E-SBC
Software Version SIP_F7.00A.035.012
Protocol SIP/UDP (to the both BroadCloud SIP Trunk and IP-PBX)
Additional Notes None
2.3 BroadCloud SIP Trunking Version
Table 2-3: BroadCloud Version
Vendor/Service Provider BroadCloud
SSW Model/Service BroadWorks
Software Version 21
Protocol SIP/UDP
Additional Notes None

AudioCodes Mediant E-SBC 10 Document #: LTRT-12490
SV9100 IP-PBX & BroadCloud SIP Trunk
2.4 Interoperability Test Topology
The interoperability testing between AudioCodes E-SBC and BroadCloud SIP Trunk with
IP-PBX was done using the following topology setup:

Enterprise deployed with IP-PBX in its private network for enhanced communication
within the Enterprise.

Enterprise wishes to offer its employees enterprise-voice capabilities and to connect
the Enterprise to the PSTN network using BroadCloud's SIP Trunking service.

AudioCodes E-SBC is implemented to interconnect between the Enterprise LAN and
the SIP Trunk.
•Session:Real-time voice session using the IP-based Session Initiation Protocol
(SIP).
•Border:IP-to-IP network border between IP-PBX network in the Enterprise LAN
and BroadCloud's SIP Trunk located in the public network.

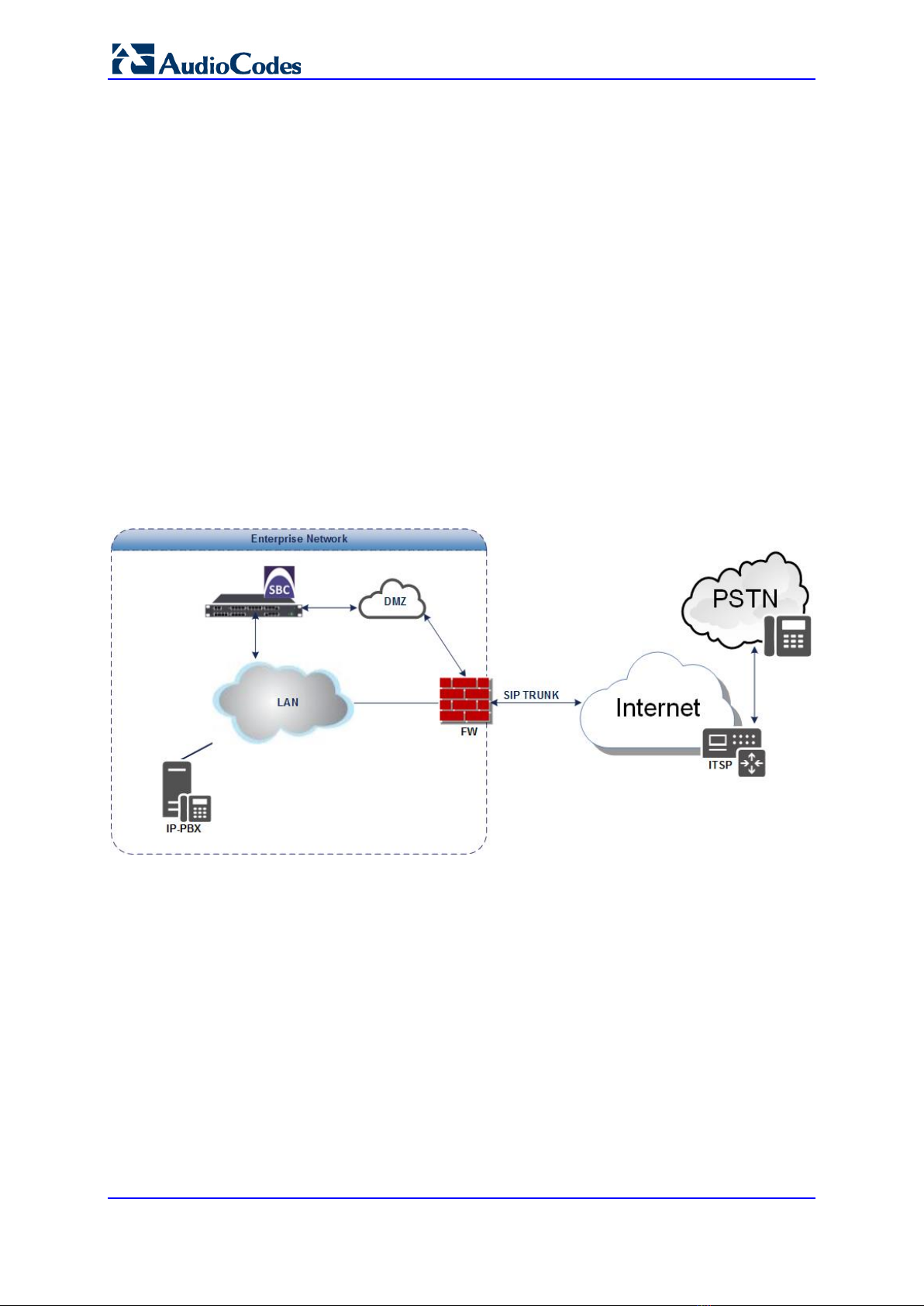

The figure below illustrates this interoperability test topology:
Figure 2-1: Interoperability Test Topology between E-SBC and IP-PBX with BroadCloud SIP
Trunk

Configuration Note 2. Component Information
Version 7.0 11 AudioCodes Mediant E-SBC
2.4.1 Environment Setup
The interoperability test topology includes the following environment setup:
Table 2-4: Environment Setup
Area Setup
Network IP-PBX is located on the Enterprise's LAN
BroadCloud SIP Trunk is located on the WAN
Signaling
Transcoding
IP-PBX operates with SIP-over-UDP transport type
BroadCloud SIP Trunk operates with SIP-over-UDP transport
type
Codecs
Transcoding
IP-PBX supports G.711A-law, G.711U-law, and G.729 coder
BroadCloud SIP Trunk supports G.711A-law, G.711U-law, and
G.729 coder
Media Transcoding IP-PBX operates with RTP media type
BroadCloud SIP Trunk operates with RTP media type
2.4.2 Known Limitations
There were no limitations observed in the interoperability tests done for the AudioCodes
E-SBC interworking between IP-PBX and BroadCloud 's SIP Trunk.

AudioCodes Mediant E-SBC 12 Document #: LTRT-12490
SV9100 IP-PBX & BroadCloud SIP Trunk
This page is intentionally left blank.

Configuration Note 3. Configuring NEC SV9100 IP-PBX
Version 7.0 13 AudioCodes Mediant E-SBC
3 Configuring NEC SV9100 IP-PBX
This chapter describes how to configure basic parameters of the NEC SV9100 IP-PBX to
operate with AudioCodes E-SBC.
Note: For more complicated configuration parameters please refer to User Manual of
each IP-PBX.
3.1 Basic Configuration Parameters
The figure below displays the main parameters which should be configured on the NEC
SV9100 IP-PBX to operate with the AudioCodes E-SBC.
Standard Trunk routing or ARS/F-Route can be used to select the SIP trunks for outgoing
calls.
DID/DDI Routing is used for incoming calls.
To configure NEC IP-PBX:
1. Connect to the NEC IP PBX Using the PCPro Configuration tool and download the
current configuration:

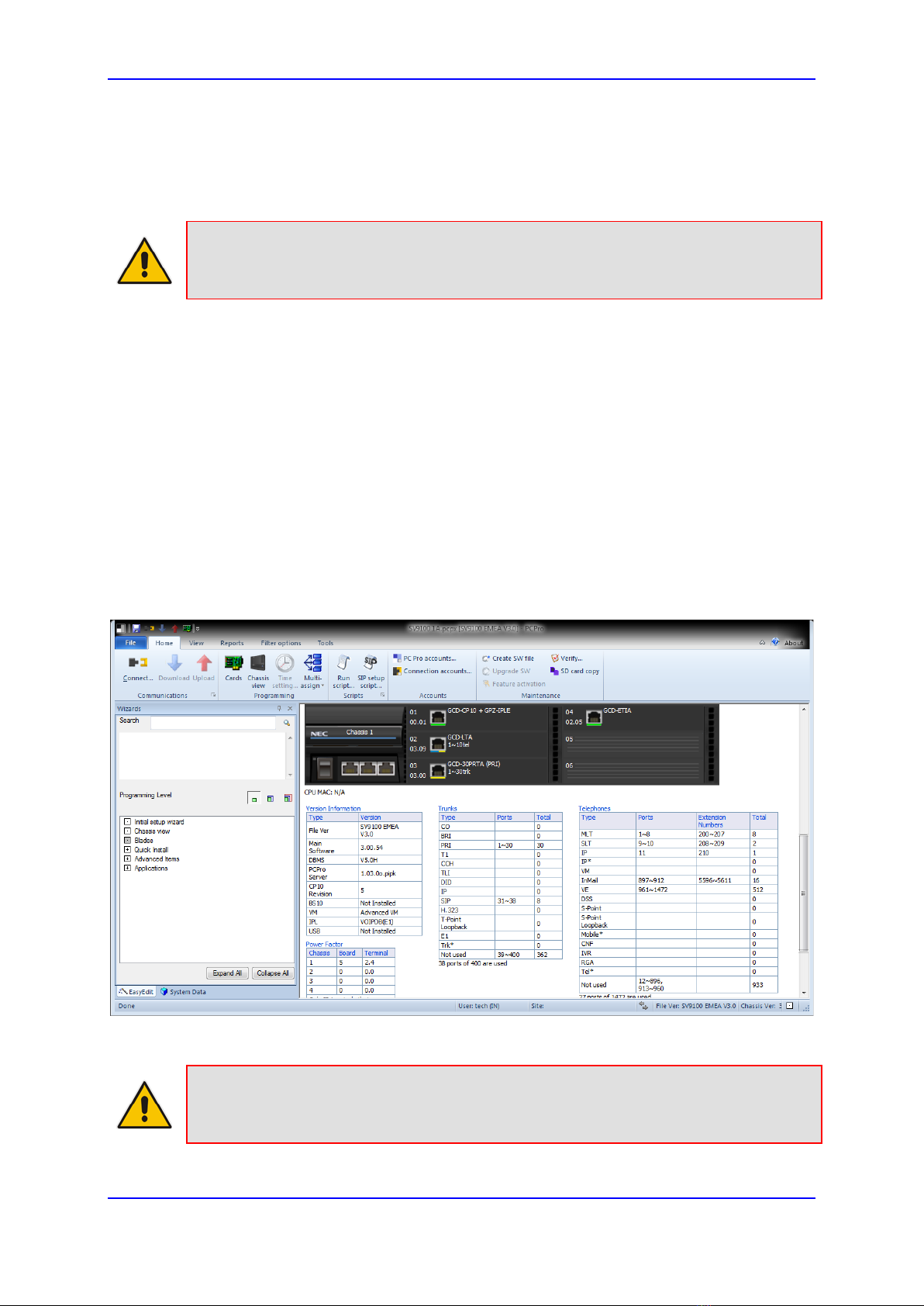

Figure 3-1: Blade configuration of NEC SV9100 viewed in PC Pro
Note: Save your current configuration file before proceeding.

AudioCodes Mediant E-SBC 14 Document #: LTRT-12490
SV9100 IP-PBX & BroadCloud SIP Trunk
2. Enable IP Trunk Availability in Easy Edit> Advanced Items> VoIP> Networking>
SIP Networking> SIP IP Trunk Assignment, define number of trunks available and
the required start trunk port:
Figure 3-2: Easy Edit> Advanced Items> VoIP> Networking> SIP Networking> SIP IP Trunk
Assignment
3. Enter your SIP profile details in Easy Edit> Advanced Items> VoIP> Networking>
SIP Networking> Profile 1> SIP Profile 1 – Networking Mode> SIP Profile 1 –
System Information Setup. Domain name and host name are defined by the
customer’s network. User ID is supplied with your BroadCloud account:
Figure 3-3: Easy Edit> Advanced Items> VoIP> Networking> SIP Networking> Profile 1> SIP
Profile 1 – Networking Mode> SIP Profile 1 – System Information Setup

Configuration Note 3. Configuring NEC SV9100 IP-PBX
Version 7.0 15 AudioCodes Mediant E-SBC
4. Verify the SIP Carrier Choice in programming command Easy Edit> Advanced
Items> VoIP> Networking> SIP Networking> Profile 1> SIP Profile 1 – Networking
Mode> SIP Profile 1 – Server Setup. The SIP Carrier Choice value should be set to
Default. Register mode should be set to None. UDP or TCP transport protocol can be
used. Enable 302 Return as the Call Forward Temporarily Moved method if required:
Figure 3-4: Easy Edit> Advanced Items> VoIP> Networking> SIP Networking> Profile 1> SIP
Profile 1 – Networking Mode> SIP Profile 1 – Server Setup

AudioCodes Mediant E-SBC 16 Document #: LTRT-12490
SV9100 IP-PBX & BroadCloud SIP Trunk
5. Modify SIP message with custom option 05 set to “Mode 2: Use P-Asserted-Identity
Header Using Caller Party Information” in Easy Edit> Advanced Items> VoIP>
Networking> SIP Networking> Profile 1> SIP Profile 1 – Trunk General Settings>
SIP Profile 1 – Trunk Message Customisation:
Figure 3-5: Easy Edit> Advanced Items> VoIP> Networking> SIP Networking> Profile 1> SIP
Profile 1 – Trunk General Settings> SIP Profile 1 – Trunk Message Customization

Configuration Note 3. Configuring NEC SV9100 IP-PBX
Version 7.0 17 AudioCodes Mediant E-SBC

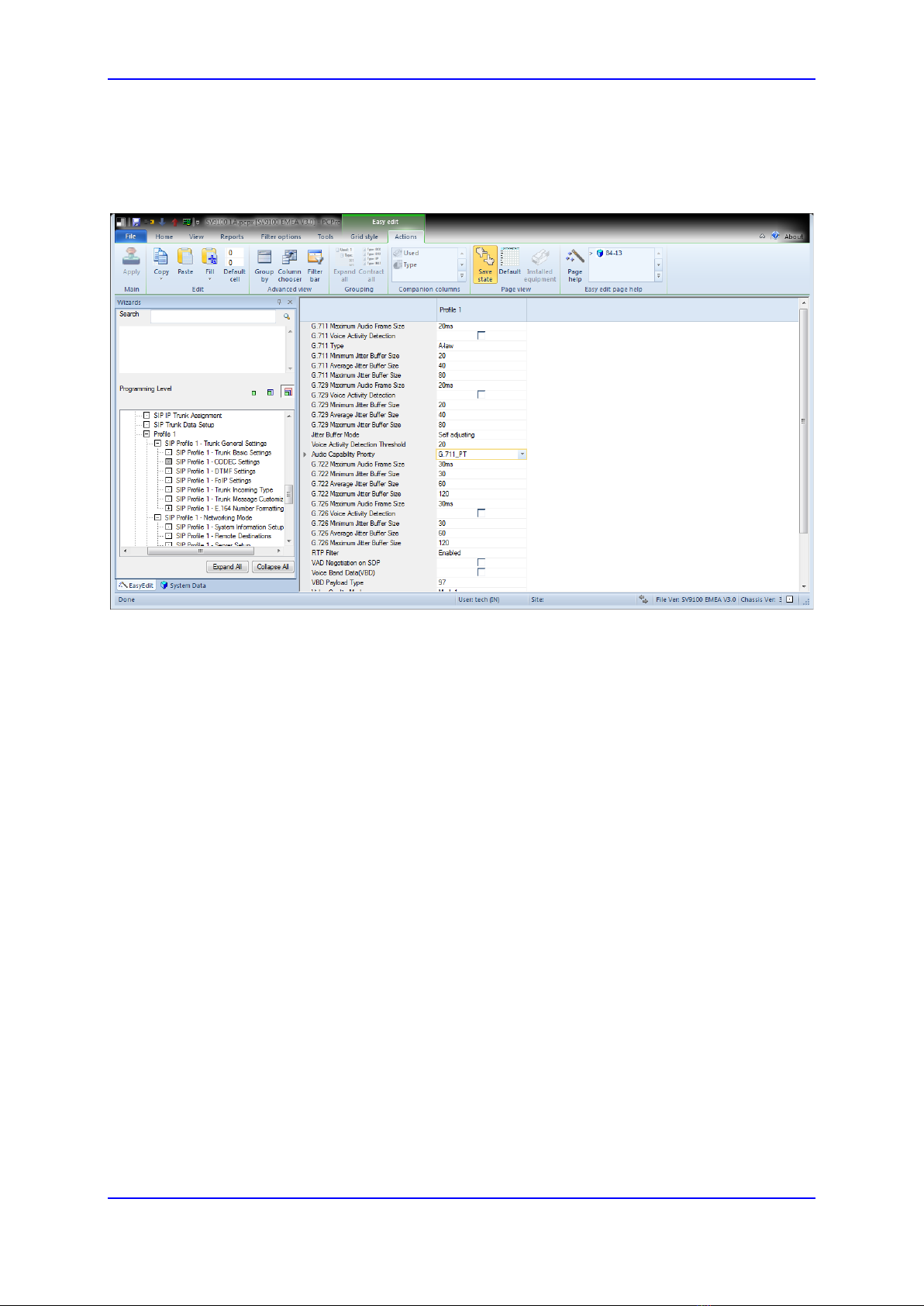

6. Set your codec preference in Easy Edit> Advanced Items> VoIP> Networking> SIP
Networking> Profile 1> SIP Profile 1 – Trunk General Settings> SIP Profile 1 –
CODEC Settings:
Figure 3-6: Easy Edit> Advanced Items> VoIP> Networking> SIP Networking> Profile 1> SIP
Profile 1 – Trunk General Settings> SIP Profile 1 – CODEC Settings

AudioCodes Mediant E-SBC 18 Document #: LTRT-12490
SV9100 IP-PBX & BroadCloud SIP Trunk

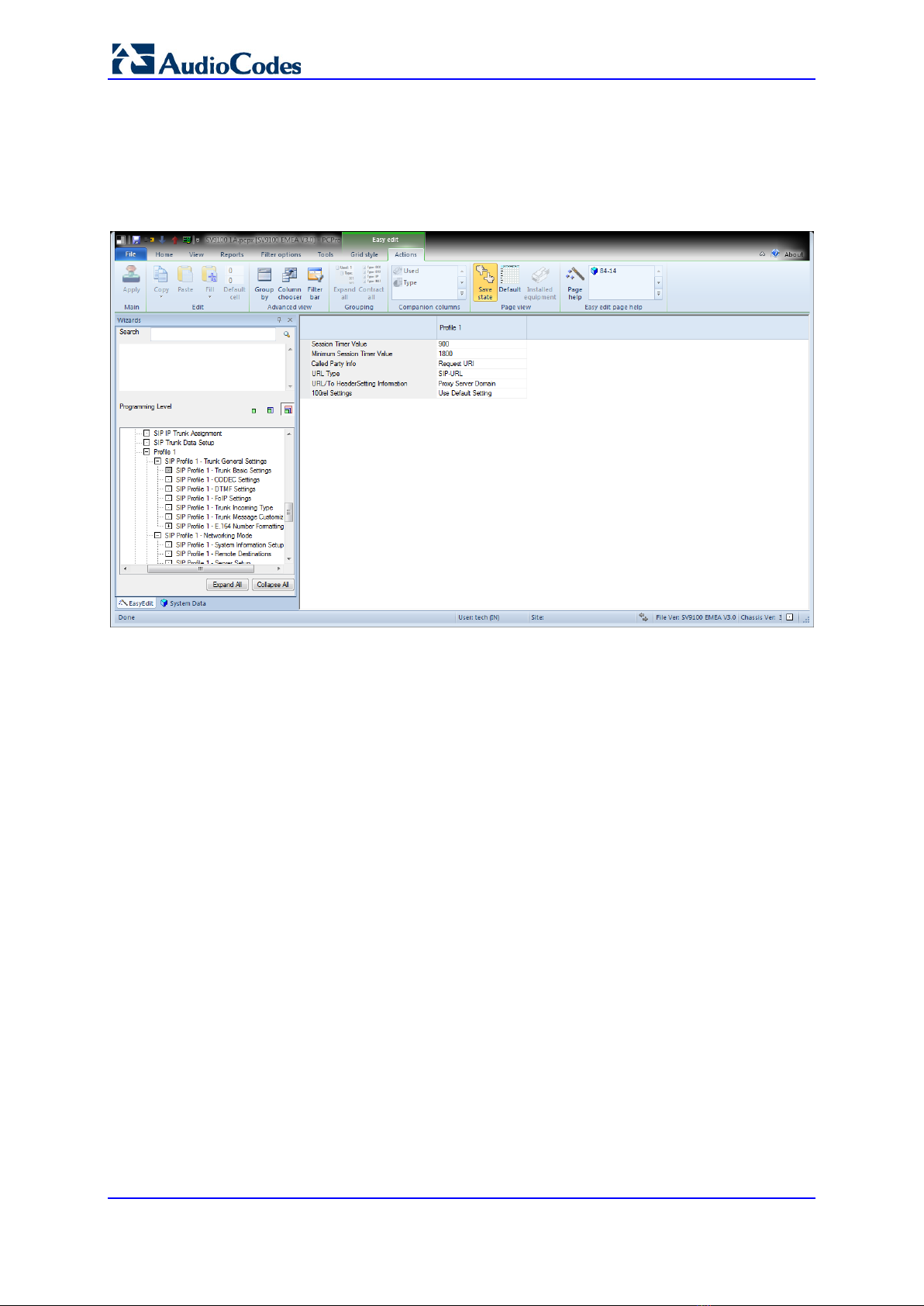

7. Ensure that the Session Timer Value is configured in Programming command Easy
Edit> Advanced Items> VoIP> Networking> SIP Networking> Profile 1> SIP
Profile 1 – Trunk General Settings> SIP Profile 1 – Trunk Basic Settings. Failure
to set this value may result in calls being disconnected after 60 minutes.
Figure 3-7: Easy Edit> Advanced Items> VoIP> Networking> SIP Networking> Profile 1> SIP
Profile 1 – Trunk General Settings> SIP Profile 1 – Trunk Basic Settings

Configuration Note 3. Configuring NEC SV9100 IP-PBX
Version 7.0 19 AudioCodes Mediant E-SBC
8. Route outgoing trunk digits to AudioCodes E-SBC in Programming command Easy
Edit> Advanced Items> VoIP> Networking> SIP Networking> Profile 1> SIP
Profile 1 – Networking Mode> SIP Profile 1 – Remote Destinations. The shown
configuration will route all dialed numbers to the SBC as dialed. IP address used is the
internal LAN interface of the E-SBC:
Figure 3-8: Easy Edit> Advanced Items> VoIP> Networking> SIP Networking> Profile 1> SIP
Profile 1 – Networking Mode> SIP Profile 1 – Remote Destinations
9. Optionally reduce the Enbloc inter-digit timer for outgoing calls in Programming
command Easy Edit> Timers:
Figure 3-9: Easy Edit> Timers

AudioCodes Mediant E-SBC 20 Document #: LTRT-12490
SV9100 IP-PBX & BroadCloud SIP Trunk

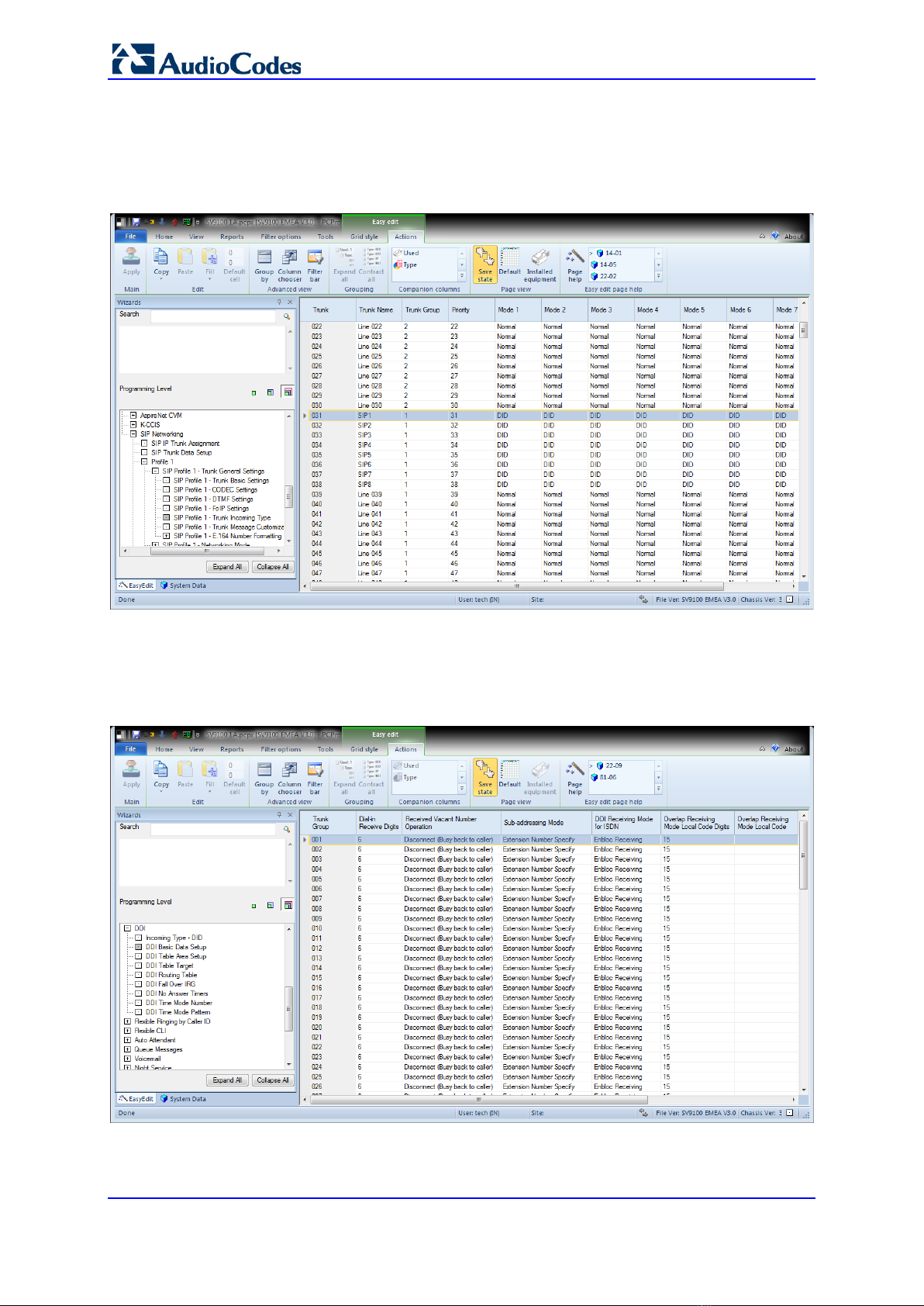

To route incoming calls via the DDI Translation tables configure the SIP trunks as DID types in
Programming command Easy Edit> Advanced Items> VoIP> Networking> SIP Networking>
Profile 1> SIP Profile 1 – Trunk General Settings> SIP Profile 1 – Trunk Incoming Type:
Figure 3-10: Easy Edit> Advanced Items> VoIP> Networking> SIP Networking> Profile 1> SIP
Profile 1 – Trunk General Settings> SIP Profile 1 – Trunk Incoming Type
10. Configure the number of received DID/DDI digits from the SIP carrier. In most cases
this can be configured as 6 digits, if more than 6 digits are received from the carrier,
the last 6 digits will be used for call routing:
Figure 3-11: Easy Edit> DDI> DDI Basic Data Setup
