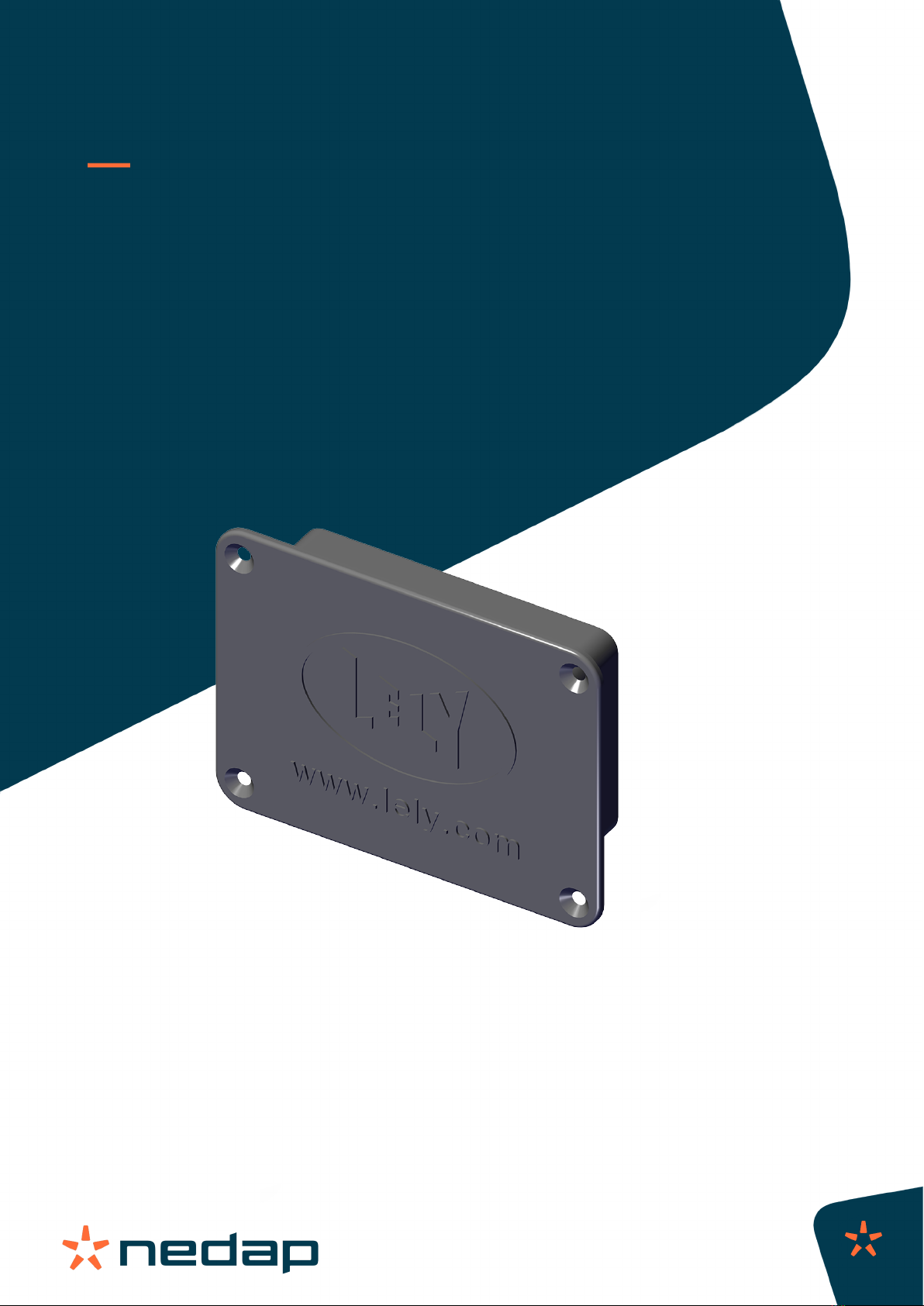

Nedap LELY User manual


Instruction Manual
VP1105-B
Safety Instructions
Version 01.000 / June 2020 / EN
Original instructions
Livestock Management

Copyright
Copyright © Nedap N.V. All rights reserved. The information in this document is subject to change without
notice, it is not to be reproduced in any way, in whole or in part, without the written consent of Nedap N.V. All
trademarks referenced belong to their respective owners.
Disclaimer
Nedap N.V. has made every effort to ensure the accuracy of the information contained in this document.
However, Nedap N.V. makes no representations or warranties whatsoever whether express or implied as
to the accuracy, correctness, completeness or fit-for-purpose or suitability for the purpose of this product.
You use the products at your own risk. Nedap N.V. excludes any liability to the maximum extent permitted by
applicable law for the damages caused by errors or failures made during the installation or improper use of
this product or by not applying the instructions stated in this document. Nedap N.V. reserves the right to make
improvements or amendments to this document and/or the products described therein at any time without any
notification. The latest version of this document can be found on the Nedap Livestock Management business
portal (www.nedap.com/livestockmanagement-portal). Please download the latest version of this document (by
yourself or reseller) and keep a copy for your own records. This document can be published in various languages
but only the English language version will prevail. Nedap N.V. assumes no responsibility for any errors caused for
the translations into another language.
Warranty and spare parts
Please consult the Nedap products dealer from whom you purchased this product, in regards to the applicable
warranty conditions. This product cannot be used for any other purpose as described in this document. If
the product is not installed according to this document; the warranty provided is not applicable. At the sole
discretion of Nedap N.V., Nedap N.V. may decide to change the conditions of the warranty policy. You agree
that Nedap N.V. is able to compensate you the pro-rata value of the warranty involved rather than replacing
or repairing the product depending on the technical or economical value of the product. Prior to applying the
warranty, please verify if you comply with the warranty conditions of the warranty policy, whether you can
successfully apply for the replacement or repair of a defective part. Parts can only be replaced with original
Nedap parts, otherwise the warranty policy will not be applicable on the product. If the warranty is applicable,
please contact the dealer or send the defective parts to the dealer.
Additional information
For any information or questions regarding the product, please contact your own dealer.
The installation manual for this product can be found at: www.nedap.com/livestockmanagement-portal

VP1105-B / Safety Instructions
Version 01.000 / June 2020 / EN
1
Livestock Management
1 Safety
Read this manual before using this product. Failure to follow the instructions and safety precautions in this
manual may result in serious injury or death. Keep this manual in a safe location for future reference.
Symbols used in the manual
Danger
Indicates a hazardous situation that, if not avoided, will result in death or serious
injury.
Warning
Indicates a hazardous situation that, if not avoided, could result in death or serious
injury.
Caution
Indicates a hazardous situation that, if not avoided, could result in minor or moderate
injury.
Indicates important information but not hazard related.
Suggestions and advice to perform certain tasks more easily.
General safety instructions
Warning
Always turn off the mains power supply when working on the electrical installation.
Warning
Always wear proper protection when installing and maintaining the VP1105-B.
Caution
Use the VP1105-B only with a suitable power supply. The power supply or power adapter must comply with
local regulations for a SELV, limited power (NEC class2, ps2) output (e.g. Nedap VP2001-B).
Caution
Installation and service should only be done by locally qualified personnel.
Caution
Install the system according to the local rules and regulations.
Working environment
Caution
The installation area must be free from any obstacles, including animals.

VP1105-B / Safety Instructions
Version 01.000 / June 2020 / EN
2
Livestock Management
Animal welfare and safety
The automated actions of the Nedap Livestock Management systems do never discharge the installer and the
user of the system from his/her responsibility to assure and to take care of the well-being of the animals.

VP1105-B / Safety Instructions
Version 01.000 / June 2020 / EN
3
Livestock Management
2 Technical specifications
VP1105-B
Item Specification
Dimensions (L x W x H) 190 x 140 x 45 mm (7.48 x 5.51 x 1.77 in.)
Weight 1.3 kg (2.87 lb)
Power supply The power supply or power adapter must comply with local
regulations for a SELV, limited power (NEC class2, ps2) output (e.g.
Nedap VP2001 or Nedap power adapter part no. 9223126).
Power supply input voltage 25 VDC, +20% -20%
Power consumption, maximum 3.5 W (normal antenna power)
7 W (Antenna Power Boost)
Input current Max. 350 mA
Cable length ca. 4 m (13.12 ft)
Operating temperature range -10 to 50 °C (14 to 122 °F)
Storage temperature range -20 to 70 °C (-4 to 158 °F)
Relative humidity < 93% (non-condensing) @ -20 to 70 °C (-4 to 158 °F)
Enclosure protection class IP67
Complies with ISO 11784 / 11785

Parallelweg 2
NL-7471 DCGroenlo
The Netherlands
3 Compliance
FCC/IC
This device complies with part 15 of the FCC Rules and to RSS of Industry Canada. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
Cet appareil se conforme aux normes RSS exemptés de license du Industry Canada. L'opération est soumis aux
deux conditions suivantes:(1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter
n'importe quelle interférence, y inclus interférence qui peut causer une operation non pas voulu de cet appareil.
Les changements ou modifications n'ayant pas été expressément approuvés par la partie responsable de la
conformité peuvent faire perdre à l'utilisateur l'autorisation de faire fonctionner le matériel.
FCC/ISED Radiation Exposure Statement
This equipment complies with FCC and Canadian radiation exposure limits set forth in RSS-102 for a controlled
environment. This equipment should be installed and operated with a minimum distance of 3.5 cm between
the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Cet équipement est conforme a RSS limites énoncées pour un environnement non contrôlé. Cet équipement doit
être installé et utilisé avec une distance minimale de 3,5 cm entre le radiateur et votre corps.
ISED EMC Declaration
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de Classe B est conforme à la norme Canadienne ICES-003.
Disposal
The WEEE symbol in Europe indicates that the relevant electrical product or battery should not be disposed
of as general household waste in Europe. To ensure the correct waste treatment of the product and battery,
please dispose them in accordance to any applicable local laws of requirement for disposal of electrical
equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of
environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic
Equipment Directive WEEE 2012/19/EU).
CE
Hereby NEDAP N.V. declares that the subject equipment is in compliance with the directives 2014/53/EU(Radio
Equipment Directive) and 2011/65/EU (restriction of the use of certain hazardous substances). The full text of
the EU declaration of conformity is available at our Business Portal: www.nedap.com/livestockmanagement-
portal.
