NETGEAR Smart Switch GS752TXS Manual

350 East Plumeria Drive
San Jose, CA 95134
USA
May 2011
202-10864-01
v1.0
GS752TXS Smart Switch
Hardware Installation Guide

2 |
GS752TXS Smart Switch Hardware Installation Guide
©2011 NETGEAR, Inc. All rights reserved
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form or by any means without the written permission of NETGEAR, Inc.
Technical Support
Thank you for choosing NETGEAR. To register your product, get the latest product updates, get support online, or
for more information about the topics covered in this manual, visit the Support website at
http://support.netgear.com .
Phone (US & Canada only): 1-888-NETGEAR
Phone (Other Countries): Check the list of phone numbers at
http://support.netgear.com/app/answers/detail/a_id/984
Trademarks
NETGEAR, the NETGEAR logo, ReadyNAS, ProSafe, ProSecure, Smart Wizard, Auto Uplink, X-RAID2, and
NeoTV are trademarks or registered trademarks of NETGEAR, Inc. Microsoft, Windows, Windows NT, and Vista
are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or
trademarks of their respective holders.
Statement of Conditions
To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes
to the products described in this document without notice. NETGEAR does not assume any liability that may occur
due to the use, or application of, the product(s) or circuit layout(s) described herein.
Revision History
Publication Part Number Version Publish Date Comments
202-10864-01 v1.0 May 2011 First publication

Contents |3
Table of Contents
Chapter 1 Introduction
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Stacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Chapter 2 Physical Description
GS752TXS Front-Panel and Back-Panel Configuration . . . . . . . . . . . . . . 12
LED Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Port LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
System LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Device Hardware Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
RJ-45 Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
SFP+ Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Factory Defaults Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Chapter 3 Applications
Desktop Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Backbone Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Chapter 4 Installation
Step 1: Preparing the Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Step 2: Installing the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Installing the Switch on a Flat Surface. . . . . . . . . . . . . . . . . . . . . . . . . . 21
Installing the Switch in a Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Step 3: Checking the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Step 4: Connecting Devices to the Switch. . . . . . . . . . . . . . . . . . . . . . . . . 22
Step 5: Installing an SFP Transceiver Module . . . . . . . . . . . . . . . . . . . . . 23
Step 6: Installing Device as Stand-alone or Stack Master. . . . . . . . . . . . . 24
Step 7: Applying AC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Step 8: Managing the Switch using a Web Browser or the PC Utility . . . . 26
Appendix A Troubleshooting
Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Additional Troubleshooting Suggestions . . . . . . . . . . . . . . . . . . . . . . . . . . 28

GS752TXS Smart Switch Hardware Installation Guide
4 | Contents
Network Adapter Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Switch Integrity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Auto-Negotiation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Appendix B Technical Specifications
Appendix C Notification of Compliance
Index

GS752TXS Smart Switch Hardware Installation Guide
Contents |5

Chapter 1. Introduction |6
1
1. Introduction
Congratulations on the purchase of your NETGEAR®ProSafeTM GS752TXS Smart Switch! Your
GS752TXS Smart Switch is a state-of-the-art, high-performance, IEEE-compliant network
solution designed for users who require a large number of ports and want the power of Gigabit
connectivity to eliminate bottlenecks, boost performance, and increase productivity. There are 48
twisted-paired ports on the front panel of the switch which support nonstop 10/100/1000
networks. The front panel also has four SFP+ ports that support 1000M and 10G optical modules
or up to two stacking modules. To simplify installation, the switch is shipped ready for use out of
the box.
The GS752TXS Smart Switch Hardware Installation Guide describes how to install and power on
the GS752TXS Smart Switch. The information in this manual is intended for readers with
intermediate computer and Internet skills.
This chapter serves as an introduction to the GS752TXS Smart Switch and provides the
following information:
• Overview
• Features
• Package Contents

Chapter 1. Introduction |7
GS752TXS Smart Switch Hardware Installation Guide
Overview
The NETGEAR GS752TXS Smart Switch provides 48 twisted-pair ports that support nonstop
10/100/1000M networks. The switch also has four built-in Enhanced Small Form Factor
Pluggable (SFP+) GBIC slots that support 1000M and 10G optical modules or up to two
stacking modules.
Using these Gigabit slots, you can create high-speed connections to a server or network
backbone. For example, you can:
• Connect switches to each other with high-speed links
• Link to high-speed servers
• Provide 10/100/1000M copper and 1000M/10G fiber connectivity
• Connect up to six switches in a stack to create a high-port-capacity solution with a single
point of administration
The NETGEAR GS752TXS Smart Switch also provides the benefit of administrative
management with a complete package of features for the observation, configuration, and
control of the network. With a Web-based Graphical User Interface (GUI), the switch’s many
capabilities can be viewed and used in a simple and intuitive manner. The switch’s
management features include configuration for port and switch information, VLAN for traffic
control, port trunking for increased bandwidth, and Class of Service (CoS) for traffic
prioritization. These features provide better understanding and control of the network. Initial
discovery of the switch on the network requires the Smart Control Center program, a utility
that runs on a PC.
The NETGEAR GS752TXS Smart Switch can be free standing, stacked with other switches,
or rack mounted in a wiring closet or equipment room. It is IEEE-compliant and offers low
latency for high-speed networking. All ports can automatically negotiate to the highest speed.
This capability makes the switch ideal for environments that have a mix of Ethernet, Fast
Ethernet, Gigabit Ethernet, or 10 Gigabit Ethernet devices. In addition, all RJ-45 ports
operate in half-duplex or full-duplex mode. The maximum segment length is 328 feet (100
meters) over Category 5 Unshielded Twisted-Pair (UTP) cable.
Features
The following list identifies the key features of the GS752TXS Smart Switch:
• Forty-eight 10/100/1000 Mbps auto-sensing Gigabit-Ethernet switching ports.
• Four dedicated 1000M/10G SFP+ fiber ports.
• Full NETGEAR Smart Switch functionality.
• Full compatibility with IEEE standards:
• IEEE 802.3i (10BASE-T)
• IEEE 802.3u (100BASE-TX)
• IEEE 802.3ab (1000BASE-T)

8| Chapter 1. Introduction
GS752TXS Smart Switch Hardware Installation Guide
• IEEE 802.3z (1000BASE-x)
• IEEE802.aq (10GBASE-LRM)
• IEEE802.3ae (10GBASE Ethernet)
• IEEE802.3az (Energy Efficient Ethernet)
• IEEE 802.3x (Full-duplex flow control)
• Autosensing and auto-negotiating capabilities for all ports.
• Auto Uplink™ on all ports to make the right connection.
• Automatic address learning function to build the packet-forwarding information table. The
table contains up to 16K Media Access Control (MAC) addresses.
• Store-and-Forward transmission to remove bad packets from the network.
• Full-duplex IEEE 802.3x pause frame flow control.
• Active flow control to minimize packet loss and frame drops.
• Half-duplex backpressure control.
• Per port LEDs and power LED.
• Internal open frame power supply.
• Standard NETGEAR 7xx series chassis.
• NETGEAR Green product series power-saving features:
• Automatic power consumption adjustment based on the RJ-45 cable length.
• Per port automatic power down when the port link is down.
Stacking
A stack can be controlled and managed from a single unit called the master unit. Any other
unit member of the stack is named stack slave member.
In particular, firmware can be downloaded from the stack master to the other units in the
stack.
A unit serving as Stack Master runs the fully operational software of a switch. In addition, it
runs the master part of the Distributed Switching Application that configures and manages all
other units in the stack. Generally, the master operates the remote Slave’s low-level drivers,
through the Distributed Switching application part that is running in the context of the Slave.
During the Stacking setup, the switches will auto-select one as the Stacking Master. All other
devices are named as slave stack members, and assigned a unique Unit ID. One of the slave
units is designated as the backup master. The backup master acts as a slave stack master,
but can become a stack master in the event of failure of the stack master. In the default
configuration, the master and backup master are assigned unit IDs of 1 and 2, respectively.
The administrator can use the Web interface to configure different ID assignments. The Stack
Master provides a Single point of control and management as well as a single interface in
which to control and manage the stack.
Switch software is downloaded separately for each stack member. However, all units in the
stack must be running the same software version.

Chapter 1. Introduction |9
GS752TXS Smart Switch Hardware Installation Guide
A stack unit can operate in one of the following Modes:
• Standalone unit runs as a general switch. The standalone unit does not run the stacking
application until it is connected to a stack.
• The Master unit manages the entire stack, and is responsible for the entire stack
configuration. All protocols run in the context of the Master unit. It updates and
synchronizes the Backup master.
• A master-backup unit runs as a slave unit as described above, and in addition, it
continuously monitors the existence and operation of the stack master. If the master unit
fails, the master-backup unit will assume the stack-master role. (“Switchover”).
• A slave unit only runs a slave version of the Distributed Switching Algorithm, which allows
the applications running on the Master unit’s CPU to control and manage the resources of
the slave unit.
Package Contents

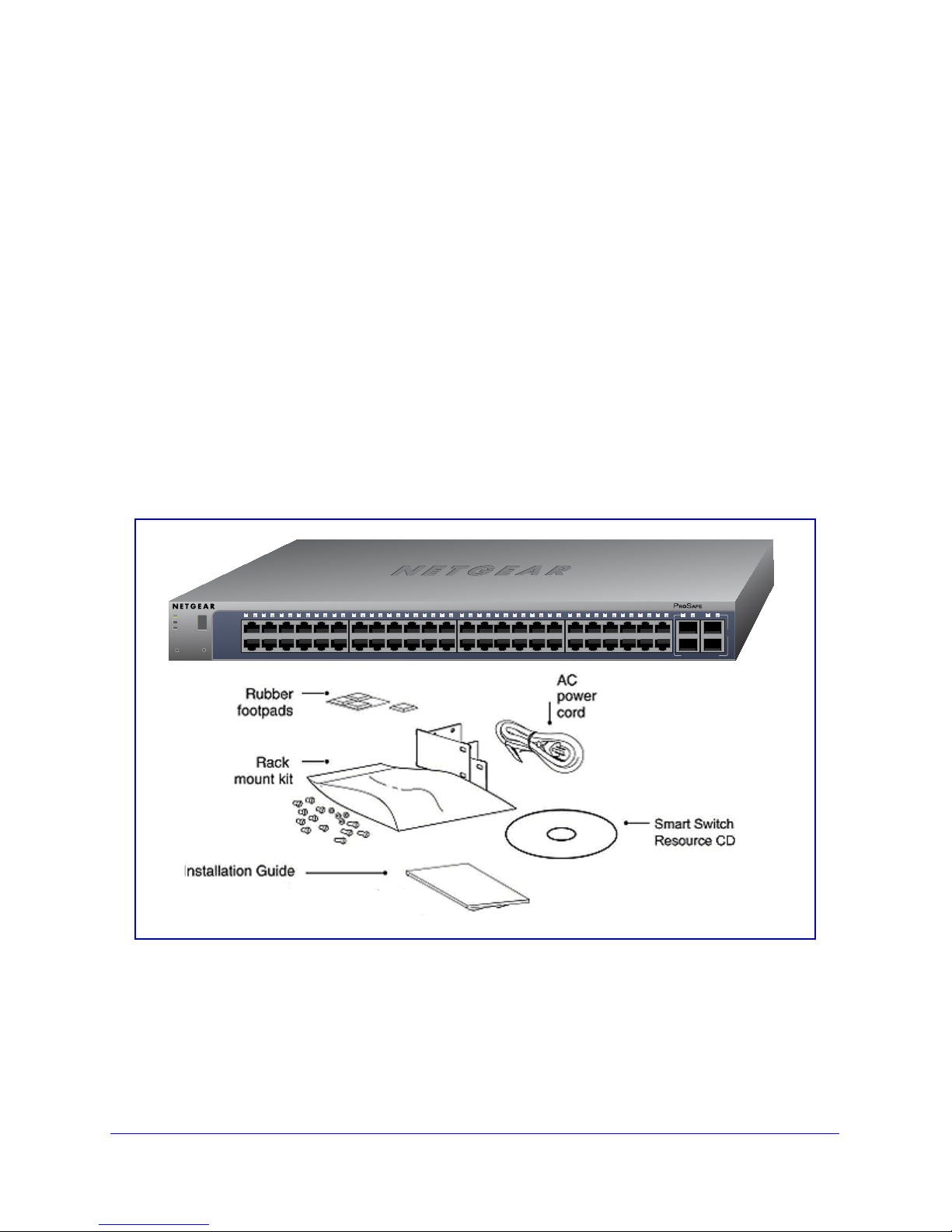

Figure 1 shows the package contents of the GS752TXS Smart Switch.
Figure 1. Package Contents
Verify that the package contains the following:
• GS752TXS Smart Switch
• Rubber footpads for tabletop installation
• Rackmounting kits
Green=Link at 1G
Yellow=Link at 10/
100M
Power
Reset
ID
Fan
Stack
Master
Facto ry
Defaults
12345678910 11 13 15 17 19 21
12 2214 16 18 20 23 25 27 29 31 33 24 3426 28 30 32 35 37 39 41 43 45 47 36 38 40 42 44 46 48
GS752TXS
50F
49F
Green=10G Link Yellow=1G
Blink=ACT
SFP
+
52F
51F
Link/Act Mode —

10 | Chapter 1. Introduction
GS752TXS Smart Switch Hardware Installation Guide
• Power cord
• Installation guide
• Smart Switch Resource CD with NETGEAR Smart Control Center and User’s Manual
If any item is missing or damaged, contact the place of purchase immediately.

Chapter 1. Introduction |11
GS752TXS Smart Switch Hardware Installation Guide

Chapter 2. Physical Description |12
2
2. Physical Description
This chapter describes the GS752TXS Smart Switch hardware features. Topics include:
• GS752TXS Front-Panel and Back-Panel Configuration
• LED Designations
• Device Hardware Interfaces

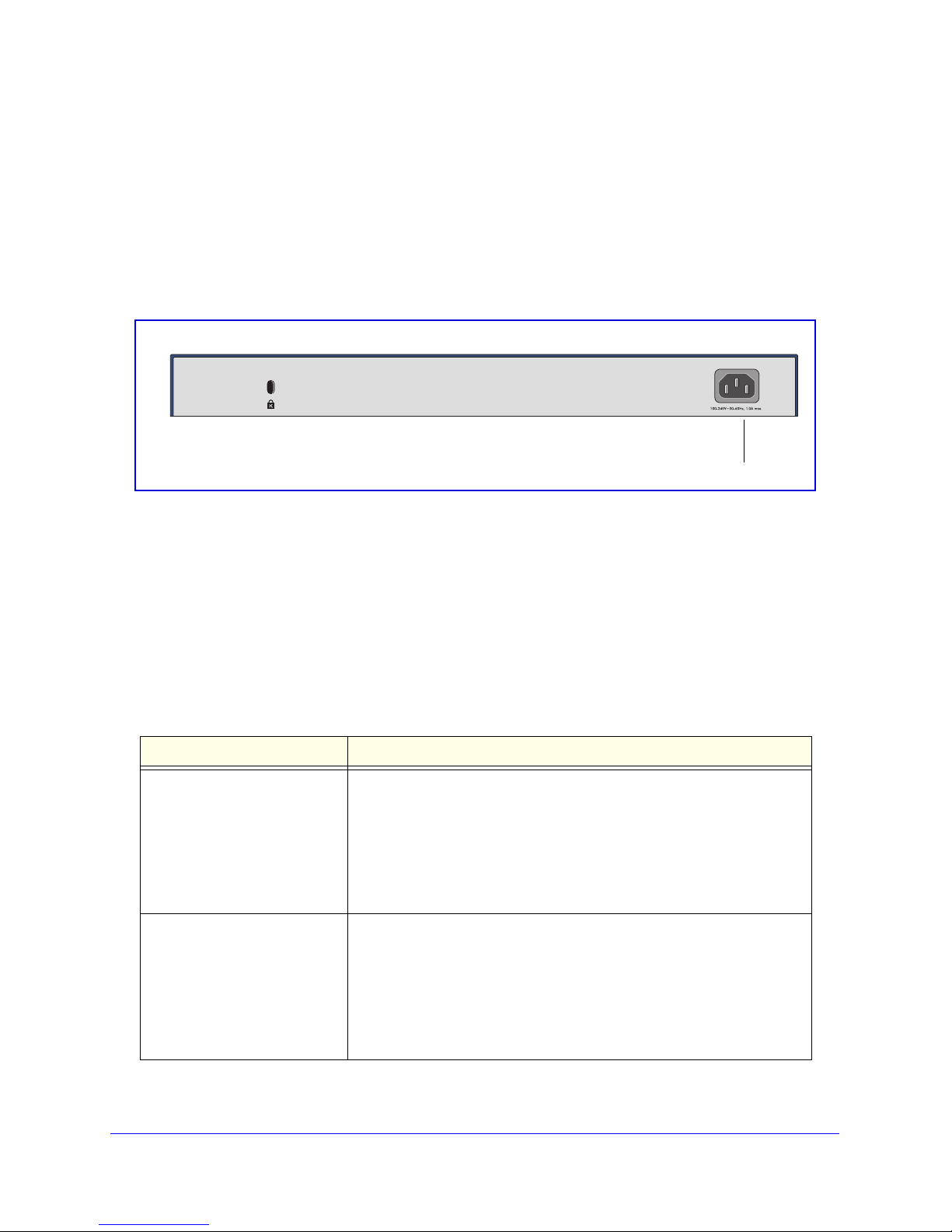

GS752TXS Front-Panel and Back-Panel Configuration
The GS752TXS Smart Switch has 48 10/100/1000 Mbps copper ports and four dedicated
1000 Mbps/10Gbps SFP+ fiber ports. Up to two fiber ports (port 51 and 52) at a time can be
used as stacking ports.
Each port is capable of sensing the line speed and negotiating the duplex mode with the link
partner automatically.
Figure 2 illustrates the front panel of the NETGEAR GS752TXS Smart Switch.
Figure 2. Front Panel
The front panel contains the following:
• 48 RJ-45 connectors for 10/100/1000 Mbps autosensing Gigabit Ethernet switching ports
Green=Link at 1G
Yellow=Link at 10/
100M
Power
Reset
ID
Fan
Stack
Master
Fact ory
Defaults
12345678910 11 13 15 17 19 21
12 2214 16 18 20 23 25 27 29 31 33 24 3426 28 30 32 35 37 39 41 43 45 47 36 38 40 42 44 46 48
GS752TXS
50F
49F
Green=10G Link Yellow=1G
Blink=ACT
SFP
+
52F
51F
Link/Act Mode —
Power, Fan, and
Link/Speed/ACT LEDs
10/100/1000 Ethernet Ports
1000M/10G
SFP Ports
Reset Button
Stack Master LEDs
Factory
Defaults Button
Stack ID LED

Chapter 2. Physical Description |13
GS752TXS Smart Switch Hardware Installation Guide
• Four dedicated 1000 Mbps/10Gbps SFP+ Gigabit Ethernet switching ports. Up to two of
these ports (ports 51 and 52) can alternatively be used as stacking ports.
• Reset button to restart the device
• Recessed default reset button to restore the device back to the factory defaults
• Link, Speed, and Activity LEDs for each port
• Power, Fan Status, Stack Master, and Stack ID LEDs
Figure 3 illustrates the NETGEAR GS752TXS Smart Switch back panel.
Figure 3. Back Panel
The back panel contains a power connector.
LED Designations
Port LEDs
The following table describes the RJ-45 and dedicated SFP port LED designations. There
are two LEDs for each RJ-45 port. Each SFP port has its own indication LED.
LED Designation
Link/Speed/ACT LED mode for
copper ports 1 to 48
• Off—No link established.
• Solid Green—A valid 1000 Mbps link is established.
• Blinking Green—The port is transmitting or receiving packets at
1000 Mbps.
• Solid Yellow—A valid 10/100 Mbps link is established.
• Blinking Yellow—The port is transmitting or receiving packets
at 10/100 Mbps.
Link/ACT LED for SFP+ ports
49 to 52
• Off—No SFP+ module link is established
• Solid Green—A valid 10 Gbps link is established.
• Blinking Green— The port is transmitting or receiving packets
at 10 Gbps.
• Solid Yellow—A valid 1000Mbps link is established on the port.
• Blinking Yellow—The port is transmitting or receiving packets at
1000 Mbps
Power Connector

14 | Chapter 2. Physical Description
GS752TXS Smart Switch Hardware Installation Guide
System LEDs
The following table describes the system LED designations.
LED Designation
Power • Solid Green—Device is powered on, run-time code is up and running.
• Solid Yellow—Device is booting up.
• Off—Power is not supplied to the device
Fan • Solid Yellow—Fan has experienced a fail.
• Off—Fan is operating normally.
Stack Master LED • Solid Green—The switch acts as a master unit in a stack of GS700TS series
switches.
• Off—The switch acts as a slave in a stack of GS700TS series switches, or the
stack is operating in standalone mode.
Stack ID Displays the stack ID, from 1 to 6.

Chapter 2. Physical Description |15
GS752TXS Smart Switch Hardware Installation Guide
Device Hardware Interfaces
RJ-45 Ports
RJ-45 ports are autosensing ports. When inserting a cable into an RJ-45 port, the switch
automatically ascertains the maximum speed (10, 100, or 1000 Mbps) and duplex mode
(half-duplex or full-duplex) of the attached device. All ports support only unshielded
twisted-pair (UTP) cable terminated with an 8-pin RJ-45 plug.
To simplify the procedure for attaching devices, all RJ-45 ports support Auto Uplink. This
technology allows attaching devices to the RJ-45 ports with either straight-through or
crossover cables. When inserting a cable into the switch’s RJ-45 port, the switch
automatically:
• Senses whether the cable is a straight-through or crossover cable.
• Determines whether the link to the attached device requires a “normal” connection (such
as when connecting the port to a PC) or an “uplink” connection (such as when connecting
the port to a router, switch, or hub).
• Configures the RJ-45 port to enable communications with the attached device, without
requiring user intervention. In this way, the Auto Uplink technology compensates for
setting uplink connections, while eliminating concern about whether to use crossover or
straight-through cables when attaching devices.
SFP+ Ports
To enable you to have fiber connections on your network, there are four SFP+ ports (49
through 52) that accommodate standard 1000M and 10G SFP+ transceiver modules, which
are sold separately.
The SFP+ ports can alternatively be used to connect the switch to a stack. Up to two ports
(ports 51 and 52) can be used at a time as stacking ports.

16 | Chapter 2. Physical Description
GS752TXS Smart Switch Hardware Installation Guide
Reset Button
The Smart Switch has a Reset button on the front panel to allow you to manually reboot the
switch. This action is equivalent to powering the unit off and back on. The last saved
configuration is loaded into the switch as it resets. To operate the Reset button, insert a
device such as a paper clip into the opening to press the recessed button. The front-panel
LEDs should extinguish and light again as the switch performs its Power On Self Test
(POST).
Factory Defaults Button
The Smart Switch has a Factory Defaults button on the front panel so that you can remove
the current configuration and return the device to its factory settings. When you enable the
Factory Defaults button, all settings including the password, VLAN settings, and port
configurations are removed. To operate the Factory Defaults button, insert a device such as a
paper clip into the opening to press the recessed button for over two seconds.
Note: Switches that are part of stack will retain the stacking configuration.

Chapter 2. Physical Description |17
GS752TXS Smart Switch Hardware Installation Guide

Chapter 3. Applications |18
3
3. Applications
Your GS752TXS Smart Switch is designed to provide flexibility in configuring your network
connections. It can be used as your only network traffic-distribution device or with 10 Mbps,
100 Mbps, 1000 Mbps, and 10 Gbps hubs and switches.
Desktop Switching
The GS752TXS Smart Switch can be used as a desktop switch to build a small network that
enables users to have 1000 Mbps access to a file server. With full-duplex enabled, the switch
port connected to the server or PC can provide 2000 Mbps throughput. If a 10 Gbps module is
used to connect the switch to the file server in full duplex operation, then the server can provide
up to 20 Gbps throughput

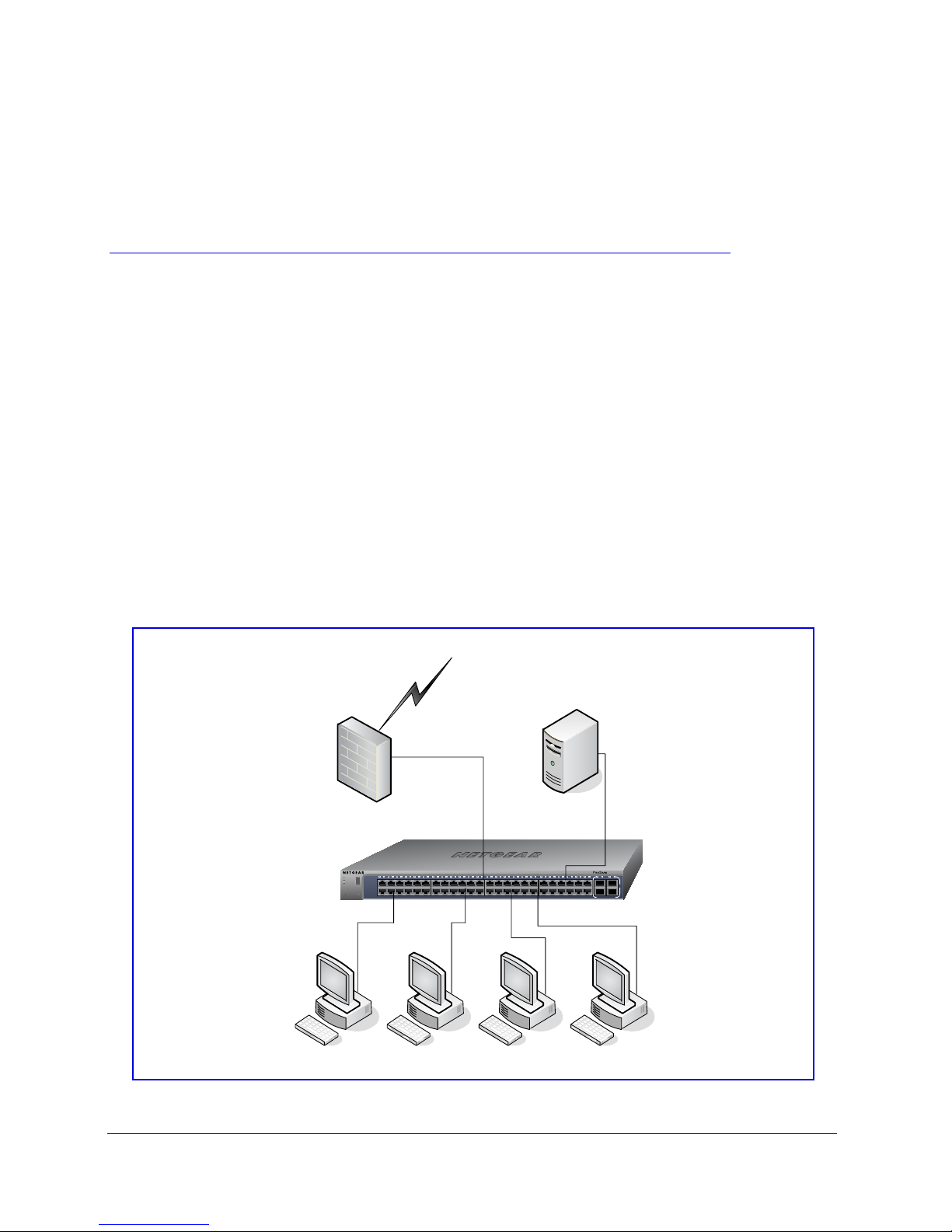

Figure 4. Desktop Switching
Green=Linkat 1G
Yellow=Linkat 10/
100M
Power
Reset
ID
Fan
Stack
Master
Factory
Defaults
12345678910 11 13 15 17 19 21
12 2214 16 18 20 23 25 27 29 31 33 24 3426 28 30 32 35 37 39 41 43 45 47 36 38 40 42 44 46 48
GS752TXS
50F
49F
Green=10GLink Yellow=1G
Blink=ACT
SFP
+
52F
51F
Link/ActMode —
`` ` `

Chapter 3. Applications |19
GS752TXS Smart Switch Hardware Installation Guide
Backbone Switching
You can use the GS752TXS Smart Switch as a backbone switch in a small network that gives
users high-speed access to servers and other network devices.

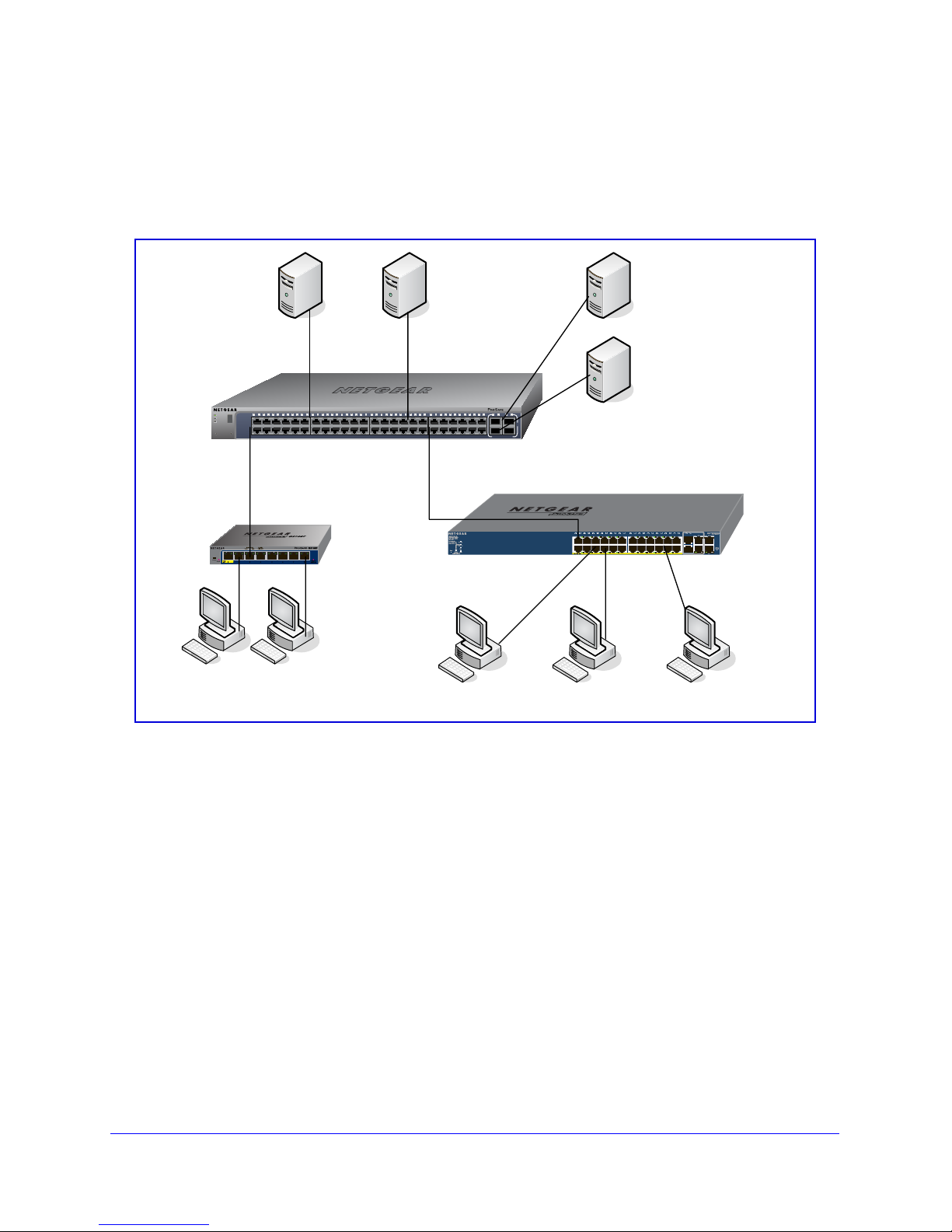

Figure 5. Backbone Switching
Green=Linkat 1G
Yellow=Linkat 10/
100M
Power
Reset
ID
Fan
Stack
Master
Factory
Defaults
12345678910 11 13 15 17 19 21
12 2214 16 18 20 23 25 27 29 31 33 24 3426 28 30 32 35 37 39 41 43 45 47 36 38 40 42 44 46 48
GS752TXS
50F
49F
Green=10GLink Yellow=1G
Blink=ACT
SFP
+
52F
51F
Link/ActMode —
` `
```
Model FS728TP
Model GS108T
GS752TXS

Chapter 4. Installation |20
4
4. Installation
This chapter describes the installation procedures for your GS752TXS Smart Switch. Switch
installation involves the following steps:
Step 1: Preparing the Site
Step 2: Installing the Switch
Step 3: Checking the Installation
Step 4: Connecting Devices to the Switch
Step 5: Installing an SFP Transceiver Module
Step 6: Installing Device as Stand-alone or Stack Master
Step 7: Applying AC Power
Step 8: Managing the Switch using a Web Browser or the PC Utility
