Nexa BEECHCRAFT T-34C TURBO MENTOR MILITARY... User manual

SPECIFICATIONS
Wingspan:.........................1560mm (61.4in)
Length:................................1170mm (46 in)
Electric Motor:.....................See next pager
Glow Engine:.................... .46 2-T / .70 4-T
RTF Weight: 3.2Kg / 7.05lbs (Will vary with
Equipment Used).
Radio:......................6 Channel / 6-7 Servos
Function: Ailerons-Elevator-Rudder-Throttle
Flaps-Optional Retractable Landing Gear.
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen. Bei unsachgemässer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstätzung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
Radio control model / Flugmodel
ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY
BEECHCRAFT
MILITARY TRAINER
Instruction manual / Montageanleitung
TECHNISCHE DATEN
Spannweite:...................................1560mm
Lange:............................................1170mm
Elektroantrieb.............(siehe nächste Seite)
Verbrennerantrieb:...............7.45cc - 11.5cc
Fluggewicht:.......................................3.2Kg
Fernsteuerung.............6 Kanal / 6-7 Servos

1.5mm
AB
!
CA L/R Assemble left and right
sides the same way. X
Drill holes using the stated
size of drill
(in this case 1.5 mm ÿ)
Use epoxy glue
Take particular care here
Hatched-in areas:
remove covering
film carefully

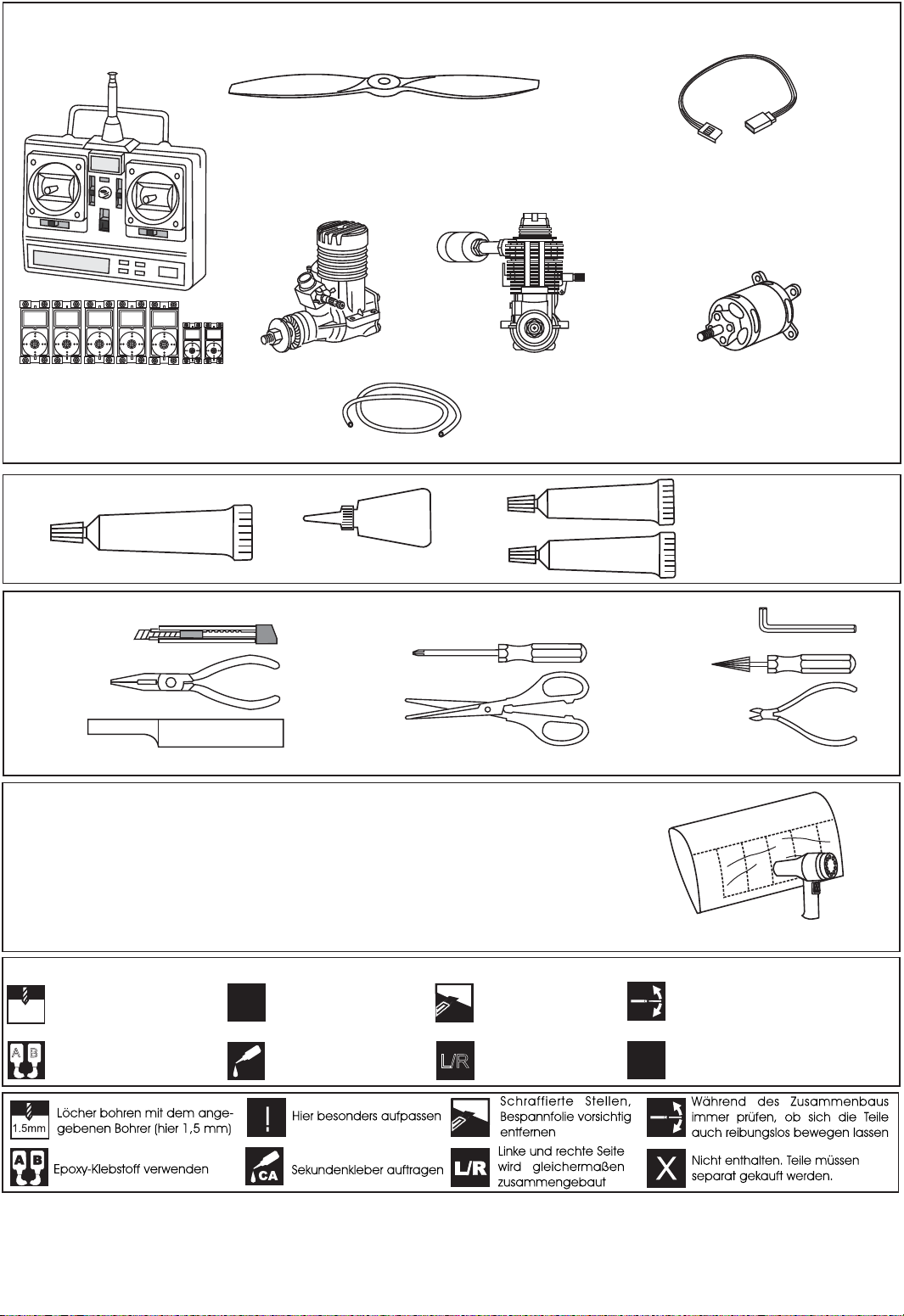

Not included.
These parts must be
purchased separately
Check during assembly that these
parts move freely, without binding
Apply cyano glue
SILICON
EPOXY A
EPOXY B
CA
GLUE
Epoxy Glue ( 5 minute type)
Silicon sealer Cyanoacrylate Glue
Minimum 6 channel radio
for airplane with 5 (4 for EP) standard servos
and two servo mini.
.60 ~.70 - 4 cycle
10.5x6 for .40 - 2 cycle engine
11x6 for .46 - 2 cycle engine
12x6 for .60 - 4 cycle engine
12x7 for .70 - 4 cycle engine
13x7 for electric motor
Silicone tube
.46 ~ .50 - 2 cycle
Epoxy Glue (30 minute type)
TOLLS REQUIRED
Hobby knife
Needle nose Pliers
Phillip screw driver
Awl
Scissors
Wire Cutters
(Purchase separately) Hex Wrench
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
Sander
Masking tape - Straight Edged Ruler - Pen or pencil - Drill and Assorted Drill Bits
Read through the manual before you begin, so you will have an overall idea of what to do.
Symbols used throughout this instruction manual, comprise:
(Purchase separately)
.Motor control x1(for GP) .Elevator x1
.Rudder x1. Aileron x2. Flapx2 mini servo
CONVERSION TABLE
1.0mm = 3/64”
1.5mm = 1/16”
2.0mm = 5/64”
2.5mm = 3/32”
3.0mm = 1/8”
4.0mm = 5/32”
5.0mm = 13/64”
6.0mm = 15/64”
10mm = 13/32”
12mm = 15/32”
15mm = 19/32”
20mm = 51/64”
25mm = 1”
30mm = 1-3/16”
45mm = 1-51/64”
If exposed to direct sunlight and/or heat, wrinkels can appear. Storing the
model in a cool place will let the wrinkles disappear. Otherwise, remove
wrinkles in covering film with a hair dryer, starting with
low temperature. You can fix the corners by using a hot iron.
Bei Sonneneinstrahlung und/oder Wärme kann die Folie erschlaffen bzw. Falten
entstehen. Verwenden Sie ein Warumluftgebläse (Haartrockner) um evtl. Falten aus der Folie
zu bekommen. Die Kanten können Sie mit einem Bügeleisen behandeln. Nicht zuviel Hitze anwenden !
REQUIRED FOR OPERATION (Purchase separately) More info: www.pichler-modellbau.de
Low seting
Extension cord for aileron servos: 50cm(x2)
700-800W Brushless Motor
Extension cord for flap servos: 50cm(x4)
Extension cord for retract servos: 30cm(x3)
Extension cord for Rx battery pack: 20cm(x1)

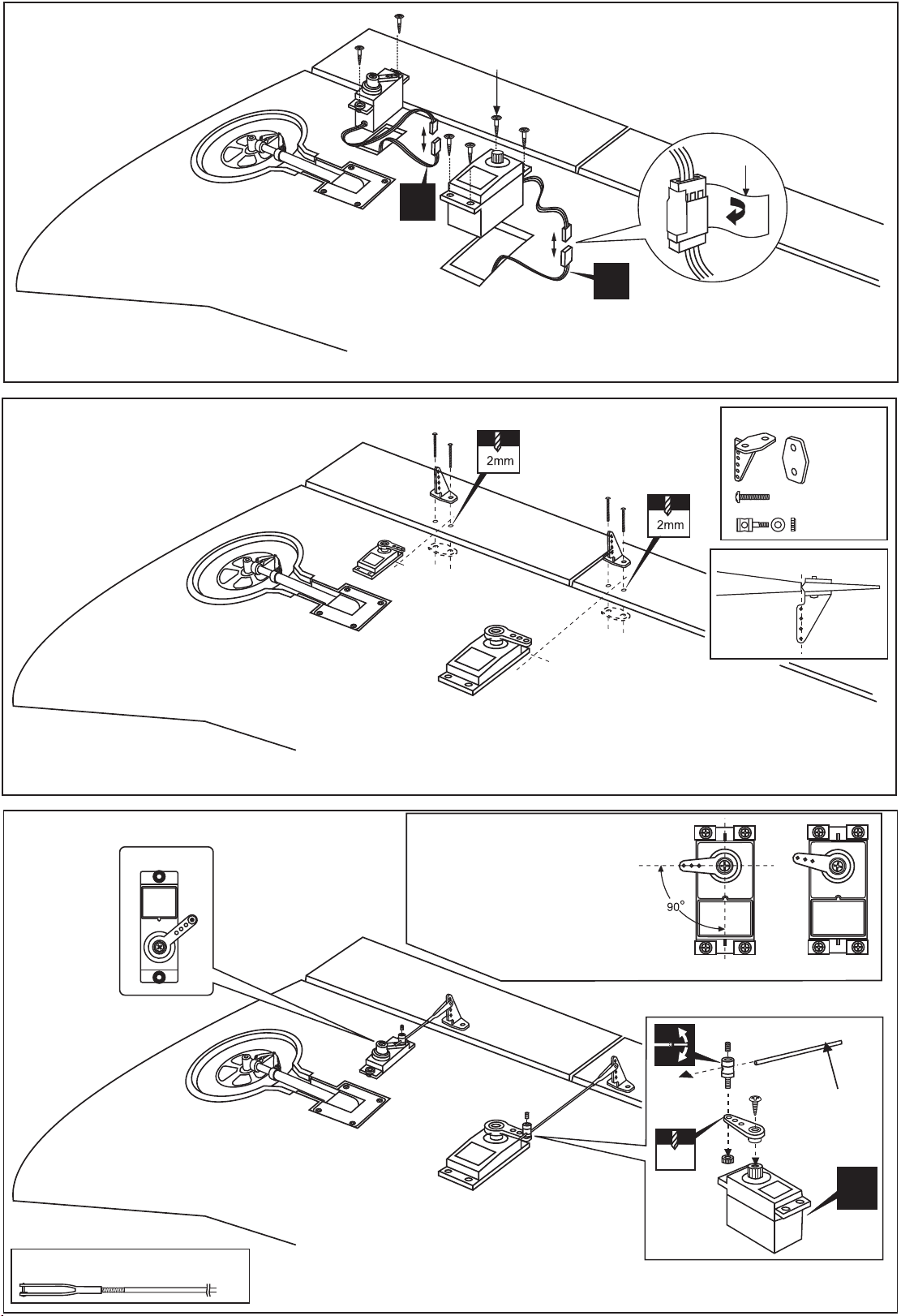

1-Cut away the covering of the wing bottom where the aileron and flap servo goes.
2-Connect the aileron and flap servo cord to the aileron and flap extension cord.
3-Install the aileron and flap servo on the servo mount.
-Switch on the radio (trims centered)
then mount the ailerons servo horn
in neutral position.
-The servo horn should be
perpendicular to the servo
YES NO
1-Depending on the position of the linkage, determine the location of aileron control horn.
The horn holes must be perfectly aligned with the axis of articulation.
2-Mark the position of the “foot” of the horn on the aileron. Then, with the drill, make the 2
holes.
3-Install the aileron control horn as shown.
Included with the
radio set.
Adhesive
tape
Plastic control horn
..........4
2x30mm....8
..........4
Control horn Alignment
Do the same way with second
wing half.
Do the same way with second wing half.
Do the same way with second wing half
X
3mm set Screw
2 mm
Aileron pushrod
D=5/64”(2mm)
1-Aileron and Flap servo
2-Aileron/Flap control horn
3-Aileron/Flap linkages
WING - BOTTOM VIEW
WING - BOTTOM VIEW
Flap servo
2x175mm rod
...4
X
X

A = A’
B = B’

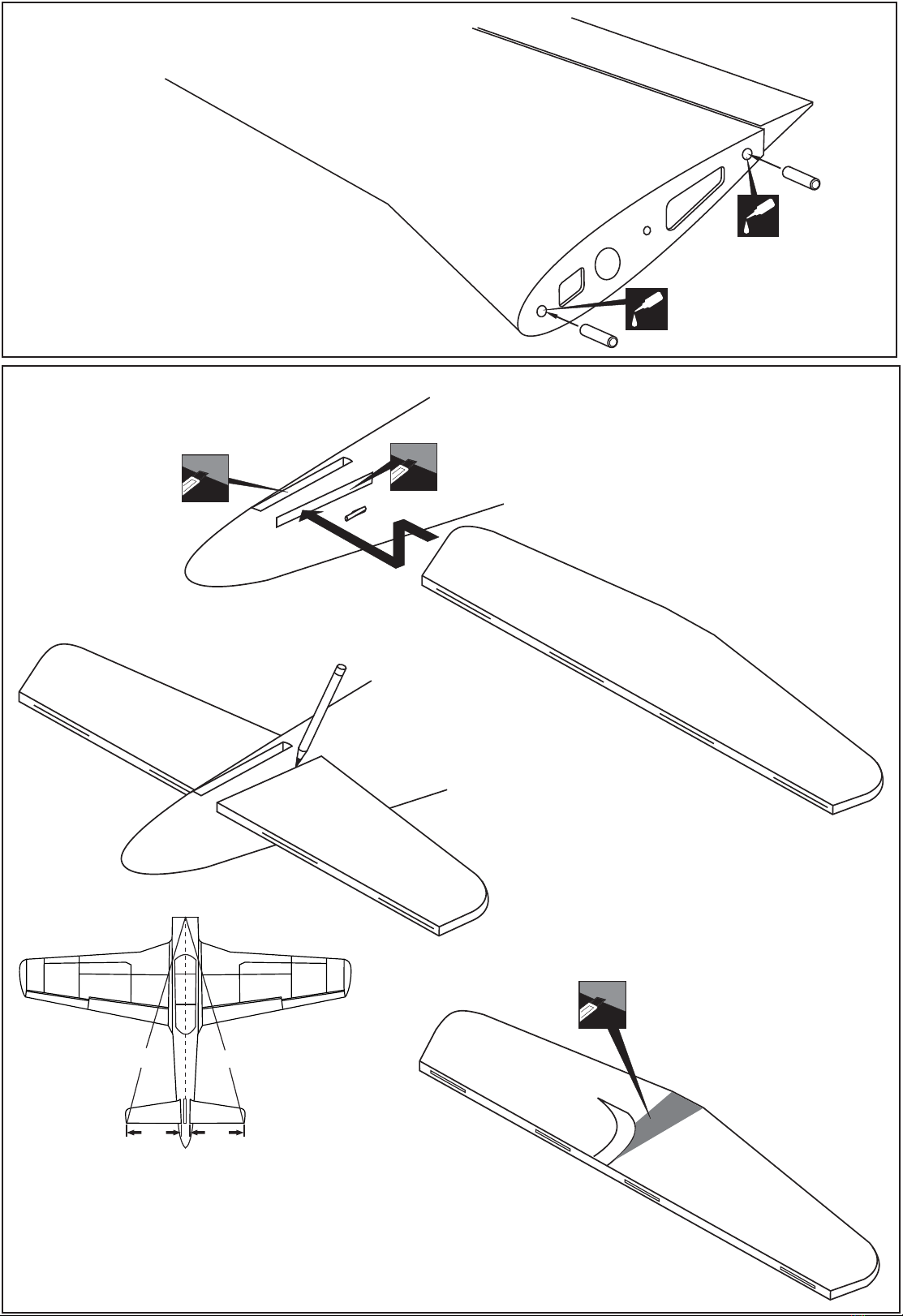

5-Horizontal Stabilizer
Cut away only the covering
both the right and left side
AA’
B B’
Trial fit the horizontal stabilizer in place .
Check the alignment of the horizontal
stabilizer. When you are satisfied with the
alignment, use a pencil to trace around the top and
bottom of the stabilizer where it meets the fuselage.
Remove the horizontal stabilizer
from the vertical stabilizer. Using a straight edge
and a sharp hobby knife, carefully cut away
the covering inside the lines which were marked
above. Be cautious not to cut into the wood-this
will weaken the structure.
Cut away only the
covering both sides.
CA
CA
Thin CA
Thin CA
Note: Make sure that the dowel must be perpendicular
with the wing root before glue.
Wing-Top view
4-Wooden dowel

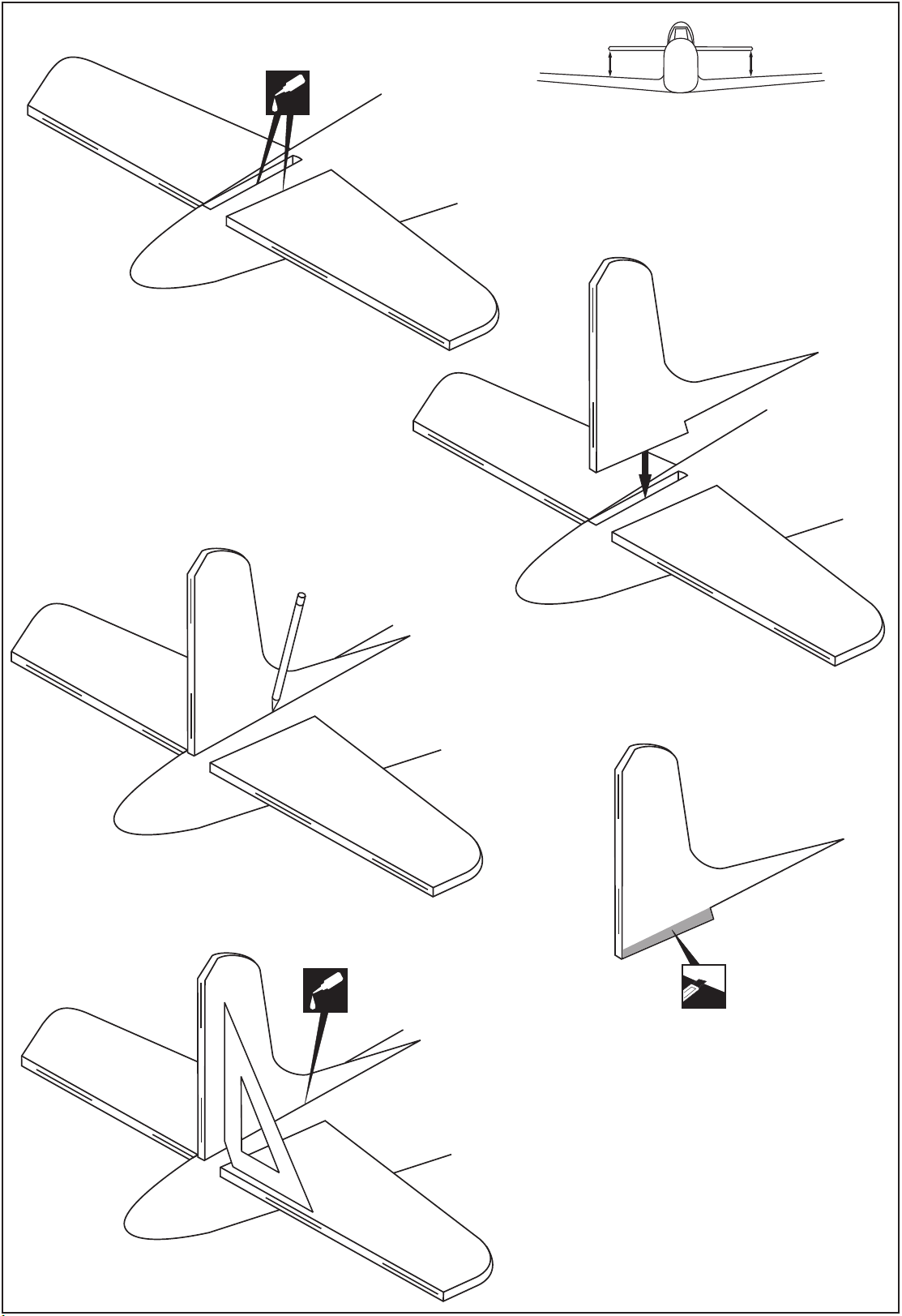

6-Horizontal and Vertical Stabilizer
Check the alignment of the vertical stabilizer.
When you are satisfied with the alignment, use a pencil
to trace around the left and right of the vertical stabilizer
where it meets the fuselage.
Remove the vertical stabilizer from the fuselage.
Using a sharp hobby knife, carefully cut away the
covering below the lines which were drawn in the
previous steep. Do not cut into the woods as this
will affect the structural integrity of the stabilizer.
Cut away only the
covering both sides.
With the perpendicular, check the alignment of the vertical
stabilizer and the horizontal stabilizer.
When you are satisfied with the alignment, secure the vertical
stabilizer in place using thin CA glue.
Again, insert the vertical stabilizer into the fuselage.
! Securely glue together. If coming off during fly,
you lose control of your air plane.
CA
Thin CA
CA
Thin CA
CC’
Again, slide the horizontal stabilizer into the slot on the fuselage.
Check the alignment of the horizontal stabilizer. When you are
satisfied with the alignment, glue the both sides of the horizontal
stabilizer where it meets the fuselage.
! Securely glue together. If coming off during fly,
you lose control of your air plane.
Trial fit the vertical stabilizer
in place.

Plastic control horn
.....................3
CA
Thin CA
7-Elevator and Rudder
CA
CA
Apply thin CA
glue on the top
of the hinge
Apply a thin layer of petroleum jelly
VERTIAL STABILIZER
VERTICAL STABILIZER
! Securely glue together. If coming off during fly,
you lose control of your air plane.
VERTICAL STABILIZER
CA
! Securely glue together. If coming off during fly,
you lose control of your air plane.
Attention: the rectangular hole for the control
horn installation is pre-cut at factory.
8-Control horn

A
5mm
13/64”
Remove the engine mount and drill a
13/64”(5mm) hole through the fire-wall
at each of the four marks marked.
Using a pencil or felt tipped pen,
mark the fire wall where the four
holes are to be drilled.
Reposition the engine mounts on to the fire-wall.
Attach the four blind-nut to the fire-wall as show.
Secure them with four 4x25mm screw.
Position the engine on to the engine mounts
so the distance from the prop hub to the fire-
wall is 5.2”(132mm).
Mark the engine mounting plate where the
four holes are to be drilled.
! Engine thrust on balk head is
already adjust at factory.
Remove the engine and drill a 1/8”(3mm)
holes through the beam at each of the
four marks made above.
Reposition the engine on the engine mount
beams, aligning it with the holes. Secure the
engine to the engine mount using four
1/8x51/64”(3x25mm) screws.
Note: Mark the mounting plate
through the engine mounting
flanges.
132mm
3mm
1/8”
! Align the mark on both
mounts with the mark
on the fuselage
A
B
B’
B=B’
FRONT-VIEW
...4
.................4
4x25mm screw
Blind-nut
3x20mm screw
1/8”(3mm) nut
.................4
...4
1/8x5-1/64”
5/32x1”
!
X
To muffler
Filler tube
To engine
3x25mm
screw
Rubber stopper
1
After confirming the direction . Insert this assembly, clunk end first, into the fuel
tank and tighten and screw the fuel tank cap on firmly.
3x35 mm screw 4mm
23
Ensure that the fuel tank clunk does not touch the rear of the fuel tank.
Checking for leaks - block the vents and blow
into the feed - if in doubt submersing the tank
in a blow of water will show up any problems.
Blow
Water
9-Engine mount / Engine
10-Fuel tank (in case of glow engine using)
! Align the mark on both
mounts with the mark
on the fuselage
Note: Apply Silicon sealer
to each screw.

Firewall
C’
C
C=C’
! Engine thrust on balk head
is already adjust at factory
Using a aluminum motor mounting plate
as a template, mark the plywood motor mounting
plate where the four holes are to be drilled .
6mm
SIDE-VIEW
130mm
1-Attach the board or transparent plastic on the side of the fuselage with the adhesive tape as show.
2-Using a pencil or felt tipped pen trace around the engine head where it meet the cowl. Cut the opening the board or transparent
plastic for the engine head as marked before.
3-Remove the engine and insert the cowl on to the fuselage so the distance from the fire wall to the front of the cowl is 5.1”(130mm).
Trace around inside the hole on the board or transparent plastic with a pencil.
4-Remove the cowl from the fuselage and carefully cut the opening for the engine head as marked above. Do the same way with
the hole for needle-valve.
5-Again. Insert the cowl on to the fuselage and secure it in place with five 2.5x10mm self tapping screws.
11-Electric Motor
12-Cowling
Board or transparent plastic
Adhesive
tape
Cut the opening
2.5x10mm screw
...........3
Attach the four 6x100mm bolts, washers
and nuts to the fire-wall as shown.
3mm
3mm
Mark here
Remove the motor and drill a 3mm (1/8”) hole at
each of the four marks marked. Apply the plywood motor mounting
onto the fire-wall. Align the marks
on the motor mounting with the marks
on the fire-wall. Mark the fire-wall
where the four holes are to be drilled.
Remove the motor mounting and
drill a 5mm hole at each of the
four marks marked.
Attach the motor to the motor mounting
and secure it in place using the four
3x20mm bolts and nuts.
MOTOR
132mm
(5.2”)
B’
B
B=B’
TOP-VIEW
MOTOR
Plywood motor mounting
Firewall
6x100mm bolt.....4
6mm nut..........12
6mm washer...16
Mark here

4x20mm
nylon screw

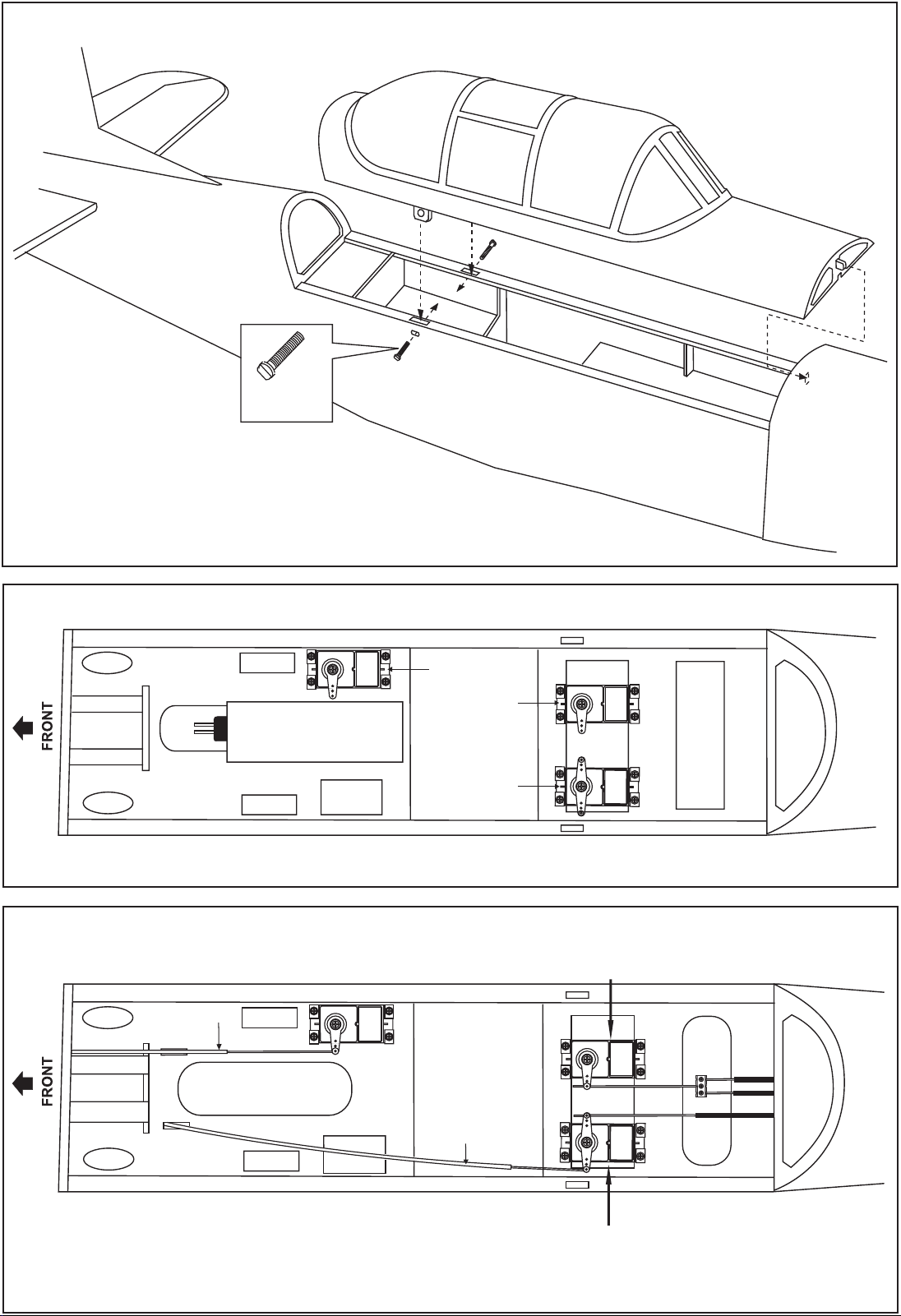

13-Canopy
FUEL TANK OR LI-PO
BATTERY AREA
Shift the location of the fuel tank, battery pack, or Li-po battery as needed to obtain the specified CG.
Rudder servo
Elevator servo
Throttle servo
14-Servo FUSELAGE - TOP VIEW
FUEL TANK OR LI-PO
BATTERY AREA
Throttle pushrod
Elevator servo
Rudder servo
Nose gear pushrod
FUSELAGE - TOP VIEW
15-Linkages

Elevator push rod
Elevator push rod
Rudder push rod
................1
....................3
2mm
Connector
X
3mm set Screw
2 mm
Elevator pushrod
Elevator pushrod
Aluminum tube
16-Linkages
17-Installation the Wing
FUSELAGE - TOP VIEW
WING
18-Installation the Wing
FUSELAGE - TOP VIEW

CA
20-Decor
Gear door (3mm plywood)
CA
Note: Glue the Right and Left gear
door on to the cowl only. Please do
not glue them on to the fuselage if you
want to remove the cowl out of the fuselage.
Please do not
glue here.
Nose Gear door installation
CA
WING
4x25mm plastic screw
4X25mm screw
......2
......2
19-Installation the wing
Cut away only
the covering
CA
TAW - 5
Decal
Secure the wing in place using the
4x25mm plastic bolt
FUSELAGE - BOTTOM VIEW

Note: Cut out the stickers and apply them in the proper area.
Do not peel the backing paper off all at once.
Peel off one corner of the backing and cut off with scissors.
Arrange sticker on model and when satisfied adhere the
corner without backing.
Carefully peel back the rest of the backing while at the same
time adhering the rest of the sticker.
Try not to make air bubbles, if there are some, carefully
puncture sticker (center of bubble) but not model surface with
the tip of the knife or sharp pin and squeeze out the air.
At curves stretch sticker and apply a little heat so that no
ceases occur.
Cut off the excess that is produced.
21-Decal
Wing center section
DO NOT try to fly an out-of-balance model !
128mm (5”)
Note: If necessary, move the battery pack or add weight to either
the tail or nose until the correct balance is achieved.
RUDDER / SEITENRUDER ELEVATOR / HOHENRUDER
Take off /Start 10mm (25/64”)
Landing /Landung 22mm (55/64”)
AILERON / QUERRUDER
FLAP / LANDEKLAPPEN
32mm (1.25”)
32mm (1.25”)
9mm (23/64”)
9mm (23/64”)
6mm (15/64”)
6mm (15/64”)
22-Balance
23-Control Surface
IMPORTANT: Please do not clean your model with pure alcohol, only use liquid soap with water or use glass cleaner to clean on surface of
your model to keep the colour not fade.
All details are subject to changewithout notice ! Technische Anderungen und Irrtumer vorbehalten !
T A W - 5
T A W - 5
T-34C
T-34C
