Nexa NE-1 NAVY CUB User manual

Radio control model
R/C Flugmodell
MONTAGEANLEITUNG
INSTRUCTION MANUAL
SPECIFICATIONS
Wingspan 2400mm
Length 1510mm
Electric Motor (See next page)
Glow Engine .91 2T / 1.20 4T
Gasoline Engine 20cc 2T
Radio 6 Channel / 6 Servos
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen Bei unsachgemäßer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstützung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
TECHNISCHE DATEN
Spannweite 2400mm
Lange 1510mm
Elektroantrieb (siehe nächste Seite)
Verbrennerantrieb 20cc 2-T
Fernsteuerung 6 Kanal / 6 Servos
NE-1 NAVY CUB

1.5mm
AB
!
CA
L/R
Assemble left and right
sides the same way.
X
Drill holes using the stated
size of drill
(in this case 1.5 mm Ø)
Use epoxy glue
Take particular care here
Hatched-in areas:
remove covering
film carefully
Not included.
These parts must be
purchased separately
Check during assembly that these
parts move freely, without binding
Apply cyano glue
Low setting
SILICON
EPOXY A
EPOXY B
CA
GLUE
Epoxy Glue (5 minute type)
Silicon sealer
Cyanoacrylate
Glue
Minimum 6 channel radio
for airplane with 6 servos
Fuel tube
Extension for aileron
servo, throttle servo.
REQUIRED FOR OPERATION (Purchase separately)
Epoxy Glue (30 minute type)
TOLLS REQUIRED
Hobby knife
Needle nose Pliers
Phillip screw driver
Awl
Scissors Wire Cutters
(Purchase separately)
Hex Wrench
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
Sander
Masking tape - Straight Edged Ruler - Pen or pencil - Drill and Assorted Drill Bits
Read through the manual before you begin, so you will have an overall idea of what to do.
(Purchase separately)
.Motor control x1 .Aileron x2
.Elevator x2 .Rudder x1
CONVERSION TABLE
1.0mm = 3/64”
1.5mm = 1/16”
2.0mm = 5/64”
2.5mm = 3/32”
3.0mm = 1/8”
4.0mm = 5/32”
5.0mm = 13/64”
6.0mm = 15/64”
10mm = 13/32”
12mm = 15/32”
15mm = 19/32”
20mm = 51/64”
25mm = 1”
30mm = 1-3/16”
45mm = 1-51/64”
If exposed to direct sunlight and/or heat, wrinkels can appear. Storing the
model in a cool place will let the wrinkles disappear. Otherwise, remove
wrinkles in covering film with a hair dryer, starting with
low temperature. You can fix the corners by using a hot iron.
Bei Sonneneinstrahlung und/oder Wärme kann die Folie erschlaffen bzw. Falten
entstehen. Verwenden Sie ein Warumluftgebläse (Haartrockner) um evtl. Falten aus der Folie
zu bekommen. Die Kanten können Sie mit einem Bügeleisen behandeln. Nicht zuviel Hitze anwenden !
BENOTIGTE KOMPONENTEN FUR DEN ABFLUG (Nicht enthalten)
Klebstoff
Epoxy-Klebstoff (30min-Typ)
Epoxy-Klebstoff (5min-Typ)
Gas Engine: 20cc Glow Engine: 1.20 4T
Glow Engine:
.91 2T 1650W Brushless
Motor

Cut two slots (only the covering) on the
top and along the trailing edge of the
horizontal stabilizer.
1
Full the elevator out of the
horizontal stabilizer.
2
AA’
A=A’
Trial fit the horizontal stabilizer in place . Check the alignment
of the horizontal stabilizer. When you are satisfied with the
alignment, use a pencil to trace around the top and bottom
of the stabilizer where it meets the fuselage.

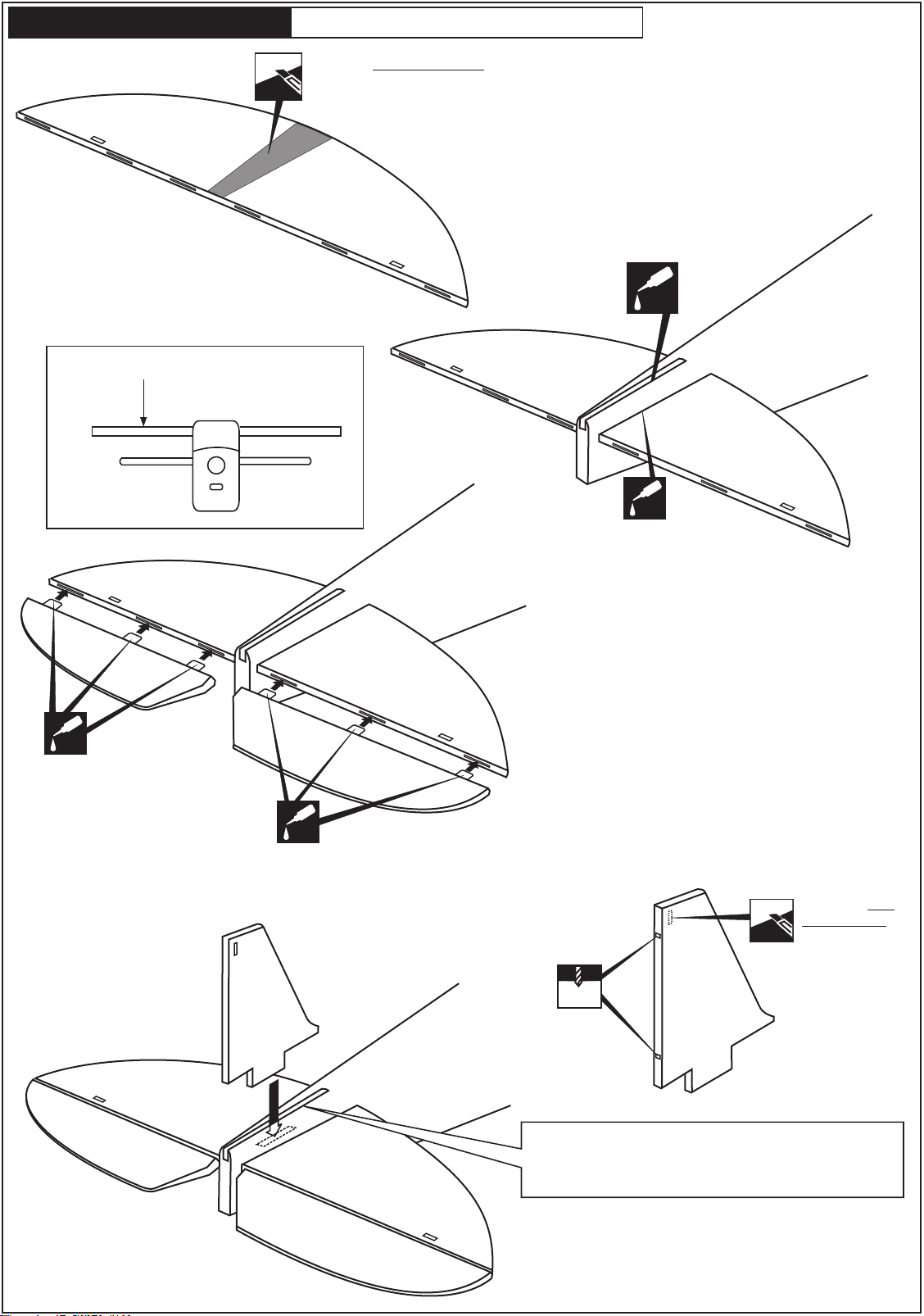

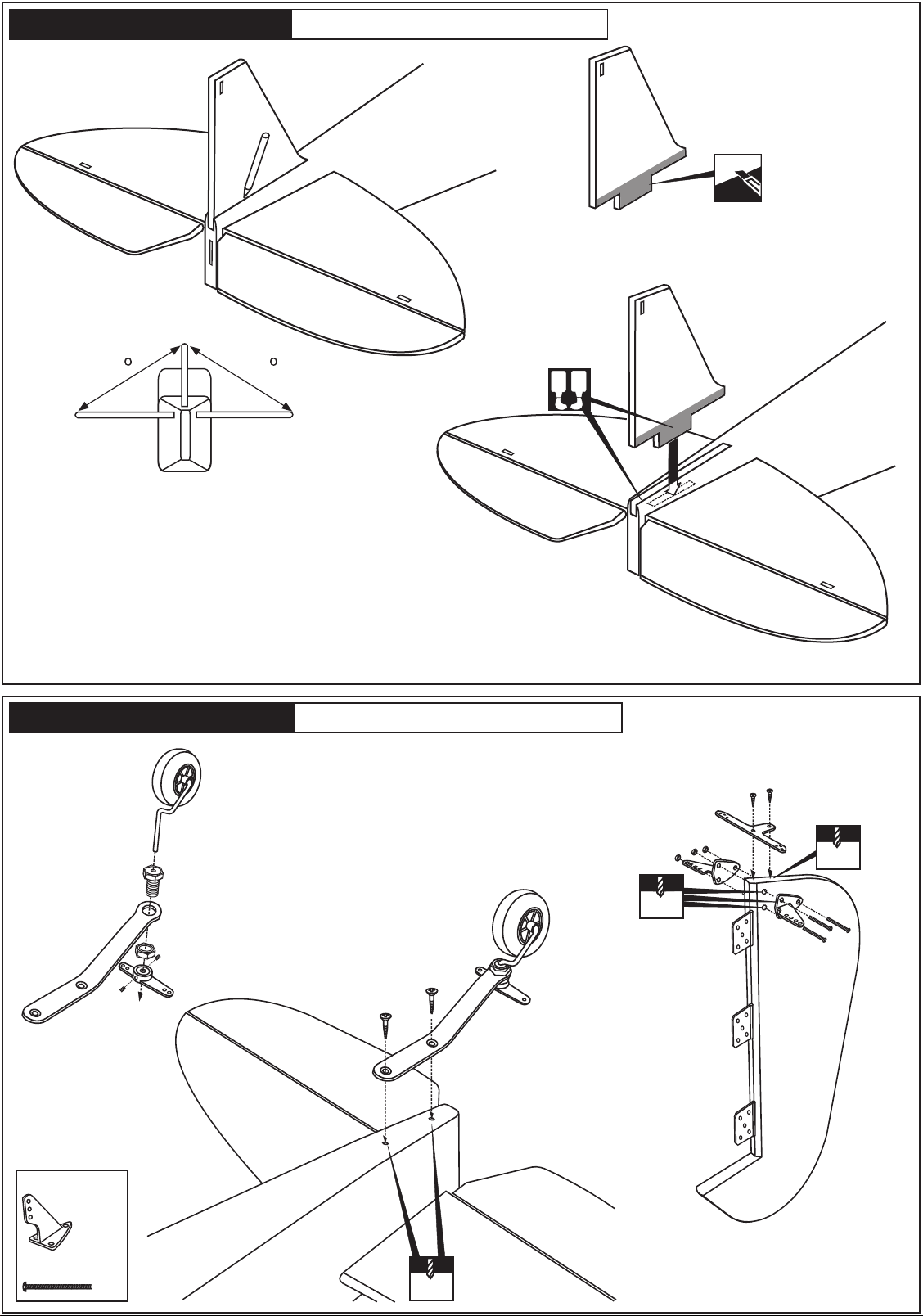

HORIZONTAL STABILIZER
Cut away only the
covering both side
3
4
NAVY CUB section 1

Remove the horizontal stabilizer from the fuselage.
Using the sharp hobby knife, carefully cut away the
covering inside the lines which were marked above.
The elevator hinges are pre-glue into the
elevator halves. Working with one elevator half
for now, apply a thin layer of petroleum jelly to
only the pivot point of the two hinges.
Without using glue yet, push the elevator half
and its hinges into the hinge slots in the trailing
edge of the horizontal stabilizer. There should
be a minimal hinge gap and the end of the
elevator half should not rub against the
horizontal stabilizer.
When satisfied with the fit and alignment, hinge
the elevator half to the horizontal stabilizer,
using thick CA glue. Make sure to apply a thin
layer of CA glue to the top and bottom of both
hinges. Repeat the previous procedures to
hinge the second elevator half to the other side
of the horizontal stabilizer.
Pull the horizontal stabilizer through the other side
of the fuselage and repeat the previous procedures
to glue the second torque rod wire into the horizontal
stabilizer.
Realign the horizontal stabilizer, then glue the
horizontal stabilizer into the fuselage, using a
generous amount of thin CA. Apply thin CA to each
of the four joints and use a generous amount to
ensure to strong bond.
8
NOTE: You may need to open up the slots of the
horizontal stabilizer so that the vertical stabilizer
is not too difficult to push in.
Cut away only
the covering
both sides.
9
7
CA
Thin CA
glue
CA
Cut away only the covering
on the top and bottom
5
CA
CA
2mm
6
HORIZONTAL STABILIZER
NAVY CUB section 2
BB’
B=B’
Aluminum wing joiner

Trial fit the vertical stabilizer in place . Check the alignment
of the vertical stabilizer. When you are satisfied with the
alignment, use a pencil to trace around the right and left
of the stabilizer where it meets the fuselage.
Cut away only the covering
on the left and right side.
Remove the vertical stabilizer from the fuselage.
Using the sharp hobby knife, carefully cut away the
covering inside the lines which were marked above.
Realign the vertical stabilizer , ensure that the vertical stabilizer is perpendicular
to the horizontal stabilizer. Then glue the vertical stabilizer into the fuselage, using
a generous amount of 5 min. Epoxy. Apply thin epoxy to each of the two joints and
the entire bottom edge of the vertical stabilizer, use a generous amount to ensure
to strong bond.
10
11
AB
5 min.
Epoxy
12
2mm
3x12mm screw
TAIL WHEEL & RUDDER
NAVY CUB section 4
2mm
1mm
2x12mm screw set
Control horn
...........2
2x30mm screw
...6
VERTICAL STABILIZER
NAVY CUB section 3
90 90
FUSELAGE - REAR VIEW

.....6
4X20mm screw
Cut away only the covering
* WARNING: When removing any covering
from the airframe, please ensure that you
secure the cut edge with CA or similar cement.
This will ensure the covering remain tight.
BOTTOM - VIEW / Unteransicht
BOTTOM - VIEW / Unteransicht
2mm
2x10mm
.........2
2x10mm screw
.........2

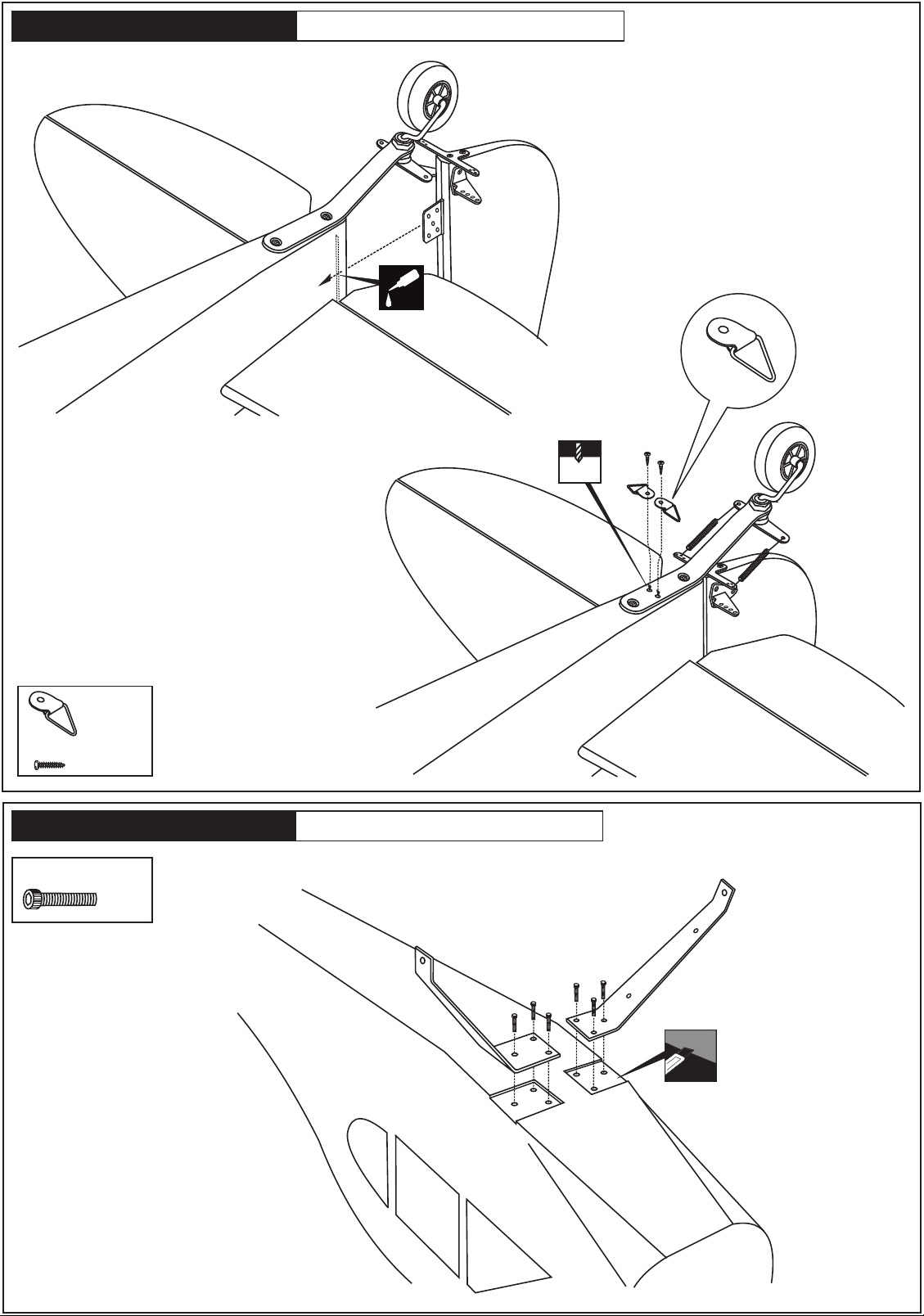

TAIL WHEEL & RUDDER
NAVY CUB section 5

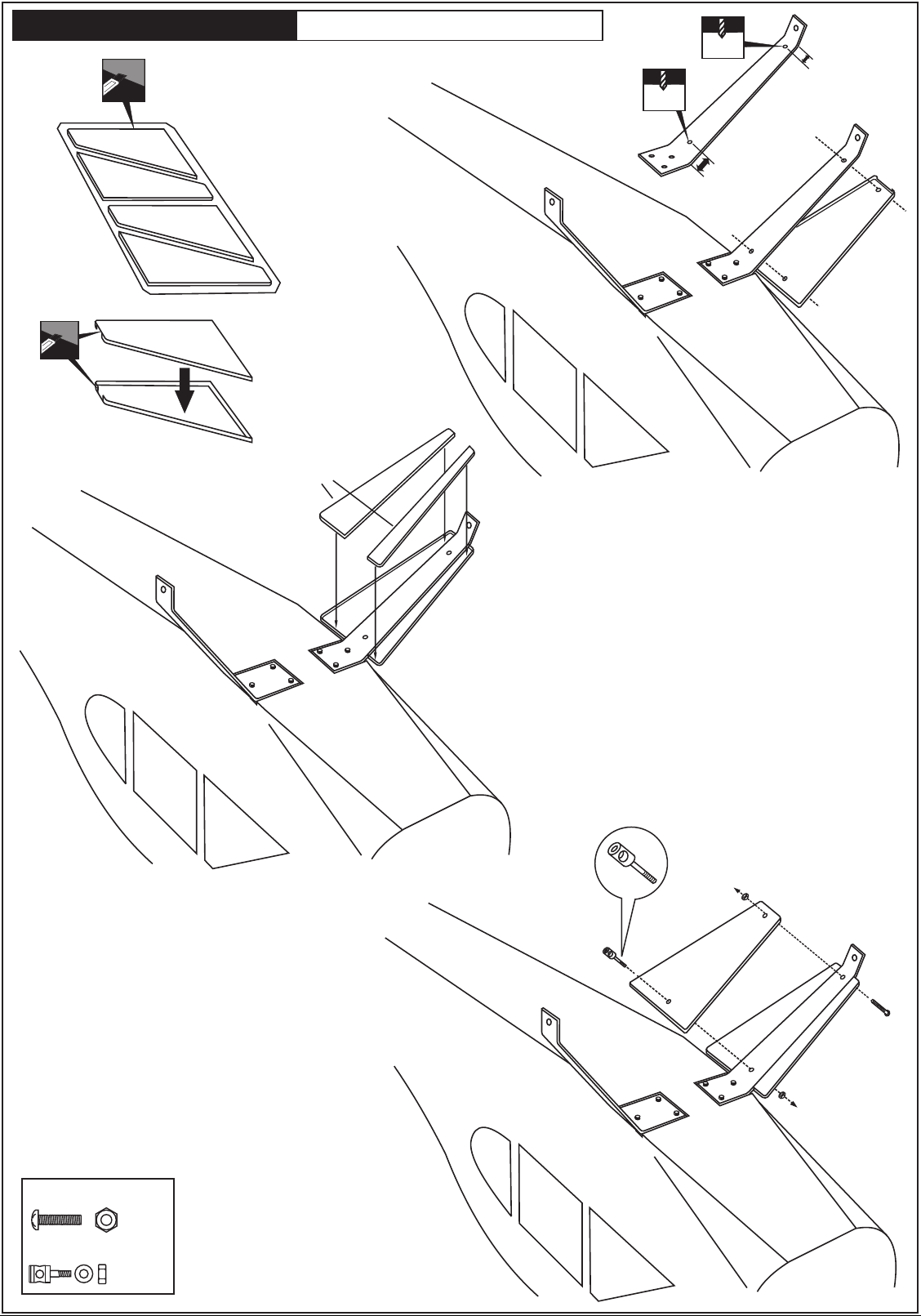

MAIN LANDING GEAR
NAVY CUB section 6
CA
Thin CA

3mm
15m
8mm
3mm
......2
Connector
3mm plywood
3x10mm screw
......2
3x10mm
connector
MAIN LANDING GEAR
NAVY CUB section 7

2x6mm screw
.........24
12
3
4
Heat sink
3x10mm screw
......8
...1
Heat sink- long 100mm
MAIN LANDING GEAR
NAVY CUB section 8

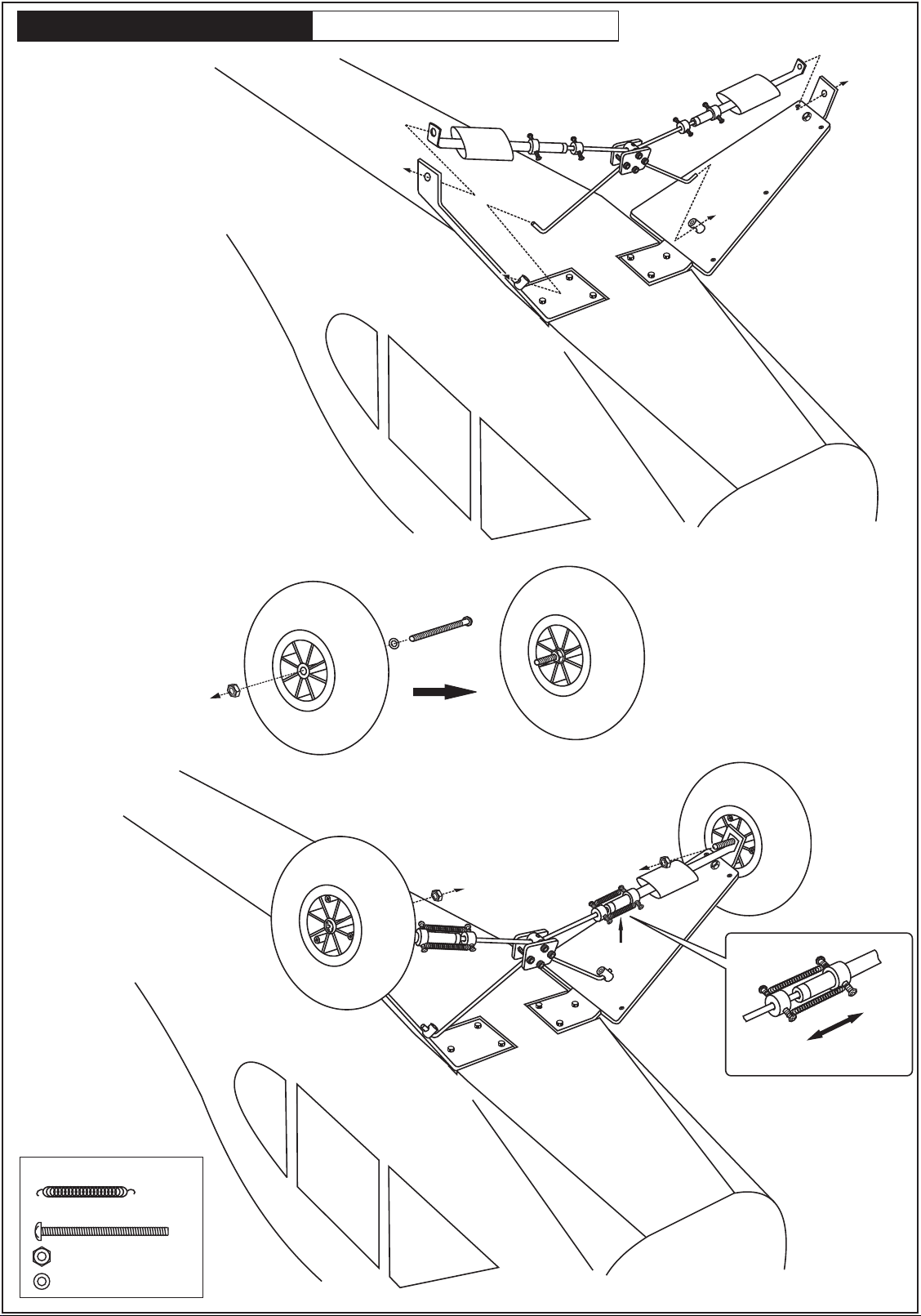

MAIN LANDING GEAR
NAVY CUB section 9

4x50mm screw
5
6
7
8
8
MAIN LANDING GEAR
NAVY CUB section 10
Spring
Spring
...........4
4x50mm screw ...2
4mm nut.................4
4mm washer...........6

Lighter
MAIN LANDING GEAR
NAVY CUB section 11

5mm
13/64”
Using a aluminum motor mounting plate as a template, mark the fire-wall
where the four holes are to be drilled (1).
Remove the aluminum motor mounting plate and drill a 5mm hole
through the plywood at each of the four marks marked (2).
Note: The aluminum motor mounting and screws included with the engine.
1
3
4
Aluminum motor
mounting plate
2
5
B
B=150mm
6
.........4
5X80mm screw
5mm washer
5mm nut
..................12
..................12

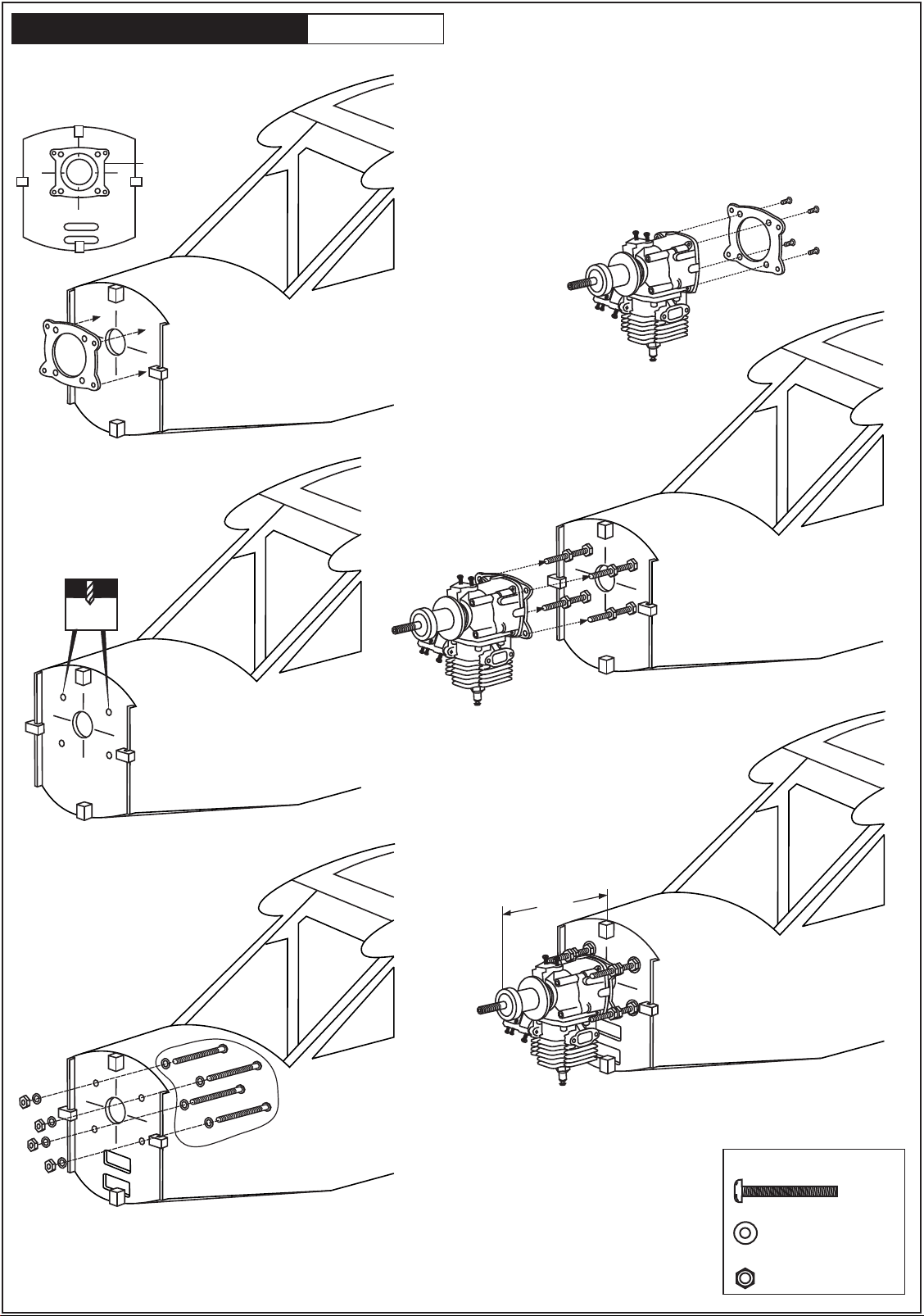

ENGINE
NAVY CUB section 12

Using a aluminum motor mounting plate as a template, mark the fire-wall
where the four holes are to be drilled (1).
Remove the aluminum motor mounting plate and
drill a 5mm hole through the plywood at each of the
four marks marked (2).
Note: The aluminum motor mounting and screws
included with the motor.
4
1
2
CA
3
CA
B
B=150mm

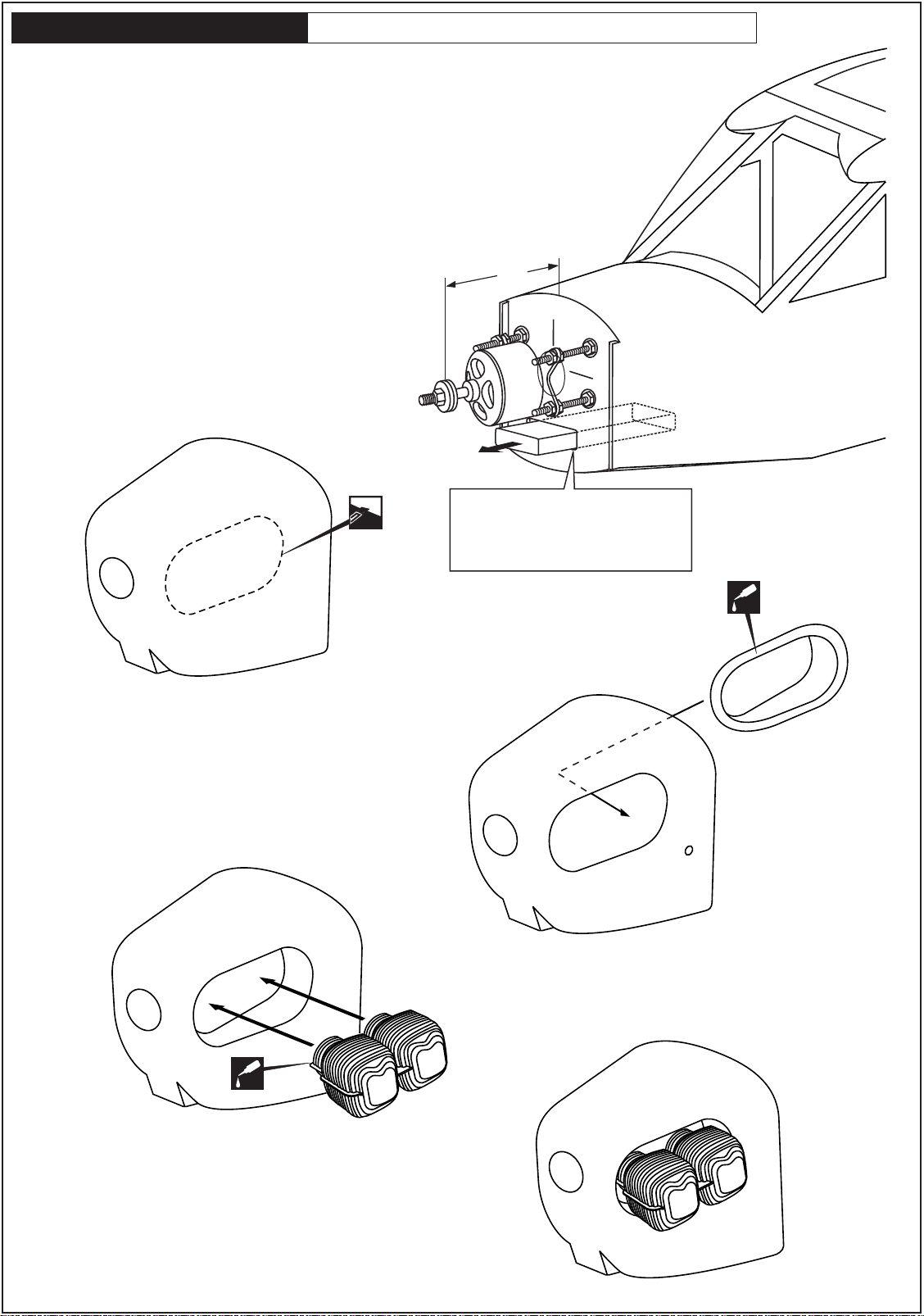

ELECTRIC MOTOR and COWLING
NAVY CUB section 13
Cut a hole on the fire-wall to you
can move the Li-po battery to the
nose of the model, this helps the
easy to balance your model.
Li-po battery

7
5
6
2x6mm screw
8
black rubber tube
metal wire
9
black rubber tube with metal wire inside
7mm
7mm
10
CA
CA
CA

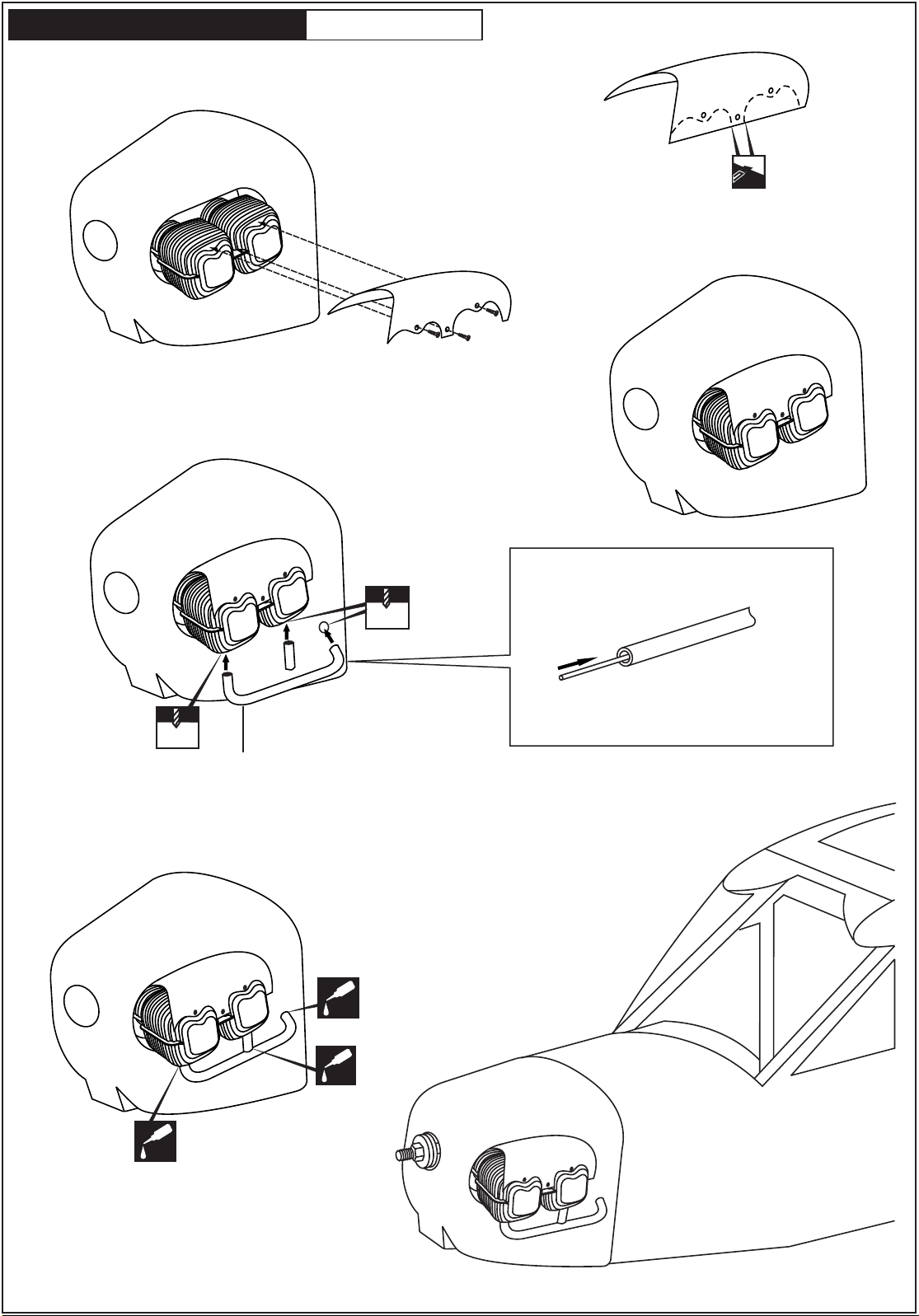

COWLING
NAVY CUB section 14
IN CASE OF ELECTRIC MOTOR USING

23x8mm screw
............4
4 - 6mm
2.mm 1.5mm
Relive the cowl to clear the silencer,
carburetor and plug.
X
To muffler
Filler tube
To engine
3x35mm screw
Rubber stopper
Checking for leaks - block the vents and blow into the
feed - if in doubt submersing the tank in a blow of
water will show up any problems (10B).
Blow
Water
FUEL TANK
2.5x10mm
....5
2.5x10mm
IN CASE OF GASOLINE ENGINE USING
COWLING
NAVY CUB section 15

1
2
3
4
cable
X
3mm set Screw
2 mm
Elevator pushrod
Elevator Servo (1) (3)
Rudder Servo (2)
Throttle Servo (4)
......4
.....2
.....2
..........4
..................2
2x8mm metal tube
2x8mm metal tube

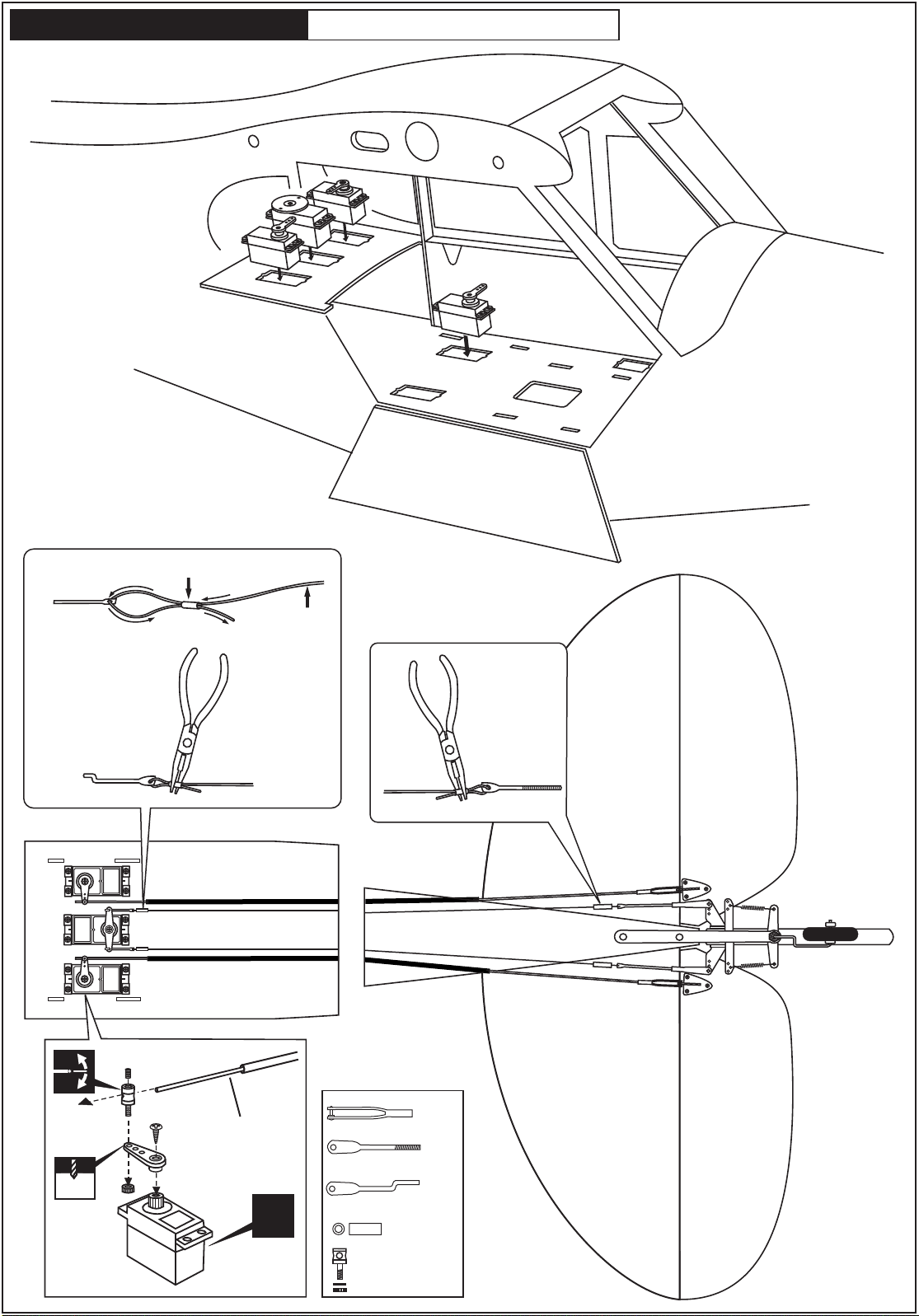

SERVO & LINKAGES
NAVY CUB section 16

CA
X
Extension
cord not include.
2x10mm
screw
Aileron servo hatch
Aileron servo
Servo mount
WING BOTTOM
BOTTOM - VIEW / Unteransicht
1.5mm
Control horn
......................2
2x30mm screw
...................6
...............2
Connector
PILOT CHAIR
NAVY CUB section 17
NAVY CUB section 18 AILERON SERVO & LINKAGE

L/R
Assemble left and right
wing halves the same way
BOTTOM - VIEW / Unteransicht
CA
CA
CA
Aileron servo hatch
Aileron push rod
Aileron control horn
Wing - Bottom view / Unteransicht
Servo hatch Pushrod
Aileron servo and hatch
RIGHT
Aileron servo and hatch
LEFT
WING SECTION
2mm
2X30mm
NAVY CUB section 19 AILERON SERVO & LINKAGE
NAVY CUB section 20 WING: DOWEL and CONNECTOR
7mm diameter dowel
3mm connector
........4
7mm dowel
........2

L/R
Do the same way with other
wing halves.
Carefully, push the wing halves
to the fuselage.
Aluminum tube
Slide the aluminum tube into
the fuselage as shown.
L/R
Do the same way with
other wing halves.
Secure the wing halves in place
using 6mm nylon bolts.
6mm nylon bolt
........2
NAVY CUB section 21 WING INSTALLATION

Stabilizer
CA
CA

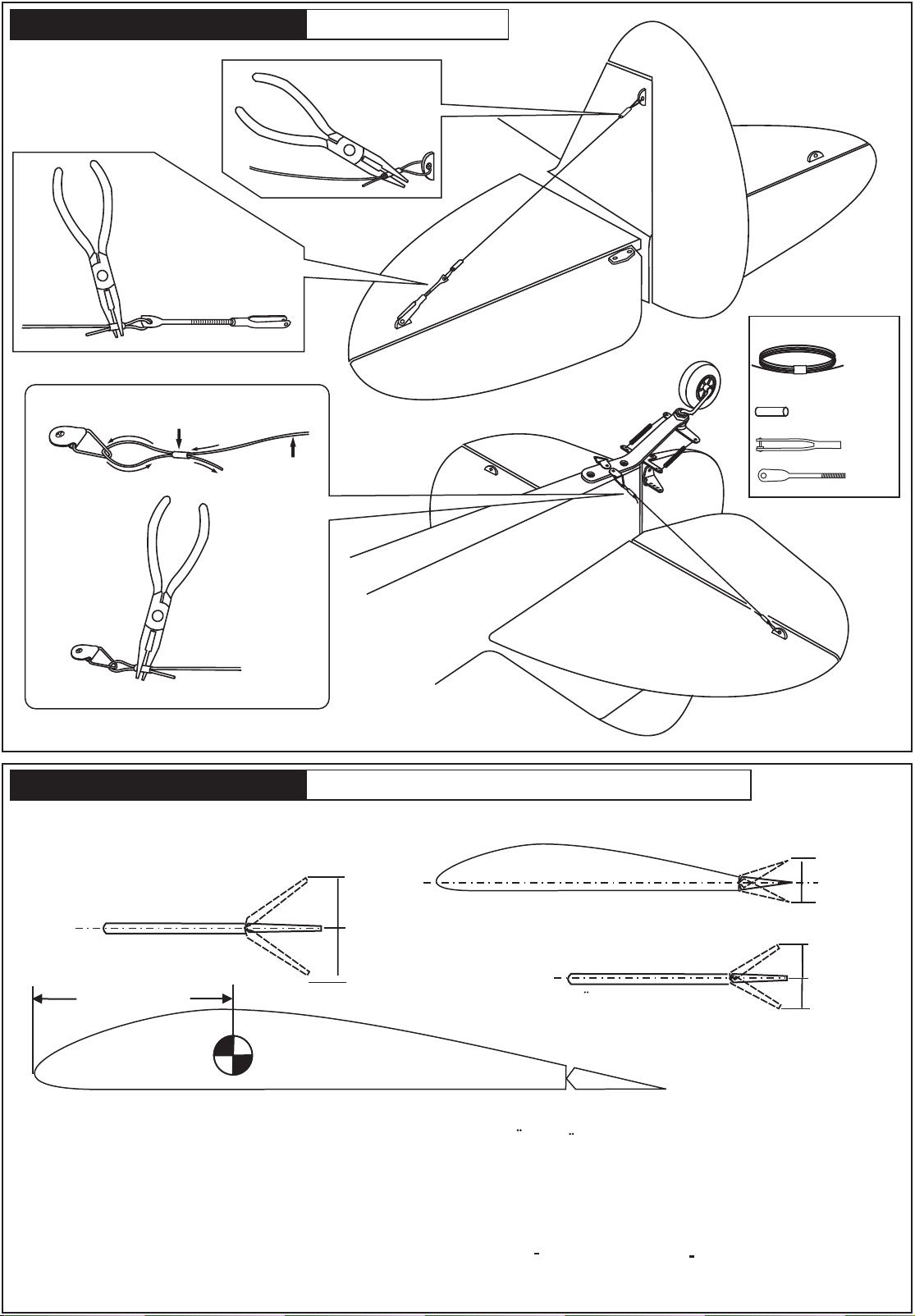

NAVY CUB section 22 WING BRACE

cable
Aluminum tube
86 ~ 91mm
50mm
20mm
25mm
25mm
Aileron
Rudder
Elevator
20mm
50mm
Querruderausschlag
Hohenruderausschlag
Seitenruderausschlag
Do not try to fly an out-of balance model!
Uberprufen Sie vor dem Flug den Schwerpunkt.
IMPORTANT: Please do not clean your model with pure alcohol, only use liquid soap with water or use glass cleaner
to clean on surface of your model to keep the colour not fade.
All details are subject to change
without notice !
Technische Anderungen und Irrtumer
vorbehalten !
WARNING !
Do not put in a large-than recommended engine. A bigger engine does not necessarily mean better performance.
0.7mm dia. Cable
...1 roll
2mm metal tube
....................4
.....2
.....2
NAVY CUB section 23 CABLE WIRE
NAVY CUB section 24 BALANCE & CONTROL SURFACE
