Nexa Royal Air Force Supermarine Spitfire User manual

SPECIFICATIONS
Wingspan:......................................1540mm
Length:...........................................1230mm
Electric Motor:.....................See next pager
Glow Engine:.................... .50 2-T / .70 4-T
Radio:....................6 Channels / 6-7 Servos
Function: Ailerons-Elevator-Rudder-Throttle
Flaps- Retractable Landing Gear.
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen. Bei unsachgemässer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstätzung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
Radio control model / Flugmodel
ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY
ROYAL AIR FORCE
Instruction manual / Montageanleitung
TECHNISCHE DATEN
Spannweite:...................................1540mm
Lange:............................................1230mm
Elektroantrieb.............(siehe nächste Seite)
Verbrennerantrieb:...............7.45cc - 11.5cc
Fluggewicht:.......................................3.9Kg
Fernsteuerung..........6 Kanal / 6-7 Servos
RTF Weight: 3.9Kg (will vary with equipment
use)

SILICON
CA
GLUE
Silicon sealer Cyanoacrylate Glue (thin type)
Minimum 6 channels radio .60 ~.70 - 4 cycle
10.5x6 for .40 - 2 cycle engine
11x6 for .46 - 2 cycle engine
12x6 for .60 - 4 cycle engine
12x7 for .70 - 4 cycle engine
13x7 - 13x8 for electric motor
Silicone tube
Extension cord for aileron servos: 50cm(x2)
.46 ~ .50 - 2 cycle
TOLLS REQUIRED
Hobby knife
Needle nose Pliers
Phillip screw driver
Awl
Scissors
Wire Cutters
(Purchase separately) Hex Wrench
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
Sander
Masking tape - Straight Edged Ruler - Pen or pencil - Drill and Assorted Drill Bits
Read through the manual before you begin, so you will have an overall idea of what to do.
(Purchase separately)
CONVERSION TABLE
1.0mm = 3/64”
1.5mm = 1/16”
2.0mm = 5/64”
2.5mm = 3/32”
3.0mm = 1/8”
4.0mm = 5/32”
5.0mm = 13/64”
6.0mm = 15/64”
10mm = 13/32”
12mm = 15/32”
15mm = 19/32”
20mm = 51/64”
25mm = 1”
30mm = 1-3/16”
45mm = 1-51/64”
If exposed to direct sunlight and/or heat, wrinkels can appear. Storing the
model in a cool place will let the wrinkles disappear. Otherwise, remove
wrinkles in covering film with a hair dryer, starting with
low temperature. You can fix the corners by using a hot iron.
Bei Sonneneinstrahlung und/oder Wärme kann die Folie erschlaffen bzw. Falten
entstehen. Verwenden Sie ein Warumluftgebläse (Haartrockner) um evtl. Falten aus der Folie
zu bekommen. Die Kanten können Sie mit einem Bügeleisen behandeln. Nicht zuviel Hitze anwenden !
REQUIRED FOR OPERATION (Purchase separately)
Low seting
700-800W Brushless Motor
5 cell 4500mAh LiPo battery
Extension cord for flap servos: 50cm(x4)
Extension cord for retract servos: 30cm(x2)
Extension cord for Rx battery pack: 20cm(x1)
EPOXY A
EPOXY B
Epoxy Glue
(30 minute type)
Standard Mini
Elevator : 1 standard servo
Rudder : 1 standard servo
Aileron : 2 standard servo
Flaps : 2 mini servo
Throttle : 1 mini servo (for glow engine only)
2

A
Carefully remove the engine mount beams
and drill a 6mm hole through the fire-wall
at each of the four marks made above (1C)
Reposition the engine mount beams on to the fire-wall
and secure them with four 4x25mm screw .
Insert the blind-nut onto each
of the four holes make above..
...................4
....................4
4x25mm screw - washer
Blind-nut
Push left (or right) the magnetic fuel tank
hatch and full it out of the fuselage.
! Align the mark on both engine mount
beams with the mark on the fuselage
Attach the engine mount beams onto the fire-wall
so the distance between of two engine mount beams
is “A”,and B=B’ as show.
Secure the engine mount beams onto the fire-wall
with litter CA glue.
Using a pencil or felt tipped pen, mark
the fire wall where the four holes are to
be drilled(1B))
6mm
INSTRUCTION MANUAL / SPITFIRE Engine installation
BB’
Litter thin CA
3

Position the engine to the engine mounts so the distance
from the prop hub to the fire-wall is 122mm.
Mark the engine mounting plate where the four holes are
to be drilled.
Remove the engine and drill a 3mm holes through the beam
at each of the four marks made above (8C)
Reposition the engine on the engine mount
beams, aligning it with the holes. Secure the
engine to the engine mount using four
3x25mm screws .
Note: Apply Silicon sealer to each of the
3x25mm screw and nut.
.......4
3x25mm screw
3mm Washer
.......4
C= 122mm
Marking sure that you drill the hole perpendicular to the beam
of the engine mount.
3mm
c
.......4
3mm Nut
Engine installation
INSTRUCTION MANUAL / SPITFIRE
4

Checking for leaks - block the vents and blow
into the feed - if in doubt submersing the tank
in a blow of water will show up any problems.
Blow
Water
Using a wooden motor mounting plate as a
template, mark the fire-wall where the four
holes are to be drilled.
Using a aluminum motor mounting plate
as a template, mark the plywood motor
mounting plate where the four holes are
to be drilled.
Remove the aluminum motor mounting
plate and drill a 1/8”(3mm) hole through
the plywood at each of the four marks
marked .
3mm
! Align the mark on wooden motor
mounting plate with the mark on
the fire-wall.
To muffler
Filler tube
To engine
3x35mm screw
Rubber stopper
X
XZip tie
! Do not secure the tank into place permanently until after balancing
the airplane. You may need to remove the tank.
Fuel tank
Electric motor installation
INSTRUCTION MANUAL / SPITFIRE
5

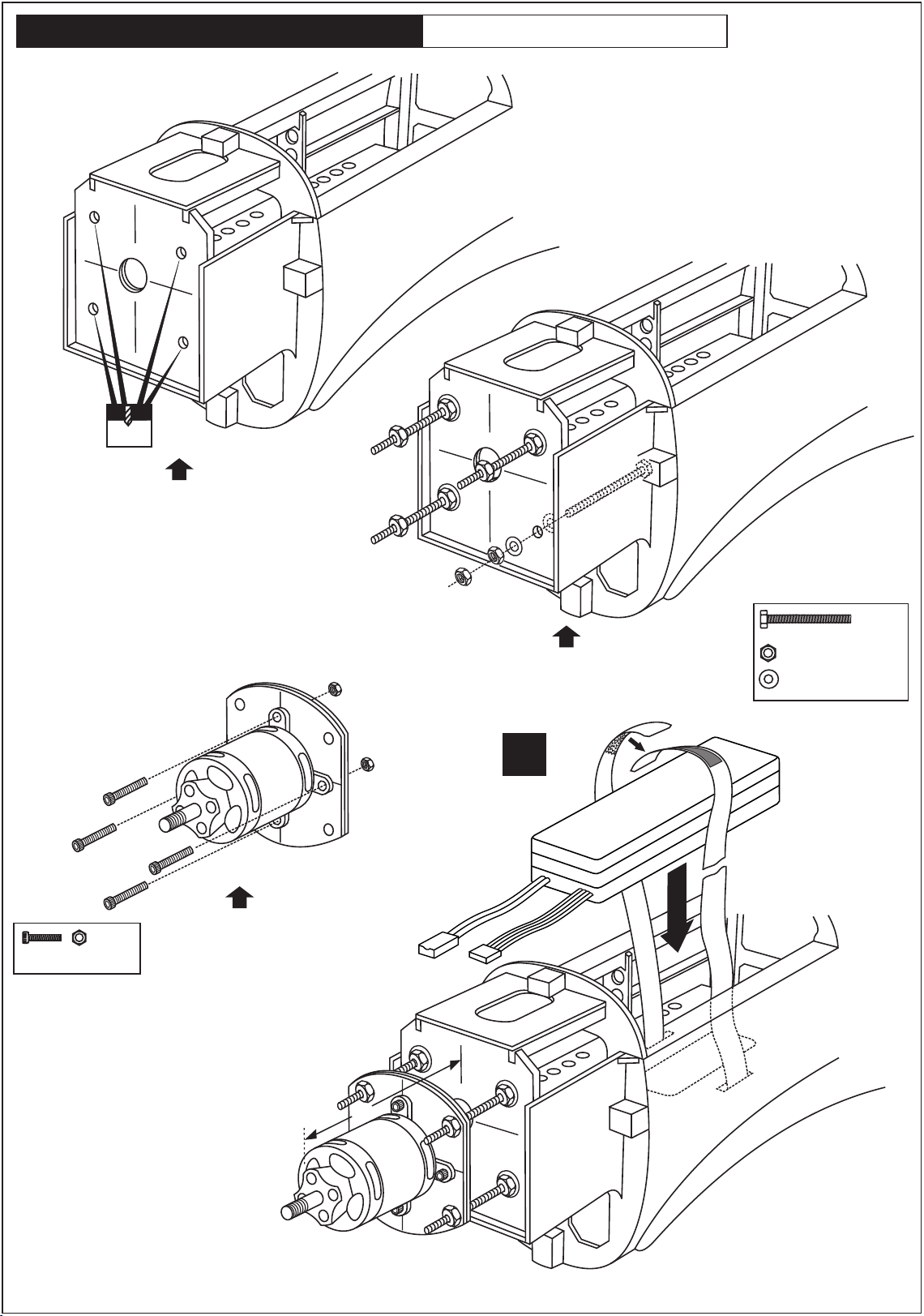

Remove the wooden motor mounting
plate and drill a 5mm hole through
the fire-wall at each of the four marks
marked .
5x80mm bolt.....4
5mm nut..........12
5mm washer...16
Attach the four 5x80mm bolts
and nuts to the fire-wall as shown.
5mm
c
Velcro
X
3mm bolt / nut...4
Secure the Motor to the wooden
motor mounting plate using the
four 3mm bolts.
Electric motor installation
INSTRUCTION MANUAL / SPITFIRE
C= 122mm
6

1- Drill a 3mm hole on the fire-wallwhere the pushrod tube exits.
2- Slide the pushrod tube into the hole.
3- Slide the wire, straight end first, into the pushrod tube.
4- Insert the “Z” bend into the hole on the throttle lever of the engine.
Note: it maybe easier to temporarily remove the throttle lever from
the carburetor.
2.5x10mm screw
.........4
Trim the cowling so it
will match your engine.
Cowling installation
INSTRUCTION MANUAL / SPITFIRE
Before installing the cowl
2mm
7

2mm
BOTTOM VIEW
BOTTOM VIEW
2x20mm screw
..............4
Plastic control horn
............2
Plastic control horn
............2 set
3-Install the aileron control horn as shown.
Adhesive
tape
The rectangular hole on the bottom
of the flap is pre-cut at factory.
Cut away only the covering.
Control horn Alignment
2-Mark the position of the “foot” of the horn on the aileron. Then, with
the drill make the two holes.
1-Depending on the position of the linkage, determine the location of aileron
control horn.
The horn holes must be perfectly aligned with the axis of articulation.
Pull out servo extension cord with string.
X
X
X
L/R Assemble left and right
wings the same way.
6mm dia. dowel
(for one wing half only)
CA

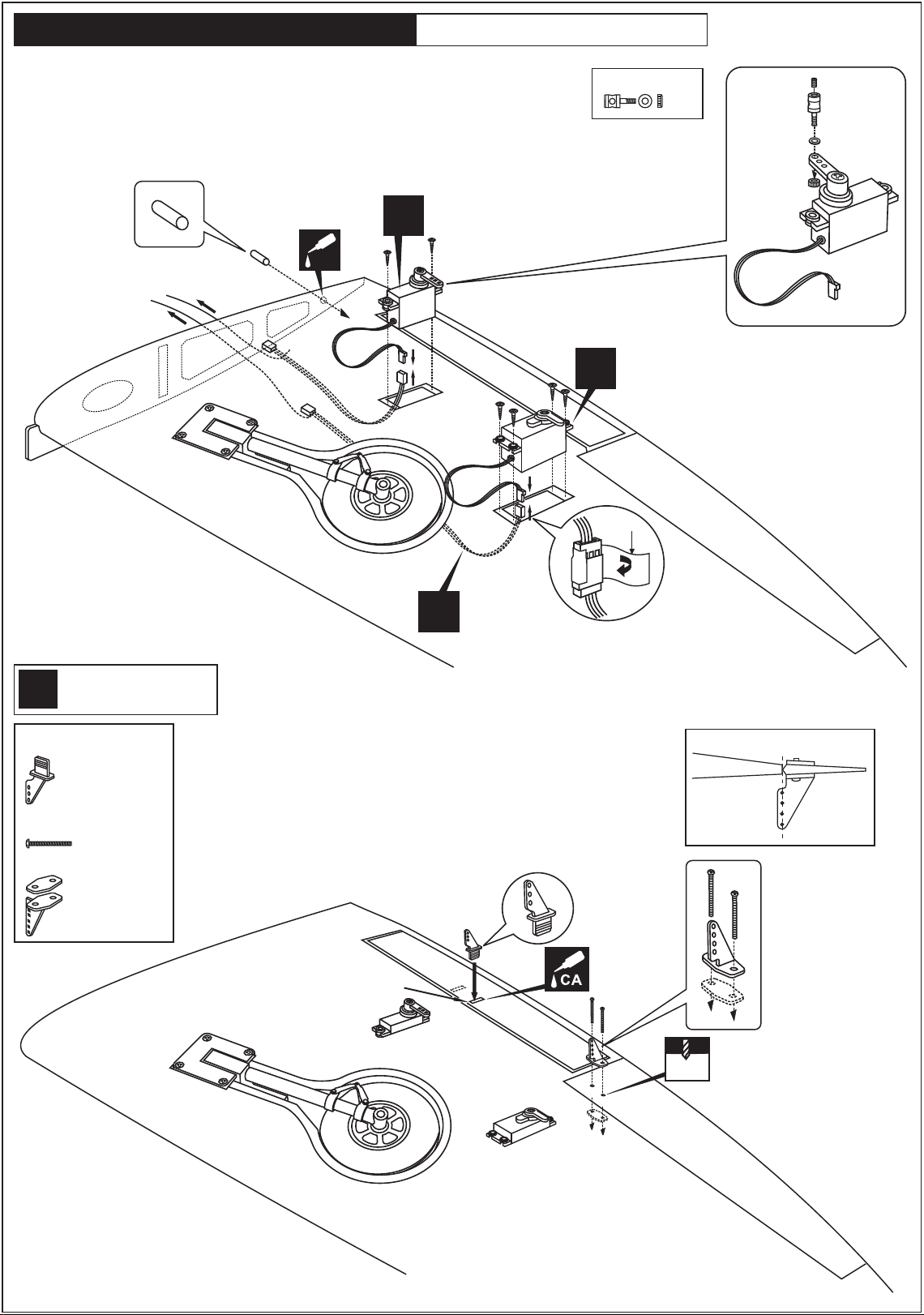

Wing: Servo installation
INSTRUCTION MANUAL / SPITFIRE
8
Thin CA
Connector
...2

L/R Assemble left and right
wings the same way.
-Switch on the radio (trims centered)
Then mount the ailerons servo horn
In neutral position.
-The servo horn should be
Perpendicular to the servo
YES NO
2x175mm Aileron rod
....2
2x120mm flap rod
................2
EZ link
..............2
Connector
50
Flap servo
Wing: Linkages
INSTRUCTION MANUAL / SPITFIRE
Kwik-link
..............2
....2
9

CA
Attach the plastic gear door to the
plywood gear door .
ON
OFF
GEAR
SWITCH
10
Wing: Gear door
INSTRUCTION MANUAL / SPITFIRE

Attach the gear door to the
wooden gear door mounts.
Secure it in place using CA glue.
Do not glue the wooden gear
door mounts to the strut at this
time.
Slide the wooden gear door
mounts to the strut.
CA
Move the gear door (with gear door mounts) to up
or down, when satisfied, secure the wooden gear
door mount in place using CA glue.
Connect the electric retract with the radio to check
the position of the gear door when the electric retract
in retracted and expanded position.
ON
OFF
GEAR
SWITCH
CA
Sharpen this area to
ensure that the
gear door mount does
not touch the plastic
part of the E-retract.
Important: When you “on” the retract switch,
if the retract gear does not retracted completely,
use your finger to push the retract gear to the
completely retrated position, then “off” the retract
switch, it will extend.
Use the hobby knife to remove the place
where the retract gear is entangled or sand the
area on the wooden gear door mount as show.
11
Wing: Gear door
INSTRUCTION MANUAL / SPITFIRE

55mm
85mm
CA
L/R
CA L/R
Cut away only
the covering
12

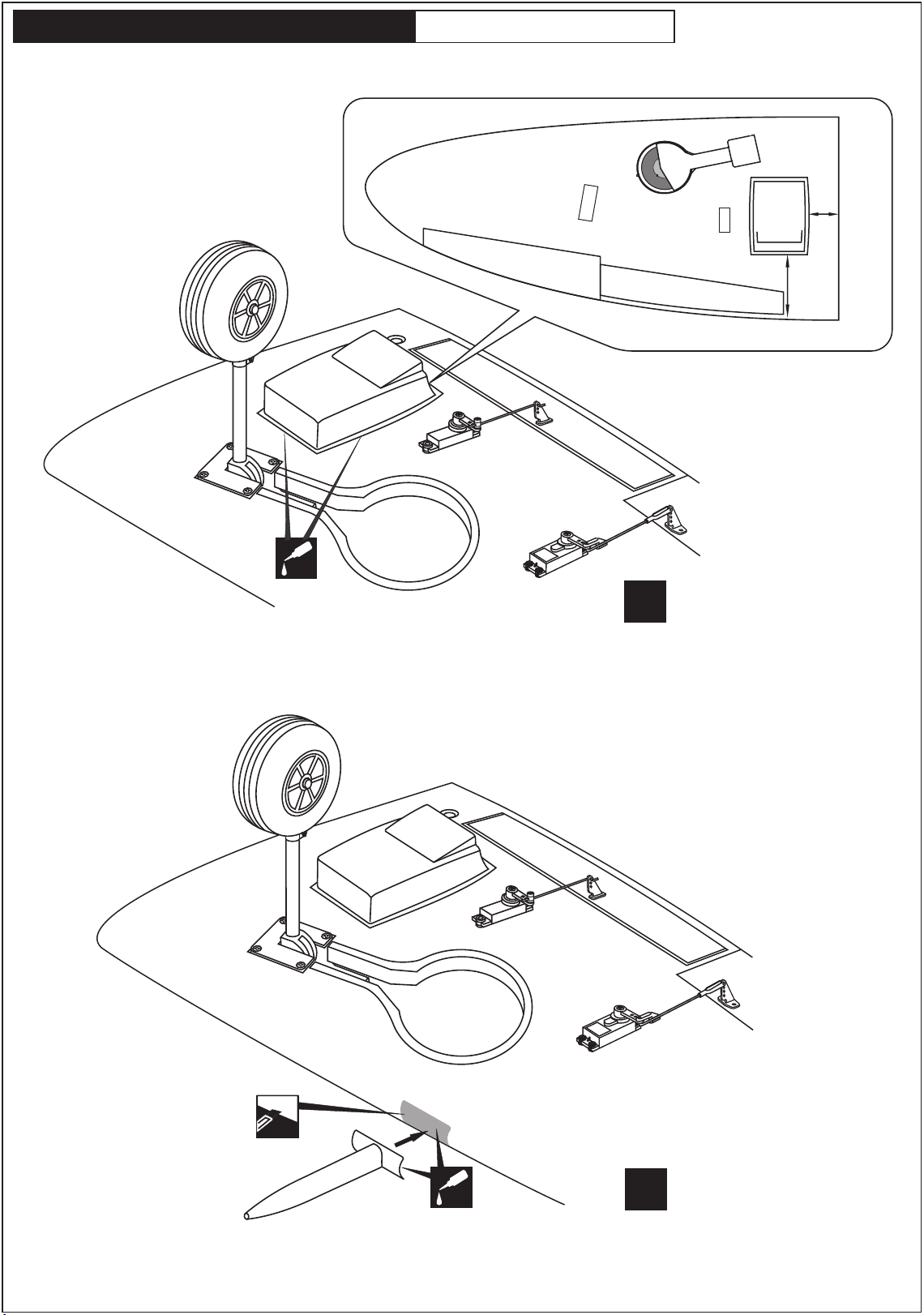

Wing: Air scoop - Gun
INSTRUCTION MANUAL / SPITFIRE

! Make sure to glue securely, If not
properly glued, a failure in flight may
occur.

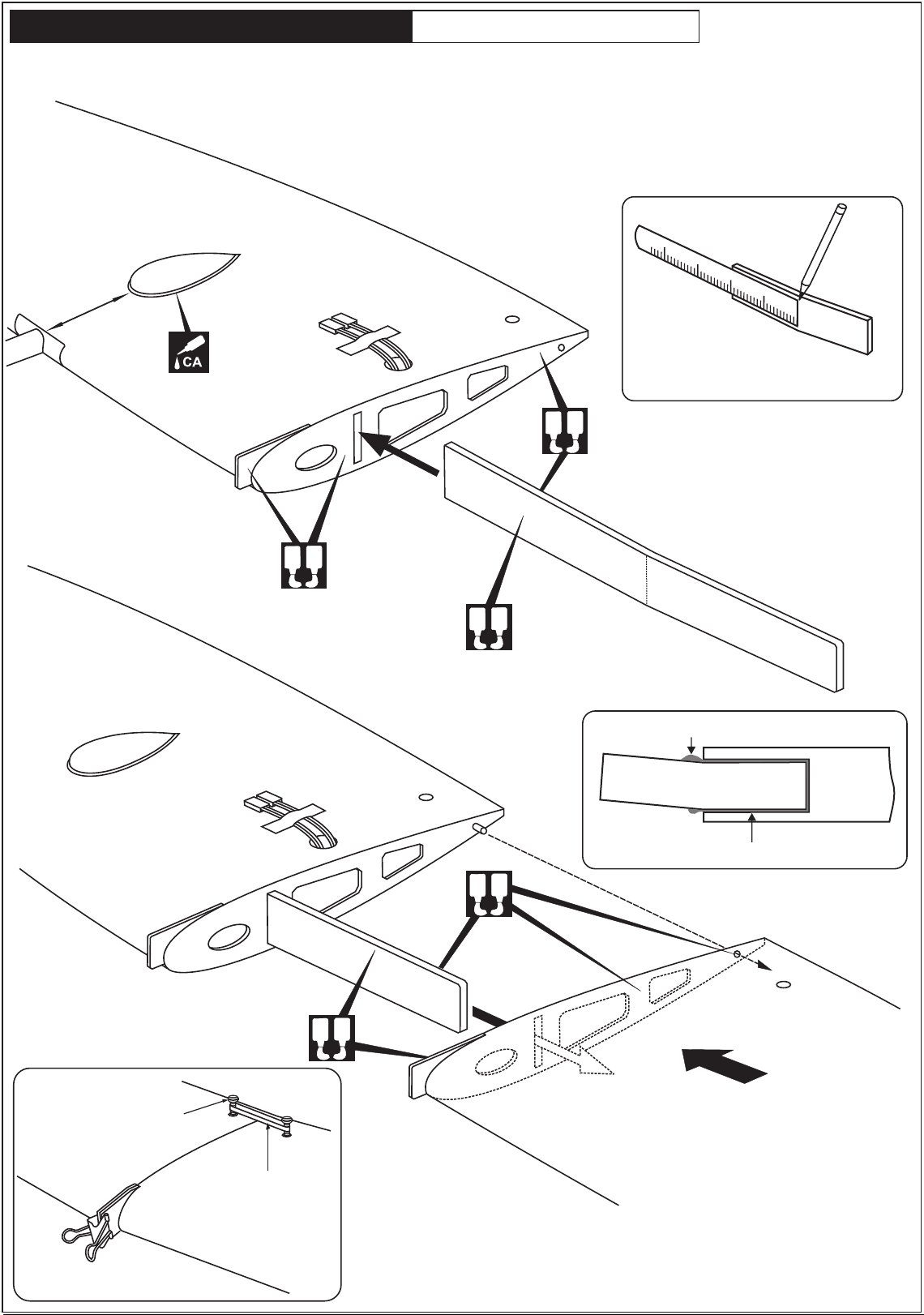

Draw the center line on the wing joiner
- Trial fit each part before gluing . Be certain that there are no gaps.
If the parts will join, but with a gaps, sand or trim the parts a little
at a time until the parts meet exactly with no gaps.
- Check for the correct dihedral angle
Hold the wing halves together with paper clamp and rubber band.
Before gluing:
- Draw the center line on the wing joiner.
Note: The two wing halves roots must fit together perfectly.
IMPORTANT:
Please do not clean off the excess epoxy on the wing with strong
solvent or pure alcohol, only use kerosene to keep the colour of your model not fade.
AB
AB
AB
Glue must go inside
Wing joiner
Glue
Wing half
AB
AB
Rubber band
(not include)
Paper clamp
(not include)
Nylon wing bolt
(included)
82mm
Joining the wing halves
INSTRUCTION MANUAL / SPITFIRE
TOP-VIEW
30 min.Epoxy
30 min.Epoxy
30 min.Epoxy
13

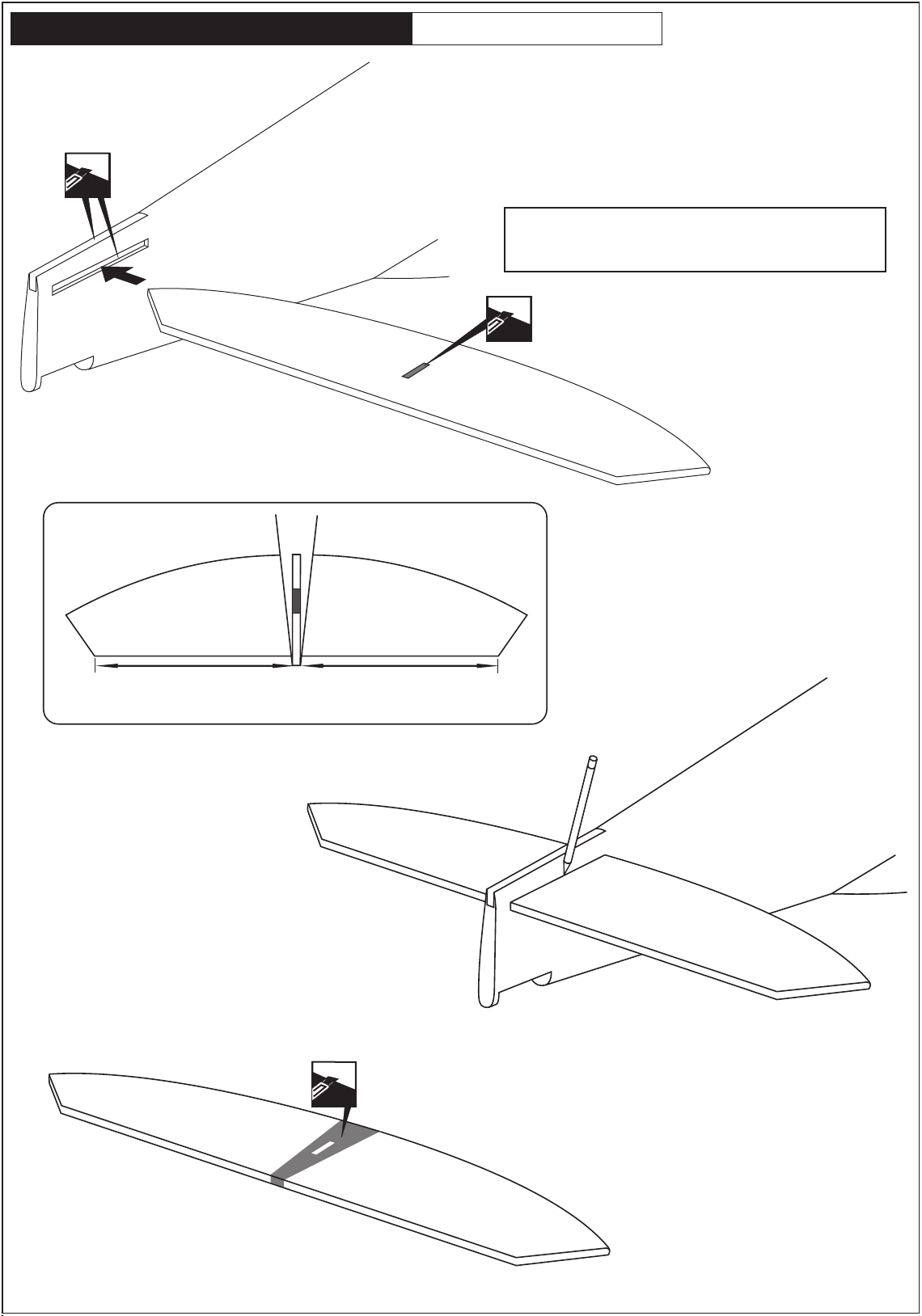

Carefully, push the horizontal stabilizer into the slot on the
fuselage as show.
When you are satisfied with the alignment, use
a pencil to trace around the top and bottom of
the stabilizer where it meets the fuselage.
Remove the horizontal stabilizer
from the fuselage. Using a straight edge
and a sharp hobby knife, carefully cut away
the covering inside the lines which were marked
above. Be cautious not to cut into the wood-this
will weaken the structure.

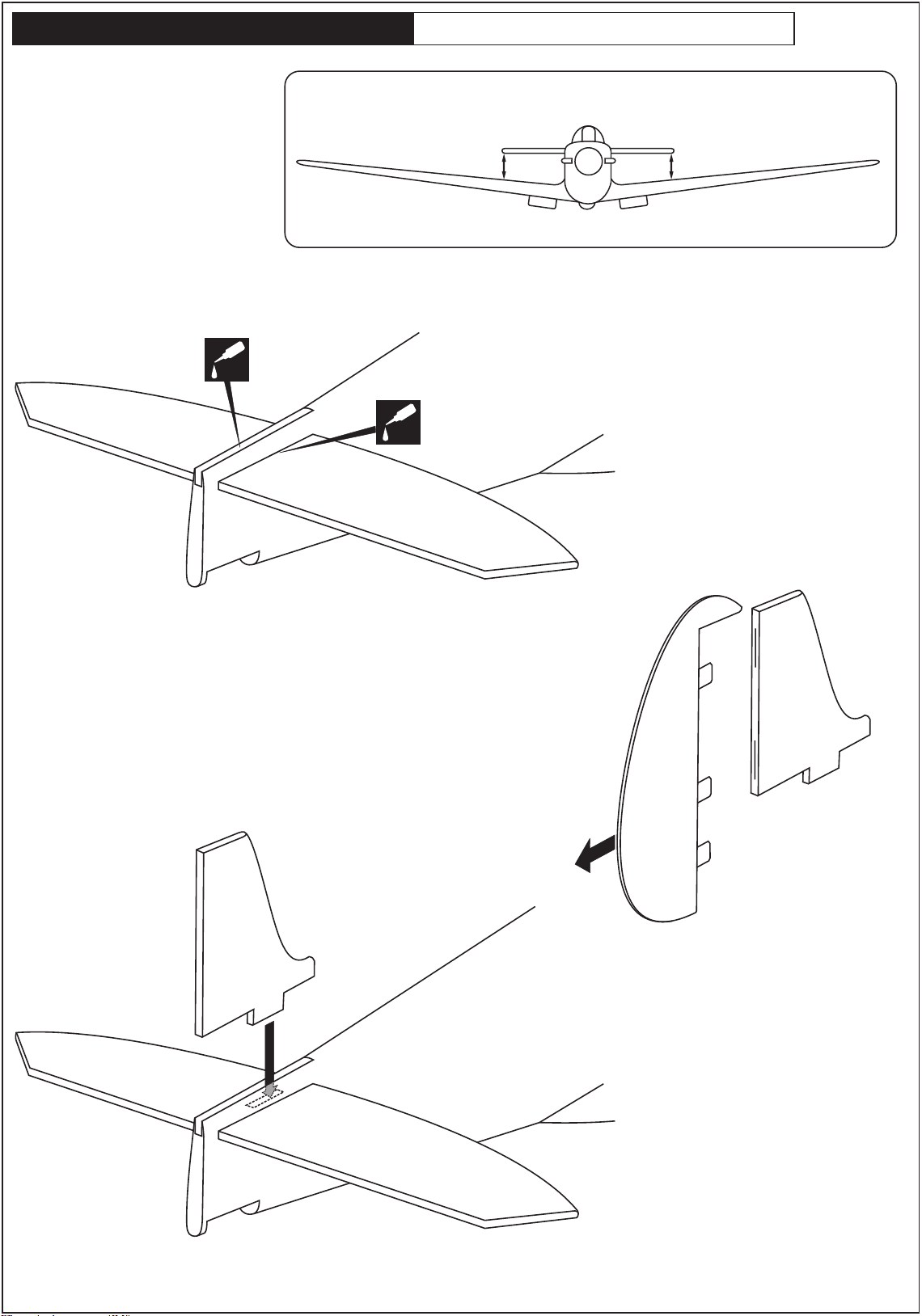

Pull the left and right elevator out of the horizontal stabilizer.
Using a sharp hobby knife, carefully cut away the covering
around of all slots for the horizontal stabilizer and vertical
fin installation.
Cut away only
the covering
Cut away only
the covering
both sides.
The rectangular hole on the Horizontal stabilizer
must be located in the middle and parallel with
the fuselage.
Cut away only the
covering both sides
FUSELAGE AND HORIZONTAL STABILIZER - TOP VIEW
NOTE: You may need to open up the slots with the thin
sander so that the horizontal stabilizer is not too difficult
to push .in
AA’
A=A’
Horizontal stabilizer
INSTRUCTION MANUAL / SPITFIRE
14

! Securely glue together. If coming off during fly,
you lose control of your air plane.
Apply thin CA glue
both sides
CA
Apply thin CA glue into the slot where
the fuselage meet the horizontal stabilizer.
Install the horizontal stabilizer onto the fuselage and adjust the alignment
as described before.
Note: it is important to ensure that the horizontal stabilizer is also level in
regards to the fuselage.
Apply the thin CA along the area where the covering was removed in the
previous step and to the fuselage where the horizontal stabilizer mounts .
Pull the rudder out of the vertical fin.
Carefully, push the vertical fin into the
slot on the fuselage as shown (12A).
BB’
B=B’
CA
Horizontal and Vertical stabilizer
INSTRUCTION MANUAL / SPITFIRE

Trial fit the vertical fin in position. Using
a 90 degree triangle, ensure that the
vertical stabilizer is perpendicular to the
horizontal stabilizer.
Using a pencil, trace around the vertical
stabilizer where it meets the fuselage.
Remove the vertical stabilizer from the
fuselage.
90 degree
triangle
Cut away only
the covering
both sides.
Insert the vertical fin into the fuselage, precisely
align the vertical stabilizer as described before.
Apply the thin CA glue on the vertical stabilizer
where it contacts the fuselage.
Securely glue together. If coming off during fly,
you lose control of your air plane.
Remove the vertical stabilizer from the fuselage.
Using s sharp hobby knife, carefully cut away the
covering below the lines which were drawn in the
previous steep. Do not cut into the woods as this
will affect the structural integrity of the stabilizer.
Apply thin CA
glue both side
CA !
Vertical stabilizer
INSTRUCTION MANUAL / SPITFIRE

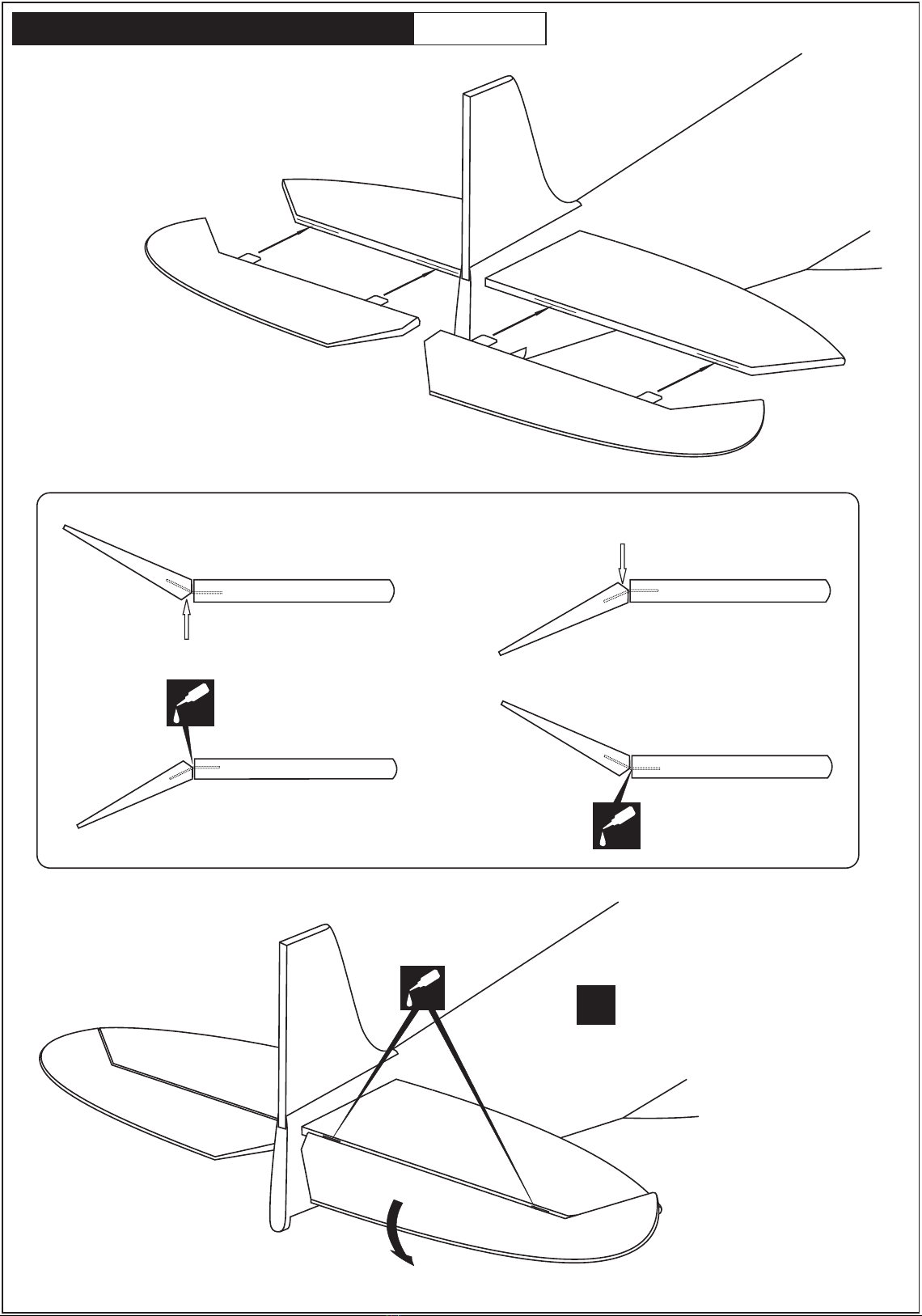

Without using glue yet, push the elevator and its
hinges into the hinge slots in trailing edge of the
horizontal stabilizer.
CA
Apply thin CA
glue on the top
of the hinge
Apply a thin layer of petroleum jelly
HORIZONTAL STABILIZER
HORIZONTAL STABILIZER
TOP-SIDE
TOP-SIDE
CA
Apply thin CA
glue on the bottom
of the hinge.
Apply a thin layer of petroleum jelly
HORIZONTAL STABILIZER
BOTTOM-SIDE
HORIZONTAL STABILIZER
BOTTOM-SIDE
STEP 1
STEP 2 STEP 4
STEP 3
Apply thin CA
glue on the top
and bottom
of the hinge
CA Securely glue together. If coming off during
fly, you lose control of your air plane.
!
Elevator
INSTRUCTION MANUAL / SPITFIRE
17

CA
CA
CA
Apply thin CA
glue on the right
of the hinge.
Apply a thin layer
of petroleum jelly.
VERTICAL STABILIZER
STEP 1
VERTICAL STABILIZER
STEP 2
Do the same way with other
side of vertical stabilizer.
Securely glue together. If coming off during fly,
you lose control of your air plane.
!
Without using glue yet, push the rudder and its
hinges into the hinge slots in trailing edge of the
vertical stabilizer.
Rudder
INSTRUCTION MANUAL / SPITFIRE
18

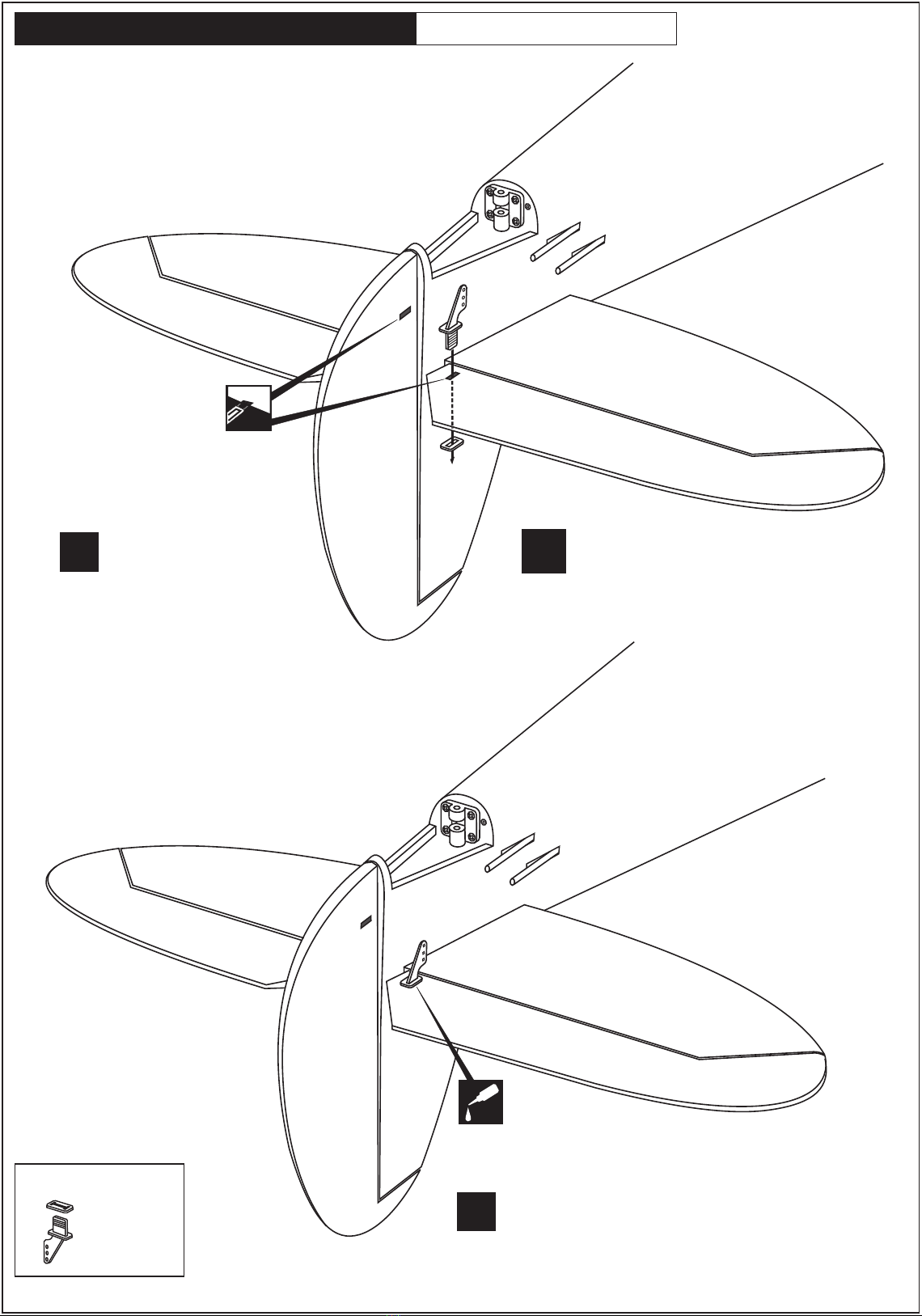

Cut away only the
covering both sides.
CA
Apply thin CA glue on the top
and bottom of the control horn
where it meets the elevator.
Securely glue together. If coming off during fly,
you lose control of your air plane.
!
L/R Do the same way with other elevator
control horn.
!The rectangular holes on the
wooden elevator and rudder
are re-cut at factory.
Elevator control horn
INSTRUCTION MANUAL / SPITFIRE
Elevator control horn
............2 set
19

CA
Apply thin CA glue on the left
and right of the control horn
where it meets the rudder.
Securely glue together. If coming off during fly,
you lose control of your air plane.
!
Rudder control horn
INSTRUCTION MANUAL / SPITFIRE
Rudder control horn
............1 set
20
