Nexcom VTC 7120-BK Series User manual

NEXCOM International Co., Ltd.
NEXCOM International Co., Ltd.
Published November 2013 www.nexcom.com
Mobile Computing Solutions
Vehicle Telematics Computer
VTC 7120-BK Series
User Manual

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. ii
Contents
VTC 7120-BK Series User Manual
Contents
Preface
Copyright .............................................................................................. v
Disclaimer .............................................................................................. v
Acknowledgements ............................................................................... v
Regulatory Compliance Statements ........................................................ v
Declaration of Conformity....................................................................... v
RoHS Compliance .................................................................................. vi
Warranty and RMA ................................................................................vii
Technical Support and Assistance............................................................ x
Conventions Used in this Manual............................................................ x
Global Service Contact Information........................................................ xi
Package Contents.................................................................................xiii
Chapter 1: Product Introduction
Physical Features .....................................................................................1
VTC 7120-BK ......................................................................................1
Overview ................................................................................................2
Key Features ...........................................................................................2
Hardware Specifications..........................................................................3

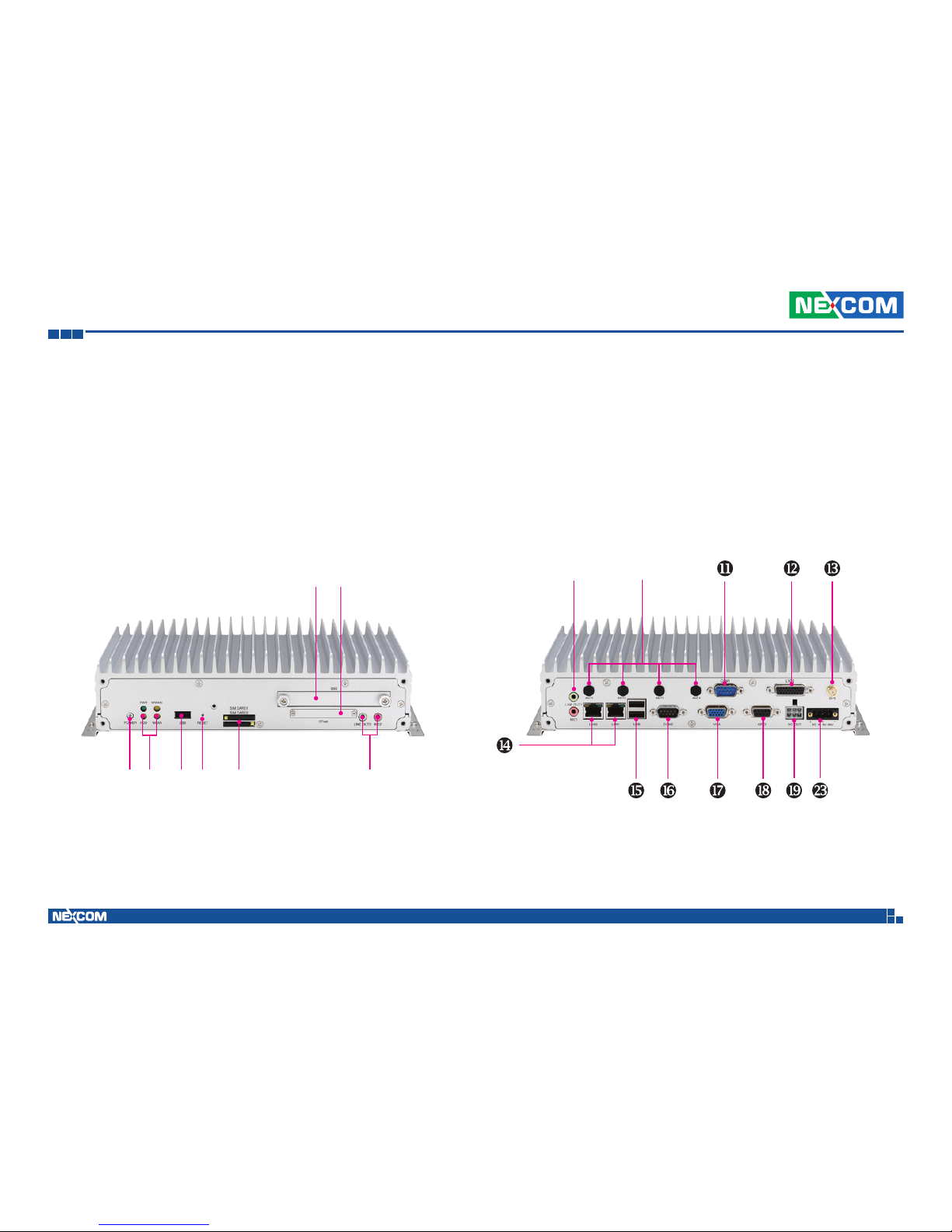

Connector Numbering ............................................................................5
VTC 7120-BK ......................................................................................5
Chapter 2: External Connectors Pinout Description
Power Button ......................................................................................6
Power On & SSD or HD Active LED ......................................................6
WLAN & WWAN Active LED ................................................................7
USB 2.0 Port........................................................................................7
Reset Button........................................................................................8
SIM Card Connector-3.5G Wakeup......................................................8
CFast Card Connector .........................................................................9
Line-out...............................................................................................9
Mic-in ...............................................................................................10
Mic-in2, Line-out2.............................................................................10
RS232 Connector ..............................................................................11
LVDS Connector ................................................................................11
LAN Connectors ................................................................................12
USB Connector..................................................................................12
RS422/485 Connector .......................................................................13
VGA Connector.................................................................................13
GPIO Connector ................................................................................14
External 12V (4A) & Car Battery (4A) Power and SMBUS....................14
Power Input.......................................................................................15
Chapter 3: Jumpers and Switches
Before You Begin .................................................................................16
Precautions ..........................................................................................16
Jumper Settings ....................................................................................17
VTC 7120-BK Jumpers Setting ..............................................................20
CMOS Clear Select ............................................................................20
RS232 – Enable Select .......................................................................20
LVDS Power input Voltage Select .......................................................20

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. iii
Contents
VTC 7120-BK Series User Manual
CMOS Input Voltage Select................................................................20
PCI-104 VI/O Voltage Setting.............................................................20
RS232 Connector ..............................................................................21
LVDS Connector+USB0 ......................................................................21
GPS I-PEX Connector.........................................................................22
DVI+VGA Connector ........................................................................22
SATA PWR Connector........................................................................23
SATA Connector ................................................................................23
Mini-PCIe (WWAN)............................................................................24
Mini-PCIe (WLAN)..............................................................................25
PCI-104 Connector ...........................................................................26
MCU Programmer PIN Header ...........................................................27
MCU COM Port.................................................................................27
GAL Programmer PIN Header.............................................................28
Super I/O Temperature Sensor............................................................28
MCU Temperature Sensor..................................................................29
LVDS Power Connector......................................................................29
GPS Connector..................................................................................30
Port80 Connector..............................................................................30
Bluetooth Connector.........................................................................31
Button Power ....................................................................................31
RTC Battery Connector......................................................................32
Hi-speed Board to Board Connector ..................................................33
High Speed Board-to-Board Connector:
COM Express Row A and Row B........................................................34
High Speed Board-to-Board Connector:
COM Express Row C and Row D........................................................37
Chapter 4: Mechanical Dimensions
VTC 7120-BK ....................................................................................40
Chapter 5: System Setup
Removing the Chassis Cover ................................................................41
Installing a GPRS/UMTS/HSDPA Module ...............................................42
Installing a Wireless LAN Module ..........................................................46
Installing a SATA SSD Drive ...................................................................48
Rackmount Brackets .............................................................................50
Chapter 6: Driver Installation.................................51
Appendix A:
Software Demo Utility for I/O Ports of Function Control
Menu Screen .....................................................................................52
1.1 Status ........................................................................................53
1.2 GPIO .........................................................................................53
1.3 WDT Setting ..............................................................................54
1.4 Output Power ............................................................................54
1.5 Power On Delay Time ................................................................55
1.6 Power Off Delay Time ................................................................55
1.7 3G Module ................................................................................55
1.8 WLAN Module ...........................................................................55
1.9 Wake Up Function .....................................................................56
Appendix B: Using the GPS Feature
u-blox NEO-6Q GPS Module Specification.............................................57
Setup and Using GPS Information .........................................................57
Appendix C: Signal Connection of DI/DO
GPIO Pinout Description........................................................................61
Digital Input..........................................................................................61
Digital Output.......................................................................................62

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. iv
Contents
VTC 7120-BK Series User Manual
Appendix D: OBDII Module Setup and Command
OBDII Module .......................................................................................64
VIOX-CAN01 Setup...............................................................................64
AT Command Summary........................................................................65
Simple Data Protocol: (ASCII CODE) ......................................................66
Simple Data Protocol: (HEX CODE)........................................................67
J1939 Raw Data Protocol (HEX CODE) ..................................................68
J1708 Raw Data Protocol (HEX CODE) ..................................................68
J1939 Packaged Messages Protocol ......................................................69
J1708 Packaged Messages Protocol ......................................................77
J1708 Command Example ....................................................................81
Appendix E: Pin Definition for GPS Dead Reckoning Module
-- VIOB-GPS-DR01
S2532DR Overview ...............................................................................82
Technical Specifications.........................................................................82

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. v
Preface
VTC 7120-BK Series User Manual
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class B devices and
describes how to keep the system CE compliant.
Declaration of Conformity
FCC
This equipment has been tested and verified to comply with the limits for
a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference
to radio communications. Operation of this equipment in a residential area
(domestic environment) is likely to cause harmful interference, in which
case the user will be required to correct the interference (take adequate
measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable
European Union (CE) directives if it has a CE marking. For computer systems
to remain CE compliant, only CE-compliant parts may be used. Maintaining
CE compliance also requires proper cable and cabling techniques.
Copyright
This publication, including all photographs, illustrations and software, is
protected under international copyright laws, with all rights reserved. No
part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without the prior written consent from
NEXCOM International Co., Ltd.
Disclaimer
The information in this document is subject to change without prior notice
and does not represent commitment from NEXCOM International Co., Ltd.
However, users may update their knowledge of any product in use by constantly
checking its manual posted on our website: http://www.nexcom.com. NEXCOM
shall not be liable for direct, indirect, special, incidental, or consequential
damages arising out of the use of any product, nor for any infringements
upon the rights of third parties, which may result from such use. Any implied
warranties of merchantability or fitness for any particular purpose is also
disclaimed.
Acknowledgements
VTC 7120-BK and VTC 7120-B2K are trademarks of NEXCOM International
Co., Ltd. All other product names mentioned herein are registered
trademarks of their respective owners.
Preface

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. vi
Preface
VTC 7120-BK Series User Manual
e13 Mark
The “e” mark is the proof of compliance with directives (laws) required
by the European Union. The Council of European communities in Brussels
issues these directives and all members must accept approved products.
e13 - Luxembourg
For more information, visit http://www.tuv.com/jp/en/_e_mark_and_e_
mark_homologation_for_vehicles_vehicle_components_.html.
RoHS Compliance
NEXCOM RoHS Environmental Policy and Status
Update
NEXCOM is a global citizen for building the digital
infrastructure. We are committed to providing green
products and services, which are compliant with
European Union RoHS (Restriction on Use of Hazardous Substance in
Electronic Equipment) directive 2002/95/EU, to be your trusted green
partner and to protect our environment.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg)
< 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent
Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <
0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or
1,000ppm.
In order to meet the RoHS compliant directives, NEXCOM has established an
engineering and manufacturing task force in to implement the introduction
of green products. The task force will ensure that we follow the standard
NEXCOM development procedure and that all the new RoHS components
and new manufacturing processes maintain the highest industry quality
levels for which NEXCOM are renowned.
How to recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the
suffix “(LF)” will be added to the compliant product name.
All new product models launched after January 2006 will be RoHS compliant.
They will use the usual NEXCOM naming convention.

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. vii
Preface
VTC 7120-BK Series User Manual
Warranty and RMA
NEXCOM Warranty Period
NEXCOM manufactures products that are new or equivalent to new in
accordance with industry standard. NEXCOM warrants that products will
be free from defect in material and workmanship for 2 years, beginning on
the date of invoice by NEXCOM. HCP series products (Blade Server) which
are manufactured by NEXCOM are covered by a three year warranty period.
NEXCOM Return Merchandise Authorization (RMA)
▪Customers shall enclose the “NEXCOM RMA Service Form” with the
returned packages.
▪Customers must collect all the information about the problems
encountered and note anything abnormal or, print out any on-screen
messages, and describe the problems on the “NEXCOM RMA Service
Form” for the RMA number apply process.
▪Customers can send back the faulty products with or without accessories
(manuals, cable, etc.) and any components from the card, such as CPU
and RAM. If the components were suspected as part of the problems,
please note clearly which components are included. Otherwise, NEXCOM
is not responsible for the devices/parts.
▪Customers are responsible for the safe packaging of defective products,
making sure it is durable enough to be resistant against further damage
and deterioration during transportation. In case of damages occurred
during transportation, the repair is treated as “Out of Warranty.”
▪Any products returned by NEXCOM to other locations besides the
customers’ site will bear an extra charge and will be billed to the customer.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is
basic diagnostic fee and another is component (product) fee.
System Level
▪Component fee: NEXCOM will only charge for main components such as
SMD chip, BGA chip, etc. Passive components will be repaired for free,
ex: resistor, capacitor.
▪Items will be replaced with NEXCOM products if the original one cannot
be repaired. Ex: motherboard, power supply, etc.
▪Replace with 3rd party products if needed.
▪If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
Board Level
▪Component fee: NEXCOM will only charge for main components, such
as SMD chip, BGA chip, etc. Passive components will be repaired for free,
ex: resistors, capacitors.
▪If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. viii
Preface
VTC 7120-BK Series User Manual
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and
the documentation supplied with the chassis, power supply, and accessory
modules. If the instructions for the chassis and power supply are inconsistent
with these instructions or the instructions for accessory modules, contact
the supplier to find out how you can ensure that your computer meets
safety and regulatory requirements.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the
described procedures only at an ESD workstation. If no such station is
available, you can provide some ESD protection by wearing an antistatic
wrist strap and attaching it to a metal part of the computer chassis.
Safety Information
Before installing and using the device, note the following precautions:
▪Read all instructions carefully.
▪Do not place the unit on an unstable surface, cart, or stand.
▪Follow all warnings and cautions in this manual.
▪When replacing parts, ensure that your service technician uses parts
specified by the manufacturer.
▪Avoid using the system near water, in direct sunlight, or near a heating
device.
▪The load of the system unit does not solely rely for support from the
rackmounts located on the sides. Firm support from the bottom is highly
necessary in order to provide balance stability.
▪The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the manufacturer.
Discard used batteries according to the manufacturer’s instructions.
Installation Recommendations
Ensure you have a stable, clean working environment. Dust and dirt can
get into components and cause a malfunction. Use containers to keep
small components separated.
Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow
require only a few simple tools, including the following:
• A Philips screwdriver
• A flat-tipped screwdriver
• A grounding strap
• An anti-static pad
Using your fingers can disconnect most of the connections. It is recom-
mended that you do not use needlenose pliers to disconnect connections
as these can damage the soft metal or plastic parts of the connectors.

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. ix
Preface
VTC 7120-BK Series User Manual
Safety Precautions
▪Read these safety instructions carefully.
▪Keep this User Manual for later reference.
▪Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
▪For plug-in equipment, the power outlet socket must be located near the
equipment and must be easily accessible.
▪Keep this equipment away from humidity.
▪Put this equipment on a stable surface during installation. Dropping it or
letting it fall may cause damage.
▪Do not leave this equipment in either an unconditioned environment or
in a above 40oC storage temperature as this may damage the equipment.
▪The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
▪Make sure the voltage of the power source is correct before connecting
the equipment to the power outlet.
▪Place the power cord in a way so that people will not step on it. Do not
place anything on top of the power cord. Use a power cord that has been
approved for use with the product and that it matches the voltage and
current marked on the product’s electrical range label. The voltage and
current rating of the cord must be greater than the voltage and current
rating marked on the product.
▪All cautions and warnings on the equipment should be noted.
▪If the equipment is not used for a long time, disconnect it from the power
source to avoid damage by transient overvoltage.
▪Never pour any liquid into an opening. This may cause fire or electrical
shock.
▪Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
▪If one of the following situations arises, get the equipment checked by
service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
▪Do not place heavy objects on the equipment.
▪The unit uses a three-wire ground cable which is equipped with a third
pin to ground the unit and prevent electric shock. Do not defeat the
purpose of this pin. If your outlet does not support this kind of plug,
contact your electrician to replace your obsolete outlet.
▪CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE
RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES
ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
▪The computer is provided with CD drives that comply with the appropriate
safety standards including IEC 60825.

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. x
Preface
VTC 7120-BK Series User Manual
Conventions Used in this Manual
Warning:
Information about certain situations, which if not observed,
can cause personal injury. This will prevent injury to yourself
when performing a task.
CAUTION!
CAUTION!CAUTION! Caution:
Information to avoid damaging components or losing data.
Note:
Provides additional information to complete a task easily.
Technical Support and Assistance
1. For the most updated information of NEXCOM products, visit NEXCOM’s
website at www.nexcom.com.
2. For technical issues that require contacting our technical support team or
sales representative, please have the following information ready before
calling:
– Product name and serial number
– Detailed information of the peripheral devices
– Detailed information of the installed software (operating system,
version, application software, etc.)
– A complete description of the problem
– The exact wordings of the error messages
Warning!
1. Handling the unit: carry the unit with both hands and handle it with care.
2. Maintenance: to keep the unit clean, use only approved cleaning products
or clean with a dry cloth.
3. CompactFlash: Turn off the unit’s power before inserting or removing a
CompactFlash storage card.

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. xi
Preface
VTC 7120-BK Series User Manual
Global Service Contact Information
Headquarters
NEXCOM International Co., Ltd.
15F, No. 920, Chung-Cheng Rd.,
ZhongHe District, New Taipei City, 23586,
Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]
www.nexcom.com
America
USA
NEXCOM USA
2883 Bayview Drive,Fremont CA 94538,
USA
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.com
Asia
Taiwan
Central Taiwan Office
16F, No.250, Sec. 2, Chongde Rd.,
Beitun Dist., Taichung City 406, R.O.C.
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.com.tw
Japan
NEXCOM Japan
9F, Tamachi Hara Bldg.,4-11-5, Shiba Minato-ku,
Tokyo, 108-0014, Japan
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom-jp.com
China
NEXCOM China
2F, Block 4, Venus Plaza, Bldg. 21,
ZhongGuanCun Software Park, No. 8,
Dongbeiwang West Rd., Haidian District,
Beijing, 100193, China
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.cn
Shanghai Office
Room 1505, Greenland He Chuang Bldg.,
No. 450 Caoyang Rd.,
Shanghai, 200062, China
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.cn
Nanjing Office
Hall C, Block 17, Tian Xing Cui Lang Bldg.,
No. 49 Yunnan North Rd.,
Nanjing, 210018, China
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.cn
Shenzhen Office
Western Room 708, Block 210,
Tairan Industry & Trading Place,
Futian Area, Shenzhen,
518040, China
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.cn
Wuhan Office
1-C1804/ 1805, Mingze Liwan,
No. 519 South Luoshi Rd.,
Hongshan District,
Wuhan, 430070, China
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.cn

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. xii
Preface
VTC 7120-BK Series User Manual
Chengdu Office
9F, Shuxiangxie, Xuefu Garden,
No.12 Section 1, South Yihuan Rd.,
Chengdu, 610061, China
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.cn
Europe
France
NEXCOM France
La Grande Arche-Paroi Nord,
92044 Paris La Défense, France
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.eu
Germany
NEXCOM GmbH
Leopoldstraße Business Centre,
Leopoldstraße 244,
80807 Munich, Germany
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.eu
Italy
NEXCOM ITALIA S.r.l
Via Gaudenzio Ferrari 29,
21047 Saronno (VA), Italia
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcomitalia.it
United Kingdom
NEXCOM EUROPE
10 Vincent Avenue,
Crownhill Business Centre,
Milton Keynes, Buckinghamshire MK8 0AB,
United Kingdom
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.eu

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. xiii
Preface
VTC 7120-BK Series User Manual
Package Contents
Before continuing, verify that the VTC 7120-BK series package that you received is complete. Your VTC 7120-BK series package should have all the items listed
in the following table.
Item P/N Name Specification Qty
1 50311F0110X00 (H)Flat Head Screw Long FEI:F3x5ISO+NYLOK NIGP F3x5 NI NYLOK 4
2 60233PW134X00 Power Cable For VTK33B SMBus Signal
EDI:356206060201-RS
ATX POWER CON. 6P TO 6P PITCH:4.2mm L:200mm 1
3 60233SAM05X00 GPS Antenna ARKNAV:A-130 GPS Antenna 5M
SMA180P R1 L3
FOR VTC 5M/SMA180P 1
4 602DCD0527X00 Driver CD 1
5 4NCPM00302X00 (T)Terminal Blocks 3P Phoenix Contact:1777992 5.08mm MALE DIP GREEN 1

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. xiv
Preface
VTC 7120-BK Series User Manual
Ordering Information
The following provides ordering information for VTC 7120-BK series.
• VTC 7120-BK (P/N: 10V00712000X0)
Intel®Celeron®847E 1.1GHz, 2GB DDR3 SODIMM, LVDS/ VGA
Output, 1x RS-232, 1x RS-422/485

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. 1
Chapter 1: Product Introduction
VTC 7120-BK Series User Manual
Chapter 1: Product Introduction
Physical Features
VTC 7120-BK
Power button USB
Reset button
SIM card sockets Line-out2
Mic-in2
SSD1 CFast
LED indicators
Line-out1
Mic-in1
USB COM2 VGA GPIO
DC input
9V~36V
DC output
LAN1
LAN2
Antenna holes COM1 LVDS GPS connector

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. 2
Chapter 1: Product Introduction
VTC 7120-BK Series User Manual
Overview
VTC 7120-BK series, adopting the Intel®high performance processor, is
a new generation of VTC series. In addition to keeping the advantage of
existing VTC series, it offers dual LAN ports for redundancy, two high speed
interface for storage, 2.5” SATA and CFast. The storage is easily accessible
from the front side for maintenance concern. Furthermore, it offers OBDII
for heavy duty truck such as SAE J1939/ J1708.
VTC 7120-BK series fulfills vehicle industry requirements. The design itself
is compliant with vehicle industrial standard such as eMark. More features
required for in-vehicle operations, such as power ignition delay control,
low-power protection and SMBus connection, etc., are continued from
NEXCOM’s other in-vehicle computer products. The GPS function navigates
drivers to ultimate fleet management. Optional 802.11b/g/n, 3.5G, GPRS,
and Bluetooth availability make VTC 7120-BK series ready for wider coverage
and future trend. Multiple display connections make VTC 7120-BK series an
ideal choice for in-vehicle signage platforms as well.
Key Features
• Built-in Intel®processor
• Support two Ethernet LAN ports
• Removal 1x 2.5" SSD tray
• Optional OBDII supporting SAE J1939 or J1708
• 9~36V wide range DC power input
• Smarter ignition power on/off, delay-time and low voltage protection
• Rugged fanless design to meet MIL standard

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. 3
Chapter 1: Product Introduction
VTC 7120-BK Series User Manual
Hardware Specifications
CPU
▪Intel®Celeron®847E 1.1GHz
Main Chipset
▪QM67
Memory
▪One 204-pin SO-DIMM DDR3 1333 up to 8GB. 2GB (default)
Expansion
▪1x Mini-PCIe socket (PCIe + USB) for WLAN option
▪1x Mini-PCIe socket (USB) for WWAN option
▪1x Bluetooth module for option
▪1x on board uBlox NEO-6Q GPS module or optional GPS module with dead
reckoning
I/O Interface-Front
▪1x Line-out, 1x Mic-in (for WWAN CM8000 voice communication)
▪2x SIM card socket (selectable)
▪1x System reset button
▪1x USB 2.0 host type A connector
▪1x Power button
▪1x CFast with protection cover
▪1x Accessible 2.5” SATA II SSD tray
▪4x LED’s for power, storage, WLAN/ WWAN and GPIO
I/O Interface-Rear
▪1x 9~36VDC input with Ignition
▪1x 12V/4A DC output, SMBus
▪1x DB26 LVDS interface with 12V and USB2.0
▪1x DB15 VGA
▪1x DB9 RS-232 (default) or OBDII (optional)
▪1x DB9 RS-422/ 485
▪1x DB9 female connector for 4x DI and 4x DO
(Digital Input)
Input Voltage (Internal Type): 5VDC TTL (default)
Input Voltage (Source Type): 0~30 VDC
(Digital Output)
Digital Output (Sink Type): 5VDC TTL (default), max current: 20mA
Digital Output (Source Type): 0~30VDC, max current: 250mA
▪2x USB 2.0 host type A connector
▪2x RJ45 with LEDs for 10/ 100/ 1000Mbps Ethernet
▪1x Line-out, 1x Mic-in
▪1x SMA-type GPS antenna connector
▪4x Antenna hole reserved for SMA-type antenna connector (WWAN/
WLAN/ BT)
Others
▪1x PCI-104
▪1x G Sensor
Note: If PCI-104 installation is needed, please contact NEXCOM for further information.
Power Management
▪Selectable boot-up & shut-down voltage for low power protection by
software
▪Setting 8-level on/off delay time by software
▪Status of ignition and low voltage status can be detected by software
▪Support S3/ S4 suspend mode
Dimensions
▪260mm (W) x 176mm (D) x 66.5mm (H) (10.24”x 6.93”x 2.59”)
▪3.25 Kg (7.16 Lb)
Construction
▪Aluminum enclosure with fanless design

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. 4
Chapter 1: Product Introduction
VTC 7120-BK Series User Manual
Environment
▪Operating temperatures:
Ambient with air: -30°C to 50°C
▪Storage temperatures: -35°C to 85°C
▪Relative humidity: 10% to 90% (non-condensing)
▪Vibration (random): 1g@5~500 Hz (in operation, SSD)
▪Vibration (SSD):
Operating: MIL-STD-810G, Method 514.6, Category 4, common
carrier US highway truck vibration exposure
Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test
▪Shock (SSD):
Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g
Non-Operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard
shock test=75g
Operating System
▪Tizen IVI
Certifications
▪CE approval
▪FCC Class A
▪e13 Mark
Power Management
▪Power-on delay time is selectable by BIOS to disable and enable in 10sec /
30sec / 1min / 5min / 10 min / 15min / 30min / 1hr.
▪Power-off delay time is selectable by BIOS to disable and enable in 20sec /
1min / 5min / 10min / 30min / 1hr / 6hr / 18hr.
▪S3, S4 suspend mode
▪Ignition On/Off status detectable by SW
▪Low battery status detectable by SW
▪Ignition enable/disable is jumper selectable
▪Shut down system automatically when the system’s internal temperature
is over 80C.
▪VTC 71 series will automatically shut down 5 minutes after the duration
of low battery voltage is over 60 sec. User can detect this situation via
software.
▪If the ignition is off and the system is still on after 3 minutes, VTC 71
series will shut down automatically.
▪If the ignition is off, the user can detect this status via the software.
▪If the ignition is turned on again and the power-off delay is in progress,
VTC 71 series will cancel the delay function and will continue to operate
normally.
▪If the ignition is turned on again and the power-off delay ended,
VTC 71 series will shut down completely will power-on again
automatically.
▪If the ignition is turned off again and power-on delay is in progress,
VTC 71 series will cancel the delay and stay in power-off status.
▪If the ignition is turned off again and the power-on delay ended (entered
OS already), VTC 71 series will continue to operate normally.
▪If the ignition is turned off again and the power-on delay ended (in BIOS
process), VTC 71 series will shut down immediately.
▪If VTC 71 series is off, only below 10mA is used.

Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. 5
Chapter 1: Product Introduction
VTC 7120-BK Series User Manual
Connector Numbering
The following diagrams indicate the numbers of the connectors. Use these
numbers to locate the connectors’ respective pinout assignments on chapter 2
of the manual. Please note that connector numbers 6, 10, and 13 pinouts are
not available.
VTC 7120-BK





Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved. 6
Chapter 2: External Connectors Pinout Description
VTC 7120-BK Series User Manual
Chapter 2: External Connectors Pinout Description
Power Button
Connector Number: 1
Pin Definition Pin Definition
1 GND 2 NC
3 +V3.3ALW 4 NC
A1 VCC5_S C1 GND
1
1
3
3
2
2
4
4
A1
A1
C1
C1
MH1
MH1
MH2
MH2
Power On & SSD or HD Active LED
Connector Number: 2
T1
B1
Pin Function Description
T1 POWER LED
B1 HD LED
