SAFETY, ENVIRONMENTAL, AND REGULATORY INFORMATION
PXIe-4135
PXIe, ±200 V, 3 A, 10 fA Precision PXI Source Measure Unit
Read this document before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with installation and wiring
instructions in addition to requirements of all applicable codes, laws, and standards. Visit ni.com/manuals for more information about your product, including
specifications, pinouts, and instructions for connecting, installing, and configuring your system.
Icons
Refer to the following descriptions if one of these icons is marked on your product or used in this guide.
Notice Take precautions to avoid data loss, loss of signal integrity, degradation of performance, or damage to the product.
Caution Take precautions to avoid injury. Consult the product documentation for cautionary statements when you see this icon printed on the
product. Cautionary statements are localized into French for compliance with Canadian requirements.
Caution: Possibility of Electric Shock Take precautions to avoid electrical shock.
Safety Guidelines
Caution Observe all instructions and cautions in the user documentation. Using the product in a manner not specified can damage the product and
compromise the built-in safety protection.
Attention Suivez toutes les instructions et respectez toutes les mises en garde de la documentation d'utilisation. L'utilisation du produit de toute autre
façon que celle spécifiée risque de l'endommager et de compromettre la protection de sécurité intégrée.
Safety Guidelines for Hazardous Voltages
Caution Ensure that hazardous voltage wiring is performed only by qualified personnel adhering to local electrical standards.
Attention S'assurer que le câblage à tension dangereuse est effectué par du personnel qualifié respectant les normes électriques locales.
Caution Do not mix hazardous voltage circuits and human-accessible circuits on the same product.
Attention Ne pas combiner des circuits avec des tensions dangereuses et des circuits accessibles aux personnes sur le même produit.
Caution When product terminals are hazardous voltage LIVE, you must ensure that devices and circuits connected to the product are properly
insulated from human contact.
Attention Lorsqu'une haute tension dangereuse est appliquée aux bornes du produit, vous devez vous assurer que les appareils et les circuits auxquels
il est connecté sont correctement isolés de tout contact humain.
Safety Interlock System Integration
The PXIe-4135 includes a safety interlock circuit that places the outputs of the SMU in a safe state, regardless of the programmed state of the module.
• Do not short the safety interlock pins directly at the connector under any circumstances.
• Confirm on a regular basis that the safety interlock is functioning by performing a safety interlock test.
• Install mechanical detection switches that open the safety interlock circuit when the operator attempts to access the test fixture, disabling the hazardous
voltage ranges of the instrument.
• Ensure the mechanical detection switches close the safety interlock circuit only when the operator has properly closed all entry points to the test fixture
enclosure, enabling hazardous voltage ranges on the instrument.

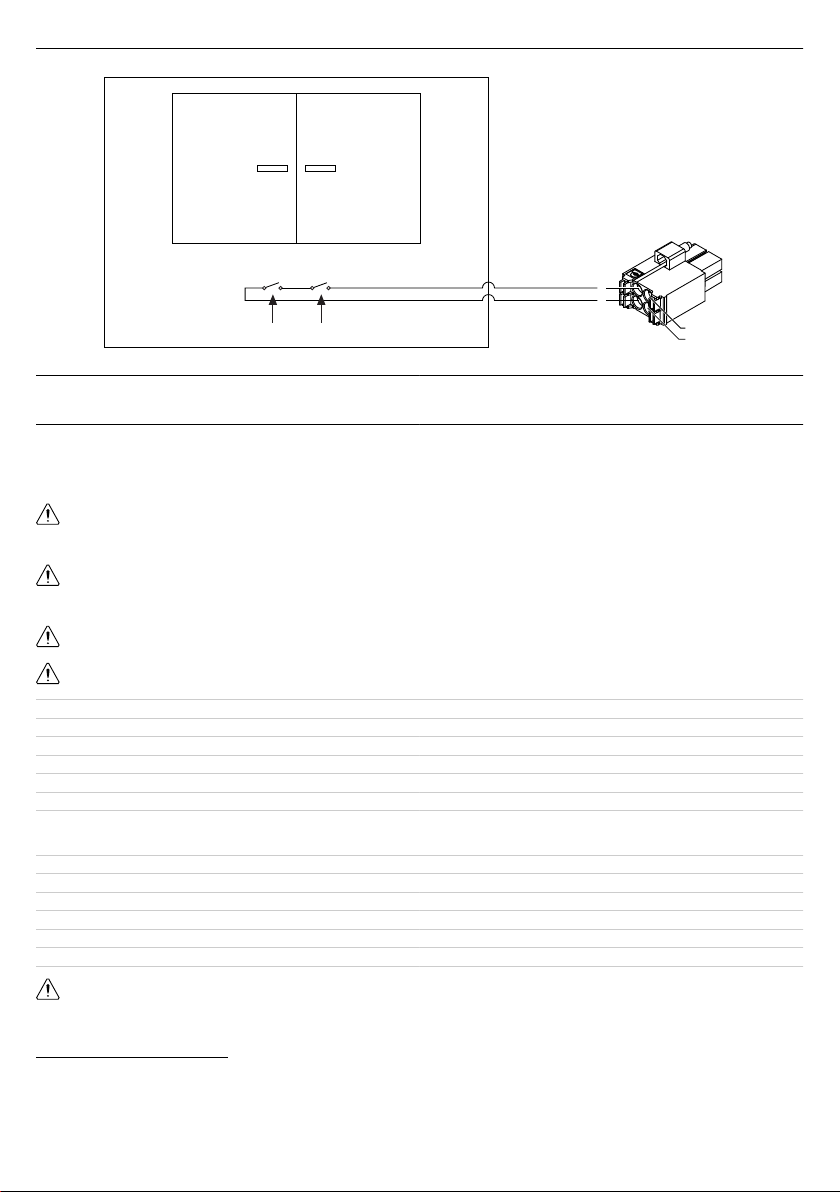

Figure 1. System Level Connection, Typical
1
2
Safety Interlock Connector
Test Fixture Enclosure
Operator Access Door
Mechanical Detection Switches
Mechanical detection switch is actuated
by operator access point
3
4
1. Safety Interlock Input
2. Safety Interlock Ground
3. Safety Interlock Pass Thru - Input
4. Safety Interlock Pass Thru - Ground
Safety Interlock
The safety interlock feature is designed to prevent users from coming in contact with hazardous voltage generated by the SMU in systems that implement
protective barriers with controlled user access points.
Caution Hazardous voltages of up to the maximum voltage of the PXIe-4135 may appear at the output terminals if the safety interlock terminal is
closed. Open the safety interlock terminal when the output connections are accessible. With the safety interlock terminal open, the output voltage level/
limit is limited to ±40 V DC, and protection will be triggered if the voltage measured between the device HI and LO terminals exceeds
±(42 V peak ±0.4 V).
Attention Des tensions dangereuses allant jusqu'à la tension maximale du PXIe-4135 peuvent apparaître aux terminaux de sortie si le terminal de
verrouillage de sécurité est fermé. Ouvrez le terminal de verrouillage de sécurité lorsque les connexions de sortie sont accessibles. Lorsque le terminal
de verrouillage de sécurité est ouvert, le niveau ou la limite de tension de sortie est limité à ± 40 V CC, et la protection se déclenchera si la tension
mesurée entre les terminaux HI et LO de l'appareil dépasse ± (42 Vpic ± 0,4 V).
Caution Do not apply voltage to the safety interlock connector inputs. The interlock connector is designed to accept passive, normally open contact
closure connections only.
Attention N'appliquez pas de tension aux entrées du connecteur de verrouillage de sécurité. Le connecteur de verrouillage est conçu pour accepter
uniquement des connexions à fermeture de contact passives, normalement ouvertes.
Safety interlock terminal open
Output <±42.4 V peak
Setpoint <±40 V DC
Safety interlock terminal closed
Output Maximum voltage of the device
Setpoint Maximum selected voltage range
Safety Voltages
Isolation voltage, channel-to-earth ground1
Continuous 250 V DC, Measurement Category I
Withstand 1,000 V RMS
DC range 200 V, 3 A maximum
Maximum OVP limit value 210 V
Extended pulse 160 V, 3 A, 1 ms ON time, 5 ms cycle time, 10 W average power
Caution Do not connect the product to signals or use for measurements within Measurement Categories II, III, or IV.
1Verified with a 5-second dielectric withstand test.
2| ni.com | PXIe-4135 Safety, Environmental, and Regulatory Information

Attention Ne pas connecter le produit à des signaux dans les catégories de mesure II, III ou IV et ne pas l'utiliser pour effectuer des mesures dans ces
catégories.
Measurement Category I is for measurements performed on circuits not directly connected to the electrical distribution system referred to as MAINS voltage.
MAINS is a hazardous live electrical supply system that powers equipment. This category is for measurements of voltages from specially protected secondary
circuits. Such voltage measurements include signal levels, special equipment, limited-energy parts of equipment, circuits powered by regulated low-voltage
sources, and electronics.
Note Measurement Categories CAT I and CAT O are equivalent. These test and measurement circuits are for other circuits not intended for direct
connection to the MAINS building installations of Measurement Categories CAT II, CAT III, or CAT IV.
Note Isolation voltage ratings apply to the voltage measured between any channel pin and the chassis ground connector of the front panel. When
operating channels in series or floating on top of external voltage references, ensure that no terminal exceeds this rating.
Safety Compliance Standards
This product is designed to meet the requirements of the following electrical equipment safety standards for measurement, control, and laboratory use:
• IEC 61010-1, EN 61010-1
• UL 61010-1, CSA C22.2 No. 61010-1
Note For safety certifications, refer to the product label or the Product Certifications and Declarations section.
EMC Guidelines
This product was tested and complies with the regulatory requirements and limits for electromagnetic compatibility (EMC) as stated in the product
specifications. These requirements and limits are designed to provide reasonable protection against harmful interference when the product is operated in its
intended operational electromagnetic environment.
This product is intended for use in commercial and light-industrial locations. However, harmful interference may occur in some installations, when the product
is connected to a peripheral device or test object, or if the product is used in residential areas. To minimize interference with radio and television reception and
prevent unacceptable performance degradation, install and use this product in strict accordance with the instructions in the product documentation.
Furthermore, any changes or modifications to the product not expressly approved by NI could void your authority to operate it under your local regulatory
rules.
EMC Notices
Refer to the following notices for cables, accessories, and prevention measures necessary to ensure the specified EMC performance.
Notice Changes or modifications to the product not expressly approved by NI could void your authority to operate the product under your local
regulatory rules.
Notice To ensure the specified EMC performance, operate this product only with shielded cables and accessories. Only twisted, shielded pair cable
(i.e. Belden 83321E) should be used to connect the signals of the LO/Sense LO connector. Any compatible unshielded twisted-pair cable may be used
for the safety interlock connector.
Notice The length of all I/O cables must be no longer than 3 m (10 ft).
Notice The performance of this product can be disrupted if subjected to Electrostatic Discharge (ESD) during operation. To prevent damage,
industry-standard ESD prevention measures must be employed during installation, maintenance, and operation.
EMC Standards
This product meets the requirements of the following EMC standards for electrical equipment for measurement, control, and laboratory use:
• EN 61326-1 (IEC 61326-1): Class A emissions; Basic immunity
• EN 55011 (CISPR 11): Group 1, Class A emissions
• AS/NZS CISPR 11: Group 1, Class A emissions
Note In Europe, Australia, and New Zealand (per CISPR 11), Class A equipment is intended for use only in non-residential locations.
Note Group 1 equipment (per CISPR 11) is any industrial, scientific, or medical equipment that does not intentionally generate radio frequency
energy for the treatment of material or inspection/analysis purposes.
Note For EMC declarations, certifications, and additional information, refer to the Product Certifications and Declarations section.
Environmental Guidelines
Notice Failure to follow the mounting instructions in the product documentation can cause temperature derating.
Notice This product is intended for use in indoor applications only.
PXIe-4135 Safety, Environmental, and Regulatory Information | © National Instruments Corporation | 3

Environmental Characteristics
Temperature
Operating 0 °C to 55 °C
Storage -40 °C to 70 °C
Humidity
Operating 10% to 90%, noncondensing
Storage 5% to 95%, noncondensing
Pollution Degree 2
Maximum altitude 2,000 m (800 mbar) (at 25 °C ambient temperature)
Shock and Vibration
Operating vibration 5 Hz to 500 Hz, 0.3 g RMS
Non-operating vibration 5 Hz to 500 Hz, 2.4 g RMS
Operating shock 30 g, half-sine, 11 ms pulse
Environmental Standards
This product meets the requirements of the following environmental standards for electrical equipment.
• IEC 60068-2-1 Cold
• IEC 60068-2-2 Dry heat
• IEC 60068-2-56 Damp heat (steady state)
• IEC 60068-2-64 Random operating vibration
• IEC 60068-2-27 Operating shock
Note To verify marine approval certification for a product, refer to the product label or visit ni.com/certification and search for the certificate.
Power Requirement
PXI Express power requirement 2.5 A from the 3.3 V rail, 2.7 A from the 12 V rail
Physical Characteristics
Dimensions 3U, one-slot, PXI Express/CompactPCI Express module
2.0 cm × 13.0 cm × 21.6 cm (0.8 in. × 5.1 in. × 8.5 in.)
Weight 419 g (14.8 oz)
Front panel connectors 2 × 3 lug triaxial connectors, 1 × 4.08 mm (3 position) combicon
Safety interlock connector 3.55 mm (4 position)
Export Compliance
This product is subject to control under the U.S. Export Administration Regulations (15 CFR Part 730 et. seq.) administered by the U.S. Department of
Commerce's Bureau of Industry and Security (BIS) (www.bis.doc.gov) and other applicable U.S. export control laws and sanctions regulations. This product
may also be subject to additional license requirements of other countries' regulations.
Additionally, this product may also require export licensing before being returned to NI. The issuance of a Return Material Authorization (RMA) by NI does
not constitute export authorization. The user must comply with all applicable export laws prior to exporting or re-exporting this product. See ni.com/legal/
export-compliance for more information and to request relevant import classification codes (e.g. HTS), export classification codes (e.g. ECCN), and other
import/export data.
Environmental Management
NI is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous
substances from our products is beneficial to the environment and to NI customers.
For additional environmental information, refer to the Commitment to the Environment web page at ni.com/environment. This page contains the environmental
regulations and directives with which NI complies, as well as other environmental information not included in this document.
Waste Electrical and Electronic Equipment (WEEE)
EU Customers At the end of the product life cycle, all NI products must be disposed of according to local laws and regulations. For more
information about how to recycle NI products in your region, visit ni.com/environment/weee.
4| ni.com | PXIe-4135 Safety, Environmental, and Regulatory Information

电子信息产品污染控制管理办法（中国 RoHS）
540
e
NI 符合中国电子信息产品中限制使用某些有害物质指令(RoHS)。关于 NI 中国 RoHS 合规性信息，请登录 ni.com/
environment/rohs_china。(For information about China RoHS compliance, go to ni.com/environment/rohs_china.)
Product Certifications and Declarations
Refer to the product Declaration of Conformity (DoC) for additional regulatory compliance information. To obtain product certifications and the DoC for NI
products, visit ni.com/product-certifications, search by model number, and click the appropriate link.
NI Services
Visit ni.com/support to find support resources including documentation, downloads, and troubleshooting and application development self-help such as
tutorials and examples.
Visit ni.com/services to learn about NI service offerings such as calibration options, repair, and replacement.
Visit ni.com/register to register your NI product. Product registration facilitates technical support and ensures that you receive important information updates
from NI.
NI corporate headquarters is located at 11500 N Mopac Expwy, Austin, TX, 78759-3504, USA.
