PXIe-5624

GETTING STARTED GUIDE
NI PXIe-5624R
2 GS/s, 12-Bit IF Digitizer
Note Before you begin, install and configure your chassis and controller.
This document explains how to install, configure, and test the NI PXIe-5624R (NI 5624R).
The NI 5624R is an IF digitizer with a user-programmable FPGA. The NI 5624R ships with
NI LabVIEW Instrument Design Libraries for IF Digitizers, which you can use to program the
device.
Programming the NI 5624R requires NI LabVIEW. Customizing the FPGA requires the
NI LabVIEW FPGA Module.
To access NI 5624R documentation, navigate to Start»All Programs»National Instruments»
IF Digitizers»IF Digitizers Documentation
Note The NI 5624R can be used on its own or as a component of certain NI vector
signal analyzers. Refer to the documentation for your vector signal analyzer for
information about using the NI 5624R in an NI vector signal analyzer.
Contents
Electromagnetic Compatibility Guidelines...............................................................................2
Verifying the System Requirements......................................................................................... 2
Unpacking the Kit.....................................................................................................................2
NI 5624R Kit Contents..................................................................................................... 3
Preparing the Environment....................................................................................................... 4
Programming the NI 5624R......................................................................................................4
Installing the Software.............................................................................................................. 4
Installing the NI 5624R.............................................................................................................5
NI 5624R Front Panel....................................................................................................... 8
Configuring the NI 5624R in MAX........................................................................................10
Self-Calibration.......................................................................................................................11
Making a Measurement with a Sample Project...................................................................... 11
Troubleshooting...................................................................................................................... 12
What Should I Do if the NI 5624R Doesn't Appear in MAX?....................................... 12
What Should I Do if the Module Fails the Self-Test or Self-Calibration?......................12
Where to Go Next................................................................................................................... 13
Worldwide Support and Services............................................................................................13

Electromagnetic Compatibility Guidelines
This product was tested and complies with the regulatory requirements and limits for
electromagnetic compatibility (EMC) stated in the product specifications. These requirements
and limits are designed to provide reasonable protection against harmful interference when the
product is operated in the intended operational electromagnetic environment.
This product is intended for use in industrial locations. However, harmful interference may
occur in some installations, when the product is connected to a peripheral device or test object,
or if the product is used in residential or commercial areas. To minimize interference with
radio and television reception and prevent unacceptable performance degradation, install and
use this product in strict accordance with the instructions in the product documentation.
Furthermore, any modifications to the product not expressly approved by National Instruments
could void your authority to operate it under your local regulatory rules.
Caution To ensure the specified EMC performance, operate this product only with
shielded cables and accessories.
Caution To ensure the specified EMC performance, the length of all I/O cables
must be no longer than 3 m (10 ft).
Verifying the System Requirements
To use the NI 5624R, your system must meet certain requirements.
For information about minimum system requirements, recommended system requirements,
and supported ADEs, refer to the readme for the NI LabVIEW Instrument Design Libraries for
IF Digitizers. When using the NI 5624R as a component of an NI vector signal analyzer, refer
to the NI-RFSA Readme. Readmes are available on the driver software DVD and online at
ni.com/updates.
Unpacking the Kit
Caution To prevent electrostatic discharge (ESD) from damaging the device,
ground yourself using a grounding strap or by holding a grounded object, such as
your computer chassis.
1. Touch the antistatic package to a metal part of the computer chassis.
2. Remove the device from the package and inspect the device for loose components or any
other sign of damage.
Caution Never touch the exposed pins of connectors.
Notify NI if the device appears damaged in any way. Do not install a damaged device.
3. Unpack any other items and documentation from the kit.
Store the device in the antistatic package when the device is not in use.
2| ni.com | NI PXIe-5624R Getting Started Guide

NI 5624R Kit Contents
Figure 1. NI 5624R Kit Contents
1 2
3 4 5
1. NI PXIe-5624R IF Digitizer Module
2. Driver Software DVD
3. Read Me First: Safety and Electromagnetic
Compatibility
4. Maintain Forced-Air Cooling Note to Users
5. NI 5624R Getting Started Guide (This Document)
Other Equipment
There are several required items not included in your device kit that you need to operate the
NI 5624R. Your application may require additional items not included in your kit to install or
operate your device.
Required Items
• A PXI Express chassis and chassis documentation. The NI PXIe-1085 chassis is one
available option for your PXI Express device. For more information about compatible
chassis options, visit ni.com/info and enter the Info Code pxiechassis.
• A PXI Express embedded controller or PC with MXI controller system that meets the
system requirements specified in this guide and chassis documentation.
Optional Items
• PXI Chassis Slot Blocker kit (NI part number 199198-01)
• SMA (m)-to-SMA (m) cables
• NI SHH19-H19-AUX DIGITAL I/O cable (NI part number 152629-01 or 152629-02)
• NI SCB-19 DIGITAL I/O accessory for connecting to external signals (NI part number
782444-01)
NI PXIe-5624R Getting Started Guide | © National Instruments | 3

Preparing the Environment
Ensure that the environment you are using the NI 5624R in meets the following specifications.
............................................................................Operating ambient temperature
(IEC-60068-2-1, IEC-60068-2-2)
0 °C to 55 °C
............................................................................Operating relative humidity
(IEC-60068-2-56)
10% to 90%, noncondensing
............................................................................Maximum altitude 2,000 m (800 mbar) (at 25 °C ambient
temperature)
............................................................................Pollution Degree 2
Indoor use only.
Caution Clean the hardware with a soft, nonmetallic brush. Make sure that the
hardware is completely dry and free from contaminants before returning it to
service.
Note Refer to the NI PXIe-5624R Specifications at ni.com/manuals for complete
specifications.
Programming the NI 5624R
You can use the NI LabVIEW Instrument Design Libraries for IF Digitizers and the LabVIEW
FPGA Module to customize the behavior of your NI 5624R.
You can use the instrument design libraries to control or customize your NI 5624R device to
suit the needs of your application. This software offers many LabVIEW libraries to assist you
in controlling your device.
Use the NI LabVIEW Instrument Design Libraries for IF Digitizers with the LabVIEW FPGA
Module to customize the behavior of the device FPGA to create application-specific
instrument designs. The NI LabVIEW Instrument Design Libraries for IF Digitizers
installation includes sample projects. You can use sample projects as a starting point for
customizing the device FPGA or to operate the device as a standard IF digitizer.
Installing the Software
Close all programs before installing the software. NI recommends installing your software
before installing the NI 5624R hardware.
Install your software in the following order:
1. Install the latest service packs for your operating system.
2. Install NI LabVIEW.
4| ni.com | NI PXIe-5624R Getting Started Guide

Refer to the LabVIEW Installation Guide for installation instructions for LabVIEW and
system requirements for LabVIEW software. Refer to the LabVIEW Upgrade Notes for
additional information about upgrading to the most recent version of LabVIEW for
Windows.
3. (Recommended) Install NI LabVIEW FPGA Module.
Refer to the LabVIEW FPGA Module Release and Upgrade Notes for installation
instructions and information about getting started with the LabVIEW FPGA Module.
Note Installation of the LabVIEW FPGA Module is required to customize the
device FPGA using the instrument design libraries.
4. (Recommended) Install the latest service pack for LabVIEW and any LabVIEW modules
you are using.
5. Insert the driver software DVD into the DVD drive.
The driver software installer should open automatically. If the installation window does
not appear, navigate to the DVD drive, double-click the drive, and double-click
autorun.exe.
Note You can also download the software from ni.com/downloads.
6. Follow the instructions in the installation prompts to install the default installation.
Windows users may see access and security messages during installation. Accept the
prompts to complete the installation.
Note The default installation installs NI LabVIEW Instrument Design
Libraries for IF Digitizers, documentation, and device specifications.
Note For troubleshooting information, contact NI technical support or visit
ni.com/support.
7. When the installer completes, restart your system.
Installing the NI 5624R
Caution To prevent damage to the device caused by ESD or contamination, handle
the device using the edges or the metal bracket.
NI recommends installing the software before installing the hardware.
Before you install the hardware, refer to the guidelines in the Maintain Forced-Air Cooling
Note to Users included with the module to ensure that the device can cool itself effectively.
This document is also available at ni.com/manuals.
1. Ensure the AC power source is connected to the chassis before installing the NI 5624R.
The AC power cord grounds the chassis and protects it from electrical damage while you
install the NI 5624R.
2. Power off the chassis.
NI PXIe-5624R Getting Started Guide | © National Instruments | 5

3. Inspect the slot pins on the chassis backplane for any bends or damage prior to
installation. Do not install the module if the backplane is damaged.
4. If the chassis has multiple fan speed settings, ensure the fans are set to the highest setting.
Note Inadequate air circulation could cause the temperature inside the chassis
to rise above the optimal operating temperature for the device, potentially
causing thermal shutdown, shorter lifespans, or improper performance.
5. Position the chassis so that inlet and outlet vents are not obstructed.
For more information about optimal chassis positioning, refer to the chassis
documentation.
6. Remove the black plastic connectors from all the captive screws on the module front
panel.
7. Identify a supported slot in the chassis. The following figure shows the symbols that
indicate the slot types.

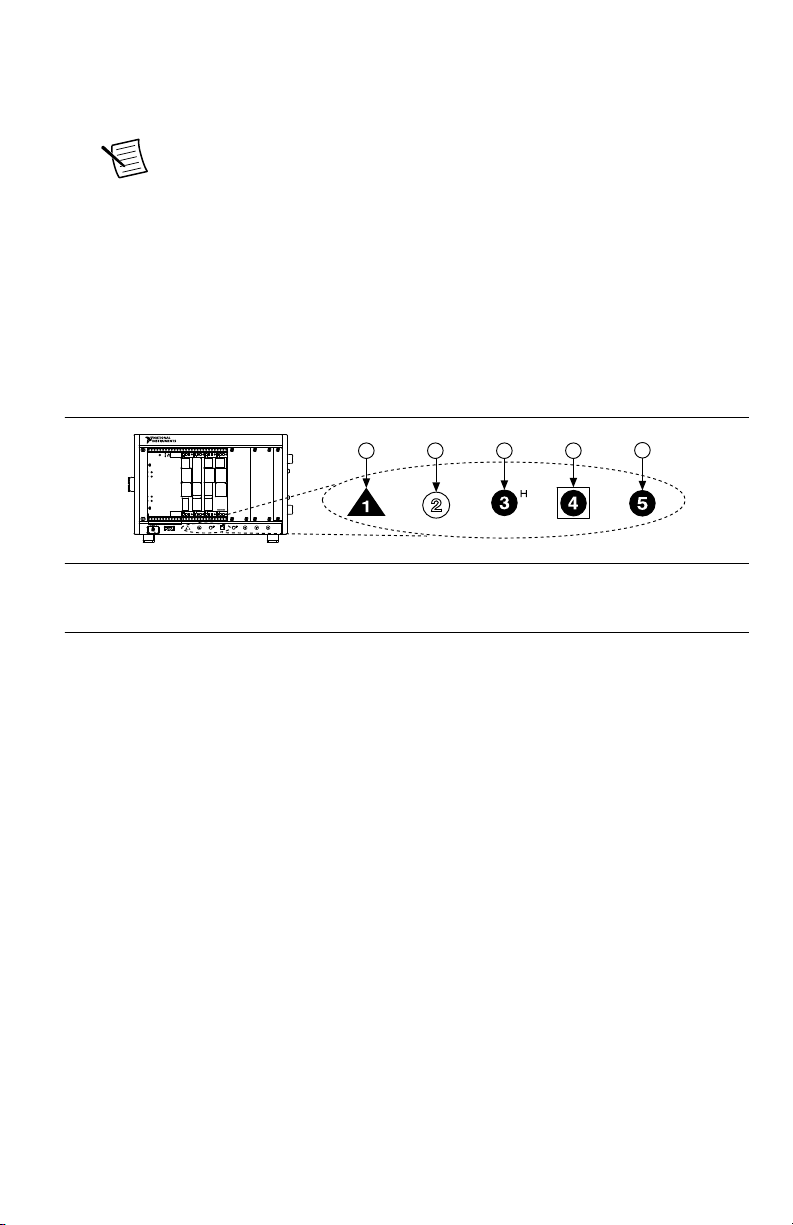

Figure 2. Chassis Compatibility Symbols
NI PXIe-1062Q
12 3 45
1. PXI Express System Controller Slot
2. PXI Peripheral Slot
3. PXI Express Hybrid Peripheral Slot
4. PXI Express System Timing Slot
5. PXI Express Peripheral Slot
The NI 5624R module can be placed in PXI Express peripheral slots or PXI Express
Hybrid peripheral slots.
8. Touch any metal part of the chassis to discharge static electricity.
9. Ensure that the ejector handle is in the unlatched (downward) position.
10. Place the module edges into the module guides at the top and bottom of the chassis. Slide
the device into the slot until it is fully inserted.
6| ni.com | NI PXIe-5624R Getting Started Guide

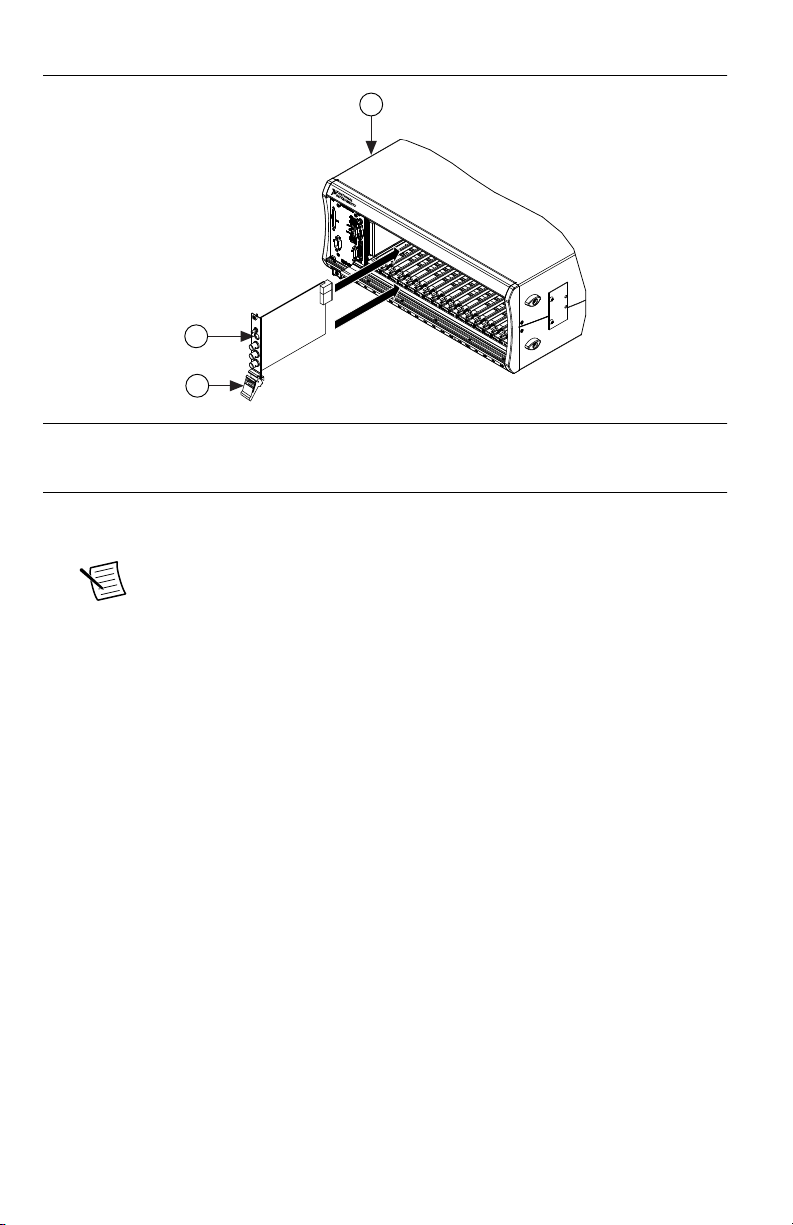

Figure 3. Module Installation
2
3
NI PXIe-1075
1
1. Chassis
2. Hardware Module
3. Ejector Handle in Down (Unlatched Position)
11. Latch the module in place by pulling up on the ejector handle.
12. Secure the device front panel to the chassis using the front-panel mounting screws.
Note Tightening the top and bottom mounting screws increases mechanical
stability and also electrically connects the front panel to the chassis, which can
improve the signal quality and electromagnetic performance.
13. Cover all empty slots using filler panels or slot blockers to maximize cooling air flow.
14. Power on the chassis.
NI PXIe-5624R Getting Started Guide | © National Instruments | 7

NI 5624R Front Panel
The NI 5624R front panel contains five connectors and two LEDs.
Figure 4. NI 5624R IF Digitizer Module Front Panel
ACCESS
ACTIVE
8| ni.com | NI PXIe-5624R Getting Started Guide

Table 1. Device Front Panel Icon Definitions
Refer to the user documentation for required maintenance measures to ensure user
safety and/or preserve the specified EMC performance.
The signal pins of this product's input/output ports can be damaged if subjected to
Electrostatic Discharge (ESD). To prevent damage, turn off power to the product
before connecting cables and employ industry-standard ESD prevention measures
during installation, maintenance, and operation.
Table 2. NI 5624R IF Digitizer Front Panel Connectors
Label Connector Type Function
IF IN SMA connector Analog input terminal for intermediate frequency (IF)
signals.
PFI 0 SMA connector Programmable function digital I/O (DIO) connector for
triggers or events.
CLK IN SMA connector Input for an external ADC Clock (Sample Clock) or
Reference Clock to the digitizer.
CLK OUT SMA connector Output for an ADC Clock (Sample Clock) or PLL
Reference Clock from the digitizer.
DIGITAL I/O HDMI™ connector DIO terminal that contains 12 general-purpose DIO
signals. DIO lines are direction configurable as input or
output.
Caution The DIGITAL I/O connector accepts a standard, third-party HDMI cable,
but the DIGITAL I/O port is not an HDMI interface. Do not connect the DIGITAL
I/O port on the NI 5624R to the HDMI port of another device. NI is not liable for
any damage resulting from such signal connections.
The following table provides information about the module front panel LEDs and the device
states they indicate.
NI PXIe-5624R Getting Started Guide | © National Instruments | 9

Table 3. The NI 5624R IF Digitizer Front Panel LEDs
LED Indication
ACCESS Indicates the basic hardware status of the NI 5624R module.
• OFF—The module is not yet functional, or the module has detected a
problem with a PXI Express power rail.
• AMBER—The module is being accessed. Accessed means that the device
setup registers are being written to in order to control the device.
• GREEN—The module is ready to be programmed.
ACTIVE Indicates the NI 5624R module state.
• OFF—User has not turned on LED.
• AMBER—User defined.
• GREEN—User defined.
• RED—The module has detected a PLL unlock or an error state, such as a
clock fault, a power shutdown condition, or a thermal shutdown condition.
The behavior of this LED can also be user-defined.
Configuring the NI 5624R in MAX
Use Measurement & Automation Explorer (MAX) to configure your National Instruments
hardware. MAX informs other programs about which devices reside in the system and how
they are configured. MAX is automatically installed with NI LabVIEW Instrument Design
Libraries for IF Digitizers.
1. Launch MAX.
2. In the configuration tree, double-click Devices and Interfaces to see the list of installed
devices.
Installed devices appear under the name of their associated chassis.
3. Expand your Chassis tree item.
MAX lists all devices installed in the chassis. Your default device names may vary.
Note If you do not see your device listed, press <F5> to refresh the list of
installed devices. If the device is still not listed, power off the system, ensure
the device is correctly installed, and restart.
4. Record the device identifier MAX assigns to the hardware. Use this identifier when
programming the NI 5624R.
5. Self-test the device by selecting the device in the configuration tree and clicking Self-
Test in the MAX toolbar.
The MAX self-test performs a basic verification of hardware resources.
10 | ni.com | NI PXIe-5624R Getting Started Guide

Self-Calibration
Self-calibration adjusts the NI 5624R for variations in the module environment using an
onboard high-precision calibration tone. Perform a complete self-calibration after first
installing your module and letting it warm up for 20 minutes.
Note Warm up begins when the PXI Express chassis has been powered on and the
operating system has completely loaded.
The NI 5624R modules are externally calibrated at the factory; however, you should perform a
self-calibration in any of the following situations:
• After first installing the NI 5624R into your chassis
• After any module in the chassis is installed, uninstalled, or moved
• When the system is in an environment where the ambient temperature varies or the
module temperature has drifted more than ±5 °C from the temperature at the last self-
calibration
• To periodically adjust for small performance drifts that occur with product aging
You can run self-calibration in one of two ways:
• In MAX, select your NI 5624R module and select Self-Calibrate on the device toolbar.
• In LabVIEW, select the Self-Calibrate VI located at FPGA Interface»Software-
Designed Instruments»IF Digitizers»Calibration.
Making a Measurement with a Sample Project
You can verify proper installation and configuration of your device by making a measurement
using a LabVIEW sample project.
This measurement requires installation of the instrument design libraries.
1. Launch LabVIEW.
2. Select File»Create Project.
3. On the left side of the Create Project window, select IF Digitizer.
4. On the right side of the Create Project window, select the Multirecord Acquisition
sample project and click Next.
5. Specify a name and location for the project in the Create Project window and click
Finish.
LabVIEW creates, configures, and opens a new Multirecord Acquisition project.
Note This step may take several minutes.
6. In the project tree, navigate to My Computer»Project Documentation, open
Multirecord Acquisition.html, and navigate to the Running this Sample Project
section of the documentation.
7. Follow the instructions in the project documentation for making the measurement.
NI PXIe-5624R Getting Started Guide | © National Instruments | 11

Troubleshooting
If an issue persists after you complete a troubleshooting procedure, contact NI technical
support or visit ni.com/support.
What Should I Do if the NI 5624R Doesn't Appear in
MAX?
1. In the MAX Configuration pane, click Devices and Interfaces.
2. Expand the Chassis tree to see the list of installed devices, and press <F5> to refresh the
list.
3. If the module is still not listed, power off the system, ensure that all hardware is correctly
installed, and restart the system.
4. Navigate to the Device Manager.
Option Description
Windows 7 Select Start»Control Panel»Device Manager.
Windows Vista Select Start»Control Panel»System and Maintenance»Device
Manager.
Windows XP Select Start»Control Panel»System»Hardware»Device Manager.
5. If you are using a PXI controller, verify that a National Instruments entry appears in the
system device list. Reinstall NI LabVIEW Instrument Design Libraries for IF Digitizers
and the device if error conditions appear in the list. If you are using a MXI controller,
right-click PCI-to-PCI Bridge, and select Properties from the shortcut menu to verify
that the bridge is enabled.
What Should I Do if the Module Fails the Self-Test or
Self-Calibration?
1. Restart the system.
2. Launch MAX, and perform the self-test or self-calibration again.
3. Power off the chassis.
4. Reinstall the failed module in a different slot.
5. Power on the chassis.
6. Perform the self-test again.
12 | ni.com | NI PXIe-5624R Getting Started Guide

Where to Go Next
Refer to the following figure for information about other product tasks and associated
resources for those tasks.
custom applications within
an application programming
interface (API).
about hardware features
or review device
specifications.
more about your products through ni.com.
the application development
environment (ADE)
for your application.
Support
ni.com/support
*This item is also installed with the Instrument Design Libraries.
EXPLORE LEARN CREATE
DISCOVER
RF Solutions
ni.com/rf
Services
ni.com/services
NI Community
ni.com/community
Located at ni.com/gettingstarted Located at ni.com/manuals
NI LabVIEW Instrument
Design Libraries for
IF Digitizers*
NI PXIe-5624R
Specifications*
NI IF Digitizers Help*
LabVIEW 2014 FPGA
Module Help
Learn LabVIEW Basics
NI-5624R Sample Projects*
Note The NI IF Digitizers Help is an HTML version of a traditional user manual
that includes detailed information about device features and programming with the
NI LabVIEW Instrument Design Libraries for IF Digitizers.
Worldwide Support and Services
The National Instruments website is your complete resource for technical support. At ni.com/
support, you have access to everything from troubleshooting and application development
self-help resources to email and phone assistance from NI Application Engineers.
Visit ni.com/services for NI Factory Installation Services, repairs, extended warranty, and
other services.
Visit ni.com/register to register your National Instruments product. Product registration
facilitates technical support and ensures that you receive important information updates from
NI.
NI PXIe-5624R Getting Started Guide | © National Instruments | 13

A Declaration of Conformity (DoC) is our claim of compliance with the Council of the
European Communities using the manufacturer’s declaration of conformity. This system
affords the user protection for electromagnetic compatibility (EMC) and product safety. You
can obtain the DoC for your product by visiting ni.com/certification. If your product supports
calibration, you can obtain the calibration certificate for your product at ni.com/calibration.
National Instruments corporate headquarters is located at 11500 North Mopac Expressway,
Austin, Texas, 78759-3504. National Instruments also has offices located around the world.
For telephone support in the United States, create your service request at ni.com/support or
dial 1 866 ASK MYNI (275 6964). For telephone support outside the United States, visit the
Worldwide Offices section of ni.com/niglobal to access the branch office websites, which
provide up-to-date contact information, support phone numbers, email addresses, and current
events.
Refer to the NI Trademarks and Logo Guidelines at ni.com/trademarks for information on National Instruments
trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective
companies. For patents covering National Instruments products/technology, refer to the appropriate location: Help»
Patents in your software, the patents.txt file on your media, or the National Instruments Patent Notice at ni.com/
patents. You can find information about end-user license agreements (EULAs) and third-party legal notices in the
readme file for your NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance for
the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other
import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS TO THE ACCURACY OF THE
INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS. U.S. Government
Customers: The data contained in this manual was developed at private expense and is subject to the applicable limited
rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015.
© 2014 National Instruments. All rights reserved.
376280A-01 Oct14
