Nidec Unidrive M100 Operating and maintenance instructions

Quick Start Guide
Unidrive M100-101
Frame sizes 1 to 4
Value drive with quality and
performance for open loop
applications
Part Number: 0478-0035-08
Issue: 8

Original Instructions
For the purposes of compliance with the EU Machinery Directive 2006/42/EC, the English version of this manual is
the Original Instructions. Manuals in other languages are Translations of the Original Instructions.
Documentation
Manuals are available to download from the following locations: http://www.drive-setup.com/ctdownloads
The information contained in this manual is believed to be correct at the time of printing and does not form part of
any contract. The manufacturer reserves the right to change the specification of the product and its performance,
and the contents of the manual, without notice.
Warranty and Liability
In no event and under no circumstances shall the manufacturer be liable for damages and failures due to misuse,
abuse, improper installation, or abnormal conditions of temperature, dust, or corrosion, or failures due to operation
outside the published ratings. The manufacturer is not liable for consequential and incidental damages. Contact the
supplier of the drive for full details of the warranty terms.
Environmental policy
Control Techniques Ltd operates an Environmental Management System (EMS) that conforms to the International
Standard ISO 14001.
Further information on our Environmental Policy can be found at: http://www.drive-setup.com/environment
Restriction of Hazardous Substances (RoHS)
The products covered by this manual comply with European and International regulations on the Restriction of Haz-
ardous Substances including EU directive 2011/65/EU and the Chinese Administrative Measures for Restriction of
Hazardous Substances in Electrical and Electronic Products.
Disposal and Recycling (WEEE)
REACH legislation
EC Regulation 1907/2006 on the Registration, Evaluation, Authorisation and restriction of Chemicals (REACH)
requires the supplier of an article to inform the recipient if it contains more than a specified proportion of any
substance which is considered by the European Chemicals Agency (ECHA) to be a Substance of Very High
Concern (SVHC) and is therefore listed by them as a candidate for compulsory authorisation.
Further information on our compliance with REACH can be found at: http://www.drive-setup.com/reach
Registered Office
Nidec Control Techniques Ltd
The Gro
Newtown
Powys
SY16 3BE
UK
Registered in England and Wales. Company Reg. No. 01236886.
When electronic products reach the end of their useful life, they must not be disposed of along
with domestic waste but should be recycled by a specialist recycler of electronic equipment.
Control Techniques products are designed to be easily dismantled into their major component
parts for efficient recycling. The majority of materials used in the product are suitable for
recycling.
Product packaging is of good quality and can be re-used. Large products are packed in wooden
crates. Smaller products are packaged in strong cardboard cartons which have a high recycled
fibre content. Cartons can be re-used and recycled. Polythene, used in protective film and bags
for wrapping the product, can be recycled. When preparing to recycle or dispose of any product
or packaging, please observe local legislation and best practice.

Copyright
The contents of this publication are believed to be correct at the time of printing. In the interests of a commitment to
a policy of continuous development and improvement, the manufacturer reserves the right to change the
specification of the product or its performance, or the contents of the guide, without notice.
All rights reserved. No parts of this guide may be reproduced or transmitted in any form or by any means, electrical
or mechanical including photocopying, recording or by an information storage or retrieval system, without
permission in writing from the publisher.
Copyright © January 2018 Nidec Control Techniques Ltd

Unidrive M100-101 Quick Start Guide
Issue Number: 8
Contents
1 Product information ....................................................................................7
1.1 Ratings .....................................................................................................................7
2 Options .........................................................................................................8
3 Mechanical installation ...............................................................................8
4 Electrical installation .................................................................................11
4.1 AC supply requirements .........................................................................................11
4.2 External braking resistor ........................................................................................11
4.3 Ground leakage ......................................................................................................13
4.4 Control terminal configurations and wiring .............................................................14
4.5 EMC .......................................................................................................................17
5 Keypad and display ...................................................................................19
5.1 Saving parameters .................................................................................................20
5.2 Restoring parameter defaults .................................................................................20
6 Basic parameters (Menu 0) .......................................................................21
6.1 Menu 0: Basic parameters .....................................................................................21
6.2 Unidrive M100/101 parameter descriptions ...........................................................26
7 Running the motor .....................................................................................41
8 Diagnostics ................................................................................................43
8.1 Alarm indications ....................................................................................................46
9 NV Media Card Operation .........................................................................47
10 UL listing information ................................................................................48
10.1 UL file reference .....................................................................................................48
10.2 Option modules, kits and accessories ....................................................................48
10.3 Enclosure ratings ...................................................................................................48
10.4 Mounting ................................................................................................................48
10.5 Environment ...........................................................................................................48
10.6 Electrical Installation ..............................................................................................48
10.7 Motor overload protection and thermal memory retention .....................................49
10.8 External Class 2 supply ..........................................................................................49

Unidrive M100-101 Quick Start Guide 5
Issue Number: 8
EU Declaration of Conformity
This declaration is issued under the sole responsibility of the manufacturer. The object of the
declaration is in conformity with the relevant Union harmonization legislation. The declaration applies
to the variable speed drive products shown below:
The model number may be followed by additional characters that do not affect the ratings.
The variable speed drive products listed above have been designed and manufactured in
accordance with the following European harmonized standards:
EN 61000-3-2:2014 Applicable where input current < 16 A. No limits apply for professional
equipment where input power 1 kW.
These products comply with the Restriction of Hazardous Substances Directive (2011/65/EU), the
Low Voltage Directive (2014/35/EU) and the Electromagnetic Compatibility Directive (2014/30/EU).
Nidec Control Techniques Ltd
The Gro
Newtown
Powys
UK
SY16 3BE
Model number Interpretation Nomenclature aaaa - bbc ddddde
aaaa Basic series
M100, M101, M200, M201, M300, M400, M600, M700,
M701, M702, F300, H300, E200,E300, HS30, HS70, HS71,
HS72, M000, RECT
bb Frame size 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11
c Voltage rating 1 = 100 V, 2 = 200 V, 4 = 400 V, 5 = 575 V, 6 = 690 V
ddddd Current rating Example 01000 = 100 A
e Drive format
A = 6P Rectifier + Inverter (internal choke), D = Inverter, E =
6P Rectifier + Inverter (external choke),
T = 12P Rectifier + Inverter (external choke)
EN 61800-5-1:2007 Adjustable speed electrical power drive systems - Part 5-1:
Safety requirements - Electrical, thermal and energy
EN 61800-3: 2004+A1:2012 Adjustable speed electrical power drive systems - Part 3: EMC
requirements and specific test methods
EN 61000-6-2:2005 Electromagnetic compatibility (EMC) - Part 6-2: Generic
standards - Immunity for industrial environments
EN 61000-6-4: 2007+ A1:2011 Electromagnetic compatibility (EMC) - Part 6-4: Generic
standards - Emission standard for industrial environments
EN 61000-3-2:2014
Electromagnetic compatibility (EMC) - Part 3-2: Limits for
harmonic current emissions (equipment input current ≤16 A per
phase)
EN 61000-3-3:2013
Electromagnetic compatibility (EMC) - Part 3-3: Limitation of
voltage changes, voltage fluctuations and flicker in public, low
voltage supply systems, for equipment with rated current ≤16 A
per phase and not subject to conditional connection

6Unidrive M100-101 Quick Start Guide
Issue Number: 8
G Williams
Vice President, Technology
Date: 17th March 2016
These electronic drive products are intended to be used with appropriate motors, controllers,
electrical protection components and other equipment to form complete end products or
systems. Compliance with safety and EMC regulations depends upon installing and
configuring drives correctly, including using the specified input filters.
The drives must be installed only by professional installers who are familiar with
requirements for safety and EMC. Refer to the Product Documentation. An EMC data sheet is
available giving detailed information. The assembler is responsible for ensuring that the end
product or system complies with all the relevant laws in the country where it is to be used.

Unidrive M100-101 Quick Start Guide 7
Issue Number: 8
1 Product information
1.1 Ratings
Figure 1-1 Model number structure
Model
Input
phases
Max.
cont
input
current
Max input
fuse rating
Nominal cable size Output current
European USA
1 Ph 3 Ph Input Output Input Output
Max.
cont
output
current
Nominal
power
Motor
power
ph A A A mm2mm2AWG AWG A kW hp
01100017 1 8.7 10 1 1 16 16 1.7 0.25 0.33
01100024 1 11.1 16 1 1 14 16 2.4 0.37 0.5
01200017 1 4.5 6 1 1 16 16 1.7 0.25 0.33
01200024 1 5.3 6 1 1 16 16 2.4 0.37 0.5
01200033 1 8.3 10 1 1 16 16 3.3 0.55 0.75
01200042 1 10.4 16 1 1 16 16 4.2 0.75 1
02100042 1 18.8 20 2.5 1 12 16 4.2 0.75 1
02100056 1 24 25 4 1 10 16 5.6 1.1 1.5
02200024 1 / 3 5.3/4.1 6 6 1 1 16 16 2.4 0.37 0.5
02200033 1 / 3 8.3/6.7 10 10 1 1 16 16 3.3 0.55 0.75
02200042 1 / 3 10.4/7.5 16 10 1 1 16 16 4.2 0.75 1
02200056 1 / 3 14.9/11.3 20 15 2.5/1.5 1 12/14 16 5.6 1.1 1.5
02200075 1 / 3 18.1/13.5 20 15 2.5 1 12 16 7.5 1.5 2
02400013 3 2.4 6 1 1 16 16 1.3 0.37 0.5
02400018 3 2.9 6 1 1 16 16 1.8 0.55 0.75
02400023 3 3.5 6 1 1 16 16 2.3 0.75 1
02400032 3 5.1 61 116163.21.11.5
02400041 3 6.2 10 1 1 16 16 4.1 1.5 2
03200100 1 / 3 23.9/17.7 25 20 4 1.5 10/12 14 10 2.2 3
03400056 3 8.7 10 1 1 14 16 5.6 2.2 3
03400073 3 12.2 16 1.5 1 12 16 7.3 3 3
03400094 3 14.8 16 2.5 1.5 12 14 9.4 4 5
04200133 1 / 3 23.7/16.9 25 20 4/2.5 2.5 10 12 13.3 3 3
04200176 3 21.3 25 4 2.5 10 12 17.6 4 5
04400135 3 16.3 20 2.5 2.5 10 12 13.5 5.5 7.5
04400170 3 20.7 25 4 2.5 10 12 17 7.5 10
The nominal cable sizes shown in the table above, are provided as a guide only. Ensure
that the cables used conform to the local wiring regulations.
NOTE
Product line:
Frame size:
Current Rating :
Heavy Duty current rating x10
Drive Format :
A – AC in AC out
Voltage rating
:
1 - 100 V (100 - 120 ± 10 %)
2 - 200 V (200 - 240 ± 10 %)
4 - 400 V (380 - 480 ± 10 %)
Derivative
Electrical Specifications
M100 - 03 4 00073 A

8Unidrive M100-101 Quick Start Guide
Issue Number: 8
2Options
Table 2-1 AI Backup adaptor
3 Mechanical installation

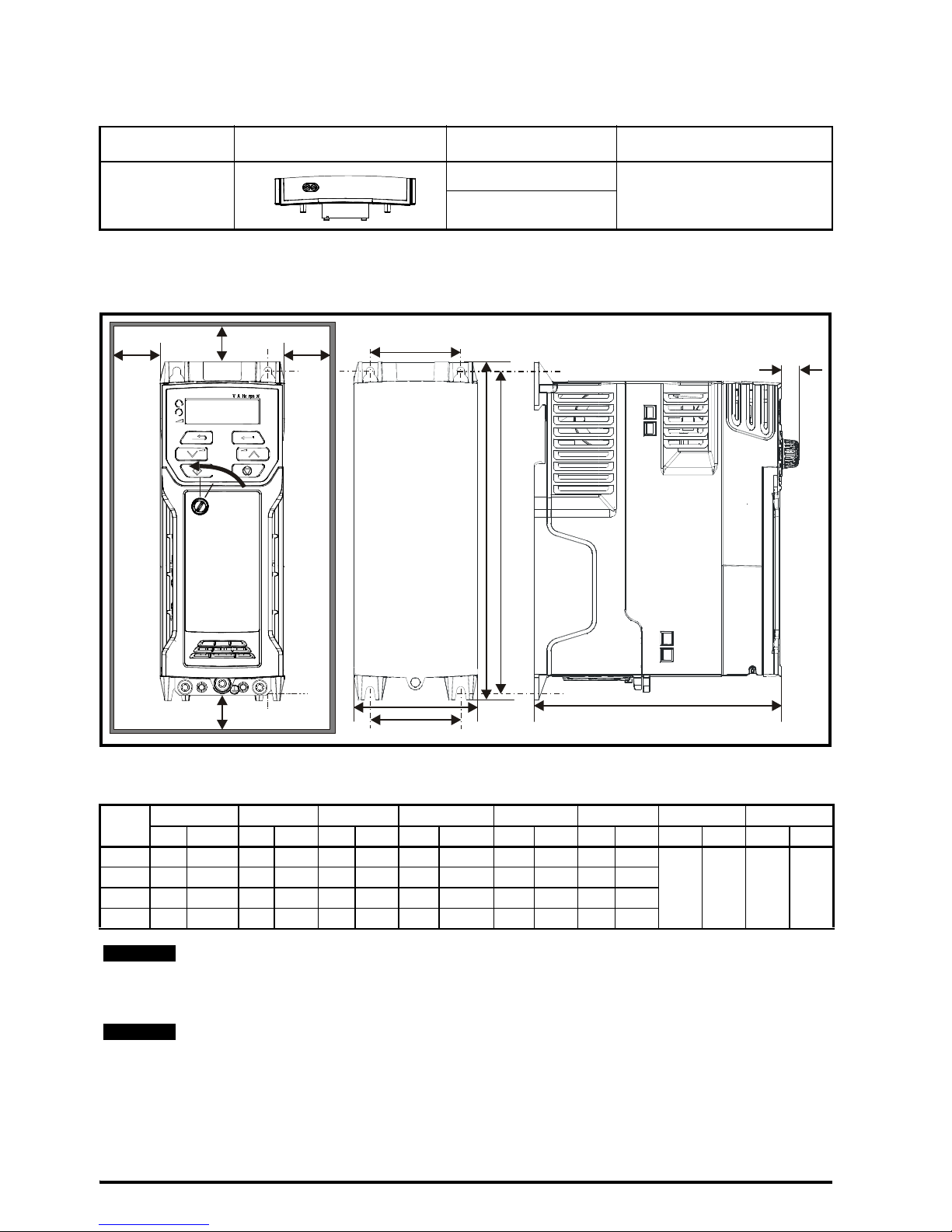

The drives can be panel mounted with 0 mm space between the drives. For further information on
mechanical installation refer to the Power Installation Guide.
To remove the terminal cover, use a flat bladed screwdriver to rotate the terminal cover locating clip
by approximately 30° in a counter clockwise direction, and then slide the cover down.
Type Option module Name Further Details
Backup
AI-Smart Adaptor
See Control User Guide
AI-Backup Adaptor
Drive
Size
HWDM1M2AB*
mm in mm in mm in mm in mm in mm in mm in mm in
1 160 6.30 75 2.95 130 5.12 143 5.70 53 2.08 5 0.2
0 0.00 100 3.93
2 205 8.07 75 2.95 150 5.91 194 7.63 55 2.17 5 0.2
3 226 8.90 90 3.54 160 6.30 215 8.46 70.7 2.80 5 0.2
4 277 10.91 115 4.53 175 6.89 265 10.43 86 3.40 6 0.23
A minimum clearance of 100 mm (3.94 in) above and below Frame 01 to 04 products is
required for applications where the product is subjected to rated load and rated ambient
temperature.
* A minimum clearance of 50 mm (1.97 in) above and below Frame 01 to 04 products is
permissible in applications where either the ambient operating temperature is 35 °C
(95 °F) or less or the average output current is derated by 20 %.
A
W
M2
M2
BD
BA
HM1
11 mm
(0.43 in)
Cover
release
NOTE
NOTE

Unidrive M100-101 Quick Start Guide 9
Issue Number: 8
Table 3-1 Tools required
Table 3-2 Recommended torque settings
Table 3-3 Tightening torque for mounting feet
Derating for reduced clearances is to be applied in addition to the derating for increased
switching frequency if operating above 3 kHz. Refer to the Power Installation Guide for the
current derating due to an increase in switching frequency.
If Din rail mounting is used in an installation, then mounting screws should be used to
secure the drive to the back plate.
Tool Location Size 1 Size 2 Size 3 Size 4
Small terminal screwdriver Control, relay terminals 
3 mm Flat-bladed screwdriver Power terminals 
5 mm Flat-bladed screwdriver Terminal cover 
4 mm Flat-bladed screwdriver AC power terminals 
Philips screwdriver Power terminals 
Torx 10 driver EMC & MOV screws 
Torx 15 driver Fan screw 
Torx 20 driver Fan screw 
Model size Terminal block
description Torque settings
All
Control terminals 0.2 N m (0.15 Ib ft)
Relay terminals 0.5 N m (0.37 Ib ft)
Ground terminals 1.5 N m (1.10 Ib ft)
1Power terminals 0.5 N m (0.37 Ib ft)
2, 3, 4 1.4 N m (1.03 Ib ft)
Drive size Tightening torque
1 to 3 1.3 N m (1 lb ft) to 1.6 N m (1.2 lb ft)
4 2.5 N m (1.8 lb ft) to 2.8 N m (2.1 lb ft)
NOTE
NOTE

10 Unidrive M100-101 Quick Start Guide
Issue Number: 8

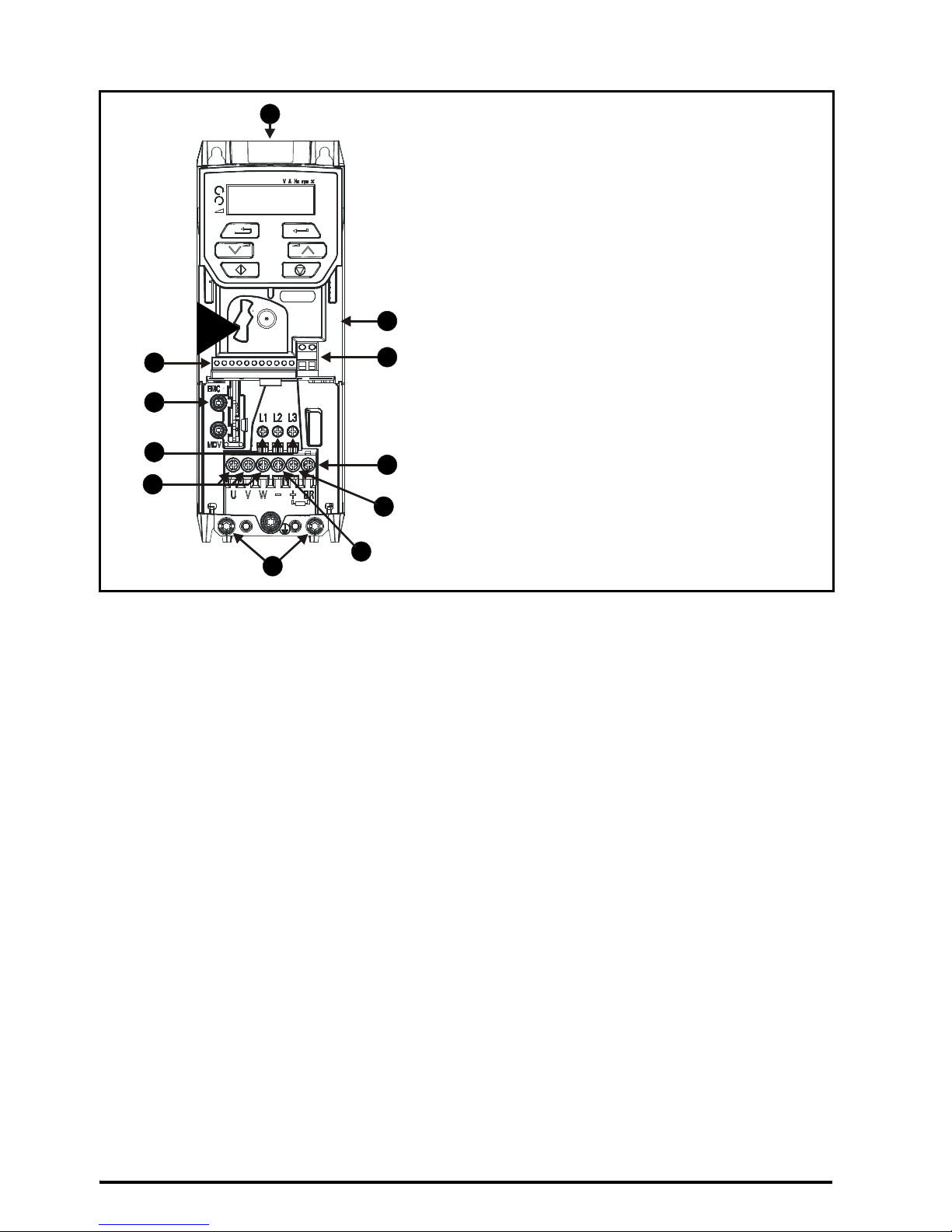

Figure 3-1 Feature diagram (size 2 shown)
* Before removing the screw, refer to section 4.5 EMC on page 17.
6
8
9
5
7
12
4
1
3
2
11
10
2
Key
1. Rating label (On side of drive)
2. Identification label
4. Relay connections
5. Control connections
6. Braking terminal
7. Internal EMC filter screw*
8. DC bus +
9. DC bus -
10. Motor connections
11. AC supply connections
12. Ground connections

Unidrive M100-101 Quick Start Guide 11
Issue Number: 8
4 Electrical installation
An overlay of the electrical connections / terminals is included on the back page of this manual.
4.1 AC supply requirements
Voltage:
100 V drive: 100 V to 120 V ±10 %
200 V drive: 200 V to 240 V ±10 %
400 V drive: 380 V to 480 V ±10 %
Number of phases: 3
Maximum supply imbalance: 2 % negative phase sequence (equivalent to 3 % voltage imbalance
between phases).
Frequency range: 45 to 66 Hz
For UL compliance only, the maximum supply symmetrical fault current must be limited to 100 kA.
4.2 External braking resistor
4.2.1 Minimum resistance values and peak power rating for the braking resistor
at 40 °C (104 °F)
Table 4-1 Braking resistor resistance and power rating (100 V)
* Resistor tolerance: ±10 %
On the size 2 110 V drives or when connecting single phase to a dual rated 200 V unit, the
supply should be connected to L1 and L3. Also the DC bus (-) terminal on 110 V drives
has no internal connection. The 110 V drives use a voltage doubler circuit on the input,
therefore the default for Motor Rated Voltage (Pr 08) is 230 V.
Overload protection
When an external braking resistor is used, it is essential that an overload protection device
is incorporated in the braking resistor circuit; as shown in the electrical diagram on the
back cover.
Model
Minimum
resistance*
Ω
Instantaneous
power rating
kW
Continuous
power rating
kW
01100017 130 1.1 0.25
01100024 0.37
02100042 68 2.2 0.75
02100056 1.1
NOTE
WARNING

12 Unidrive M100-101 Quick Start Guide
Issue Number: 8
Table 4-2 Braking resistor resistance and power rating (200 V)
Table 4-3 Braking resistor resistance and power rating (400 V)
* Resistor tolerance: ±10 %
Model
Minimum
resistance*
Ω
Instantaneous
power rating
kW
Continuous
power rating
kW
01200017
130 1.1
0.25
01200024 0.37
01200033 0.55
01200042 0.75
02200024
68 2.2
0.37
02200033 0.55
02200042 0.75
02200056 1.1
02200075 1.5
03200100 45 3.3 2.2
04200133 22 6.0 3.0
04200176 4.0
Model
Minimum
resistance*
Ω
Instantaneous
power rating
kW
Continuous
power rating
kW
02400013
270 2.2
0.37
02400018 0.55
02400023 0.75
02400032 1.1
02400041 1.5
03400056
100 6.0
2.2
03400073 3
03400094 4
04400135 50 11.2 5.5
04400170 7.5

Unidrive M100-101 Quick Start Guide 13
Issue Number: 8
4.3 Ground leakage
The ground leakage current depends upon whether the internal EMC filter is installed or not. The
drive is supplied with the filter installed. Instructions for removing the internal filter are given in
section 4.5.2 Removing the internal EMC filter on page 18.
With internal filter installed:
Size 1:
8.1 mA* AC at 110 V 50 Hz
9.5 mA* AC at 230 V 50 Hz
Size 2:
13 mA* AC at 110 V, 50 Hz (1 phase)
6.3 mA* AC at 230 V, 50 Hz (3 phase)
17.5 mA* AC at 230 V, 50 Hz (1 phase)
9.2 mA* AC at 415 V, 50 Hz (3 phase)
Size 3:
17.1 mA* AC at 230 V 50 Hz (1 phase)
5.9 mA* AC at 230 V 50 Hz (3 phase)
5.7 mA* AC at 415 V 50 Hz (3 phase)
Size 4:
21.3 mA* AC at 230 V 50 Hz (1 phase)
9.7 mA* AC at 230 V 50 Hz (3 phase)
13.3 mA* AC at 415 V 50 Hz (3 phase)
* Proportional to the supply voltage and frequency.
With internal filter removed:
Size 1: < 1 mA
Size 2: 110 V: < 1.2 mA
230 V: < 1 mA
415 V: < 2.3 mA
Size 3: 230 V: < 1.6 mA
415 V: < 1 mA
Size 4: < 1 mA
The above leakage currents are just the leakage currents of the drive and do not take into
account any leakage currents of the motor or motor cable.
When the internal filter is installed the leakage current is high. In this case a permanent
fixed ground connection must be provided, or other suitable measures taken to prevent a
safety hazard occurring if the connection is lost.
When the leakage current exceeds 3.5 mA, a permanent fixed ground connection must be
provided using two independent conductors each with a cross-section equal to or
exceeding that of the supply conductors. The drive is provided with two ground
connections to facilitate this. Both ground connections are necessary to meet EN 61800-
5-1: 2007.
NOTE
WARNING
WARNING

14 Unidrive M100-101 Quick Start Guide
Issue Number: 8
4.3.1 Use of residual current device (RCD)
There are three common types of ELCB / RCD:
1. AC - detects AC fault currents
2. A - detects AC and pulsating DC fault currents (provided the DC current reaches zero at least
once every half cycle)
3. B - detects AC, pulsating DC and smooth DC fault currents
• Type AC should never be used with drives.
• Type A can only be used with single phase drives
• Type B must be used with three phase drives
If an external EMC filter is used with an ELCB / RCD, a delay of at least 50 ms should be
incorporated to ensure spurious trips are not seen. The leakage current is likely to exceed the trip
level if all of the phases are not energized simultaneously.
4.4 Control terminal configurations and wiring
* With Unidrive M101, the default is PAd (5).
Action will only occur if the drive is inactive and no User Actions are running. Otherwise, the
parameter will return to its pre altered value on exit from edit mode. All parameters are saved if this
parameter changes.
Only type B ELCB / RCD are suitable for use with 3 phase inverter drives.
05 Drive Configuration
RW Txt PT US
OL 
AV (0), AI (1), AV.Pr (2),
AI.Pr (3), PrESEt (4),
PAd (5), PAd.rEF (6), torquE (8)
AV (0)*
Value Text Description
0AV
Analog input 1 (voltage)
1AI
Analog input 1 (current)
2AV.Pr
Analog input 1 (voltage) or 3 presets selected by terminal
3 AI.Pr Analog input 1 (current) or 3 presets selected by terminal
4 PrESEt Four presets selected by terminal
5PAd
Keypad reference
6 PAd.rEF Keypad reference with terminal control
8 torquE Torque mode, Analog input 1 (voltage torque reference) selected by
terminal
WARNING

Unidrive M100-101 Quick Start Guide 15
Issue Number: 8

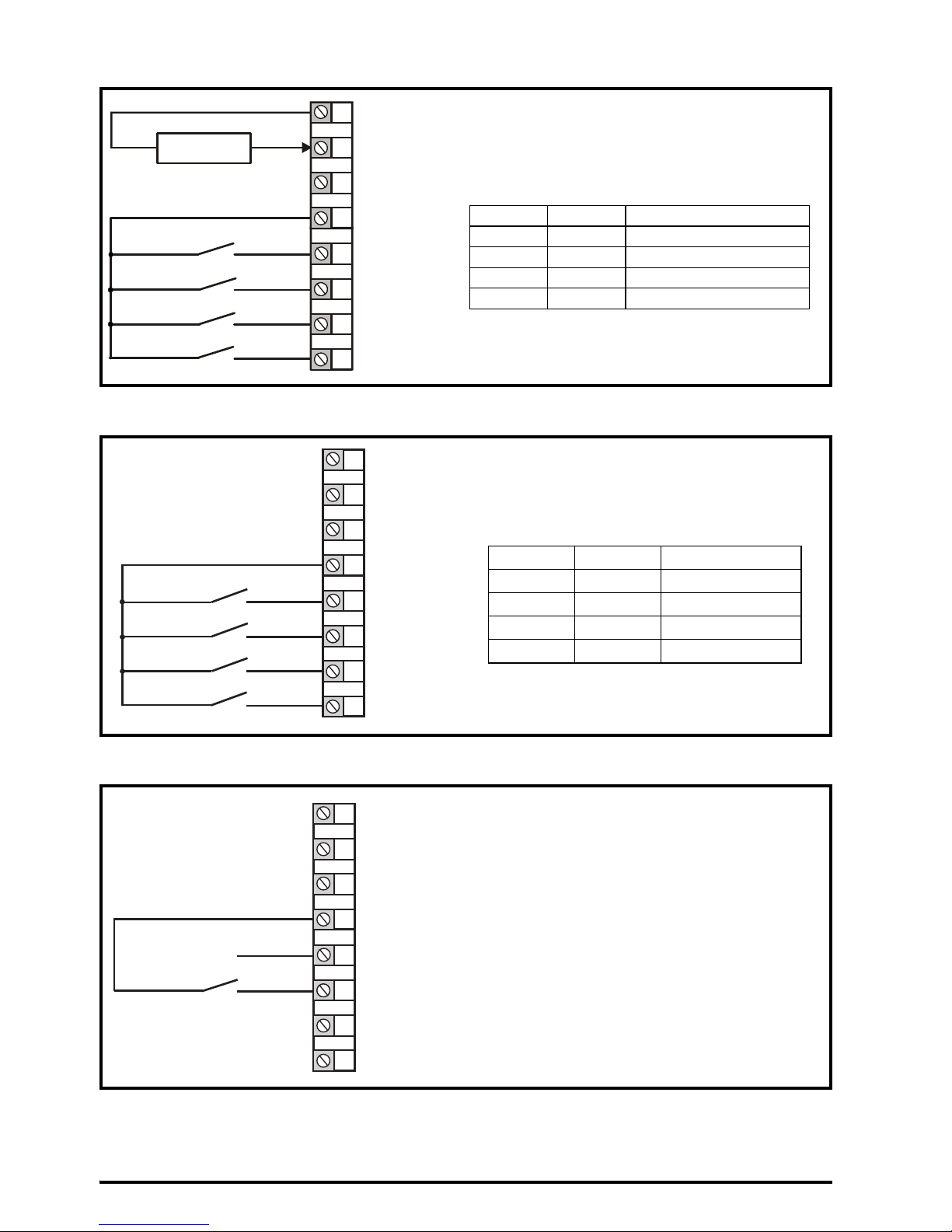

Figure 4-1 Pr 05 = AV
Figure 4-2 Pr 05 = AI
Figure 4-3 Pr 05 = AV.Pr
* Refer to the Control User Guide.
1
2
4
9
0 V
Voltage speed
reference input (AI 1)
Digital output
(zero frequency)
10
11
12
13
Drive enable
Run forward
Run reverse
+ 10 V output
+ 24 V output
10k
1
2
4
9
0 V
Current speed
reference input (AI 1)
Digital output
(zero frequency)
10
11
12
13
Drive enable
Run forward
Run reverse
+ 10 V output
+ 24 V output
Current speed
reference input
1
2
4
9
0 V
10k Voltage speed
reference input (AI 1)
Reference select
Reference select
10
11
12
13
Drive enable
Run forward
+ 10 V output
+ 24 V output
Terminal 10 Terminal 13 Reference selected
0 0 Analog reference 1*
0 1 Preset speed 2*
1 0 Preset speed 3*
1 1 Preset speed 4*

16 Unidrive M100-101 Quick Start Guide
Issue Number: 8

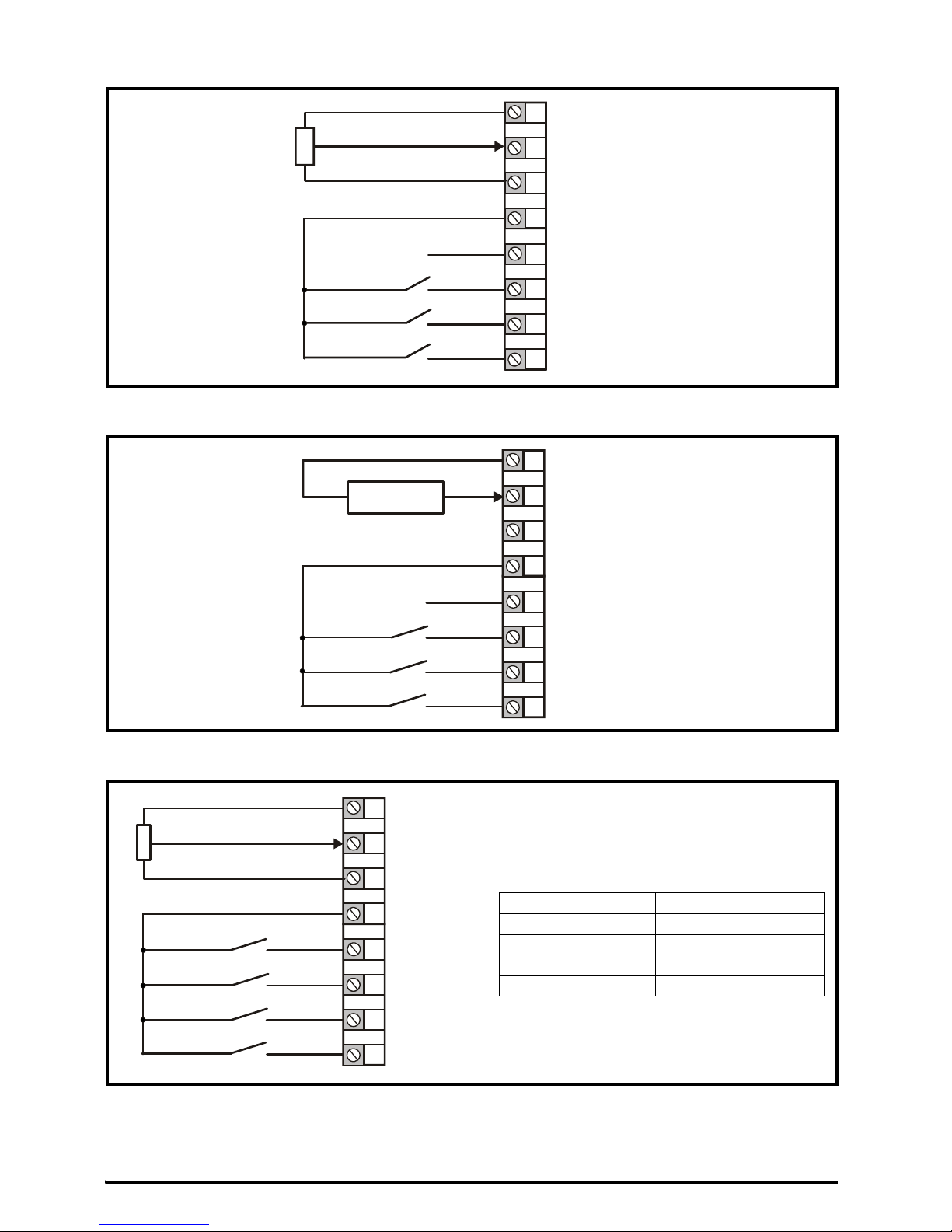

Figure 4-4 Pr 05 = AI.Pr
Figure 4-5 Pr 05 = PrESEt
* Refer to the Control User Guide.
Figure 4-6 Pr 05 = PAd
1
2
4
9
0 V
Current speed
reference input (AI 1)
Reference select
Reference select
10
11
12
13
Drive enable
Run forward
+ 10 V output
+ 24 V output
Current speed
reference input
Terminal 10 Terminal 13 Reference selected
0 0 Analog reference 1*
0 1 Preset speed 2*
1 0 Preset speed 3*
1 1 Preset speed 4*
1
2
4
9
0V
Voltage speed
reference input (AI1)
Reference select
Reference select
10
11
12
13
Drive enable
Run forward
+10 V output
+24 V output
Terminal 10 Terminal 13 Reference selected
0 0 Preset speed 1*
0 1 Preset speed 2*
1 0 Preset speed 3*
1 1 Preset speed 4*
1
2
4
9
0 V
Voltage speed
reference input (AI 1)
Digital output
(zero frequency)
Run reverse
10
11
12
13
Drive enable
Run forward
+10 V output
+24 V output
When Pr 05 is set to PAd, to run in reverse:
Set Pr 17 to On
The keypad reference can now be set to a negative
frequency to run the motor in the reverse direction.

Unidrive M100-101 Quick Start Guide 17
Issue Number: 8
Figure 4-7 Pr 05 = PAd.rEF
Figure 4-8 Pr 05 = torquE
4.5 EMC
4.5.1 Internal EMC filter
It is recommended that the internal EMC filter be kept in place unless there is a specific reason for
removing it. If the drive is used as a motoring drive as part of a regen system, then the internal EMC
filter must be removed.
The internal EMC filter reduces radio-frequency emission into the line power supply.
For longer motor cables, the filter continues to provide a useful reduction in emission levels and
when used with any length of shielded motor cable up to the limit for the drive, it is unlikely that
nearby industrial equipment will be disturbed. It is recommended that the filter be used in all
applications unless the instructions given above require it to be removed, or where the ground
leakage current is unacceptable.
1
2
4
9
0V
Voltage speed
reference input (AI1)
Digitaloutput
(zero frequency)
Run reverse
10
11
12
13
Drive enable
Run forward
+10 V output
+24 V output
1
2
4
9
0 V
10k Torque reference
input (AI 1)
Digital output
(zero frequency)
Torque mode select
10
11
12
13
Drive enable
Run forward
+ 10 V output
+ 24 V output
When torque mode is selected and the
drive is connected to an unloaded motor,
the motor speed may increase rapidly to
the maximum speed (Pr 02 +10 %)
WARNING

18 Unidrive M100-101 Quick Start Guide
Issue Number: 8
4.5.2 Removing the internal EMC filter

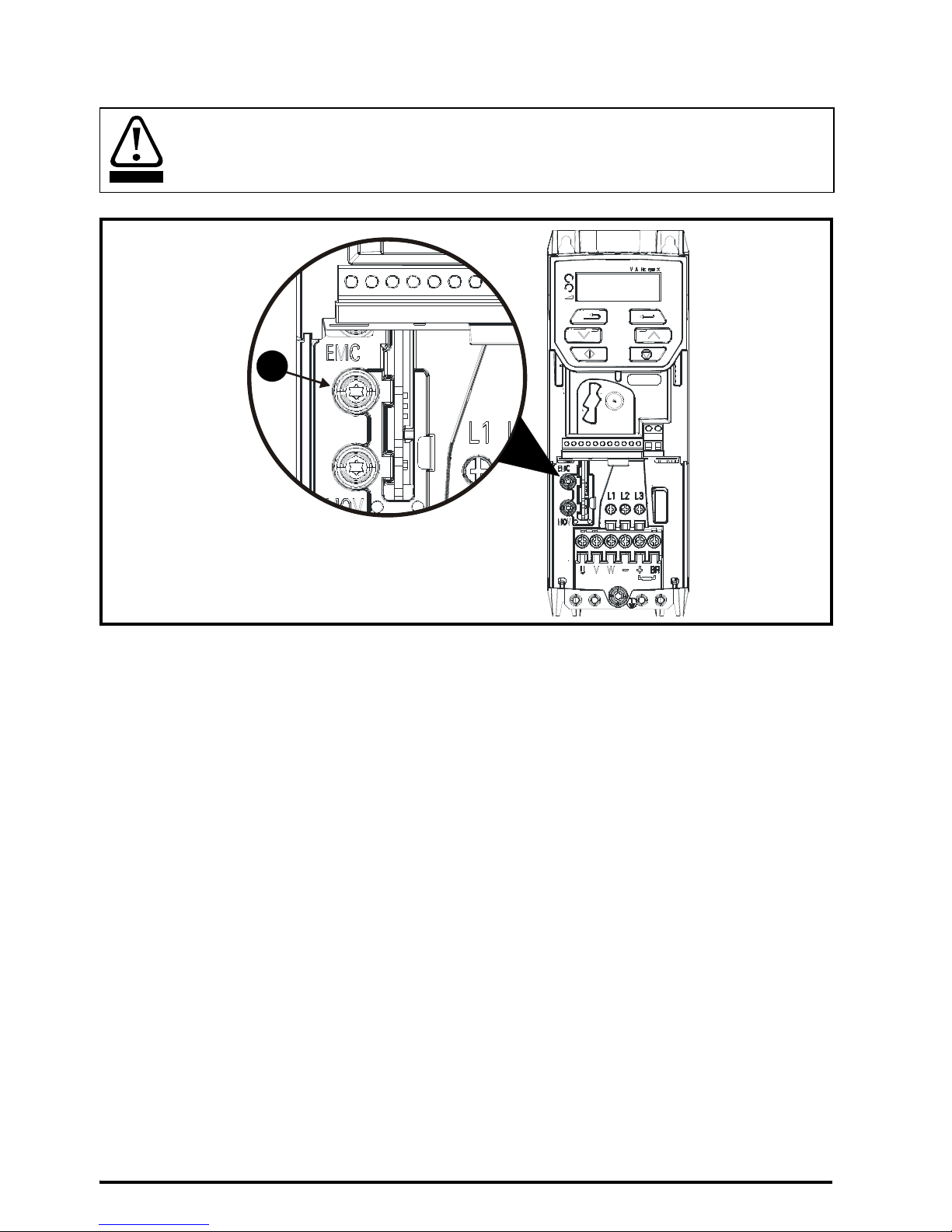

Figure 4-9 Removal of the internal EMC filter (size 2 shown)
To electrically disconnect the internal EMC filter, remove the screw as shown above (1).
4.5.3 Further EMC precautions
Further EMC precautions are required if more stringent EMC emission requirements apply:
• Operation in the first environment of EN 61800-3: 2004+A1:2012
• Conformity to the generic emission standards
• Equipment which is sensitive to electrical interference operating nearby
In this case it is necessary to use:
• The optional external EMC filter
• A shielded motor cable, with shield clamped to the grounded metal panel
• A shielded control cable, with shield clamped to the grounded metal panel
Full instructions are given in the Power Installation Guide.
A full range of external EMC filters are also available for use with Unidrive M100 / 101, shown in the
Power Installation Guide.
The supply must be disconnected before removing the internal EMC filter.
WARNING
1

Unidrive M100-101 Quick Start Guide 19
Issue Number: 8
5 Keypad and display
The keypad and display provide information to the user regarding the operating status of the drive,
alarms and trip codes, and provide the means for changing parameters, stopping and starting the
drive, and the ability to perform a drive reset.
(1) The Enter button is used to enter parameter view or edit mode, or to accept a parameter edit.
(2 / 5) The Navigation buttons can be used to select individual parameters or to edit parameter
values.
(3) The Stop / Reset button (red) is used to stop and reset the drive in keypad mode. It can also be
used to reset the drive in terminal mode.
(4) The Start button (green) is used to start the drive in keypad mode.
(6) The Escape button is used to exit from the parameter edit / view mode.
(7) The Speed ref potentiometer is used to control the frequency reference in keypad mode (only on
Unidrive M101).
Table 5-1 Status indications
Figure 5-1 Unidrive M100 keypad detail Figure 5-2 Unidrive M101 keypad detail
String Description Drive output
stage
inh The drive is inhibited and cannot be run. The Drive Enable signal
is not applied to the drive enable terminal or is set to 0. Disabled
rdy The drive is ready to run. The drive enable is active, but the drive
inverter is not active because the final drive run is not active Disabled
StoP The drive is stopped / holding zero speed. Enabled
S.Loss Supply loss condition has been detected Enabled
dc inj The drive is applying dc injection braking Enabled
Er The drive has tripped and no longer controlling the motor. The trip
code appears on the display. Disabled
UV The drive is in the under voltage state either in low voltage or high
voltage mode. Disabled
HEAt The motor pre-heat function is active Enabled
1
2
3
4
5
6
VAHzrpm%
1
VAHz rpm %
7

20 Unidrive M100-101 Quick Start Guide
Issue Number: 8
5.1 Saving parameters
When changing a parameter in Menu 0, the new value is saved when pressing the Enter button
to return to parameter view mode from parameter edit mode.
If parameters have been changed in the advanced menus, then the change will not be saved
automatically. A save function must be carried out.
Procedure
1. Select ‘Save' in Pr 00 or Pr mm.000 (alternatively enter a value of 1001 in Pr 00 or Pr mm.000)
• Press the red reset button
5.2 Restoring parameter defaults
Restoring parameter defaults by this method saves the default values in the drives memory. User
Security Status (Pr 10) and User Security Code (Pr 25) are not affected by this procedure.
Procedure
1. Ensure the drive is not enabled, i.e. drive is in inhibit or under voltage state.
2. Select 'Def.50’ or 'Def.60' in Pr 00 or Pr mm.000 (alternatively, enter 1233 (50 Hz settings) or
1244 (60 Hz settings) in Pr 00 or Pr mm.000).
Press the red reset button
