CR2032
CR2032
ON/OFF
ZEROHOLD
mm
①Mount Indicator securely, such as on optional
Magnetic Base, and make sure that the Spindle is
perpendicular to reference surface.
②Press the [ON/OFF]Button to turn on power.
③With Contact Point in contact with the reference
surface, press the [ZERO]Button. LCD will display
“0.00mm”.
④LCD Display will now show any motion of surface,
or, if moved to a different surface, Display will show
the position relative to the reference surface.
※Press [HOLD]to fix the value on the display, press
a second time to release.
■OPERATION
Model No. DEI-127
0.01mmResolution
12.7mm
Measurement Range
±0.02mmAccuracy
≦1.5NMeasuring Force
φ8mmStem Diameter
140g (With Flat Rear Plate)
Weight
(1x)CR2032 Lithium button cellPower
・Lugged Rear Plate
・CR2032 Lithium button cell
(1x included for test)
Accessories
■SPECIFICATIONS
[HOLD]Button
LCD Display
Battery
Door
[ZERO]Button
Stem（φ8mm）
Spindle
Contact Point
Lugged Rear Plate
[ON/OFF]Button
※
※To use, remove screws in rear of
Gauge, replace Plate, and secure
with screws.
Open Battery Door using the tabs on either side.
Insert battery with “+”side facing up as shown.
Push in door to close.
■BATTERY REPLACEMENT TROUBLESHOOTING
Battery Door
Battery (CR2032)
Error Condition Corrective Action
LCD does not display
Displayed value is unstable
Display is not clear
Cycle power by removing and
replacing battery.
Replace battery with new one.
●
●
●
●
●
※If problem persists, or if you have any questions, please contact
distributor or place of purchase.
※Please note, manufacturer is unable to respond to inquires or provide
service directly. Please contact distributor or place of purchase.
Only Use CR2032
battery (Lithium button
cell)
Insert the Battery Door
with the direction arrow
(▼)pointing down as
shown in the diagram.
Caution
●This is a precision instrument, use care not to drop
or mishandle.
●Keep instrument away from direct sunlight or high
temperatures such as in a car, or near a stove or
heat source.
●When mounting, such as on optional Magnetic Base,
make sure Gauge is held securely.
●Keep instrument away from water and oils.
●After use, remove cutting chips and dust by wiping
with a soft cloth and wiping with rust preventative oil.
Store out of reach from children.
●Use only as directed.
PLEASE NOTE
※Not including quantization error (±1count)
Digital Indicator displays the displacement of the
Contact Point, showing the change in position of a
surface, or for comparing a workpiece to a reference.
Use to measure flatness, parallelism, and runout.
For precision centering and positioning for lathe and
milling work．
Digital display for error free reading.
[HOLD]Button for fixing the value displayed.
Auto Power Off feature (approx. 5 min).
Comes with Lugged Rear Plate.
●
●
●
●
●
●
●

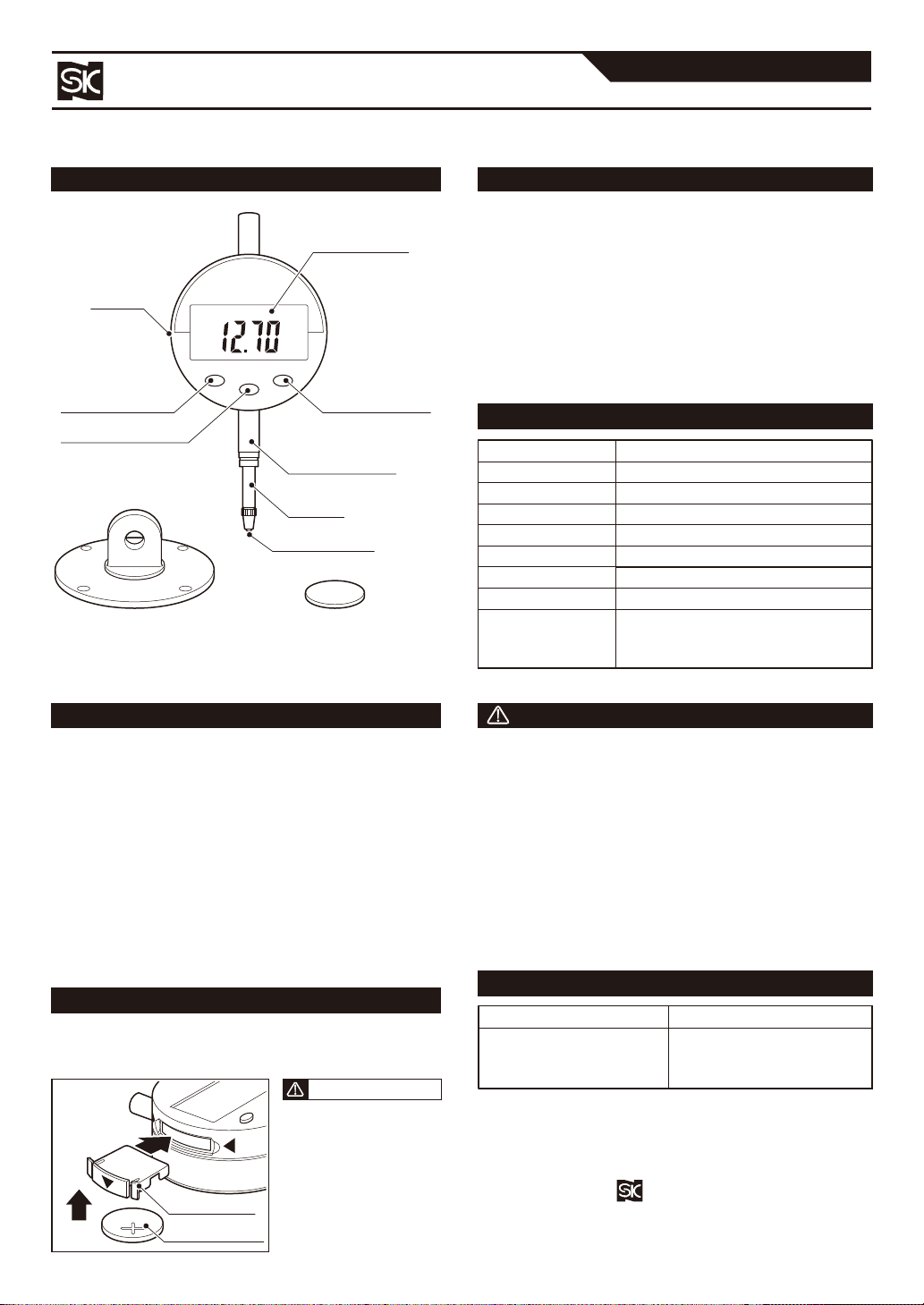

■PARTS IDENTIFICATION ■APPLICATIONS・FEATURES
DIGITAL INDICATOR Model No. DEI-127
Thank you for purchasing the Niigata Seiki Digital Indicator.
For proper operation, please read this manual thoroughly before use.
INSTRUCTION MANUAL
CR2032 Lithium Battery
※Included for testing. Please replace
with new battery before use.
Niigata seiki Co., Ltd.
5-3-14, Tsukanome, Sanjo, Niigata, Japan, 955-0055
Tel. : +81-256-33-5522 Fax. : +81-256-33-5518
URL http://www.niigataseiki.co.jp
