Notes on Safety Operations
CAUTION
Do not disassemble
Touching the internal parts of the camera or lens could result in injury. Repairs should
be performed only by qualified technicians. Should the camera or lens break open as
the result of a fall or other accident, take the product to a Nikon-authorized service
representative for inspection after unplugging the product and/or removing the battery.
Turn off immediately in the event of malfunction
Should you notice smoke or an unusual smell coming from the camera or lens, remove the
battery immediately, taking care to avoid burns. Continued operation could result in injury.
After removing or disconnecting the power source, take the product to a Nikon-authorized
service representative for inspection.
Do not use the camera or lens in the presence of flammable gas
Operating electronic equipment in the presence of flammable gas could result in an
explosion or fire.
Do not look at the sun through the lens or viewfinder
Viewing the sun or other strong light sources through the lens or viewfinder could cause
permanent visual impairment.
Keep out of reach of children
Particular care should be taken to prevent infants from putting the batteries or other small
parts into their mouths.
Observe the following precautions when handling the camera and lens
• Keep the camera and lens unit dry. Failure to do so could result in fire or electric shock.
• Do not handle or touch the camera or lens unit with wet hands. Failure to do so could
result in electric shock.
• When shooting with back-lighting, do not point the lens at the sun or allow sunlight to
pass directly down the lens as this may cause the camera to overheat and possibly cause
a fire.
• When the lens will not be used for an extended period of time, attach both front and
rear lens caps and store the lens away from direct sunlight. Failure to do so could result
in a fire, as the lens may focus sunlight onto a flammable object.

13
Jp
En
De
Fr
Es
Se
Ru
Nl
It
Ck
Ch
Kr
Nomenclature
1 Lens hood (pg. 18)
2 Lens hood attachment index
(when storing) (pg. 18)
3 Lens hood attachment index (pg. 18)
4 Lens hood setting index (when storing)
(pg. 18)
5 Lens hood setting index (pg. 18)
6 Lens hood mounting index (pg. 18)
7 Zoom ring (pg. 15)
8 Focal length scale
9 Focal length scale index
0 Distance scale (pg. 15)
! Distance index line
@ Focus ring (pg. 16)
# Mounting index
$ Lens mount rubber gasket (pg. 20)
% CPU contacts (pg. 20)
^ Zoom lock (pg. 15)
& Focus mode switch (pg. 16)
* Vibration reduction ON/OFF switch (pg. 16)
( Vibration reduction mode switch (pg. 17)
( ): reference page

14
Jp
En
De
Fr
Es
Se
Ru
Nl
It
Ck
Ch
Kr
Thank you for purchasing the AF-S NIKKOR 28-300mm f/3.5-5.6G ED
VR lens. Before using this lens, please read these instructions and refer
to your camera's user's manual.
Major features
• By enabling vibration reduction (VR Ⅱ ), slower shutter speeds (approximately
four stops*) can be used, thus increasing the range of usable shutter speeds
and zoom positions, particularly when hand-holding the camera. (*Based
on results achieved under Nikon measurement conditions. The effects of
vibration reduction may vary according to shooting conditions and use.)
• It is possible to switch between NORMAL mode, which reduces effects of
camera shake under normal shooting conditions, and ACTIVE mode, which
reduces effects of more noticeable camera shake such as that which occurs
when taking pictures from a moving vehicle.
In NORMAL mode, the camera automatically distinguishes camera shake
from panning motion to reduce the effects of camera shake with horizontal or
vertical panning.
• Superior optical performance and rendering characteristics are maximized
with the use of three aspherical lens elements and two extra-low dispersion
(ED) lens elements, which minimize chromatic aberration. In addition, the
rounded aperture produces soft and pleasing blur characteristics in portions
of pictures that are out-of-focus.
Important
• When mounted on Nikon DX format digital SLR cameras, such as the D300-
Series and D90, the lens’ angle of view becomes 53°-5°20’ and its 35mm
equivalent focal length is approx. 42-450mm.
Usable cameras and available functions
There may be some restrictions or limitation for available functions. Refer to camera's
user's manual for details.
Cameras Function Exposure
(shooting) mode
VR AF P*1 6$0
Nikon digital SLR (Nikon FX/DX format) cameras, F6, F5,
F100, F80-Series/N80-Series*, F75-Series/N75-Series*,
F65-Series/N65-Series*
  
Pronea 600i/6i*, Pronea S*2 —
F4-Series, F90X/N90s*, F90-Series/N90*, F70-Series/N70* —  ——
F60-Series/N60*, F55-Series/N55-Series*, F50-Series/N50*,
F-401x/N5005*, F-401s/N4004s*, F-401/N4004* ——
F-801s/N8008s*, F-801/N8008*, F-601M/N6000* — — 
——
F3AF, F-601/N6006*, F-501/N2020**,
Nikon MF cameras (except F-601M/N6000*) — —————
: Possible
— : Not possible VR: Vibration reduction AF: Autofocus
*Sold exclusively in the USA
**Sold exclusively in the USA and Canada
*1: P includes AUTO and Vari-Program System (Scene modes).
*2: Manual (M) is not available.

15
Jp
En
De
Fr
Es
Se
Ru
Nl
It
Ck
Ch
Kr
Focusing, zooming, and depth of field
Before focusing, rotate the zoom ring to adjust the focal length until the desired
composition is framed. If your camera has a depth-of-field preview (stop-down)
button or lever, depth of field can be previewed through the camera viewfinder.
• This lens is equipped with the Internal Focusing (IF) system. As the shooting
distance decreases, the focal length also decreases.
• The distance scale does not indicate the precise distance between the subject
and the camera. Values are approximate and should be used only as a general
guide. When shooting distant landscapes, depth of field may influence
operation and the subject may appear in focus at a position that is closer than
infinity.
• For more information, see page 144.
• When the zoom lock is set to LOCK position at the focal length of 28mm, the
zoom ring is locked. When carrying the camera, lock the zoom ring to prevent
the lens from extending due to its own weight.
Setting the aperture
Use the camera to adjust the aperture setting.
Variable maximum apertures
Zooming the lens from 28mm to 300mm decreases the maximum aperture by
1 1/3stop. However, there is no need to adjust the aperture setting to achieve
correct exposures because the camera automatically compensates for this
variable.
Focusing
Set your camera focus mode according to the chart below:
Cameras
Camera
focus
mode
Lens focus mode switch
M/A M
Nikon digital SLR (Nikon FX/DX format)
cameras, F6, F5, F4-Series, F100,
F90X/N90s*, F90-Series/N90*, F80-Series/
N80-Series*, F75-Series/N75-Series*,
F70-Series/N70*, F65-Series/N65-Series*,
Pronea 600i/6i*, Pronea S
AF
(C/S) Autofocus with
manual override
Manual focus
(Electronic
rangefinder can be
used.)
MF Manual focus
(Electronic rangefinder can be used.)
F60-Series/N60*, F55-Series/N55-Series*,
F50-Series/N50*, F-801s/N8008s*,
F-801/N8008*, F-601M/N6000*,
F-401x/N5005*, F-401s/N4004s*,
F-401/N4004*
AF
(C/S)
MF
Manual focus
(Electronic rangefinder can be used,
except with the F-601M/N6000*.)
*Sold exclusively in the USA
AF: Autofocus MF: Manual focus

16
Jp
En
De
Fr
Es
Se
Ru
Nl
It
Ck
Ch
Kr
Autofocus with manual override (M/A mode)
aSet the lens focus mode switch to M/A.
bAutofocus is enabled, but autofocus operation can be overridden by rotating
the separate focus ring while pressing the shutter-release button halfway, or
by pressing the AF-ON button on the camera body of cameras so equipped.
cPress the shutter-release button halfway or the AF-ON button once again to
cancel manual focus and resume autofocus.
Vibration reduction mode (VRⅡ)

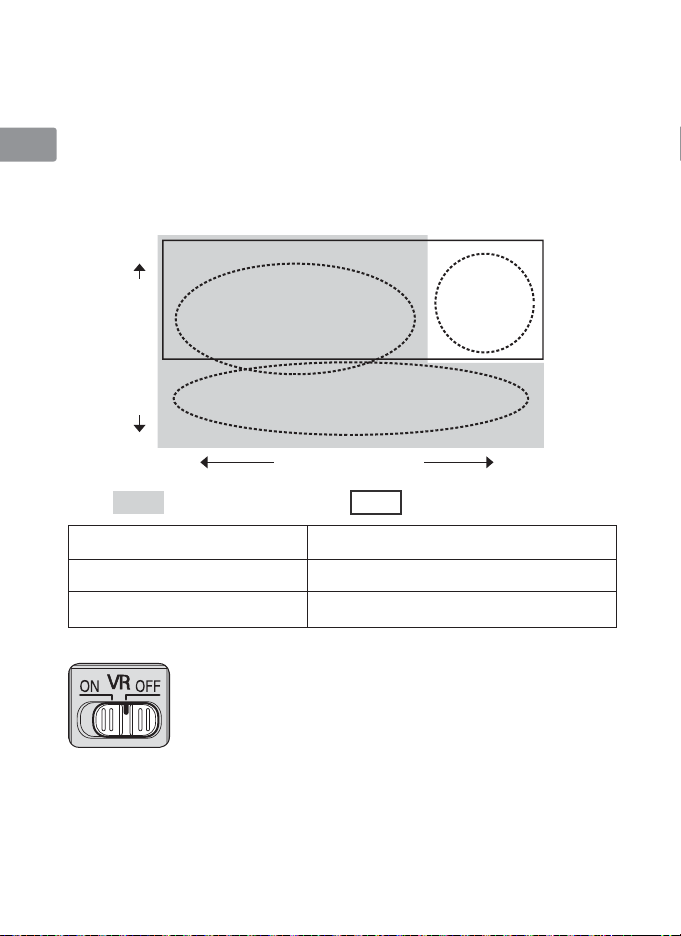

Basic concept of vibration reduction
Strength of vibrations Strong
Weak
Panning shots
Camera shake
Number of vibrations
Low High
Strong
camera shake
when taking
pictures
from a moving
vehicle
Set the vibration reduction
mode switch to NORMAL.Set the vibration reduction mode switch to ACTIVE.
When taking pictures
When taking panning shots
When taking pictures from
a moving vehicle
Set the vibration reduction mode switch to
either NORMAL or ACTIVE.
Set the vibration reduction mode switch
to NORMAL.
Set the vibration reduction mode switch
to ACTIVE.
Setting the vibration reduction ON/OFF switch
ON: The effects of camera shake are reduced while the
shutter-release button is pressed halfway and also at
the instant the shutter is released. Because vibration is
reduced in the viewfinder, auto/manual focusing and
exact framing of the subject are easier.
OFF: The effects of camera shake are not reduced.

17
Jp
En
De
Fr
Es
Se
Ru
Nl
It
Ck
Ch
Kr

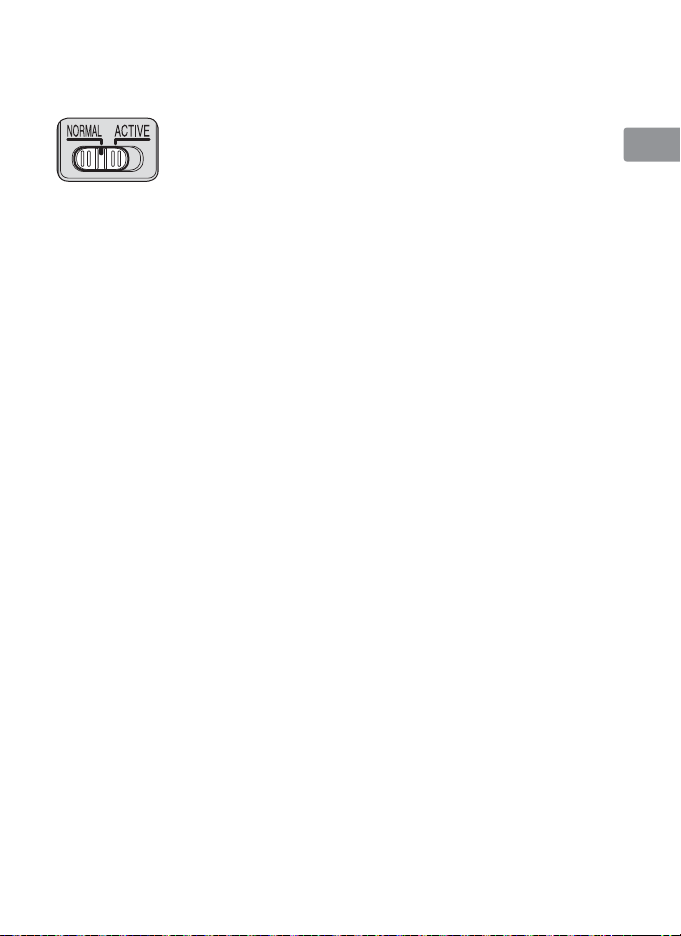

Setting the vibration reduction mode switch
Set the vibration reduction ON/OFF switch to ON and choose a vibration
reduction mode with the vibration reduction mode switch.
NORMAL: The vibration reduction mechanism primarily
reduces the effects of camera shake. The effects
of camera shake are also reduced with horizontal
and vertical panning.
ACTIVE: The vibration reduction mechanism reduces
the effects of camera shake, such as that which
occurs when taking pictures from a moving
vehicle, whether it be normal or more intense
camera shake. In this mode, camera shake is not
automatically distinguished from panning motion.
Notes on using vibration reduction
• If this lens is used with cameras that do not have the vibration reduction
function (pg. 14), set the vibration reduction ON/OFF switch to OFF. With
the Pronea 600i/6i camera, in particular, battery power may become quickly
depleted if this switch is left ON.
• After pressing the shutter-release button halfway, wait until the image in the
viewfinder stabilizes before pressing the shutter-release button the rest of the
way down.
• Due to the characteristics of the vibration reduction mechanism, the image
in the viewfinder may be blurred after the shutter is released. This is not a
malfunction.
• When taking panning shots, be sure to set the vibration reduction mode
switch to NORMAL. If the camera is panned in a wide arc, compensation for
camera shake in the panning direction is not performed. For example, only the
effects of vertical camera shake is reduced with horizontal panning.
• Do not turn the camera off or remove the lens from the camera while vibration
reduction is operating. Failure to observe this note could result in the lens
sounding and feeling as if an internal component is loose or broken when it is
shaken. This is not a malfunction. Turn the camera on again to correct this.
• With cameras featuring a built-in flash, vibration reduction does not function
while the built-in flash is charging.
• When the camera is mounted on a tripod, set the vibration reduction ON/OFF
switch to OFF. However, set the switch to ON when using a tripod without
securing the tripod head, or when using a monopod.
• With autofocus cameras featuring an AF-ON button, vibration reduction does
not function when the AF-ON button is pressed.

18
Jp
En
De
Fr
Es
Se
Ru
Nl
It
Ck
Ch
Kr
Using the lens hood
Lens hoods minimize stray light and protect the lens.
Attaching the hood (when in use)
• Be sure that the lens hood mounting index ( ) is
aligned with the lens hood setting index ( ) (3).
• To facilitate attachment or removal of the hood,
hold it by the base (near the lens hood attachment
index (
)) rather than its outer edge.
• If the lens hood is not correctly attached, vignetting
may occur.
Attaching the hood (when storing)
• To store the lens hood, attach it in the reverse
position.
The built-in flash and vignetting
• The built-in flash cannot be used over distances of less than 0.6 m (2.0 ft.).
• To prevent vignetting, do not use the lens hood.
*Vignetting is the darkening of the corners around the image that occurs when the
light emitted by the flash is obstructed by the lens barrel.
Cameras Supported focal length/Shooting distance
D700 (FX format) • 28mm/1.5 m (4.9 ft.) or greater
• 35mm or longer/No restriction
D90, D80, D70-Series,
D50 • 28mm/1 m (3.3 ft.) or greater • 35mm or longer/No restriction
D5000, D3000, D60,
D40-Series
• 28mm/1.5 m (4.9 ft.) or greater
• 35mm/1 m (3.3 ft.) or greater
• 50mm or longer/No restriction
F80-Series/N80-Series* • 35mm/2.5 m (8.2 ft.) or greater • 50mm/1 m (3.3 ft.) or greater
• 70mm or longer/No restriction
F75-Series/N75-Series* • 50mm/2 m (6.6 ft.) or greater • 70mm/1 m (3.3 ft.) or greater
• 105mm or longer/No restriction
F70-Series/N70* • 50mm/1.5 m (4.9 ft.) or greater • 70mm/1 m (3.3 ft.) or greater
• 105mm or longer/No restriction
F65-Series/N65-Series*,
F60-Series/N60* • 70mm/1.5 m (4.9 ft.) or greater • 105mm or longer/1 m (3.3 ft.) or greater
*Sold exclusively in the U.S.A.

19
Jp
En
De
Fr
Es
Se
Ru
Nl
It
Ck
Ch
Kr
Cameras Supported focal length/Shooting distance
F55-Series/N55-Series* • 70mm/2 m (6.6 ft.) or greater
• 105mm or longer/1 m (3.3 ft.) or greater
F50-Series/N50* • 70mm/2.5 m (8.2 ft.) or greater • 105mm/1.5 m (4.9 ft.) or greater
• 200mm or longer/1 m (3.3 ft.) or greater
F-401x/N5005*,
F-401s/N4004s*,
F-401/N4004*
• 70mm/3 m (9.8 ft.) or greater
• 105mm/1.5 m (4.9 ft.) or greater
• 200mm or longer/1 m (3.3 ft.) or greater
*Sold exclusively in the U.S.A.
Recommended focusing screens
Various interchangeable focusing screens are available for certain Nikon SLR
cameras to suit any picture-taking situation. The ones recommended for use
with this lens are:
Screen ABCE
EC-B
EC-E G1 G2 G3 G4 J L M U
Camera
F6 ◎ ◎―◎ ― ――――◎ ◎ ◎
F5+DP-30 ◎◎○◎◎ ◎◎ ◎
F5+DA-30 ◎
(+1.0) ◎◎◎ ◎
◎
(+1.0) ◎
Ⴟ: Excellent focusing
Ⴜ: Acceptable focusing
Slight vignetting or moiré patterns appear in the viewfinder, but not on the
film.
— : Not available
( ): Indicates degree of exposure compensation needed (center-weighted
metering only). For F6 cameras, compensate by selecting “Other screen“ in
Custom Setting “b6: Screen comp.“ and setting the EV level to -2.0 to +2.0
in 0.5 EV steps. When using screens other than type B or E, “Other screen“
must be selected even when the required compensation value is “0“ (no
compensation required). For F5 cameras, compensate using Custom Setting
#18 on the camera body. See user’s manual of the camera body for more
details.
Blank box means not applicable. Since type M screen can be used for
both macrophotography at a magnification ratio of 1:1 or above and for
photomicrography, it has different applications than other screens.
Important
• For F5 cameras, only EC-B, EC-E, B, E, J, A, L focusing screens are usable in
Matrix Metering.

20
Jp
En
De
Fr
Es
Se
Ru
Nl
It
Ck
Ch
Kr
Lens care
• When the lens is mounted on a camera, do not pick up or hold the camera
and lens by the lens hood.
• Be careful not to allow the CPU contacts to become dirty or damaged.
• If the lens mount rubber gasket is damaged, be sure to visit the nearest Nikon-
authorized service representative for repair.
• Clean lens surfaces with a blower brush. To remove dirt and smudges, use a soft,
clean cotton cloth or lens tissue moistened with ethanol (alcohol) or lens cleaner.
Wipe in a circular motion from the center to outer edge, taking care not to leave
traces or touch other parts of the lens.
• Never use organic solvent such as thinner or benzene to clean the lens.
• NC filters are available to protect the front lens element. The lens hood also
helps to protect the front of the lens.
• When storing the lens in its flexible lens pouch, attach both the front and rear
lens caps.
• When the lens will not be used for an extended period of time, store it in a
cool, dry place to prevent mold and rust. Be sure to store the lens away from
direct sunlight or chemicals such as camphor or naphthalene.
• Do not get water on the lens or drop it in water as this will cause it to rust and
malfunction.
• Reinforced plastic is used for certain parts of the lens. To avoid damage, never
leave the lens in an excessively hot place.
Standard accessories
• 77mm snap-on Front Lens Cap LC-77
• Rear Lens Cap
• Bayonet Hood HB-50
• Flexible Lens Pouch CL-1120
Optional accessories
• 77mm screw-on filters

21
Jp
En
De
Fr
Es
Se
Ru
Nl
It
Ck
Ch
Kr
Specifications
Type of lens: G-type AF-S Zoom-NIKKOR lens with built-in CPU and
Nikon bayonet mount
Focal length: 28-300mm
Maximum aperture: f/3.5-5.6
Lens construction: 19 elements in 14 groups (2 ED and 3 aspherical lens
elements)
Angle of view: 75°-8°10´ with 35mm (135) format Nikon film SLR
cameras and Nikon FX format digital SLR cameras
53°-5°20´ with Nikon DX format digital SLR cameras
63°-6°30´ with IX240 system cameras
Focal length scale: 28, 35, 50, 70, 105, 200, 300mm
Distance
information: Output to camera
Zoom control: Manually via separate zoom ring
Focusing: Nikon Internal Focusing (IF) system, autofocus using a
Silent Wave Motor; manually via separate focus ring
Vibration reduction: Lens-shift method using voice coil motors (VCMs)
Shooting distance
scale:
Graduated in meters and feet from 0.5 m (3 ft) to
infinity (෱)
Closest focusing
distance: 0.5 m (1.6 ft.) at all zoom settings
No. of diaphragm
blades:
9 pcs. (rounded)
Diaphragm: Fully automatic
Aperture range: f/3.5 to f/22 (at 28mm),
f/5.6 to f/38 (at 300mm)
Exposure
measurement: Via full-aperture method with cameras with CPU
interface system
Attachment size: 77mm (P = 0.75 mm)
Dimensions: Approx. 83 mm dia. x 114.5 mm extension from the
camera’s lens-mount flange
Weight: Approx. 800 g (28.2 oz.)
Specifications and designs are subject to change without any notice or obligation on the
part of the manufacturer.

144144
Hloubka ostrosti Hĺbka ostrosti
yHloubka ostrosti yHĺbka ostrosti
yPoměr reprodukce yReprodukčný pomer
•撮影距離 •
Shooting distance
•
Aufnahmedistanz
•
Distance de prise de vue
•
Distancia de disparo
•
Avstånd
•
Расстояние съемки
•
Opnameafstand
•
Distanza di ripresa
•
Vzdálenostizaostření
•
Vzdialenosť pri snímaní
•拍摄距离 •拍攝距離 •
촬영 거리
[f=28mm]
f/3.5 f/4 f/5.6 f/8 f/11 f/16 f/22
0.5
0.48 — 0.53 0.48 — 0.53 0.47 — 0.54 0.45 — 0.56 0.44 — 0.59 0.42 — 0.65 0.39 — 0.75 1/13.6
10.89 — 1.14 0.89 — 1.16 0.85 — 1.24 0.80 — 1.38 0.74 — 1.66 0.67 — 2.36 0.60 — 6.47 1/31.0 32.13 — 5.20 2.08 — 5.59 1.85 — 8.84 1.60 — 55.46 1.36 — ∞1.12 — ∞0.91 — ∞1/100.5
10 4.14 — ∞3.93 — ∞3.16 — ∞2.48 — ∞1.92 — ∞1.47 — ∞1.11 — ∞1/343.5
∞6.93 — ∞6.35 — ∞4.53 — ∞3.24 — ∞2.33 — ∞1.69 — ∞1.23 — ∞1/ ∞
[f=35mm]
f/3.8 f/4 f/5.6 f/8 f/11 f/16 f/22 f/25
0.5 0.48 — 0.52 0.48 — 0.52 0.48 — 0.53 0.47 — 0.54 0.45 — 0.56 0.44 — 0.59 0.42 — 0.65 0.41 — 0.67 1/11.4
10.92 — 1.10 0.92 — 1.10 0.89 — 1.15 0.85 — 1.23 0.80 — 1.37 0.74 — 1.63 0.68 — 2.29 0.66 — 2.69 1/25.7 32.33 — 4.27 2.30 — 4.37 2.10 — 5.42 1.87 — 8.25 1.63 — 33.75 1.38 — ∞1.15 — ∞1.08 — ∞1/82.9
10 4.99 — ∞4.86 — ∞4.03 — ∞3.25 — ∞2.56 — ∞1.98 — ∞1.52 — ∞1.40 — ∞1/282.9
∞9.81 — ∞9.32 — ∞6.63 — ∞4.73 — ∞3.38 — ∞2.43 — ∞1.76 — ∞1.60 — ∞1/ ∞
[f=50mm]
f/4.2 f/5.6 f/8 f/11 f/16 f/22 f/29
0.5
0.49 — 0.51 0.49 — 0.51 0.48 — 0.52 0.47 — 0.53 0.46 — 0.55 0.45 — 0.57 0.44 — 0.59 1/8.2
10.95 — 1.05 0.94 — 1.07 0.92 — 1.11 0.88 — 1.16 0.85 — 1.24 0.80 — 1.39 0.76 — 1.57 1/18.3 32.58 — 3.59 2.47 — 3.85 2.30 — 4.36 2.10 — 5.40 1.88 — 8.21 1.63 — 33.01 1.46 — ∞1/58.4
10 6.44 — 22.76 5.75 — 40.59 4.90 — ∞4.06 — ∞3.28 — ∞2.59 — ∞2.16 — ∞1/198.4
∞17.92 — ∞13.40 — ∞9.51 — ∞6.77 — ∞4.83 — ∞3.45 — ∞2.73 — ∞1/ ∞

145
[f=70mm]
f/4.8 f/5.6 f/8 f/11 f/16 f/22 f/32
0.5 0.49 — 0.51 0.49 — 0.51 0.49 — 0.51 0.48 — 0.52 0.48 — 0.53 0.47 — 0.54 0.46 — 0.55 1/6.2
10.97 — 1.03 0.96 — 1.04 0.95 — 1.05 0.93 — 1.08 0.91 — 1.12 0.88 — 1.18 0.83 — 1.27 1/13.4 32.73 — 3.33 2.70 — 3.39 2.59 — 3.58 2.45 — 3.90 2.28 — 4.46 2.08 — 5.62 1.85 — 8.99 1/42.1
10 7.53 — 14.94 7.24 — 16.28 6.50 — 22.06 5.69 — 44.59 4.84 — ∞4.00 — ∞3.23 — ∞1/142.1
∞30.42 — ∞26.14 — ∞18.53 — ∞13.14 — ∞9.34 — ∞6.65 — ∞4.74 — ∞1/ ∞
[f=105mm]
f/5.3 f/8 f/11 f/16 f/22 f/32 f/36
0.5 0.50 — 0.50 0.49 — 0.51 0.49 — 0.51 0.49 — 0.51 0.48 — 0.52 0.47 — 0.53 0.47 — 0.53 1/4.6
10.98 — 1.02 0.97 — 1.03 0.96 — 1.04 0.95 — 1.06 0.93 — 1.08 0.91 — 1.12 0.89 — 1.14 1/9.5 32.85 — 3.16 2.79 — 3.25 2.71 — 3.36 2.61 — 3.54 2.48 — 3.83 2.31 — 4.34 2.25 — 4.60 1/28.7
10 8.58 — 12.00 8.04 — 13.27 7.44 — 15.36 6.73 — 19.80 5.93 — 33.61 5.09 — ∞4.80 — ∞1/95.4
∞61.31 — ∞41.52 — ∞29.41 — ∞20.85 — ∞14.80 — ∞10.52 — ∞9.37 — ∞1/ ∞
[f=200mm]
f/5.6 f/8 f/11 f/16 f/22 f/32 f/36
0.5 0.50 — 0.50 0.50 — 0.50 0.49 — 0.51 0.49 — 0.51 0.49 — 0.51 0.48 — 0.52 0.48 — 0.52 1/3.4
10.99 — 1.01 0.99 — 1.01 0.98 — 1.02 0.98 — 1.03 0.97 — 1.04 0.95 — 1.05 0.95 — 1.06 1/6.3 32.94 — 3.06 2.92 — 3.08 2.89 — 3.12 2.85 — 3.17 2.79 — 3.25 2.71 — 3.36 2.68 — 3.41 1/16.8
10 9.49 — 10.57 9.31 — 10.80 9.06 — 11.17 8.72 — 11.74 8.28 — 12.66 7.74 — 14.25 7.53 — 15.04 1/52.1
∞206.79 — ∞150.35 — ∞106.41 — ∞75.35 — ∞53.38 — ∞37.85 — ∞33.75 — ∞1/ ∞
[f=300mm]
f/5.6 f/8 f/11 f/16 f/22 f/32 f/36
0.5 0.50 — 0.50 0.50 — 0.50 0.50 — 0.50 0.49 — 0.51 0.49 — 0.51 0.49 — 0.51 0.49 — 0.52 1/3.1
10.99 — 1.01 0.99 — 1.01 0.99 — 1.01 0.98 — 1.02 0.97 — 1.03 0.96 — 1.04 0.96 — 1.05 1/5.6 32.96 — 3.04 2.94 — 3.06 2.92 — 3.08 2.89 — 3.12 2.85 — 3.17 2.79 — 3.25 2.77 — 3.28 1/14.0
10 9.68 — 10.34 9.57 — 10.47 9.41 — 10.67 9.19 — 10.98 8.89 — 11.45 8.50 — 12.19 8.35 — 12.53 1/40.4
∞435.60 — ∞320.41 — ∞226.75 — ∞160.54 — ∞113.71 — ∞80.60 — ∞71.88 — ∞1/ ∞

146
Depth of field (ft.)
Shooting distance Depth of field Reproduction ratio
[f=28mm]
f/3.5 f/4 f/5.6 f/8 f/11 f/16 f/22
3
2 ft. 8-8/16 in.
—
3 ft. 4-7/16 in.
2 ft. 8-4/16 in.
—
3 ft. 4-15/16 in.
2 ft. 6-15/16 in.
—
3 ft. 7-9/16 in.
2 ft. 5-4/16 in.
—
3 ft. 11-14/16 in.
2 ft. 3-6/16 in.
—
4 ft. 7-15/16 in.
2 ft. 15/16 in.
—
6 ft. 2-6/16 in.
1 ft. 10-7/16 in.
—
12 ft. 4-9/16 in.
1/28.0
5
4 ft. 2-4/16 in.
—
6 ft. 3-2/16 in.
4 ft. 1-9/16 in.
—
6 ft. 5-1/16 in.
3 ft. 10-3/16 in.
—
7 ft. 3-10/16 in.
3 ft. 6-6/16 in.
—
9 ft. 1-5/16 in.
3 ft. 2-1/16 in.
—
14 ft. 3-2/16 in.
2 ft. 9-6/16 in.
—
87 ft. 13/16 in.
2 ft. 4-11/16 in.
—
∞
1/49.2
15
9 ft. 2-3/16 in.
—
43 ft. 11-8/16 in.
8 ft. 10-7/16 in.
—
53 ft. 8-14/16 in.
7 ft. 7-7/16 in.
—
∞
6 ft. 4-7/16 in.
—
∞
5 ft. 2-6/16 in.
—
∞
4 ft. 1-15/16 in.
—
∞
3 ft. 3-6/16 in.
—
∞
1/155.1
50
15 ft. 9 in.
—
∞
14 ft. 10-1/16 in.
—
∞
11 ft. 6-13/16 in.
—
∞
8 ft. 10-5/16 in.
—
∞
6 ft. 8-6/16 in.
—
∞
5 ft. 8/16 in.
—
∞
3 ft. 9-6/16 in.
—
∞
1/525.5
∞
22 ft. 8-12/16 in.
—
∞
20 ft. 10-3/16 in.
—
∞
14 ft. 10-7/16 in.
—
∞
10 ft. 7-11/16 in.
—
∞
7 ft. 7-13/16 in.
—
∞
5 ft. 6-8/16 in.
—
∞
4 ft. 8/16 in.
—
∞
1/∞
• IF（ニコン内焦）方式は、撮影距離が短くなるにしたがって焦
点距離が短くなります。
• With the Nikon Internal Focusing (IF) system, as the shooting
distance decreases, the focal length also decreases.
• Beim System Internal Focusing (IF, interne Scharfeinstellung)
von Nikon nimmt, wenn die Aufnahmedistanz abnimmt, die Brennweite ebenfalls ab.
• Avec le système de mise au point interne Nikon (IF), si la distance
de prise de vue diminue, la longueur focale diminue également.
• Con el sistema de enfoque interno (IF) de Nikon, a medida que
disminuye la distancia de disparo, lo hace también la distancia focal.
• Med Nikons system för innerfokusering (IF), kommer även
brännvidden att minska om fotograferingsavståndet minskar.
• Благодаря применению системы внутренней фокусировки
(IF) Nikon, по мере уменьшения расстояния съемки также
уменьшается фокусное расстояние.
• Met het Nikon Internal Focusing-systeem (IF) neemt de
brandpuntafstand af naarmate de opnameafstand afneemt.
• Con il sistema Nikon Internal Focusing (IF), la lunghezza focale
diminuisce proporzionalmente alla distanza di ripresa.
• U systému vnitřního ostření (IF) Nikon se při zmenšení vzdálenosti
zaostření zmenší také ohnisková vzdálenost.
• Vďaka systému vnútorného zaostrovania (IF) spoločnosti Nikon sa
so znižovaním vzdialenosti snímania zároveň znižuje aj ohnisková vzdialenosť.
• 内部对焦（IF）系统在近距离对焦时，焦距会稍微缩短。 • 內對焦（IF）系統隨著拍攝距離減小，焦距也會減小。 • ᘽ⌉G㊑⶙GⷹⶑOpmPG⡥⠭㛥ⳉG㊵⮊GᇹἵᆉG⽰⫍⽉´G㊑⶙Gᇹἵ
᥍G⺍⬽᩶ᡑᡭU

147
[f=35mm]
f/3.8 f/4 f/5.6 f/8 f/11 f/16 f/22 f/25
32 ft. 9-8/16 in.
—
3 ft. 3-2/16 in.
2 ft. 9-4/16 in.
—
3 ft. 3-4/16 in.
2 ft. 8-4/16 in.
—
3 ft. 4-13/16 in.
2 ft. 7-1/16 in.
—
3 ft. 7-5/16 in.
2 ft. 5-6/16 in.
—
3 ft. 11-8/16 in.
2 ft. 3-8/16 in.
—
4 ft. 7-5/16 in.
2 ft. 1-3/16 in.
—
6 ft. 13/16 in.
2 ft. 8/16 in.
—
6 ft. 10-9/16 in.
1/23.3
5
4 ft. 4-11/16 in.
—
5 ft. 9-15/16 in.
4 ft. 4-5/16 in.
—
5 ft. 10-11/16 in.
4 ft. 1-13/16 in.
—
6 ft. 4-5/16 in.
3 ft. 10-9/16 in.
—
7 ft. 2-6/16 in.
3 ft. 6-12/16 in.
—
8 ft. 10-11/16 in.
3 ft. 2-6/16 in.
—
13 ft. 6-2/16 in.
2 ft. 9-12/16 in.
—
57 ft. 9-10/16 in.
2 ft. 8-6/16 in.
—
∞
1/40.7
15
10 ft. 4-3/16 in.
—
27 ft. 10-11/16 in.
10 ft. 2-3/16 in.
—
29 ft. 3 in.
9 ft. 2/16 in.
—
48 ft. 10-7/16 in.
7 ft. 9-2/16 in.
—
∞
6 ft. 6-2/16 in.
—
∞
5 ft. 3-15/16 in.
—
∞
4 ft. 3-4/16 in.
—
∞
4 ft.
—
∞
1/127.8
50
19 ft. 8-8/16 in.
—
∞
19 ft. 1-3/16 in.
—
∞
15 ft. 3-4/16 in.
—
∞
11 ft. 11-3/16 in.
—
∞
9 ft. 1-15/16 in.
—
∞
6 ft. 11-4/16 in.
—
∞
5 ft. 2-10/16 in.
—
∞
4 ft. 9-10/16 in.
—
∞
1/432.6
∞
32 ft. 2-3/16 in.
—
∞
30 ft. 6-15/16 in.
—
∞
21 ft. 9 in.
—
∞
15 ft. 6-2/16 in.
—
∞
11 ft. 1-1/16 in.
—
∞
7 ft. 11-10/16 in.
—
∞
5 ft. 9-2/16 in.
—
∞
5 ft. 3-2/16 in.
—
∞
1/∞
[f=50mm]
f/4.2 f/5.6 f/8 f/11 f/16 f/22 f/29
3
2 ft. 10-7/16 in.
—
3 ft. 1-11/16 in.
2 ft. 9-15/16 in.
—
3 ft. 2-4/16 in.
2 ft. 9-4/16 in.
—
3 ft. 3-6/16 in.
2 ft. 8-3/16 in.
—
3 ft. 5-1/16 in.
2 ft. 6-13/16 in.
—
3 ft. 7-11/16 in.
2 ft. 5-4/16 in.
—
4 ft. 2/16 in.
2 ft. 3-13/16 in.
—
4 ft. 5-6/16 in.
1/16.6
5
4 ft. 7-11/16 in.
—
5 ft. 5-3/16 in.
4 ft. 6-4/16 in.
—
5 ft. 7-3/16 in.
4 ft. 4-5/16 in.
—
5 ft. 10-13/16 in.
4 ft. 1-11/16 in.
—
6 ft. 4-11/16 in.
3 ft. 10-7/16 in.
—
7 ft. 2-14/16 in.
3 ft. 6-10/16 in.
—
8 ft. 11-14/16 in.
3 ft. 3-10/16 in.
—
11 ft. 9-10/16 in.
1/28.8
15
12 ft. 2/16 in.
—
20 ft. 13/16 in.
11 ft. 3 in.
—
22 ft. 8-10/16 in.
10 ft. 2-8/16 in.
—
29 ft.
9 ft. 8/16 in.
—
47 ft. 11-3/16 in.
7 ft. 9-10/16 in.
—
∞
6 ft. 6-10/16 in.
—
∞
5 ft. 8-4/16 in.
—
∞
1/89.8
50
27 ft. 1-5/16 in.
—
∞
23 ft. 5-12/16 in.
—
∞
19 ft. 3-12/16 in.
—
∞
15 ft. 5-8/16 in.
—
∞
12 ft. 1-3/16 in.
—
∞
9 ft. 3-8/16 in.
—
∞
7 ft. 7-9/16 in.
—
∞
1/303.2
∞
58 ft. 9-6/16 in.
—
∞
43 ft. 11-6/16 in.
—
∞
31 ft. 2-8/16 in.
—
∞
22 ft. 2-8/16 in.
—
∞
15 ft. 10-1/16 in.
—
∞
11 ft. 3-15/16 in.
—
∞
8 ft. 11-4/16 in.
—
∞
1/∞

148
[f=70mm]
f/4.8 f/5.6 f/8 f/11 f/16 f/22 f/32
32 ft. 11-1/16 in.
—
3 ft. 1-1/16 in.
2 ft. 10-13/16 in.
—
3 ft. 1-3/16 in.
2 ft. 10-7/16 in.
—
3 ft. 1-13/16 in.
2 ft. 9-13/16 in.
—
3 ft. 2-10/16 in.
2 ft. 9 in.
—
3 ft. 3-13/16 in.
2 ft. 7-15/16 in.
—
3 ft. 5-10/16 in.
2 ft. 6-8/16 in.
—
3 ft. 8-12/16 in.
1/12.2
5
4 ft. 9-4/16 in.
—
5 ft. 3-2/16 in.
4 ft. 8-12/16 in.
—
5 ft. 3-10/16 in.
4 ft. 7-9/16 in.
—
5 ft. 5-4/16 in.
4 ft. 6 in.
—
5 ft. 7-13/16 in.
4 ft. 3-13/16 in.
—
5 ft. 11-12/16 in.
4 ft. 1-1/16 in.
—
6 ft. 6-4/16 in.
3 ft. 9-12/16 in.
—
7 ft. 6 in.
1/20.9
15
13 ft. 12/16 in.
—
17 ft. 7-15/16 in.
12 ft. 9-6/16 in.
—
18 ft. 2-4/16 in.
12 ft. 10/16 in.
—
19 ft. 11-8/16 in.
11 ft. 1-15/16 in.
—
23 ft. 2-3/16 in.
10 ft. 1-3/16 in.
—
30 ft. 1-3/16 in.
8 ft. 11-1/16 in.
—
52 ft. 6-4/16 in.
7 ft. 8-3/16 in.
—
∞
1/64.5
50 33 ft. 4-1/16 in.
—
100 ft. 11-8/16 in.
31 ft. 7-5/16 in.
—
121 ft. 5-12/16 in.
27 ft. 5-10/16 in.
—
∞
23 ft. 2-4/16 in.
—
∞
19 ft. 6/16 in.
—
∞
15 ft. 2-8/16 in.
—
∞
11 ft. 10-13/16 in.
—
∞
1/216.9
∞
99 ft. 9-10/16 in.
—
∞
85 ft. 9 in.
—
∞
60 ft. 9-6/16 in.
—
∞
43 ft. 1-7/16 in.
—
∞
30 ft. 7-11/16 in.
—
∞
21 ft. 9-12/16 in.
—
∞
15 ft. 6-13/16 in.
—
∞
1/∞
[f=105mm]
f/5.3 f/8 f/11 f/16 f/22 f/32 f/36
3
2 ft. 11-6/16 in.
—
3 ft. 10/16 in.
2 ft. 11-3/16 in.
—
3 ft. 15/16 in.
2 ft. 10-13/16 in.
—
3 ft. 1-5/16 in.
2 ft. 10-5/16 in.
—
3 ft. 1-15/16 in.
2 ft. 9-12/16 in.
—
3 ft. 2-12/16 in.
2 ft. 8-14/16 in.
—
3 ft. 4-1/16 in.
2 ft. 8-8/16 in.
—
3 ft. 4-9/16 in.
1/8.7
5
4 ft. 10-7/16 in.
—
5 ft. 1-11/16 in.
4 ft. 9-12/16 in.
—
5 ft. 2-8/16 in.
4 ft. 8-14/16 in.
—
5 ft. 3-10/16 in.
4 ft. 7-11/16 in.
—
5 ft. 5-4/16 in.
4 ft. 6 in.
—
5 ft. 7-11/16 in.
4 ft. 3-15/16 in.
—
5 ft. 11-10/16 in.
4 ft. 3-2/16 in.
—
6 ft. 1-7/16 in.
1/14.6
15
13 ft. 11-3/16 in.
—
16 ft. 3-2/16 in.
13 ft. 5-10/16 in.
—
16 ft. 11-4/16 in.
12 ft. 11-3/16 in.
—
17 ft. 10-13/16 in.
12 ft. 2-14/16 in.
—
19 ft. 5-12/16 in.
11 ft. 4-9/16 in.
—
22 ft. 3-2/16 in.
10 ft. 4-5/16 in.
—
27 ft. 11-12/16 in.
9 ft. 11-14/16 in.
—
31 ft. 5-6/16 in.
1/43.7
50
39 ft. 11-10/16 in.
—
66 ft. 10-9/16 in.
36 ft. 5-14/16 in.
—
79 ft. 9-15/16 in.
32 ft. 9-15/16 in.
—
106 ft. 3 in.
28 ft. 9-6/16 in.
—
∞
24 ft. 6-4/16 in.
—
∞
20 ft. 3-12/16 in.
—
∞
18 ft. 11-3/16 in
.
—
∞
1/145.3
∞
201 ft. 1-11/16 in.
—
∞
136 ft. 2-12/16 in.
—
∞
96 ft. 6 in.
—
∞
68 ft. 4-15/16 in.
—
∞
48 ft. 6-10/16 in.
—
∞
34 ft. 6 in.
—
∞
30 ft. 8-12/16 in.
—
∞
1/∞

149
[f=200mm]
f/5.6 f/8 f/11 f/16 f/22 f/32 f/36
3
2 ft. 11-12/16 in.
—
3 ft. 6/16 in.
2 ft. 11-10/16 in.
—
3 ft. 8/16 in.
2 ft. 11-6/16 in.
—
3 ft. 10/16 in.
2 ft. 11-3/16 in.
—
3 ft. 13/16 in.
2 ft. 10-15/16 in.
—
3 ft. 1-3/16 in.
2 ft. 10-7/16 in.
—
3 ft. 1-13/16 in.
2 ft. 10-3/16 in.
—
3 ft. 2-1/16 in. 1/5.8
5
4 ft. 11-4/16 in.
—
5 ft. 12/16 in.
4 ft. 11-1/16 in.
—
5 ft. 15/16 in.
4 ft. 10-11/16 in.
—
5 ft. 1-7/16 in.
4 ft. 10-1/16 in.
—
5 ft. 2-1/16 in.
4 ft. 9-6/16 in.
—
5 ft. 2-14/16 in.
4 ft. 8-6/16 in.
—
5 ft. 4-3/16 in.
4 ft. 8-1/16 in.
—
5 ft. 4-13/16 in.
1/9.1
15
14 ft. 7-5/16 in.
—
15 ft. 5-1/16 in.
14 ft. 5-8/16 in.
—
15 ft. 6-15/16 in.
14 ft. 3 in.
—
15 ft. 10-1/16 in.
13 ft. 11-8/16 in.
—
16 ft. 2-8/16 in
13 ft. 6-15/16 in.
—
16 ft. 9-6/16 in.
13 ft. 13/16 in.
—
17 ft. 7-15/16 in.
12 ft. 10-7/16 in.
—
18 ft. 12/16 in.
1/24.8
50
46 ft. 4-1/16 in.
—
54 ft. 3-10/16 in.
45 ft. 1-3/16 in.
—
56 ft. 1-7/16 in.
43 ft. 4-3/16 in.
—
59 ft. 1-9/16 in.
41 ft. 1-3/16 in.
—
64 ft.
38 ft. 3-8/16 in.
—
72 ft. 5-8/16 in
34 ft. 11-3/16 in.
—
89 ft. 2-8/16 in.
33 ft. 8-6/16 in.
—
98 ft. 9-10/16 in.
1/78.4
∞
678 ft. 5-8/16 in.
—
∞
493 ft. 3-4/16 in.
—
∞
349 ft. 1-7/16 in.
—
∞
247 ft. 2-6/16 in.
—
∞
175 ft. 1-9/16 in.
—
∞
124 ft. 2-1/16 in.
—
∞
110 ft. 8-14/16 in.
—
∞
1/∞
[f=300mm]
f/5.6 f/8 f/11 f/16 f/22 f/32 f/36
3
2 ft. 11-12/16 in.
—
3 ft. 4/16 in.
2 ft. 11-10/16 in.
—
3 ft. 6/16 in.
2 ft. 11-8/16 in.
—
3 ft. 8/16 in.
2 ft. 11-4/16 in.
—
3 ft. 12/16 in.
2 ft. 11-1/16 in.
—
3 ft. 15/16 in.
2 ft. 10-11/16 in.
—
3 ft. 1-7/16 in.
2 ft. 10-9/16 in.
—
3 ft. 1-9/16 in.
1/5.2
5
4 ft. 11-6/16 in.
—
5 ft. 10/16 in.
4 ft. 11-4/16 in.
—
5 ft. 12/16 in.
4 ft. 10-15/16 in.
—
5 ft. 1-1/16 in.
4 ft. 10-9/16 in.
—
5 ft. 1-9/16 in.
4 ft. 9-15/16 in.
—
5 ft. 2-3/16 in.
4 ft. 9-4/16 in.
—
5 ft. 3-2/16 in.
4 ft. 8-14/16 in.
—
5 ft. 3-10/16 in.
1/7.9
15
14 ft. 8-12/16 in.
—
15 ft. 3-6/16 in.
14 ft. 7-11/16 in.
—
15 ft. 4-9/16 in.
14 ft. 5-14/16 in.
—
15 ft. 6-10/16 in.
14 ft. 3-8/16 in.
—
15 ft. 9-8/16 in.
14 ft. 4/16 in.
—
16 ft. 1-11/16 in.
13 ft. 7-13/16 in.
—
16 ft. 8-1/16 in.
13 ft. 6-2/16 in.
—
16 ft. 10-15/16 in.
1/20.2
50
47 ft. 9-12/16 in.
—
52 ft. 4-15/16 in.
47 ft. 13/16 in.
—
53 ft. 4-1/16 in.
45 ft. 11-6/16 in.
—
54 ft. 10-5/16 in.
44 ft. 5-10/16 in.
—
57 ft. 2-3/16 in.
42 ft. 6-6/16 in.
—
60 ft. 9-12/16 in.
40 ft. 13/16 in.
—
66 ft. 10-3/16 in.
39 ft. 1-9/16 in.
—
69 ft. 9-2/16 in.
1/59.3
∞
1429 ft. 1-11/16 in.
—
∞
1051 ft. 2-10/16 in.
—
∞
743 ft. 11-6/16 in.
—
∞
526 ft. 8-6/16 in.
—
∞
373 ft. 15/16 in.
—
∞
264 ft. 5-6/16 in.
—
∞
235 ft. 9-15/16 in.
—
∞
1/∞
• With the Nikon Internal Focusing (IF) system, as the shooting distance decreases, the focal length also decreases.

150

1512
Jp
安全上のご注意
ご使用の前に「安全上のご注意」をよくお読みのうえ、正しくお使いください。この「安
全上のご注意」は製品を安全に正しく使用していただき、あなたや他の人々への危害や
財産への損害を未然に防止するために、重要な内容を記載しています。お読みになった
後は、お使いになる方がいつでも見られる所に必ず保管してください。
表示について
表示と意味は次のようになっています。
この表示を無視して、誤った取り扱いをすると、人が死亡また
は重傷を負う可能性が想定される内容を示しています。
この表示を無視して、誤った取り扱いをすると、人が傷害を負
う可能性が想定される内容および物的損害の発生が想定される
内容を示しています。
お守りいただく内容の種類を、次の絵表示で区分し、説明しています。
絵表示の例
△記号は、注意（警告を含む）を促す内容を告げるものです。図の中や近
くに具体的な注意内容（左図の場合は感電注意）が描かれています。
記号は、禁止の行為（してはいけないこと）を告げるものです。図の中
や近くに具体的な禁止内容（左図の場合は分解禁止）が描かれています。
●記号は、行為を強制すること（必ずすること）を告げるものです。図の
中や近くに具体的な強制内容（左図の場合は電池を取り出す）が描かれて
います。
警告
分解禁止
分解したり、修理や改造をしないこと
感電したり、異常動作をしてケガの原因となります。
接触禁止
すぐに
修理依頼 を
落下などによって破損し、内部が露出したときは、露出部に手を
触れないこと
感電したり、破損部でケガをする原因となります。カメラの電池を抜いて、
販売店またはニコンサービス機関に修理を依頼してください。

2010
Printed in Thailand
7MAA64E3-01 G01
