Nitta FP-200 User manual

GM-NIT-13006E
Follow this manual when using the Finger Puncher.
Please pass this manual to the Finger Puncher users for a safe and trouble-free
operation.
F
Fi in ng ge er r P Pu un nc ch he er r
F
FP P- -2 20 00 0
OPERATOR'S MANUAL

- 1 -
Table of Contents
1. Precautions for the Safety ............... 2
2. Confirmation of Product .................. 4
3. Specification ..................................... 4
4. Operation Environment .................... 5
5. Storage Environment ....................... 5
6. Name of each parts .......................... 6
7. How to Make a Finger Joint ............. 7
8. Troubleshooting ............................... 9
9. Parts List ........................................... 9
10. Maintenance ...................................... 9
11. Inspection ........................................ 12
12. Parts List ......................................... 13
13. Warranty and after-sales service .. 15

- 2 -
1. Precautions for the Safety
Please go over these safety precautions carefully to secure a correct and safe
operation of the Finger Puncher FP-200
Disregarding instructions marked with this symbol may lead
to death or serious injury.
Disregarding instructions marked with this symbol may lead
to injury or property damage.
WARNING
Do not use the Finger Puncher for any application other than the
intended purpose of making belts endless.
Use for any unintended purpose may cause an unexpected accident.
A person with experience and skills should always operate,
maintain and inspect the Finger Puncher.
Handling by an inexperienced person may cause injury.
Do not dismantle or remodel the Finger Puncher under any
circumstance. Please note the Finger Puncher uses a sharp
blade.
Dismantling or remodeling the Finger Puncher may cause
physical injury.
For repair or inspection, please contact Nitta, your local distributor or
agent in your area.
Use a dry cloth for cleaning the Finger Puncher. To prevent fire,
do not use alcohol, benzine, thinner or any other inflammable
solvent.
CAUTION
WARNING
WARNING
WARNING
WARNING
WARNING

- 3 -
This machine is not intended for the physical, sensory or mental
handicapped persons use. They must have the supervision of a
person responsible for their safety, if they use this machine.
Failure to do this may cause injury.
Do not allow the child to handle this machine. Keep this machine
in the place where child's hand does not reach.
Failure to do this may cause injury.
Caution
Do not use the Finger Puncher under the following conditions:
・ Under a corrosive gas environment
・ Under an ambient temperature of 5℃ or below
・ Under an ambient temperature of 40℃ or above
・ Under a high humidity environment (humidity surpassing 85%)
・ In places exposing the puncher to steam or water drops
To prevent physical injury, use the Finger Puncher on a stable
working bench or table that will not collapse.
Before using the Finger Puncher, be sure to inspect the puncher
in accordance with the procedure described on page 12 to help
prevent injury.
CAUTION
CAUTION
CAUTION
WARNING
WARNING

- 4 -
2. Confirmation of Product
Thank you for choosing our Finger PuncherFP-200
Check that the product is exactly what you have ordered. Use
of the wrong product may cause injury.
2-1）Confirmation of Product
Confirm the following items upon accepting delivery of your order. Contact Nitta,
your local distributor or agent in your area if you find any deficiency or defect in
your item.
① Are descriptions on the face plate the same as those of your order item?
Please confirm the model type.
② Has the product been damaged during transportation?
③ Has a nut or screw slackened?

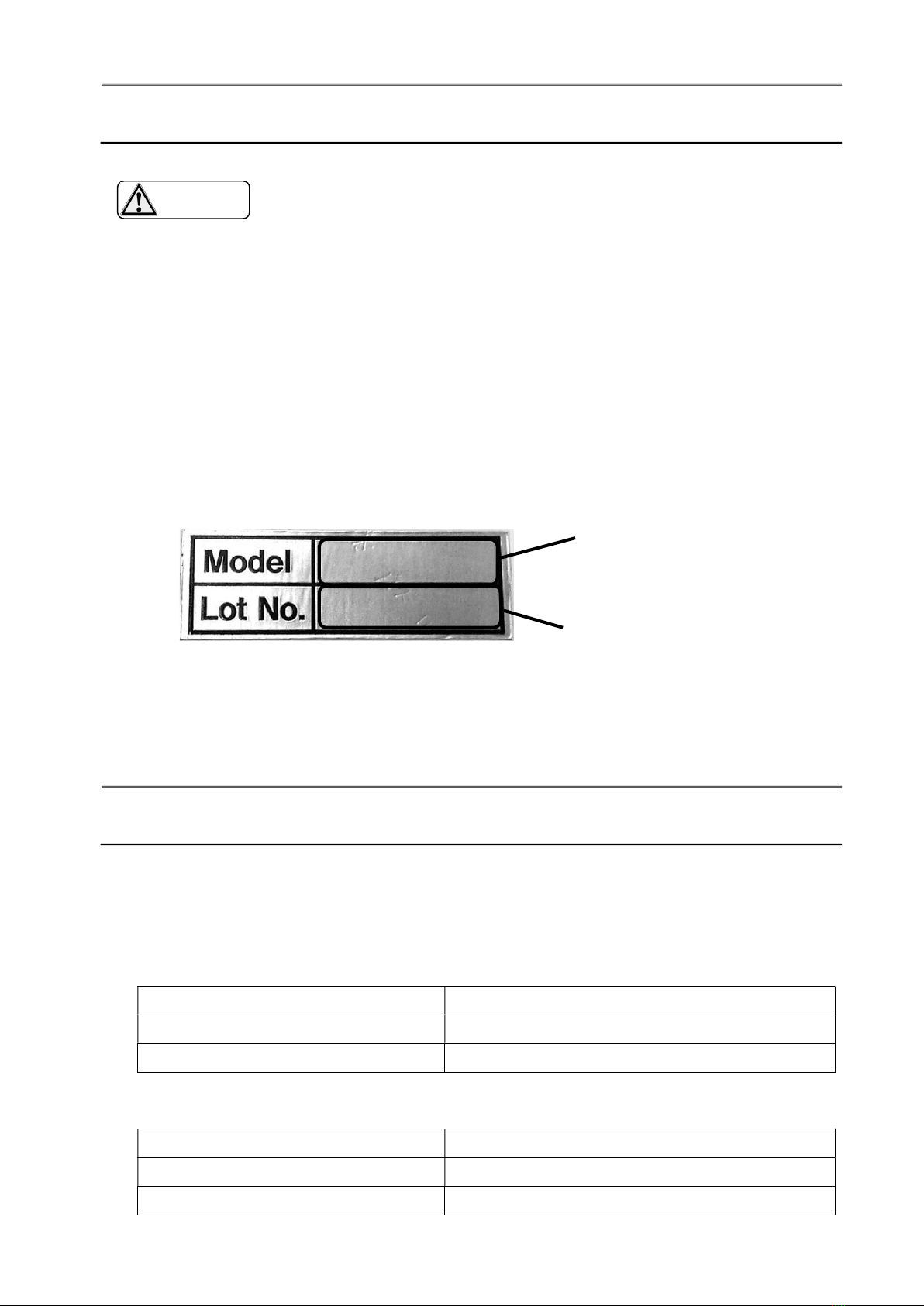

2-2）How to Read Face Plate
2-3）Inquiries
When making inquiries, please inform our sales representative of the model type
and the production serial number.
3. Specifications
3-1）Outline of Finger Puncher
①The Finger Puncher is exclusively designed for manually punching finger
splice able NITTA’s Carryflex CFTG belts with a cutting blade assembly.
②The Finger Puncher is compatible with the following endless specifications:
Finger geometry 200mm length×10mm pitch
Belt wide 60mm
Belt thickness 3.9mm or less
3-2）Major Specifications of Finger Puncher
Type FP-200
Outer Dimension 232 mm W x380 mm Lx385 mm H
Weight 21.0kg
②Production serial number
FP-200
110001
CAUTION
①Model type
