Njoy Horus Plus Series User manual

User Manual
Bedienungsanleitung
Használati útmutató
Ръководство на потребителя
Korisničko uputstvo
Manual de utilizare
641.34.22.1
Before using this product, carefully read all product documentation and retain it for future reference.
Horus Plus Series
PWUP-LI060H1-AZ01B
PWUP-LI080H1-AZ01B
PWUP-LI100H1-AZ01B
PWUP-LI150H1-AZ01B
PWUP-LI200H1-AZ01B

2
The following models belong to the Horus Plus Series:
This UPS will protect your electronic equipment from physical
damage and will provide emergency baery backup power to
prevent data loss in the event of power problems.
Thank you for purchasing our products!
Please read this manual before using the product.
nJoy is a brand of power and backup protecon products that
create soluons for mulple levels of environment complexity,
residenal to industrial.
600VA Horus Plus 600
Horus Plus 800
Horus Plus 1000
Horus Plus 1500
Horus Plus 2000
800VA
1000VA
1500VA
2000VA

3

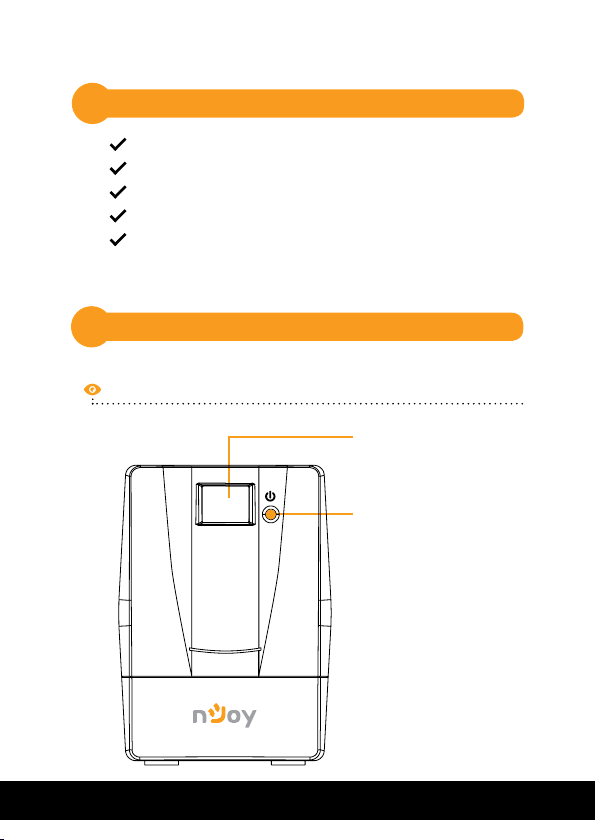

Package Contents
Product Overview
1
2
Front View
Power switch
English
Romana
Touch screen LCD panel
UPS Unit
User Manual
USB Cable
Power Cord
Warranty Card

4
1. Battery backup outlets
2.AC input
3.Circuit breaker
4.RJ-11 surges protection
(+RJ45 - Horus Plus 1000,
1500, 2000)
5. USB port
Back View
600 / 800
1000 1500 / 2000
3
3
3
4
44
5
5
1
1
2
2
2

5
UPS Mode LCD Display Description
UPS Power
ON
When UPS is ON,
it will enter this
mode for 4
seconds
AC Mode
When AVR is functioning, a
plug icon will flash
every second
LCD information will
be displayedin the
following order when
LCD is touched:
1. Output voltage
2. Input voltage
3. Load level
4. Battery capacity
Overload in
AC Mode
icon will flash
When overload
occures, alarm
will beep every 0.5
seconds.
Battery
Mode
When battery level is low,
battery icon will flash
Alarm will beep
every 10 seconds and
LCD information will
be displayed in the
following order when
LCD is touched:
1. Output voltage
2. Input voltage
3. Load level
4. Battery capacity
Touch screen LCD Display
English
Romana

6
Installation3
The UPS can protect your equipment from all power problems
such as surge, blackouts, brownouts and line noise. When AC
power is present and the ON/OFF switch is turned ON, the
UPS is always charging the battery and provides power to the
equipment from AC line directly. A reliable built-in battery
can provide stable power in order for you to complete your
work, save your data and safely shut down your system when
there is a utility power blackout.
The UPS is simple to operate and install. Please read the
following steps before connecting any equipments to this UPS:
NOTE: If backlight shuts o, you may activate it by touching the
screen.
UPS Mode LCD Display Description
Overload
in Battery
Mode
icon will flash
When overload
occurs, alarm will
beep every 0.5
seconds.

7
Connecting your equipment and rst usage3.1
Step 1. Connect the UPS to a grounded AC power outlet.
Step 2. Please turn ON the ON/OFF switch and charge the
battery at least 6 hours for a full load before you
start to use the UPS.
Step 3. Plug your PC or peripheral equipment (printer, tv,
scanner, fax, speakers etc.) into the power outlets
of the UPS (these will provide emergency battery
backup power during blackouts as well as surge
protection from surges and spikes). Do not attach
powerfull sound sistems and woofers or non
computer-related items, such as medical
equipment, life-support equipment, microwave
ovens, or vacuum cleaners to the UPS !
Positioning
For optimal ventilation of the UPS, please place it 15cm
distance from any wall or object.
English
Romana

8
Do NOT plug LASER
PRINTERS into any
of the outlets.
Do NOT plug any
SURGE STRIPS into
any of the outlets.
CAUTION
Step 4. Connect the phone/network/internet cables to the
RJ11/RJ45 outlet.
Step 5. For optimal computer system protection, install
the UPS monitoring software from https://www.
power-software-download.com/viewpower.html
to fully manage the UPS.

9
General Specications3.2
ǘAutomatic voltage regulation
Regulates the input voltage and eliminates the
problems created by under-voltage or over-voltage
uctuations. It also protects against spikes and surges
that comprise over 80% of power problems.
ǘAuto restart
The UPS will restart automatically and will start charging
the batteries once the electricity is back on.
ǘCold Start Function
When the UPS is OFF and there is no connection to the
power utility, it’s still possible to start the UPS unit
using the remaining battery power.
ǘUSB Port
The built-in USB port connects to your computer,
automatically saves your data and shuts down your
computer (with the help of the included software) in
case of a power failure.
ǘSoftware
Your personal computer can receive the status of the
UPS regarding the utility power line, utility power
failure, on battery and low battery by signals that are
sent through the USB port with the help of the software
on your CD.
English
Romana

10
Important Safety Warnings4
Place the UPS indoors in an area that has adequate
airow and no excessive dust. Do NOT allow the UPS
to be exposed to moisture, rain, excessive heat or
direct sunlight.
The use of the UPS is NOT recommended in life
support applications where failure of this equipment
can reasonably be expected or when its safety or
eectiveness could be aected signically.
Please always disconnect the input power cord from
the wall outlet before replacing the battery.
Do NOT dispose of the battery in a re. The battery
may explode.
Do NOT open or damage the battery. It contains an
electrolyte that is toxic and harmful to the skin and
eyes.
Proper disposal of the battery is required. Please
follow your local laws/regulations regarding battery
disposals.
Use tools with insulated handles to replace the
battery to avoid personal injury. Due to energy
hazard, please remove wrist watches and hand
jewerly when replacing the battery.

11
UPS Mode LCD Display Description
Output Short
Circuit
Disconnect short-circuited
loads and restart UPS.
Overload fault Disconnect all output loads
and restart the UPS again.
Overcharge Call for service
immediately.
Bad or severe-
ly discharged
battery
Please replace the battery.
High output
voltage
Call for service
immediately.
Over-temper-
ature
1. Turn off the unit and wait
for cooling.
2. Remove excessive loads
and wait for cooling.
Fault Code Table5
English
Romana

12
Troubles and solutions6
Problem Possible Cause Solutions
Nothing is
displayed on
LCD panel.
The UPS is not
switched on.
Press the power switch again
to turn on the UPS.
Battery voltage
is too low.
Charge the battery at least
6 hours.
Battery fault. Replace the battery.
The UPS is
always on
battery mode.
Power cord loose
or no mains
power.
Check mains power and re-
plug the power cord.
The UPS
continuously
beeps.
Please check the
fault code for the
details.
Please check the fault code
for the details.
Backup time
is too short.
Battery voltage
is too low.
Charge the battery at least
6 hours.
Overload.
Remove some unnecessary
loads. Before reconnecting
equipment, please verify
that the load matches the
UPS capability specied in
the specications.
Battery fault. Replace the battery.

13
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with
separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be
treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources.
English
Romana

14
Conținutul pachetului1
Prezentarea produsului2
Vedere din fața
Buton
Pornit/ Oprit
Ecran LCD cu touch screen
Unitatea UPS
Manual de utilizare
Cablu USB
Cablu de alimentare
Certicat de garanție

15
1. Prize pentru alimentarea
echipamentelor
2.Alimentare UPS
3. Intrerupator circuit (siguranța)
4. RJ11 - protecție linie telefonica
(+RJ45 - Horus Plus 1000, 1500,
2000)
5.Port USB
Vedere din spate
600 / 800
1000 1500 / 2000
3
3
3
4
44
5
5
1
1
2
2
2
English
Romana

16
Asaj LCD
Mod UPS Asaj LCD Descriere
UPS Pornit
Cand UPS-ul este
pornit va intra in acest
mod pentru 4 secunde.
Modul AC
Cand AVR-ul
funcționeaza, va palpai
o icoana sub forma
de stecher la fiecare
secunda.
Informațiile vor fi afi-
sate pe LCD la atingere
in urmatoarea ordine:
1. Tensiunea la iesire
2. Tensiunea la intrare
3. Nivelul de incarcare
4. Capacitatea bateriei
Supra-
sarcina in
modul AC
icoana va palpai.
Cand apare
suprasarcina, alarma
va suna la fiecare 0.5
secunde.
Modul
Baterie
Cand nivelul bateriei
este scazut icoana sub
forma de baterie va pal-
pai.
Alarma va suna la
fiecare 10 secunde iar
pe ecran vor fi afisate la
atingere urmatoarele
informații in ordine:
1. Tensiunea la iesire
2. Tensiunea la intrare
3. Nivelul de incarcare
4. Capacitatea bateriei

17
Mod UPS Asaj LCD Descriere
Supra-
sarcina
in Modul
Baterie icoana va palpai.
Cand apare
suprasarcina, alarma
va suna la fiecare 0.5
secunde.
UPS-ul va poate proteja echipamentul de toate problemele
legate de tensiunea electrica cum ar : supra-sarcina,
uctuații de tensiune, caderi de tensiune si zgomotul de pe
rețea. Cand curentul este prezent la rețeaua de alimentare
si comutatorul (ON/OFF) este pornit (ON) UPS-ul isi
incarca bateria si asigura echipamentului energia necesara
funcționarii direct de la rețea. Bateria poate oferi energia
necesara pentru a va naliza munca, salva datele si opri in
siguranța computerul atunci cand apar caderi de tensiune.
UPS-ul este simplu de folosit si de instalat. Urmați pasii de
mai jos inainte de a conecta echipamentul la UPS:
Instalarea3
NOTA: Daca lumina de fundal se stinge, o puteți activa prin
atingerea ecranului.
English
Romana

18
Pasul 1. Conectați UPS-ul la o priza cu impamantare.
Pasul 2. Apasați butonul de pornire astfel incat sa e in
modul ON si lasați bateria la incarcat cel puțin
6 ore inainte de a folosi UPS-ul.
Pasul 3. Conectați echipamentele electronice
(calculator, TV, imprimanta, centrale, scanner,
fax, boxe etc.) la prizele cu protecție (acestea va
vor furniza energia necesara pentru funcționarea
continua in siguranța a echipamentelor). Nu
conectați sisteme de sunet puternice (cu
woofer) sau electronice care nu sunt legate de
computer, cum ar  echipamentele medicale,
aparate de susținere a vieții, cuptoare cu
microunde sau aspiratoare!
Conectarea echipamentelor si prima folosire
3.1
Poziționare
Pentru o ventilație optima a UPS-ului, va rugam sa il
plasați la 15 cm distanța de orice perete sau obiect

19
English
Romana
NU conectați
imprimante laser la
niciuna din prizele
UPS-ului.
NU conectați alte
ACCESORII CU
PROTECȚIE la
niciuna din prize.
ATENȚIE
Pasul 4. Conectați cablul liniei telefonice/cablul de
rețea (internet) la mufa corespunzatoare a
UPS-ului (RJ11/RJ45).
Pasul 5. Pentru o protecție optima a sistemului
instalați software-ul de monitorizare de
la urmatorul link: https://www.power-
software-download.com/viewpower.html

20
Specicații generale3.2
ǘReglaj automat al tensiunii
AVR-ul este proiectat pentru a mentine un nivel
constant de tensiune. Acesta va elimina varfurile
de inalta sau joasa tensiune produse de compania
de electricitate care pot afecta sau chiar deteriora
electronicele tale.
ǘRepornire automata
UPS-ul va reporni automat si va incepe sa reincarce
bateriile de indata ce este repusa in funcțiune rețeaua
de electricitate.
ǘFuncția de pornire la rece
UPS-ul poate  si pornit atunci cand nu exista o
conexiune la rețeaua de electricitate atat timp cat
bateria este incarcata.
ǘPort USB
Prin portul USB se face conexiunea cu computerul.
Acest port permite cu ajutorul softului stingerea
automata a computerului si salvarea sierelor in
cazul caderilor de tensiune pe rețeaua electrica.
ǘProgramul de management
Computerul dumneavoastra primeste semnal de la UPS
tot prin cadrul acestui port USB atunci cand bateria
este descarcata sau sunt alte probleme cu UPS-ul.
Computerul va poate informa despre starea UPS-ului
daca instalați programul de management aat pe CD.
