Nokia 2320 CLASSIC RM-514 User manual

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
1Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
SERVICEMANUAL
Level1&2
RM-514/ RM-515RM-543RM-512/ RM-513
EU(RM-512,RM-514,RM-543): EGSM 900/1800
US (RM-513,RM-515) GSM 850/1900
Resolution 128 x160
1.8 65000 colorTFTdisplay
Series40
VGA(640x480pixels)
Radiorecording
AC-3charger,AC-6CtravelUSBcharger,2.5 mm AV
connector,Bluetooth2.0(RM-512/RM-513 /RM-543)
RM-512
RM-513
RM-514
RM-515
RM-543
550h
560h
580h
580h
575h
4h40min
5h 20min
4h 40min
5h 20min
4h 30min
Upto624h
Upto560h
Upto580h
Upto580h
Upto575h
Upto7h 10min
Upto7h 40min
Upto7h 25min
Upto8h
Upto7h
RM-512
RM-514
RM-543
380h
400h
318h
3h 15min
3h 15min
2h 30min
Upto388h
Upto397h
Upto393h
Upto5h
Upto5h
Upto4h 50min
Standby timeand Talktime depends on networkparametersandphonesettings

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
2Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
1. Changehistory...............................................................................................................................................................................3
2. Copyright..........................................................................................................................................................................................4
3. Warningsandcautions...............................................................................................................................................................5
3.1 Warnings..............................................................................................................................................................................5
3.2 Cautions................................................................................................................................................................................5
4. ESD protection................................................................................................................................................................................6
5. Care andmaintenance................................................................................................................................................................7
6. Batteryinformation.....................................................................................................................................................................8
7. Nokia2330classic Explodedview..........................................................................................................................................9
8. Nokia2320classic andNokia 2323 classicExplodedview..........................................................................................10
9. Servicedevices.............................................................................................................................................................................11
10. SW-update................................................................................................................................................................................12

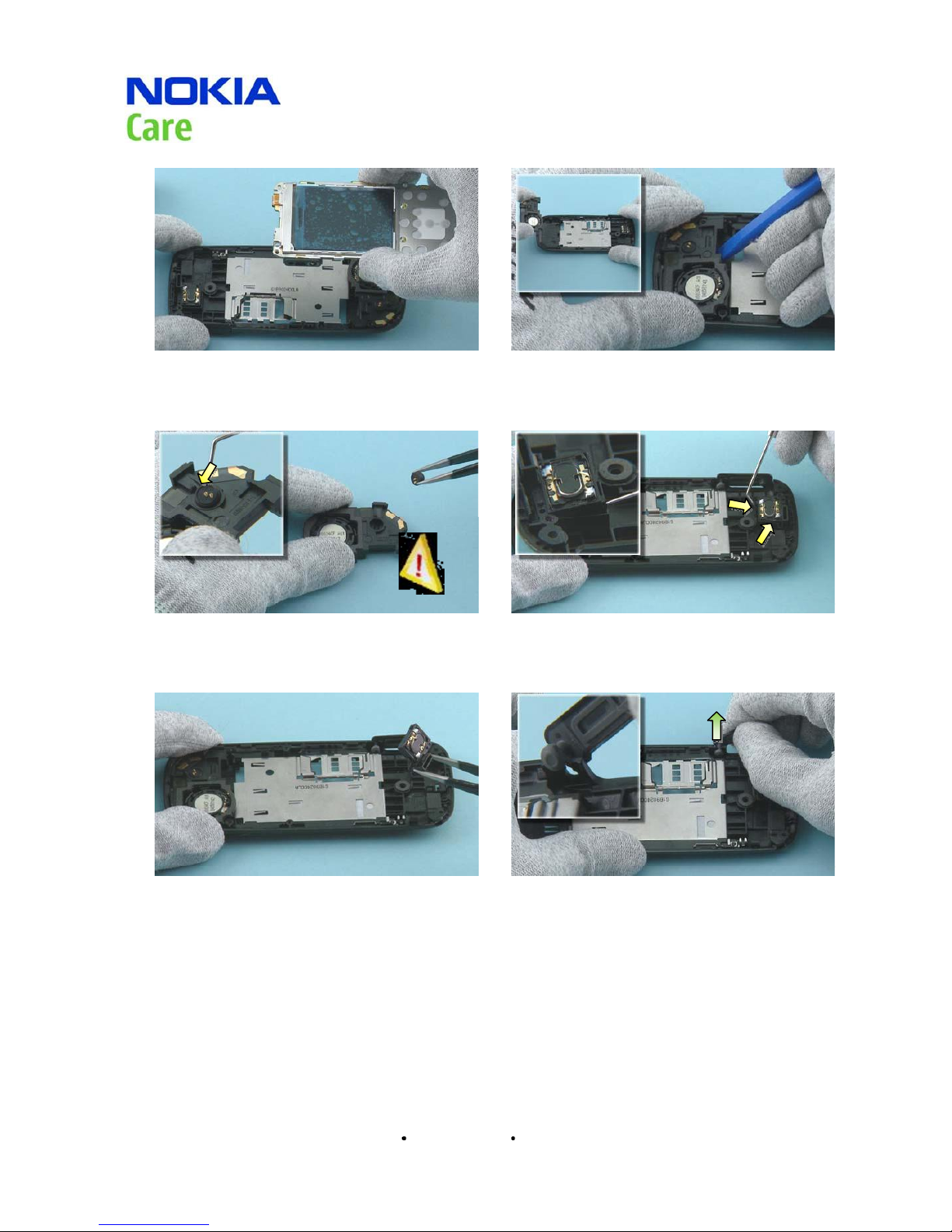

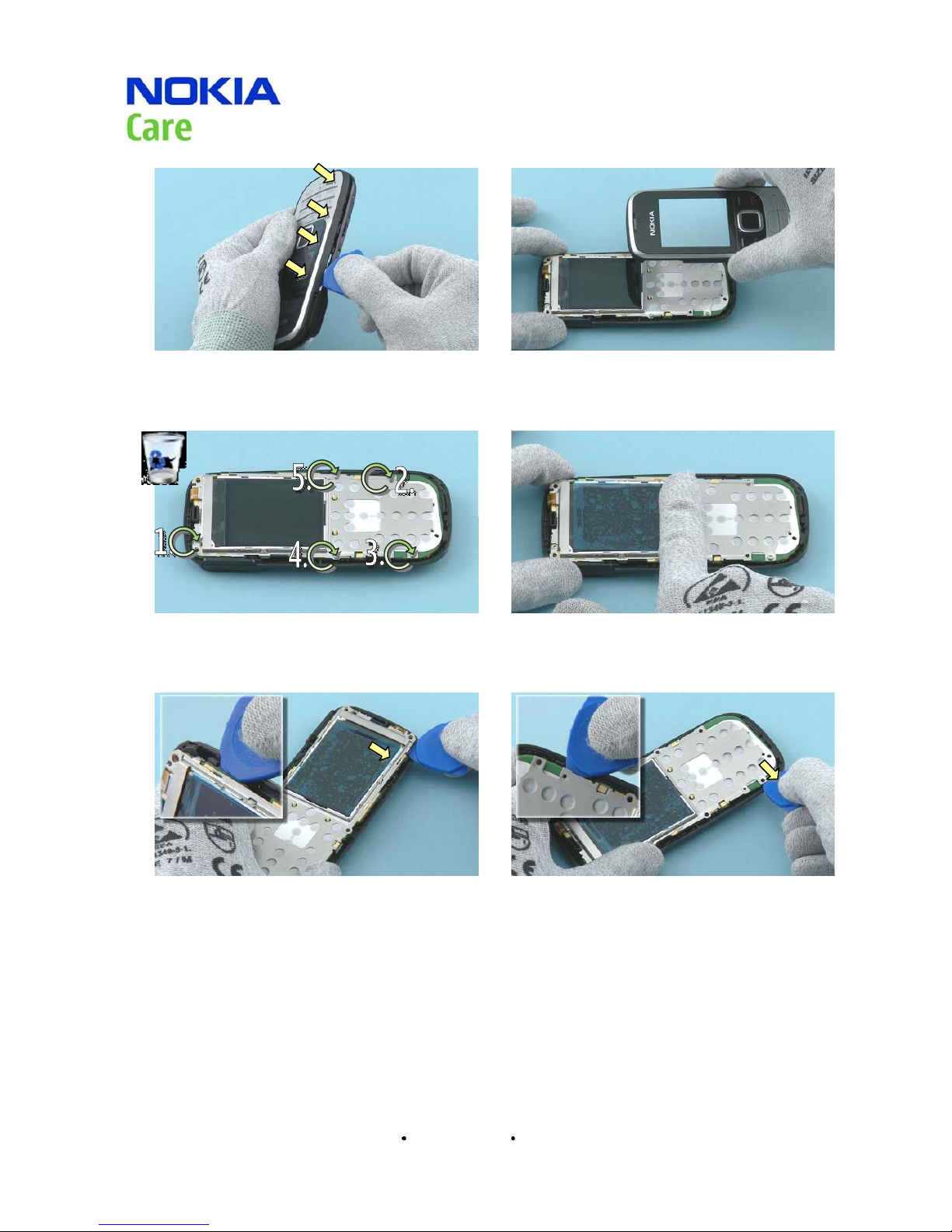

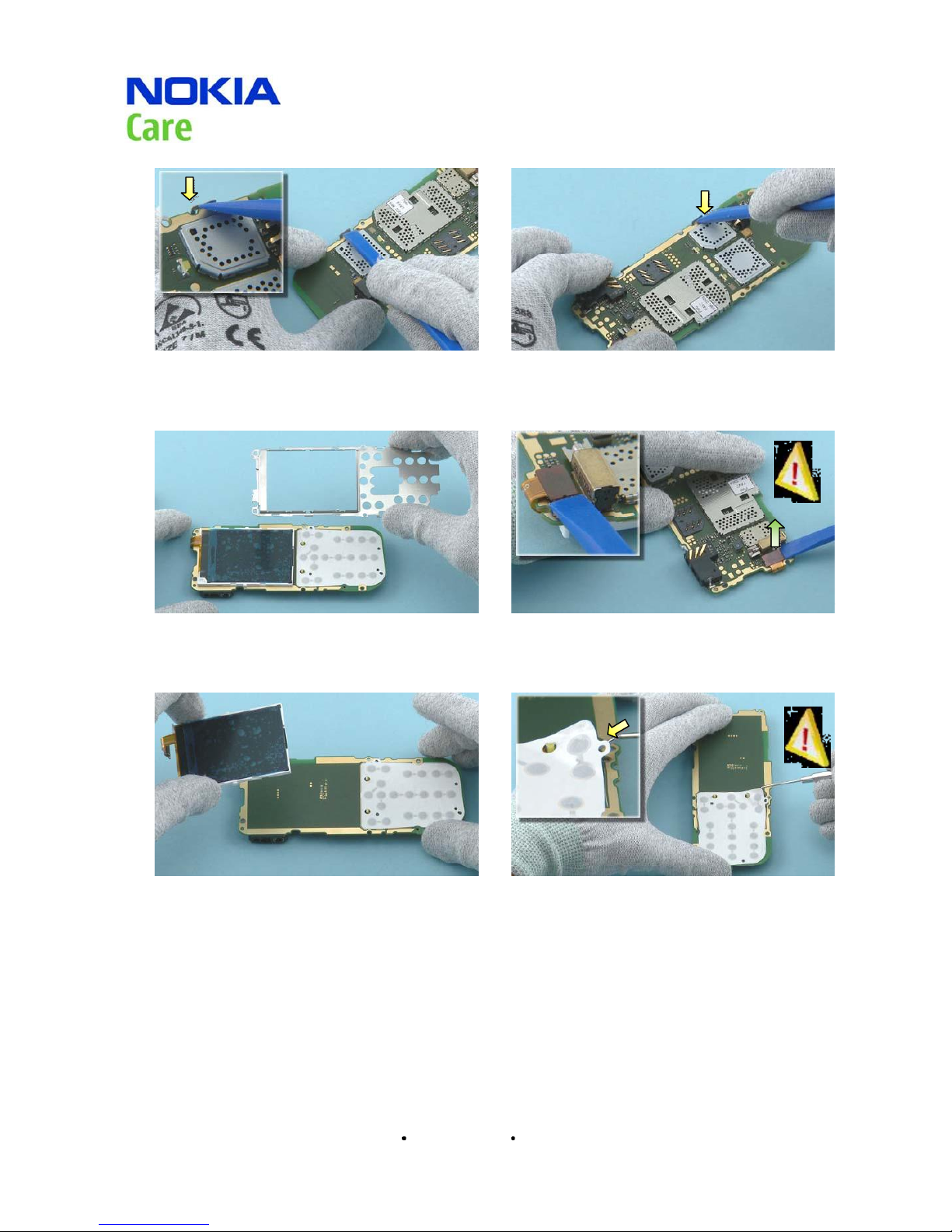

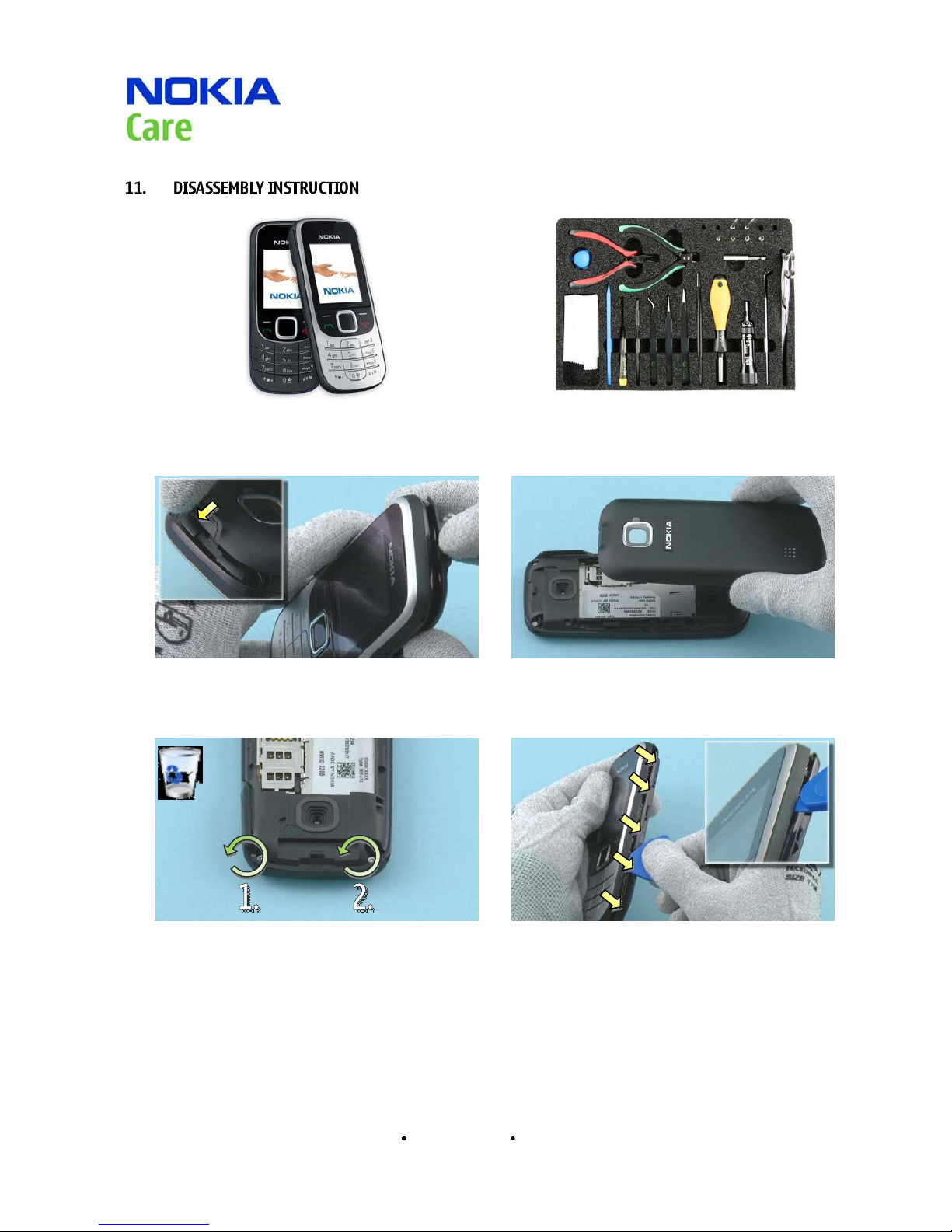

11. Disassemblyinstruction.......................................................................................................................................................13

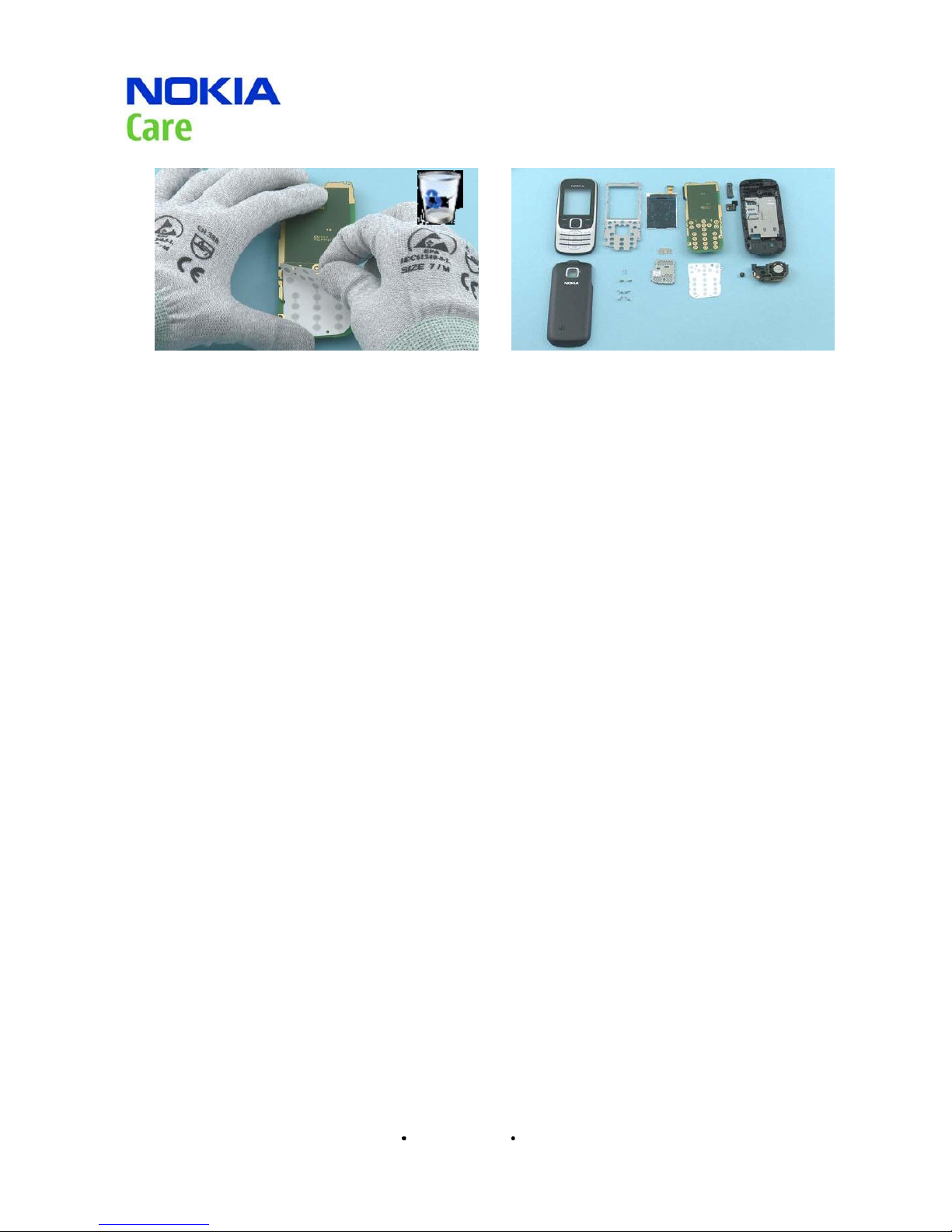

12. Assemblyhints........................................................................................................................................................................18
13. Soldercomponents................................................................................................................................................................19

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
3Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
Approved1.001.04.2009 Approved
The purpose ofthis documentis to help NOKIAservicelevels1 and2 workshoptechniciansto
carryoutserviceto NOKIAproducts.ThisServiceManualis to be usedonlybyauthorized
NOKIAservice suppliers, andthe contentofitis confidential.Please notethatNOKIAprovides
alsoother guidancedocuments(e.g.ServiceBulletins)for servicesuppliers, followthese
regularlyandcomplywiththegiveninstructions.
While everyendeavorhasbeen made toensure the accuracy ofthis document,someerrorsmay
exist.Ifyou findanyerrors or ifyouhave furthersuggestions,please notifyNOKIAusingthe
addressbelow:
mailto:[e-mail]
Please keepin mindalsothatthis documentationis continuouslybeingupdatedandmodified,
sowatchalways outforthe newestversion.

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
4Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
Copyright©2009Nokia.All rights reserved.
Reproduction,transfer,distribution orstorageofpartor all ofthecontents inthisdocumentin
anyformwithoutthe prior writtenpermissionofNokiais prohibited.
Nokia,NokiaConnectingPeople,andNokia XandY are trademarksorregisteredtrademarksof
NokiaCorporation.Otherproductandcompanynames mentionedhereinmaybetrademarks or
tradenames oftheirrespective owners.
Nokiaoperatesa policy ofcontinuous development.Nokia reservestherightto makechanges
andimprovementstoanyofthe productsdescribedinthis documentwithoutprior notice.
Undernocircumstances shall Nokia be responsible for anylossofdataorincomeoranyspecial,
incidental,consequentialorindirectdamages howsoevercaused.
The contentsofthis documentareprovided "asis .Except asrequired byapplicable law, no
warrantiesofanykind,eitherexpress orimplied,including,butnotlimitedto,theimplied
warranties ofmerchantabilityandfitness for aparticular purpose,are made in relationto the
accuracy, reliabilityor contentsofthis document.Nokiareserves the righttorevise this
documentorwithdraw itatanytimewithoutprior notice.
The availabilityofparticular products mayvarybyregion.
Thisdocumentis intendedforuse byqualified service personnelonly.

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
5Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
Please referto thephone!suser guideforinstructionsrelatingto operation,careand
maintenance includingimportantsafetyinformation.Note alsothe following:
1. CARE MUSTBETAKEN ONINSTALLATION IN VEHICLESFITTEDWITH ELECTRONICENGINE
MANAGEMENTSYSTEMSAND ANTI#SKIDBRAKING SYSTEMS.UNDERCERTAIN FAULTCONDITIONS,
EMITTED RF ENERGY CANAFFECTTHEIR OPERATION.IF NECESSARY,CONSULTTHE VEHICLE
DEALER/MANUFACTURERTO DETERMINETHEIMMUNITYOF VEHICLEELECTRONICSYSTEMSTORF
ENERGY.
2. THE HANDPORTABLE TELEPHONE MUSTNOTBEOPERATED INAREAS LIKELYTOCONTAIN
POTENTIALLYEXPLOSIVE ATMOSPHERES, EG PETROLSTATIONS (SERVICE STATIONS),BLASTING
AREASETC.
3. OPERATIONOFANYRADIOTRANSMITTINGEQUIPMENT,INCLUDINGCELLULARTELEPHONES, MAY
INTERFEREWITH THEFUNCTIONALITYOFINADEQUATELYPROTECTED MEDICALDEVICES.CONSULT
APHYSICIANOR THEMANUFACTUREROF THEMEDICALDEVICE IF YOU HAVEANYQUESTIONS.
OTHERELECTRONICEQUIPMENTMAYALSOBE SUBJECT TOINTERFERENCE.
1. Servicingandalignmentmustbe undertakenbyqualifiedpersonnelonly.
2. Ensure allworkis carriedoutatananti#static workstationandthatananti#static wrist
strapisworn.
3. Useonlyapproved componentsas specified in the parts list.
4. Ensure all components,modulesscrews andinsulators are correctlyre#fittedafterservicing
andalignment.
5. Ensure all cablesandwires arerepositionedcorrectly

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
6Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
Nokiarequiresthatservicepoints have sufficientESD protection(againststatic
electricity)when servicingthe phone.
Anyproductofwhich thecoversare removedmustbe handledwithESD
protection.The SIM cardcan be replaced withoutESDprotectioniftheproduct
is otherwise readyforuse.
Toreplace the covers ESDprotectionmustbeapplied.
All electronic partsofthe productaresusceptibletoESD.Resistors, too,can be
damagedbystaticelectricitydischarge.
All ESD sensitive partsmustbepackedinmetallizedprotectivebags during
shippingandhandlingoutside anyESD ProtectedArea (EPA).
Everyrepairactioninvolvingopening theproductorhandlingthe product
components mustbedone underESD protection.
ESD protectedsparepartpackages MUST NOTbe opened/closedoutofan ESD
ProtectedArea.
FormoreinformationandlocalrequirementsaboutESD protectionandESD
ProtectedArea,contactyourlocalNokia After MarketServicesrepresentative.

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
7Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
Thisproductis ofsuperior designandcraftsmanshipandshould betreatedwithcare.The
suggestions below will helpyouto fulfilanywarrantyobligationsandto enjoythis productfor
manyyears.
Keepthephone andall itspartsandaccessoriesoutofthe reachofsmall children.
Keepthephonedry. Precipitation,humidity andall types ofliquidsormoisturecan
containmineralsthatwill corrodeelectronic circuits.
Donot use orstore thephoneindusty,dirtyareas. Itsmovingpartscanbe
damaged.
Donot store thephoneinhotareas.Hightemperaturescanshorten thelifeof
electronic devices,damagebatteries,andwarpor meltcertainplastics.
Donot storethe phoneincold areas.When itwarmsup(toits normaltemperature),
moisture canforminside,whichmay damageelectronic circuitboards.
Donot drop,knock orshakethephone.Roughhandlingcanbreakinternalcircuit
boards.
Donotuse harshchemicals,cleaningsolvents, orstrongdetergentstoclean the
phone.
Donot paintthephone.Paintcanclogthemovingpartsandpreventproper
operation.
Useonlythesuppliedor an approvedreplacementantenna.Unauthorisedantennas,
modificationsorattachmentscoulddamagethephone andmayviolateregulations
governingradiodevices.
All oftheabovesuggestions applyequallyto the product,battery, charger oranyaccessory.

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
8Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
Note:Anewbattery!sfull performanceis achieved onlyafter twoorthree completechargeand
discharge cycles!Thebatterycanbechargedanddischargedhundredsoftimes butitwill
eventuallywear out.
When the operatingtime(talk-timeandstandbytime)is noticeablyshorterthannormal,itis
time to buya newbattery. Use onlybatteries approvedbythephonemanufacturerand
recharge the batteryonlywiththechargers approvedbythe manufacturer.
Unplugthe chargerwhen notinuse.Donot leave the batteryconnectedto achargerforlonger
thana week,sinceoverchargingmayshortenits lifetime.
Ifleftunusedafullychargedbatterywill discharge itselfovertime Temperature extremescan
affectthe abilityofyourbatteryto charge.
For goodoperationtimeswith Ni-Cd/NiMh batteries,dischargethebatteryfrom timetotimeby
leavingthe productswitchedonuntilitturnsitselfoff(or byusingthe batterydischargefacility
ofanyapprovedaccessoryavailableforthe product).
Donotattempt to dischargethe batteryby anyothermeans Use the batteryonlyfor its
intended purpose.
Neveruse anycharger orbatterywhich is damaged.
Donotshort-circuitthe battery.Accidentalshort-circuitingcanoccurwhena metallicobject
(coin,cliporpen)causes directconnectionofthe+ and-terminals ofthe battery(metalstrips
on the battery)for examplewhenyoucarryasparebatteryinyourpocketor purse.
Shortcircuitingthe terminals maydamage thebatteryortheconnectingobject.
Leavingthebatteryinhot orcoldplaces,such as ina closedcarinsummerorwinterconditions,
will reducethecapacityandlifetimeofthebattery. Always tryto keepthe batterybetween15°C
and25°C(59°Fand77°F).
Aphonewith ahot orcoldbatterymaytemporarilynotwork, even when the batteryis fully
charged.Batteries!performance isparticularlylimitedintemperatureswell belowfreezing.
Donotdispose batteries in a fire!Dispose of batteries accordingtolocalregulations(e.g.
recycling).
Donotdispose as household waste.

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
9Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
Onlyavailableas
assembly
Ver.1.0
Thesepartscannotbe
reusedafterremoval
EFIICOVER
I0011
D-COVER
I0009
EARPIECEMODULE
I0010
SCREWM1.4X3.4
TORX+4IP
I0014
SCREW1.4X4.6
TORX+4IP
I0016
SCREWRF1.4X5.0
TORX+4IP
I0015
LCDAM128x160
I0003
UISHIELDING
I0002
TYPELABEL
I0008
MICROPHONE(BSE)
I0012
IHFSPEAKER
I0013
DOMESHEETASSY
I0004
LIGHTSWAPPWB
I0005
BBSHIELDINGLID
I0007
FM/BTSHIELDINGLID
I0006
BATTERYCOVER
I0017
A-COVERASSY
I0001
A1=LIGHTSWAPPACKAGE(I0004-I0008)
A2=D-COVERASSYBLACK(I0009-I0011)
A3=ANTENNAMODULE(I0012-I0013)

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
10 Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
Onlyavailableas
assembly
Ver.1.0
Thesepartscannotbe
reusedafterremoval
EFIICOVER
I0011
D-COVER
I0009
EARPIECEMODULE
I0010
SCREWM1.4X3.4
TORX+4IP
I0014
SCREW1.4X4.6
TORX+4IP
I0016
SCREWRF1.4X5.0
TORX+4IP
I0015
LCDAM128x160
I0003
UISHIELDING
I0002
TYPELABEL
I0008
MICROPHONE(BSE)
I0012
IHFSPEAKER
I0013
DOMESHEETASSY
I0004
LIGHTSWAPPWB
I0005
BBSHIELDINGLID
I0007
FM/BTSHIELDINGLID
(RM-543)
I0006
BATTERYCOVER
I0017
A-COVERASSY
I0001
A1=LIGHTSWAPPACKAGE(I0004-I0008)
A2=D-COVERASSYBLACK(I0009-I0011)
A3=ANTENNAMODULE(I0012-I0013)

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
11 Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
FLS-5 Flash Device CA-112DS Data Service Cable CA-111DS ServiceCable
(alternative)
AC-3 TravelCharger BL-5CBattery ACF-8 PowerSupply
FLS-4s POS FlashDevice
(alternative)
ACF-8 Country-Specific Adapters
Formore information,refer tothe
ServiceBulletin(SB-011)onNOKIA
Online.Supplierormanufacturer
contactsfortoolre-ordercanbe
foundin "Recommendedservice
equipment documentonNOKIA
Online.

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
12 Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
TousetheFLS-5 or FLS-4s Flash Dongle,youhaveto follow the userguide inside the sales
package.
Please check always forthelatestversion offlash software,wichisavailable onNokia Online.
For flashingwithFLS-5 use the CA-112DS cable
For flashingwithFLS-4 use the CA-111DS cable
NOTE:Nolongeravailableforpurchase

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
13 Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
1)Nokia 2320classic, Nokia 2323 classicandNokia 2330
classic disassembly.Please notice thatthe modelusedin
thefollowinginstructionsisNokia2330 classic.
2)Use the Nokia StandardToolkitversion2.
3)Press theBATTERYCOVERrelease buttontoremove
theBATTERYCOVER.
4)Removethe BATTERYCOVER.
5)Unscrew the twoTorx+ 4 SCREWS inthe ordershown.
The SCREWS cannot be usedagain.Discardthem.
6)Use theSRT-6toreleasethefive snapson the
rightside ofthe A-COVER.

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
14 Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
7)Continueto releasethe snapsonthe leftsideofthe
A-COVERwiththeSRT-6.
8)Removethe A-COVER.
9)Unscrew thefiveTorx+4 SCREWSinthe order shown.
The SCREWS cannot be usedagain.Discardthem.
10)ProtecttheLCDwitha protectivefilm.
11)Separate theENGINE MODULEfromthe D-COVERby
releasingthe firstclipusingthe SRT-6.
12)Releasethe secondclipontheleftsideofthe
ENGINEMODULE usingtheSRT-6.

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
15 Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
13)Removethe ENGINEMODULE.14)Use the SS-93 toremovethe ANTENNA
MODULE.
15)Use thedentaltool to lever outthemicrophone.
Becarefulnottodamageyourselforthemicrophone!
16)Use thedentaltoolto leveroutthe EARPIECE
MODULE.
17)Removethe EARPIECEMODULEusingtweezers.18) RemoveEFII COVERbypullingitoutgentlyin
thedirection shown.

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
16 Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
19)OntherightsideoftheUI SHIELDING,releasethe
firstclipusingthe SS-93.
20)Releasethe secondclipontheleftsideofthe
UI SHIELDING usingthe SS-93.
21)Removethe UI SHIELDING.22)Carefullyrelease the LCD connectorusingthe
SS-93.Be carefulnotto damage theconnectoror
anyothercomponentsnearby!
23)RemovetheLCD.24)Use thedentaltooltoliftan edgeoftheDOME
SHEET.Becarefulnot to damage the DOMESHEET
or thePWB!

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
17 Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
25)Slowlypeelbackandremove the DOMESHEET.The
DOME SHEETcannotbeusedagain.Discardit.
26)Nokia 2330Classic disassemblyisnow
complete.
-END OF DISASSEMBLING -

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
18 Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
1)Makesure theDOMESHEETis gluedback inits
correctplaceon thePWB.
2)Press the PWBgentlyinthedirection shown to
lock withthesnaps oftheUI SHIELDING.
3)Placethe ENGINE MODULEin itsplacewithrespect
to the snaponthe D-COVER.
4)Thenpressgentlyonthelowerendsofthe
ENGINE MODULE to lock withthe twosnapsontheD-
COVER.
5)AfterplacingtheENGINE MODULE,tightenthe five
Torx+ 4 screws to the torque of18 Ncmin theorder
shown.
6)After theA-COVERis inplace,tightenthe two
Torx+ 4 screws to the torque of14 Ncmintheorder
shown.

Nokia2320 classic /Nokia 2323 classic/Nokia 2330 classic
RM-512 /RM-513 /RM-514 /RM-515/RM-543
ServiceManualLevel1&2
19 Confidential Copyright ©2009 NOKIA Allrightsreserved Version1.0 ISSUE 1
Aboveis RM-512 andRM-513 PWBLayout.For RM-514,RM-515 andRM-543,the soldercomponentsare
thesamepositionasRM-512.
F2000
X1001 V2411
V2410 X7802
X7801
