Nokia 5140 User manual

nokia
CONNECTING PEOPLE PAGE 1 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
nokia
5140/5140i
NPL-5/RM-104
Transceiver characteristics:
• Xpress-on™ shells provide protection against splashes
and dust
• Push to talk
• Passive matrix color display 128 x 128 pixels -
5140i: 65536 colors
5140: 4096 colors
• Integrated VGA camera
• Stereo FM radio
• Flashlight
• Thermometer
• Decibel meter
• Infrared
• Polyphonic tones
• EGSM 900, GSM 1800, and GSM 1900 networks
• WIM (Wireless Identity Module)
• Pop-Port™ interface
• OMA Super Distribution over infrared and MMS
• EDGE Class 6 (3+1, 2+2)
• GPRS (General Packet Radio Service)
• HSCSD (High-Speed Circuit-Switched Data)
Transceiver with BL-5B 760mAh Li-Ion battery pack
Talk time Standby Note
2 h –5 h 150 h –300 h
Depends on
network
parameters
Environmental characteristics:
• Lead-free soldered
SERVICE MANUAL
Service Level 1&2
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 2 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
TABLE OF CONTENT
Page
1. INTRODUCTION...................................................................................................................................................................................3
2. GENERAL REPAIR INFORMATION.....................................................................................................................................................4
3. PATHFINDER FOR WORKSHOP STAFF .............................................................................................................................................5
4. EXPLODED VIEW AND COMPONENT DISPOSAL .............................................................................................................................6
5. SPARE PARTS OVERVIEW ..................................................................................................................................................................7
6. SPARE PARTS LIST..............................................................................................................................................................................8
7. SERVICE TOOLS....................................................................................................................................................................................9
8. SW-UPDATE...................................................................................................................................................................................... 11
9. DISASSEMBLY INSTRUCTIONS ....................................................................................................................................................... 12
10. EXCHANGE OF SYSTEM CONNECTOR........................................................................................................................................ 14
11. LEGEND FOR QUICK TROUBLE SHOOTER................................................................................................................................. 15
12. QUICK TROUBLE SHOOTER PART 1.......................................................................................................................................... 16
13. QUICK TROUBLE SHOOTER PART 2.......................................................................................................................................... 17
14. QUICK TROUBLE SHOOTER PART 3.......................................................................................................................................... 18
15. CAMERA GONOGO TEST ............................................................................................................................................................. 19
16. INFRARED TEST........................................................................................................................................................................... 20
17. GONOGO TEST ............................................................................................................................................................................. 21
18. BATTERY TEST ............................................................................................................................................................................. 21
19. FORWARDING OF REPAIRS ....................................................................................................................................................... 22
20. ESD PROTECTION REQUIREMENTS........................................................................................................................................... 23
CHANGE HISTORY
Status Version No. Date Comments
Draft 0.1 05.04.2004 Initial draft
Approved 1.0 11.05.2004 Approval
Approved 2.0 30.03.2005 5140i implemented
Approved 3.0 30.03.2005 Exploded view/ Spare Parts overview corrected
Approved 4.0 14.06.2005 Exploded view/ Spare Parts overview corrected
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 3 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
1. INTRODUCTION
The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to
NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it
is confidential. Please note that NOKIA provides also other guidance documents (e.g. Service Bulletins) for service
suppliers, follow these regularly and comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors may exist.
If you find any errors or if you have further suggestions, please notify NOKIA using the address below:
mailto:cc-ts-rc.docume[email protected]
Please keep in mind also that this documentation is continuously being updated and modified, so watch always
out for the newest version.
Warnings and Cautions
Please refer to the phone’s user guide for instructions relating to operation, care and maintenance including
important safety information. Note also the following:
Warnings:
1.
2.
3.
CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE
MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF
ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/MANUFACTURER TO
DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY.
THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN
POTENTIALLY EXPLOSIVE ATMOSPHERES EG PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.
OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE
WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE
MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY
ALSO BE SUBJECT TO INTERFERENCE.
Cautions:
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist strap is worn.
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing and alignment.
5. Ensure all cables and wires are repositioned correctly.
Electrostatic discharge can easily damage the sensitive components of electronic products.
Therefore every Service Supplier has to take care of all precautions, which are mentioned in
the service level related “Service Partner Requirements”, available on NOKIA Online. Also see
ESD Protection Requirements in this Service Manual.
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 4 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
2. GENERAL REPAIR INFORMATION
In this section the technician will get some general hints how to carry out repairs:
o To familiarize oneself with NOKIA product read the tutorials or user guide on www.NOKIA.com -->Support-->
Phones, by selecting the Phone Model.
o Before starting the repair you must take care of ESD precautions like being in your ESD Protected Area and
connecting your wristband.
o Use gloves to avoid corrosion and fingerprints.
o Protect windows and displays with a film to avoid dust and scratches.
o When cleaning the LCD Module any lint-free cloth can be used (e.g. Micro-Fibre cloth).
o When cleaning the pads you have to use a soft cloth/ESD brush and Isopropanol. It is not allowed to use a
glass fiber pencil because it scratches the surface and will lead later on to corrosion.
o Mechanical parts (except shielding lids and bent parts), which didn’t repair the failure, can be reused, if they
are not soldered.
o When removing the shielding lids make sure to replace them with new ones, otherwise the high-frequency
leakage can have an influence on the device.
o Always use original NOKIA spare parts.
o Check the soldering joints of the parts, which are concerned regarding the indicated error (e.g. soldered
connectors or switches) and resolder them if necessary (Level 2 only).
o Remove redundant soldering flux after repair.
o Meet the torque requirements when assembling the unit (see also the document “torques for transceiver
assembly” on NOKIA Partner Web Site/NOKIA Online).
o Always use your own equipment for testing where you are sure that it works. E.g. if the customer complains
about charger function, please test the phone with your own charger to be sure if phone or charger causes the
malfunction.
o A SIM card is needed for all GoNoGo tests.
o When doing the fault log entries, always note the Item code, which caused the malfunction. Also, fill in the
appropriate part code from the assembly, if needed.
o Please be aware that some malfunctions could be software related and solved by an update.
o There are several documents available on NOL, which have to be followed:
o First, take care for the latest content pages of Service Bulletins, which are always available for each folder on
NOKIA Online. This is also important to recognize, if existing documents have become invalid.
o The service level indicator at the bottom of each document tells the appropriate destination.
Downloads > Support Library >
1. Instructions
2. General Service Bulletins
3. Product related documents
4. Spare Part Service Bulletins
5. Service Tools Service Bulletins
6. Common Software Service Bulletins
etc,…
Use General SB-217 as a reference or overview.
Please also check NOKIA Online (NOL) for latest news and files on a regular basis.
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 5 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
3. PATHFINDER FOR WORKSHOP STAFF
In addition to the information in this Service Manual, there are several instructions and information, which have to
be followed. Main documentation database is NOKIA Online with the purpose of serving different multimedia
content, like video clips or interactive tutorials.
It is mandatory to watch for newest technical and organizational information on a daily basis to be updated as
required (see “Latest files in Support Library”). Every new information has to be processed and implemented as
soon as possible.
When logged into NOL you can also find needed information in different folder like:
Support Library
Phones
Service Manuals
Service Bulletins
Software
Repair Information

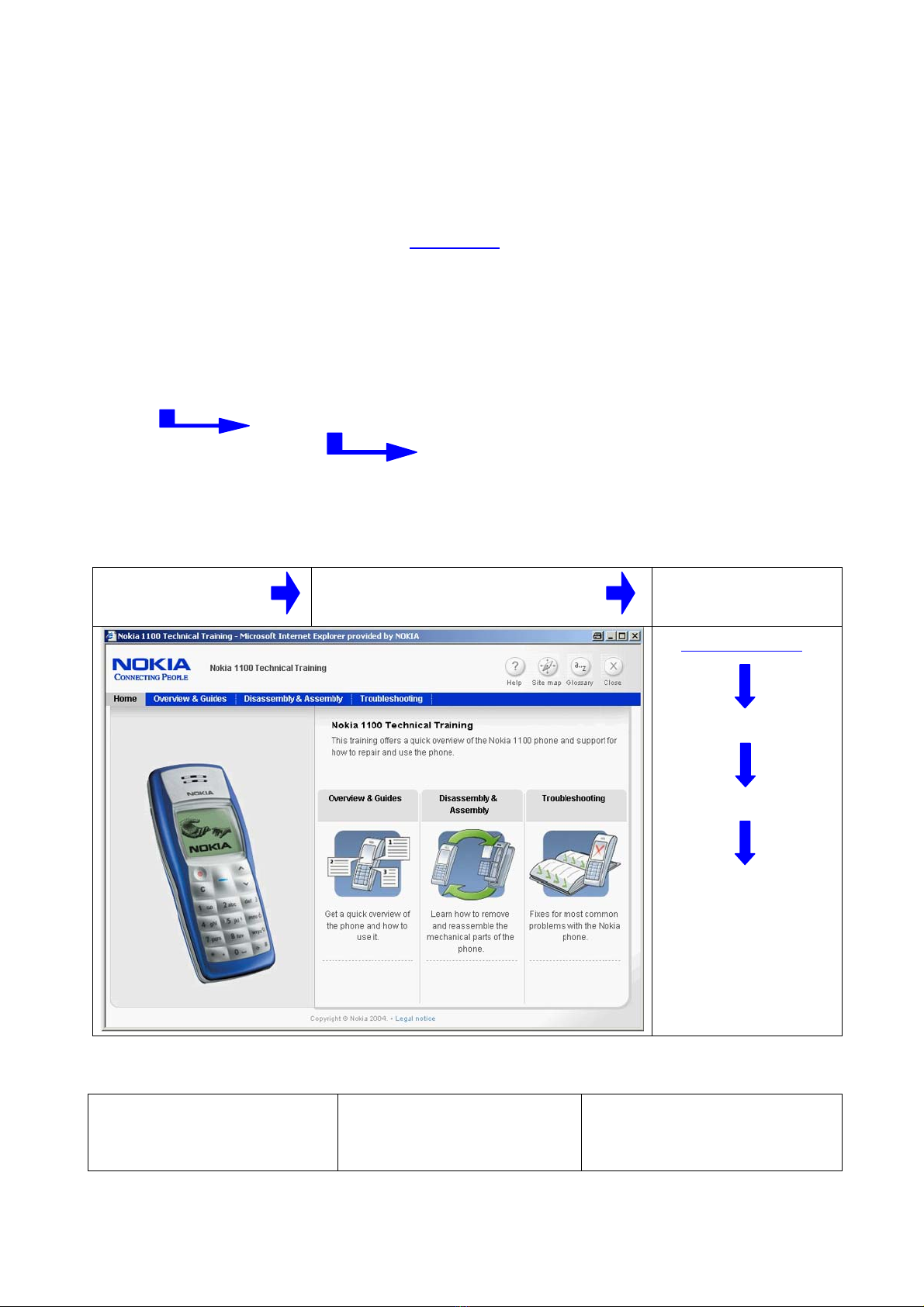

Level 1&2 e-learning (former NOKIA CarePoint) on NOKIA Online
Former NOKIA CarePoint
content, such as
• Online Troubleshooting
• Product informations
• Videos – Disassembly/Assembly
can be found on
NOKIA Online
NOKIA Online
Care Services
Training
Phone Models
Level 1&2 e-learning courses offer a quick overview of the NOKIA phone and support for how to repair and use the
phone:
Overview & Guides
Basic information about the
phone, features and technologies
Disassembly & Assembly
Instructions to disassemble and
assemble the phone
Troubleshooting
Step-by-step instructions on how to
locate and repair the most common
problems with the phone
To reduce the server traffic it is recommended to download newest version of huge files like videos, Phoenix
packages or Service Manuals only once and distribute it internally for further use.
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 6 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
4. EXPLODED VIEW AND COMPONENT DISPOSAL
Recommendation for the ecologically friendly disposal of components. Colorized components show the different
categories. See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 7 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
5. SPARE PARTS OVERVIEW
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 8 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
6. SPARE PARTS LIST
Please exchange this page (placeholder) with latest corresponding Service
Bulletins (spare parts, SWAP units and service tools) from NOL!
This will ensure, that you are using up-to-date order codes only.
Therefore Service Bulletins have to be checked from NOL on daily basis.
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 9 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005

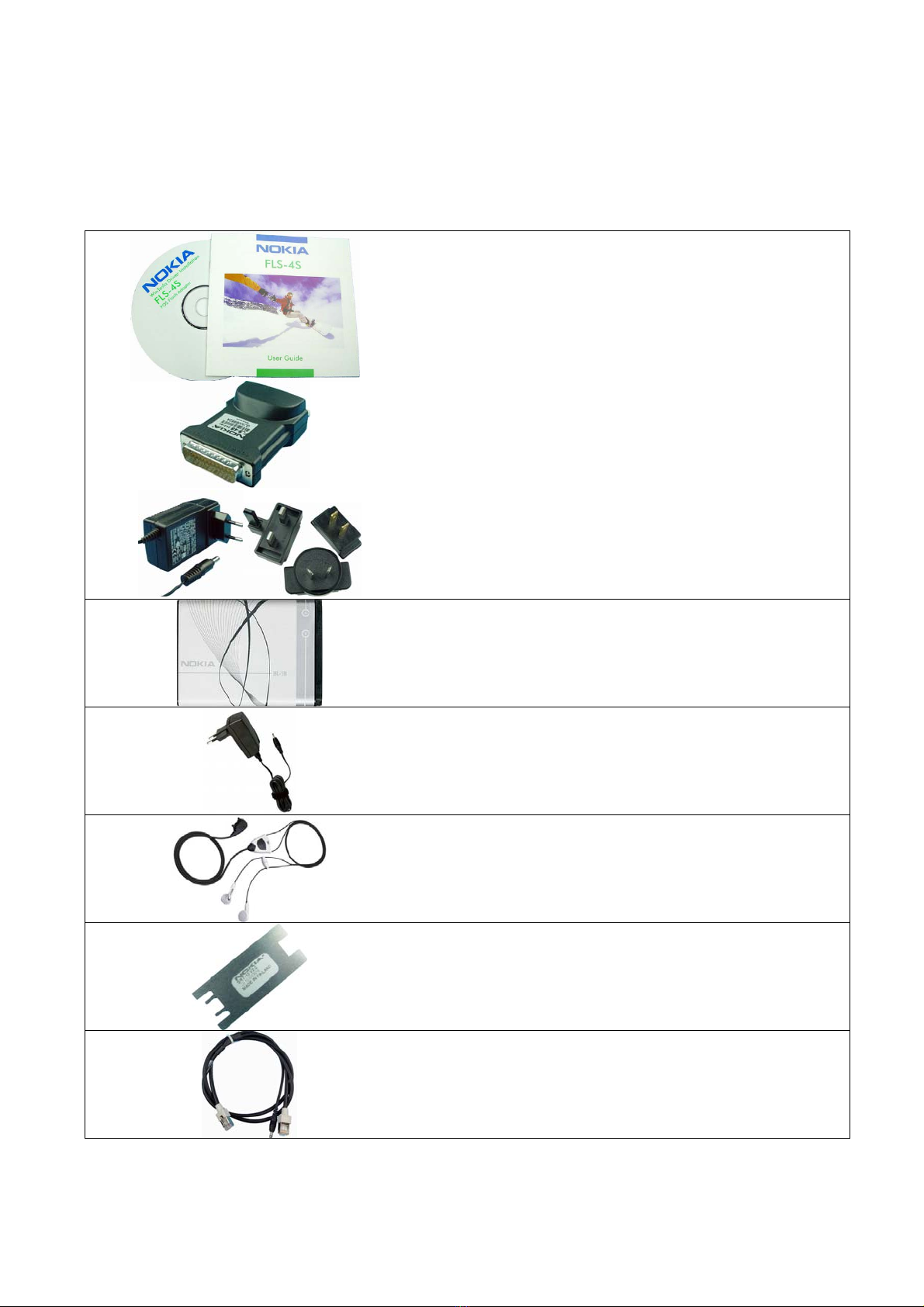

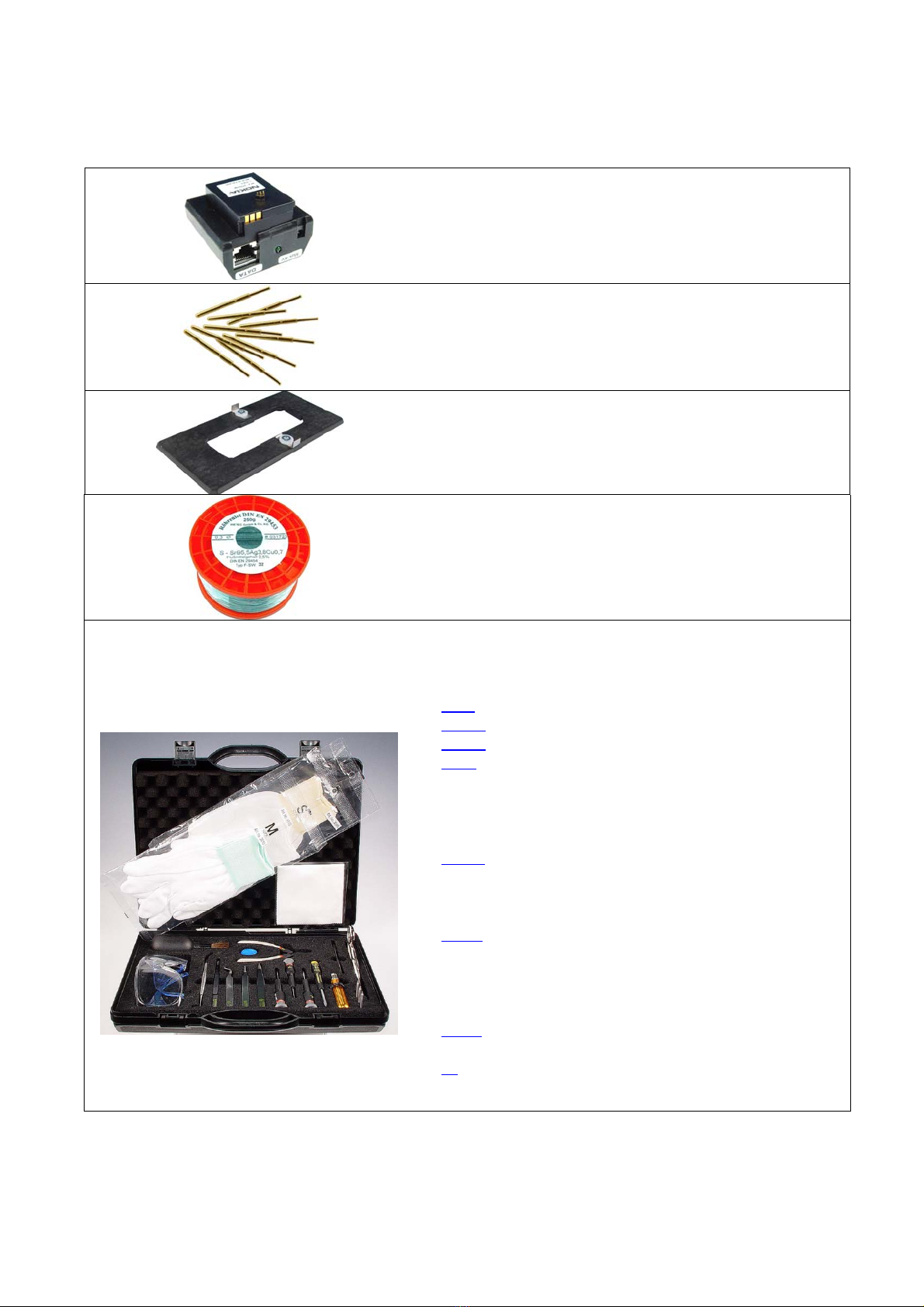

7. SERVICE TOOLS
FLS-4S incl. ACF-8, Driver and User Guide
Dongle and flash device incorporated into one package,
developed specifically for POS use.
ACF-8
Universal Power Supply is used to power FLS-4S.
Internal Battery BL-5B
Inserted under the back cover, this Li-Ion 760 mAh battery
provides power in a lightweight package.
Travel Charger ACP-12
Small and lightweight charger for fast charging of your phone
battery.
Headset HDS-3
Small and lightweight stereo headset for handsfree functionality
and listening to FM radio.
SRT-10
Camera removal tool. One side is for disassembly, the other side
for assembly
XCS-1
Service Cable is used to connect FLS-4S to SF-6 .
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 10 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
SF-6
POS Flash Adapter is used in POS (Point of Sales) environment for
software updating. It provides controlled supply voltage and
necessary connections between the phone and the Flash Device.
It substitutes for the phone’s standard battery during the
software update.
Test Pins
for Flash Adapter SF-6
RJ-8
Soldering Jig
Lead-free Solder Wire
Mandatory for lead-free products (Level 2 only).
0772040 NMP Standard Toolkit
 NOKIA opening tool SRT-6 NOKIA No. 0770431
 Tonichi torque driver NOKIA No. 6901525
 Hoya micro fibre cloth MX304
 Dastex gloves S, M, XL
 Artilux goggles AH166
 Wera bit T5 867/4TX 5x50
 Wera 867/4 6IP; 50mm (Torx 6 PLUS®)
 Wera bit T6 867/4TX 6x50
 Wera 867/1 5IP; 25mm (Torx 5 PLUS®)
 Wera bit T6 PLUS® 867/4TX 6IP
 Facom side cutter 416E
 Facom T5 driver SP.14032
 Facom T6 driver SP.14033
 Facom slot screwdriver AEF. 2x35.E
 Wetec tweezers 7abb SA-ESD
 Wetec tweezers 22 SA-ESD
 Wetec tweezers 13 SA-SMD ESD
 Wetec tweezers PSF SA-ESD
 Wetec ESD brush E1211
 Kaiser Fototechnik airbrush 6315
 Wetec dental tool DEM83266/0
 RS Components Scissors 323-5732
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 11 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005

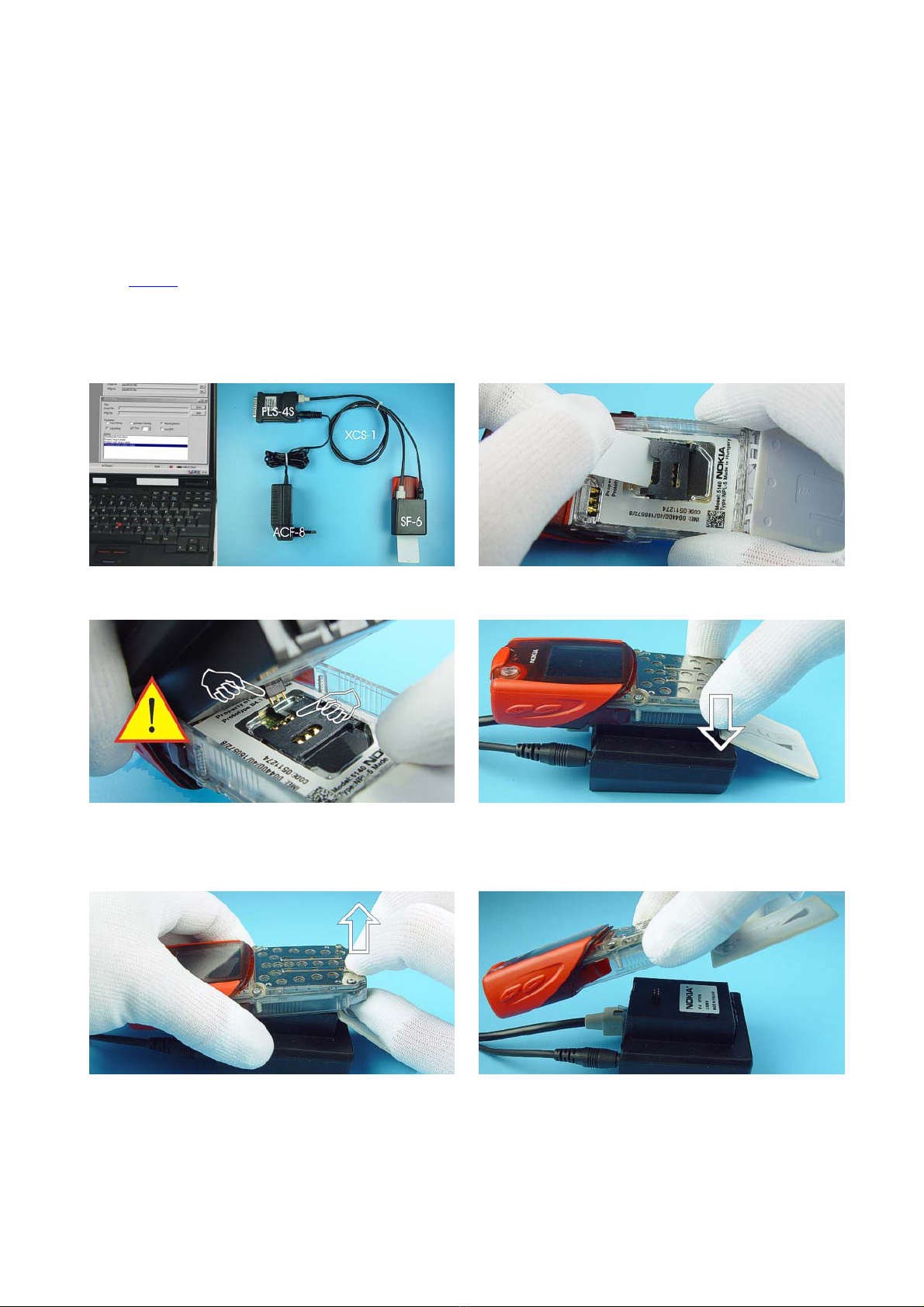

8. SW-UPDATE
To use FLS-4S Flash Dongle you have to follow the user guide inside the sales package. Please check always for the
latest version of flash software, which is available on
NOKIA Online.
Flash Concept – (Point of Sales)
It is very important to follow this insertion and removal procedure, otherwise the contact pins of Flash Adapter
will be damaged.
Remove SIM Card and close SIM Cover before inserting
the Flash Adapter!
Insert the Flash Adapter SF-6 like a battery, start at the
Battery Connector side. Take care not damage the contact
pins of Flash Adapter and the spring contacts of SIM Card
reader
Now, push down the bottom side of the phone, do not
use too much force.
When removing the phone, always start from the bottom
side of the unit.
Take away the unit now.
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 12 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
9. DISASSEMBLY INSTRUCTIONS
Attention!
It is not allowed to open the unit more than once,
otherwise the unit is not splash proofed any more and
has to be sent to the appropriate
service supplier with higher service level. Always use
new screws for assembly.
1.) Press the grip markings on both sides of the B-Shell
and remove B-Shell.
2.) Remove the Keymat. 3.) Remove the A-Shell.
4.) Unscrew the four, Torx Plus®size 6 screws in the
shown order. Always use new screws when re-
assembling! For assembly, reverse the order and use a
Torx Plus®size 6 driver with a torque setting of
32Ncm.
5.) Take away the UI Module Assy with Engine Module.
6.) Separate the UI-Module Assy from Engine Module
carefully, because of the board-to board-connector.
7.) Push out the LCD by using a clean cloth.
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 13 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005

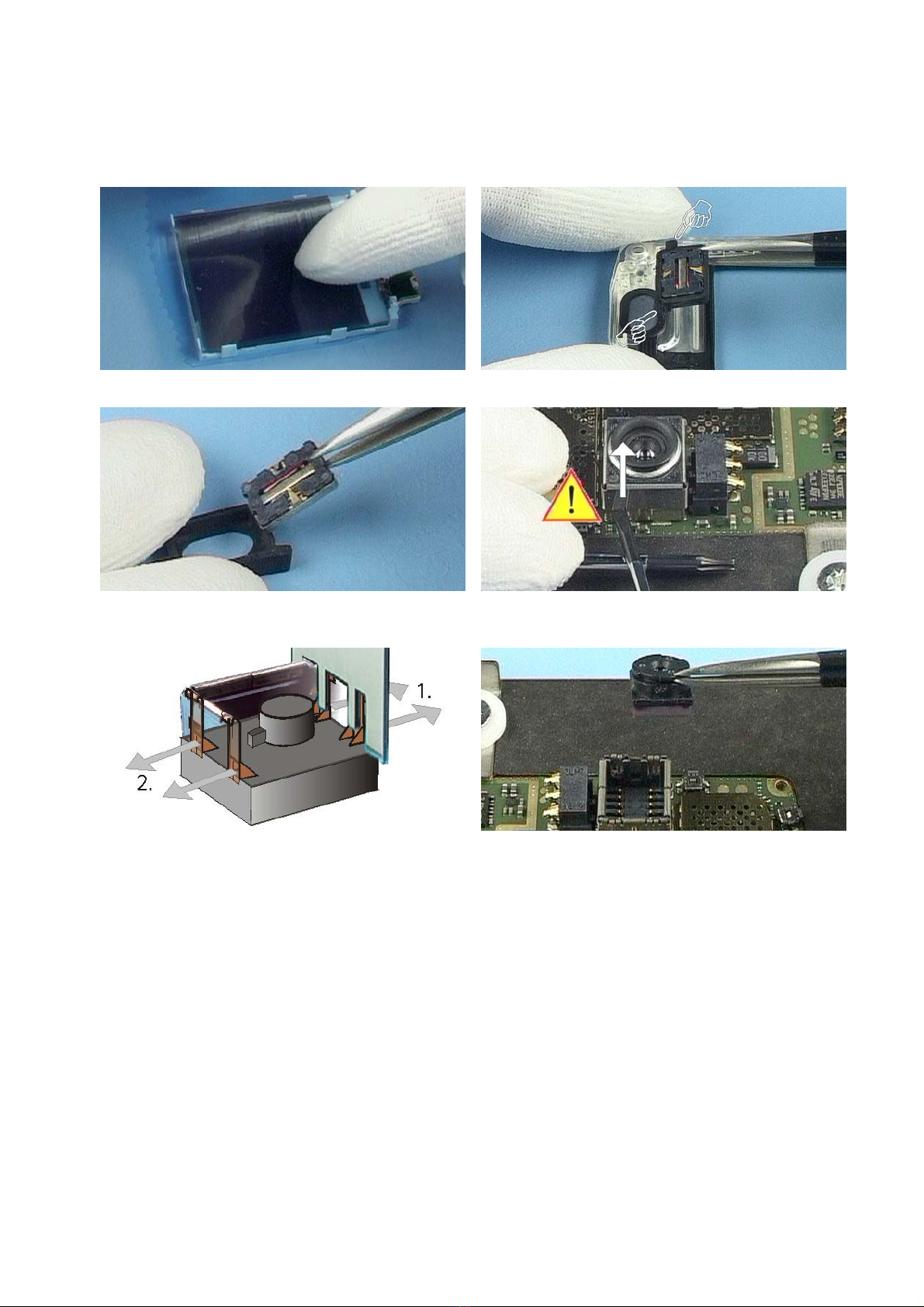

8.). Protect the LCD with a film. 9.) Remove the Speaker with Kirk Boot. Note the
guiding when assembling.
10.). Use tweezers to remove Speaker from Kirk Boot. 11.) Use a slotted screwdriver as a lever to open the
Camera Shield.
12.) Camera Module is attached with four snaps into its
guidance. Place SRT-10 as shown in the picture and
unlock the snaps on both sides. Note releasing order.
13.) Use tweezers to take away the Camera module.
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 14 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
10. EXCHANGE OF SYSTEM CONNECTOR
(PICTURE EXAMPLES TAKEN FROM 5100)
1.) The System Connector Assy is attached with
double-sided adhesive gasket to C-Cover. Also note the
gasket on C-Cover.
2.) Press SRT-6 between C-Cover and System
Connector Assy and remove the Battery Cover Assy.
3.) Press again SRT-6 between C-Cover and System
Connector Assy and remove the System Connector
Assy.
4.) Remove the System Connector Assy.
5.) To remove the remaining adhesive gasket use SRT-
6 only.
Do not use sharp-edged tools for this procedure.
6.) Remove protection foil from System Connector
Assy.
7.) Place the System Connector Assy to its guidance
exactly.
8.) Now press connector to C-Cover firmly, while
taking care not to slip C-Cover on your table.
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 15 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005

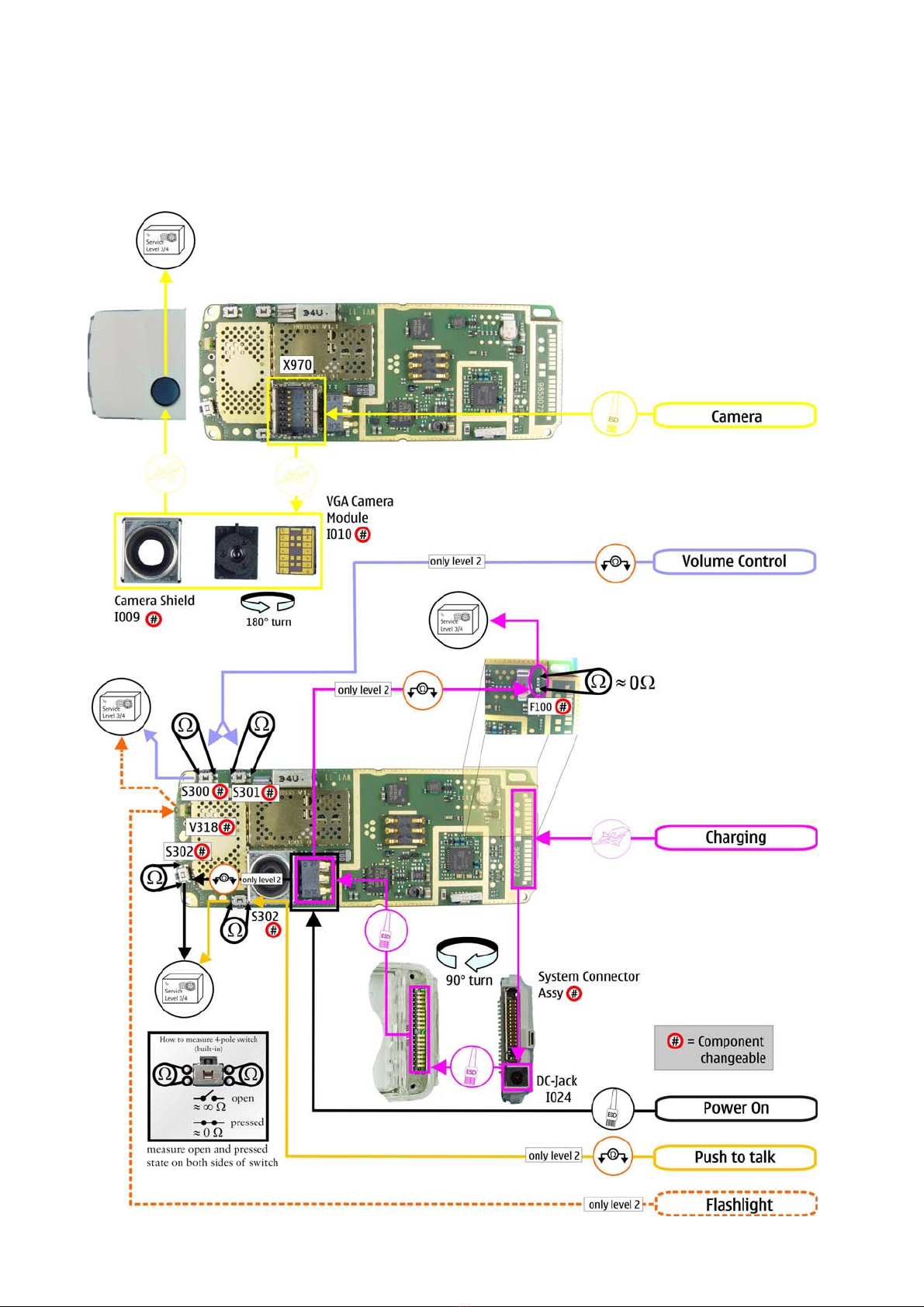

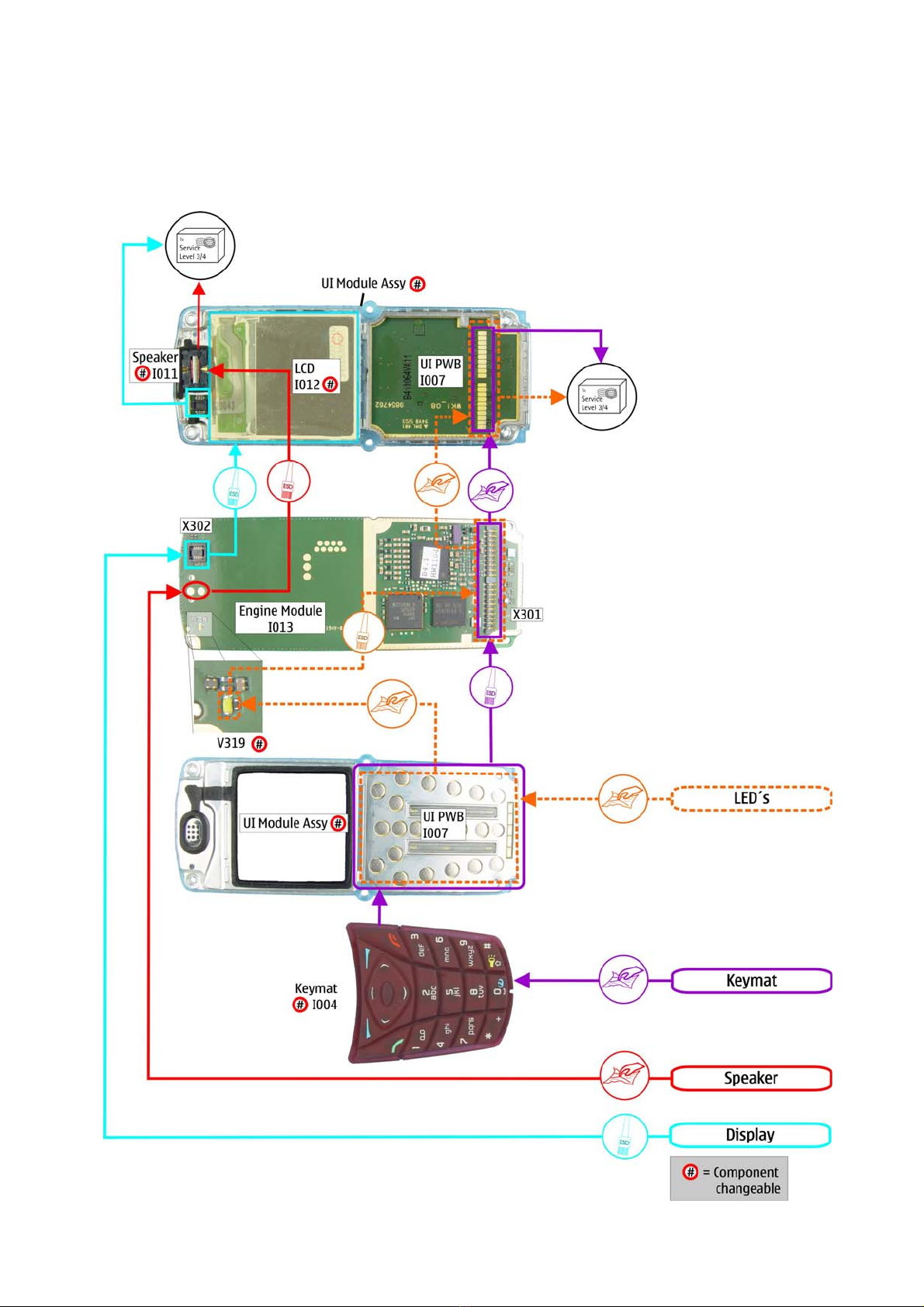

11. LEGEND FOR QUICK TROUBLE SHOOTER
This legend is valid for all parts of the Quick Trouble Shooter
Follow the steps until the problem is solved. If this doesn’t help, you are not authorized to go forward.
Only marked components ( e.g. I002 ) can be changed.
The start point of repair activities regarding the appeared fault symptoms.
Follow the arrows step by step
Pads or contacts: Check optical and mechanical condition particularly regarding
to corrosion. Clean if necessary.
Measure component for electrical functionality and change, if needed.
(Level 2 only)
Pads or contacts: Check optical and mechanical condition particularly regarding
to corrosion. Clean with ESD brush only, if necessary.
No more actions possible send product to the appropriate service supplier with
higher service level.
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 16 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
12. QUICK TROUBLE SHOOTER PART 1
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 17 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
13. QUICK TROUBLE SHOOTER PART 2
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 18 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
14. QUICK TROUBLE SHOOTER PART 3
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

nokia
CONNECTING PEOPLE PAGE 19 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.

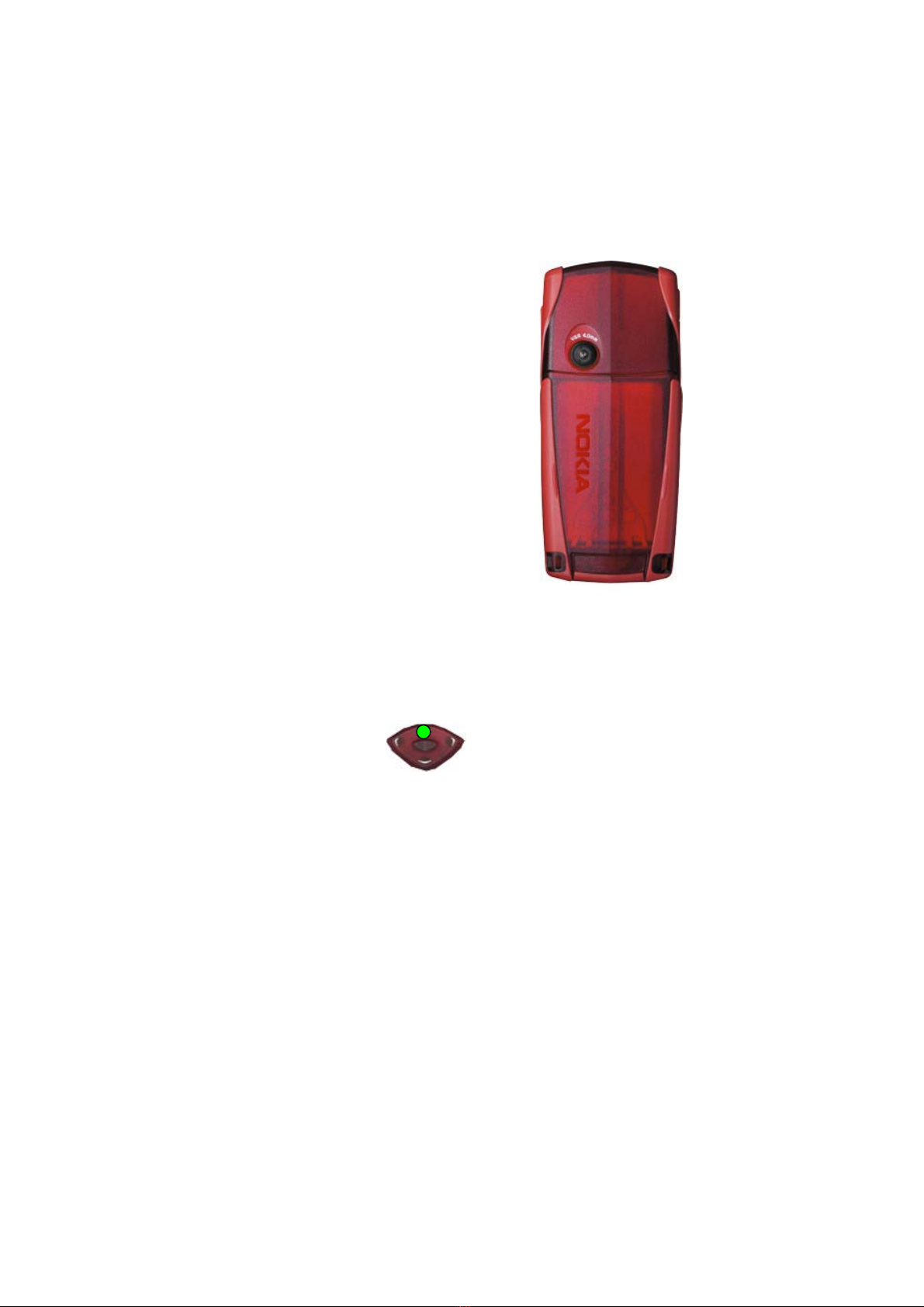

15. CAMERA GONOGO TEST
Before starting the GoNoGo
test, check that camera
window is clean. If not, clean
the window with cloth.
• Press the red receiver button to reach the Home Menu
• From Home Menu, select the Menu key
• Press Capture to take a photo
This Image will be saved to Gallery into the Photos folder automatically.
Test was successful, if the Image appears on your Display. The camera is ok.
• Select Options
• Select Delete
• Select Yes
• Select Exit for Home Menu
If the test is failed see Quick Trouble Shooter.

nokia
EOPLECONNECTING P20 (23) Approved 4.0
CMO Operations & Logistics MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.
PAGE
16. INFRARED TEST
Infrared test
You need another infrared device (e.g. 6230) to do a GoNoGo test. The infrared windows of the devices must be
directed to each other and should have a distance of approximate 15 cm. Make sure that infrared is activated in
receiver device.
Warning: Do not point the IR (infrared) beam at anyone’s eye or allow it to interfere with other IR devices. This
device is a Class 1 Laser product.
Reference unit, Bluetooth /infrared activated Test unit
Settings on the test unit:
• Press the red End key to reach the Home Menu
• Select Names and select Search for an entry
If phone and SIM memory is empty, create one new entry.
• Select options
• Select Contact details
• Select Options
• Select Send business card
• Select Via infrared
If sending of business card fails, make sure again that infrared windows are directed to each other and
infrared is activated in reference device. Then try again sending.
Test was successful, if you get this message on receiver device.
You will not get a confirmation on sender device.
• Press the red End key to reach the Home Menu
