NORDIC SEASON Florida 3 User manual

!
READ THE
MANUAL, FOLLOW
THE ASSEMBLY
INSTRUCTIONS STEP
BY STEP. GET TO
KNOW YOUR GRILL
AND THE SAFETY
INSTRUCTIONS
BEFORE USING THE
APPLIANCE!
ENGLISH
OUTDOOR USE ONLY!
MANUAL
ASSEMBLY, USE, MAINTENANCE AND SAFETY
Florida 3
GG201821B
3 BURNER
GAS BBQ

Innehållsförteckning
Florida 3
Warnings ........................................................................................3
Technical data..................................................................................4
Read before assembly ..................................................................5
Exploded drawing.............................................................................6
Parts list ...........................................................................................7
Assembly instructions ......................................................................8
Connecting gas ..............................................................................16
Gas leak test .................................................................................17
Lighting instructions .......................................................................18
Before using the grill ......................................................................19
Maintenance...................................................................................20
Advice, tips and safety .................................................................. 22
Troubleshooting .............................................................................23
Consumer Contact .........................................................................24
Contents
2

WARNINGS
!Accessible parts of the grill become very hot during use. Keep
children and others who need supervision at a safe distance.
!The grill is intended for outdoor use only in well-ventilated areas.
!Leak tests (see page 17) must always be carried out before the grill
is used and when replacing the gas container. Also perform a leak test if
the product has not been in use for a long time and in advance of a new
barbecue season. Always check the gas hose for damage and cracks before
using the barbecue.
!Never barbecue in closed rooms or under roofs, as this may lead to
a lack of oxygen.
!Failure to follow the instructions provided can imply a risk of
serious injury to personnel and xed installations.
!Rebuilding / modifying the barbecue can cause danger and will
invalidate the warranty.
!Always supervise the barbecue during use and keep suitable
extinguishing equipment within reach. The grill should not be operated by
intoxicated persons.
!The barbecue must not be used in places that are below normal
ground level. Gas can accumulate and represent a danger of explosion.
Gas accumulation can also cause oxygen deciency.
!The barbecue must be cleaned regularly and thoroughly to prevent
uncontrolled grease re. Read more about grease re on page 20.
Also read page 22 for more advice and tips on grilling and safety.
3

Innehållsförteckning
H: 116 cm
L: 133.5 cm
Florida 3
Total e󰀨ect: 10.5 kW
Gas consumption: 764 g/h
Hose and regulator (not included):
Must be approved according to
EN standard.
Gas bottle (not included): Use standard
bottle approved for use in the Nordic Region,
10/11 kg recommended. Even though
butane and propane gas can be used, we
recommend propane for use in the Nordic
Region. Approved hoses and regulators
are available from most outlets selling gas
equipment.
NB!
Gas hoses used for this product must not
exceed 120 cm in length.
Technical Data
Gas information 2531- 21
DESTINATION OF
COUNTRIES VALVE SIZE GAS TYPE GAS CATEGORY
BE,FR,IT,LU,LV,
IE, GB, GR, PT, ES,
CY, CZ, LT, SK, CH,
SI
Grill burner:
0.91 mm
Butane (28~30) mbar
Propane 37 mbar I3+(28-30/37)
LU,NL,DK,FI,SE,
CY,CZ,EE LT,LV,
MT,SK,SI,BG,IS,
NO, TR, HR,
RO, IT, HU
Grill burner:
0.91 mm
G30(butane),G31(propa-
ne) and mixture of these,
LPG 28~30 mbar
I3B/P(30)
PL Grill burner:
0.87 mm
G30(butane),
G31(propane)
and mixture of these,
LPG 37mbar
I3B/P(37)
AT, CH, DE, SK Grill burner:
0.80mm
G30 (butane),
G31(propane)
and mixture of these,
LPG 50mbar
I3B/P(50)
The product is manufactured according to European Gas Appliances Regulation (EU) 2016/426
4

Read before assembly
●Follow the order in this manual to avoid incorrect assembly. Parts of
the assembly will require heavy lifting which should be performed by
two people together, to avoid personal injury and damage to the grill.
Some metal parts may be sharp, wear protective gloves.
●Power tools should not be used to assemble the grill.
Tools with too much force can damage the surface treatment on
screws, damage enamelled / lacquered parts of the grill, as well as
loosen pre-assembled nuts.
●If the product’s varnish or enamel is damaged during assembly, we
recommend that the damage be treated immediately to avoid later
rust damage. Suitable heat-resistant varnish can be ordered from
support [email protected].
FOLLOW THESE INSTRUCTIONS CAREFULLY TO AVOID
SERIOUS PERSON INJURY OR DAMAGE TO YOUR BARBECUE.
Make sure that all parts and screws are included and that they are
undamaged before assembling the product.
If the grill is damaged during transport, do not assemble the grill
before contacting your dealer or [email protected].
Transport damage to parts, varnish or enamel must be reported to the
dealer or [email protected] before the grill is installed and
used.
Please note that some parts may be located in the Styrofoam to
protect the part during transport. If parts are missing, rst check
the packaging carefully.
Compare the parts list with the contents of the box. Do not assemble
this grill if there is damages or parts are missing, contact your dealer
or [email protected].
Remove all remnants of packaging material and any plastic wrap from
the grill.
!
5

Innehållsförteckning
Florida 3
Exploded Drawing
2
3
4
5
6
7
11
9
10
14
12
15
16
11
13
1
17 18
8
19
20
21
22
6

Parts List
Code Part QTY
01 Bottom panel 1
02 Left leg assembly 2
03 Right leg assembly 2
04 Front panel 2
05 Right bracket for drip tray 1
06 Left bracket for drip tray 1
07 Wheel axle 1
08 Wheel 2
09 Firebox and hood 1
10 Left side table 1
11 Right side table 1
12 Knob bezel 3
13 Knob 3
14 Flame tamer 3
15 Cooking grate 2
16 Warming rack 1
17 Drip tray 1
18 Grease cup 2
19 Matchstick holder assy 1
20 Thermometer 1
21 Igniter button 1
22 Wheel cover 2
When ordering spare parts, please use the code from parts list found here.
7

Innehållsförteckning
Florida 3
1
2
13
Assembly
1 Attach the four legs to bottom panel
Using M6x12 screws and M6 lock washers secure left leg assembly (part 2) to bottom panel (part 1) and right leg
assembly (part 3) with corresponding screws. Assemble 2 additional legs in same manner (see illustration).
M6 x12 screw, 8 pcs.
M6 lock washer, 8 pcs.
B
TOOLS FOR ASSEMBLING
0102030405060708090 100 110 120 130 140 150
0123456
Philips/cross-point screwdriver
(not included) Small spanner (included)
CD
A
B
1xM6 nut 16x M6x12 screw
1xM4x8 screw 9x M6x16 screw
1x small spanner 1x axle washer
The following screws and nuts are supplied with the grill and must be tted.
16x M6 lock washer
9x M6 lock washer
8

4
Assembly
2 Install the front panel
Insert the corresponding M6x12 screws with M6 lock washers into the pre drilled holes of the left and
right legs located at the front of the cart. Do not tighten screws. Line up the slots in the front panel (part 4)
to the screws. Slide the front panel into place. Tighten the screws.
M6 x12 screw, 8 pcs.
M6 lock washer, 8 pcs.
B
9

Innehållsförteckning
Florida 3
7
8
65
C
Assembly
3 Install the Wheel
Insert the axle (part 7)
into the wheel (part 8).
Insert the axel into the pre drilled
hole located on the right front
leg of the cart (see illustration).
The axel will then insert into
coordinating hole in the cart leg
at the back of the cart. Insert the
additional wheel on the axel on
the back side of the cart. Insert
the axel washer on the axel and
secure with the M6 lock nut.
Tighten with the included spanner.
4 Install left and right drip tray brackets
Lock the left bracket for drip tray (part 6) and right bracket for drip
tray (part 5) into the mounting hole at left and right leg assembly
with corresponding M4x8 screws.
M4 x 8 screw,
4 pcs
M6 lock washer, 1 pcs.
Axle washer, 1 pcs.
Small wrench, 1 pcs (included)
A
C
10

aM6 x 16 screw, 8 pcs
M6 lock washer, 8 cs
Assembly
5 Install the rebox and hood
assembly
Place the knob (part 13) on the valve stem (see
illustration). Set the rebox and hood assembly (part 9)
on top of the cart panel. Secure the rebox and hood
assembly with M6x16 screws and M6 washers at the
top of each leg of the cart (see illustration).
WARNING!
Two persons should
perform this step, due
to heavy lifting.
!
9
13
11

Innehållsförteckning
10
11
Florida 3
6 Install the left side
table
Line up the holes in the left
side table (part 10) with the
pre-installed screws on left side
of the rebox and hood assembly.
Slide left side table into place over
the screws. Tighten the pre-installed
screws to secure the side table.
7 Install the right side
table
Line up the holes in the right side
burner table (part 11) with the pre-installed
screws on right side of rebox and hood as-
sembly. Slide right side table into place over
the screws. Tighten the pre-installed screws
to secure the side table.
Assembly
12

14
15
8
Install ame tamers
Place the 4 ame tamers (part
14) over each burner inside the
rebox. Vented end of ame tamer is
placed toward the back of the rebox
(see illustration).
9
Install the
cooking grate
Place the cast iron
cooking grate (part 15) into
the rebox.
Assembly
13

Innehållsförteckning
16
17
18
10 Install the warming rack
Insert warming rack (part 16) making sure that the tabs on the warming rack t into
the pre- drilled holes in the rebox (see illustration).
11 Install the drip tray and grease cup
Insert the drip tray (part 18) into the drip tray brackets from the back of the grill.
Insert the grease cup (part 17) into the brackets on drip tray (see illustration).
Florida 3
Assembly
14

M6 x16 skruv, 1 st.
M6 låsbricka, 1 st.
22
22
13
Attach the wheel covers (22) by inserting the
tabs on the cap into the holes on the wheel.
12 Install matchstick
holder assy. and
ignitor battery
Install M6X16 screw and M6 lock washer
at the 2/3 position of back left leg of cart.
Do not tighten screw. Hang the single loop
end of matchstick holder (part 19) onto the
screw. You may also hang the top loop on
the other end of the matchstick holder over
the same screw (see illustration below).
This is a safety feature for use when
lighting with a standard match. Please use
with caution.
Locate ignitor button on front panel of
grill. Unscrew the ignitor button. Place
an AA battery inside the ignitor negative
end rst. Make sure the spring is located
inside the rubber boot of the ignitor button.
Screw ignitor button back into place (see
illustration).
Note: AA battery is not provided by
manufacturer.
Assembly
M6 x16 screw, 1 pcs.
M6 lock washer, 1 pcs.
D
18
Attach the wheel covers
15

Innehållsförteckning
Florida 3
Connecting Gas
Gas hose
Regulator
ALWAYS perform a leak test before
using the barbecue!
1. Thread the hose all the way into the gas nipple.
2. Place the hose clamp 0.5 - 1 cm from the end of
the hose.
3. Use a socket wrench (size 7), wrench (size 7)
or screwdriver to tighten the hose clamp and
tighten well.
4. IMPORTANT! A gas leak test must be performed as
described on page 17 before using the barbecue.
•Connect the gas hose to the gas inlet on the grill. Tighten well.
•Install the regulator and hose. Follow the installation instructions that
came with the controller set.
•Do not use sealing tape, glue or liquid on the connection.
•Gas hoses used for this product must not be longer than 120 cm.
•Check the gas hose regularly for cracks, damage and rot. Never use a
damaged gas hose.
•Check that all controls on the control panel are in the OFF position
before connecting the regulator to the gas cylinder.
•Connect the regulator to the gas cylinder according to your regulator
and the bottle dealer’s instructions.
•We recommend propane gas for use in the Nordic countries, but butane
can also be used. Butane is poorly suited for low temperatures.
•Check that the regulator is not damaged.
•Check that the gas container is on a rm, level surface and is lower than
the gas inlet on the grill.
•Use an approved gas cylinder that ts the regulator.
Bottles of 10 kg or more are recommended.
16

Leak Testing
Leak testing step by step:
!WARNING!
NEVER USE AN OPEN
FLAME TO PERFORM
A GAS LEAK TEST
1. Extinguish all live ames, heat sources and cigarettes in the area
where the leak test is to be performed..
2. Turn all controls on the grill to the OFF position.
3. Set the regulator to the OFF position and connect it to the gas tank.
4. Spray the leaking spray (or brush the soap mixture) on all joints
and connections on the gas container, regulator, the entire hose
and all valves on the barbecue.
5. Open the gas supply on the regulator and carefully check for bubbles
in any of the places where the spray/mixture is applied.
6. IF BUBBLES OCCUR, CLOSE THE GAS SUPPLY AND TIGHTEN ALL
CONNECTIONS / JOINTS. THEN DO A NEW TEST. THE BARBECUE MUST NOT
BE USED UNTIL YOU ARE SURE THERE ARE NO LEAKS. GAS LEAK CAN CAUSE
UNCONTROLLED FIRE WHICH MAY INJURY PERSONS, FIXED INSTALLATIONS
AND YOUR BARBECUE.
7. If detected leakage cannot be rectied, do not attempt to cure leakage but
consult your dealer or Nordic Season support at [email protected] for
help in solving the problem.
BEFORE USING THE BARBECUE,
A LEAK TEST MUST BE CARRIED OUT!
●Leak test MUST be done regularly and every time the gas container, regulator
or hose is replaced.
●ALSO TEST BEFORE NEW
BARBECUE SEASON AND IF THE
BARBECUE HAS NOT BEEN USED
FOR A WHILE.
Never check for leaks by using an open ame, use a leak spray or
alternatively a soapy water mixture (two parts dishwashing soap and
one part water).
17

Innehållsförteckning
Florida 3
TURNING OFF THE GRILL
Switch o the gas supply at the bottle,
then turn all control valves to the
“O” position.
Wait until the barbecue is suciently cool
before closing the hood.
Lighting instructions
MANUAL LIGHTING
If the barbecue will not light
using the ignitor button, use the
following procedure for manual
lighting.
 Follow step 1-3
(Lighting instruction).
 Use a match holder with a
match or a replace lighter.Hold
the ame next to the ignition hole
on the left or right side of the
rebox where the valve is opened.
Turn the control knob to the
MAX posiktion and make sure the
burner lights and stays lighted.
 Ignite the remaining burners by
turning the control to full power.
Light one burner at a time.
 Follow step 7
NEVER DOUSE THE
GRILL WITH WATER
WHEN THE SURFACES
ARE HOT.
IF THE GRILL WILL NOT LIGHT USING
NORMAL OR MANUAL LIGHTING,
REFER TO THE TIPS SECTION IN THE
TROUBLESHOOTING MANUAL, OR
CONTACT YOUR DEALER. !Flames should be blue
and stable. If the ames are
large and yellow, aring or
’broken’, check the
troubleshooting manual.
NB! Make sure to insert an AA-battery (not included)
in the ignitor.
1
ALWAYS KEEP LID OPEN WHEN LIGTHING THE
GRILL
2
Check that all controls are in the ”OFF” position.
3
Open the gas supply valve on the regulator.
4Push and hold the ignitor button, at the same time push and turn any control knob slowly
to ”MAX” position. Press the ignitor button until
the grill is lit. If the burner do not to light within
5 seconds, shut down the gas supply and wait 5
minutes, then, repeat the procedure.
5
If the burner will not ignite after repeatedly
attempts, use a match and do a manual ignition.
6
When the rst burner is lit, ignite the next
burner. Ignite one burner at a time in the same
way as step 4. Make sure one burner is lit before
igniting another.
7
Always preheat the grill on max temperature for
10-15 minutes (lid must be closed) before placing
food on the cooking grid.
18

Before using the grill
 Ensure that the grill is placed at least 150cm in all
directions from house walls, trees, plants and other
ammable materials or liquids when in use.
 Do not place the grill under a roof or overhang.
Make sure that the barbecue is placed in a well-
ventilated place to avoid carbon monoxide poisoning.
 The barbecue must not be used below normal
ground level, as this can lead to an explosion hazard
and a risk of lack of oxygen.
PLACEMENT OF THE BBQ
FINAL CHECK
 Check that all control knobs work normally.
Check that the gas hose is free of cracks and
damage (it should always be done before using the
BBQ).
 Check that the gas bottle and hose do not come
into contact with hot objects..
GOOD ADVICE
 KEEP THE BBQ CLEAN. A clean barbecue gives
better eect, less smoke, less irregular ames and
reduces the risk of fat burning.
 PREHEAT THE GRILL for 10-15 minutes at maximum
temperature. After preheating, adjust the controls
according to the type of grilling and the desired
grilling result. Using too much heat can result in
burnt and overcooked food..
19

Innehållsförteckning
Florida 3

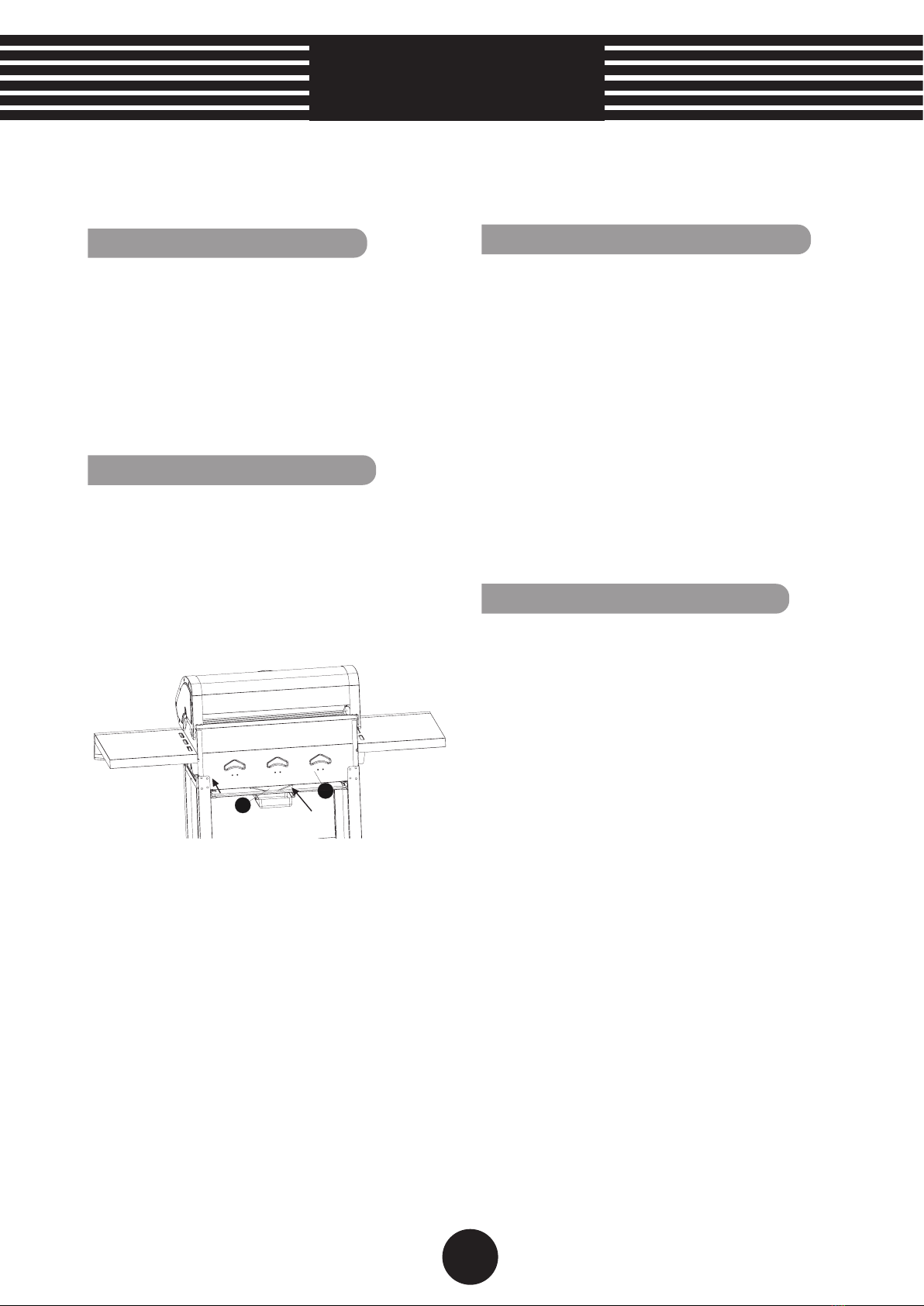

Maintenance
IF A GREASE FIRE OCCUR
In case of grease re, if possible close the gas
supply on the regulator / barbecue and disconnect
the regulator. In the event of a minor grease re,
wait until the re goes out on its own. In the event
of a major grease re, use a suitable extinguishing
agent (CO2 appliance, re blanket, etc.) and try
to suocate the re. NB! NEVER USE WATER TO
EXTINGUISH A GREASE FIRE.
HOW TO AVOID GREASE FIRE
Check the drip tray (17) and the grease cup (18)
after each grilling and clean regularly with a nylon
brush and dishwashing detergent. How often it will
be necessary to clean will depend on how much
and type of food is grilled. To simplify cleaning we
recommend adding cat litter and/or aluminum foil
on the drip tray.
Clean the grill grate after grilling with a grill brush
and, if necessary, with soap and water.
Clean ame tamers after grilling with a grill brush
and, if necessary, with soap and water.
In case of visible accumulation of grease and food
residue in the rebox, remove these with a plastic
scraper or using a nylon brush, water and dish
soap.
During preheating, check that there are no signs of
irregular ames.
When grilling foods with much fat or oil, pay extra
attention. Feel free to use trays in aluminum foil
to prevent large amounts from running down on
ame tamers and on the grease tray.
Do not leave the barbecue when it is lit and close
the gas supply as soon as possible if there is a sign
of a grease re.
MAINTENANCE OF THE BARBECUE
●Check regularly that the burners are burning
correctly.
●Remove the grill grate and ame tamers.
●Light the barbecue in the normal way.
●Turn the control from low to high. Check if
there is a dierence in strength, and that the
ame is clear and blue. The ame should not
be orange. If the burner behaves abnormally,
read the troubleshooting table.
●Remove grease and old food debris on the
burners with a nylon brush and check that no
holes in the burner are clogged.
MAINTENANCE OF THE BURNERS
1. All controls must be in OFF mode. Check
that the gas supply is switched o and the
regulator is disconnected from the gas
container.
2. Remove the cooking grate, ame tamers
and drip tray.
3. Remove the screws on the burner, use a
screwdriver.
4. Carefully lift the burners out of the valve
outlet.
5. Use a nylon brush to clean the outside of
the burner.
6. Clean blocked passages / channels by using
a metal string or e.g. bending a paper clip.
7. Check that insects, cobwebs etc. do not
block the inside of the burner. In that case,
remove this.
8. Check if the burner is damaged. Small holes
and corrosion can occur with normal use of
the grill. Are there cracks or holes,
9. the burner should be replaced with a new
one.
10. After cleaning, place the burner in place
and screw it on.
11. Replace ame tamers, grease trays and grill
grate.
17
18
KEEP THE FIREBOX, FLAME TAMERS, COOKING GRATE
AND ACCESSORIES CLEAN TO AVOID GREASE FIRES.
20
