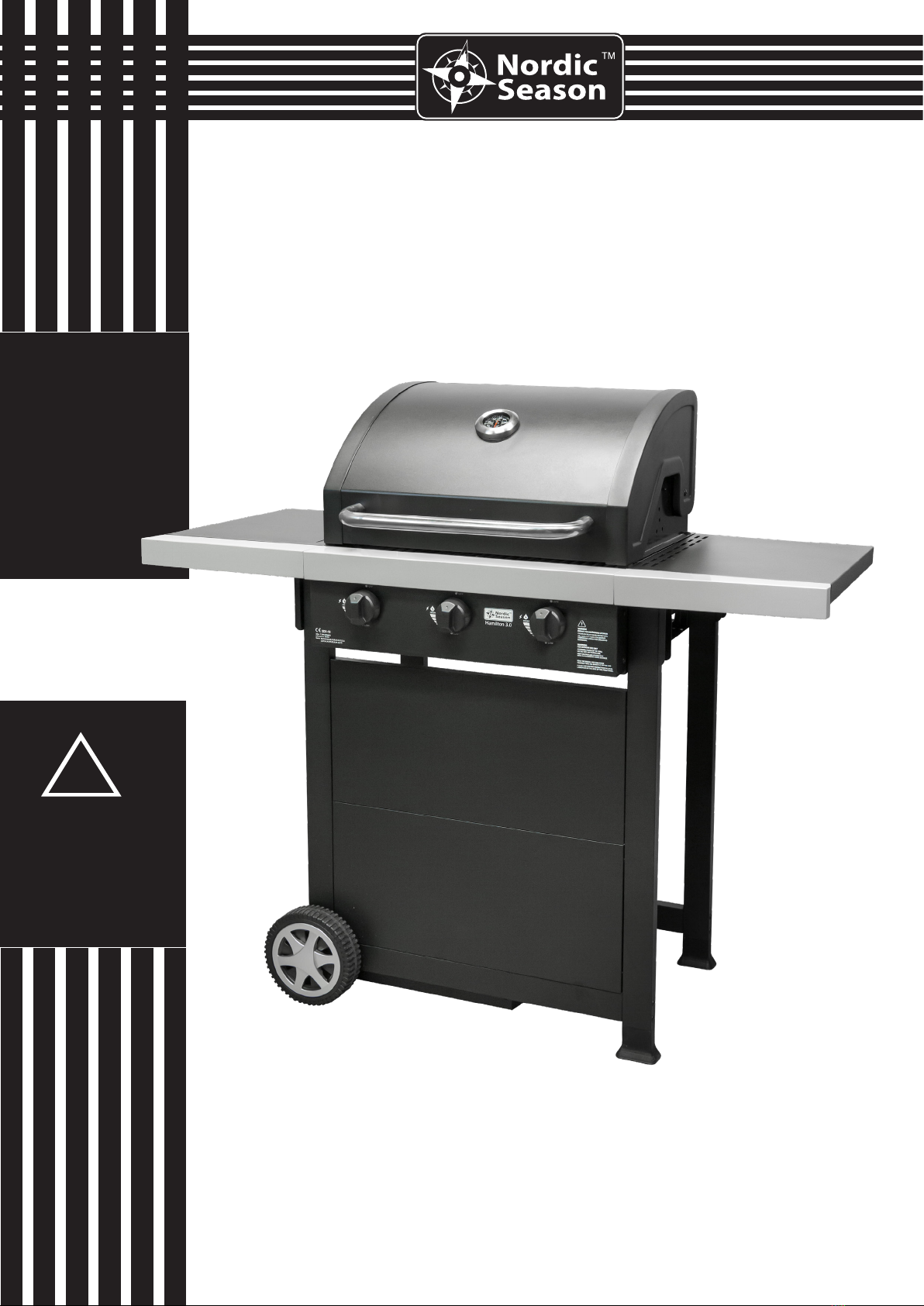

NORDIC SEASON Hamilton 3.0 Instruction Manual

Hamilton
!
GG202030
3 BURNER
GAS BBQ
READ THE
OPERATING
INSTRUCTIONS
BEFORE USING THE
APPLIANCE.
FOR OUTDOOR USE
ONLY.
OUTDOOR USE ONLY!
EN
INSTRUCTION AND USER MANUAL

Innehållsförteckning
Hamilton 3.0
Warnings ........................................................................................3
Technical data..................................................................................4
Gas category ...................................................................................4
Exploded drawing.............................................................................5
Parts list ...........................................................................................6
Hardware ........................................................................................7
Assembly instructions ......................................................................8
Gas leak test .................................................................................16
Connecting gas ..............................................................................17
Before using the grill ......................................................................18
Grilling tips......................................................................................19
Lighting instructions .......................................................................20
Warnings .......................................................................................21
Maintenance...................................................................................22
Troubleshooting .............................................................................23
Consumer Contact .........................................................................24
Contents
2

WARNINGS
!
!Failure to follow the instructions provided can imply a risk of
serious injury to personnel and xed installations.
!Some grill parts can be sharp, we recommend wearing gloves when
assembling and lifting. Sharp edges can cause injury.
! The grill is intended for outdoor use only in well-ventilated areas.
Never grill in enclosed spaces or under a roof, due to the danger of the
lack of oxygen.
! Accessible parts of the grill become very hot during use.
Keep children and others who need supervision at a safe distance.
! Do not move the grill while in use or connected to the gas bottle.
Shut o the gas on the regulator after use and disconnect from the gas
bottle.
! Modication of the grill can cause danger and will invalidate
the warranty.
! Never keep the gas bottle under the grill when in use. Gas leaks can
cause serious damage. Place the gas bottle by the side of the grill during
use.
! Do not place the grill cover or other ammable material in the
compartment under the grill when it is in use or hot.
! Do not use lava stones, charcoal or briquettes.
! Clean the grill regularly and thoroughly.
3

Innehållsförteckning
Hamilton 3.0
W: 111 cm
READTHEMANUAL AND FAMILIARIZE
YOURSELFWITH THE BARBECUE BEFORE USE.
PLEASEFINDLIGHTING INSTRUCTIONS IN LOCAL
LANGUAGESONTHE BACK OF THE FRONT PANEL.
2531-19
Q
n
=7.2kW(525g/hr)
LPGMixtures: 30mbar
I
3B/P(30)
BG,CY,CZ,DK,EE,FI,HR,HU,IS,IT,LT,LU,
LV,MT,NL,NO,RO,SE,SI,SKandTR
OFFOFF
LOW
HIGH
OFFOFF
LOW
HIGH
OFFOFF
LOW
HIGH VARNING
ENDASTFORANVÄNDNINGUTOMHUS
ÅTKOMLIGADELARKAN BLI MYCKET HETA.
HÅLLBARNOCH ANDRA SOM BEHÖVER
ÖVERVAKNINGUNDANFRÅN GRILLEN VID
ANVÄNDNING.
WARNING
FOROUTDOORUSEONLY
ACCESSIBLEPARTSOF THE GRILL
MAYBEVERY HOT DURING USE.
KEEPCHILDRENAND OTHERS WHO
NEEDSUPERVISIONAT A SAFE DISTANCE.
H: 118 cm
D: 56 cm
Total e󰀨ect: 7.2 kW
Gas consumption: 525 g/h
Hose and regulator (not included):
Must be approved according to
EN standard.
Gas bottle (not included): Use standard bottle
approved for use in the Nordic Region, 10/11 kg
recommended. Even though butane and propane
gas can be used, we recommend propane for
use in the Nordic Region. Approved hoses and
regulators are available from most outlets selling
gas equipment.
NB!
Gas hoses used for this product must not
exceed 120 cm in length.
Technical Data
Gas information 2531-19
This product is produced according to EUROPEAN GAS APPLIANCE
STANDARD EN498 AND EN484 and is CE certied.
DESTINATION OF
COUNTRIES VALVE SIZE GAS TYPE GAS CATEGORY
BE, CH, CY, CZ, ES,
FR, GB, GR, IE, IT,
LT, LU, LV, PT, SI
and SK
Grill burner:
0.78 mm
Butane (28~30) mbar
Propane 37 mbar I3+(28-30/37)
BG, CY, CZ, DK,
EE, FI, HU, IS, IT,
LT, LU, LV, MT, NL,
NO, RO, SE, SI, SK
and TR
Grill burner:
0.78 mm
G30(butane),G31(propa-
ne) and mixture of these,
LPG 28~30 mbar
I3B/P(30)
AT, DE, CH, LU and
SK
Grill burner:
0.68mm
G30 (butane),
G31(propane)
and mixture of these,
LPG 50mbar
I3B/P(50)
4

Exploded Drawing
5

Innehållsförteckning
Hamilton 3.0
Parts List
Code Part QTY
01 Hood Assembly 1
02 Thermometer 1
03 Hood Handle 1
04 Warming Rack 1
05 Cooking Grid 2
06 Left Side Table 1
07 Side Table Left Decoration Panel 1
08 Front Panel 2
09 Wheel 2
10 Wheel Cover 2
11 Rear Hood Panel 1
12 Rear Hood Left Side Panel 1
13 Rear Hood Right Side Panel 1
14 Firebox Assembly 2
15 Control Panel Top Panel 1
16 Control Panel 1
17 Manifold Assembly 1
18 Nozzle 1
19 Left Rear Leg 1
20 Left Front Leg 1
21 Beam 2
22 Flame Tamer 3
23 Cross Fire 2
24 Burner Assembly 3
25 Ignition 3
26 Grease Tray 1
27 Right Side Table 1
28 Side Table Left Decoration Panel 1
29 Cylinder Belt 1
30 Bottom Shelf 1
31 Right Rear Leg 1
32 Right Front Leg 1
33 Leg and Cap 2
34 Knob 3
When ordering spare parts, please use the code from parts list found here.
6

Hardware
16 pcs
M6x65 screw
The following screws and nuts are
supplied with the grill and must be tted.
A
B
C
E
D
18 pcs
M6x12 screw
2 pcs
2 pcs
M5x12 screw
2 pcs
7

Innehållsförteckning
Hamilton 3.0
Assembly

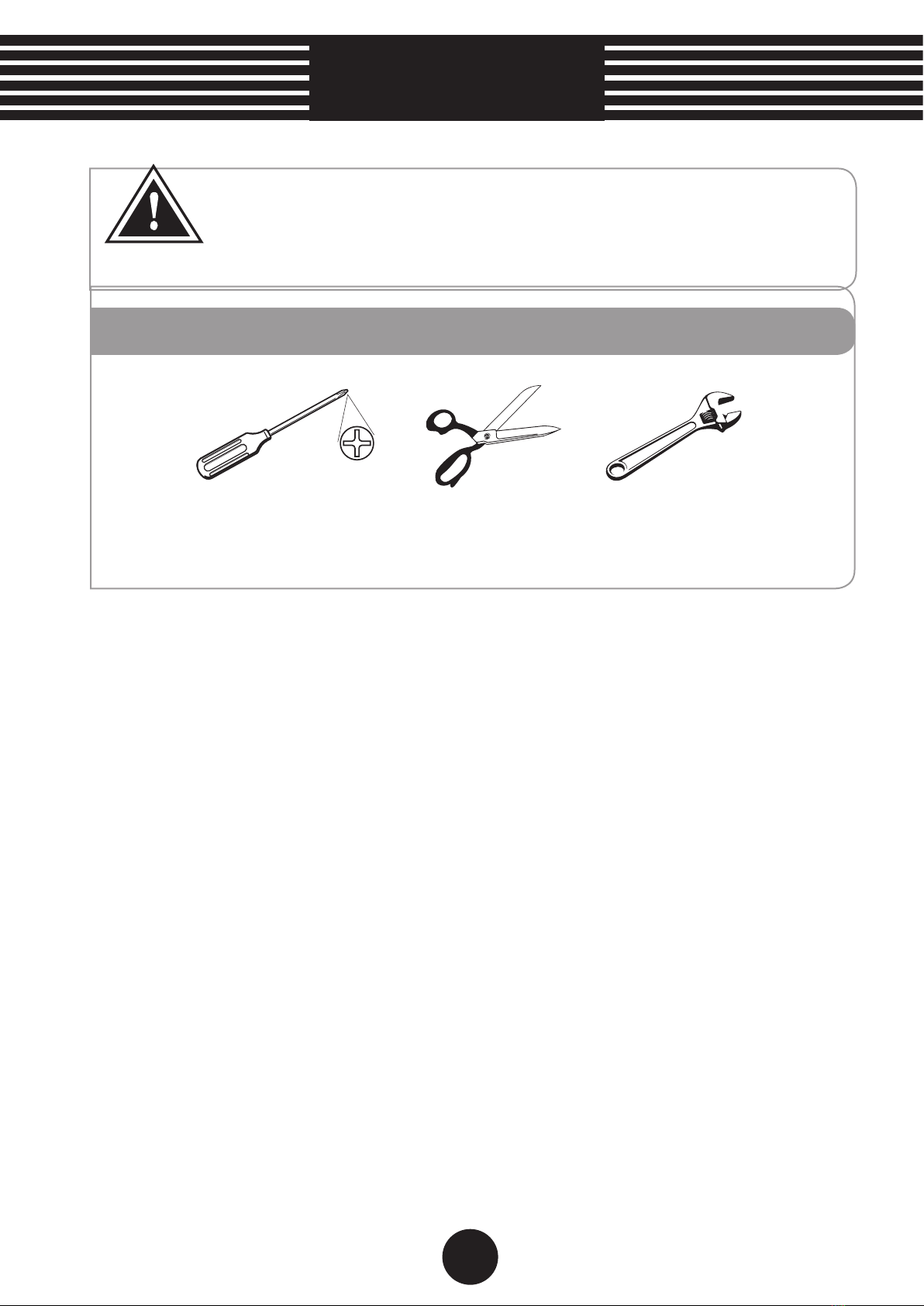

Tools Required for Assembly (not included);
WARNING!
Exercise caution when using electric tools –
their strength can damage the screws.
Please follow these instructions step by step.
We recommend two people to assemble the
grill to avoid heavy lifting.
PREPARATION
1. Before beginning assembly of product, make sure all parts are present.
Compare parts with package contents list and diagram above. If any
part is missing or damaged, do not attempt to assemble the product.
Contact your dealers customer service for replacement parts.
2. To have a simplify packaging, the fat tray is turned around and placed
underneath of rebox, please take out the fat tray when you take out the
rebox and install the fat tray with correct way as step 7.
8

Assembly
Plug the leg end cap into right front and rear legs before attach to rebox.
Attach the 4 legs to rebox with 8pcs of screw A.
Attach the beam to 4 legs with 8pcs of screw A.
M6 x 65, 16 pcs
A
1
A
A
A
A
A
A
9

Innehållsförteckning
Hamilton 3.0
E
E
D
D
E
D
2 pcs
2 pcs
Assembly

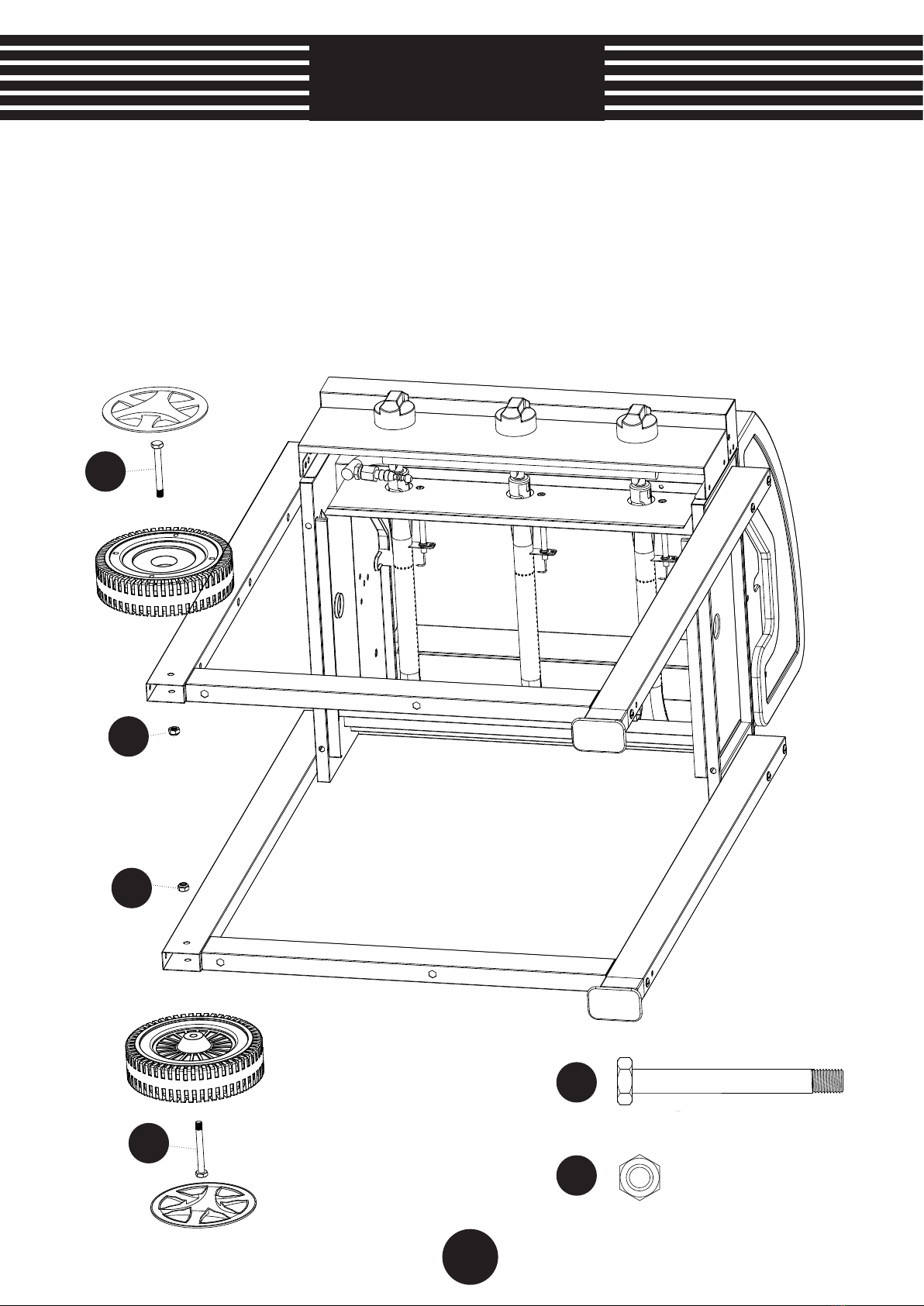

Attach the wheels to legs with 2pcs of axle D and 2pcs of lock
nut E as shown below, then put on the wheel cover.
2
10

B
M6 x 12 screw, 4 pcs
B
B
B
B
Assembly
Attach the bottom shelf to beam with 4pcs of screw B
3
11

Innehållsförteckning
Hamilton 3.0
B
B
M6 x 12 screw, 8 pcs
Assembly

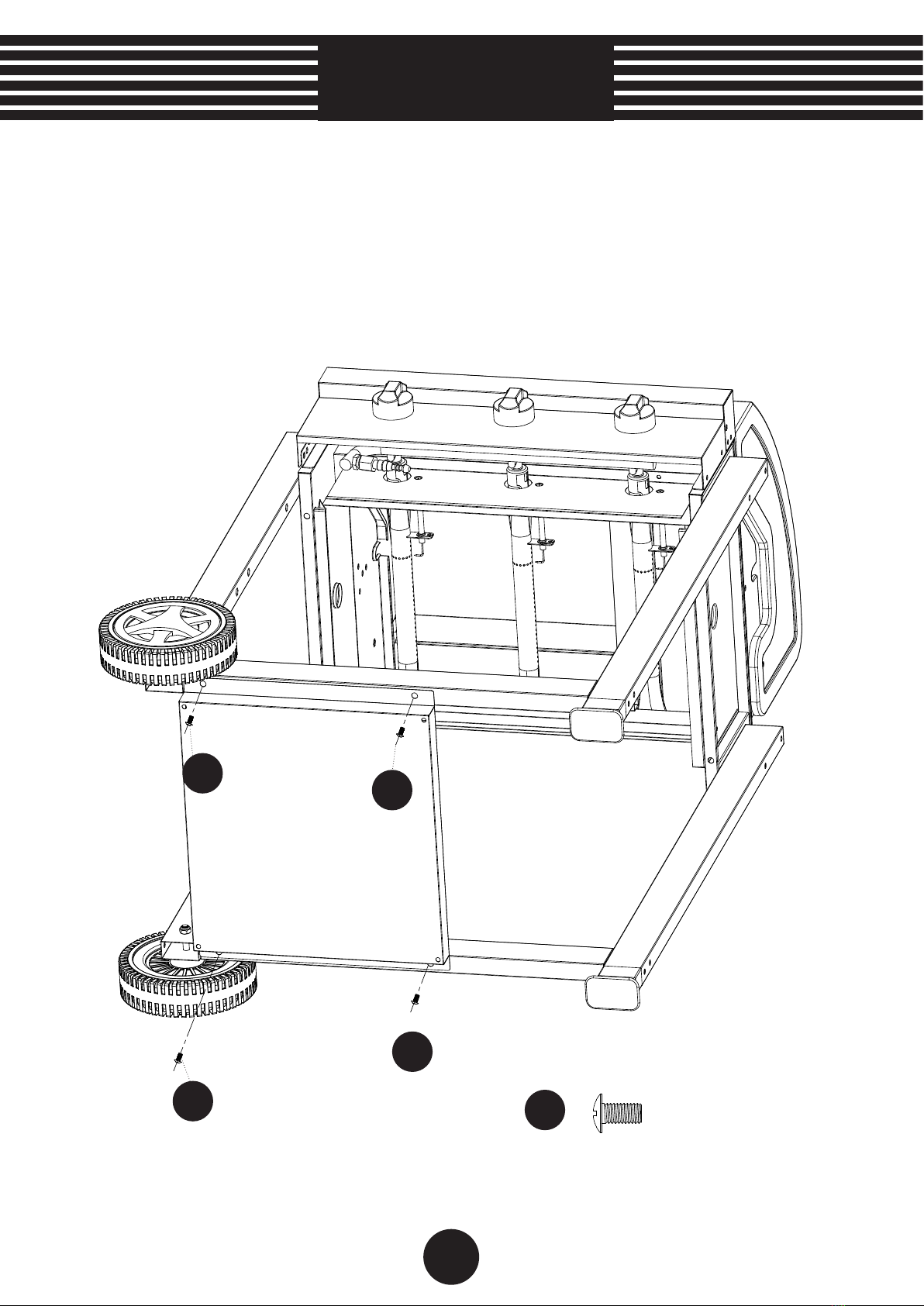

Attach the front panels to front legs with 8pcs of screw B
4
12

Assembly

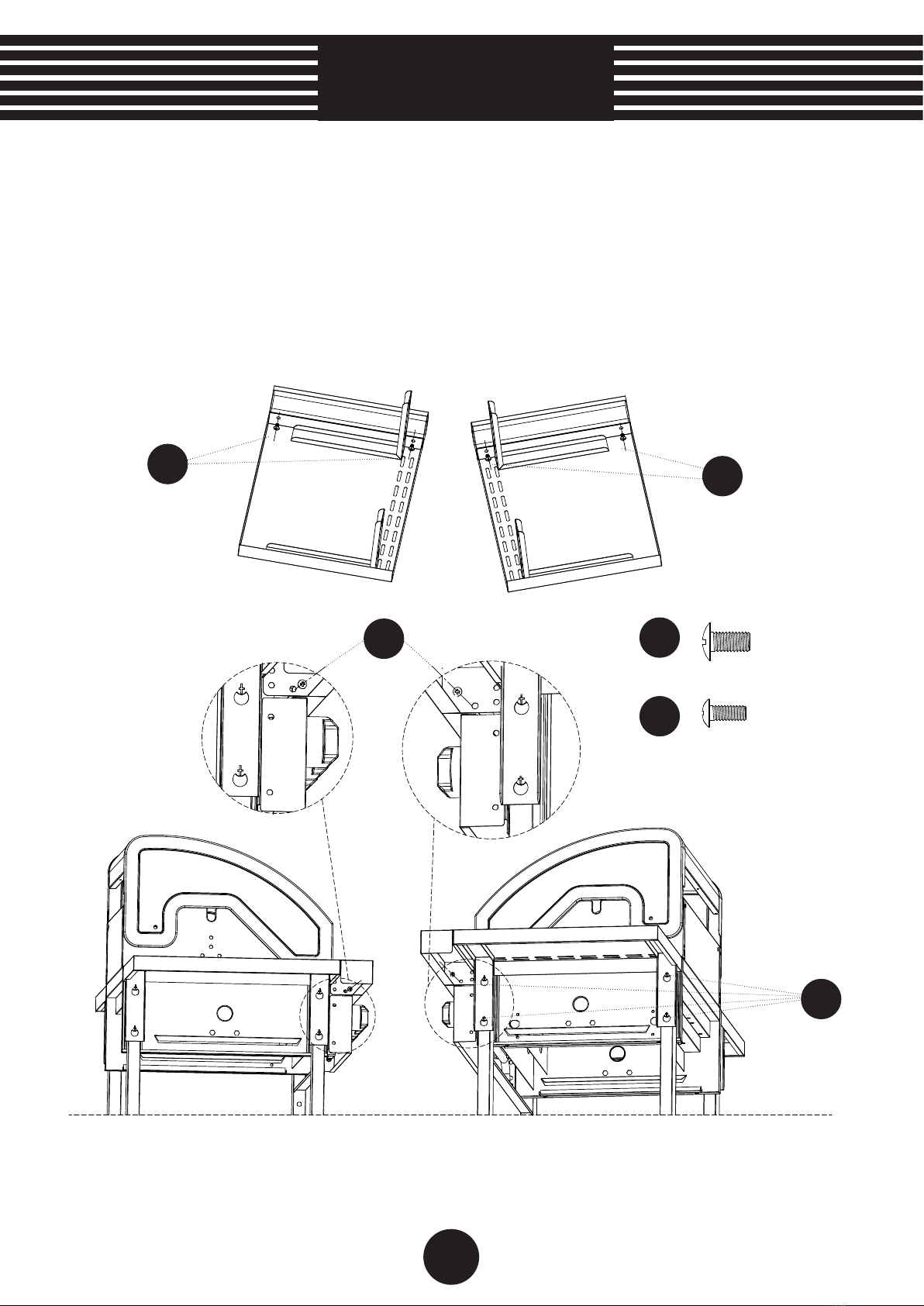

Attach the side table decoration panel to side table with 2 pcs of screw B
for each side.
Loosen the screws A between legs and rebox about 5mm, then hook on
the side tables right in place, and tighten again the screw A.
Fix the side table decoration panel to control panel with 1pc of screw C
on each side.
5
A
B
B
CB
C
M6x12 screw, 4 pcs
M5x12 screw, 2pcs
13

Innehållsförteckning
Hamilton 3.0
Assembly
Attach the hood handle to hood assembly with 2pcs of screw B.
Open the lid and put four ame tamers into the grill housing. Place cooking
grid and warming rack in the grill housing as shown below.
Ensure the grids are installed above the ame tamers.
6
B
M6x12 screw, 2 pcs
B
14

ASSEMBLY IS NOW COMPLETE.
ALL JOINTS AND CONNECTIONS MUST BE LEAK TESTED BEFORE USING THE GRILL.
READ CAREFULLY LEAK TESTING ON PAGE 16.
Assembly

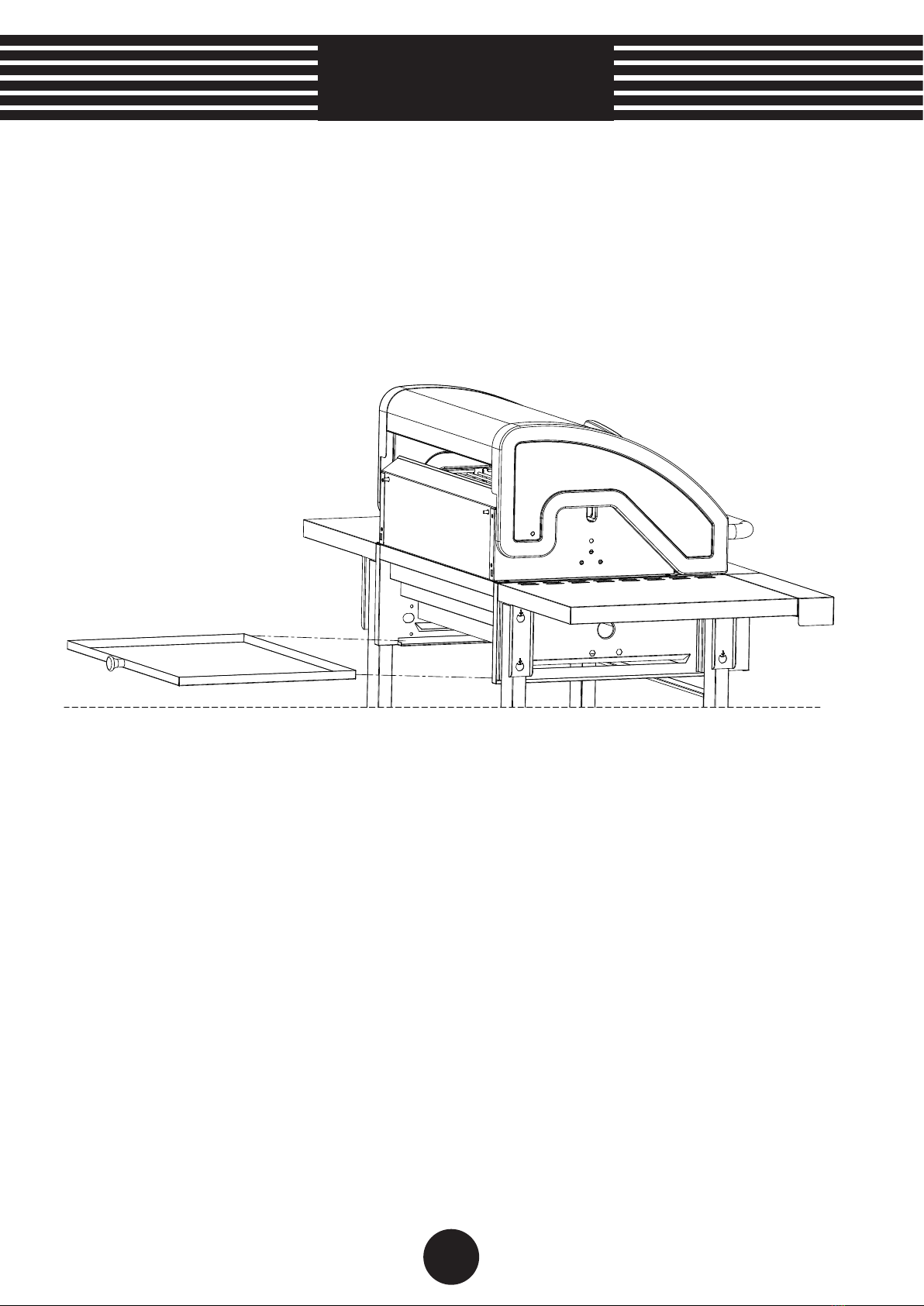

Attach the grease tray to rebox
7
15

Innehållsförteckning
Hamilton 3.0
Leak Testing
ALL JOINTS AND CONNECTIONS MUST NOW BE
LEAK TESTED BEFORE USING THE GRILL.
Leak test annually, and whenever the gas bottle is removed or replaced.
Always perform a leak test in a well-ventilated area.
!
8
If there are still gas leaks after repeated attempts, contact your dealer.
7
IF BUBBLES APPEAR, SWITCH OFF THE GAS SUPPLY AND REPAIR THE
PROBLEM. PERFORM A NEW LEAK TEST. DO NOT USE THE GRILL BEFORE YOU
ARE SURE THAT THERE ARE NO LEAKS.
6Open the gas tap on the regulator and carefully check for bubbles appearing anywherethe liquid has been applied.
1Make a mixed solution (½ water and ½ liquid detergent / soap).
2
Ensure that there are no naked ames,
heat sources and cigarettes in the vicinity
when performing a leak test.
3
Check that all controls on the grill are in
the ”OFF” position.
4
Set the regulator to the ”OFF” position and connect it
to the gas bottle.
5Apply the liquid to all joints and connections on the gas bottle, regulator, the entire hose and all valves on the grill.
!WARNING!
NEVER USE AN OPEN
FLAME TO PERFORM
A GAS LEAK TEST
16

Connecting Gas
ALWAYS perform a gas leak test before using the grill.
Connect the gas hose to the gas
rail inlet on the left hand side of the
barbecue. Do not overtighten.
Do not use any sealing tape, paste
or liquid on the connection.
Connect the regulator to the gas
bottle according to your regulator
and bottle dealer’s instructions.
Gas hoses used for this product
must not exceed 120 cm in length
 Conrm all barbecue control knobs
are in the OFF position.
 We recommend propane gas for use
in the Nordic Region, but butane can
also be used.Butane is not suitable
for low temperatures.
 Fit the regulator and the hose.
Follow the assembly instructions
supplied with the regulator set.
Check the gas hose regularly
for cracks and decay. Never
use a damaged gas hose.
Check that the movable
plastic collar on the regulator
is intact and that it has not
been damaged by hot grill
parts.
Check that the gas bottle
stands on a rm, at surface
and is lower than the
connector.
Use an approved gas
bottle that ts the regulator
supplied. Bottles of 10/11 kg
or above are recommended.
 I3B/P(30): G30(Butane), G31(propane)
and mixture of these, LPG 28-30 mbar
The following gas types can be used
Hose Gas bottle
Regulator
WARNING
!Never store the gas bottle
under the grill when in use. If the
gas bottle is being stored under the
grill when not in use, disconnect
the regulator.
!Never move the grill while
it is in use, or connected
to the gas bottle.
17

Innehållsförteckning
Hamilton 3.0
Before using the grill
Ensure that the grill is placed at least 150cm in all directions
from house walls, trees, plants and
other flammable materials or liquids
when in use.
Do not place the grill under a roof or overhang.
Ensure the grill is placed where there is plenty of ventilation.
 Do not grill below normal ground level.
Always lock the wheels, whenever using the grill.
LOCATION
FINAL CHECK
 Check that all control knobs work normally.
Check that the gas hose is free of cracks and damage (it should
always be done before using the
grill).
Check that the gas bottle and hose do not come into contact
with hot objects.
18

Grilling tips
A CLEAN GRILL WORKS BETTER, causes less
smoke and prevents fat catching re. Burn o󰀨 the grill
after use by opening the lid and burning all the burners
at full power for 10 minutes. Allow the grill to cool, and
then brush o󰀨 ash from ame tamers and grates.
BRUSH THE GRATES WITH AN OIL that tolerate
high temperatures. This prevents food from burning
onto the grates.
PREHEAT THE GRILL for around 10 minutes at full
power before placing food on the grates. This gives a
better result, and cuts grilling time.
DO NOT GRILL FROZEN FOOD. The cold will
extend grilling time and give a poorer result.
DIVIDE THE GRILL INTO HOT AND COLD
ZONES. When the food is half-ready, move it to the
coldzone to nish grilling. This gives a better result
and cooks the food through without it being burnt.
ASSESS COOKING TIME FOR EACH PRODUCT
to be grilled and put them on the grill in the order
which will mean they are ready at the same time.
BRUSH THE FOOD REGULARLY WHILE
GRILLING with oil or other marinade. It makes the
food stays juicy for longer.
DO NOT OPEN THE LID IF NOT NECESSARY.
When the lid is opened, a lot of the heat escapes.
WARNING!
THIS GRILL IS NOT DESIGNED TO BE USED WITH
MORE THAN 50% OF THE COOKING AREA AS
A SOLID PLATE — THIS INCLUDES BAKING DISHES.
 FULL COVERAGE WILL CAUSE EXCESSIVE
BUILD-UP OF HEAT AND DAMAGE THE BARBECUE.
THIS IS NOT COVERED BY WARRANTY.
19

Innehållsförteckning
Hamilton 3.0
TURNING OFF THE GRILL
Switch o the gas supply at the bottle,
then turn all control valves to the
“O” position.
Wait until the barbecue is suciently cool
before closing the hood.
Lighting instructions
MANUEL IGNITION
If the grill will not light using the
ignitor button, use the following
procedure for manual lighting.
Use a long match or lighter.
1. Always keep lid open during
lighting.
2. Place a match between the
coils on the end of the lighting
rod, light the match and insert it
into the hole of rebox to ignite.
3. Push and turn the knob to
“MAX” position, and make sure
the burner lights and stays
lighted.
4.When the burner is alight,
adjacent burners will cross light
when their controls are turned
to “HIGHRepeat 3~4 to light
other burners.
NEVER DOUSE THE
GRILL WITH WATER
WHEN THE SURFACES
ARE HOT.
IF THE GRILL WILL NOT LIGHT USING
NORMAL OR MANUAL LIGHTING,
REFER TO THE TIPS SECTION IN THE
TROUBLESHOOTING MANUAL, OR
CONTACT YOUR DEALER.
!Flames should be blue
and stable. If the ames are
large and yellow, aring or
’broken’, check the
troubleshooting manual.
1
ALWAYS KEEP LID OPEN WHEN LIGTHING THE GRILL
2
Check that all controls are in the ”OFF” position.
3
Open the gas supply valve on the regulator.
4To create a spark you must push the control knob in and hold in this position for 3-5 seconds
to allow gas ow and then turn anticlockwise to”
HIGH”. You will hear a “snap” from the igniter and
you will also see a 3”-5” orange ame coming from
the burner lighting tube at the left side of the burner.
Continue to hold the burner control knob in for two
seconds after the “snap”, this will allow gas to ow
completely down the burner tube and insure ignition.
5
When the rst burner is lit, ignite the next burner.
Ignite one burner at a time in the same way as
step 4. Make sure one burner is lit before igniting
another.
6
If the burner will not ignite after 5 seconds, turn
all controls to OFF, wait 5 minutes and repeat the
lighting procedure.
7
Always preheat the grill on max temperature for
10 minutes (lid must be closed) before placing
food on the cooking grid.
20
