Nordic 200 User manual

200
E-SCOOTER
5.5 Inch 36V 4.2Ah
User manual

Item
Description
Parameters
1
Folding size(cm)
1100mm*420mm*235mm
2
Unfolding size(cm)
970mm*420mm*1100mm
3
N.W/G.W
10kg/12KG
4
Material
Aluminum alloy
5
Max Loading
100kg
6
Max speed
20Km/h
7
Max mileage
>16 km
km
8
Max Climbing angle
≤15°
9
Working temperature
-10℃- 40℃
10
Brake
electric brakes (Front wheel)
ke on rear wheel defender
11
Wheels Size
5.5 inch Solid tire, 2 wheels
12
Battery Type
Lithium battery 36V, 4.4Ah
13
Working Voltage
110V-220V 50-60Hz
14
Charging time
2-3 hours
15
Motor Power
250W, Brushless Motor.

1. product & accessory
2. Experience
In order to learn the e-scooter, please choose open ground to learn it. Before riding, please
check the status to make safe riding. Touch the on button first to open the display, so you can
ride it. First, push the right accelerator smoothly, use the left handle break or the rear fender
to brake slowly (to be safe).
IMPORTANT NOTE:SAFETY FIRST
3. Charging
When you charge it the red light is on,when the battery is full,the green light is on,remove the
charger and cover the plug.
After charging please cover the usb plug
Charge it in place without he reach of kids
DO NOT use other charger to avoide the demage of battery & scooter
DO NOT disassemble the charger when the charger is fault
Charge it in the dry and ventilate house
When charge it, if you find strange smell or too hot, please stop charging.

4. Daily notes
Use it properly with protection device to make safety riding
Use wet cloth to clean, DO NOT use water pipe to wash it
When down the slope, please reduce the speeed in advance to be safe
DO NOT use it in heavy rain, snow, large puddle or other bad weather
DO NOT use chargers from other companies to avoide demage or accident
DO NOT modefy/disassemble the scooter
DO NOT use it inhibited area
DO NOT use it in situation not suitable for scooter to avoide danger
DO NOT use it on steps or off the ground
Users under 12 years should be accompanied when ride it
Pregnant woman, alcoholics, psychosis, heart disease or other people who have restricted capacity
for action are prohibited from riding it.lt is beyond our responsibility if you do not use it according to
the user regulations
5. Computer functions
6. Accembly and usage

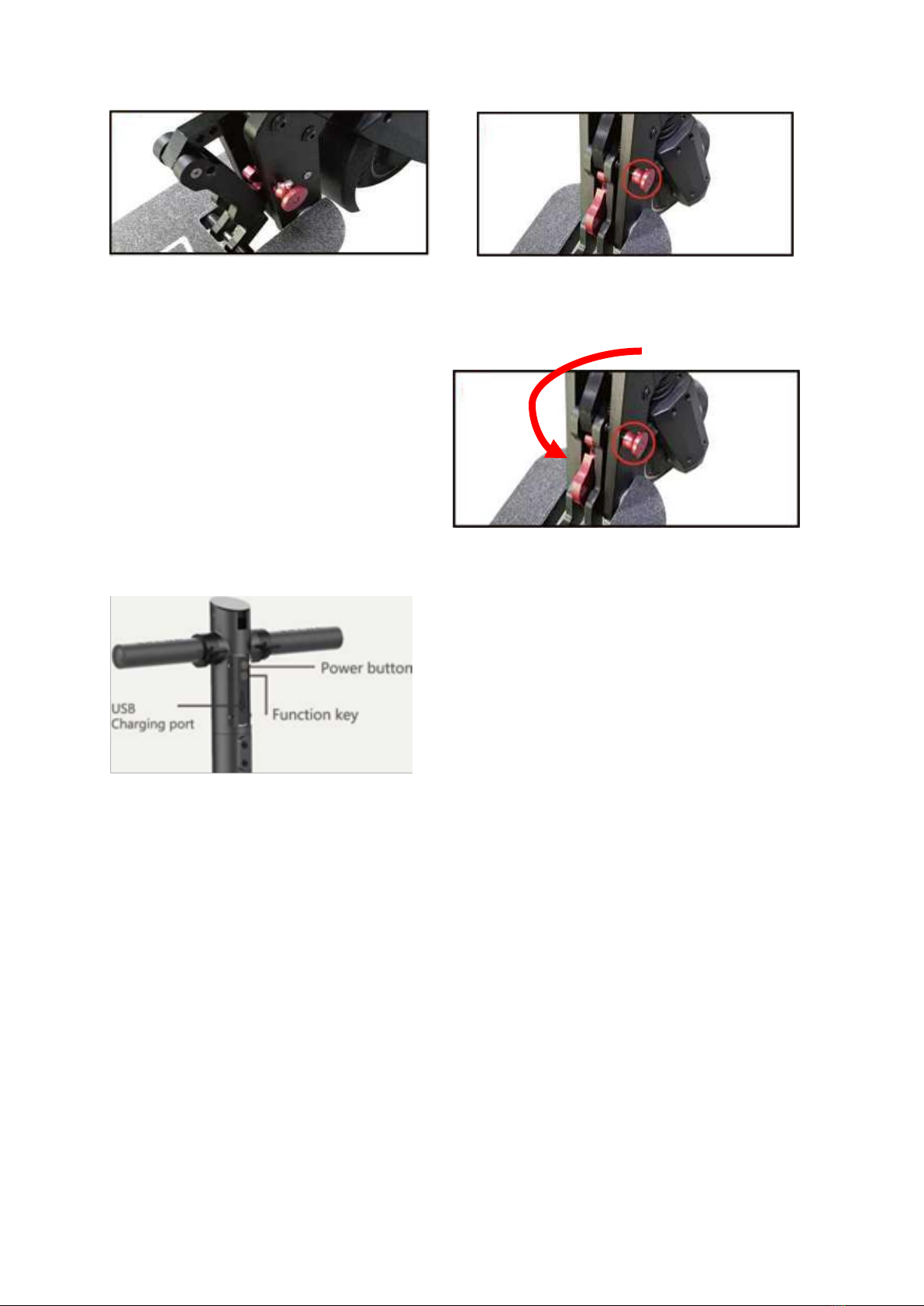

SAFE VALVE DESCRIPTION
Safe valve closed Open safe valve
Check that the scooter looks to be ok Be sure that the valve is open and press on the red handle.
Easiest way is to push rear wheel against the handlebar post to ease the pressure on the lock.
lighting
------Mileage
Electric quantity
Speed pr hour

Open the scooter until you feel it click in place Be sure that the valve is in place before usage
NB.. Before start using the scooter, please be sure the valve is closed and in place.
To unfold the scooter: Open the valve and use foot to press down the red safety pin
7. Function control
a. To turn on the scooter, press the power button for 5-7 seconds. The light in the computer
turns on.
b. To turn on front light, press once on the function key
c. To change max speed, press function key twice fast. On computer you will see a number
between 1 and 3. On 3 the max speed will be 20 km/h. Level 1 is around 10 km/h and level 2
is around 15 km/h. We recommend that beginners start on lover levels. For kids we
recommend that adults set the max speed with concern on age and skill level of user.
d. To turn off the scooter, press the power button for 5-7 seconds. The light in the computer
turns on.

8. Brake explanation
There are two ways to break on the scooter.
a. Step on rear fender to reduce speed.
b. Use electric break on left handlebar.
NB!! It is important that you know how the break works and how you manage to reduce
speed. Please test this in safe area before start using this in public area
9. Safety instructions
➢Rider should wear helmet and protective equipment when riding.
➢You should not drive on motor roads and crowded places. And you should not carry kids or
other people with you when you are on the vehicle. You cannot ride on stairs and escalators.
Please keep speed as low as possible or stop when meeting road bumpers, elevator and pot
hole.
➢It is more than a sport entertainment item than a proper transportation vehicle. But when you
drive on public areas, it has vehicle attributes. So it has safety risks as any other vehicle. You
must drive according to user manual to be protected and to protect others’ safety
➢However, you should understand that: once driving into public roads or other public areas, you
might face the risk of penalty or punishment because of a motoring offense or an improper
operation of other people or vehicles, even if you operate as the manual says. Like all vehicles,
the faster you drive, the longer the braking safety distance is. Emergency braking on smooth
surfaces may make you lose balance. So you must stay alert drive with an appropriate speed
and keep adequate safety distance with other people and vehicles during driving. Please keep
low speed and stay alert when driving into unfamiliarplaces.
➢Please, respect the right of the way when driving. You must avoid scaring pedestrians,
especially kids. Remember to decelerate when passing behind pedestrians. You can ride on
the left side of pedestrians (applicable to countries where vehicles should keep right). When
facing a pedestrian, keep going straight and decelerate.
➢Driving in countries and regions without national standard and rules related with such scooters,
you must obey the user manual’s requirements . Stolen, human accidents, legal disputes and
every other adverse events caused by a behavior violating the manual’s instructions won’t be
taken in charge by our services
➢To avoid injuries, please do not lend your product to people who do not know how to use it. You
must teach them how to use the vehicle and tell them to wear helmet and protective gears when
driving.
➢Please check the vehicle before driving. If you find obvious abnormality like missing pieces,
battery life reducing excessively or too much noise, please stop using the product immediately
and contact our customer service to get a professional help about the product and the
maintenance.
➢No modifications other than to the manufacturer’ s instructions shall be made.
➢Stop driving when self-locking nuts and other self-locking fixings may lose their effectiveness.

➢You should always wear shoes. Make sure the steering system is correctly adjusted and that all
connection components are firmly secured and not broken. Please check the vehicle before
driving.
➢Only the adapter from manufacturer can be used for charging this vehicle.
➢It should not be ridden on rough and slippery ground to avoid falling off.
10. Daily maintenance - Storage and cleaning
If spots appear on the vehicle’s surface, wipe it with a soft wet cloth. If there are stubborn
spots, you can wipe it with a soft cloth and toothpaste. Then clean with a wet cloth.
Reminder: Don’t clean with alcohol, gas, kerosene or other corrosive and volatile chemical
solvents. It will badly damage the appearance and internal structure ofthe vehicle. Washing by
spray with water under pressure is forbidden. You must switch off the vehicle and unplug the
charging cable and clog charging rubber cover. Otherwise, you may get an electric shock or it may
seriously damage the vehicle because of flooding water.
Product must be stored in a dry, cool room when you don’t use it. Try to avoid letting it outside for
a long time. Outdoor environment with sunlight exposure, overheating, rain, etc. will accelerate
the ageing of appearance and wheels endreduce battery lifetime.
Battery maintenance
Please don’t use battery in environment with over 50 °C or under -20°C. For example, don’t let the
battery in your car with sun exposure. You must not put the battery into fire, it will damage it.
Please refer to the battery nameplate under the vehicle to know the other maintenance tips. Try to
charge the vehicle frequently it can extend battery life. Besides. Using at a normal temperature,
battery can have long endurance distance and good performance. If you use it under 0°C,
battery life and performance will be reduced. Under -20 °C, endurance distance may be reduced
compared with normal temperatures.
Reminder: Fully charged Scooter will run out of power after 90-120 days in standby
mode. The stored power will run out after 20-50 days in standby mode. If it is not fully
charged and if you don’t charge it in time, it may cause damages to the battery
capacity for excessive discharge and this damage cannot be recovered.So this scooter
should be charged periodically by month to make sure battery alive.
Warning:
Non-professionals should not disassemble batteries because it may cause safety issues by
electricshock.

IMPORTANT REGARDING SERVICE
If there are problems of any kind, we ask you to contact Mylna Service. Our
experienced consultants can help you with questions about our products, assembly,
spare parts and issues regarding faults or other problems.
We urge you to contact us before returning the product to the retailer so that
we can offer you the best help possible.
Visit our website www.mylnasport.com –here you will find useful information and
user manuals. On our website you will find our contact form, by filling out the form
you will supply us with the information we need to help you as effective as we can.
