CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. eep this manual
for future reference.
Serial Number Decal
(under frame)
Model No. NTCW90907.1
Serial No.
Write the serial number in the
space above for reference.
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if parts are damaged or missing,
PLEASE DO NOT CONTACT THE
STORE; please contact Customer
Care.
IMPORTANT: You must note the
product model number and serial
number (see the drawing above)
before contacting us:
CALL TOLL-FREE:
1-888-825-2588
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.nordictrackservice.com
USERʼS MANUAL
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
V

TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
HOWTOUSETHEELLIPTICALEXERCISER ..................................................13
MAINTENANCEANDTROUBLESHOOTING ...................................................20
EXERCISEGUIDELINES ...................................................................21
PARTLIST ..............................................................................24
EXPLODEDDRAWING ....................................................................25
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY ..............................................................BackCover
2
WARNING DECAL PLACEMENT
The warning decal shown here has been applied
in the location shown. If the decal is missing or
illegible, call the telephone number on the
front cover of this manual and request a free
replacement decal. Apply the decal in the
location shown. Note: The decal may not be
shown at actual size.
NordicTrack is a registered trademark of ICON IP, Inc.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. Your elliptical exerciser is intended for home
use only. Do not use your elliptical exerciser
in a commercial, rental, or institutional set-
ting.
4. eep your elliptical exerciser indoors, away
from moisture and dust. Place your elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around your elliptical exerciser to mount,
dismount, and use it.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. eep children under age 12 and pets away
from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used
by persons weighing more than 250 lbs.
(113 kg).
8. Wear appropriate exercise clothes while
exercising; do not wear loose clothes that
could become caught on your elliptical exer-
ciser. Always wear athletic shoes for foot
protection while exercising.
9. Hold the handgrip pulse sensor or the
handrails when mounting, dismounting, or
using your elliptical exerciser.
10. eep your back straight while using your
elliptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device.
Various factors, including the userʼs move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
14. Use your elliptical exerciser only as
described in this manual.

4
BEFORE YOU BEGIN
Thank you for selecting the new NordicTrack®A.C.T.
elliptical exerciser. The A.C.T. elliptical exerciser pro-
vides a wide array of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number and the location of the
serial number decal are shown on the front cover of
this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
Handrail Handlebar
Stride Adjustment Knob
Wheel
Pedal
Roller
Speaker
Water Bottle Holder*
Console
Fan
Leveling Foot
*No water bottle is included

5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M10 x 19mm Patch
Screw (61)–14
M8 x 45mm Button
Bolt (70)–4
M8 Nylon
Locknut (63)–4
23mm x 19mm
Wave Washer
(76)–4
M10 Split
Washer (79)–10
M8 Split
Washer (80)–8
M10 Washer
(64)–4
M6 x 13mm
Patch Screw
(78)–8
M8 x 13mm
Patch Screw
(62)–8
M4 x 30mm
Screw (74)–4
M4 x 16mm
Screw (67)–9
M8 x 25mm Flat
Patch Screw
(68)–6
M6 x 32mm Patch
Screw (96)–4
M4 x 16mm
Round Head
Screw (95)–4

6
1.
Remove the four screws and the four shipping
brackets attached to the Frame (1). Discard the
screws and the shipping brackets.
Then, tighten four Leveling Feet (52) into the
underside of the Frame (1).
2. Identify the Frame Cover (54) and orient it as
shown. Press the Frame Cover posts into the
indicated holes in the Frame (1).
Identify the Upright (2) and orient it as shown.
While a second person holds the Upright near
the Frame (1), connect the Upper Wire Harness
(81) to the Lower Wire Harness (82).
Tip: Avoiding pinching the Wire Harnesses
(81, 82) during this step. Insert the Upright (2)
into the Frame (1). Attach the Upright with four
M10 x 19mm Patch Screws (61) and four M10
Split Washers (79). Do not tighten the Patch
Screws yet.
1
2
52
1
1
Shipping Bracket
Screw
To make assembly easier, read the
information on page 5 before you begin
assembling the elliptical exerciser.
79
79
61
Holes
2
61
54
82
81
Avoid pinching
the wires during
this step

7
4
4. Apply a generous amount of the included
grease to the right axle on the Upright (2). Then,
apply a small amount of grease to a 23mm x
19mm Wave Washer (76). Slide the Wave
Washer onto the axle on the Upright.
Identify the Right Handlebar Leg (13), which is
marked with an “R” sticker, and orient it as
shown. Slide the Right Handlebar Leg onto the
axle on the Upright (2). Attach the Right
Handlebar Leg with an M10 x 19mm Patch
Screw (61) and an M10 Washer (64).
Attach the Left Handlebar Leg (12) in the
same way.
3. Identify the Left and Right Upright Covers (20,
21), which are marked with “L” and “R” stickers,
and orient them as shown.
Attach the Left and Right Upright Covers (20,
21) around the Upright (2) with four M4 x 30mm
Screws (74).
Insert the Clip (85) into the underside of the Left
and Right Upright Covers (20, 21).
3
85
21
2
74
13
12
64
61
76
2Grease
20
74

8

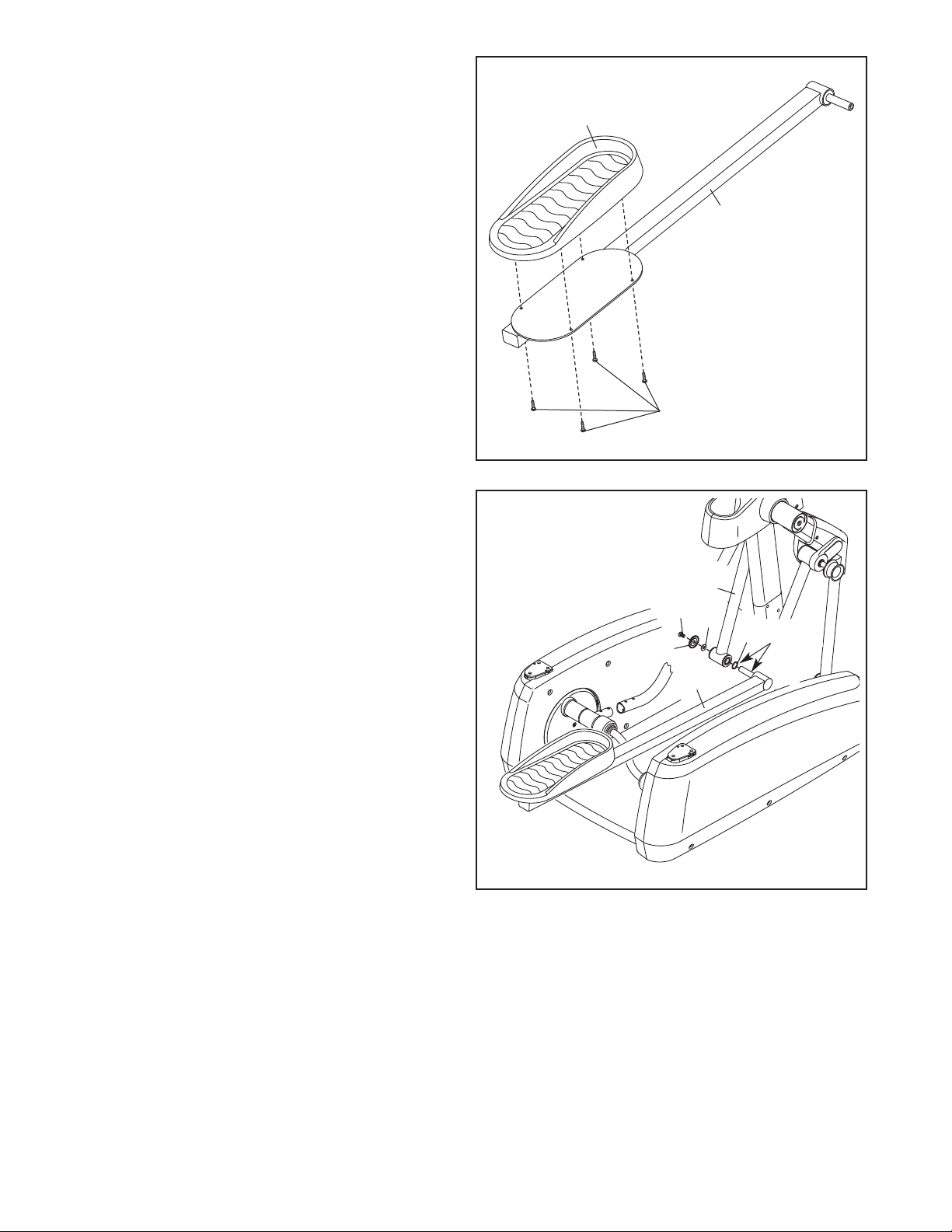

5. Identify the Right Pedal Arm (15), which is
marked with an “R” sticker. Attach a Pedal (9) to
the Right Pedal Arm with four M6 x 13mm
Patch Screws (78).
Attach the other Pedal to the Left Pedal Arm
(not shown) in the same way.
5
78
15
9
6. Identify the Left Pedal Arm (14), which is
marked with an “L” sticker, and orient it as
shown. Apply a small amount of grease to the
axle of the Left Pedal Arm and to a 23mm x
19mm Wave Washer (76).
Slide the 23mm x 19mm Wave Washer (76)
onto the Left Pedal Arm (14). Position the Left
Handlebar Leg (12) as shown. Then, insert the
Left Pedal Arm into the Left Handlebar Leg.
Attach the Left Pedal Arm with an M10 x 19mm
Patch Screw (61), a Pedal Axle Cover (39), and
an M10 Washer (64). Do not overtighten the
Patch Screw; the Left Pedal Arm must pivot
easily.
Attach the Right Pedal Arm (not shown) in
the same way.
6
14
39
61 64
12
76 Grease

9
7. Apply a small amount of grease to the axle of
the left Pedal Arm Bracket (43). Attach the left
Pedal Leg (8) to the left Pedal Arm Bracket with
two M8 x 45mm Button Bolts (70) and two M8
Nylon Locknuts (63).
Attach the right Pedal Leg (8) in the same
way.
7
43
8
70
63
Grease
8
8. Tip: Avoid pinching the Upper Wire Harness
(81) during this step. Attach the Handlebar
(90) to the Upright (2) with four M6 x 32mm
Patch Screws (96).
8
2
81
90
96 96
9. While a second person holds the Console (3)
near the Upright (2), connect the three wires on
the console to the Upper Wire Harness (81), to
the Pulse Wire (92), and to the Ground Wire
(97). Insert the excess wire into the Upright.
Tip: Avoid pinching the wires during this
step. See the inset drawing. Attach the
Console (3) to the Upright (2) with four M4 x
16mm Round Head Screws (95).
9
3
3
2
Avoid pinching
the wires during
this step
2
97
81
Wires
92
95

10
10. Slide the Lower Handlebar Cover (94) into the
slots in the underside of the Console (3). Attach
the Lower Handlebar Cover to the Handlebar
(90) with two M4 x 16mm Screws (67).
10
3
94
67
90
Slots
11. Attach the Upper Handlebar Cover (93) to the
Handlebar (90) with an M4 x 16mm Screw (67). 11 93
67
90

11
12

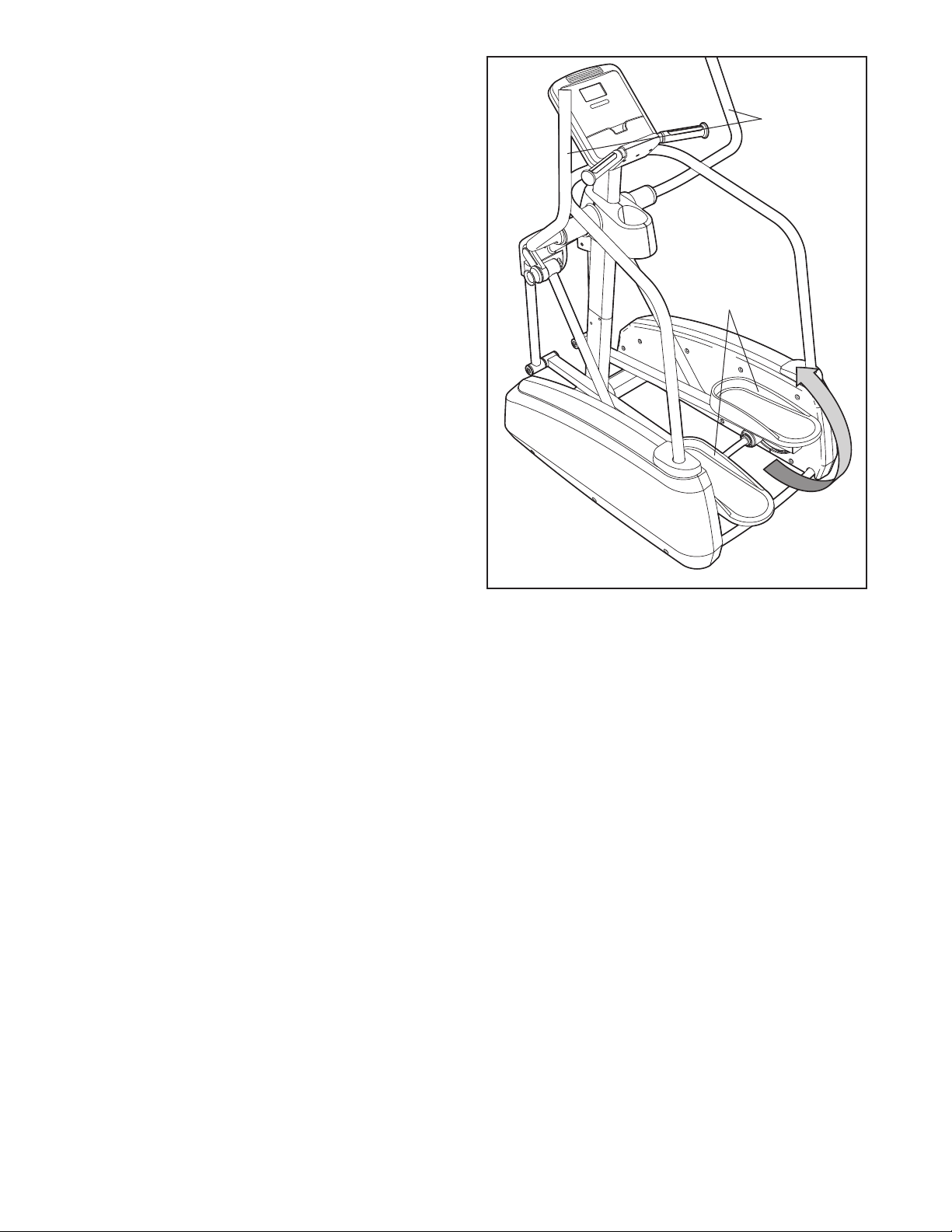

12. Identify the Left Handrail (4), which is marked
with an “L” on the underside. Then, identify the
Right Handrail (5), which is marked with an “R”
on the underside. Orient the Left and Right
Handrails as shown.
Slide the Left Rail Cover (6) onto the Left
Handrail (4). Then, slide the Right Rail Cover
(7) onto the Right Handrail (5).
4
5
7
6
13. Attach the Right Handrail (5) to the Upright (2)
with four M8 x 13mm Patch Screws (62) and
four M8 Split Washers (80). Do not tighten the
Patch Screws yet.
Attach the Left Handrail (4) in the same way.
13
62
2
5
480
80
62

12
14. Attach the Right Handrail (5) to the Frame (1)
with three M10 x 19mm Patch Screws (61) and
three M10 Split Washers (79).
Press the posts on the Right Rail Cover (7) into
the holes in the Frame (1).
Attach the Left Handrail (4) and the Left Rail
Cover (6) in the same way.
14
5
61
61
79 79
4
1
7
6
Holes
15. Identify the Right Handlebar (11), which is
marked with an “R” sticker. Orient the Right
Handlebar as shown.
Attach the Right Handlebar (11) to the Upright
(2) with three M8 x 25mm Flat Patch Screws
(68). Then, slide a Handlebar Cover (31) onto
the Right Handlebar and attach it with three M4
x 16mm Screws (67).
Attach the Left Handlebar (not shown) in the
same way.
See step 2. Tighten the M10 x 19mm Patch
Screws (61).
See step 13. Tighten the M8 x 13mm Patch
Screws (62).
11
68
68 67
31
15
2
16. Make sure that all parts are properly tightened before you use the elliptical exerciser. Note: After assem-
bly is completed, some extra parts may be left over. Place a mat beneath the elliptical exerciser to protect the
floor.
Plug the power supply into the jack on the frame of the elliptical exerciser (see HOW TO PLUG IN THE
POWER SUPPLY on page 13). IMPORTANT: If the elliptical exerciser has been exposed to cold temper-
atures, allow it to warm to room temperature before plugging in the power cord. If you do not do this,
the console displays or other electronic components may become damaged.

13
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO PLUG IN THE POWER SUPPLY
Plug one end of the included power supply into the
jack on the front of the elliptical exerciser. Plug the
other end of the power supply into an appropriate out-
let that is properly installed in accordance with all local
codes and ordinances.
HOW TO MOVE THE ELLIPTICAL EXERCISER
Due to the size and weight of the elliptical
exerciser, moving it requires two persons. Stand in
front of the elliptical exerciser, hold the upright, and
place one foot against one of the front wheels. Pull on
the upright and have a second person lift the frame
until the elliptical exerciser will roll on the front wheels.
Carefully move the elliptical exerciser to the desired
location, and then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical exer-
ciser rocks slightly
on your floor during
use, turn one or
both of the leveling
feet beneath the
front and rear of the
frame until the rock-
ing motion is
eliminated.
HOW TO ADJUST THE STRIDE OF THE
ELLIPTICAL EXERCISER
To adjust the stride of the elliptical exerciser, turn the
adjustment knob clockwise while pulling it outward
until the adjustment arm pivots freely. Pivot the adjust-
ment arm until the adjustment knob is aligned with one
of the holes in the handlebar leg, and gently release
the knob. Then, pivot the adjustment arm back and
forth slightly to make sure that the adjustment pin is
engaged in one of the holes in the handlebar leg.
Adjust the other side of the elliptical exerciser in
the same way.
Place
your foot
here
Pull on
upright
Leveling
Foot
Lift here
Adjustment
Arm
Adjustment
Knob
Handlebar
Leg
Adjustment
Pin
Holes

14
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the handlebars
and step onto the pedal that is in the lower position.
Then, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion. Note:
The pedals can turn in either direction. It is recom-
mended that you turn the pedals in the direction
shown by the arrow; however, for variety, you can
turn the pedals in the opposite direction.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the higher
pedal first. Then, step off the lower pedal.
Pedals
Handlebars

15
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable. When you select the manual mode of the
console, you can change the resistance of the pedals
with the touch of a button. As you exercise, the con-
sole will provide continuous exercise feedback. You
can even measure your heart rate using the handgrip
pulse sensor.
The console also offers twenty preset workouts. Each
workout automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pedaling pace as it guides you through an effective
workout.
The console features the iFit Interactive Workout
System, which enables the console to accept iFit
cards containing workouts designed to help you
achieve specific fitness goals. For example, lose
unwanted pounds with the 8-week Weight Loss work-
out. iFit workouts control the resistance of the pedals
while the voice of a personal trainer coaches you
through your workouts. iFit cards are available sepa-
rately. To purchase iFit cards, go to www.iFit.com
or see the front cover of this manual. iFit cards are
also available at select stores.
You can even connect your MP3 player or CD player
to the consoleʼs sound system and listen to your
favorite music or audio books while you exercise.
To use the manual mode, see page 16. To use a
preset workout, see page 18. To use an iFIT work-
out, see page 19. To use the sound system, see
page 19.
Note: If there is a sheet of clear plastic on the face of
the console, remove the plastic.
CONSOLE DIAGRAM

16
HOW TO USE THE MANUAL MODE
1. Press any button on the console or begin ped-
aling to turn on the console.
When you turn on the console, the display will
light. A tone will then sound and the console will
be ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected. If you have selected a workout,
reselect the manual mode by pressing the
Workouts button repeatedly until zeros appear in
the display.
3. Press Start or begin pedaling and change the
resistance of the pedals as desired.
As you pedal, change the resistance of the pedals
by pressing one of the numbered 1 Step
Resistance buttons. Note: After you press the but-
tons, it will take a moment for the pedals to reach
the selected resistance level.
4. Follow your progress with the display.
While you pedal, the upper left corner of the dis-
play will show the elapsed time. Note: During a
preset workout, the display will show the time
remaining in the workout.
The upper right corner of the display will show the
distance (total number of revolutions) you have
pedaled. The display will also show your heart rate
when you use the handgrip pulse sensor (see step
5 on page 17).
The lower left corner of the display will show the
approximate number of calories you have burned.
The lower center of the display will show your
power output in watts.
The lower right corner of the display will show your
pedaling speed in revolutions per minute (rpm).
The resistance level of the pedals will appear in
the display for a few seconds each time the resis-
tance level changes.
You can also view selected information at a larger
size. Press the Display button repeatedly to view
the elapsed time and the distance you have ped-
aled, the elapsed time and the approximate
number of calories you have burned, the elapsed
time, or the approximate number of calories you
have burned. Press the Display button again to
view a workout history of resistance levels and
pedaling pace.
To again view the time, distance, approximate
number of calories burned, your power output in
watts, and pedaling speed, press the Display but-
ton again.
You can also adjust the contrast of the display.
First, press and hold down the Display button for
several seconds until the display is blank. Then,
release the Display button and follow the instruc-
tions in the display to adjust the contrast.

17
5. Measure your heart rate if desired.
If there are
sheets of clear
plastic on the
metal contacts on
the handgrip
pulse sensor,
remove the plas-
tic. In addition,
make sure that
your hands are
clean. To measure
your heart rate,
hold the handgrip pulse sensor with your palms
resting against the metal contacts. Avoid moving
your hands or gripping the contacts tightly.
When your pulse is detected, your heart rate will
be shown in the display. For the most accurate
heart rate reading, hold the contacts for at least 15
seconds.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. Turn on the fan if desired.
To turn on the fan at high speed, press the Fan
button. To turn on the fan at low speed, press the
Fan button a second time. To select the auto
mode, press the Fan button again; when the auto
mode is selected, the speed of the fan will auto-
matically increase or decrease as you increase or
decrease your pedaling speed.
Pivot the fan louvers above the display upward or
downward to direct the airflow from the fan.
To turn off the fan, press the Fan button again.
Note: If the pedals are not moved for about thirty
seconds, the fan will automatically turn off.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals are not moved for several seconds, a
series of tones will sound and the console will
pause.
If the pedals are not moved for about five minutes,
the console will turn off and the display will be
reset.
When you are finished exercising, unplug the
power supply. IMPORTANT: If you do not do this,
the electrical components of the exercise cycle
may wear prematurely.
Contacts

18
HOW TO USE A PRESET WOR OUT
1. Press any button on the console or begin ped-
aling to turn on the console.
When you turn on the console, the display will
light. A tone will then sound and the console will
be ready for use.
2. Select a preset workout.
To select one of the twenty preset workouts, first
press the Workouts button. A menu of workout
profiles will then appear in the display. Press the
left, right, up, and down arrows to highlight the
desired workout profile.
When a workout profile is highlighted, the workout
time and the maximum resistance level of the
workout will appear in the display. To select a high-
lighted workout, press the Enter button.
When you select a preset workout, the workout
time and a profile of the resistance levels of the
workout will appear in the display.
3. Begin pedaling to start the workout.
Each workout is divided into 20, 30, or 45 one-
minute segments. One resistance level and one
target pace setting are programmed for each seg-
ment. Note: The same resistance level and/or
target pace setting may be programmed for con-
secutive segments.
During the workout, the workout profile will show
your progress (see the drawing to the lower left).
The flashing segment of the profile represents the
current segment of the workout. The height of the
flashing segment indicates the resistance level for
the current segment. At the end of each segment
of the workout, a series of tones will sound and
the next segment of the profile will begin to flash.
If a different resistance level is programmed for
the next segment, the resistance level will appear
in the display for a few seconds to alert you. The
resistance of the pedals will then change.
As you exercise, you
will be prompted to
keep your pedaling
pace near the target
pace setting for the cur-
rent segment. When the
words SPEED UP appear in the display, increase
your pace. When the words SLOW DOWN appear,
decrease your pace. When the words SPEED
OKAY appear, maintain your current pace.
IMPORTANT: The target pace settings are
intended only to provide motivation. Make sure
to pedal at a pace that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the 1 Step Resistance buttons.
However, when the current segment ends, the
pedals will automatically adjust to the resistance
level for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, press Start or simply resume
pedaling. The workout will continue until the last
segment of the profile flashes and the last seg-
ment of the workout ends.
Profile

19
4. Follow your progress with the display.
During the workout, the display will show the work-
out profile, the time remaining in the workout, and
the distance you have pedaled.
To view the profile, your pedaling pace, and the
distance you have pedaled, press the Display but-
ton.
To view the time remaining in the workout and the
distance pedaled, press the Display button. Press
the Display button again to view the time remain-
ing and the approximate number of calories
burned.
To view the time remaining, distance pedaled,
approximate number of calories burned, your
power output in watts, and pedaling pace, press
the Display button again.
To view the first display again, press the Display
button again.
5. Measure your heart rate if desired.
See step 5 on page 17.
6. Turn on the fan if desired.
See step 6 on page 17.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 17.
HOW TO USE AN IFIT WOR OUT
iFit cards are available separately. To purchase iFit
cards, go to www.iFit.com or see the front cover of this
manual. iFit cards are also available at select stores.
1. Press any button on the console or begin ped-
aling to turn on the console.
When you turn on the console, the display will
light. A tone will then sound and the console will
be ready for use.
2. Insert an iFIT card and select a workout.
To use an iFIT workout, insert an iFIT card into the
iFIT slot; make sure that the iFIT card is oriented
so the metal contacts are face-down and are fac-
ing the slot. When the iFIT card is properly
inserted, the indicator next to the slot will light and
words will appear in the display.
Next, select the desired workout on the iFIT card
by pressing the up and down buttons next to the
iFIT slot.
A moment after you select a workout, the voice of
a personal trainer will begin guiding you through
your workout. iFIT workouts function in the same
way as preset workouts. To use the workout, see
steps 3 to 6 on pages 18 and 19.
3. When you are finished exercising, remove the
iFIT card.
Remove the iFIT card when you are finished exer-
cising. Store the iFIT card in a secure place.
HOW TO USE THE SOUND SYSTEM
To play music or audio
books through the con-
soleʼs sound system while
you exercise, first locate
the audio cable in the cen-
ter of the console above
the speakers. Plug the
cable into a jack on your MP3 player or CD player;
make sure that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume of the speakers using the
volume control on your MP3 player or CD player.
When not in use, insert the audio cable into the stor-
age recess on the console.
Cable
iFIT Slot
iFIT Card

20
Inspect and tighten all parts of the elliptical exerciser
regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and
a small amount of mild soap. IMPORTANT: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
If the console does not display your heart rate when
you hold the handgrip pulse sensor, or if the displayed
heart rate appears to be too high or too low, see step
5 on page 17.
HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical exerciser rocks slightly on your floor
during use, see HOW TO LEVEL THE ELLIPTICAL
EXERCISER on page 13.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. First, remove all of
the screws from the left outer and inner side shields;
there are two sizes of screws in the left outer and
inner side shields—note which size of screw you
remove from each hole. Then, gently remove the left
outer side shield.
Next, locate the Reed Switch (86). Turn the Pulley
(53) until a Magnet (88) is aligned with the Reed
Switch. Loosen, but do not remove, the indicated M4 x
16mm Screw (67). Slide the Reed Switch slightly clos-
er to or away from the Magnet, and then retighten the
Screw. Rock the Pulley forward and backward just
enough that the Magnet passes the Reed Switch
repeatedly. Repeat until the console displays correct
feedback. When the Reed Switch is correctly adjusted,
reattach the left outer and inner side shields. Note: If
you have questions regarding which screw should be
in which hole, see EXPLODED DRAWING A on page
25 and the PART LIST on page 24.
MAINTENANCE AND TROUBLESHOOTING
53
88 67
86
