NordicTrack NTEL07910.1 User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. eep this manual
for future reference.
Serial Number
Decal (under frame)
USERʼS MANUAL
www.nordictrack.com
Model No. NTEL07910.1
Serial No.
Write the serial number in the space
above for reference.
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.nordictrackservice.com

2
NordicTrack is a registered trademark of ICON IP, Inc.
TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
HOWTOUSETHEELLIPTICAL .............................................................14
MAINTENANCEANDTROUBLESHOOTING ...................................................22
EXERCISEGUIDELINES ...................................................................24
PARTLIST ..............................................................................27
EXPLODEDDRAWING ....................................................................29
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY ..............................................................BackCover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. eep the elliptical indoors, away from
moisture and dust. Do not put the elliptical in
a garage or covered patio, or near water.
6. Place the elliptical on a level surface, with a
mat beneath it to protect the floor or carpet.
Make sure that there is at least 3 ft. (0.9 m) of
clearance in the front and rear of the elliptical
and 2 ft. (0.6 m) on each side.
7. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
8. eep children under age 12 and pets away
from the elliptical at all times.
9. The elliptical should not be used by persons
weighing more than 300 lbs. (136 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in
determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
14. eep your back straight while using the
elliptical; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.

4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary NordicTrack®
E7.1 elliptical. The E 7.1 elliptical provides an impres-
sive selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with

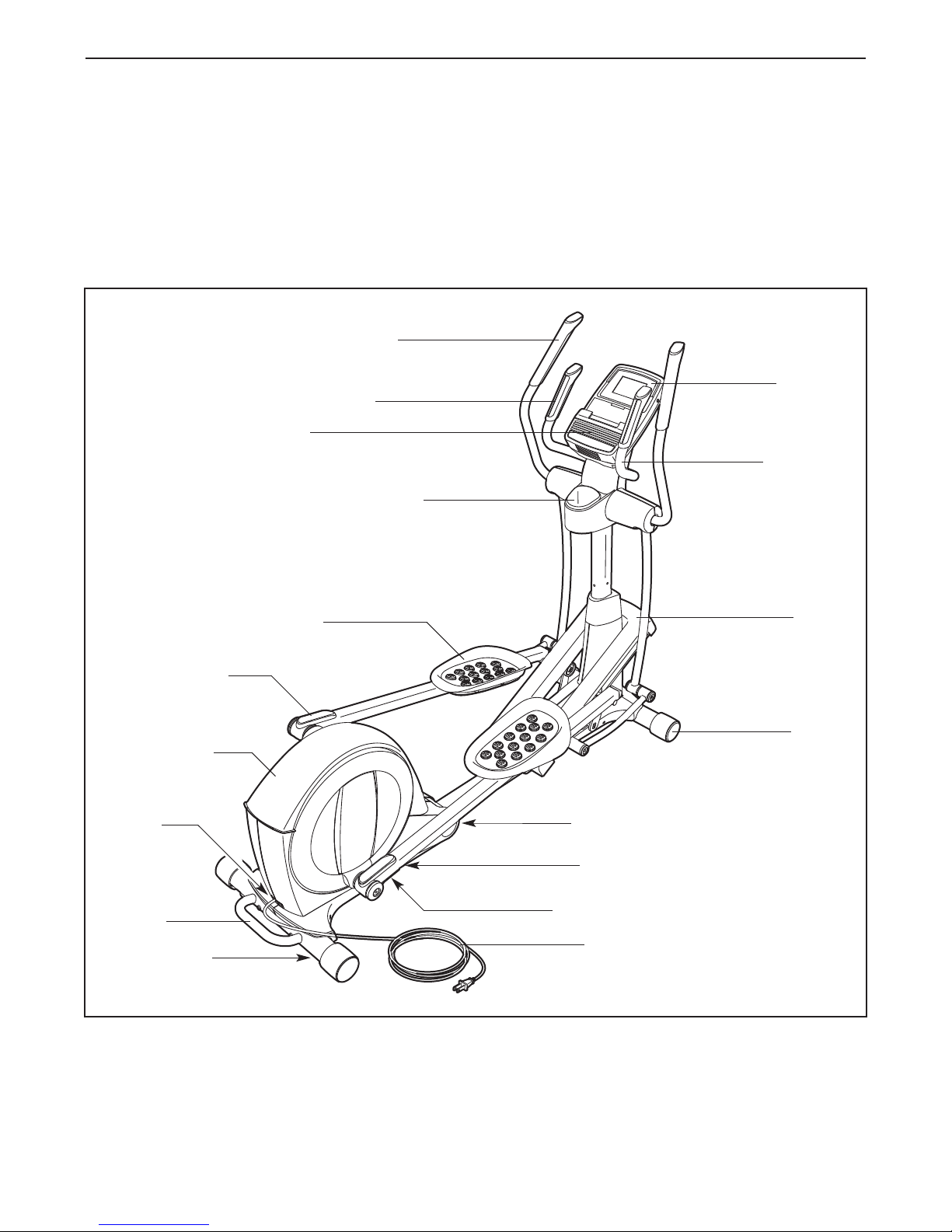

the parts that are labeled in the drawing below.
Pulse Sensor
Upper Body Arm
Access Cover
Wheel
Pedal
Water Bottle Holder*
Console
Leveling Foot
Handle
Power
Switch
Latch Button
Ramp
Storage Magnet
Fan
Handlebar
Pedal Arm Latch
*Water bottle is not included
Leveling Foot Power Cord

5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s) and grease packet(s), assembly requires a Phillips
screwdriver and a rubber mallet .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
M10 x 95mm Patch
Screw (100)–4
M8 Split Washer
(103)–14
M6 x 12mm Patch
Screw (111)–4
M8 Washer
(95)–6
M8 x 16mm Patch
Screw (102)–16
Wave Washer
(118)–2
M6 Washer
(112)–8
M8 x 25mm Patch
Screw (121)–2
M6 x 50mm Patch
Screw (62)–4
M8 x 35mm Patch
Screw (149)–2
M4 x 19mm
Screw (156)–8

6
1.
Orient the Rear Stabilizer (4) as shown.
Attach the Rear Stabilizer (4) to the Folding
Frame (2) with two M10 x 95mm Patch Screws
(100).
Next, hold the handle on the Rear Stabilizer (4),
press the Latch Button (67), and lower the Rear
Stabilizer and the Folding Frame (2) to the floor.
4
1
To make assembly easier, read the
information on page 5 before you begin.
100
Handle
2
67
2. Orient the Front Stabilizer (3) so that the indi-
cated hole is facing the pin on the Main Frame
(1).
While a second person lifts the front of the Main
Frame (1), attach the Front Stabilizer (3) with
two M10 x 95mm Patch Screws (100).
2
3
1
100
Hole
Pin

7
3. See drawing 3a. Identify and orient the Upright
(5) and the Top Cover (27) as shown.
Slide the Top Cover (27) upward onto the
Upright (5).
Have a second person hold the Upright (5) and
the Top Cover (27) near the Main Frame (1).
Locate the wire tie in the Upright (5). Tie the
lower end of the wire tie to the Wire Harness
(60). Next, pull the upper end of the wire tie
until the Wire Harness is routed through the
Upright.
Tip: To prevent the Wire Harness (60) from
falling into the Upright (5), secure the Wire
Harness with the wire tie.
See drawing 3b. Tip: Avoid pinching the
Wire Harness (60). Insert the Upright (5) into
the Main Frame (1).
Attach the Upright (5) with four M8 x 16mm
Patch Screws (102) and four M8 Split Washers
(103); do not tighten the Patch Screws yet.
You will tighten the Patch Screws at the end
of step 10.
3a
3b
5
Wire Tie
Wire Tie
5
27
60
60
102
102
102
102 103
103
103
1
1
Avoid pinching the
Wire Harness (60)

8
5
4
4. Using a small plastic bag to keep your fingers
clean, apply a coat of the included grease to the
Upright Axle (48) and to two Wave Washers
(118).
Tip: Avoid damaging the Wire Harness (60).
Insert the Upright Axle (48) through the Upright
(5) and center it. Slide a Wave Washer (118)
onto each side of the Upright Axle.
Next, identify the Right and Left Upper Body
Legs (6, 7), which are marked with “Right” and
“Left” stickers, and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto the right and left sides of the Upright Axle
(48).
Tighten an M8 x 16mm Patch Screw (102) and
an M8 Washer (95) into each end of the Upright
Axle (48) at the same time.
Avoid damaging the
Wire Harness (60)
Grease
Grease
95
5
7
102
95
102
118
48
60
6
118
5. Identify the Right Pedal (14), the Right Pedal
Pad (151), and the Right Pedal Arm (12)
assembly, which are marked with “Right” stick-
ers, and orient them as shown.
Set the Right Pedal Pad (151) on the Right
Pedal Arm (12). Then, set the Right Pedal (14)
on the Right Pedal Pad.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with two M6 x 12mm Patch Screws
(111) and two M6 Washers (112); do not
tighten the Patch Screws yet.
Next, tighten two M6 x 50mm Patch Screws
(62) with two M6 Washers (112) into the Right
Pedal Arm (12) and the Right Pedal (14). Then,
tighten the two M6 x 12mm Patch Screws
(111).
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) assembly in the
same way.
14
151
12
111
112
112 62

9
7a

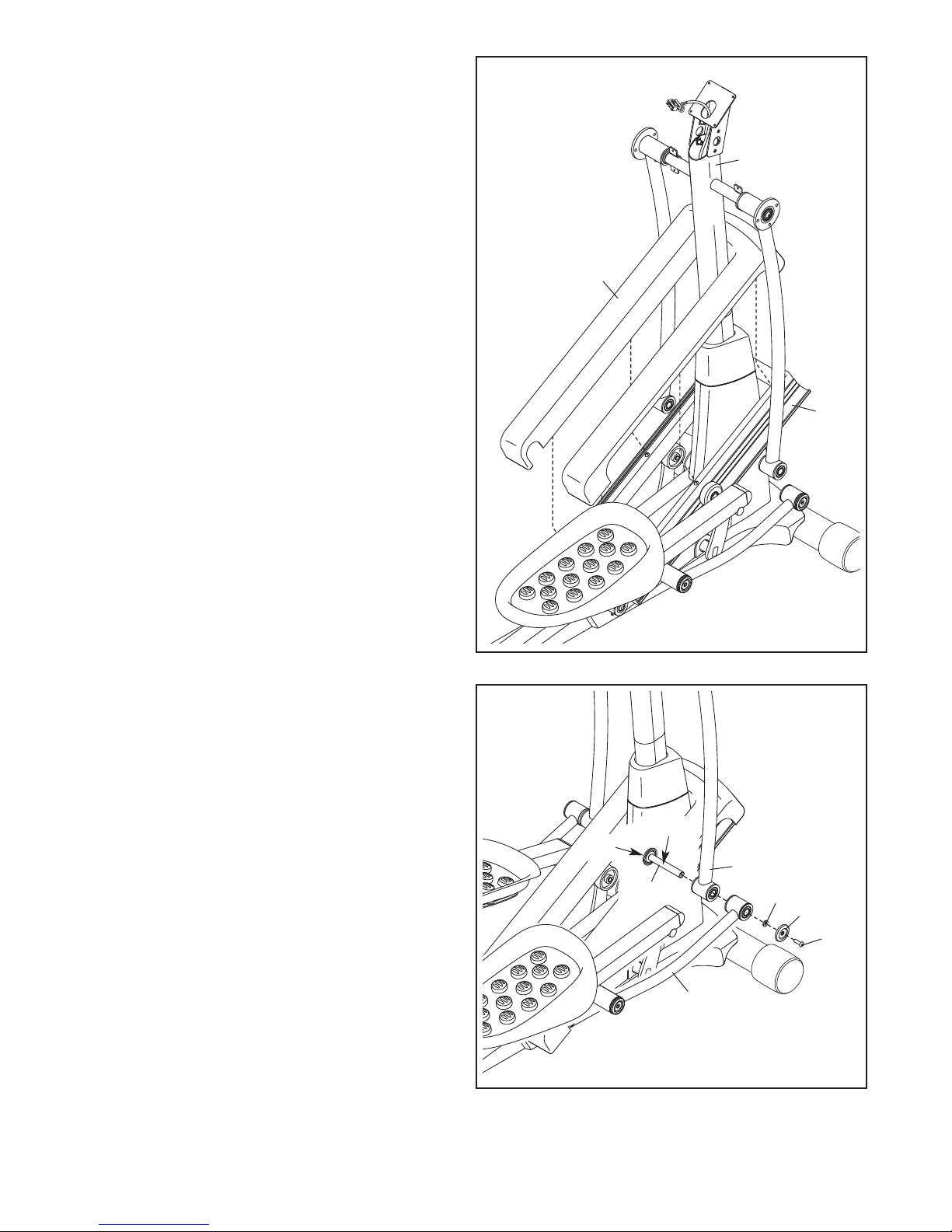

7. See drawing 7a. Locate the Pedal Arm Roller
(32) on the Right Pedal Arm (12).
Set the Pedal Arm Roller (32) on the right side
of the Ramp (130).
See drawing 7b. Pull upward on the Latch (50)
on the Right Pedal Arm (12).
Press the Right Pedal Arm (12) onto the right
Pedal Arm Sleeve (46). Make sure that the
Right Pedal Arm latches into place.
Repeat this step on the other side of the
elliptical.
32
12
130
6. Apply grease to the axle on the right Crank Arm
(39).
Orient a Pedal Arm Sleeve (46) so that the flat
side is facing the elliptical. Slide the Pedal Arm
Sleeve onto the axle on the right Crank Arm
(39).
Attach the Pedal Arm Sleeve (46) with an M8 x
25mm Patch Screw (121), a Large Axle Cover
(113), and an M8 Washer (95). Tip: Avoid
damaging the Large Axle Cover when tight-
ening the Patch Screw.
Repeat this step on the other side of the
elliptical.
7b
46
12
50
6
95
113
46
Flat
Side
121
39
Grease

10

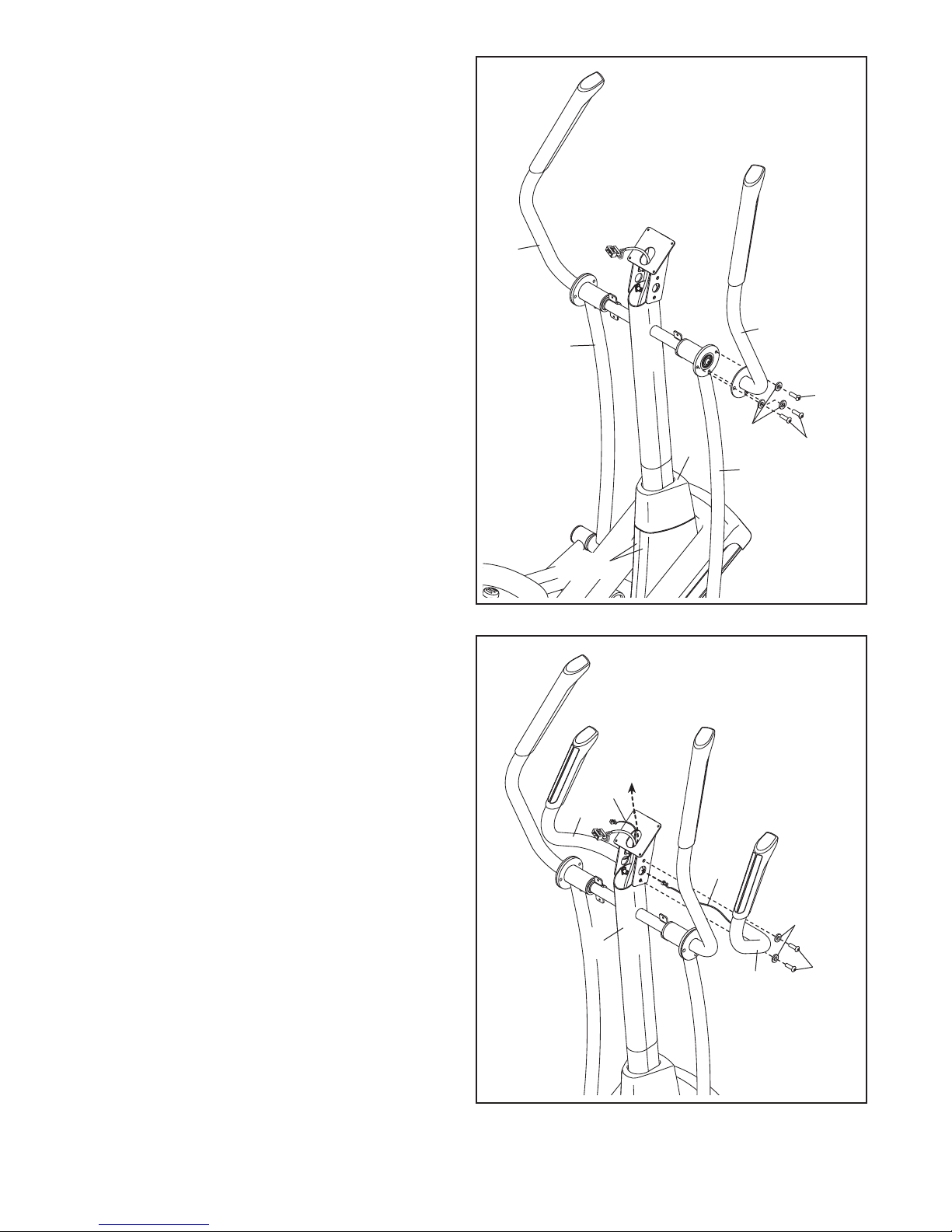

9. Apply grease to a Link Arm Axle (114).
Insert the Link Arm Axle (114) into the Right
Upper Body Leg (6) and the Right Link Arm (43)
from the side shown.
Insert a hex key into the M8 x 35mm Patch
Screw (149) in the Link Arm Axle (114).
Using a second hex key, tighten another M8 x
35mm Patch Screw (149), a Small Axle Cover
(56), and an M8 Washer (95) into the other end
of the Link Arm Axle (114). Tip: Avoid damag-
ing the Small Axle Cover when tightening
the Patch Screw.
Repeat this step on the other side of the
elliptical.
9
8. Orient the Ramp Cover (131) around the
Upright (5) as shown.
Press the tabs on the Ramp Cover (131) into
the Ramp (130).
8
131
130
5
95
43
56
6
114
149
Grease
149

11
11
10
9
7
6
8
102
102
103
10. Identify the Right Upper Body Arm (8), which is
marked with a “Right” sticker, and orient it as
shown.
Have a second person hold the Right Upper
Body Arm (8) near the Right Upper Body Leg
(6).
Attach the Right Upper Body Arm (8) to the
Right Upper Body Leg (6) with three M8 x
16mm Patch Screws (102) and three M8 Split
Washers (103).
Attach the Left Upper Body Arm (9) to the
Left Upper Body Leg (7) in the same way.
See step 3 on page 7. Tighten the M8 x 16mm
Patch Screws (102).
Slide the Top Cover (27) downward and press it
into the Right and Left Frame Covers (21, 22).
11. Identify the Right Handlebar (10), which is
marked with a “Right” sticker, and orient it as
shown.
Have a second person hold the Right
Handlebar (10) near the right side of the Upright
(5).
Insert the Pulse Wire (105) from the Right
Handlebar (10) into the right side of the Upright
(5) and pull it upward out of the top of the
Upright.
Tip: Avoid pinching the Pulse Wire (105).
Attach the Right Handlebar (10) to the Upright
(5) with two M8 x 16mm Patch Screws (102)
and two M8 Split Washers (103).
Attach the Left Handlebar (11) in the same
way.
102
103
105
105
10
11
5
Avoid pinching the
Pulse Wires (105)
27
21, 22

12
12
13
12. Untie and discard the wire tie attached to the
Wire Harness (60).

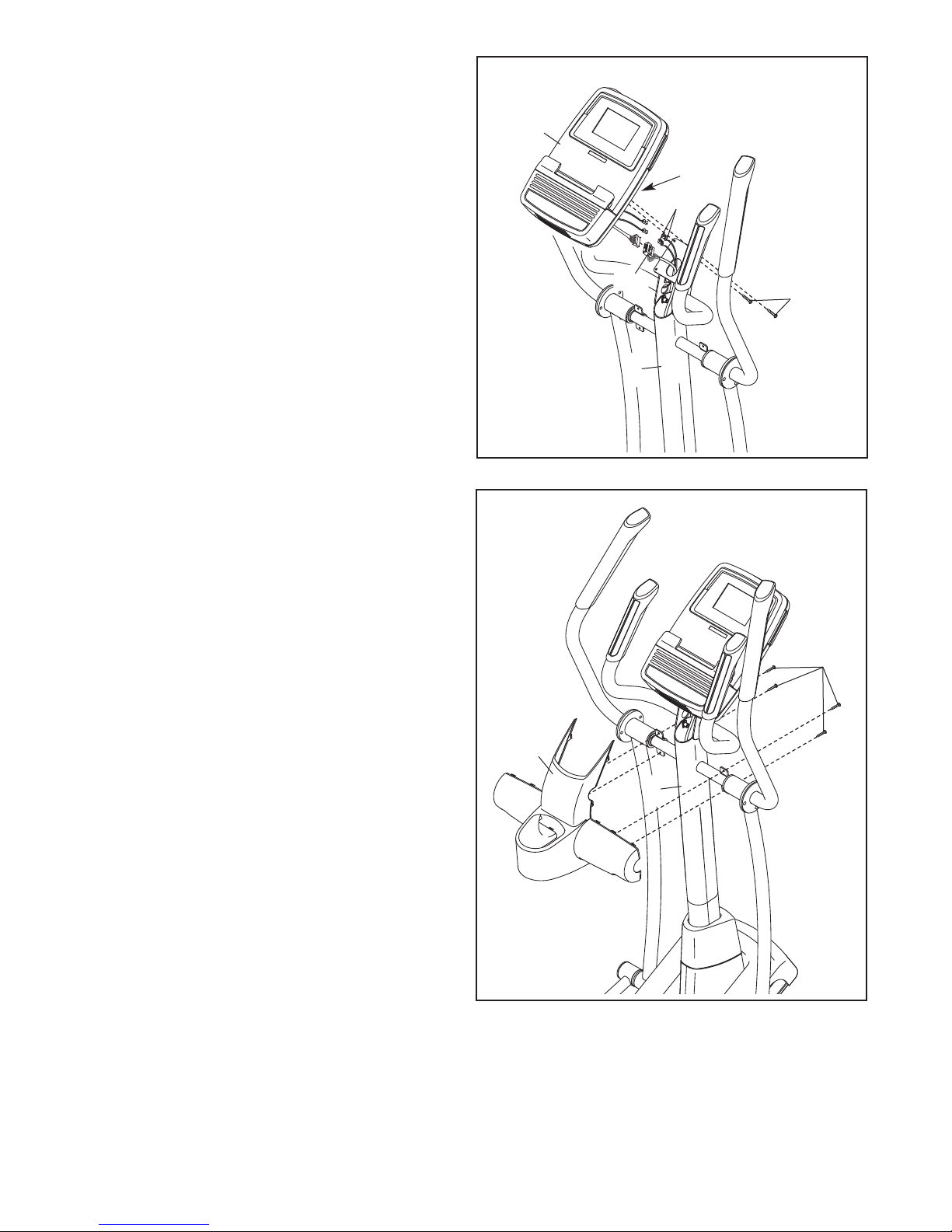

While a second person holds the Console (33)
near the Upright (5), connect the wires on the
Console to the Wire Harness (60) and to the
Pulse Wires (105).
Insert the excess wire downward into the
Upright (5) or upward into the Console (33).
Tip: Avoid pinching the wires. Finger tighten
two M4 x 19mm Screws (156) through the
Upright (5) into the upper end of the Console
(33). Make sure to start the Screws into the
indicated upper holes in the Console.
Do not tighten the M4 x 19mm Screws (156)
yet. You will tighten the Screws at the end of
step 14.
33
105
5
60
25
156
5
13. Orient the Rear Upright Cover (25) as shown.
Attach the Rear Upright Cover (25) to the
Upright (5) with four M4 x 19mm Screws (156).
Tip: It may be necessary to bend the upper
end of the Rear Upright Cover gently into
place around the Upright.
Avoid pinching
the wires
156
Upper
Holes

13
16. Make sure that all parts of the elliptical are properly tightened. Note: An extra grease packet and some
hardware may be left over after assembly is completed. To protect the floor or carpet from damage, place a
mat under the elliptical.
24
25
15. Orient the Front Upright Cover (24) as shown.
Attach the Front Upright Cover (24) around the
Upright (5) by pressing the tabs on the Front
Upright Cover into the Rear Upright Cover (25).
14. Attach the lower end of the Console (33) to the
Upright (5) with two M4 x 19mm Screws (156).
See step 12 on page 12. Tighten the M4 x
19mm Screws (156) in the upper end of the
Console (33).
5
33
5
156
156
14
15

14
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a
grounding plug.
Plug the power cord into an appropriate outlet that
is properly installed and grounded in accordance
with all local codes and ordinances. This product
is for use on a nominal 120-volt circuit. IMPOR-
TANT: The elliptical is not compatible with
GFCI-equipped outlets.
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle as
shown at the
right if a
properly
grounded
outlet is not
available. The temporary adapter should be used only
until a properly grounded outlet can be installed by a
qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in
place by a metal screw. Some 2-pole receptacle out-
let box covers are not grounded. Contact a
qualified electrician to determine if the outlet box
cover is grounded before using an adapter.
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
When the ellipti-
cal is not in use,
the frame can be
folded out of the
way. First, lift the
latch under each
pedal arm, and
lift the pedal
arms off the
sleeves on the
crank arms.
Next, raise the pedal arms until the magnets on the
pedal arms touch the handlebars; the magnets will
hold the pedal arms in place. Then, hold the handle
and lift the frame until it locks in a vertical position.
To use the elliptical, first hold the handle, press the
latch button, and lower the frame.
Next, pull the magnets on the pedal arms off the han-
dlebars. Then, lift the latches under the pedal arms,
and set the pedal arms on the sleeves on the crank
arms. Release the latches, and make sure that the
pedal arms are securely connected to the crank arms.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet installed
by a qualified electrician.
Grounded Outlet Box
Adapter
Lug
Metal Screw
Power Cord
Pedal Arm
Handle
Latch
Button
Pedal
Arm
Magnet
Latch

15
HOW TO MOVE THE ELLIPTICAL
To move the elliptical, first fold it as described on page
14. Next, stand in front of the elliptical, hold the
upright, and place one foot against one of the wheels.
Pull the upright until the elliptical rolls on the wheels.
With the help of a second person, carefully move the
elliptical to the desired location, and then lower it to
the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
turn one or both of the leveling feet beneath the rear
stabilizer until the rocking motion is eliminated.
If the frame of the elliptical flexes during use, turn the
center leveling foot until the flexing motion is
eliminated.
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the upper body arms and
step onto the pedal that is in the lowest position. Next,
step onto the other pedal. Push the pedals until they
begin to move with a continuous motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow; however, for
variety you can turn the crank arms in the oppo-
site direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
Leveling
Feet
Leveling
Foot
Upper Body Arms
Handlebars
Pedals
Crank
Arm
Pull on
the upright
Place your
foot here

16
CONSOLE DIAGRAM FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the
incline of the ramp with the touch of a button. While
you exercise, the console will display continuous exer-
cise feedback. You can also measure your heart rate
using the handgrip pulse sensor.
The console also offers twenty preset workouts—ten
weight loss workouts and ten timed workouts. Each
workout automatically changes the resistance of the
pedals and prompts you to vary your pedaling pace as
it guides you through an effective workout.
The console also features an iFit training mode that
allows you to connect to your wireless network
through an iFit Live module. The optional iFit Live
module allows you to download personalized workouts
and to track and analyze workout information on the
iFit Live website. To purchase an iFit Live module at
any time, go to www.iFit.com or call the telephone
number on the front cover of this manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To turn on the power, see page 17. To use the man-
ual mode, see page 17. To use a preset workout,
see page 19. To use the iFit training mode, see
page 20. To use the sound system, see page 20. To
use the information mode, see page 21.
Note: If there is a sheet of plastic on the display,
remove the plastic.

17

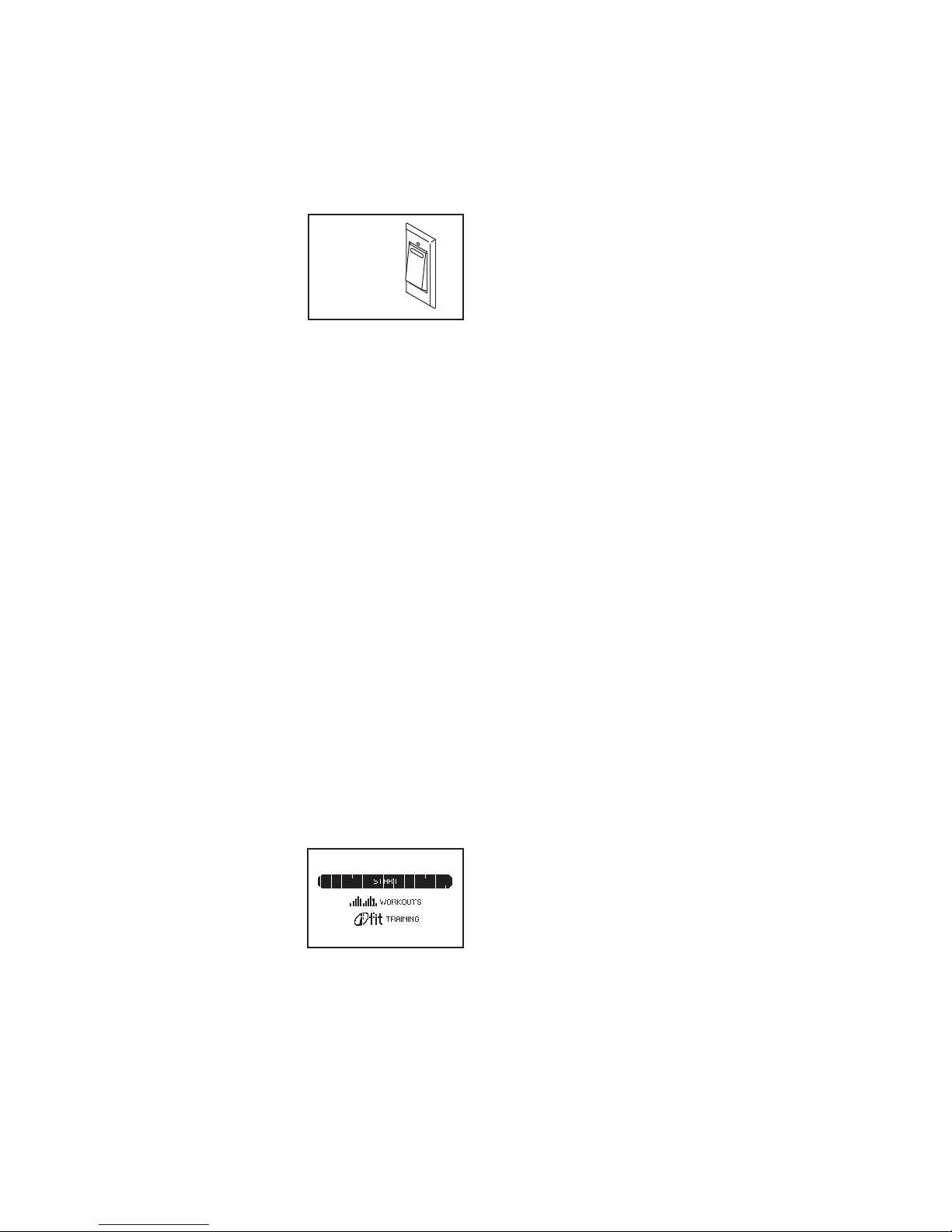

HOW TO TURN ON THE POWER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE
POWER CORD on page
14). Next, locate the power
switch on the frame near
the power cord. Make sure
that the power switch is in
the reset position.
The display will then light and the console will be
ready for use.
Note: When you turn on the power for the first
time, the ramp will calibrate automatically. The
ramp will move upward and downward as it calibrates.
When the ramp stops moving, the ramp is calibrated.
IMPORTANT: If the ramp does not calibrate auto-
matically, see HOW TO CALIBRATE THE RAMP on
page 22 and manually calibrate the ramp.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER above.
2. Select the manual mode.
Each time you turn on the console, the main menu
will appear.
To select the manual
mode, press the
increase and decrease
buttons next to the
Enter button and high-
light START. Then,
press the Enter button.
If you have selected a workout or the iFit Training
mode, press the Menu button to return to the main
menu.
3. Change the resistance of the pedals and the
incline of the ramp as desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance increase and decrease
buttons.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resis-
tance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press the Digital Power Ramp increase and
decrease buttons.
Note: After you press the buttons, it will take a
moment for the ramp to reach the selected incline
level.
4. Follow your progress with the display.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown. Press the Display
button repeatedly to select the desired display
mode.
The display can show the following workout
information:
Calories—This display mode will show the
approximate number of calories you have burned.
Profile—When a workout is selected, this display
mode will show a profile of the resistance levels
for the workout.
Pulse—This display mode will show your heart
rate when you use the handgrip pulse sensor (see
step 5 on page 18).
Ramp—This display mode will show the incline
level of the ramp for a few seconds each time the
ramp incline changes.
Reset
Position

18
Resistance—This display mode will show the
resistance level of the pedals for a few seconds
each time the resistance level changes.
RPM—This display mode will show your pedaling
pace, in revolutions per minute (rpm).
Strides—This display mode will show the total
number of strides you have pedaled.
Time—When the manual mode is selected, this
display mode will show the elapsed time. When a
workout is selected, the display mode will show
the time remaining in the workout instead of the
elapsed time.
Change the volume level of the console by press-
ing the Volume increase and decrease buttons.
5. Measure your heart rate if desired.
If there are sheets of
plastic on the metal
contacts on the
handgrip pulse sen-
sor, remove the
plastic. To measure
your heart rate, hold
the handgrip pulse
sensor with your
palms resting against
the metal contacts.
Avoid moving your hands or gripping the con-
tacts tightly.
When your pulse is detected, your heart rate will
appear in the display. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. Turn on the fan if desired.
Press the Fan button repeatedly to turn on or to
turn off the fan.
7. When you are finished exercising, unplug the
power cord.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
When you are finished exercising, switch the
power switch to the off position and unplug the
power cord. IMPORTANT: If you do not do this,
the electrical components on the elliptical may
wear prematurely.
Contacts

19
HOW TO USE A PRESET WOR OUT
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on page
17.
2. Select a preset workout.
If you have selected a workout or the iFit Training
mode, press the Menu button to return to the main
menu.
To select a preset work-
out, first press the
Increase and Decrease
buttons next to the
Enter button and high-
light WORKOUTS.
Then, press the Enter
button.
Next, press the increase and decrease buttons to
highlight the desired workout category. Then,
press the Enter button.
You can also press the Workouts button repeat-
edly to select a workout category or the manual
mode.
Press the increase and decrease buttons to high-
light the desired workout subcategory. Then, press
the Enter button.
Press the increase and decrease buttons to high-
light the name of the desired workout. The
duration, the maximum rpm (pedaling pace), the
maximum resistance level, and a profile of the
resistance levels of the workout will appear in the
right side of the display. Then, press the Enter
button.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute seg-
ments. One resistance level and one target rpm
(pedaling pace) are programmed for each seg-
ment. Note: The same resistance level and/or
target rpm may be programmed for consecutive
segments.
The workout profile will
show your progress.
The flashing segment of
the profile represents
the current segment of
the workout. The height
of the flashing segment
indicates the resistance level for the current
segment.
When the first segment of the workout ends, the
resistance level and the target rpm for the second
segment will appear in the display for a few sec-
onds to alert you. The next segment of the profile
will begin to flash, and the pedals will automati-
cally adjust to the resistance level for the next
segment.
As you exercise, you will be prompted to keep
your pedaling pace (rpm) near the target rpm for
the current segment. When the word FASTER
appears in the display, increase your pedaling
pace. When the word SLOWER appears,
decrease your pedaling pace. When no words
appear, maintain your current pedaling pace.
IMPORTANT: The target rpm is intended only to
provide motivation. Your actual pedaling pace
(rpm) may be slower than the target rpm. Make
sure to pedal at a pace that is comfortable for
you.
Current Segment

20
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Digital Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level for the next
segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. A tone will sound and the time will
begin to flash in the display. To restart the workout,
simply resume pedaling.
4. Follow your progress with the display.
See step 4 on page 17.
5. Measure your heart rate if desired.
See step 5 on page 18.
6. Turn on the fan if desired.
See step 6 on page 18.
7. When you are finished exercising, unplug the
power cord.
See step 7 on page 18.
HOW TO USE THE IFIT TRAINING MODE
The optional iFit Live module allows your console to
communicate with your wireless network and unlocks
exciting new features. For example, you can download
personalized workouts, create your own workouts,
track your workout results, and access many other
features on the iFit Live website. To purchase an iFit
Live module at any time, go to www.iFit.com or
call the telephone number on the front cover of
this manual.
To select the iFit training mode, first insert the iFit Live
module into the console. Press the Menu button and
then press the increase and decrease buttons next to
the Enter button and highlight IFIT TRAINING. Then,
press the Enter button.
For more information about the iFit training mode, go
to www.iFit.com. Note: To use the iFit Live module,
you must have access to a computer with an internet
connection and a USB port. You must also have your
own wireless network including an 802.11b router with
SSID broadcast enabled (hidden networks are not
supported). You will also need an iFit.com member-
ship.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug the included
audio cable into the jack on the side of the console
and into a jack on your MP3 player or CD player;
make sure that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume con-
trol on your MP3 player or CD player or press the
Volume increase and decrease buttons on the
console.
