NordicTrack Audiostrider Cx650 Elliptical User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial Number
Decal
Model No. NTEVEL96207.0
Serial No.
Write the serial number in the
space above for reference
USER’S MANUAL
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if there are missing parts, please
contact us:
Call: 08457 089 009
Outside UK: 0 (44) 113 3877133
Fax: [phone]
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road, Beeston
Leeds, LS11 8JG,
UK

TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HOW TO USE THE CHEST PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
NordicTrack is a registered trademark of ICON IP, Inc.

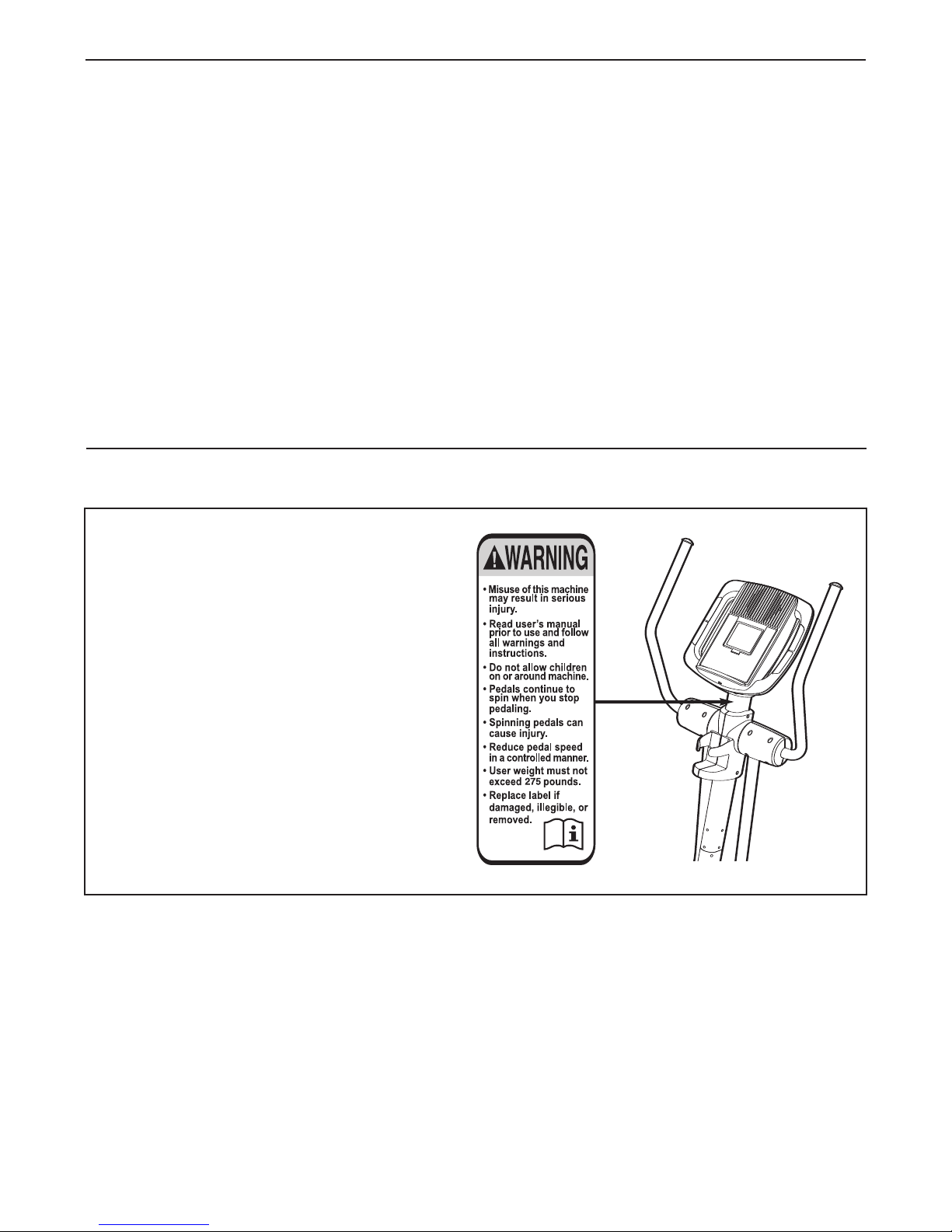

WARNING DECAL PLACEMENT
258865
258868 258869 258870 258871
The warning decal shown here has been
applied in the location shown. If the decal
is missing or illegible, call the tele-
phone number on the front cover of
this manual and request a free replace-
ment decal. Apply the decal in the loca-
tion shown. Note: The decal may not be
shown at actual size.

3
WARNING:To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. Your elliptical exerciser is intended for home
use only. Do not use your elliptical exerciser
in a commercial, rental, or institutional set-
ting.
4. Keep your elliptical exerciser indoors, away
from moisture and dust. Place your elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around your elliptical exerciser to mount,
dismount, and use it.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used
by persons weighing more than 275 lbs.
(124 kg).
8. Wear appropriate exercise clothes when
exercising; do not wear loose clothes that
could become caught on your elliptical exer-
ciser. Always wear athletic shoes for foot
protection.
9. Hold the handgrip pulse sensor or the upper
body arms when mounting, dismounting, or
using your elliptical exerciser.
10. Keep your back straight while using your
elliptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device.
Various factors, including the user’smove-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
14. Use your elliptical exerciser only as
described in this manual.

4
BEFORE YOU BEGIN
Thank you for purchasing the revolutionary
NordicTrack®CX650 elliptical exerciser. The CX 650
elliptical exerciser provides a wide array of features
designed to make your workouts at home more effec-
tive and enjoyable—and when you’re not exercising,
the unique elliptical exerciser can be folded out of the
way.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number and the location of the
serial number decal are shown on the front cover of
this manual.

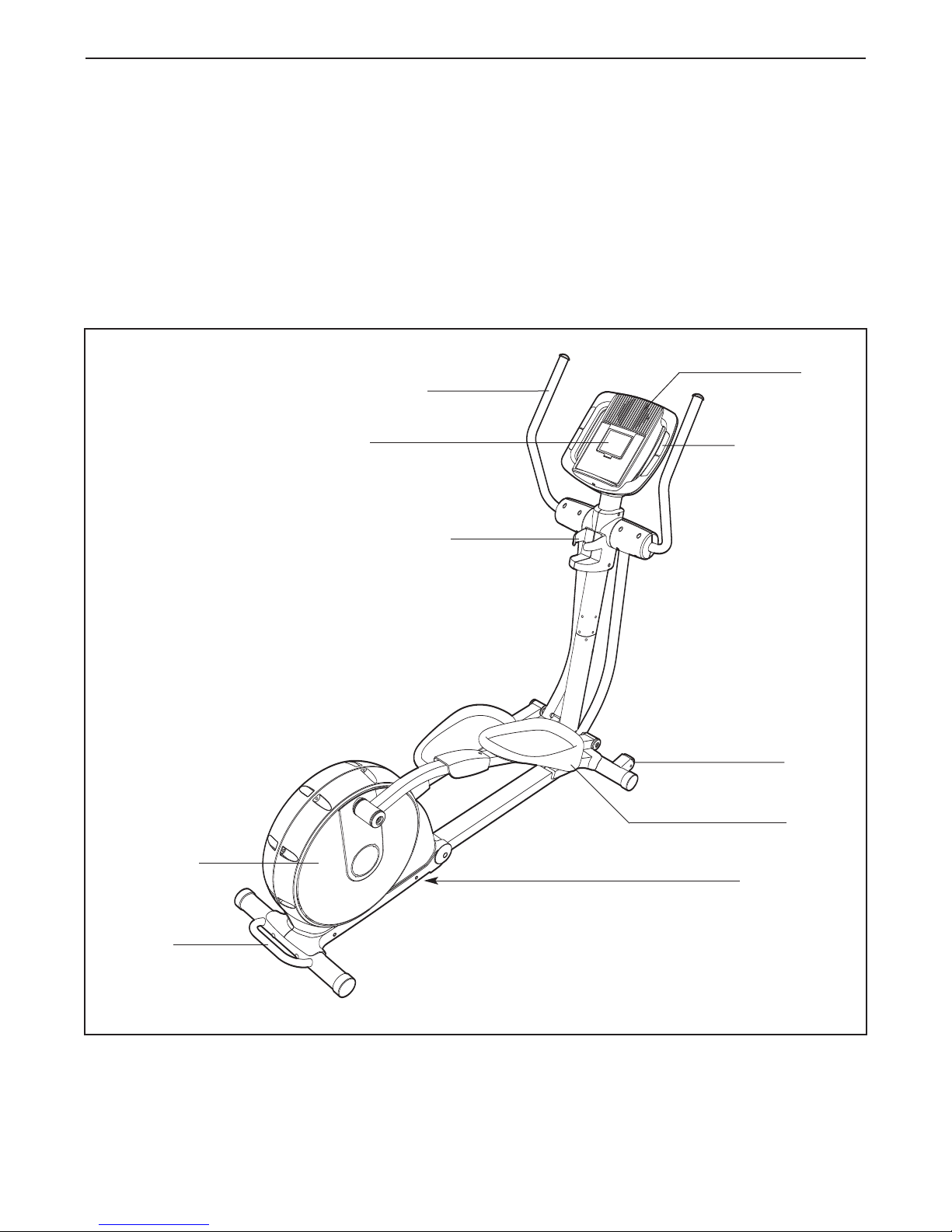

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Upper Body Arm
Pedal Disc
Wheel
Pedal
Water Bottle Holder*
Console
Handle
Latch Button
Fan
*No water bottle is included

5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own Phillips screwdriver , adjustable
wrench , and rubber mallet .

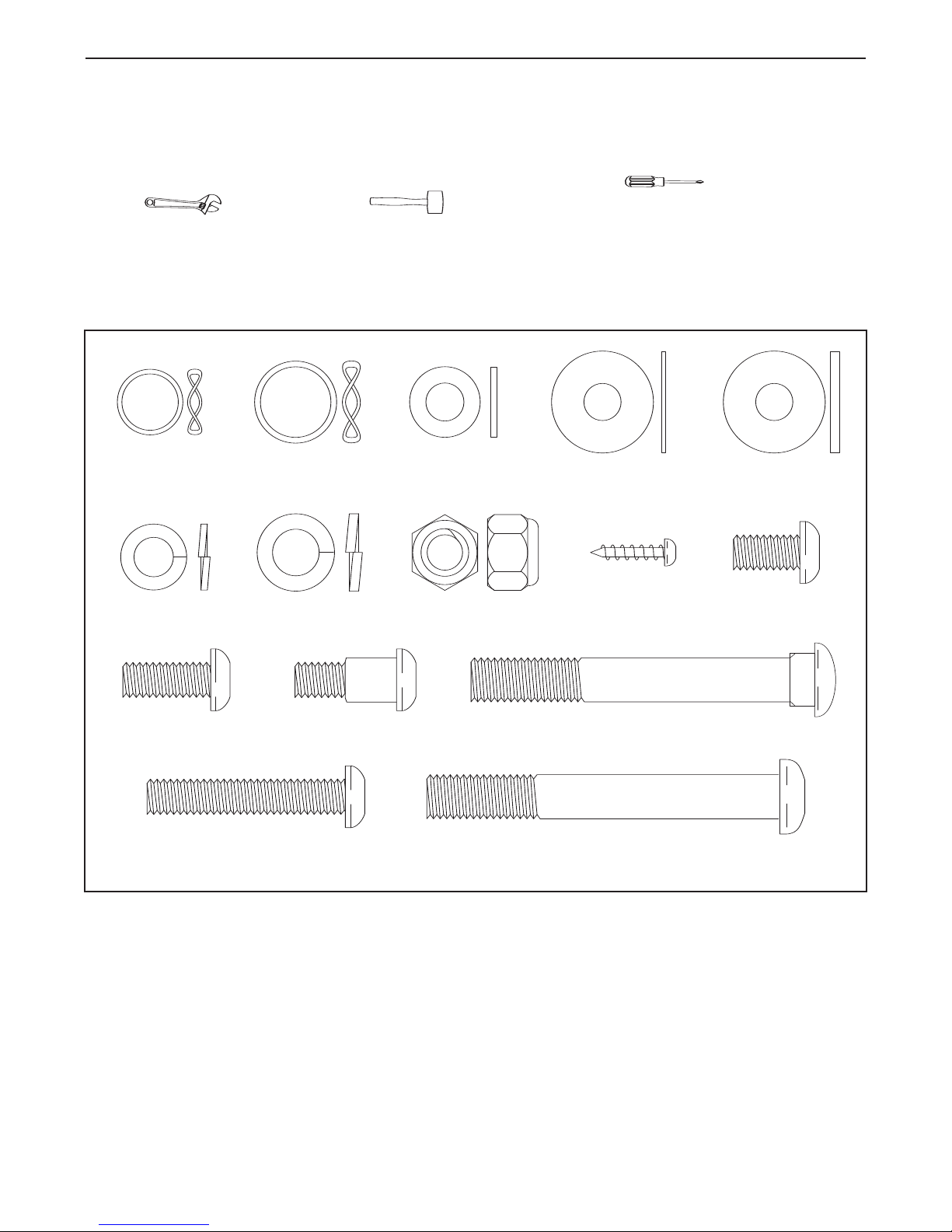

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of the manual. The
number following the parentheses is the quantity needed for assembly. Note: Some small parts may have
been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M8 x 23mm x
2mm Washer
(96)–8
M8 Split
Washer (97)–16
M4 x 16mm
Round Head
Screw (78)–25
M8 Washer
(95)–4
M8 x 14mm Button
Screw (84)–6
Wave Washer
(80)–2
M8 x 19mm Button
Screw (85)–6 M8 x 23mm Shoulder Screw (86)–4 M10 x 78mm Carriage Bolt (92)–2
M10 Nylon
Locknut (82)–2
M10 Split
Washer (99)–2
M10 x 80mm Button Screw (93)–2M8 x 45mm Button
Screw (90)–6
Large Wave
Washer (89)–4 M8 x 23mm x
1mm Washer
(31)–4

6
2. Attach the Left and Right Frame Covers (36,
37) around the Frame (1) with four M4 x 16mm
Round Head Screws (78).
78
78 36
37
1
2
1.
See HOW TO FOLD AND UNFOLD THE
ELLIPTICAL EXERCISER on page 12 and
unfold the elliptical exerciser.
While another person lifts the front of the
Frame (1), attach the Front Stabilizer (4) to the
Frame with two M10 x 78mm Carriage
Bolts (92) and two M10 Nylon Locknuts (82).
4
92
82
82
1
1
3. With the help of another person, carefully tip
the elliptical exerciser onto its side. Tighten a
Leveling Foot (40) into the Frame (1). Then,
return the elliptical exerciser to the upright posi-
tion.
Orient the Rear Stabilizer (3) as shown. While
another person lifts the Folding Frame (2),
attach the Rear Stabilizer to the Folding Frame
with two M10 x 80mm Button Screws (93) and
two M10 Split Washers (99).
3
99
99
40
2
93
3
1
To make assembly easier, read the
information on page 5 before you begin
assembling the elliptical exerciser.

7
4. While another person holds the Upright (10)
near the Frame (1), connect the Upper Wire
Harness (65) to the Lower Wire Harness (64).
Then, insert the Upright (10) into the Frame (1).
Attach the Upright with four M8 x 19mm Button
Screws (85) and four M8 Split Washers (97).
Donot tighten the Button Screws yet.
Avoid pinching the Wire Harnesses (64, 65)
during this step. 10
1
97
97
97
97
85
85
65
64
4
Avoid pinching the
Wire Harnesses (64, 65)
during this step
5. Orient the Left and Right Upright Covers (19,
20) as shown. Then, attach the Upright Covers
around the Upright (10) with five M4 x 16mm
Round Head Screws (78).
5
19
20
10
78
78
78

8
6
65
24
72
71
96
85
85
80
80
10
96

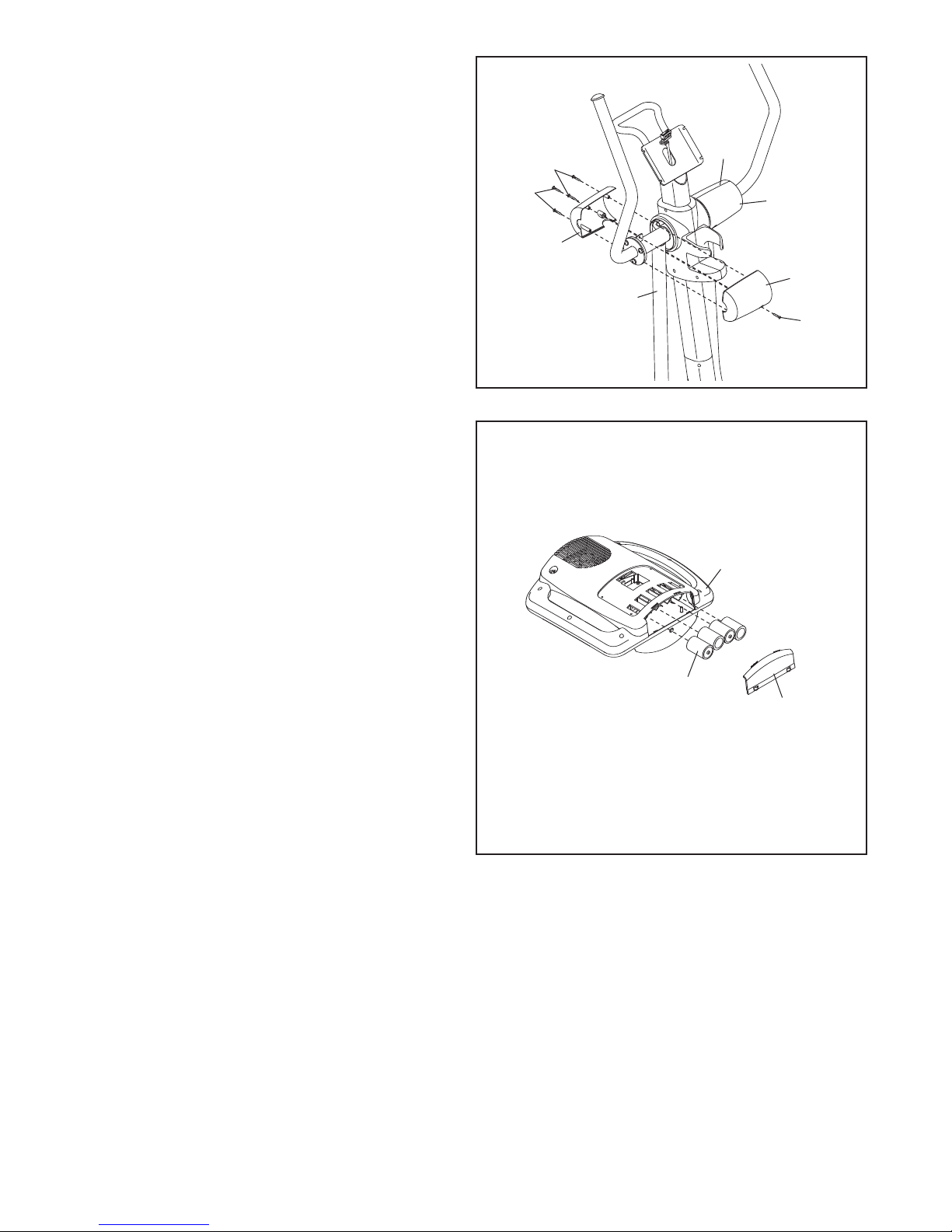

6. Apply a generous amount of the included grease
to the Upper Body Axle (71). Insert the Upper
Body Axle into the Upright (10). Be careful not
to damage the Upper Wire Harness (65).
Apply a small amount of grease to a Wave
Washer (80). Slide the Wave Washer onto the
left end of the Upper Body Axle (71).
Identify the Left Upper Body Leg (24), which is
marked with an “L” sticker, and orient it as
shown. Slide the Left Upper Body Leg onto the
left side of the Upper Body Axle (71).
Attach the Left Upper Body Leg (24) to the Upper
Body Axle (71) with an M8 x 19mm Button
Screw (85) and an M8 x 23mm x 2mm Washer
(96).
Repeat this step for the Right Upper Body
Leg (72).
Grease
Grease
7. Attach the Left Upper Body Arm (22) to the Left
Upper Body Leg (24) with three M8 x 14mm
Button Screws (84) and three M8 Split
Washers (97).
Attach the Right Upper Body Arm (23) in the
same way. 22
23
24
97
97
84
7

9
8. Hold the Left Rear Upper Body Cover (26) and
the Left Front Upper Body Cover (27) around
the Left Upper Body Leg (24). Attach the Upper
Body Covers with five M4 x 16mm Round Head
Screws (78).
Attach the Right Rear Upper Body Cover
(28) and the Right Front Upper Body Cover
(29) in the same way.
24 78
78
78
26
28
27
8
9
29
Battery
Cover
Batteries
11
9. The Console (11) can be operated with four 1.5V
“D” batteries; alkaline batteries are recommend-
ed. IMPORTANT: If the elliptical exerciser
has been exposed to cold temperatures,
allow it to warm to room temperature before
inserting batteries into the Console. If you
do not do this, the console displays or other
electronic components may become dam-
aged. Remove the battery cover and insert four
batteries into the Console. Make sure that the
batteries are oriented as shown at the right.
Then, reattach the battery cover.
The Console (11) can also be operated with a
regulated 6-volt DC 2-amp power supply (not
included). To purchase a power supply, call
the telephone number on the front cover of
this manual. To avoid damaging the console,
use only a manufacturer-supplied power
supply. Plug one end of the power supply into
the jack on the elliptical exerciser; plug the
other end into an outlet installed in accordance
with all local codes and ordinances.

10

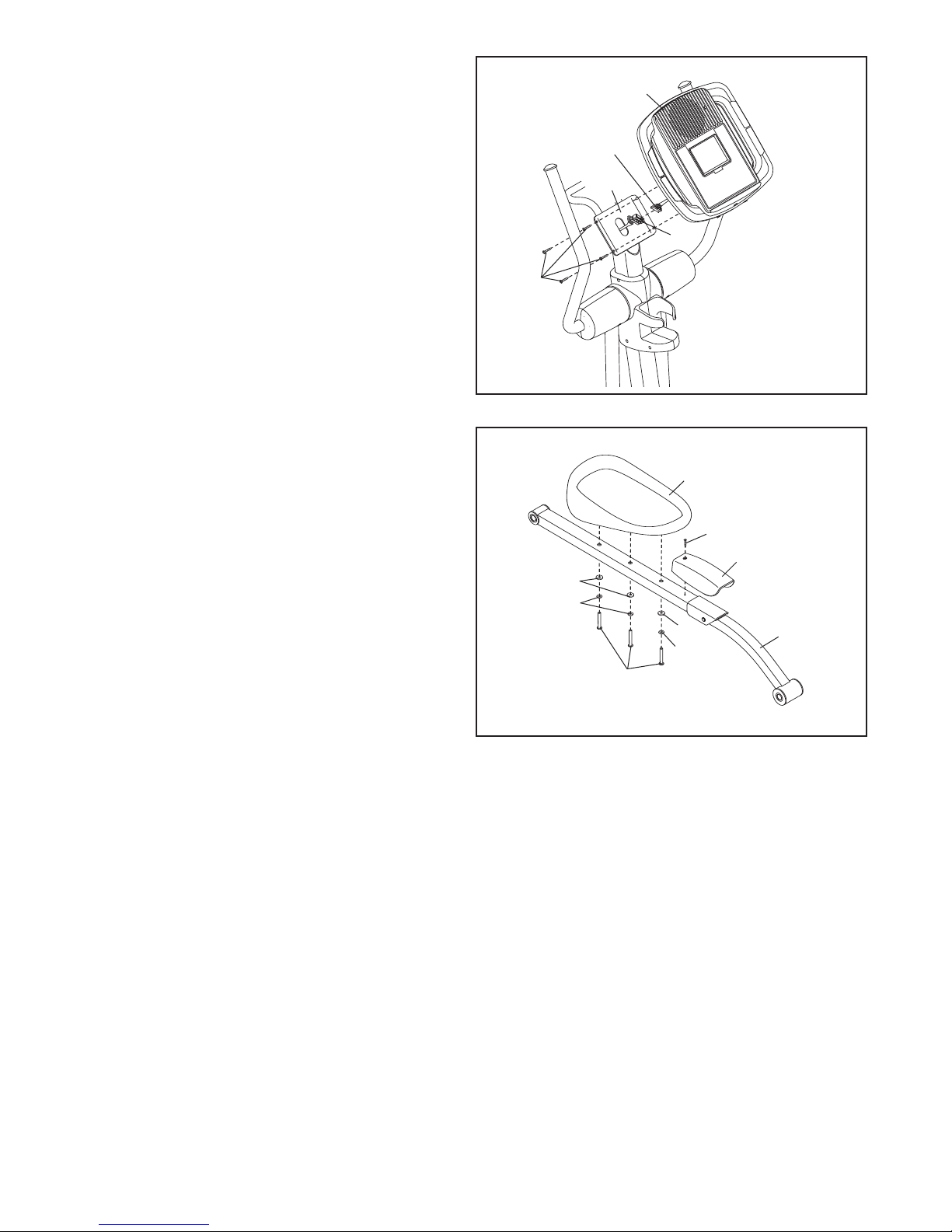

11. Orient a Link Arm (30) as shown. Attach the
Left Pedal (34) to the Link Arm with three
M8 x 45mm Button Screws (90), three M8 Split
Washers (97), and three M8 x 23mm x 2mm
Washers (96).
Attach a Pedal Arm Cover (39) to the Link
Arm (30) with an M4 x 16mm Round Head
Screw (78).
Repeat this step for the Right Pedal (not
shown) and the other Link Arm (not shown).
11
34
96
96
97
97
90
30
78 39
10. While another person holds the Console (11)
near the Upright (10), connect the console wire
harness to the Upper Wire Harness (65).
Attach the Console (11) to the Upright (10) with
four M4 x 16mm Round Head Screws (78).
Avoid pinching the wire harnesses during
this step.
10
78
65
Console Wire
Harness
11
Avoid pinching the
wire harnesses
during this step
10

11
13. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
12. Apply a generous amount of grease to the axle
on the Left Upper Body Leg (24) and to the axle
onthe left Crank Arm (55). Then, apply grease
to two Large Wave Washers (89).
Slide an Upper Body Leg Spacer (9) and a
Large Wave Washer (89) onto the Left Upper
Body Leg (24). Make sure that the flat side of
the Upper Body Leg Spacer is facing out-
ward. Then, slide the other Large Wave Washer
onto the left Crank Arm (55).
Slide the left Pedal Arm (32) onto the Left
Upper Body Leg (24) while sliding the left Link
Arm (30) onto the axle on the left Crank Arm
(55).
Attach the Pedal Arm (32) to the Left Upper
Body Leg (24) with an M8 x 23mm Shoulder
Screw (86), an M8 Washer (95), an Axle Cover
(66), and an M8 x 23mm x 1mm Washer (31).
Then, attach the Link Arm (30) to the Crank Arm
(55) with an M8 x 23mm Shoulder Screw (86),
an M8 Washer (95), a Large Axle Cover (52),
and an M8 x 23mm x 1mm Washer (31).
Repeat this step for the right Pedal
Arm (32) and the right Link Arm (30).
See step 4. Tighten the M8 x 19mm Button
Screws (85).
12
9
30
30
32
89
89
66
52
55
95
31
86
24
Grease
Grease
95 31
86
32

12
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
EXERCISER
When the elliptical exerciser is not in use, the frame
can be folded out of the way. To fold the elliptical exer-
ciser, lift the handle on the rear of the elliptical exercis-
er until the elliptical exerciser locks into the vertical
position.
To unfold the elliptical exerciser, first hold the handle,
press the latch button, and then lower the frame to the
floor.
HOW TO MOVE THE ELLIPTICAL EXERCISER
To move the elliptical exerciser, first fold it as
described at the left. Next, stand in front of the ellipti-
cal exerciser and place one foot against the center of
the front stabilizer. Pull the transport handle backward
until the elliptical exerciser will roll on the front wheels.
Carefully move the elliptical exerciser to the desired
position, and then lower it.
HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical exerciser rocks slightly on your floor
during use, turn one or both of the leveling feet
beneath the base until the rocking motion is eliminat-
ed. If the elliptical exerciser flexes during use, turn the
leveling foot beneath the center of the frame.
Handle
Handle
Place
your foot
here
Transport
Handle
Latch
Button

13
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the upper body
arms and step onto the pedal that is in the lowest
position. Next, step onto the other pedal. Push the
pedals until they begin to move with a continuous
motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow at the right;
however, for variety you can turn the crank arms
in the opposite direction.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the higher
pedal first. Then, step off the lower pedal.
Pedals
Crank Arm
Upper Body Arms

14
HOW TO PUT ON THE CHEST PULSE SENSOR
The chest pulse sensor consists of two components:
the chest strap and the sensor unit (see the drawing
below). Insert the tab on one end of the chest strap
into one end of the sensor unit, as shown in the inset
drawing. Press the end of the sensor unit under the
buckle on the chest strap. The tab should be flush with
the front of the sensor unit.
Next, wrap the
chest pulse sen-
sor around your
chest and attach
the other end of
the chest strap to
the sensor unit.
Adjust the length
of the chest strap, if necessary. The chest pulse sen-
sor should be under your clothes, tight against your
skin, and as high under the pectoral muscles or
breasts as is comfortable. Make sure that the logo on
the sensor unit is facing forward and is right-side-up.
Pull the sensor unit away from your body a few inches
and locate the two electrode areas on the inner side
(the electrode areas are covered by shallow ridges).
Using saline solution such as saliva or contact lens
solution, wet both electrode areas. Return the sensor
unit to a position against your chest.
CHEST PULSE SENSOR CARE
• Thoroughly dry the chest pulse sensor after each
use. The chest pulse sensor is activated when the
electrode areas are wetted and the heart rate moni-
tor is put on; the chest pulse sensor shuts off when
it is removed and the electrode areas are dried. If
the chest pulse sensor is not dried after each use, it
may remain activated longer than necessary,drain-
ing the battery prematurely.
• Store the chest pulse sensor in a warm, dry place.
Do not store the chest pulse sensor in a plastic bag
or other container that may trap moisture.
• Do not expose the chest pulse sensor to direct sun-
light for extended periods of time; do not expose it
to temperatures above 122° F (50° C) or below 14°
F(-10° C).
• Do not excessively bend or stretch the sensor unit
when using or storing the chest pulse sensor.
• Clean the sensor unit using a damp cloth—never
use alcohol, abrasives, or chemicals. The chest
strap may be hand washed and air dried.
CHEST PULSE SENSOR TROUBLESHOOTING
The instructions below explain how the chest
pulse sensor is used with the console. If the chest
pulse sensor does not function properly, try the
steps below.
• Make sure that you are wearing the chest pulse sen-
sor as described at the left. Note: If the chest pulse
sensor does not function when positioned as
described, move it slightly lower or higher.
• Use saline solution such as saliva or contact lens
solution to wet the two electrode areas on the sen-
sor unit. If heart rate readings do not appear until
you begin perspiring, re-wet the electrode areas.
• Make sure to position yourself near the console. For
the console to display heart rate readings, the
user must be within arm’slength of the console.
• The chest pulse sensor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the chest pulse sensor can be
affected by magnetic interference caused by high
power lines or other sources. If it is suspected that
this is a problem, try relocating the exercise cycle.
HOW TO USE THE CHEST PULSE SENSOR
Chest Strap
Sensor Unit
Tab
Buckle
Sensor
Unit
Logo

15
Locust
ELNE96207
ELSN59507
NTEVEL96207.0
23765.1
NTEL00507.0
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable. When you select the manual mode of the
console, you can change the resistance of the pedals
with the touch of a button. As you exercise, the con-
sole will provide continuous exercise feedback. You
can even measure your heart rate using the handgrip
pulse sensor or the included chest pulse sensor.
The console also offers four preset programs. Each
program automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pedaling speed as it guides you through an effective
workout.
In addition, the console features two heart rate pro-
grams that change the resistance of the pedals to
keep your heart rate near target heart rate settings
while you exercise.

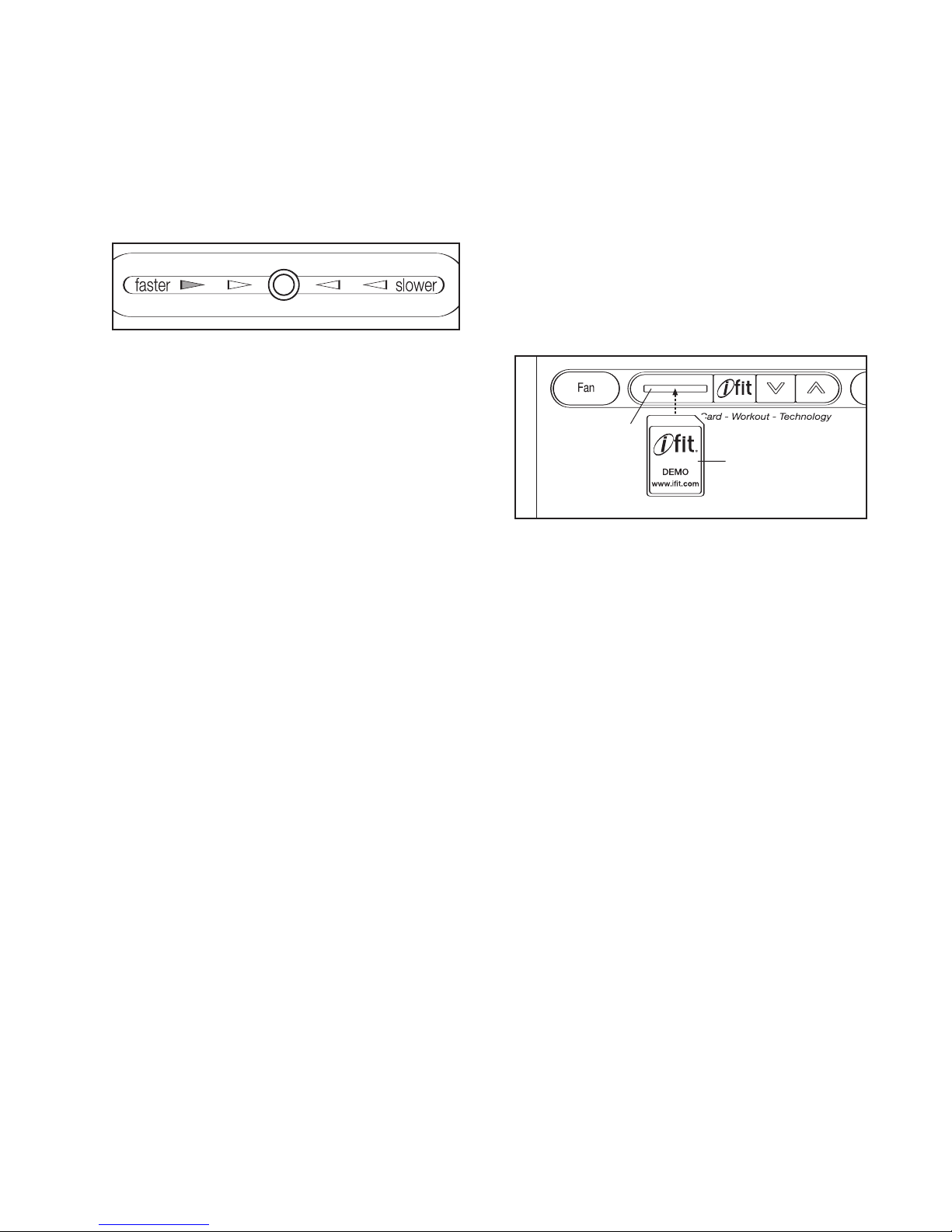

The console also features the new iFIT Interactive
Workout System. The iFIT Interactive Workout System
is compatible with iFIT cards containing workout pro-
grams designed to help you achieve specific fitness
goals. For example, lose unwanted pounds with the 8-
week Weight Loss program. iFIT programs control the
resistance of the pedals while the voice of a personal
trainer coaches you and motivates you through your
workouts. One demo iFIT Card is included. Additional
iFIT cards are available separately. To purchase iFIT
Cards, go to www.iFIT.com or call the telephone
number on the front cover of this manual. iFIT
cards are also available at select stores.
You can even connect your MP3 player or CD player
to the console’ssound system and listen to your
favorite music or audio books while you exercise.
To use the manual mode of the console,follow the
steps beginning on page 16. Touse a preset
program,see page 18. Touse a heart rate program,
see page 19. To use an iFIT program,see page 20.
Touse the stereo sound system,see page 20.

16
HOW TO USE THE MANUAL MODE
Note: If there is a sheet of clear plastic on the face of
the console, remove the plastic.
1. Press any button on the console or begin ped-
aling to turn on the console.
When you turn on the console, the display and the
program target pacer will light. A tone will then
sound and the console will be ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected. If you have selected a program,
reselect the manual mode by pressing any of the
Programs buttons repeatedly until a track appears
in the left side of the display.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change
the resistance of the
pedals by pressing the
OneTouch Resistance
buttons. There are ten
resistance levels.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resis-
tance level.

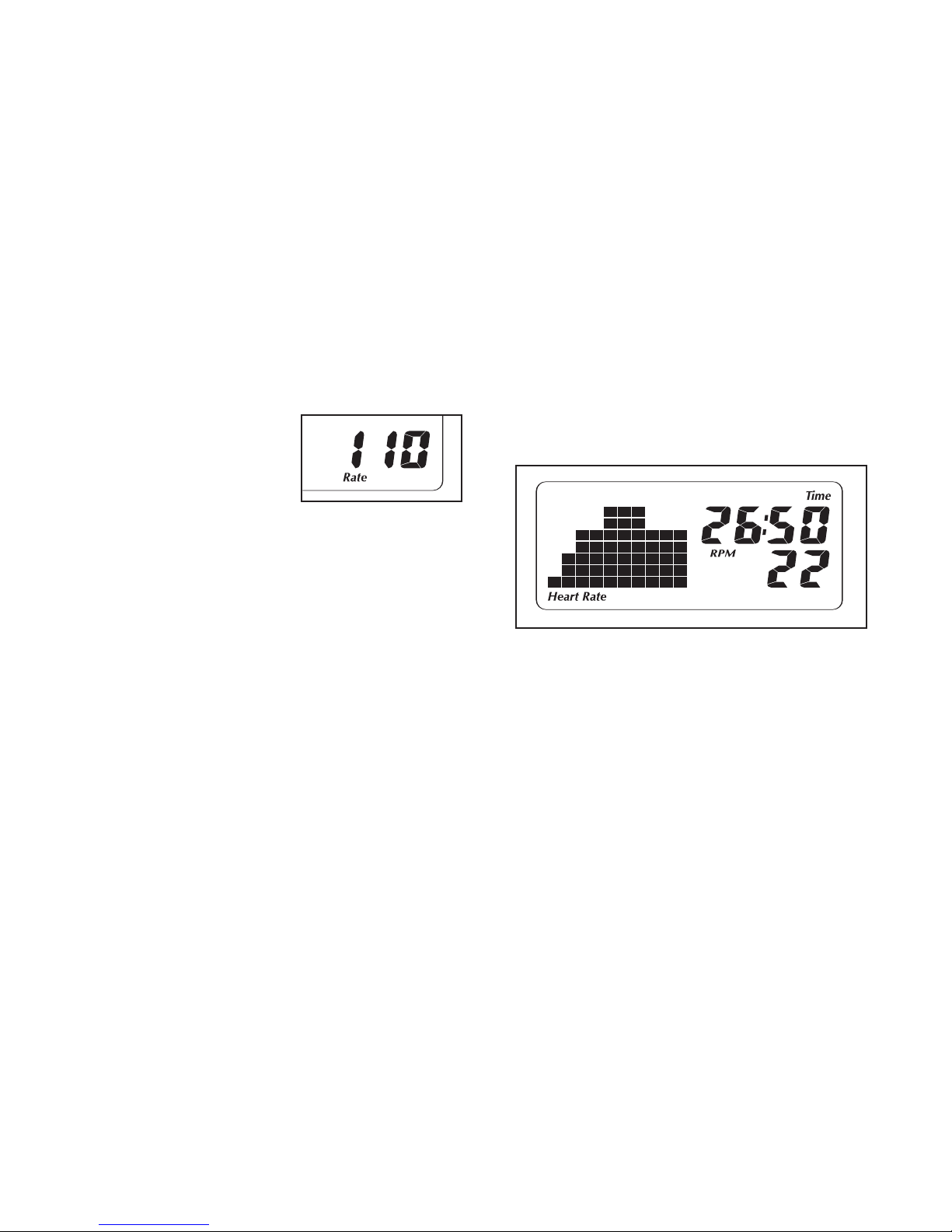

4. Follow your progress with the displays.
The upper right section
of the display can
show the elapsed time,
the distance (total rev-
olutions) you have
pedaled, the approxi-
mate number of calories you have burned, and the
approximate number of grams of carbs you have
burned. The display will change modes every few
seconds.
The lower right section
of the display can
show your pedaling
pace (in revolutions
per minute) and the
resistance level of the
pedals. The display will change modes every few
seconds. The display will also show your heart
rate when you use the handgrip pulse sensor or
the included chest pulse sensor (see step 5 on
page 17).
The left section of the
display will show a
track representing 640
revolutions. As you
exercise, indicators will
appear in succession
around the track until
the entire track
appears. The track will then disappear and the
indicators will again begin to appear in succession.
To change the display mode, press the Display
button repeatedly until the desired exercise infor-
mation appears in the upper or lower right display.
After several seconds, the display will change
modes automatically as before.
Toview the total distance pedaled since the ellipti-
cal exerciser was purchased, press the Odometer
button. The information will appear in the display
for a few seconds. To view the trip distance, press
the Odometer button a second time. Toreset the
trip distance, hold down the Odometer button for a
few seconds. Note: The number on the right side
of the display multiplied by the number on the left
side equals the total distance or the trip distance.

17
5. Measure your heart rate if desired.
Touse the included chest pulse sensor, see page
14. To use the handgrip pulse sensor, follow the
instructions below. Note: If you wear the chest
pulse sensor and hold the handgrip pulse sen-
sor at the same time, the console will not dis-
play your heart rate accurately.
If there are
sheets of clear
plastic on the
metal contacts on
the handgrip
pulse sensor,
remove the plas-
tic. In addition,
make sure that
your hands are
clean. To measure
your heart rate, hold the handgrip pulse sensor
with your palms resting against the metal contacts.
Avoid moving your hands or gripping the con-
tacts tightly.
When your pulse is detected, a heart-shaped sym-
bol will flash in the display each time your heart
beats and then your heart rate will be shown. For
the most accurate heart rate reading, hold the con-
tacts for at least 15 seconds.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the metal contacts tightly.For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. Turn on the fan if desired.
Toturn on the fan at high speed, press the Fan
button. To turn on the fan at low speed, press the
Fan button a second time. To select the auto
mode, press the Fan button a third time; while the
auto mode is selected, the speed of the fan will
automatically increase or decrease as you
increase or decrease your pedaling speed.
Pivot the thumb tab
on the right side of
the fan to adjust
the fan angle.
To turn off the fan, press the Fan button again.
Note: If the pedals do not move for about thirty
seconds, the fan will automatically turn off to con-
serve the batteries.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound and the console will
pause.
If the pedals do not move for about five minutes,
the console will turn offand the displays will be
reset.
Contacts
Thumb
Tab

18
HOW TO USE A PRESET PROGRAM
1. Press any button on the console or begin ped-
aling to turn on the console.
See step 1 on page 16.
2. Select a preset program.
To select one of the four preset programs, press
the Weight Loss, the Aerobic 1, the Aerobic 2, or
the Performance button on the left side of the con-
sole.
When you select a preset program, the name of
the program and the maximum resistance level will
appear in the display for a few seconds. A profile
of the resistance levels of the program will also
scroll across the left side of the display.
3. Begin pedaling to start the program.
Each program is divided into 30 one-minute seg-
ments. One resistance level and one target pace
setting is programmed for each segment. Note:
The same resistance level and/or target pace set-
ting may be programmed for consecutive seg-
ments.
During the program, the program profile will show
your progress (see the drawing above). The flash-
ing segment of the profile represents the current
segment of the program. The height of the flashing
segment indicates the resistance level for the cur-
rent segment. At the end of each segment of the
program, a series of tones will sound and the next
segment of the profile will begin to flash. If a differ-
ent resistance level is programmed for the next
segment, the resistance level will appear in the
display for a few seconds to alert you. The resis-
tance of the pedals will then change.
During the program, the program target pacer will
prompt you to keep your pedaling pace near the
target pace setting for the current segment. When
aleft indicator lights, increase your pace; when a
right indicator lights, decrease your pace. When
the center indicator lights, maintain your current
pace. IMPORTANT: The program target pacer is
intended only to provide a goal. Make sure to
pedal at a pace that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
resistance level by pressing the OneTouch
Resistance buttons. However, when the current
segment ends, the resistance of the pedals will
automatically adjust to the resistance level for the
next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the program will pause. To
restart the program, simply resume pedaling. The
program will continue until the last segment of the
profile ends.
4. Follow your progress with the displays.
See step 4 on page 16.
5. Measure your heart rate if desired.
See step 5 on page 17.
6. Turn on the fan if desired.
See step 6 on page 17.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 17.

19
HOW TO USE A HEART RATE PROGRAM
1. Press any button on the console or begin ped-
aling to turn on the console.
See step 1 on page 16.
2. Select a heart rate program.
To select one of the heart rate programs, press
the Heart Rate 1 or the Heart Rate 2 button on the
left side of the console.
3. Enter a target heart rate setting.
A few seconds after you select a heart rate pro-
gram, the target heart rate setting for the program
will flash in the lower right display.
During heart rate pro-
gram 1, the same tar-
get heart rate setting
will be programmed for
all segments of the pro-
gram. If you have
selected heart rate program 1, press the increase
and decrease buttons above the Heart Rate
Program buttons to enter the desired target heart
rate setting (see EXERCISE INTENSITY on page
22).
During heart rate program 2, different target
heart rate settings will be programmed for different
segments of the program. If you have selected
heart rate program 2, press the increase and
decrease buttons above the Heart Rate Program
buttons to enter the desired maximum target heart
rate setting for the program (see EXERCISE
INTENSITY on page 22).
4. Put on the chest pulse sensor or hold the
handgrip pulse sensor.
Touse a heart rate program, you must wear the
chest pulse sensor or use the handgrip pulse sen-
sor.Note: If you hold the handgrip pulse sensor
and wear the chest pulse sensor at the same
time, the console will not display your heart rate
accurately.
If you use the handgrip pulse sensor, it is not nec-
essary to hold the handgrip pulse sensor continu-
ously during heart rate programs; however, you
should hold the handgrip pulse sensor frequently
for the programs to operate properly. Each time
you hold the handgrip pulse sensor, keep your
hands on the metal contacts for at least 30
seconds.
5. Begin pedaling to start the program.
Heart rate program 1 is divided into 40 one-
minute segments. Note: For a shorter workout,
stop exercising or select a different program
before the program ends.
Heart rate program 2 is divided into 30 one-
minute segments. One target heart rate setting is
programmed for each segment. Note: The same
target heart rate setting may be programmed for
consecutive segments.
During the program, the program profile in the dis-
play will show your progress. The flashing seg-
ment of the profile represents the current segment
of the program. The height of the flashing seg-
ment indicates the target heart rate setting for the
current segment. At the end of each segment of
the program, a series of tones will sound and the
next segment of the profile will begin to flash.
During both programs, the console will regularly
compare your heart rate to the target heart rate
setting for the current segment of the program. If
your heart rate is too far below or above the target
heart rate setting, the resistance of the pedals will
automatically increase or decrease to bring your
heart rate closer to the target heart rate setting.
Each time the resistance changes, the resistance
level will appear in the display for a few seconds
to alert you.

20
While you exercise, the program target pacer will
prompt you to maintain a constant pedaling
speed. When a left indicator lights, increase your
pace; when a right indicator lights, decrease your
pace. When the center indicator lights, maintain
your current pace. IMPORTANT: The program
target pacer is intended only to provide a goal.
Make sure to pedal at a pace that is comfort-
able for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
resistance level by pressing the OneTouch
Resistance buttons. However, when the console
compares your heart rate to the target heart rate
setting, the resistance of the pedals may automati-
cally increase or decrease to bring your heart rate
closer to the target heart rate setting.
If you stop pedaling for several seconds, a series
of tones will sound and the program will pause. To
restart the program, simply resume pedaling. The
program will continue until the last segment of the
program ends.
6. Follow your progress with the displays.
See step 4 on page 16.
7. Turn on the fan if desired.
See step 6 on page 17.
8. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 17.
HOW TO USE AN IFIT PROGRAM
1. Press any button on the console or begin ped-
aling to turn on the console.
See step 1 on page 16.
2. Insert an iFIT card and select a program.
To use an iFIT program, insert an iFIT card into
the iFIT slot; make sure that the iFIT card is ori-
ented so the metal contacts are face down and
are facing the slot. When the iFIT card is properly
inserted, the indicator next to the slot will light and
the words IFIT 1 will appear in the display.
Next, select the desired program on the iFIT card
by pressing the increase and decrease buttons
next to the iFIT slot.
A moment after you select a program, the voice of
apersonal trainer will begin guiding you through
your workout. iFIT programs work in the same
way as preset programs. To use the program, see
steps 3 to 7 on page 18.
3. When you are finished exercising, remove the
iFit card.
Remove the iFit card when you are finished exer-
cising. Store the iFit card in a secure place.
HOW TOUSE THE SOUND SYSTEM
Toplay music or audio books through the console’s
sound system while you exercise, plug the included
audio cable into the jack on the console and into a
jack on your MP3 player or CD player; make sure
that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume of the speakers using the
volume control on your MP3 player or CD player.
iFIT Slot
iFIT Card
