USER'S MANUAL
CAUTION
Read all precautions and in-
structions in this manual before
using this equipment. Keep this
manual for future reference.
Model No.
Serial No.
The model number and serial num-
ber are found in the location shown
below. Write the model number and
serial number in the space above.
QUESTIONS?
At FreeMotion Fitness, we’re
committed to providing complete
customer satisfaction. If you
have questions, see HOW TO
CONTACT CUSTOMER CARE on
page 2 of this manual.
Serial
Number
Decal

How to Contact Customer Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SECTION 1
Important Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
How to Assemble the Elliptical Trainer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
How to Set Up the Elliptical Trainer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
How to Upgrade the Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
SECTION 2
How to Use the Basic Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
SECTION 3
Maintenance and Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
SECTION 4
Exercise Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
SECTION 5
Part List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Exploded Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
TABLE OF CONTENTS
1
NordicTrack is a registered trademark of ICON IP, Inc.

2
If you have questions after reading this manual, or if you require assistance, please contact Customer Care at the
address and phone number listed below. Please be prepared to give the following information:
• The MODEL NUMBER OF THE PRODUCT (see the front cover of this manual for the location)
• The NAME OF THE PRODUCT (NordicTrack®9600E elliptical trainer)
• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual for the location)
When ordering replacement parts, please also give the KEY NUMBER and DESCRIPTION OF THE PART(S)
(see the PART LIST and the EXPLODED DRAWING on pages 27 to 31)
HOW TO CONTACT CUSTOMER CARE
Customer Care: 1-800-201-2109, Monday–Friday, 8 a.m.–5 p.m. Mountain Time
FreeMotion Fitness, Inc. • 1096 Elkton Drive, Suite 600 • Colorado Springs, CO 80907

3
1. It is the responsibility of the owner to ensure
that all users of the elliptical trainer are ade-
quately informed of all warnings and precau-
tions.
2. Operate the elliptical trainer only as described
in this manual.
3. Do not operate the elliptical trainer until it is
properly assembled (see HOW TO ASSEMBLE
THE ELLIPTICAL TRAINER on page 5).
4. Keep the elliptical trainer indoors, away from
moisture and dust. Do not place the elliptical
trainer in a garage or covered patio or near
water.
5. Place the elliptical trainer on a level surface.
To protect the floor or carpet from damage,
place a mat beneath the elliptical trainer.
Make sure that there is enough clearance
around the elliptical trainer to mount, dis-
mount, and use it.
6. Regularly inspect and tighten all parts of the
elliptical trainer.
7. Keep children under the age of 12 and pets
away from the elliptical trainer at all times.
8. The elliptical trainer should not be used by
persons weighing more than 158 kg (350 lbs).
9. Always wear appropriate exercise clothes and
athletic shoes when operating the elliptical
trainer. Do not wear loose clothes that could
become caught on the elliptical trainer.
10. Do not modify the power cord or use an adap-
tor to connect the power cord to an improper
receptical (see HOW TO CONNECT THE
POWER CORD on page 7). Keep the power
cord away from heated surfaces. Do not use
an extension cord.
11. Keep your back straight when using the ellip-
tical trainer; do not arch your back.
12. If you feel pain or dizziness whilst exercising,
stop immediately and cool down.
13. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
14. The battery pack contains materials that are
considered hazardous to the environment.
Proper disposal of the battery is required by
federal law. See HOW TO REPLACE THE BAT-
TERY PACK on page 22.
WARNING: To reduce the risk of serious injury, read the following important precautions
and information before operating the elliptical trainer.
IMPORTANT PRECAUTIONS
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS

4
Congratulations for selecting the revolutionary Nordic-
Track®9600E elliptical trainer. The NordicTrack 9600E
elliptical trainer offers an impressive array of features
tomake your workouts more effective and enjoyable.
For your benefit, read this manual carefully before
using the NordicTrack 9600E elliptical trainer.If
you have questions after reading this manual, see
HOW TO CONTACT CUSTOMER CARE on page 2.
To help us assist you, please note your product model
number and serial number before calling. The model
number and serial number can be found on a decal at-
tached to the elliptical trainer (see the front cover of
this manual for the location of the decal).

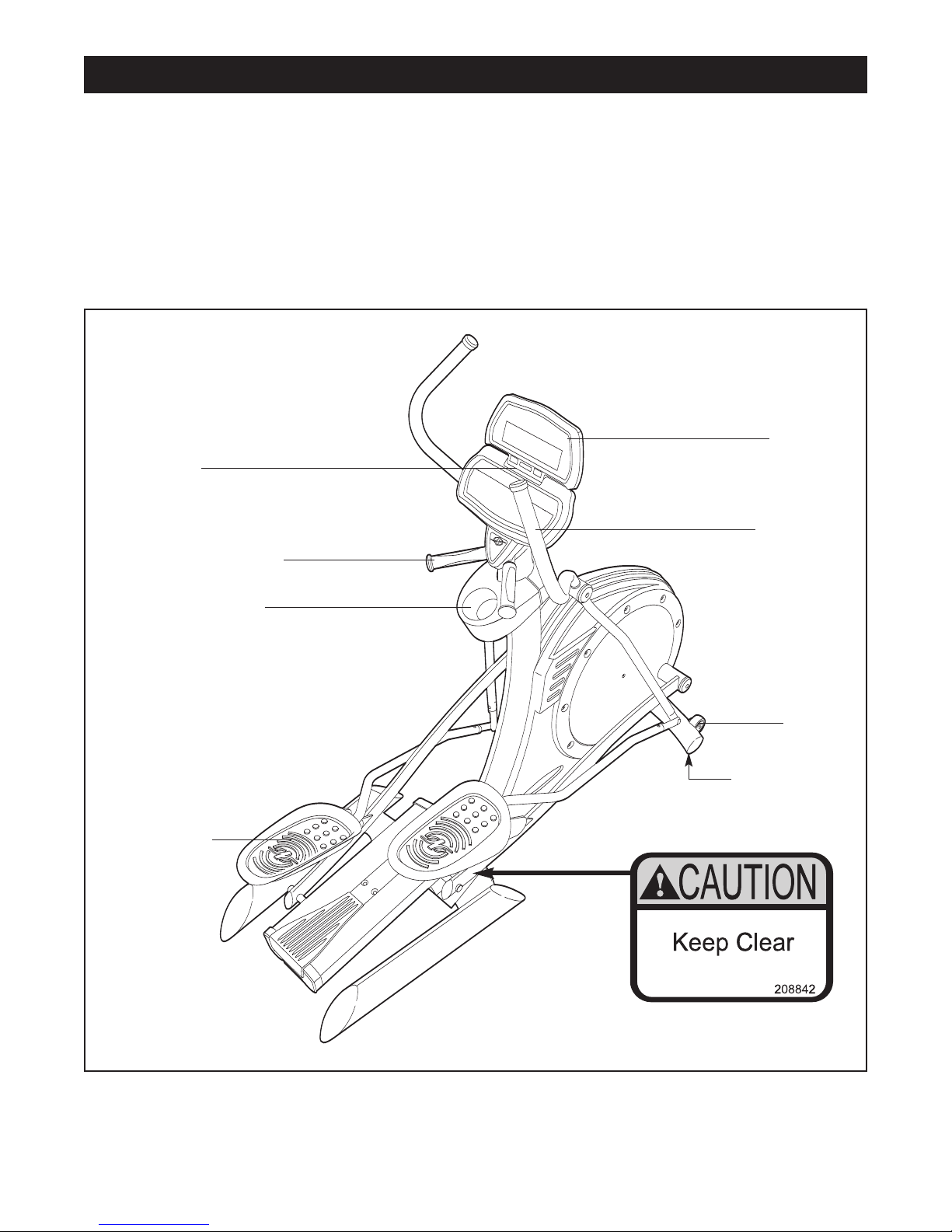

Before reading further, please familiarise yourself with
the parts that are labelled in the drawing below.
Handlebar
Book Rack
Console
Levelling Foot
BEFORE YOU BEGIN
Handgrip Pulse Sensor
Water Bottle Holder*
*No water bottle is included
FRONT
REAR
Wheel
Pedal Cover
RIGHT SIDE

5
Assembly requires two persons. Set the elliptical trainer in a cleared area and remove all packing materials. Do
not dispose of the packing materials until assembly is completed. Assembly can be completed using the in-
cluded hex keys.
HOW TOASSEMBLE THE ELLIPTICAL TRAINER
1. Lift the Left Handlebar Arm (17) to the position
shown. Attach the Left Handlebar Arm to the Left
Handlebar (19) with two 3/8” x 5/8” Shoulder
Screws (100).
Attach the Right Handlebar Arm (not shown) to the
Right Handlebar (20) in the same way.
2. Have another person hold the Upright (2) in the po-
sition shown. Connect the Lower Power Wire (96)
to the Upper Power Wire (97). Connect the Lower
CATV Cable (102) to the Upper CATV Cable (101).
Connect the Lower Battery Wire (77) to the Upper
Battery Wire (78). Connect the Lower Controller
Wire (80) to the Upper Controller Wire (79).
Attach the Upright (2) to the Frame (1) with four
3/8” x 1 1/4” Button Head Screws (48) and four 3/8”
Star Washers (85). Make sure that no wires are
pinched between the Upright and the Frame.
17
1
2
48
48
85
97
96
77
79
80
102
2
1
100
19
20
101
78
85
48
85

6
3. Attach the Upright Cover (29) to the Upright (2) with
three #8 x 1/2” Button Head Screws (92). Attach
the Water Bottle Holder (26) to the Frame (1) with
four #8 x 1/2” Button Head Screws (92).
3
29
92
92
1
2
26
92

HOW TO MOVE AND LEVEL THE ELLIPTICAL
TRAINER
Make sure that the power cord is unplugged.
(Note: If a CATV cable is connected to the elliptical
trainer, it may be necessary to disconnect the cable
if the elliptical trainer will be moved far.) Next, see
the left inset drawing and locate the two levelling feet
under the rear of the frame. Turn the levelling feet so
that they are not touching the floor.
Due to the size and weight of the elliptical trainer,
moving it requires two persons. Have two persons
lift the indicated end of the elliptical trainer until the
elliptical trainer will roll on the front wheels. Carefully
move the elliptical trainer to the desired location and
then lower it back to the level position. CAUTION:
To decrease the risk of injury, bend your legs
and keep your back straight. Make sure to use
your legs rather than your back to lift the ellipti-
cal trainer. Do not attempt to move the elliptical
trainer over an uneven surface.
Next, turn the two levelling feet under the rear of the
frame until they are just touching the floor. If the ellip-
tical trainer rocks slightly during use, turn the level-
ling feet under the front of the frame (see the right
inset drawing) until the rocking motion is eliminated.
HOW TO CONNECT THE POWER CORD
If the elliptical trainer has a Basic console, it can be used with or
without a power cord. To purchase a power cord, see HOW TO
CONTACT CUSTOMER CARE on page 2 of this manual. If the el-
liptical trainer has a Workout TV console, a power cord must be
used for the TV to be operated. A power cord is included with the
Workout TV console.
To use a power cord, first plug one end of the power cord into the
jack on the front of the elliptical trainer. Plug the other end of the
power cord into an appropriate outlet that is properly installed in ac-
cordance with all local codes and ordinances.
HOW TO SET UPTHE ELLIPTICAL TRAINER
Lift
Here
Wheels
Power
Cord
Jack
7
Levelling
Feet

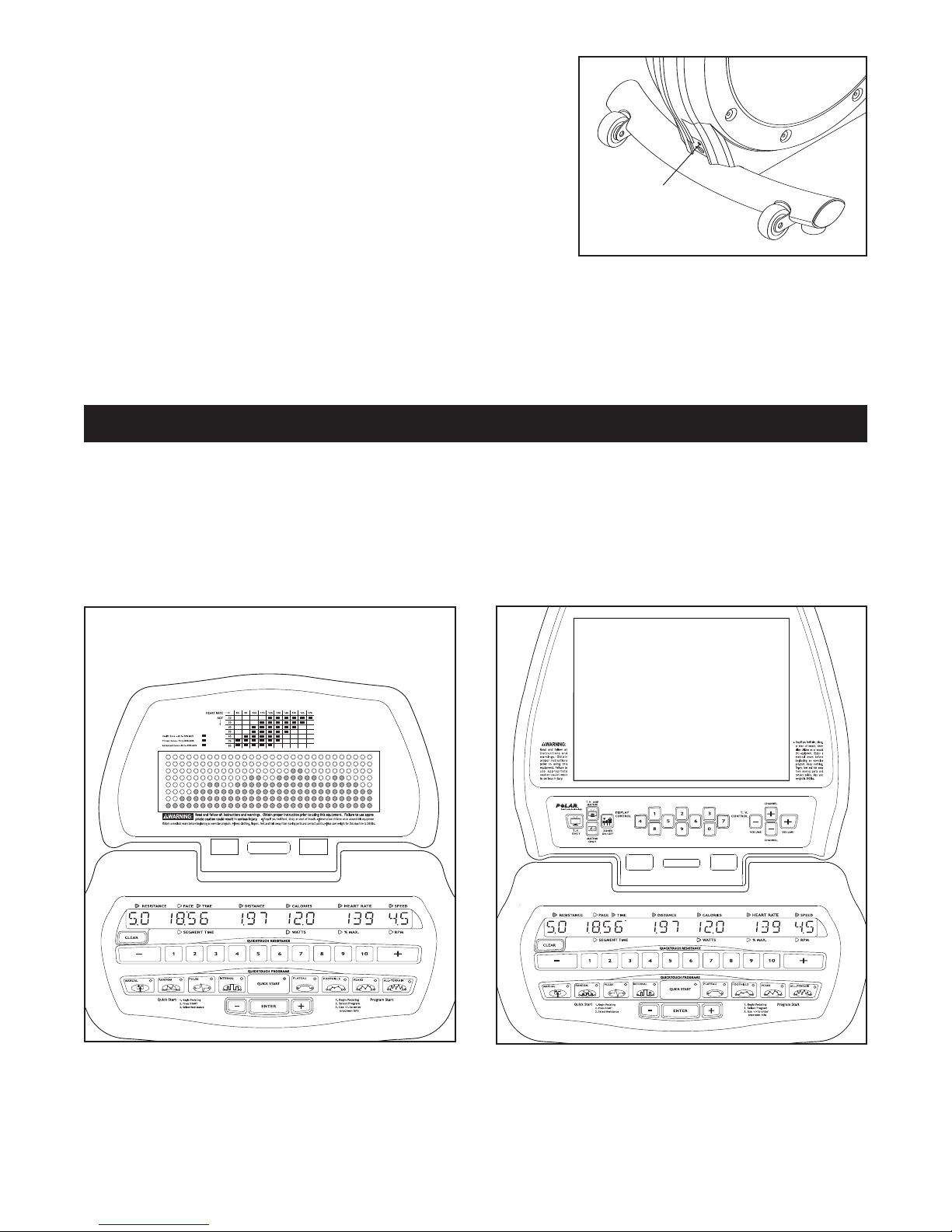

Your elliptical trainer has been pre-configured to operate with a Basic console and a Workout TV console (see
the drawings below). To learn about the features of the Basic console, see page 9. To learn about the features of
the Workout TV console, see the user’s manual included with the Workout TV console.
To upgrade your console and expand the capabilities of your elliptical trainer whenever you choose, see
HOW TO CONTACT CUSTOMER CARE on page 2 of this manual.
F S A
HOW TO UPGRADE THE CONSOLE
Basic
Console
Workout TV
Console
8
HOW TO CONNECT A CATV CABLE
Ifyour elliptical trainer has a Workout TV console, a CATV cable
must be connected to the elliptical trainer for cable TV stations to
beviewed. Locate the cable jack on the front of the elliptical trainer.
Connect the CATV cable to the cable jack.
Asatellite receiver, VCR, or DVD player can also be connected to
the elliptical trainer. Connect a CATV cable from the coaxial output
on your equipment (usually labelled TV OUT or RF OUT) to the cable
jack. Note: Audio/video equipment without coaxial outputs (some
satellite receivers and DVD players) will require an RF modulator to
operate with the elliptical trainer. RF modulators and external CATV cables are not available from FreeMotion
Fitness, but are available at electronics stores. See the owner's manual included with the equipment you wish to
connect to see whether an RF modulator is needed.
Cable
Jack

9

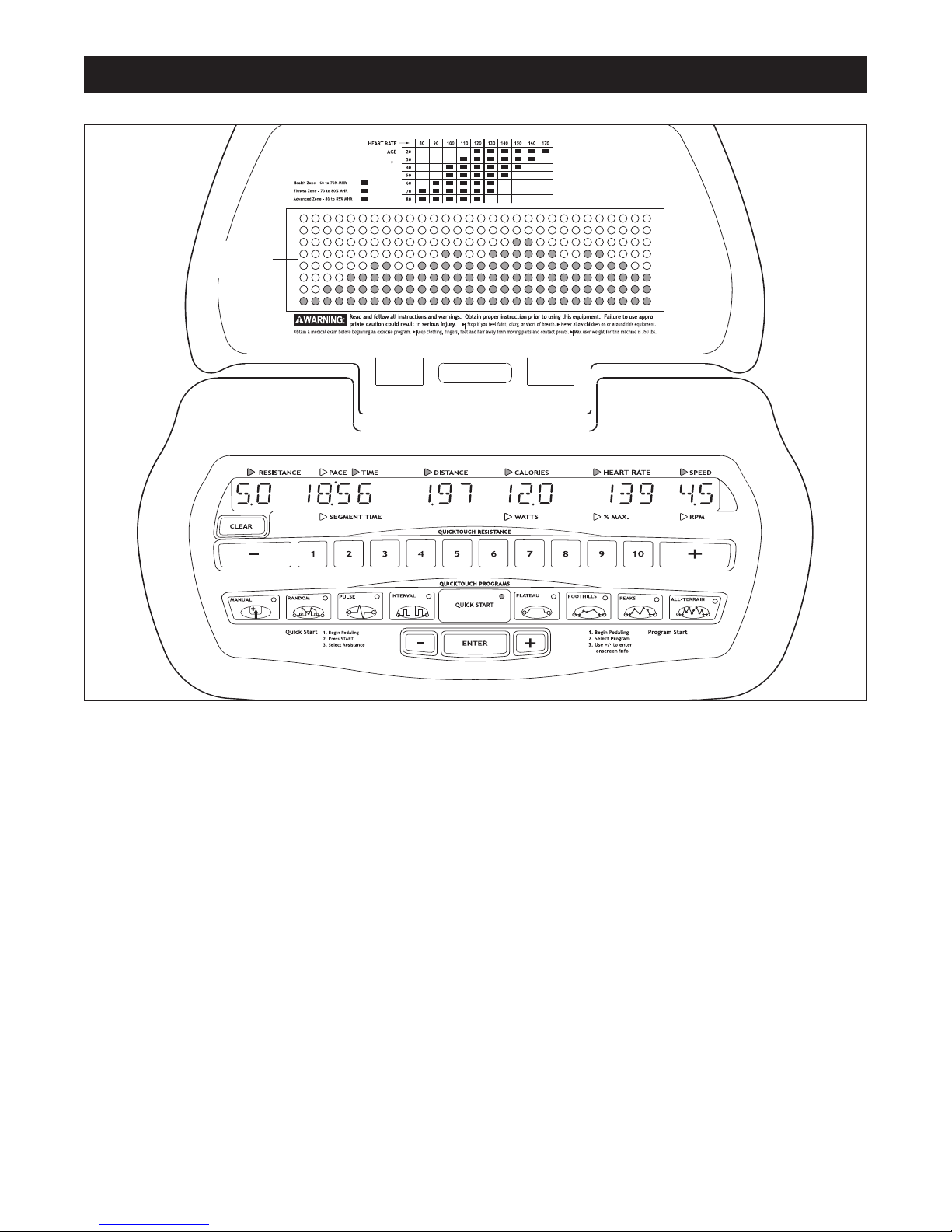

FEATURES OF THE CONSOLE
The Basic console offers an impressive array of
features designed to help you get the greatest benefits
from your exercise on the elliptical trainer. When the
QUICK START mode is selected, the resistance of the
pedals can be changed with the touch of a button. As
you exercise, the console will provide continuous exer-
cise feedback. You can even measure your heart rate
using the built-in pulse sensor.
In addition, the console offers a wide selection of work-
out programs. Each program automatically controls the
resistance of the pedals as it guides you through an ef-
fective workout. The console also offers two PULSE
programs that automatically adjust the resistance of
the pedals to keep your heart rate near a target level
during your workouts. Note: The PULSE programs re-
quire the use of a Polar®-compatible chest pulse sensor
(not included).
Before using the elliptical trainer, please read
OVERVIEW OF THE CONSOLE on pages 10 to 12.
To use the QUICK START mode of the console,
follow the steps beginning on page 13. To use the
MANUAL program,see page 13. To use the RAN-
DOM program, see page 15. To use a PULSE pro-
gram, see page 16. To use the INTERVAL program,
see page 17. To use the PLATEAU program, see
page 18. To use the FOOTHILLS, PEAKS, or ALL-
TERRAIN program, see page 19. To use the mainte-
nance mode, see page 20.
Main Display
Matrix
HOW TO USE THE BASIC CONSOLE

10
OVERVIEW OF THE CONSOLE
For your benefit, please read all of the instructions
on pages 10 to 12 before you use the elliptical
trainer.
HOW TO ACTIVATE THE CONSOLE
If the elliptical trainer has a Basic console, it can be
used with or without a power cord. To purchase and
use a power cord, see HOW TO CONNECT THE
POWER CORD on page 7. To use the elliptical trainer
without a power cord, simply begin pedalling at a ca-
dence of about 25 revolutions per minute (RPM) or
faster. The main display will light, the indicators on the
QUICKTOUCH PROGRAMS buttons will begin to
flash, a tone will sound, and the words “PLEASE SE-
LECT A PROGRAM TO BEGIN” will scroll across the
main display. Whilst you pedal, power will be supplied
by a generator; remember to continue pedalling whilst
using the elliptical trainer.
Ifthe elliptical trainer has a Workout TV console,
the power cord must be used for the TV to be oper-
ated. See HOW TO CONNECT THE POWER CORD
on page 7. When the power cord is plugged in, the
main display will light, the indicators on the QUICK-
TOUCH PROGRAMS buttons will begin to flash, a
tone will sound, and the words “PLEASE SELECT A
PROGRAM TO BEGIN” will scroll across the main dis-
play.
HOW TO TURN OFF THE CONSOLE
If the power cord is not being used, and if the ped-
als are not moved for a short period of time, the con-
sole will automatically turn off.
If the power cord is being used, and if the pedals are
not moved for a short period of time, the words
“PLEASE SELECT A PROGRAM TO BEGIN” will
scroll across the main display. Unplug the power cord
when the elliptical trainer is not in use.

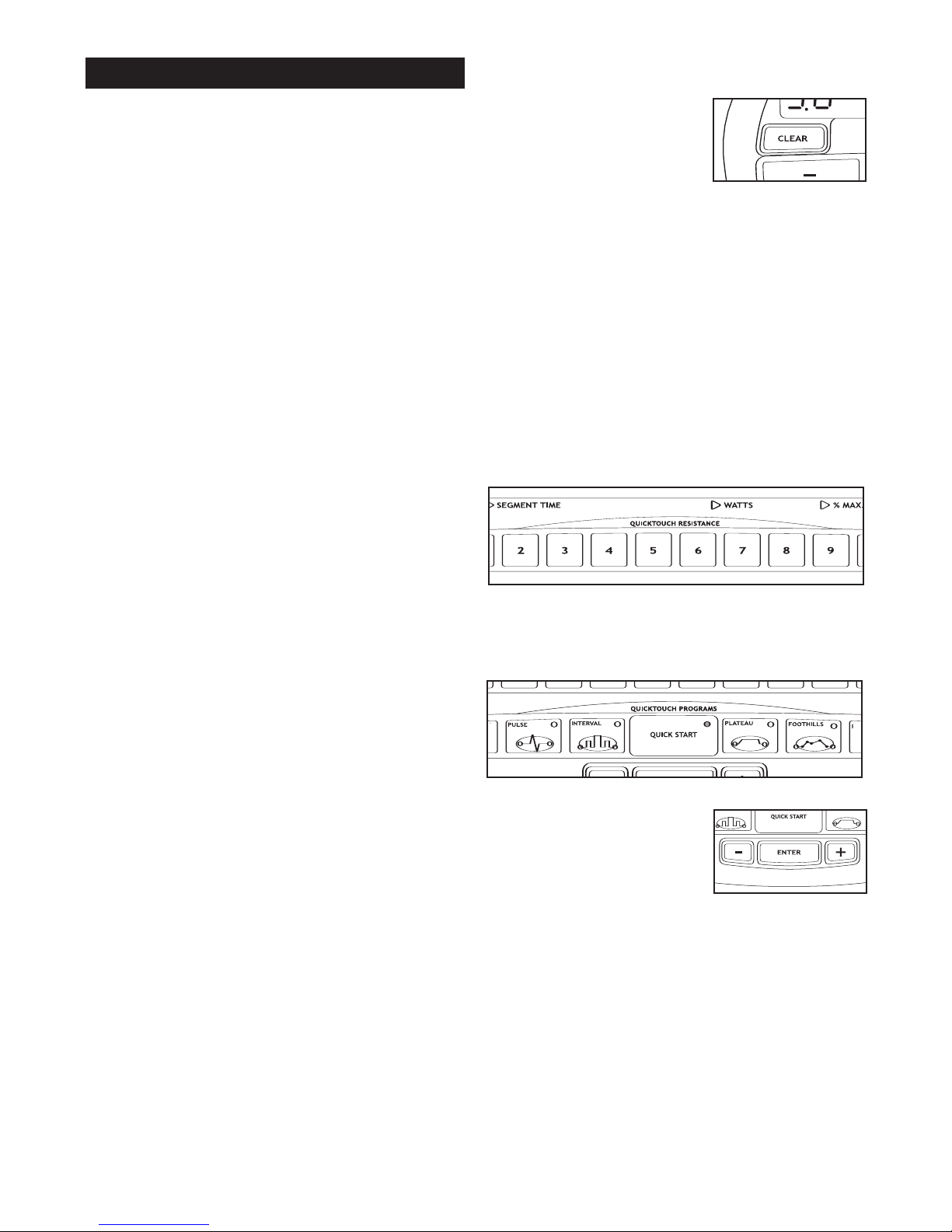

THE BUTTONS
The CLEAR button—This
button is used to reset the
console. When this button is
pressed, the main display will
be reset and the words
“PLEASE SELECT A PRO-
GRAM TO BEGIN” will scroll across the main display.
Note: If one program is started and then a different
program is selected, the main display will not be reset
unless the CLEAR button is pressed before the second
program is selected.
The QUICKTOUCH RESISTANCE buttons—These
buttons control the resistance of the pedals. There are
twenty resistance settings, from 0.5 to 10. Each time
the + or – button is pressed, the resistance setting will
change by 0.5. When one of the buttons numbered 1
to 10 is pressed, the corresponding resistance setting
will be selected. Note: It may take a moment for the
pedals to reach the selected resistance setting.
The QUICKTOUCH PROGRAMS buttons—These
buttons are used to select the QUICK START mode
and the programs.
The ENTER button and +
and – buttons—These but-
tons are used to enter infor-
mation into the console.

11

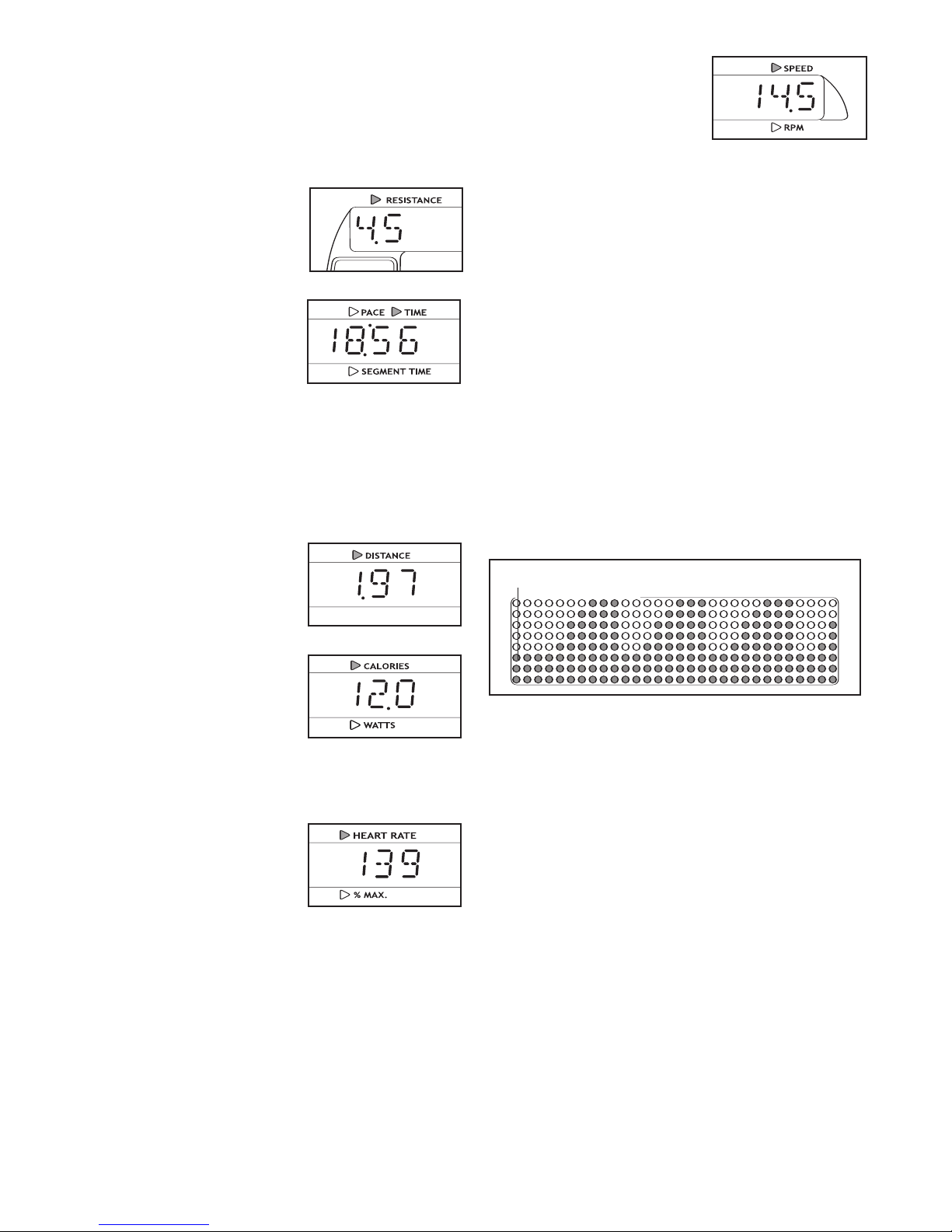

THE MAIN DISPLAY
The main display will display a variety of text messages
to guide you through your workouts. In addition, the
main display will display the following information
whilst you exercise:
Resistance—The left end of
the main display will show
the resistance setting of the
pedals.
Pace/Time/Segment
Time—When the QUICK
START mode is selected,
this section of the main dis-
play will show your pedalling
pace, in minutes per mile or
minutes per kilometre, and the elapsed time. The dis-
play will change from one number to the other every
few seconds. When a program is selected, the main
display will show your pedalling pace, the time remain-
ing in the program, and the time remaining in the cur-
rent segment of the program.
Distance—This section of
the main display will show
the distance that you have
pedalled, in miles or kilome-
tres.
Calories/Watts—This sec-
tion of the main display will
show the approximate num-
ber of calories you have
burned and your power out-
put in watts. The display will
change from one number to the other every few sec-
onds.
Heart Rate/% Max—When
you use the handgrip pulse
sensor or a Polar®-compati-
ble chest pulse sensor (not
included), this section of the
main display will show your
heart rate. When a PULSE program is selected, the
display will show your heart rate and the correspond-
ing percentage of your estimated maximum heart rate
(see step 6 on page 16 for an explanation of your esti-
mated maximum heart rate). The display will change
from one number to the other every few seconds.
Speed/RPM—The right end
ofthe main display will show
your pedalling speed, in
miles per hour or kilometres
per hour, and your pedalling
cadence, in revolutions per
minute (RPM). The display will change from one num-
ber to the other every few seconds.
Note: The main display can display text messages in
any of six languages (see step 6 on page 20). In addi-
tion, the main display can display data using either the
English system or the metric system (see step 7 on
page 20).
THE MATRIX
When the RANDOM, INTERVAL, PLATEAU, FOOT-
HILLS, PEAKS, or ALL-TERRAIN program is selected,
the matrix will display a profile of resistance settings.
Each program is divided into 30-second segments,
and each column of the matrix represents one 30-sec-
ond segment. The flashing column represents the cur-
rent segment. Note: If a program has more than 30
segments, the matrix will show up to 30 segments at a
time.
The lit indicators in each column represent the resis-
tance setting for that segment of the program. One lit
indicator represents a resistance setting of 0.5 or 1, two
lit indicators represent a resistance setting of 1.5 or 2,
three lit indicators represent a resistance setting of 2.5
or 3, and so forth. Note: Because there are eight indica-
tors in each column, the matrix will normally show resis-
tance settings up to 8. If resistance settings of 8.5, 9,
9.5, or 10 are programmed for one or more segments,
the lit indicators in all columns will occasionally shift
downward so that the higher settings higher are dis-
played in the matrix.
Flashing Column

12
When the QUICK START mode or the MANUAL pro-
gram is selected, the matrix will show the resistance
settings that you select.
When a PULSE program is selected, the matrix will dis-
play a heartbeat graphic. Each time a heartbeat is de-
tected, an additional peak will appear in the display.
THE PULSE SENSOR
Ifthere are thin sheets
of plastic on the metal
contacts on the pulse
sensor, peel off the
plastic. To measure
your heart rate, hold the
contacts; your palms
must be resting on the
upper contacts, and
your fingers must be touching the lower contacts.
Avoid moving your hands. When your pulse is de-
tected, the HEART RATE indicator above the main dis-
play will begin to flash, and then your heart rate will be
shown. For the most accurate heart rate reading, hold
the contacts for at least 15 seconds without moving
your hands.
If your heart rate is not shown, make sure that your
hands are positioned as described. Be careful not to
move your hands excessively or to squeeze the con-
tacts too tightly. For optimal performance, clean the
contacts using a soft cloth; never use alcohol, abra-
sives, or chemicals.
Flashing Column
Contacts

13
HOW TO USE THE QUICK START MODE
If you do not plan to use a program, the QUICK
START mode will allow you to simply start exercising
and adjust the resistance of the pedals manually.
Plug in the power cord or begin pedalling to
activate the console.
See HOW TO ACTIVATE THE CONSOLE on
page 10.
Select the QUICK START mode.
To select the QUICK START mode, press the
QUICK START button. The indicator on the but-
ton will light.
Begin exercising and change the resistance of
the pedals as desired.
As you pedal, change the resistance of the pedals
by pressing the RESISTANCE + and – buttons or
the QUICKTOUCH RESISTANCE buttons.
When the QUICK START mode is selected, the
matrix will show your progress and the resistance
settings that you select. When you begin exercis-
ing, the left column of the matrix will begin to flash.
After 30 seconds, a tone will sound and the col-
umn to the right will begin to flash.
Each time you change the resistance of the ped-
als, additional indicators will light or darken in the
flashing column, and in all columns to the right of
the flashing column. Note: If you select a resis-
tance setting higher than 8, the indicators in all
columns will shift downward, until you select a
lower resistance setting.
After every 30 seconds that you exercise, a tone
will sound and the next column to the right will
begin to flash. When you have exercised for 8
minutes, the same column will continue to flash,
and
all columns of indicators will shift one position
to the left.
The columns of indicators will continue
to shift to the left after every 30 seconds, until you
are finished exercising.
Follow your progress with the main display.
See THE MAIN DISPLAY on page 11.
Measure your heart rate if desired.
See THE PULSE SENSOR on page 12.
When you are finished using the elliptical
trainer, the console will automatically enter an
idle mode or turn off.
See HOW TO TURN OFF THE CONSOLE on
page 10.
HOW TO USE THE MANUAL PROGRAM
The MANUAL program will count down the time
remaining in your workout as you control the
resistance of the pedals.
Plug in the power cord or begin pedalling to
activate the console.
See HOW TO ACTIVATE THE CONSOLE on
page 10.
Select the MANUAL program.
To select the MANUAL program, press the MAN-
UAL button. The indicator on the button will light,
and the word “MANUAL” will appear in the main
display for a moment.
2
1
6
5
4
3
2
1
Flashing Column

14
Enter your age.
Amoment after the program is selected, the
words “ENTER AGE” and an age setting of 35 will
appear in the main display. To enter your age,
press the + and – buttons beside the ENTER but-
ton; hold down the buttons to enter your age in in-
crements of 5 years. When your age is shown,
press the ENTER button.
Enter your weight.
Next, the words “ENTER WEIGHT” and a weight
setting of 180 pounds will appear in the main dis-
play. To enter your weight, press the + and – but-
tons beside the ENTER button; hold down the
buttons to enter your weight in increments of 5
pounds. When your weight is shown, press the
ENTER button.
Enter a program time.
Next, the words “ENTER TIME” and a time setting
of 10 minutes will appear in the main display. To
change the length of time that the program will
last, press the + and – buttons beside the ENTER
button. Then, press the ENTER button.
Begin exercising and change the resistance of
the pedals as desired.
As you pedal, change the resistance of the pedals
by pressing the RESISTANCE + and – buttons or
the QUICKTOUCH RESISTANCE buttons.
During the MAN-
UAL program, the
matrix will show
your progress and
the resistance set-
tings that you se-
lect. During the
first 30-second
segment of the program, the left column of the ma-
trix will flash. During the last four seconds of the
first segment, the column to the right will also
flash. When the first segment ends, a tone will
sound and the column to the right will continue to
flash.
Each time you change the resistance of the ped-
als, additional indicators will light or darken in the
flashing column, and in all columns to the right of
the flashing column. Note: If you select a resis-
tance setting higher than 8, the indicators in all
columns will shift downward,
until you select a
lower resistance setting.
At the end of each segment, a tone will sound and
the next column to the right will begin to flash.
When you have completed the first 8 minutes of
the program, the same column will continue to
flash, and
all columns of indicators will shift one
position to the left.
The columns of indicators will
continue to shift to the left at the end of each seg-
ment, until the last segment of the program is
shown in the far right column of the matrix. The
next column to the right will then begin to flash at
the end of each segment, until the program is
completed.
Follow your progress with the main display.
See THE MAIN DISPLAY on page 11.
Measure your heart rate if desired.
See THE PULSE SENSOR on page 12.
When you are finished using the elliptical
trainer, the console will automatically enter an
idle mode or turn off.
See HOW TO TURN OFF THE CONSOLE on
page 10.
9
8
7
6
5
4
3
Flashing Column

15
HOW TO USE THE RANDOM PROGRAM
The RANDOM program will automatically change the
resistance of the pedals during your workout. Each
time the program is selected, the resistance settings of
the program will be different.
Plug in the power cord or begin pedalling to
activate the console.
See HOW TO ACTIVATE THE CONSOLE on
page 10.
Select the RANDOM program.
To select the RANDOM program, press the RAN-
DOM button. The indicator on the button will light,
and the word “RANDOM” will appear in the main
display for a moment. Note: To select a different
RANDOM program, simply press the RANDOM
button again.
Enter your age.
See step 3 on page 14.
Enter your weight.
See step 4 on page 14.
Enter a program time.
See step 5 on page 14.
Enter a maximum resistance setting.
Next, the words “MAX RESIST” and the maximum
resistance setting of the program will appear in
the main display. If you wish to change the maxi-
mum resistance setting, press the + and – buttons
beside the ENTER button. (Note: If the maximum
resistance setting is increased, the intensity level
of the program will be increased.) When the de-
sired maximum resistance setting is shown, press
the ENTER button.
Begin exercising.
The program is divided into 30-second segments.
One resistance setting is programmed for each
segment. Note: The same resistance setting may
be programmed for two or more consecutive seg-
ments.
During the pro-
gram, the matrix
will show your
progress and the
resistance settings
of the program.
During the first 30-
second segment of
the program, the
left column of the matrix will flash. During the last
four seconds of the first segment, the column to
the right will also flash. If the resistance of the ped-
als is about to change, a series of tones will sound
and the resistance setting will flash in the main dis-
play. When the first segment ends, the column to
the right will continue to flash, and the resistance
of the pedals will automatically change if a differ-
ent resistance setting is programmed for the next
segment. Note: If all of the indicators in the flash-
ing column are lit,
the indicators in all columns
may shift downward temporarily.
At the end of each segment, a tone will sound, the
next column to the right will begin to flash, and the
resistance of the pedals will automatically change
if a different resistance setting is programmed for
the next segment. When you have completed the
first 8 minutes of the program, the same column
will continue to flash, and all columns of indicators
will shift one position to the left. The columns of in-
dicators will continue to shift to the left at the end
of each segment, until the last segment of the pro-
gram is shown in the far right column of the matrix.
The next column to the right will then begin to flash
at the end of each segment, until the program is
completed.
During the program, you can change the resis-
tance of the pedals, if desired, by pressing the
RESISTANCE +and – buttons or the QUICK-
TOUCH RESISTANCE buttons. However, when
the current segment ends, the resistance will au-
tomatically change if a different resistance setting
is programmed for the next segment. Note: The
program ends with a two-minute cool-down period.
During this period, the resistance level cannot be
changed.
7
6
5
4
3
2
1
Flashing Column

16
Follow your progress with the main display.
See THE MAIN DISPLAY on page 11.
Measure your heart rate if desired.
See THE PULSE SENSOR on page 12.
When you are finished using the elliptical
trainer, the console will automatically enter
an idle mode or turn off.
See HOW TO TURN OFF THE CONSOLE on
page 10. HOW TO USE THE PULSE PRO-
GRAMS
HOW TO USE THE PULSE PROGRAMS
The CONSTANT PULSE program will automatically
control the resistance of the pedals to keep your heart
rate near a target level during your workout.
The VARIABLE PULSE program will automatically
control the resistance of the pedals to keep your heart
rate within a target range during your workout.
Put on a Polar®-compatible chest pulse sensor
(not included).
You must wear a chest pulse sensor to use a
PULSE program. See the instructions included
with the chest pulse sensor.
Plug in the power cord or begin pedalling to
activate the console.
See HOW TO ACTIVATE THE CONSOLE on
page 10.
Select one of the PULSE programs.
To select a PULSE program, first press the
PULSE button.The indicator on the button will
light, and the word “PULSE” will appear in the main
display for a moment.
Next, the words “CONSTANT MODE” will appear
in the main display. If you plan to use the CON-
STANT PULSE program, press the ENTER but-
ton. If you plan to use the VARIABLE PULSE pro-
gram, press the + or – button beside the ENTER
button so that the words “VARIABLE MODE” ap-
pear in the main display; then press the ENTER
button.
Enter your age.
See step 3 on page 14.
Enter your weight.
See step 4 on page 14.
Enter a maximum heart rate setting.
Next, the words “PCT MAX RATE” and the maxi-
mum heart rate setting of the program will appear
in the main display. The maximum heart rate set-
ting represents a percentage of your estimated
maximum heart rate. Note: Your maximum heart
rate is estimated by subtracting your age from
220. For example, if you are 30 years old, your
estimated maximum heart rate is 190 beats per
minute (220 – 30 = 190). Therefore, if you are 30
years old, a target heart rate setting of 50% is
equal to 95 beats per minute (50% of 190 is 95).
If you wish to change the maximum heart rate set-
ting, press the + and – buttons beside the ENTER
button. When the desired maximum heart rate
setting is shown, press the ENTER button.
Enter a program time.
See step 5 on page 14.
Begin exercising.
During PULSE
programs, the ma-
trix will display a
heartbeat graphic.
Each time a heart-
beat is detected,
an additional peak
will appear in the
matrix.
8
7
6
5
4
3
2
1
10
9
8

17
The program is divided into 30-second segments.
One target heart rate setting is programmed for
each segment. Note: If the CONSTANT PULSE
program is selected, the same target heart rate
setting is programmed for all segments.
At the end of each segment, a tone will sound and
the resistance of the pedals will automatically
change, if necessary, to bring your heart rate
closer to the target heart rate setting for the next
segment. The program will continue in this way
until the last segment ends.
During the program, you can change the resis-
tance of the pedals, if desired, by pressing the
RESISTANCE + and – buttons or the QUICK-
TOUCH RESISTANCE buttons. However, when
the current segment ends, the resistance will auto-
matically change, if necessary, to bring your heart
rate closer to the target heart rate setting for the
next segment. Note: Each PULSE program ends
with a two-minute cool-down period. During this
period, the resistance level cannot be changed.
If your pulse is not detected during the program,
the letters “PLS” will flash in the main display, and
the resistance of the pedals may automatically de-
crease. If this occurs, see the instructions included
with the chest pulse sensor.
Follow your progress with the main display.
See THE MAIN DISPLAY on page 11.
When you are finished using the elliptical
trainer, the console will automatically enter
an idle mode or turn off.
See HOW TO TURN OFF THE CONSOLE on
page 10.
HOW TO USE THE INTERVAL PROGRAM
The INTERVAL program will automatically change the
resistance of the pedals to simulate a series of hills as
itguides you through an effective interval training
workout.
Plug in the power cord or begin pedalling to
activate the console.
See HOW TO ACTIVATE THE CONSOLE on
page 10.
Select the INTERVAL program.
To select the INTERVAL program, press the IN-
TERVAL button. The indicator on the button will
light, and the word “INTERVAL” will appear in the
main display for a moment.
Enter your age.
See step 3 on page 14.
Enter your weight.
See step 4 on page 14.
Enter a program time.
See step 5 on page 14.
Enter a maximum resistance setting.
See step 6 on page 15.
Enter the desired number of hills for the
program.
Next, the words “NUMBER HILLS” and the num-
ber of hills that the program will simulate will ap-
pear in the main display. If you wish to change the
number of hills, press the + and – buttons beside
the ENTER button. When the desired number of
hills is shown, press the ENTER button.
7
6
5
4
3
2
1
10
9

18
Begin exercising.
See step 7 on page 15.
Follow your progress with the main display.
See THE MAIN DISPLAY on page 11.
Measure your heart rate if desired.
See THE PULSE SENSOR on page 12.
When you are finished using the elliptical
trainer, the console will automatically enter
an idle mode or turn off.
See HOW TO TURN OFF THE CONSOLE on
page 10.
HOW TO USE THE PULSE PROGRAMS
HOW TO USE THE PLATEAU PROGRAM
During the PLATEAU program, the resistance of the
pedals will gradually increase, remain constant for sev-
eral segments, and then gradually decrease.
Plug in the power cord or begin pedalling to
activate the console.
See HOW TO ACTIVATE THE CONSOLE on
page 10.
Select the PLATEAU program.
To select the PLATEAU program, press the
PLATEAU button. The indicator on the button will
light, and the word “PLATEAU” will appear in the
main display for a moment.
Enter your age.
See step 3 on page 14.
Enter your weight.
See step 4 on page 14.
Enter a maximum resistance setting.
See step 6 on page 15.
Enter a program time.
See step 5 on page 14.
Begin exercising.
See step 7 on page 15.
Follow your progress with the main display.
See THE MAIN DISPLAY on page 11.
Measure your heart rate if desired.
See THE PULSE SENSOR on page 12.
When you are finished using the elliptical
trainer, the console will automatically enter
an idle mode or turn off.
See HOW TO TURN OFF THE CONSOLE on
page 10.
10
9
8
7
6
5
4
3
2
1
11
10
9
8

19
HOW TO USE THE FOOTHILLS, PEAKS, AND
ALL-TERRAIN PROGRAMS
During the FOOTHILLS program, the resistance of the
pedals will gradually increase and then gradually de-
crease. The number of times that the resistance will in-
crease and decrease will depend on the maximum re-
sistance setting and the intensity level that you select.
During the PEAKS program, the resistance of the ped-
als will increase and then decrease. The number of
times that the resistance will increase and decrease
will depend on the maximum resistance setting and the
intensity level that you select.
During the ALL-TERRAIN program, the resistance of
the pedals will sharply increase and then sharply de-
crease repeatedly. The number of times that the resis-
tance will increase and decrease will depend on the
maximum resistance setting and the intensity level that
you select.
Plug in the power cord or begin pedalling to
activate the console.
See HOW TO ACTIVATE THE CONSOLE on
page 10.
Select the desired program.
Press the FOOTHILLS, PEAKS, or ALL-TERRAIN
button. The indicator on the button will light, and
the word “FOOTHILLS,” “PEAKS,” or “ALL-TER-
RAIN” will appear in the main display for a
moment.
Enter your age.
See step 3 on page 14.
Enter your weight.
See step 4 on page 14.
Enter a program time.
See step 5 on page 14.
Enter a maximum resistance setting.
See step 6 on page 15.
Enter an intensity level.
Next, the word “INTENSITY” and the intensity
level of the program will appear in the main dis-
play. Press the + and – buttons beside the
ENTER button to select level 1 (for a low-intensity
workout), level 2 (for a moderate-intensity work-
out), or level 3 (for a high-intensity workout).
Then, press the ENTER button.
Begin exercising.
See step 7 on page 15.
Follow your progress with the main display.
See THE MAIN DISPLAY on page 11.
Measure your heart rate if desired.
See THE PULSE SENSOR on page 12.
When you are finished using the elliptical
trainer, the console will automatically enter
an idle mode or turn off.
See HOW TO TURN OFF THE CONSOLE on
page 10.
11
10
9
8
7
6
5
4
3
2
1
