NordicTrack E 11.5 Elliptical User manual

USER’S MANUAL
Serial Number
Decal
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. NTEVEL90912.1
Serial No.
Write the serial number in the space
above for reference.
www.iconeurope.com
QUESTIONS?
If you have questions, or if there are
missing parts, please contact us:
UNITED KINGDOM
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
CASTLEFORD
WF10 5QJ
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA

2

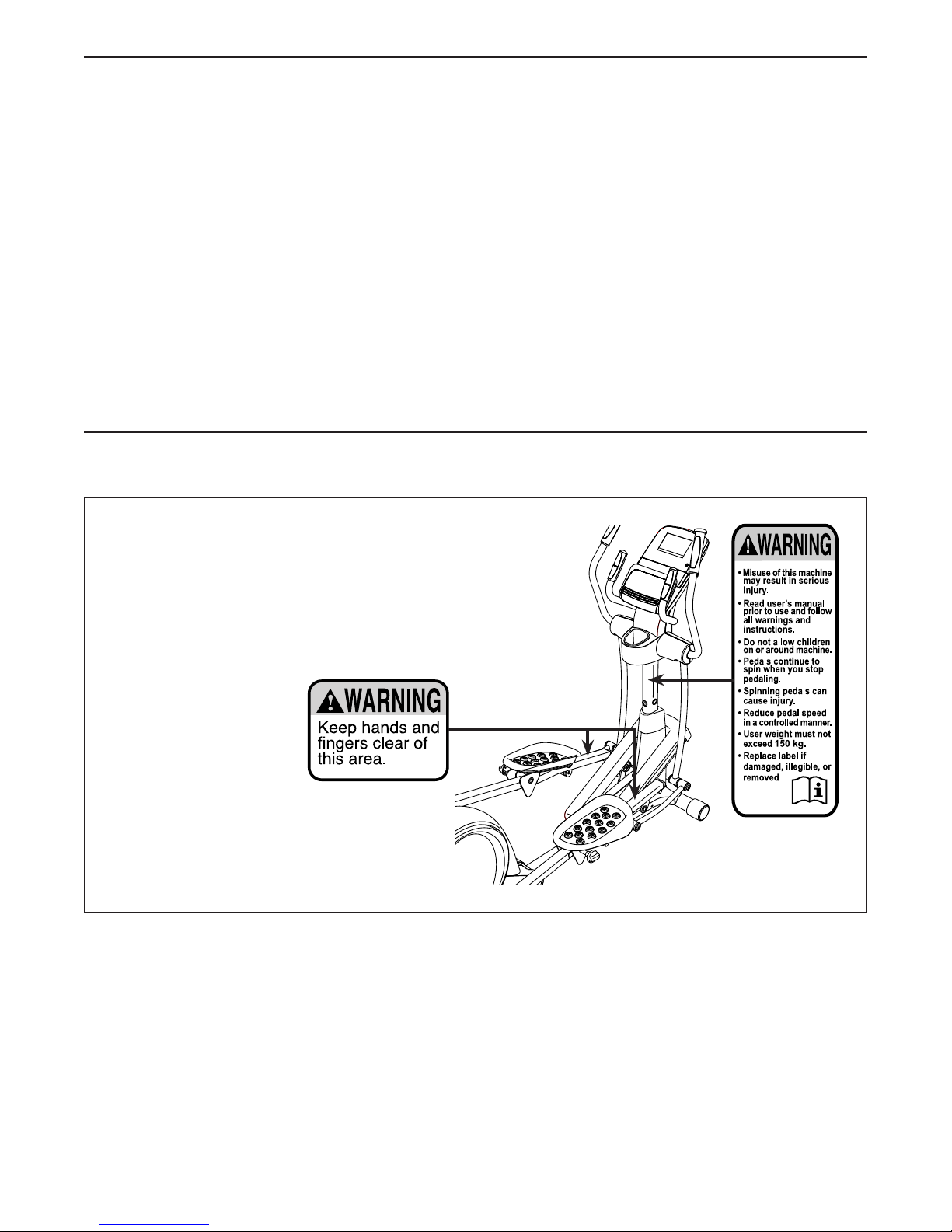

This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
NORDICTRACK is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE ELLIPTICAL ..............................................................15
MAINTENANCE AND TROUBLESHOOTING ....................................................27
EXERCISE GUIDELINES ....................................................................29
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
ORDERING REPLACEMENT PARTS .................................................. Back Cover
RECYCLING INFORMATION ......................................................... Back Cover

3
SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your elliptical before
using your elliptical. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. Use the elliptical only as described in this
manual.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.

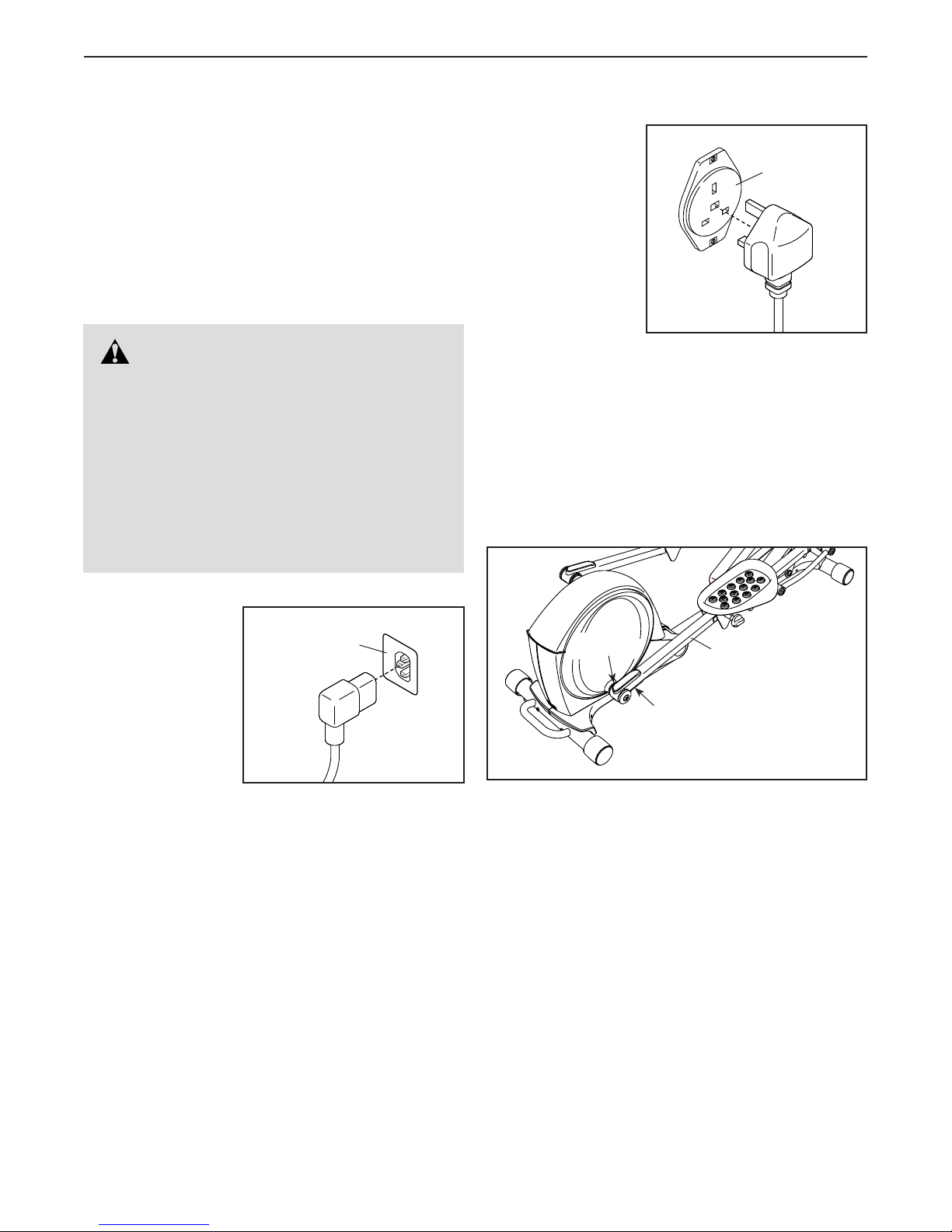

9. When connecting the power cord, plug the
power cord into a grounded circuit. To avoid
overloading the circuit, do not plug other
electrical devices, except for low-power
devices such as cell phone chargers, into an
outlet on the same circuit.
10. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
11. Do not operate the elliptical if the power cord
or plug is damaged, or if the elliptical is not
working properly.
12. Always unplug the power cord and switch
the power switch to the off position when the
elliptical is not in use.
13. DANGER: Always unplug the power
cord when the elliptical is not in use and
before cleaning the elliptical. Servicing other
than the procedures in this manual should
be performed by an authorized service repre-
sentative only.
14. The elliptical should not be used by persons
weighing more than 330 lbs. (150 kg).
15. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
16. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
17. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
18. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
19. Keep your back straight while using the ellip-
tical; do not arch your back.
20. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
IMPORTANT PRECAUTIONS

4
Heart Rate Monitor
Console
Upper Body Arm
Handlebar
Wheel
Latch Button
Latch
Pedal
Power
Switch
Storage Magnet
Leveling Foot
Roller
Pedal Knob
Accessory Tray
Ramp
Fan
Length: 6 ft. 7 in. (201 cm)
Width: 2 ft. 2 in. (66 cm)
Weight: 194 lbs. (88 kg)
Thank you for selecting the revolutionary
NORDICTRACK®E 11.5 elliptical. The E 11.5 elliptical
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN

5
M10 x 95mm Screw
(100)–4
M8 Split Washer
(103)–14
M8 Washer
(95)–6
M8 x 16mm
Screw (102)–16
Wave Washer
(118)–2
M8 x 25mm
Screw (121)–2
M8 x 35mm Screw
(149)–2
M4 x 19mm
Screw (125)–8
M6 x 12mm
Screw (146)–8

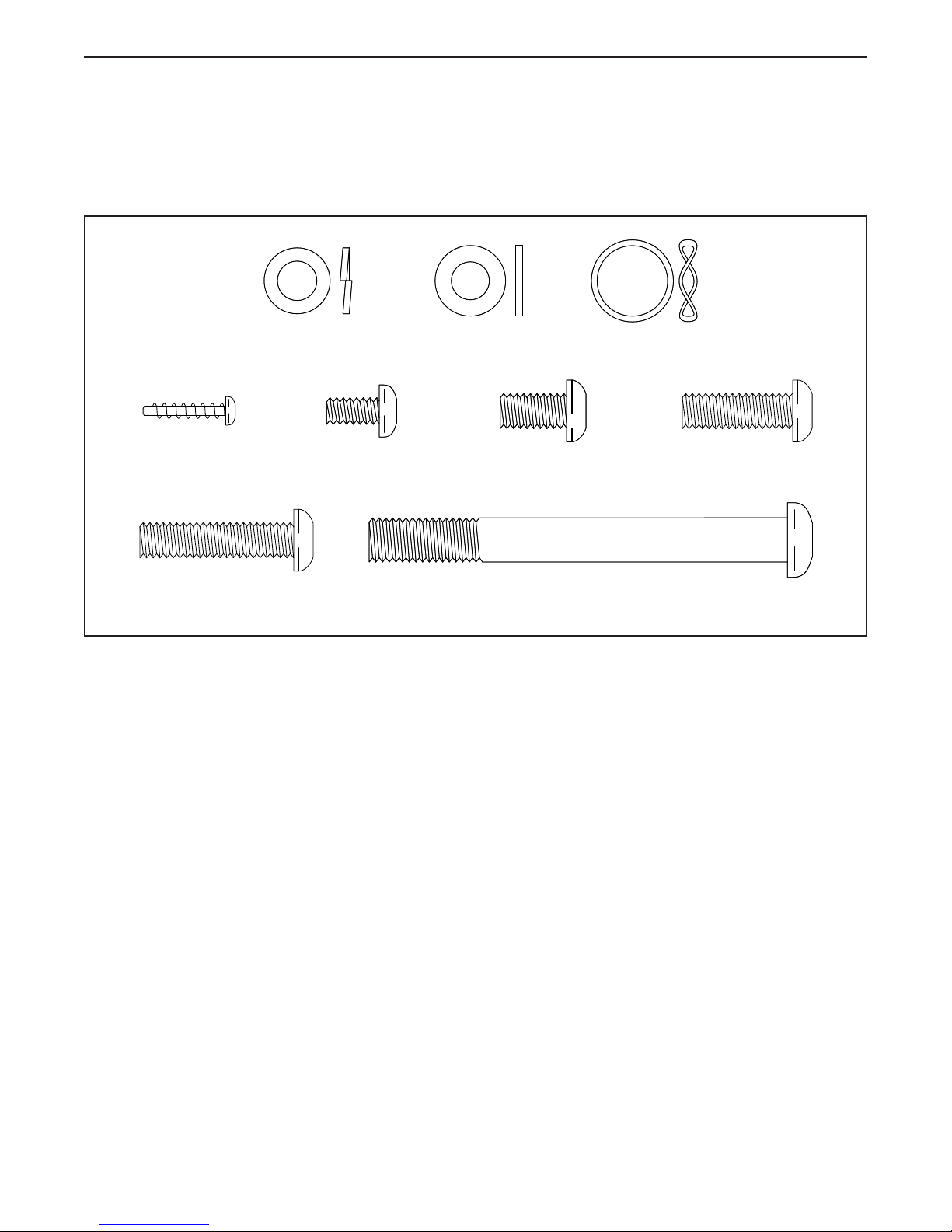

PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

6
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materialsuntilyounishallassemblysteps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY

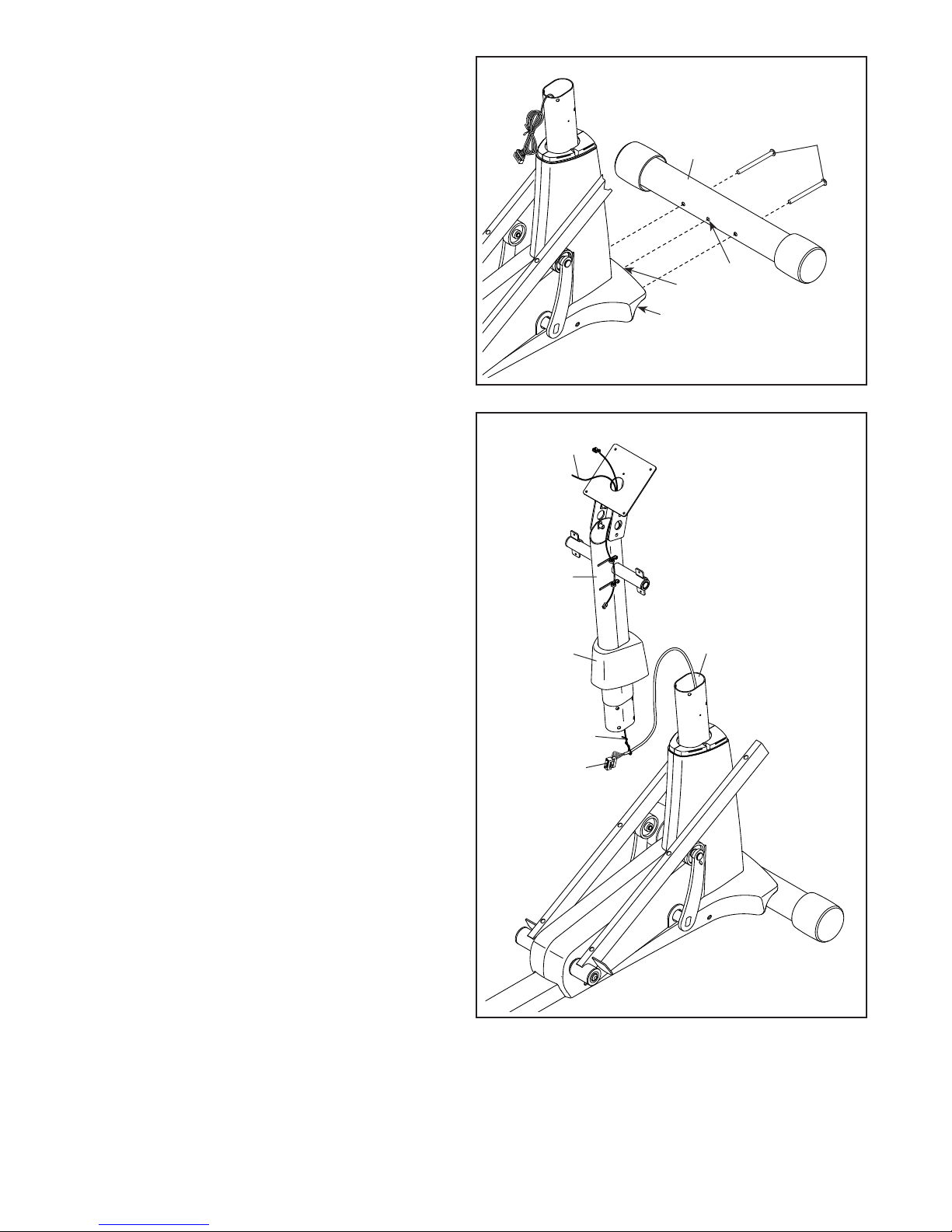

1. Orient the Rear Stabilizer (4) as shown.
Attach the Rear Stabilizer (4) to the Folding
Frame (2) with two M10 x 95mm Screws (100).
Next, hold the handle on the Rear Stabilizer (4),
press the Latch Button (67), and lower the Rear
Stabilizer and the Folding Frame (2) to the floor.
1100
Handle
4
2
67

7
2. Orient the Front Stabilizer (3) so that the indi-
cated hole is facing the pin on the Main
Frame (1).
While a second person lifts the front of the Main
Frame (1), attach the Front Stabilizer (3) with
two M10 x 95mm Screws (100).
2
3
3. Orient the Upright (5) and the Top Cover (27) as
shown.
Slide the Top Cover (27) upward onto the
Upright (5).
Then, have a second person hold the Upright (5)
and the Top Cover (27) near the Main Frame (1).
Locate the wire tie in the Upright (5). Tie the
lower end of the wire tie to the Main Wire (60).
Next, pull the upper end of the wire tie until the
Main Wire is routed through the Upright.
Tip: To prevent the Main Wire (60) from fall-
ing into the Upright (5), secure the Main Wire
with the wire tie.
100
3
5
1
27
60
1
Hole
Pin
Wire Tie
Wire Tie

8
5
4

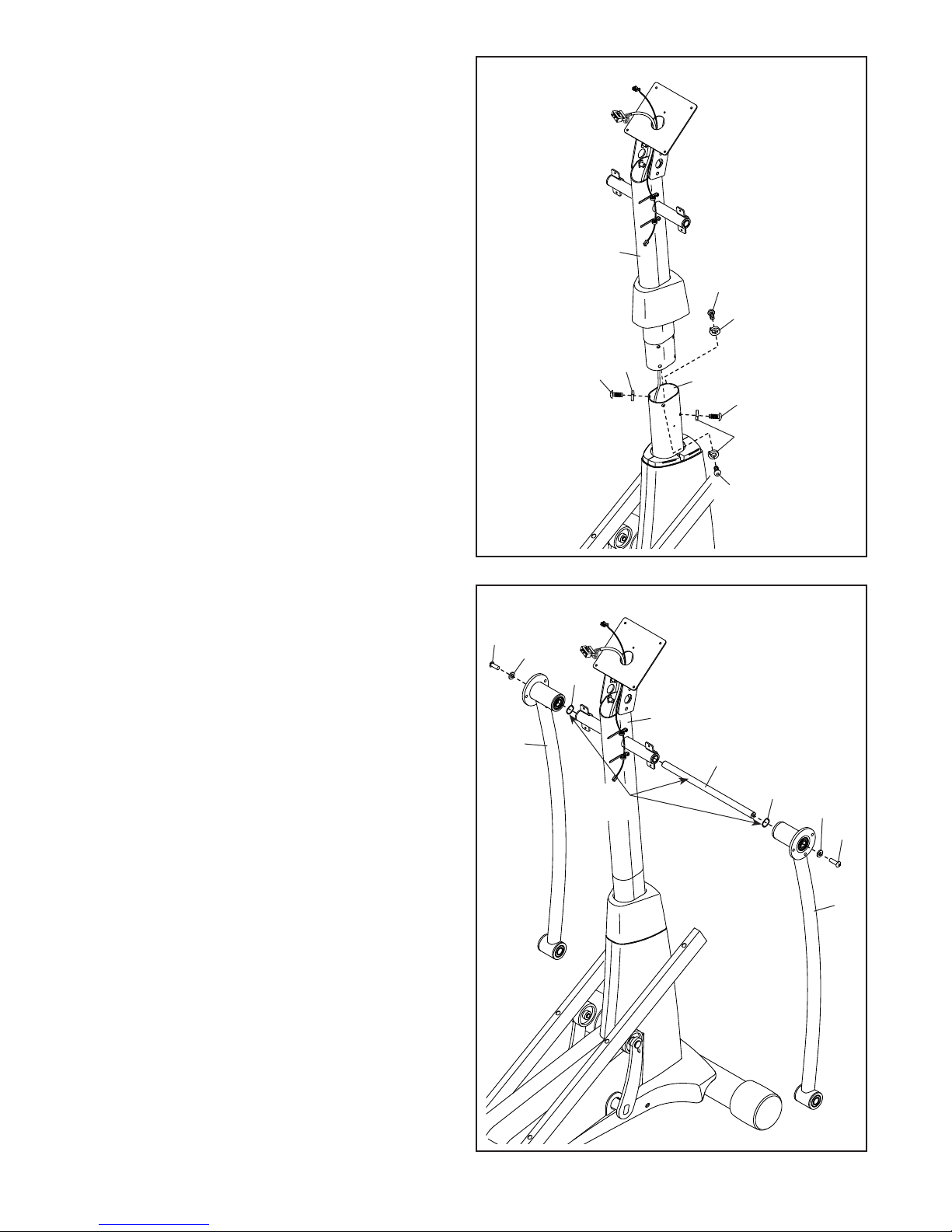

5. Using a small plastic bag to keep your fingers
clean, apply a coat of the included grease to the
Upright Axle (48) and to two Wave
Washers (118).
Insert the Upright Axle (48) through the Upright
(5) and center it. Then, slide a Wave Washer
(118) onto each side of the Upright Axle.
Next, identify the Right and Left Upper Body
Legs (6, 7) and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto the Upright Axle (48).
Then, tighten an M8 x 16mm Screw (102) and
an M8 Washer (95) into each end of the Upright
Axle (48) at the same time.
95
95
48
7
5
6
118
118
102
102
Avoid pinching the
Main Wire (60)
4. Tip: Avoid pinching the Main Wire (60). Insert
the Upright (5) into the Main Frame (1).
Attach the Upright (5) with four M8 x 16mm
Screws (102) and four M8 Split Washers (103);
do not tighten the Screws yet. You will
tighten the Screws at the end of step 11.
102
102
102
102
103
103
103
5
1
Grease

9

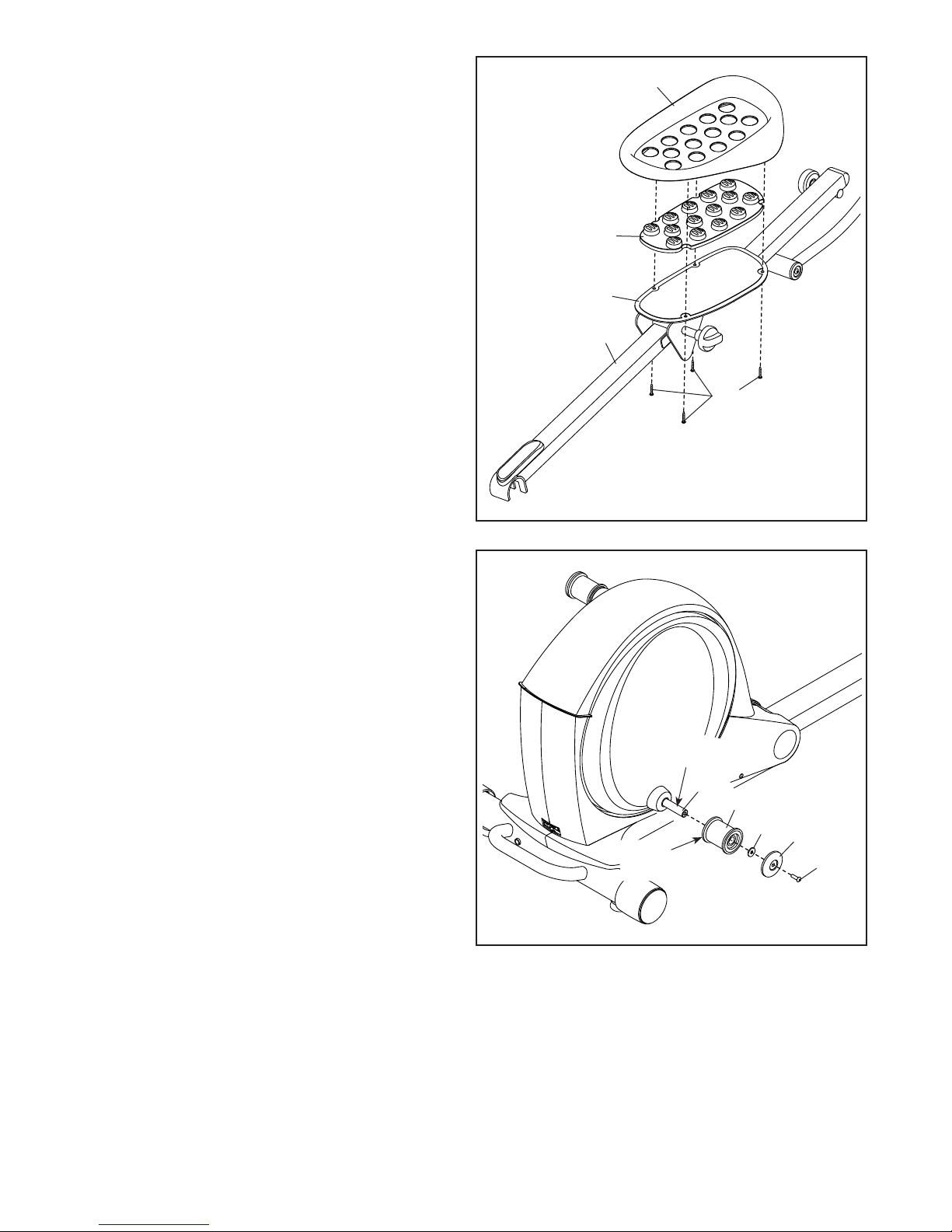

7. Apply grease to the axle on the right Crank
Arm (39).
Orient a Pedal Arm Sleeve (46) so that the flat
side is facing the elliptical. Slide the Pedal Arm
Sleeve onto the axle on the right Crank Arm (39).
Attach the Pedal Arm Sleeve (46) with an M8 x
25mm Screw (121), a Large Axle Cover (113),
and an M8 Washer (95). Tip: Avoid damaging
the Large Axle Cover when tightening the
Screw.
Repeat this step on the other side of the
elliptical.
7
95 113
121
6. Identify the Right Pedal (14), the Right Pedal
Insert (117), and the Right Pedal Arm (12) and
orient them as shown.
Attach the Right Pedal (14) and the Right Pedal
Insert (117) to the Right Pedal Plate (80) with
four M6 x 12mm Screws (146). Tip: It may be
helpful to lift the Right Pedal Plate.
Attach the Left Pedal (not shown) and the
Left Pedal Insert (not shown) to the Left
Pedal Plate (not shown) in the same way.
6
146
117
80
14
12
Grease
39
46
Flat
Side

10
8a
8b
8. See drawing 8a. Locate the Pedal Arm Roller
(32) on the Right Pedal Arm (12).
Set the Pedal Arm Roller (32) on the right side of
the Ramp (130).
See drawing 8b. Pull upward on the Latch (50)
on the Right Pedal Arm (12).
Press the Right Pedal Arm (12) onto the right
Pedal Arm Sleeve (46). Make sure that the
Right Pedal Arm latches into place.
Repeat this step on the other side of the
elliptical.
12
50
46
32 130
12

11
9
9. Orient the Ramp Cover (131) around the Upright
(5) as shown.
Press the Mounts (not shown) on the underside
of the Ramp Cover (131) into the Ramp (130). 5
131
130
6
43
95 56

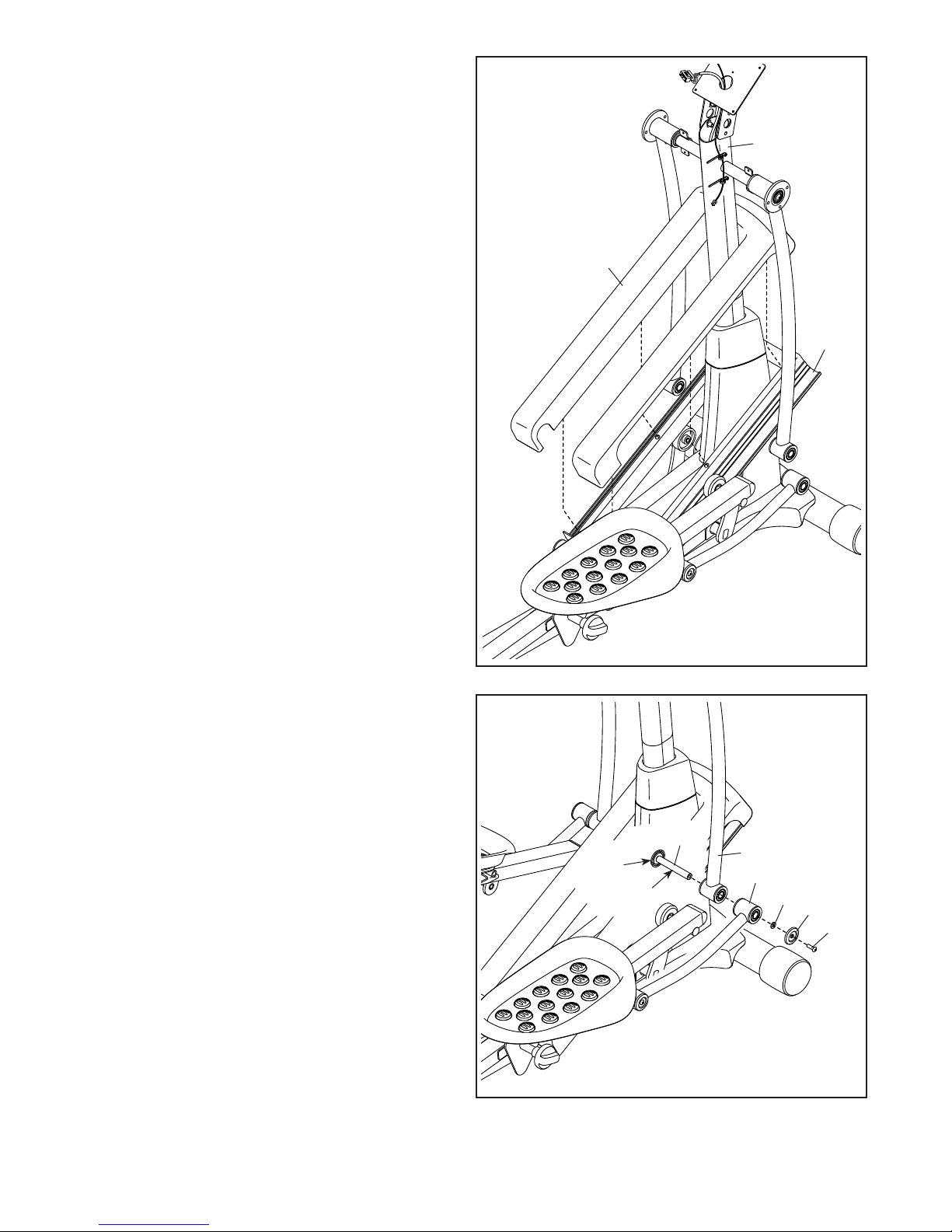

10. Apply grease to a Link Arm Axle (114).
Insert the Link Arm Axle (114) into the Right
Upper Body Leg (6) and the Right Link Arm (43)
from the side shown.
Insert a hex key into the M8 x 35mm Screw
(149) in the Link Arm Axle (114).
Using a second hex key, tighten another M8 x
35mm Screw (149), a Small Axle Cover (56),
and an M8 Washer (95) into the other end of the
Link Arm Axle (114). Tip: Avoid damaging the
Small Axle Cover when tightening the Screw.
Repeat this step on the other side of the
elliptical.
10
114
149
Grease
149

12

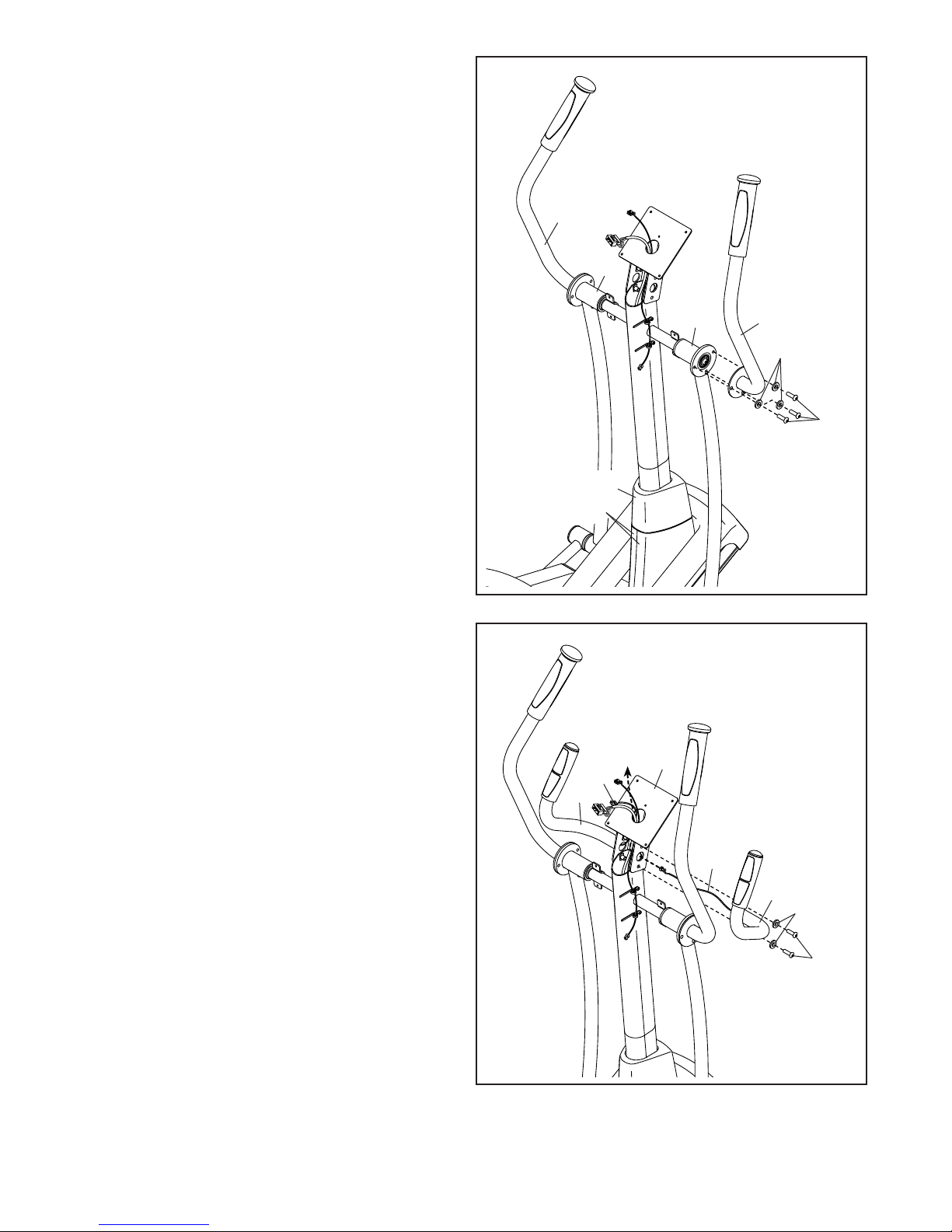

11. Identify the Right Upper Body Arm (8) and orient
it as shown.
Have a second person hold the Right Upper
Body Arm (8) near the Right Upper Body Leg (6).
Attach the Right Upper Body Arm (8) to the
Right Upper Body Leg (6) with three M8 x 16mm
Screws (102) and three M8 Split Washers (103).
Attach the Left Upper Body Arm (9) to the
Left Upper Body Leg (7) in the same way.
See step 4 on page 8. Tighten the M8 x
16mm Screws (102).
Slide the Top Cover (27) downward and press it
into the Right and Left Frame Covers (21, 22).
11
12. Identify the Right Handlebar (10) and orient it as
shown.
Have a second person hold the Right Handlebar
(10) near the right side of the Upright (5).
Insert the Pulse Wire (105) from the Right
Handlebar (10) into the right side of the Upright
(5) and pull it upward out of the top of the
Upright.
Tip: Avoid pinching the Pulse Wire (105).
Attach the Right Handlebar (10) to the Upright
(5) with two M8 x 16mm Screws (102) and two
M8 Split Washers (103).
Attach the Left Handlebar (11) in the
same way.
12
9
7
8
11
5
10
105
105
103
102
6
103
102
Avoid pinching the
Pulse Wires (105)
27
21, 22

13
13. Hold the Rear Upright Cover (25) near the
Upright (5) as shown.
Connect the receiver wire (A) on the Rear
Upright Cover (25) to the Receiver Extension
Wire (59).
Tip: Avoid pinching the wires. Attach the Rear
Upright Cover (25) to the Upright (5) with four
M4 x 19mm Screws (125).
13
14. Untie and discard the wire tie attached to the
Main Wire (60).
While a second person holds the Console (33)
near the Upright (5), connect the wires on the
Console to the Main Wire (60), to the Receiver
Extension Wire (59), and to the Pulse
Wires (105).
Insert the excess wire downward into the Upright
(5) or upward into the Console (33).
Tip: Avoid pinching the wires. Attach the
Console (33) to the Upright (5) with four M4 x
19mm Screws (125).
5
33
105 59
125
14
125
25
5
60
Avoid pinching
the wires
Avoid pinching
the wires
A
59

14
15. Orient the Front Upright Cover (24) as shown.
Attach the Front Upright Cover (24) around the
Upright (5) by pressing the tabs on the Front
Upright Cover into the Rear Upright Cover (25).
15
16. Make sure that all parts are properly tightened before you use the elliptical. Note: Extra parts may be
included. Place a mat beneath the elliptical to protect the floor.
25
24
5

15
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of
least resistance for electric current to reduce the
risk of electric shock. This product is equipped
with a power cord having an equipment-earthing
conductor and an earthing plug. IMPORTANT: If the
power cord is damaged, it must be replaced with a
manufacturer-recommended power cord.
1. Plug the
indicated end
of the power
cord into the
receptacle on
the rear of the
elliptical.
2. Plug the
power cord
into an appro-
priate outlet
that is properly
installed and
earthed in
accordance
with all local
codes and
ordinances.
Note: Your
power cord
and outlet may look different from those shown in
the drawing.
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
When the elliptical is not in use, the frame can be
folded out of the way. First, lift the latch under each
pedal arm, and lift the pedal arms off the sleeves on
the crank arms.
DANGER: Improper connec-
tion of the equipment-earthing conductor
can result in an increased risk of electric
shock. Check with a qualified electrician
or serviceman if you are in doubt as to
whether the product is properly earthed.
Do not modify the plug provided with the
product—if it will not fit the outlet, have
a proper outlet installed by a qualified
electrician.
UK
GR
FR/SP
IT
UK
GR
FR/SP
IT
Receptacle
Outlet
Latch
Pedal Arm
Sleeve

16
Next, raise the pedal arms until the magnets on the
pedal arms touch the handlebars; the magnets will hold
the pedal arms in place. Then, hold the handle and lift
the frame until it locks in a vertical position.
To use the elliptical, first hold the handle, press the
latch button, and lower the frame.
Next, pull the magnets on the pedal arms off the han-
dlebars. Then, lift the latches under the pedal arms,
and set the pedal arms on the sleeves on the crank
arms. Release the latches, and make sure that the
pedal arms are securely connected to the crank arms.
HOW TO MOVE THE ELLIPTICAL
To move the elliptical, first fold it as described on page
15. Next, stand in front of the elliptical, hold the
upright, and place one foot against one of the wheels.
Pull the upright until the elliptical rolls on the wheels.
With the help of a second person, carefully move the
elliptical to the desired location, and then lower it to the
floor.
Magnet
Handle
Pedal
Arm
Latch
Button Place
your foot
here
Pull on the
upright

17

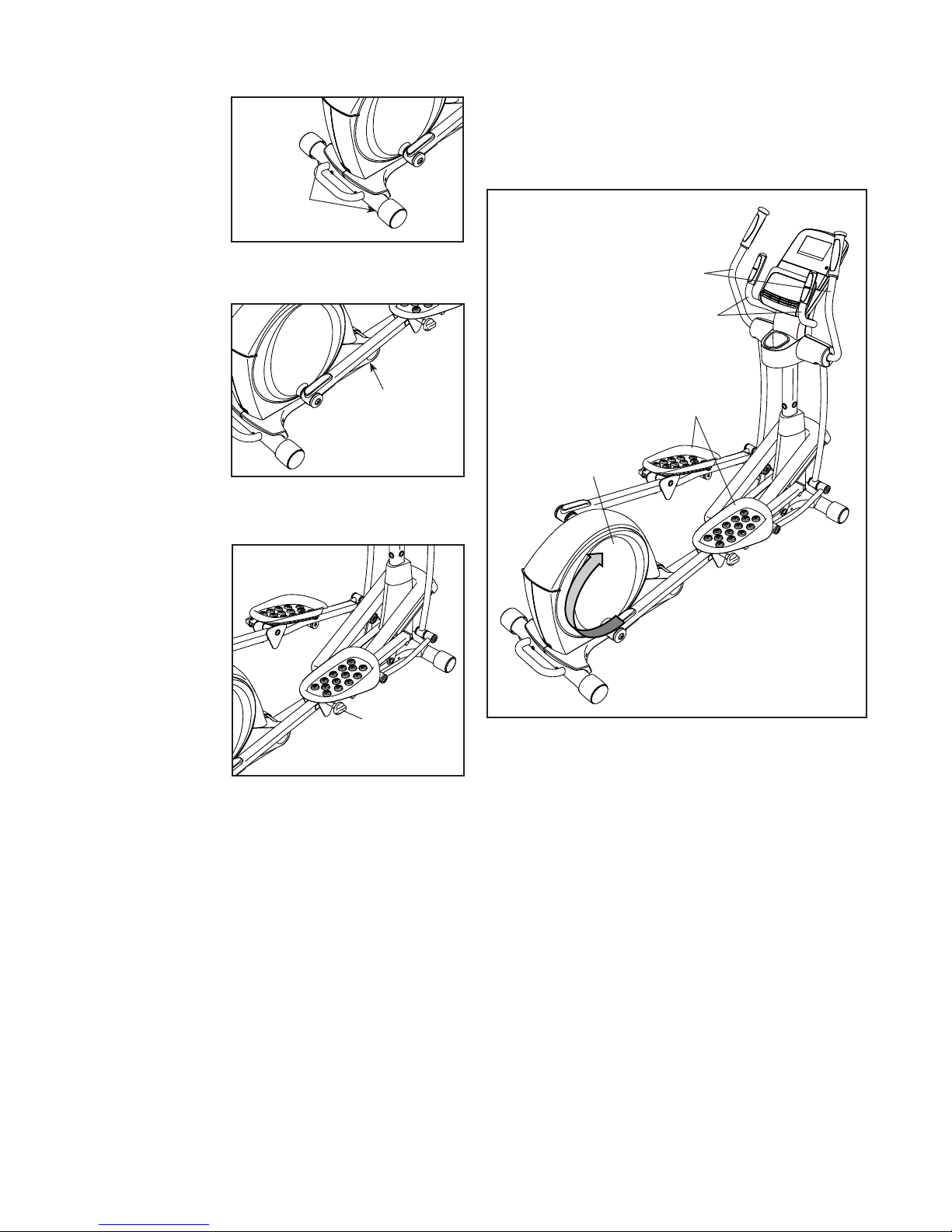

HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly on
your floor during
use, turn one or
both of the level-
ing feet beneath
the rear stabi-
lizer until the
rocking motion is
eliminated.
If the frame of
the elliptical
flexes during
use, turn the
center leveling
foot until the
flexing motion is
eliminated.
HOW TO ADJUST THE POSITIONS OF THE PEDALS
Each pedal can
be adjusted to
several positions.
To adjust each
pedal, simply lift
the pedal and
turn the pedal
knob beneath
the pedal. Make
sure to adjust
both pedals
to the same
position.
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the upper body arms or the
handlebars and step onto the pedal that is in the lowest
position. Next, step onto the other pedal. Push the ped-
als until they begin to move with a continuous motion.
Note: The discs can turn in either direction. It is
recommended that you turn the discs in the direc-
tion shown by the arrow; however, for variety you
can turn the discs in the opposite direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the
lower pedal.
Pedals
Disc
Upper Body Arms
Handlebars
Pedal Knob
Leveling
Feet
Leveling
Foot

18
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the ramp with the touch of a button.
While you exercise, the console will display continu-
ous exercise feedback. You can also measure your
heart rate using the handgrip heart rate monitor or an
optional chest heart rate monitor.
In addition, the console offers thirty onboard workouts.
Each workout automatically changes the resistance of
the pedals and the incline of the ramp and prompts you
to vary your pedaling pace as it guides you through an
effective workout. You can also set a calories, distance,
or time goal.
The console also features revolutionary iFit technol-
ogy that enables the console to communicate with your
wireless network through an optional iFit module. With
iFit, you can download personalized workouts, create
your own workouts, track your workout results, race
against other iFit users, and access many other fea-
tures. To purchase an iFit module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To turn on the power, see page 19. To use the
manual mode, see page 19. To use an onboard
workout, see page 22. To use a set-a-goal work-
out, see page 23. To use an iFit workout, see page
24. To use the sound system, see page 25. To
change console settings, see page 26.
Note: If there is a sheet of plastic on the display,
remove the plastic.
Uranium
ELNE90912
CONSOLE DIAGRAM

19
HOW TO TURN ON THE POWER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord
(see HOW TO PLUG IN
THE POWER CORD on
page 15. Next, locate the
power switch on the frame
near the power cord. Press
the power switch to the
reset position.
The display will then turn on and the console will be
ready for use.
Note: When you turn on the power for the rst time,
the ramp may calibrate automatically. The ramp will
move upward and downward as it calibrates. When the
ramp stops moving, the ramp is calibrated.
IMPORTANT: If the ramp does not calibrate auto-
matically, see HOW TO CALIBRATE THE RAMP on
page 27 and manually calibrate the ramp.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
Press the Manual button on the console to select
the manual mode.
If a wireless iFit module is not inserted into the con-
sole and connected to iFit, the manual mode will be
selected automatically.
3. Change the resistance of the pedals and the
incline of the ramp as desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance increase and decrease
buttons or by pressing one of the numbered 1 Step
Resistance buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected resis-
tance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press the Power Ramp increase and decrease
buttons.
Note: After you press a button, it will take a
moment for the ramp to reach the selected
incline level.
Reset
Position

20
4. Follow your progress with the display.
The display can show the following workout
information:
Calories (Cals.)—This display mode will show the
approximate number of calories you have burned.
Calories per Hour (Cals./Hr)—This display mode
will show the approximate number of calories you
are burning per hour.
Distance (Dist.)—This display mode will show
the distance that you have pedaled in miles or
kilometers.
Incline—This display mode will show the incline
level of the ramp for a few seconds each time the
incline level changes.
Pulse—This display mode will show your heart rate
when you use the handgrip heart rate monitor or
the chest heart rate monitor (see step 5).
Resistance (Resist.)—This display mode will
show the resistance level of the pedals for a few
seconds each time the resistance level changes.
RPM—This display mode will show your pedaling
speed in revolutions per minute (rpm).
Stride—This display mode will show the total num-
ber of strides you have pedaled.
Time—When the manual mode is selected, this
display mode will show the elapsed time. When a
workout is selected, this display mode will show the
time remaining in the workout.
The matrix offers several display tabs. Press the
Display button until the desired tab is shown. You
can also press the increase and decrease buttons
next to the Enter button.
Incline—Thistabwillshowaproleoftheincline
settings of the workout. A new segment will appear
at the end of each minute.
Speed—Thistabwillshowaproleofthespeed
settings of the workout. A new segment will appear
at the end of each minute.
My Trail—This tab will show a track that rep-
resents 1/4 mile (400 m). As you exercise, the
flashing rectangle will show your progress. The
My Trail tab will also show the number of laps you
complete.
Calorie—This tab will show the approximate
amount of calories you have burned. The height of
each segment represents the amount of calories
burned during that segment.
As you exercise, the workout intensity level bar
will indicate the approximate intensity level of your
exercise.
Press the Home button to return to the default
menu (see HOW TO CHANGE CONSOLE
SETTINGS on page 26 to set the default menu).
If necessary, press the Home button again.
