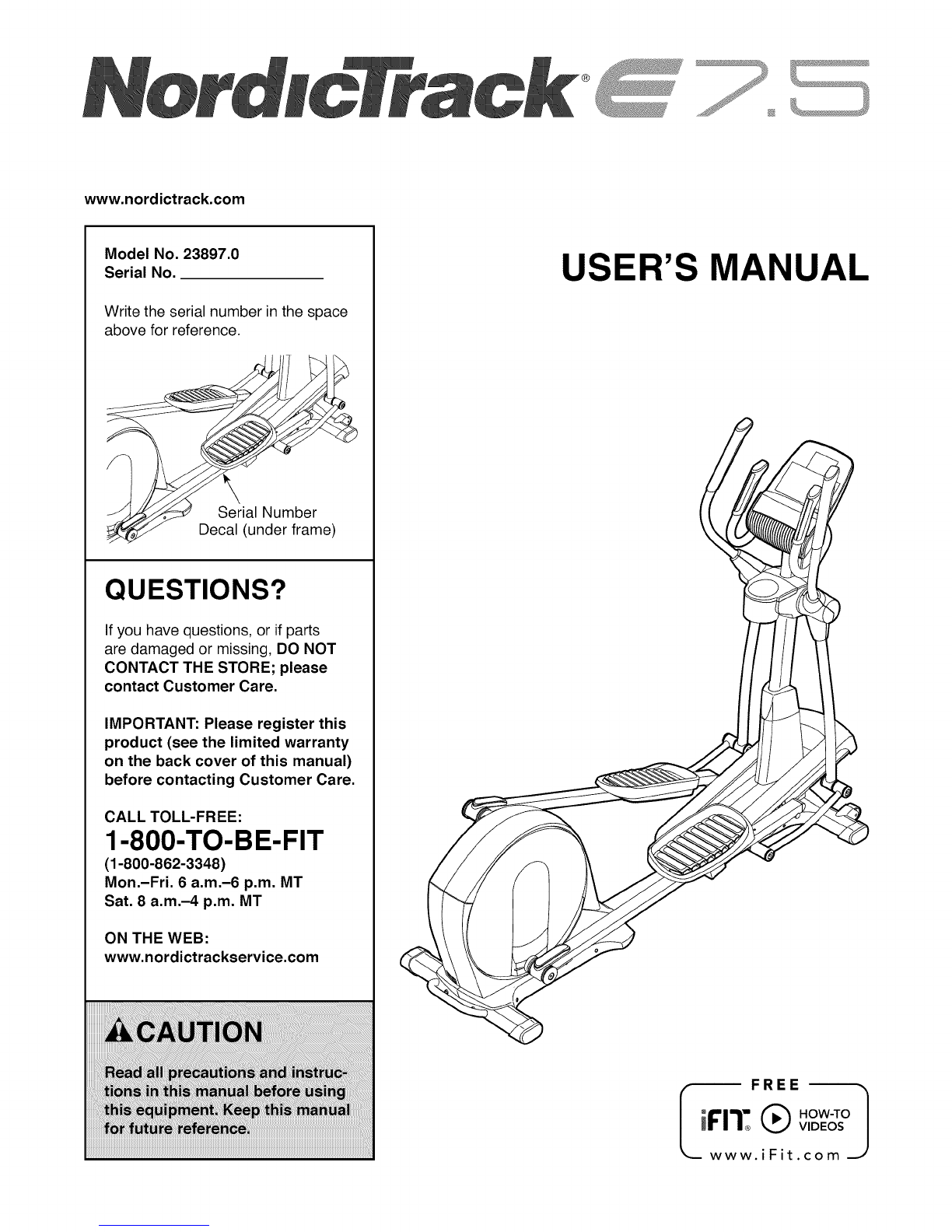

NordicTrack E7.5 23897.0 User manual

www.nordictrack.com
Model No. 23897.0
Serial No.
Write the serial number in the space
above for reference.
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-800-TO-BE-FIT
(1-800-862-3348)
Mon.-Fri. 6 a.m.-6 p.m. MT
Sat. 8 a.m.-4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
USER'S MANUAL
__wlw_F R E E "_
/f_ HOW-TO /
_rl I_ k_)V,DEOS /
.iFit.com _'

TABLE OF CONTENTS
WARNING DECAL PLACEMENT ............................................................... 2
IMPORTANT PRECAUTIONS .................................................................. 3
BEFORE YOU BEGIN ........................................................................ 4
PART IDENTIFICATION CHART ................................................................ 5
ASSEMBLY ................................................................................ 6
HOW TO USE THE ELLIPTICAL .............................................................. 16
FCC INFORMATION ........................................................................ 28
MAINTENANCE AND TROUBLESHOOTING .................................................... 29
EXERCISE GUIDELINES .................................................................... 31
PART LIST ................................................................................ 34
EXPLODED DRAWING ...................................................................... 36
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY ............................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see the
front cover of this manual and request a free
replacement decal. Apply the decal in the loca-
tion shown. Note: The decal(s) may not be shown
at actual size.
•Misuse of this machine
may result in serious
injury,
•Read user's manual
prior to use and follow
all warnings and
instructions.
•Do not allow children
on or around machine,
•Pedals continue to
spin when you stop
pedaling.
•Spinning pedals can
cause injury.
.Reduce pedal speed in
a controlled manner,
•User weight must not
exceed 325 Ibs /
147 kgs.
•This product should
always be used on a
level surface.
•This product is not
intended for
therapeutic use.
•Replace label if
damaged, illegible,
i
NORDICTRACK is a registered trademark of ICON IP, Inc.
2

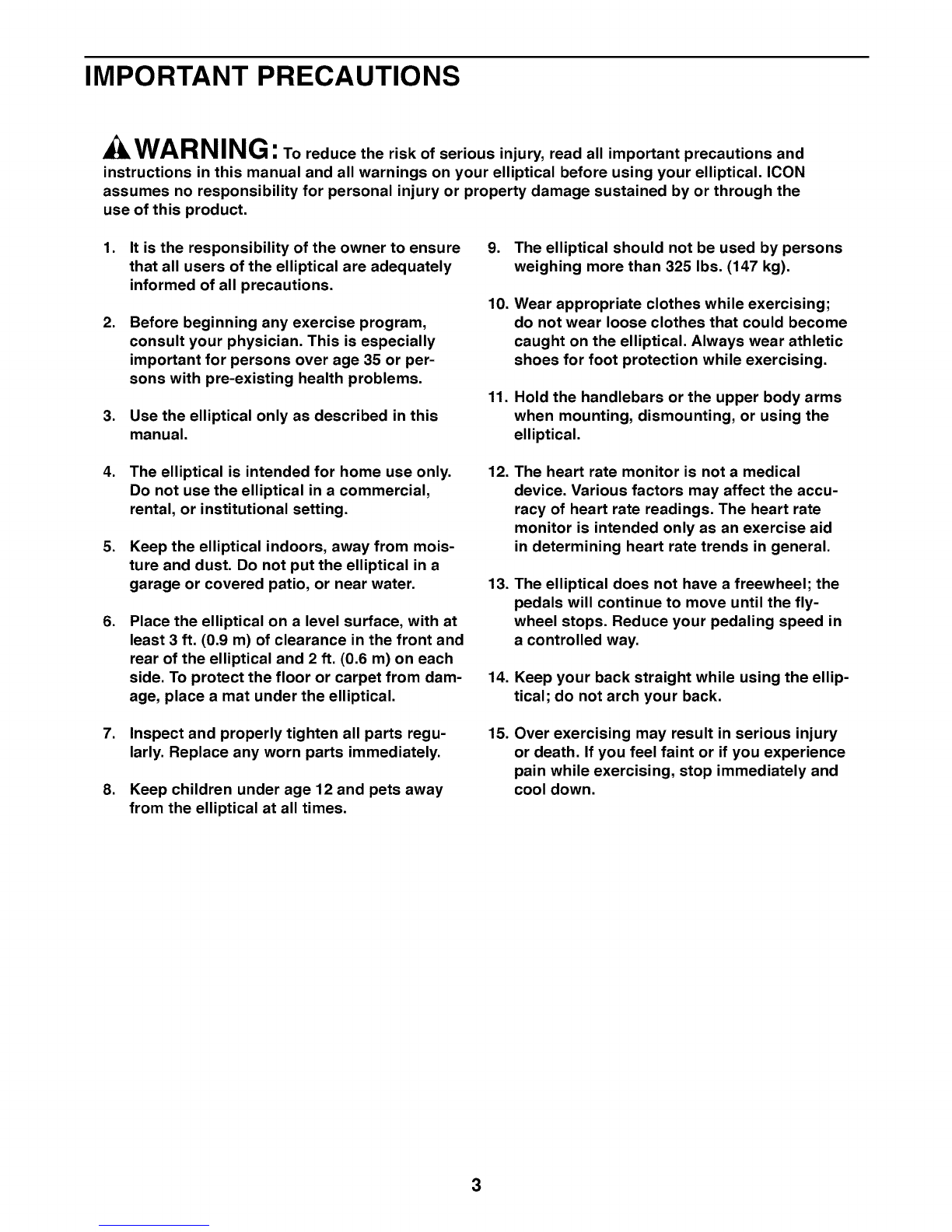

IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure 9.
that all users of the elliptical are adequately
informed of all precautions.
.
.
Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
Use the elliptical only as described in this
manual.
10.
11.
The elliptical should not be used by persons
weighing more than 325 Ibs. (147 kg).
Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
.
.
.
The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
12.
13.
14.
The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
Keep your back straight while using the ellip-
tical; do not arch your back.
.
.
Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
Keep children under age 12 and pets away
from the elliptical at all times.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3

BEFORE YOU BEGIN
Thank you for selecting the revolutionary
NORDICTRACK ®E 7.5 elliptical. The E 7.5 elliptical
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Length: 6 ft. 8 in. (203 cm)
Width: 2 ft. 2 in. (66 cm) Console
Upper Body Arm
Fan
Accessory Tray
)art Rate Monitor
Handlebar
Storage Magnet Ramp
Access Cover Wheel
Power
Switch
Handle
Leveling Foot
Leveling Foot
Latch Button
Pedal Arm Latch
Pedal
4

PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M6 x 13mm M8 Split M8 x 25mm x M17 x 27mm
Washer (140)-8 Washer 1.5mm Washer Wave Washer
(131 )-8 (126)-4 (88)-2
M4 x 16mm
Screw (93)-14
M8 x 16mm
Screw (102)-12
M8 Locknut
(105)-6 M6 x 12mm Screw (139)-4 M6 x 50mm Screw (62)-4
M8 x 25mm
Screw (128)-2 M8 x 45mm Bolt
(104)-6
M10 x 120mm
Screw (100)-4
5

ASSEMBLY
To watch an assembly
video, go to
http://productvideo.co/
assembly/sears/nordic-
track or use your mobile
phone or smartphone to
read the QR code at the
right.
Assembly requires two persons.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• Left parts are marked "L" or "Left" and right parts
are marked "R" or "Right."
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet _
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
1. Orient the Rear Stabilizer (4) as shown.
While a second person lifts the Folding Frame
(2), attach the Rear Stabilizer (4) to the Folding
Frame with two M10 x 120mm Screws (100).
Note: The Folding Frame may be in the folded
position.
Note: If the elliptical is in the folded position,
unfold it after completing this step. To unfold the
elliptical, hold the handle on the Rear Stabilizer
(4), press the Latch Button (67), and lower the
Rear Stabilizer and the Folding Frame (2) to the
floor. 4
100 Handle
67
6

2. Orient the Front Stabilizer (3) as shown.
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (3) with
two M10 x 120mm Screws (100).
3100
,Identify and orient the Upright (5) and the Top
Cover (23) as shown.
Slide the Top Cover (23) upward onto the
Upright (5).
Have a second person hold the Upright (5) and
the Top Cover (23) near the Frame (1).
Locate the wire tie in the Upright (5). Tie the
lower end of the wire tie to the Upright Wire (60).
Next, pull the upper end of the wire tie until the
Upright Wire is routed through the Upright.
Tip: To prevent the Upright Wire (60) from
falling into the Upright (5), secure the Upright
Wire with the wire tie.
Tip: Avoid pinching the Upright Wire (60).
Slide the Upright (5) onto the Frame (1).
Attach the Upright (5) with eight M8 x 16mm
Screws (102) and eight M8 Split Washers (131)
(only four of each are shown); do not tighten
the Screws yet.
Do not press the Top Cover (23) into place
yet.
3
Wire
i
102
Avoid pinching the
Upright Wire (60)
Tie
7

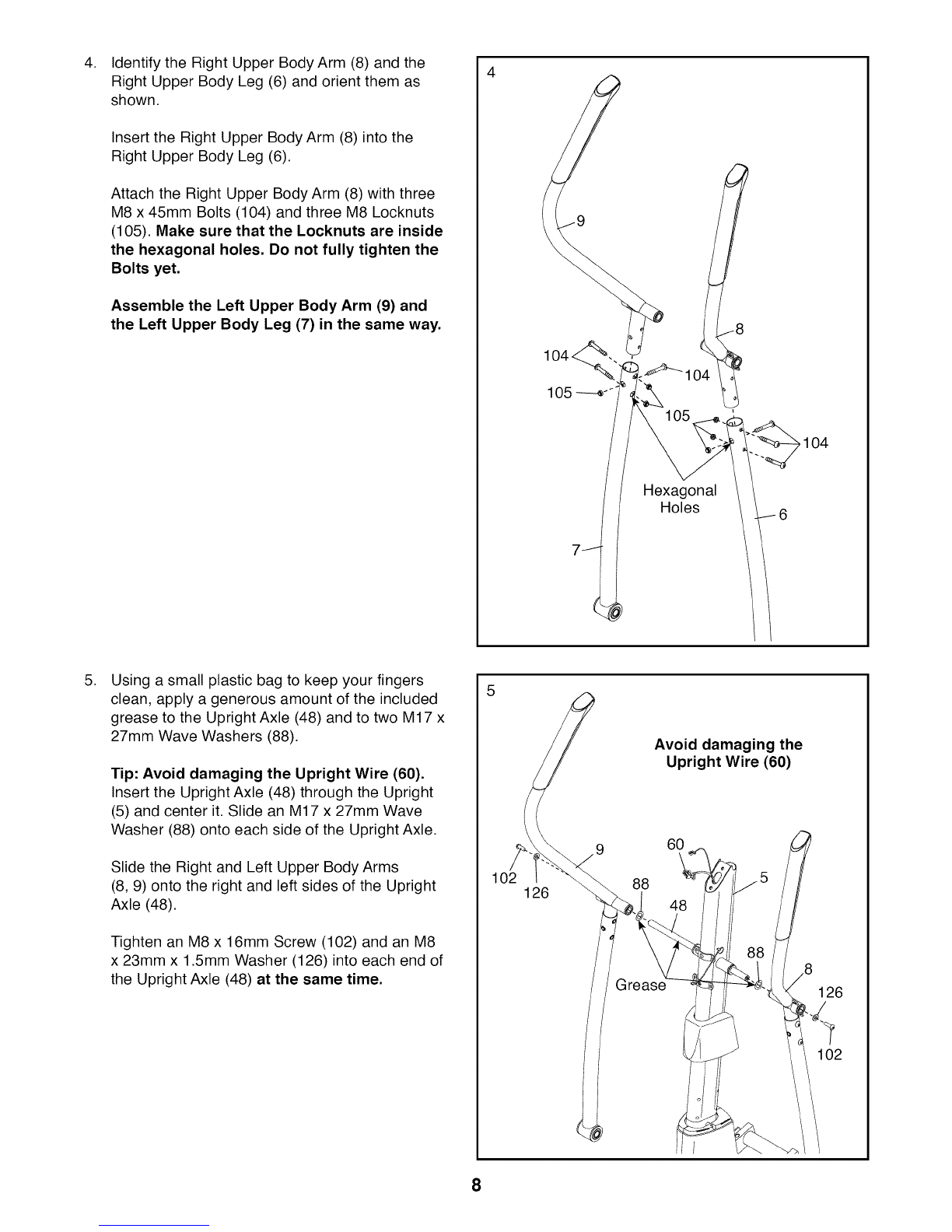

,Identify the Right Upper Body Arm (8) and the
Right Upper Body Leg (6) and orient them as
shown.
Insert the Right Upper Body Arm (8) into the
Right Upper Body Leg (6).
Attach the Right Upper Body Arm (8) with three
M8 x 45mm Bolts (104) and three M8 Locknuts
(105). Make sure that the Locknuts are inside
the hexagonal holes. Do not fully tighten the
Bolts yet.
Assemble the Left Upper Body Arm (9) and
the Left Upper Body Leg (7) in the same way.
Hexagonal
Holes
,104
,Using a small plastic bag to keep your fingers
clean, apply a generous amount of the included
grease to the Upright Axle (48) and to two M17 x
27mm Wave Washers (88).
Tip: Avoid damaging the Upright Wire (60).
Insert the Upright Axle (48) through the Upright
(5) and center it. Slide an M17 x 27mm Wave
Washer (88) onto each side of the Upright Axle.
Slide the Right and Left Upper Body Arms
(8, 9) onto the right and left sides of the Upright
Axle (48).
Tighten an M8 x 16mm Screw (102) and an M8
x 23mm x 1.5mm Washer (126) into each end of
the Upright Axle (48) at the same time.
5
1C 126
Avoid damaging the
Upright Wire (60)
60
88 48
rease 126
/ 02
8

6. 6
Note: The Leveling Foot (41) may be
preattached.
With the help of a second person, place some of
the packaging materials (not shown) under the
Frame (1). Have the second person hold the
Frame to prevent it from tipping while you
complete this step.
Tighten the Leveling Foot (41) into the underside
of the Frame (1).
41
,Identify the Right Pedal (14) and the Right Pedal
Arm (12) assembly and orient them as shown.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with two M6 x 12mm Screws (139) and
two M6 x 13mm Washers (140); do not tighten
the Screws yet.
Next, tighten two M6 x 50mm Screws (62) with
two M6 x 13mm Washers (140) into the Right
Pedal Arm (12) and the Right Pedal (14). Then,
tighten the two M6 x 12turn Screws (139).
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) assembly in the same
way.
7
12 o' ' 140
1 62_ __'
' ' 140 139
62
9

,See the upper drawing. Locate the Ramp
Roller (92) on the Right Pedal Arm (12).
Set the Ramp Roller (92) on the right side of the
Ramp (43).
See the lower drawing. Pull upward on the
Latch (117) on the Right Pedal Arm (12).
Press the Right Pedal Arm (12) onto the right
Sleeve (136). Make sure that the Right Pedal
Arm latches into place.
Repeat this step on the other side of the
elliptical.
8
136
,Orient the Ramp Cover (44) around the Upright
(5) as shown.
Press the mounts on the underside of the Ramp
Cover (44) into the Ramp (43).
9
44
43
10

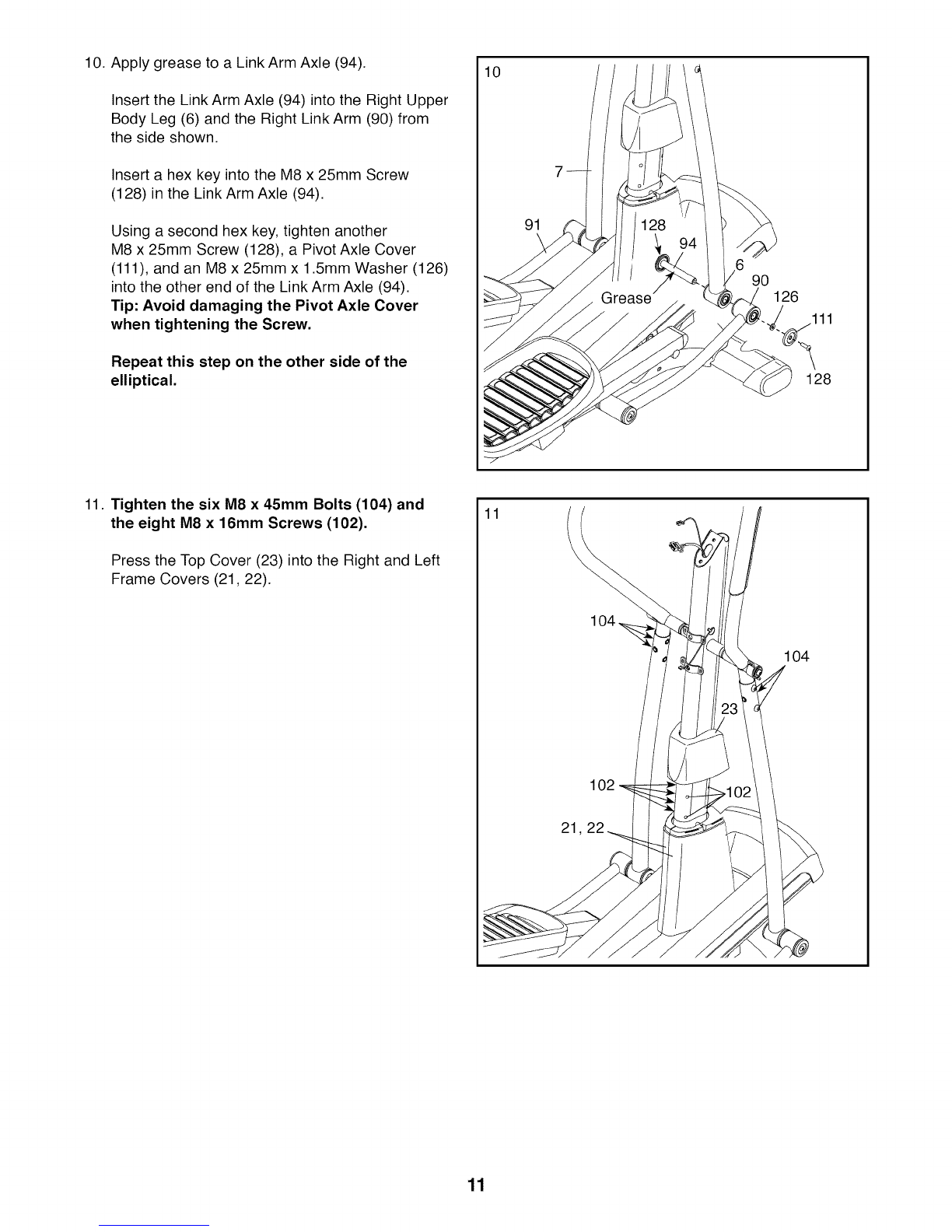

10. Apply grease to a Link Arm Axle (94).
Insert the Link Arm Axle (94) into the Right Upper
Body Leg (6) and the Right Link Arm (90) from
the side shown.
Insert a hex key into the M8 x 25mm Screw
(128) in the Link Arm Axle (94).
Using a second hex key, tighten another
M8 x 25mm Screw (128), a Pivot Axle Cover
(111), and an M8 x 25mm x 1.5mm Washer (126)
into the other end of the Link Arm Axle (94).
Tip: Avoid damaging the Pivot Axle Cover
when tightening the Screw.
Repeat this step on the other side of the
elliptical.
10
91
90 126
128
11. Tighten the six M8 x 45mm Bolts (104) and
the eight M8 x 16mm Screws (102).
Press the Top Cover (23) into the Right and Left
Frame Covers (21, 22).
11
102
21, 22
104
11

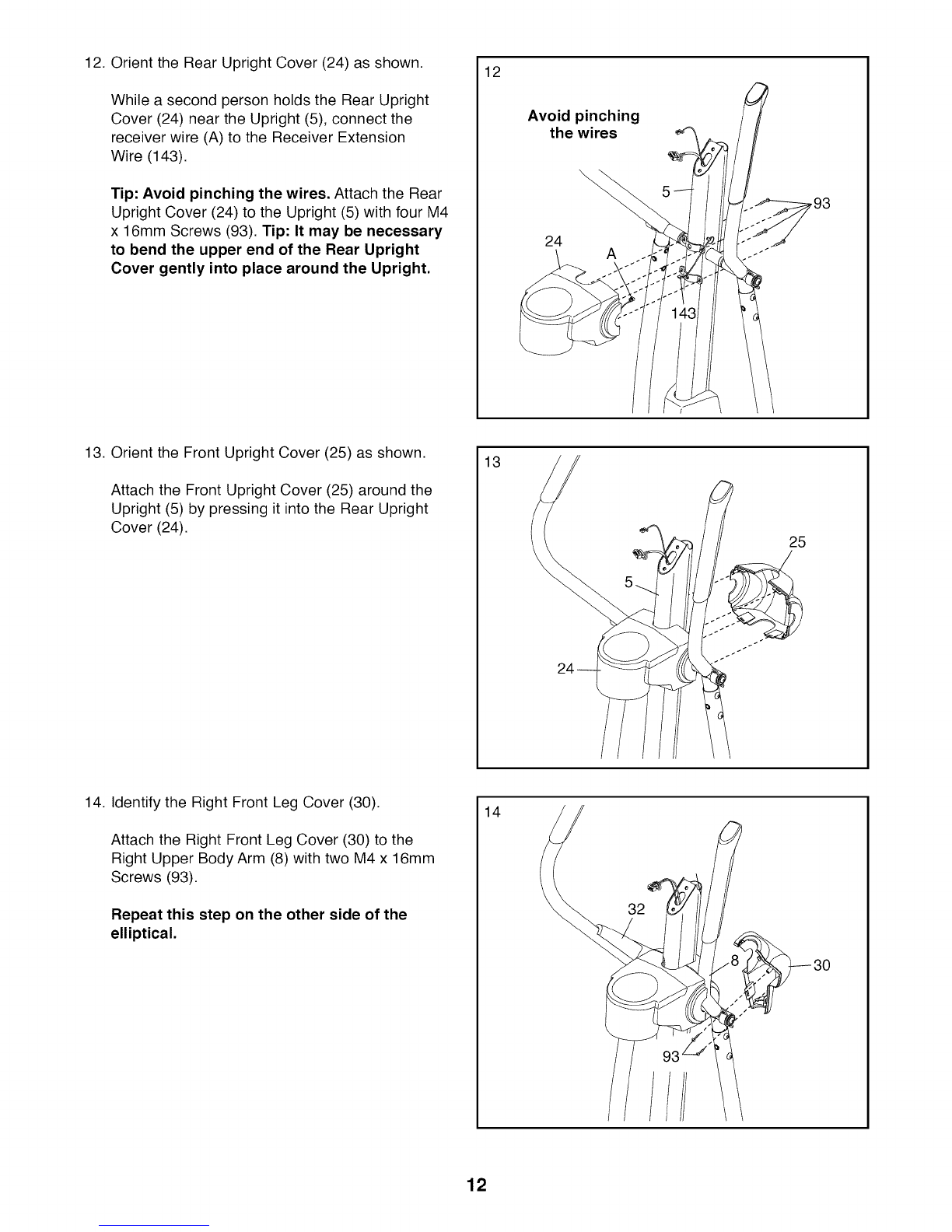

12. Orient the Rear Upright Cover (24) as shown.
While a second person holds the Rear Upright
Cover (24) near the Upright (5), connect the
receiver wire (A) to the Receiver Extension
Wire (143).
Tip: Avoid pinching the wires. Attach the Rear
Upright Cover (24) to the Upright (5) with four M4
x 16mm Screws (93), Tip: It may be necessary
to bend the upper end of the Rear Upright
Cover gently into place around the Upright.
12
Avoid pinching
the wires
\
93
13. Orient the Front Upright Cover (25) as shown.
Attach the Front Upright Cover (25) around the
Upright (5) by pressing it into the Rear Upright
Cover (24).
13
24
25
14. Identify the Right Front Leg Cover (30).
Attach the Right Front Leg Cover (30) to the
Right Upper Body Arm (8) with two M4 x 16mm
Screws (93).
Repeat this step on the other side of the
elliptical.
14
12

15. Identify the Right Rear Leg Cover (29).
Attach the Right Rear Leg Cover (29) around the
Right Upper Body Arm (8) by pressing it into the
Right Front Leg Cover (30).
Repeat this step on the other side of the
elliptical.
15 l30
16. Orient the Console Cover (11) as shown. Slide
the Console Cover onto the Upright (5). 16
13

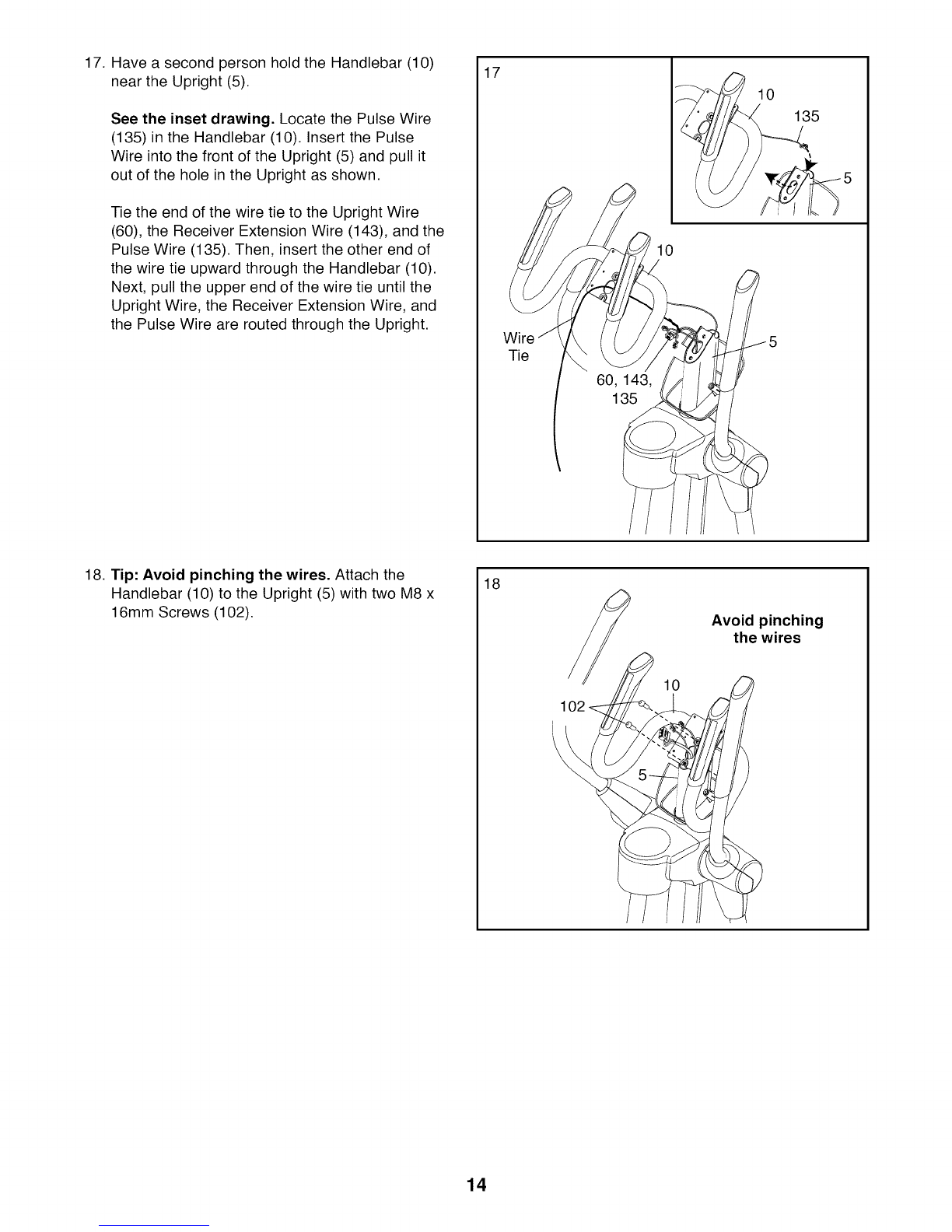

17. Have a second person hold the Handlebar (10)
near the Upright (5).
See the inset drawing. Locate the Pulse Wire
(135) in the Handlebar (10). Insert the Pulse
Wire into the front of the Upright (5) and pull it
out of the hole in the Upright as shown.
Tie the end of the wire tie to the Upright Wire
(60), the Receiver Extension Wire (143), and the
Pulse Wire (135). Then, insert the other end of
the wire tie upward through the Handlebar (10).
Next, pull the upper end of the wire tie until the
Upright Wire, the Receiver Extension Wire, and
the Pulse Wire are routed through the Upright.
17
Wire
Tie
10
10 135
18. Tip: Avoid pinching the wires. Attach the
Handlebar (10) to the Upright (5) with two M8 x
16mm Screws (102).
18
110
Avoid pinching
the wires
14

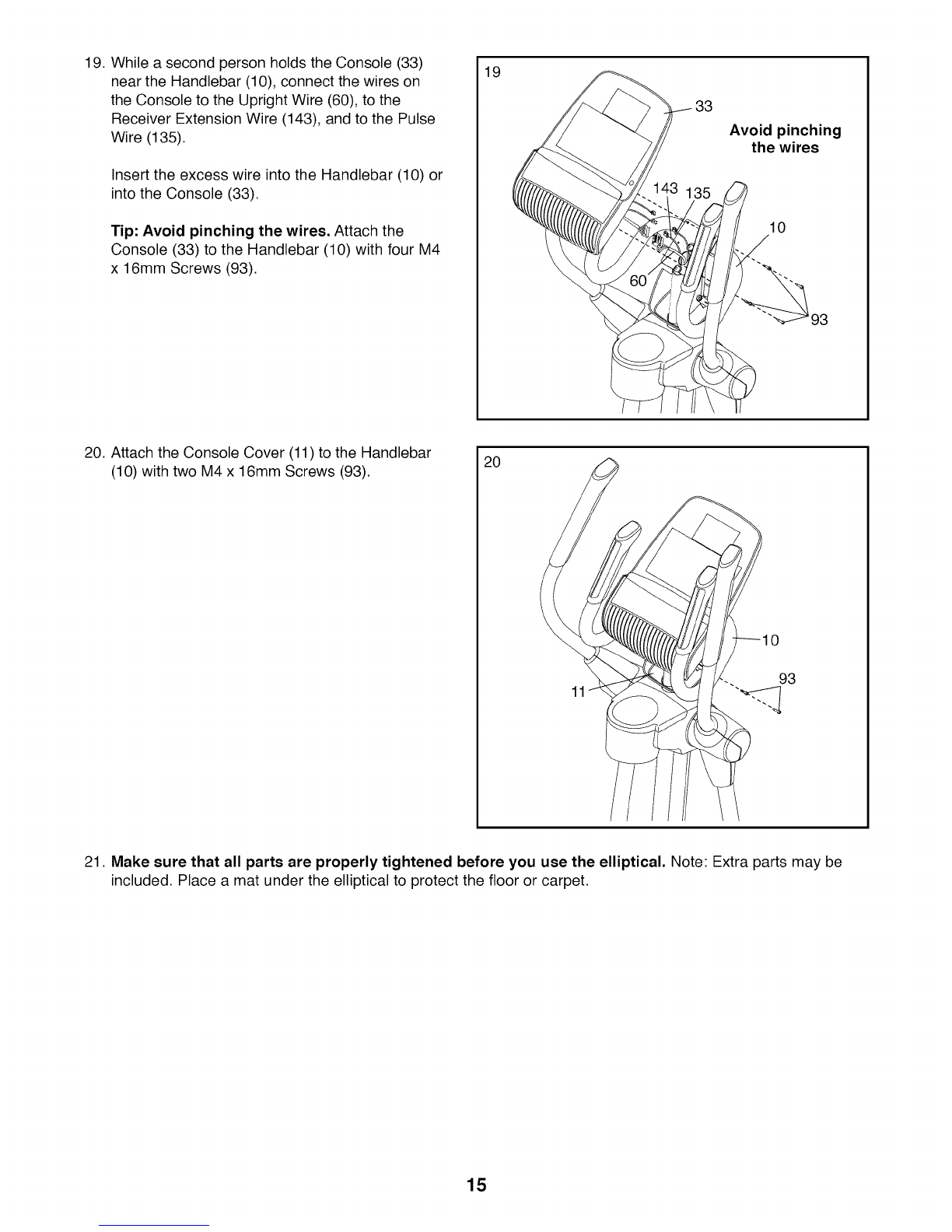

19. While a second person holds the Console (33)
near the Handlebar (10), connect the wires on
the Console to the Upright Wire (60), to the
Receiver Extension Wire (143), and to the Pulse
Wire (135).
Insert the excess wire into the Handlebar (10) or
into the Console (33).
Tip: Avoid pinching the wires. Attach the
Console (33) to the Handlebar (10) with four M4
x 16mm Screws (93).
19
Avoid pinching
the wires
10
93
20. Attach the Console Cover (11) to the Handlebar
(10) with two M4 x 16mm Screws (93). 20
93
21. Make sure that all parts are properly tightened before you use the elliptical. Note: Extra parts may be
included. Place a mat under the elliptical to protect the floor or carpet.
15

HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of
electric shock, The power cord has a plug with a
grounding pin.
Plug the
power cord Grounded Outlet
into an
appropriate Grounding Pin
outlet that
is properly
installed and
grounded in
accordance
with all local
codes and
ordinances. The outlet must be on a nominal 120-volt
circuit.
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown
at the right
if a properly
grounded
outlet is not
available.
Lug
Receptacle
Adapter
Metal Screw
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a quali-
fied electrician to determine whether the outlet
box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualified electrician.
16

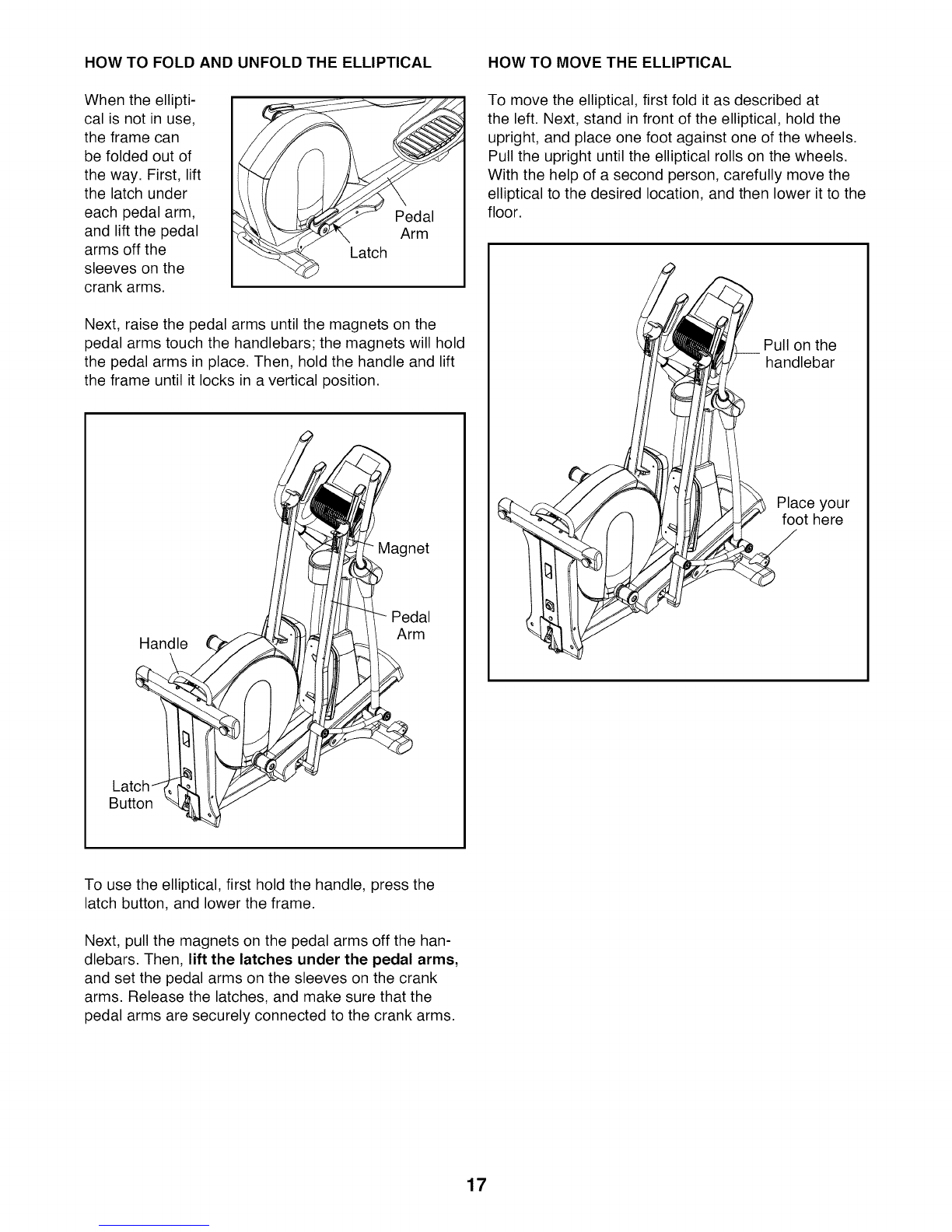

HOW TO FOLD AND UNFOLD THE ELLIPTICAL HOW TO MOVE THE ELLIPTICAL
When the ellipti-
cal is not in use,
the frame can
be folded out of
the way. First, lift
the latch under
each pedal arm,
and lift the pedal
arms off the
sleeves on the
crank arms.
Next, raise the pedal arms until the magnets on the
pedal arms touch the handlebars; the magnets will hold
the pedal arms in place. Then, hold the handle and lift
the frame until it locks in a vertical position.
Handle
Latch J 1
Button
agnet
IMH / - Pedal
To move the elliptical, first fold it as described at
the left. Next, stand in front of the elliptical, hold the
upright, and place one foot against one of the wheels.
Pull the upright until the elliptical rolls on the wheels.
With the help of a second person, carefully move the
elliptical to the desired location, and then lower it to the
floor.
_ Pul_ln_hae
__/_L _ Placeyour
_ foot here
To use the elliptical, first hold the handle, press the
latch button, and lower the frame.
Next, pull the magnets on the pedal arms off the han-
dlebars. Then, lift the latches under the pedal arms,
and set the pedal arms on the sleeves on the crank
arms. Release the latches, and make sure that the
pedal arms are securely connected to the crank arms.
17

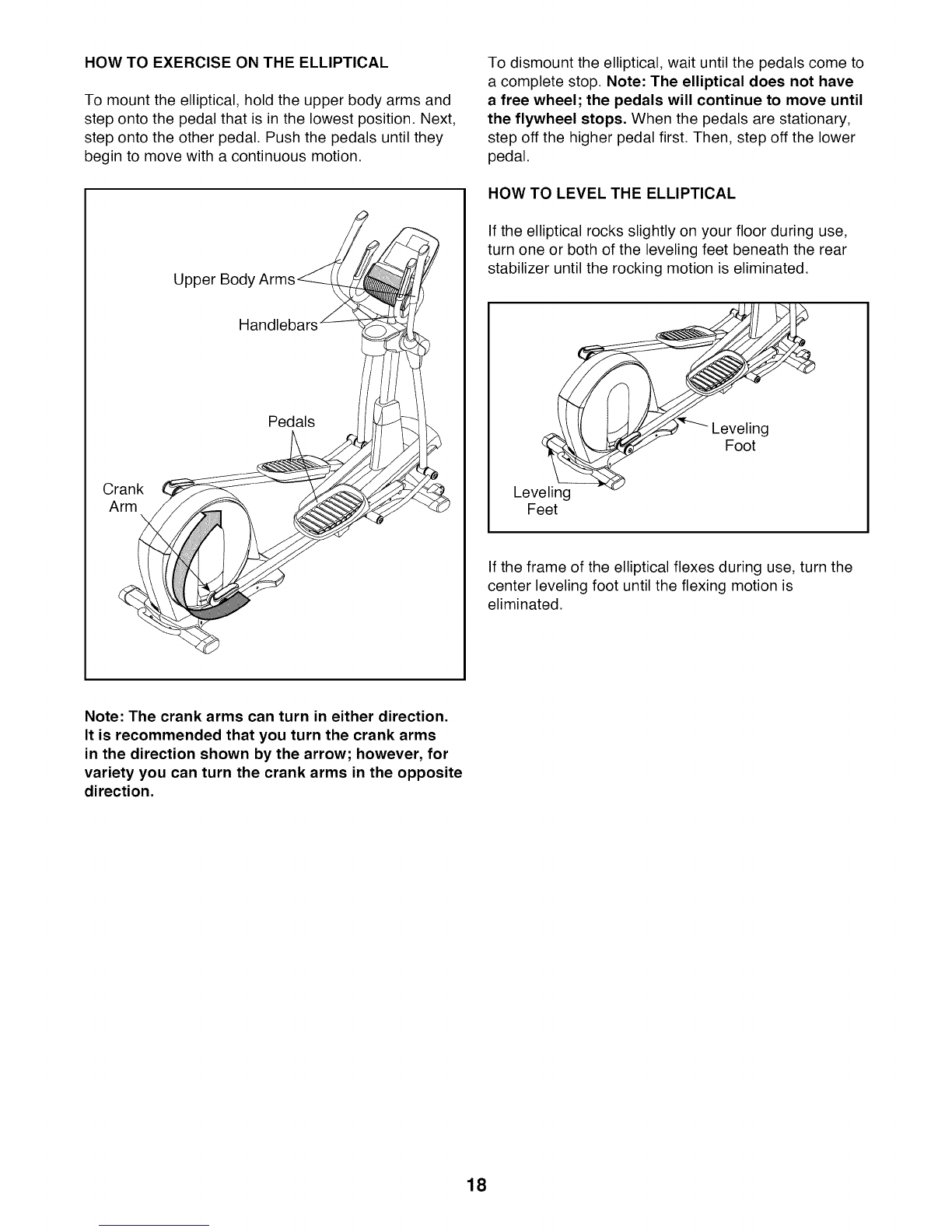

HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the upper body arms and
step onto the pedal that is in the lowest position. Next,
step onto the other pedal. Push the pedals until they
begin to move with a continuous motion.
Upper Body
Pedals
Crank
Arm
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
afree wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
turn one or both of the leveling feet beneath the rear
stabilizer until the rocking motion is eliminated.
i Leveling
Foot
Leveling
Feet
If the frame of the elliptical flexes during use, turn the
center leveling foot until the flexing motion is
eliminated.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms
in the direction shown by the arrow; however, for
variety you can turn the crank arms in the opposite
direction.
18

CONSOLE DIAGRAM 17 -'!-.i7iJ _- i I.L7iI
/'.,J _L/f....J/
TIME DIST.
INCLINE
DISPLRM HOME V /_ ENTER (_
iFIT
COMPATIBLE MAP TRAIN COMPETE TRACK SET A GOAL LOSE WT.
" ]I " ][ v^
CALORIe PERFORMANCE MRNURL CONTROL
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the ramp with the touch of a button.
While you exercise, the console will display continu-
ous exercise feedback. You can also measure your
heart rate using the handgrip heart rate monitor or an
optional chest heart rate monitor.
The console offers twenty-four onboard workouts.
Each workout automatically changes the resistance of
the pedals and the incline of the ramp and prompts you
to vary your pedaling pace as it guides you through an
effective workout. You can also set a calories, distance,
or time goal.
through an optional iFit module. With the iFit mode,
you can download personalized workouts, create your
own workouts, track your workout results, race against
other iFit users, and access many other features. To
purchase an iFit module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To turn on the power, see page 20. To use the
manual mode, see page 20. To use an onboard
workout, see page 23. To use aset-a-goal work-
out, see page 24. To use an iFit workout, see page
25. To use the sound system, see page 26. To
change console settings, see page 27.
Note: If there is a sheet of plastic on the display,
remove the plastic.
The console also features an iFit mode that enables
the console to communicate with your wireless network
19

HOW TO TURN ON THE POWER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE
POWER CORD on page
16). Next, locate the
power switch on the frame
near the power cord. Press
the power switch to the
reset position.
Reset
Position
The display will then turn on and the console will be
ready for use.
Note: When you turn on the power for the first
time, the incline of the ramp may calibrate auto-
matically. The ramp will move upward and downward
as it calibrates. When the ramp stops moving, the ramp
is calibrated.
IMPORTANT: If the incline of the ramp does not
calibrate automatically, see HOW TO CALIBRATE
THE RAMP on page 29 and manually calibrate
the ramp.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER above.
2. Select the manual mode.
Press the Manual Control button on the console to
select the manual mode.
If a wireless iFit module is not inserted into the con-
sole and connected to iFit, the manual mode will be
selected automatically.
.Change the resistance of the pedals and the
incline of the ramp as desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance increase and decrease
buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press one of the numbered 1 Step Ramp buttons
or press the 1 Step Ramp increase and decrease
buttons.
Note: After you press a button, it will take a
moment for the ramp to reach the selected incline
level.
4. Follow your progress with the display.
The display can show the following workout
information:
r'[¢- [ [
TIME DIST`
RESIST, SPEED
70
Calories (Cals.)--This display mode will show the
approximate number of calories you have burned.
Calories per Hour (Cals./Hr)--This display mode
will show the approximate number of calories you
are burning per hour.
Distance (Dist.)--This display mode will show
the distance that you have pedaled in miles or
kilometers.
20
