Nordson EFD ValveMate 7140 User manual

ValveMate™7140 Controller
Operating Manual
Electronic pdf files of
EFD manuals are also available
at www.nordsonefd.com
IMPORTANT!
Save this Sheet.
Forward to
Maintenance or
Tool Crib Supervisors

2

3
Contents
Introduction ..................................................................4
EFD Product Safety Statement ................................6-9
Preventative Maintenance..........................................10
Specifications ............................................................11
Front Panel Buttons/Modes of Operation ..................12
Indicator Lamps..........................................................13
How To ..................................................................13-15
Typical Setup..............................................................16
Mounting the ValveMate 7140 ..................................17
External Power Adapter ............................................18
Back Panel Markings ................................................18
Input/Output Connections ....................................19-20
I/O Connections Schematics......................................21
Air Connections..........................................................22
Final Setup Checklist ................................................23
Testing the Spray Valve ........................................24-25
Troubleshooting Guide ..............................................26
Replacement Parts List..............................................27
Warranty ......................................................back cover

4
Introduction
You have selected a reliable, high quality ValveMate dispensing system from
Nordson EFD, the world leader in fluid dispensing. The ValveMate
dispensing system was designed specifically for industrial dispensing, and
will provide you with years of trouble-free, productive service.
This manual will help you maximize the usefulness of your ValveMate
dispensing system.
Please spend a few minutes to become familiar with the controls and features.
Follow our recommended testing procedures. Review the helpful information
we have included, which is based on more than 30 years of industrial
dispensing experience.
Most questions you will have are answered in this guide. However, if you
need assistance, please do not hesitate to contact Nordson EFD or your
authorized Nordson EFD distributor.
In Asia, call [phone].
In Europe, call [phone].
In the USA, call 800-556-3484 between 8:30 a.m. and 5:30 p.m. Eastern time.
In all other areas, call your authorized Nordson EFD distributor or
[phone].
The EFD Pledge
Thank You!
You have just purchased the worldʼs finest dispensing equipment.
I want you to know that all of us at EFD value your business and will do
everything in our power to make you a satisfied customer.
If at any time you are not fully satisfied with our equipment or the support provided
by your EFD Product Application Specialist, please contact me personally at
800-556-3484 (US), 401-431-7000 (outside US), or
[email protected]
I guarantee that we will resolve any problems to your satisfaction.
Thanks again for choosing EFD.
Jeff Pembroke
Jeff Pembroke, President

5
IMPORTANT: The primary control of deposit size is the valve open time. The
ValveMate 7140 provides easy access and “on the fly” adjustment of valve open
time.
The ValveMate 7140 is an EFD spray valve controller, incorporating
programmable dispense time, digital time readout, and input/output
communication with host machine PLCs.
Other features include:
• Push-button time setting or one touch time programming.
• Floating decimal, providing dispense time ranges of .001 to 99.9 seconds.
• Bright red LED display.
• Push-button purge feature.
• Low air-pressure, optional tank low level detection, or other alarm detection
devices.
• End-of-Cycle feedback signal.
The ValveMate 7140 has been designed with the machine builder and
operator in mind. The objectives are to bring spray valve control close to the
point of application, and to provide the features necessary to make setup and
operation as easy and precise as possible.
The ValveMate is easy to operate. Once you have reviewed the features, you
will understand the benefits and the ease of control the ValveMate provides.
As with all EFD products, the ValveMate has been produced to exacting
specifications and thoroughly tested prior to shipment.
To obtain maximum performance from this equipment, please read the
instructions carefully.
Safety
Please read the EFD product safety statement included in the package.
Follow all appropriate safety instructions.

6
WARNING
ELECTRIC SHOCK
Risk of electric shock. Disconnect power before removing cover
and/or disconnect, lock out, and tag switches before servicing
electrical equipment. If you receive even a slight electrical
shock, shut down all equipment immediately. Do not restart the
equipment until the problem has been identified and corrected.
READ MANUAL
Read manual for proper use of this equipment. Follow all safety
instructions. Task- and equipment-specific warnings, cautions
and instructions are included in equipment documentation
where appropriate. Make sure these instructions and all other
equipment documents are accessible to persons operating or
servicing equipment.
MAXIMUM AIR PRESSURE
Maximum air input pressure 100 psi (6.9 bar). Excessive air
input pressure may damage the equipment.
BURST PRESSURE
Maximum air input pressure 100 psi (6.9 bar). Burst pressure
300 psi (20.7 bar). Excessive air input pressure may damage
the equipment.
RELEASE PRESSURE
Release pressure before opening. Maximum pressure 30 psi
(2.0 bar). Release hydraulic and pneumatic pressure before
adjusting or serving pressurized systems or components.
EFD® Product Safety Statement
This statement provides personal and equipment safety notices for EFD dispensing
systems including benchtop dispensers and ValveMate™controllers.
The safety message that follows has a WARNING level hazard.
Failure to comply could result in death or serious injury.
The safety messages that follow have CAUTION level hazards.
Failure to comply may result in minor or moderate injury.
CAUTION

7
Halogenated Hydrocarbon Solvent Hazards
Do not use halogenated hydrocarbon solvents in a pressurized system that
contains aluminum components. Under pressure, these solvents can react with
aluminum and explode, causing injury, death, or property damage. Halogenated
hydrocarbon solvents contain one or more of the following elements.
Element Symbol Prefix
Fluorine F “Fluoro-“
Chlorine Cl “Chloro-“
Bromine Br “Bromo-“
Iodine I “Iodo-“
Check your material MSDS or contact your material supplier for more
information. If you must use halogenated hydrocarbon solvents, contact your
EFD representative for compatible EFD components.
High Pressure Fluids
High pressure fluids, unless they are safety contained, are extremely hazardous.
Always release fluid pressure before adjusting or servicing high pressure
equipment. A jet of high pressure fluid can cut like a knife and cause serious
bodily injury, amputation, or death. Fluids penetrating the skin can also cause
toxic poisoning.
Warning: Any injury caused by high pressure liquid can be serious. If you are
injured or even suspect an injury:
• Go to an emergency room immediately.
• Tell the doctor that you suspect an injection injury.
• Show the doctor this note.
• Tell the doctor what kind of material you were dispensing.
Medical Alert–Airless Spray Wounds: Note to Physician
Injection in the skin is a serious traumatic injury. It is important to treat the injury
surgically as soon as possible. Do not delay treatment to research toxicity.
Toxicity is a concern with some exotic coatings injected directly into the
bloodstream.
Qualified Personnel
Equipment owners are responsible for making sure that EFD equipment is
installed, operated and serviced by qualified personnel. Qualified personnel are
those employees or contractors who are trained to safely perform their assigned
tasks. They are familiar with all relevant safety rules and regulations and are
physically capable of performing their assigned tasks.
Continued on next page

8
Intended Use
Use of EFD equipment in ways other than those described in the
documentation supplied with the equipment may result in injury to persons or
damage to property. Some examples of unintended use of equipment include:
• using incompatible materials
• making unauthorized modifications
• removing or bypassing safety guards or interlocks
• using incompatible or damaged parts
• using unapproved auxiliary equipment
• operating equipment in excess of maximum ratings
• operating equipment in an explosive atmosphere
Regulations and Approvals
Make sure all equipment is rated and approved for the environment in which it
is used. Any approvals obtained for EFD equipment will be voided if instructions
for installation, operation and service are not followed.
Personal Safety
To prevent injury, follow these instructions:
• Do not operate or service equipment unless you are qualified.
• Do not operate equipment unless safety guards, doors or covers are intact
and automatic interlocks are operating properly. Do not bypass or disarm any
safety devices.
• Keep clear of moving equipment. Before adjusting or servicing moving
equipment, shut off the power supply and wait until the equipment comes to a
complete stop. Lock out power and secure the equipment to prevent
unexpected movement.
• Make sure spray areas and other work areas are adequately ventilated.
• Know where emergency stop buttons, shutoff valves and fire extinguishers
are located.
• When using a syringe barrel, always keep the dispensing end of the tip
pointing towards the work and away from the body or face. Store syringe barrel
with tip pointing down when not in use.
• Obtain and read Material Safety Data Sheets (MSDS) for all materials used.
Follow the manufacturer's instructions for safe handling and use of materials,
and use recommended personal protection devices.

9
• To prevent injury, be aware of less-obvious dangers in the workplace that
often cannot be completely eliminated, such as hot surfaces, sharp edges,
energized electrical circuits and moving parts that cannot be enclosed or
otherwise guarded for practical reasons.
Fire Safety
To avoid a fire or explosion, follow these instructions:
• Shut down all equipment immediately if you notice static sparking or arcing.
Do not restart the equipment until the cause has been identified and corrected.
• Do not smoke, weld, grind or use open flames where flammable materials are
being used or stored.
• Do not heat materials to temperatures above those recommended by the
manufacturer. Make sure heat monitoring and limiting devices are working
properly.
• Provide adequate ventilation to prevent dangerous concentrations of volatile
particles or vapors. Refer to local codes or your material MSDS for guidance.
• Do not disconnect live electrical circuits when working with flammable
materials. Shut off power at a disconnect switch first to prevent sparking.
• Know where emergency stop buttons, shutoff valves and fire extinguishers
are located.
Action in the Event of a Malfunction
If a system or any equipment in a system malfunctions, shut off the system
immediately and perform the following steps.
• Disconnect and lock out system electrical power. If using, close hydraulic and
pneumatic shutoff valves and relieve pressures.
• Identify the reason for the malfunction and correct it before restarting the
system.
• For air-powered dispensers, remove syringe barrel from adapter assembly.
For the electro-mechanical dispensers, slowly unscrew the barrel retainer and
remove barrel from actuator.
Disposal
Dispose of equipment and materials used in operation and servicing according
to local codes.

10
RoHS标准相关声明
(China RoHS Hazardous Material Declaration)
产品名称 有害物质及元素
Part Name Toxic or Hazardous Substances and Elements
铅 汞 镉 六价铬 多溴联苯 多溴联苯醚
Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated
Chromium Biphenyls Diphenyl Ethers
(Pb) (Hg) (Cd) (Cr6) (PBB) (PBDE)
外部接口
External Electrical XO O O O O
Connectors
O: 表示该产品所含有的危险成分或有害物质含量依照EIP-A, EIP-B, EIP-C
的标准低于SJ/T11363-2006 限定要求。
Indicates that this toxic or hazardous substance contained in all the homogeneous materials for this
part, according to EIP-A, EIP-B, EIP-C is below the limit requirement in SJ/T11363-2006.
X: 表示该产品所含有的危险成分或有害物质含量依照EIP-A, EIP-B, EIP-C
的标准高于SJ/T11363-2006 限定要求.
Indicates that this toxic or hazardous substance contained in all the homogeneous materials for this
part, according to EIP-A, EIP-B, EIP-C is above the limit requirement in SJ/T11363-2006.
Preventative Maintenance
As part of maintaining continuous trouble-free use of this product, EFD
recommends a few very simple preventative maintenance checks.
1. Periodically inspect tube to fitting connections for proper fit. Secure as necessary.
2. Check tubing for cracks and contamination. Replace tubing as necessary.
3. Check all wiring connections for looseness. Tighten as necessary.
4. Clean: If front panel requires cleaning, use a clean, soft damp rag with a mild
detergent cleaner. DO NOT USE strong solvents (acetone, MEK, etc.) as they
will damage the front panel material.
5. Maintain: Only use clean dry air to unit. Equipment does not require any other
regular maintenance.
6. Test: Verify operation of features and performance of equipment using the
appropriate sections of this users guide. A faulty or defective unit should be
returned to EFD or representative for refurbishment.
7. Use only replacement parts that are designed for use with original equipment.
Contact your EFD representative for information and advice.

11
Specifications
Note: Specifications and technical details are subject to engineering changes without prior notification.
Cabinet Size: 20.0 cm x 14.2 cm x 6.8 cm (7.9" W x 5.6" D x 2.7" H)
Weight: 1.75 kg (3 lbs 14 oz)
Electrical Power Input: 24VDC (+/- 5%), 0.63A maximum
Electrical Input Connector: Switchcraft L722RA or equivalent, locking type
External Power Adapter: 100-240 VAC (+/-10%),~ 50/60 Hz input,24VDC (+/- 5%), 0.63 A output,
Switchcraft S761K locking DC plug or equivalent, wall mount, changeableAC plugs.
Input Air Pressure: 80 - 100 psi (5.5 - 7.0 bar)
Air Consumption: 3 CFM at maximum 400 cycles per minute.
Feedback Circuits: EOC Out & Alarm Out: Electronic switch, 24VDC,100mA maximum.
Initiate Circuits: 5-24 INIT: 5-24VDC initiate signal.
CC INIT & Foot Switch: Dry contact initiate circuits, 19mA,closure current.
INIT signal duration: No less than 0.012 sec. momentary or maintained
for steady.
Cycle Rate: Exceeds 400 per minute
Time Range: Programmable 0.001 to 99.9 seconds
Ambient operating conditions: Temperature: 5°C to 45°C (41°F to 113°F)
Humidity: 85% RH at 30 C, 40% at 45 C non-condensing
Height above sea level: 2000 meters max (6,562 feet)
This equipment is for indoor use only.
Product Classification: Installation Category II
Pollution Degree 2
Meets or exceeds CE and CSA requirements

12
Front Panel Buttons/Modes of Operation
POWER Press Power button to turn power ON or OFF. Note:
ValveMate 7140 will always power up into RUN mode.
RUN Enables external initiate inputs. The cycle button is disabled.
SETUP Setup, testing and modification of dispense time.
STEADY Timer override. Press UP/DOWN to toggle between TIME
and STEADY operation.
TEACH For easy setting and teaching of time mode in continuous spray
or other longer cycle applications.
PURGE Enables purging of spray valve.
CYCLE Pressing the button will provide different results according to
the selected MODE.
TIME SET Pressing the buttons will decrement or increment valve
on-time. In SETUP or TEACH mode, pressing both buttons
simultaneously will zero out the time. The up and down time
adjustment buttons are available in SETUP, TEACH and RUN
modes.
ALARMS 1. Low Air Pressure Alarm: Assures sufficient pressure is present
for valve operation. Can be disabled.
2. CC INIT (Contact Closure Initiate): Optional usage of the CC
INIT for external alarm applications. Examples of uses: low tank
level switch, operator safety interlock, etc.
Alarm conditions are assessed, (air pressure less than 60 psi and CC
INIT open) just prior to the start of a dispense operation.
MODE Press MODE button to cycle through setup modes.
EXTENDED USER SETUP FUNCTIONS
– Low Air Pressure Alarm: ON / OFF
– Pressure Units: Psi / Bar
– CC INIT : Enable for Alarm IN
– Atomizing air delay

13
Indicator Lamps
The indicator lamp at the upper left corner above LED display will
illuminate whenever spray valve is actuated.
The center front panel has five indicator lamps used to indicate the
operation mode
MODE
RUN
CYCLE
SETUP
STEADY
TEACH
PURGE
CYCLE
How to make On-the-Fly (OTF) time adjustments in
RUN mode:
Step 1 Press CYCLE button to enable OTF, display will blink.
Step 2 Press or buttons to adjust valve on time.
Step 3 Press CYCLE button to disable OTF, display no longer blinks.
How to set controller to STEADY mode:
Step 1 Press MODE button and scroll to STEADY.
Step 2 Press or to toggle between TIME and STEADY operation.
Step 3 When appears on LED display, press mode button to return to RUN.

14

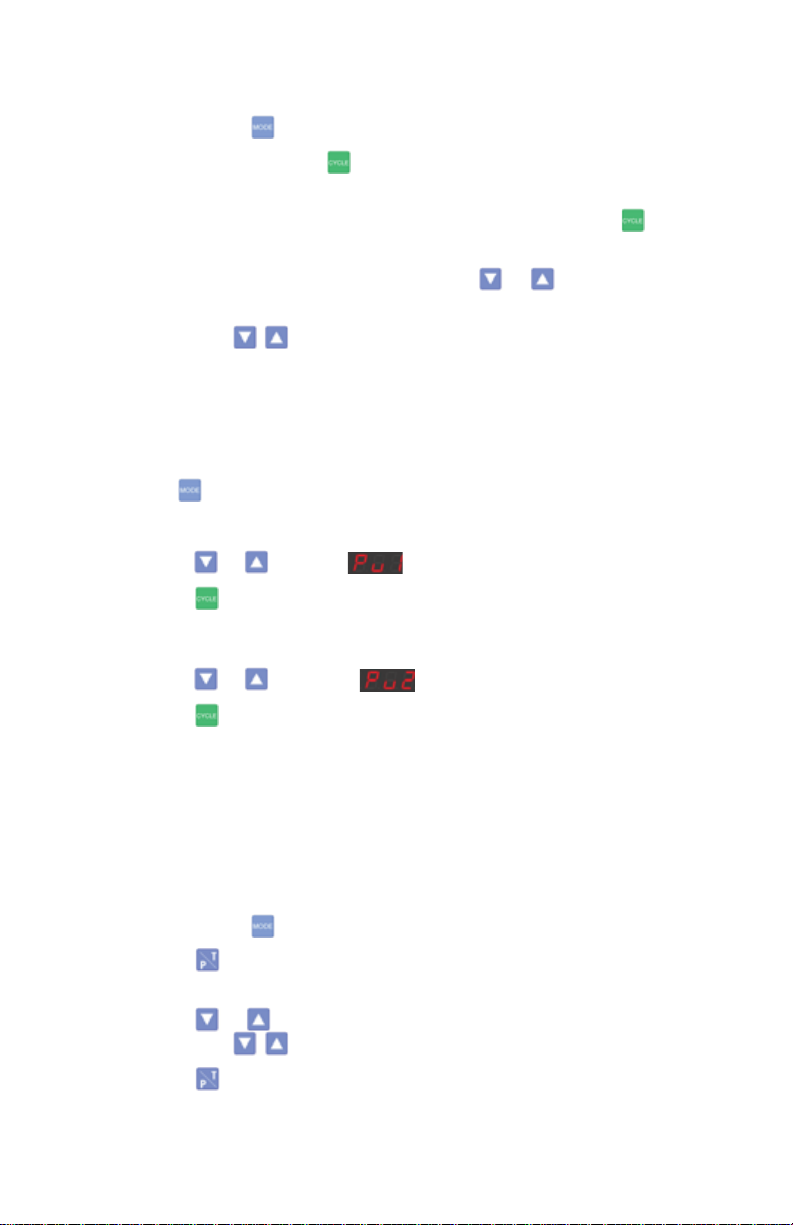

How to use the TEACH mode:
Step 1 Press MODE button and scroll to TEACH.
Step 2 Press and hold CYCLE button or depress the foot pedal in the TEACH
mode. LED display will begin “flashing” before TEACH function begins.
Step 3 Add incremental time by continued press and hold of CYCLE button
or depress and hold the foot pedal.
Step 4 To fine tune programmed pulse time, press or to decrease/increase
time..
Step 5 Press both to .000 out time to and restart the TEACH process.
How to purge with or without nozzle air:
Press MODE button and scroll to PURGE.
To PURGE without Nozzle Air:
Step 1 Press or to display .
Step 2 Press button or depress foot pedal to purge.
To PURGE with Nozzle Air:
Step 1 Press or to toggle to for both valve actuation/nozzle air purge.
Step 2 Press button or depress foot pedal to purge.
How to adjust nozzle air delay:
Factory default is set to .240 seconds. Full range of nozzle air delay is .000 to 9.99
seconds. To change nozzle air delay:
Step 1 Press MODE button and scroll to SETUP.
Step 2 Press button and hold for 3 seconds. Nozzle Air Delay time value will
begin to flash to distinguish between actuation time.
Step 3 Press or to decrease/increase Nozzle Air Delay.
Press both to .000 time.
Step 4 Press to return to Time / Setup mode.

15
How to enable/disable low air pressure alarm:
Step 1 Press MODE button and scroll to STEADY .
Step 2: Press and hold until Aon or Aof is visible.
Step 3 Press or button to toggle between Alarm On or
Alarm OFF .
Step 4 Press MODE button to exit.
How to select PSI or BAR pressure readout:
Step 1 Press MODE button and scroll to STEADY.
Step 2: Press and hold until Aon or Aof is visible.
Step 3 Press button one time
Step 4 Press or button to toggle between for BAR, and for Psi.
Psi Format: 0. to 101.
BAR Format: 0.0 to 7.0
Step 5 Press MODE button to exit.
How to enable/disable CC INIT I/O as an external
alarm input:
Step 1 Press MODE button and scroll to STEADY.
Step 2: Press and hold until Aon or Aof is visible.
Step 3: Press two times.
Step 4: Press or button to toggle between CCI or ALI
CC INIT function is:
CCI: Contact Closure initiate input
ALI: External alarm input
Step 5 Press MODE button to exit.

16
Typical Setup
Five micron filter regulator
Air tee
To exhaust To pressurize
Plant air
70 psi
(4.8 bar) White quick-connect Black
quick-connect
Pressure
relief valve
EFD
spray
valve
Pressurized reservoir
with air regulator
ValveMate 7140 Controller
Flexible air line
Shut-off valve
Material
Constant air NOTE: Use only oil-free,
clean, dry filtered air
Caution: Always depressurize the reservoir before opening. To do this, slide
the shutoff valve on the air line away from the reservoir. If using an EFD tank,
open the pressure relief valve as well. Before opening the reservoir, check the
pressure gauge to verify that pressure is zero (0).
On all EFD cartridge reservoirs, the unique threaded design provides fail-safe air
pressure release during cap removal.
Actuating air
Nozzle air

17
Mounting the ValveMate 7140
The ValveMate 7140 can be mounted either over or under a surface using
screws to secure bracket.
Use the universal mounting bracket (included) to mount the controller either
over or under the cabinet. The bracket allows the controller to pivot 30º from
a horizontal position. When mounted under a workbench, secure with screws
or nuts and bolts to support 14lbs.
Optional Panel Mount Kit
For panel mounting, an optional panel mount bracket kit is available.
(Order part #7026544)
2.523in
6.41cm
7.898in
20.06cm
8.085in
20.54cm
8.911in
22.63cm
.881in
2.24cm
1.000in
2.54cm
2.710in
6.88cm
4X Ø 13/64"
5.16mm
4X R .094in
0.24cm
Panel Cutout Dimensions

18
External Power Adapter
A universal 24VDC remote power supply with a locking ring DC connector is
included with each ValveMate 7140. Select a convenient location and connect
to appropriate input voltage.
Maximum Air Pressure Caution
Caution symbol informing that the maximum air input pressure is
100 psi (6.9 bar). Excessive air input pressure may damage the
equipment.
Foot Pedal / Finger Switch Connector
Switch symbol identifies the connector for a momentary contact
closure switch for dispense initiates. An optional foot pedal, part
#7016714 may be ordered.
Power Input Current
Input current symbol specifying that DC current is utilized on the
power supply connector. The current is derived from an external 24
VDC source.
Chassis Connection
This symbol identifies the chassis connection terminal. Used for
grounding the chassis to shunt leakage current and/or enhance
system ESD protection.
Back Panel Markings

19
Input/Output Connections
The 10 pin terminal strip includes a 5-24VDC and contact closure CC initiate
inputs. Outputs include an Alarm Out, End of Cycle EOC and a 24VDC courtesy
power.
5-24 INIT: Dispense initiate input activated with a 5-24VDC input voltage.
EOC OUT: End-of-cycle feedback
ALARM OUT: Circuit that closes when an alarm condition is present.
CC INIT: Dispense initiate input activated with a contact closure switch.
24VDC OUT: Courtesy output 24VDC, 100mA.
Note: ALARM OUT and EOC (End-of-cycle) only function in RUN mode.

20
Initiate Connections
The 7140 can be initiated by three inputs:
1. 5-24 INIT: Application of 5-24 VDC to the 5-24 INIT terminals, pins 1+2.
2. CC INIT: Application of mechanical contacts on CC INIT terminals, pins
7+8
3. Foot Pedal: Use of Optional EFD foot pedal (part number 7016714) plugged
into foot pedal receptacle.
A connection schematic is detailed on page 21.
Alarm OUT Connection
The ValveMate 7140 features an alarm output circuit. The Alarm OUT circuit
closes when an alarm condition is present. The Alarm OUT circuit is a normally
open electronic switch that can switch an external 5-24 VDC circuit to an external
signaling device or PLC input. Maximum load is 100mA, 5-24 VDC.
Alarm IN Connection
The ValveMate 7140 offers an alternate use of the CC INIT initiate input for an
external alarm signal. Refer to the ʻHow toʼ instructions on page 15 to enable.
When enabled as an alarm input the CC INIT on pins 7 and 8 is connected to a
normally closed switch such as a low level reservoir float switch. When the CC
INIT is enabled as an alarm input the connections on pins 7 and 8 must be
closed to initiate a spray valve cycle.
End of Cycle Connection (EOC)
The ValveMate 7140 features an End-of-Cycle (EOC) circuit to acknowledge an
active spray valve actuation cycle. The EOC circuit is a normally closed
electronic switch that can switch an external 5-24 VDC circuit to an external
signaling device or PLC input. Maximum load is 100mA, 5-24 VDC.
End of Cycle (EOC) signaling only functions when the ValveMate 7140 is in the
RUN mode. The End-of-Cycle (EOC) is normally closed in RUN mode while
spray valve cycle is inactive. The EOC switch opens when the spray valve
cycle is initiated and closes when the spray valve actuation cycle is completed.
The EOC signal only represents the spray valve actuation time and is not
affected by the spray valveʼs nozzle air delay time setting.
24 VDC Output
Courtesy 24 volt DC 100mA can be used to provide power to EOC and Alarm
out circuits for signalling purposes. Also, can be used as a power source for an
indicator device or initiate signal through a contact closure switch to the 5-24
INIT circuit.
