Nordson Trilogy User manual

TrilogyrAir-Assisted Airless LT
Manual Spray Gun
Customer Product Manual
Part 1601052-03
Issued 02/16
NORDSON CORPORATION AMHERST, OHIO USA
For parts and technical support, call the Industrial Coating
Systems Customer Support Center at [phone] or
contact your local Nordson representative.
This document is subject to change without notice.
Check http://emanuals.nordson.com for the latest version.

Part 1601052-03 E2016 Nordson Corporation
Table of Contents
Safety 1.......................................
Qualified Personnel 1.........................
Intended Use 1..............................
Regulations and Approvals 1..................
Personal Safety 2............................
High-Pressure Fluids 2.....................
Fire Safety 3................................
Halogenated Hydrocarbon Solvent Hazards 4.
Action in the Event of a Malfunction 4...........
Disposal 4..................................
Description 5..................................
Specifications 5..............................
Declaration of Conformity 6.....................
Installation 6..................................
Operation 7...................................
Gun Operation 7.............................
Atomizing Air Adjustment 8....................
Fan Pattern Adjustment 8.....................
Air Cap Adjustment 8.........................
Coating Tips 8...............................
Atomizing Air Trigger Adjustment 9.............
Maintenance 10................................
Spray Gun Flushing 10........................
Nozzle Cleaning 10...........................
Filter Cleaning 10.............................
Lubrication 11................................
Troubleshooting 11.............................
Repair 12......................................
Preparation 12................................
Air Cap and Nozzle Replacement 12............
Needle Replacement 12.......................
Needle Cup Seal Replacement 13...............
Air Valve Seal Replacement 13.................
Nozzle Seal Ring Replacement 13..............
Parts 14.......................................
Nozzles 16......................................
Contact Us
Nordson Corporation welcomes requests for information, comments, and
inquiries about its products. General information about Nordson can be
found on the Internet using the following address:
http://www.nordson.com.
Address all correspondence to:
Nordson Corporation
Attn: Customer Service
555 Jackson Street
Amherst, OH 44001
Notice
This is a Nordson Corporation publication which is protected by copyright.
Original copyright date 2012. No part of this document may be
photocopied, reproduced, or translated to another language without the
prior written consent of Nordson Corporation. The information contained
in this publication is subject to change without notice.
Trademarks
Trilogy, Nordson and the Nordson logo are registered trademarks of
Nordson Corporation.
All other trademarks are the property of their respective owners.

Change Record i
Part 1601052-03
E2016 Nordson Corporation
Change Record
Revision Date Change
02 12/15 Updated part number 1601143.
03 02/16 Removed obsolete part numbers.

Change Record
ii
Part 1601052-03 E2016 Nordson Corporation

TrilogyrAir-Assisted Airless LT Manual Spray Gun 1
Part 1601052-03
E2016 Nordson Corporation
TrilogyrAir-Assisted Airless LT Manual Spray Gun
Safety
Read and follow these safety instructions. Task- and equipment-specific
warnings, cautions, and instructions are included in equipment
documentation where appropriate.
Make sure all equipment documentation, including these instructions, is
accessible to persons operating or servicing equipment.
Qualified Personnel
Equipment owners are responsible for making sure that Nordson equipment
is installed, operated, and serviced by qualified personnel. Qualified
personnel are those employees or contractors who are trained to safely
perform their assigned tasks. They are familiar with all relevant safety rules
and regulations and are physically capable of performing their assigned
tasks.
Intended Use
Use of Nordson equipment in ways other than those described in the
documentation supplied with the equipment may result in injury to persons
or damage to property.
Some examples of unintended use of equipment include
Susing incompatible materials
Smaking unauthorized modifications
Sremoving or bypassing safety guards or interlocks
Susing incompatible or damaged parts
Susing unapproved auxiliary equipment
Soperating equipment in excess of maximum ratings
Regulations and Approvals
Make sure all equipment is rated and approved for the environment in which
it is used. Any approvals obtained for Nordson equipment will be voided if
instructions for installation, operation, and service are not followed.

TrilogyrAir-Assisted Airless LT Manual Spray Gun
2
Part 1601052-03 E2016 Nordson Corporation
Personal Safety
To prevent injury follow these instructions.
SDo not operate or service equipment unless you are qualified.
SDo not operate equipment unless safety guards, doors, or covers are
intact and automatic interlocks are operating properly. Do not bypass or
disarm any safety devices.
SKeep clear of moving equipment. Before adjusting or servicing moving
equipment, shut off the power supply and wait until the equipment
comes to a complete stop. Lock out power and secure the equipment to
prevent unexpected movement.
SRelieve (bleed off) hydraulic and pneumatic pressure before adjusting or
servicing pressurized systems or components. Disconnect, lock out,
and tag switches before servicing electrical equipment.
SWhile operating manual spray guns, make sure you are grounded.
Wear electrically conductive gloves or a grounding strap connected to
the gun handle or other true earth ground. Do not wear or carry metallic
objects such as jewelry or tools.
SIf you receive even a slight electrical shock, shut down all electrical or
electrostatic equipment immediately. Do not restart the equipment until
the problem has been identified and corrected.
SObtain and read Safety Data Sheets (SDS) for all materials used.
Follow the manufacturer’s instructions for safe handling and use of
materials, and use recommended personal protection devices.
SMake sure the spray area is adequately ventilated.
STo prevent injury, be aware of less-obvious dangers in the workplace
that often cannot be completely eliminated, such as hot surfaces, sharp
edges, energized electrical circuits, and moving parts that cannot be
enclosed or otherwise guarded for practical reasons.
High-Pressure Fluids
High-pressure fluids, unless they are safely contained, are extremely
hazardous. Always relieve fluid pressure before adjusting or servicing high
pressure equipment. A jet of high-pressure fluid can cut like a knife and
cause serious bodily injury, amputation, or death. Fluids penetrating the
skin can also cause toxic poisoning.
If you suffer a fluid injection injury, seek medical care immediately. If
possible, provide a copy of the SDS for the injected fluid to the health care
provider.
The National Spray Equipment Manufacturers Association has created a
wallet card that you should carry when you are operating high-pressure
spray equipment. These cards are supplied with your equipment. The
following is the text of this card:

TrilogyrAir-Assisted Airless LT Manual Spray Gun 3
Part 1601052-03
E2016 Nordson Corporation
WARNING: Any injury caused by high pressure liquid can be serious. If
you are injured or even suspect an injury:
SGo to an emergency room immediately.
STell the doctor that you suspect an injection injury.
SShow him this card
STell him what kind of material you were spraying
MEDICAL ALERT—AIRLESS SPRAY WOUNDS: NOTE TO PHYSICIAN
Injection in the skin is a serious traumatic injury. It is important to treat the
injury surgically as soon as possible. Do not delay treatment to research
toxicity. Toxicity is a concern with some exotic coatings injected directly into
the bloodstream.
Consultation with a plastic surgeon or a reconstructive hand surgeon may
be advisable.
The seriousness of the wound depends on where the injury is on the body,
whether the substance hit something on its way in and deflected causing
more damage, and many other variables including skin microflora residing
in the paint or gun which are blasted into the wound. If the injected paint
contains acrylic latex and titanium dioxide that damage the tissue’s
resistance to infection, bacterial growth will flourish. The treatment that
doctors recommend for an injection injury to the hand includes immediate
decompression of the closed vascular compartments of the hand to release
the underlying tissue distended by the injected paint, judicious wound
debridement, and immediate antibiotic treatment.
Fire Safety
To avoid a fire or explosion, follow these instructions.
SGround all conductive equipment. Use only grounded air and fluid
hoses. Check equipment and workpiece grounding devices regularly.
Resistance to ground must not exceed one megohm.
SShut down all equipment immediately if you notice static sparking or
arcing. Do not restart the equipment until the cause has been identified
and corrected.
SDo not smoke, weld, grind, or use open flames where flammable
materials are being used or stored.
SDo not heat materials to temperatures above those recommended by
the manufacturer. Make sure heat monitoring and limiting devices are
working properly.

TrilogyrAir-Assisted Airless LT Manual Spray Gun
4
Part 1601052-03 E2016 Nordson Corporation
Fire Safety (contd)
SProvide adequate ventilation to prevent dangerous concentrations of
volatile particles or vapors. Refer to local codes or your material SDS
for guidance.
SDo not disconnect live electrical circuits when working with flammable
materials. Shut off power at a disconnect switch first to prevent
sparking.
SKnow where emergency stop buttons, shutoff valves, and fire
extinguishers are located. If a fire starts in a spray booth, immediately
shut off the spray system and exhaust fans.
SShut off electrostatic power and ground the charging system before
adjusting, cleaning, or repairing electrostatic equipment.
SClean, maintain, test, and repair equipment according to the instructions
in your equipment documentation.
SUse only replacement parts that are designed for use with original
equipment. Contact your Nordson representative for parts information
and advice.
Halogenated Hydrocarbon Solvent Hazards
Do not use halogenated hydrocarbon solvents in a pressurized system that
contains aluminum components. Under pressure, these solvents can react
with aluminum and explode, causing injury, death, or property damage.
Halogenated hydrocarbon solvents contain one or more of the following
elements:
Element Symbol Prefix
Fluorine F “Fluoro-”
Chlorine Cl “Chloro-”
Bromine Br “Bromo-”
Iodine I “Iodo-”
Check your material SDS or contact your material supplier for more
information. If you must use halogenated hydrocarbon solvents, contact
your Nordson representative for information about compatible Nordson
components.
Action in the Event of a Malfunction
If a system or any equipment in a system malfunctions, shut off the system
immediately and perform the following steps:
SDisconnect and lock out system electrical power. Close hydraulic and
pneumatic shutoff valves and relieve pressures.
SIdentify the reason for the malfunction and correct it before restarting the
system.
Disposal
Dispose of equipment and materials used in operation and servicing
according to local codes.

TrilogyrAir-Assisted Airless LT Manual Spray Gun 5
Part 1601052-03
E2016 Nordson Corporation
Description
The Trilogy Air-Assisted Airless LT Manual Spray Gun is a compressed-air
operated high-pressure manual spray gun for the application of sprayable
fluids at pressures up to 200 bar (2900 psi).
Specifications
Item Specification
Fittings Fluid: 1/2−20 JIC (US), 1/4 NPSM (EU)
Air: 1/4 NPT (US), G 1/4 (EU)
Maximum Air Pressure 8 bar (116 psi)
Recommended Atomizing Air
Pressure
1.5−3 bar (21−43.5 psi)
Maximum Material Pressure 200 bar (2900 psi)
Maximum Material Temperature Without protective gloves: 40 _C (104 _F)
With protective gloves: 60 _C (140 _F)
Material Consumption Depends on nozzle size and pump pressure:
Nozzle Size: 0.23 mm
Air Pressure: 2 bar (29 psi)
Material Pressure: 100 bar (1,450 psi)
Viscosity: 45 sec in 4 mm DIN−Becher
Material Flow Rate: about 0.26 l/m
Round Pattern Air Consumption 1 bar (14 psi): 6 m3/h, 84 l/min (3 cfm)
2 bar (29 psi): 8.1 m3/h, 136 l/min (4.8 cfm)
3 bar (43.5 psi): 11.1 m3/h, 185 l/min (6.5 cfm)
Flat Pattern Air Consumption 1 bar (14 psi): 4.3 m3/h, 72.0 l/min (2.5 cfm)
2 bar (29 psi): 6.9 m3/h, 115.0 l/min (4.0 cfm)
3 bar (43.5 psi): 9.2 m3/h, 154.0 l/min (5.4 cfm)
Round Pattern Sound Pressure
Level (A) 1 bar (14 psi): 67 dB/A 1.5 bar (22 psi): 71 d/Ba
2.5 bar (36 psi): 78 Db/a
Flat Pattern Sound Pressure
Level (A) 1 bar (14 psi): 69 dB/A 1.5 bar (22 psi): 74 d/Ba
2.5 bar (36 psi): 79 Db/a
(A) Sound pressure level measurements and specifications are in accordance with Third regulation to
apparatus safety law DIN 45635 part 1/04.84.

TrilogyrAir-Assisted Airless LT Manual Spray Gun
6
Part 1601052-03 E2016 Nordson Corporation
CE DECLARATION OF CONFORMITY
according to the EC Guidelines for Machines
Nordson Corporation,
Westlake, Ohio, USA,
declares under our sole responsibility that the product: Trilogy Manual Spray Guns
Models: AAA, AAA LT, GP, AC, AS and LVLP Gravity Fed, AS and LVLP Siphon Fed
SConforms with the relevant regulations of the EC machine guidelines (2006/42/EC), including their changes at this time period.
SConforms with further relevant regulations of the EC machine guidelines including their changes at this time period.
SDirective 94/9/EC – Equipment in explosion endangered environments. Use in zone 1; equipment of category 2
SThe following harmonized standards ( or parts from this ) were used:
SDIN EN ISO 12100, 2011: Safety of machines
SEN 349 Minimum distances to avoid stem presses
SDIN EN ISO 3741 Noise formation
SISO 7731 Noise protection regulations
SDIN EN 1953, 1998-12 Spraying apparatus for coating materials – Safety requirements
SDIN EN 13463-1 Non electric devices for using in explosion endangered areas
SThe following national technical standards and specifications were used:
SEN 614 Ergonomic formation basic principles
Justin Hall 1 March 2012
Engineering Manager,
Industrial Coating Systems
Nordson Authorized Representative in the EU
Contact: Operations Manager
Industrial Coating Systems
Nordson Deutschland GmbH
Heinrich-Hertz-StraBe 42-44
D-40699 Erkrath
Installation
Connect air and fluid hoses as follows:
SAir hose to handle inlet fitting, thread size 1/4 NPT (US) or G 1/4 in.
(metric).
Use an air filter/separator to condition your air supply. Clean and dry air
enhances spray quality and extends the life of the spray gun.
SFluid hose to hose connector, thread size 1/2−20 JIC.
Use only approved high-pressure fluid hoses. The fluid connection uses
a ball-bearing swivel; make sure the connection is tight.

TrilogyrAir-Assisted Airless LT Manual Spray Gun 7
Part 1601052-03
E2016 Nordson Corporation
Operation
WARNING: Allow only qualified personnel to perform the following tasks.
Follow the safety instructions in this document and all other related
documentation.
NOTE: Flush the gun with a solvent or waterborne cleaning solution
compatible with your paint to remove any oil and contaminants left over
from the manufacturing operations before using the gun for production.
1
2
3
6
7
8
9
5
4
10
11
TM
AAA-LT
Figure 1 Spray Gun Components
1. Atomizing air regulator
2. Fan pattern regulator
3. Trigger spring cap
4. Trigger lock
5. Trigger
6. Air hose connection
7. Fluid hose connection
8. Fluid filter
9. Air cap
10. Nozzle
11. Air cap retainer
Gun Operation
1. Rotate the trigger lock (4) 90 degrees downward.
2. Pull the trigger (5) to the first pressure point. Atomizing air starts
flowing.
3. Pull the trigger completely. Fluid starts spraying.
4. When you stop spraying, release the trigger to the first pressure point
and hold for 1−2 seconds to prevent paint from collecting at the nozzle.
5. Turn the trigger lock 90 degrees upwards to lock the trigger and prevent
inadvertent triggering and injection injuries.

TrilogyrAir-Assisted Airless LT Manual Spray Gun
8
Part 1601052-03 E2016 Nordson Corporation
Atomizing Air Adjustment
See Figure 1. Rotate the atomizing air regulator (1) to the right (clockwise)
to decrease air flow, to the left (counterclockwise) to increase air flow.
Fan Pattern Adjustment
See Figure 1. Rotate the fan pattern regulator (2) to the right (clockwise) to
decrease air flow, to the left (counterclockwise) to increase air flow. At
minimum flow, the pattern is flat; at maximum flow the pattern is round.
Air Cap Adjustment
See Figure 2. The position of the atomization air cap and the nozzle
determines the orientation of the fan pattern.
1. Stop the fluid pump and relieve the fluid pressure.
2. Pull the trigger to relieve any remaining pressure in the gun.
3. Rotate the trigger lock 90 degrees upward to lock the trigger.
4. Loosen the air cap retainer.
5. Rotate the air cap to the desired position, hold it in position, then tighten
the retainer securely. The nozzle rotates with the air cap.
Air Cap Horns
Air Cap Horns
Figure 2 Air Cap Position Determines Fan Pattern Orientation
Coating Tips
See Figure 3. Use these tips to help you obtain a quality coating:
SHold the spray gun at a 90 degree angle to the surface being coated. If
held at a different angle, the coverage will be uneven and flawed.
SUse your arm, not your wrist, to move the gun parallel to the surface.
Do not wave the gun with your wrist.
SBegin moving the gun before pulling the trigger. Move the gun back and
forth at an even speed. This will ensure even, smooth overlapping
patterns without any buildup where the trigger is pulled.
SRelease the trigger before stopping arm movements.
SImmerse the gun nozzle in solvent or waterborne cleaning solution
during pauses in production to prevent coating material from hardening
on the nozzle.

TrilogyrAir-Assisted Airless LT Manual Spray Gun 9
Part 1601052-03
E2016 Nordson Corporation
30−40 cm
(12−16 in.)
WRONG
thin thick thin
RIGHT
90_
1
2
3
TM
AAA-LT
even even even

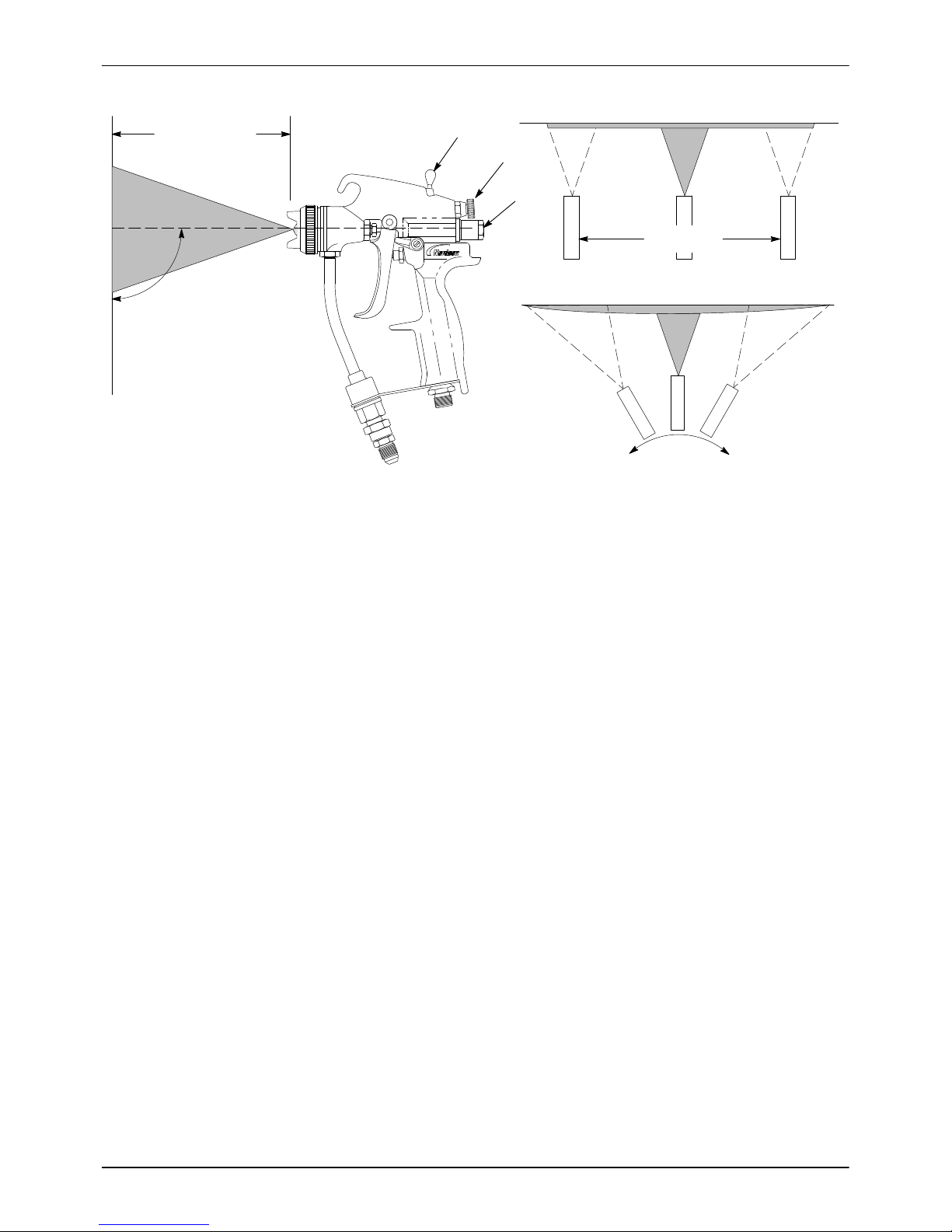

Figure 3 Proper Gun Orientation and Adjustments While Spraying
Atomizing Air Trigger Adjustment
See Figure 4. When you pull the trigger, it opens the air valve and starts
atomizing air flowing before pulling the needle off the seat and allowing fluid
to flow. This pre-air prevents any un-atomized fluid flow from the gun. To
change the pre-air flow, use this procedure.
1. Flush the spray gun with a solvent compatible with the paint used, then
stop the pump and relieve the fluid pressure.
2. Unscrew the spring cap (23) and pull out the spring and washers (24,
25, 26) and the needle assembly (27, 28, 32).
3. Hold the needle extension (27) with one wrench while loosening the
needle carrier (28) with another wrench.
4. Adjust the flow point as follows:
SScrew out the needle (32) to allow more atomizing air to flow
SScrew in the needle to allow less atomizing air to flow
5. Tighten the needle carrier securely to hold the needle.
6. Re-install the spring and washers, needle assembly, and spring cap.

TrilogyrAir-Assisted Airless LT Manual Spray Gun
10
Part 1601052-03 E2016 Nordson Corporation
Maintenance
WARNING: Allow only qualified personnel to perform the following tasks.
Follow the safety instructions in this document and all other related
documentation.
WARNING: High pressure fluids are extremely dangerous. Relieve all fluid
and air pressure to the gun before performing these procedures.
Spray Gun Flushing
When spraying is done for the day, supply the delivery pump with a solvent
or waterborne cleaning solution compatible with the paint used. Spray until
it runs clear. Never immerse the spray gun in solvent or cleaning
solution.
Nozzle Cleaning
1. Stop the pump and relieve the fluid pressure.
2. Pull the trigger to relieve any remaining pressure in the gun.
3. Rotate the trigger lock 90 degrees upward to lock the gun.
4. See Figure 4. Remove the air cap retainer, air cap, and nozzle (1, 2, 3).
Blow out the nozzle with compressed air, from the front. Clean the
nozzle and air cap with a soft-bristle brush and a compatible solvent or
waterborne cleaning solution.
NOTE: Use only tools designed for nozzle cleaning to clean the nozzle
orifice. Contact your Nordson representative for nozzle cleaning kits.
5. Re-install the nozzle into the air cap, making sure the pin in the air cap
slides into the groove in the nozzle. Install the air cap on the gun, and
secure it with the retainer.
6. Adjust the air cap orientation and hold it while tightening the retainer
securely by hand.
Filter Cleaning
The filter should cleaned periodically to prevent paint residue from
hardening inside the filter and housing. The frequency of cleaning depends
on the type of paint used.
1. Stop the pump and relieve the fluid pressure.
2. See Figure 4. Unscrew the hose connector (16) with a wrench.
3. Remove the filter (17) from the housing (18).
4. Clean the filter with a compatible solvent and soft brush. Do not use a
wire brush as it will damage the filter.
5. Flush the hose connector with solvent.
6. Install the cleaned filter, or a new filter, into the housing.
7. Screw the hose connector back onto the housing and tighten securely.

TrilogyrAir-Assisted Airless LT Manual Spray Gun 11
Part 1601052-03
E2016 Nordson Corporation
Lubrication
See Figure 4. The atomizing air regulator O-ring (11), air valve needle seal
(39), and the trigger axle (13) should be lubricated regularly with
silicone-free oil or silicone-free grease.
Troubleshooting
WARNING: Allow only qualified personnel to perform the following tasks.
Follow the safety instructions in this document and all other related
documentation.
These troubleshooting procedures cover only the most common problems.
If you cannot solve a problem with the information given here, contact your
local Nordson representative for help. See Figure 4 for parts.
Problem Possible Cause Corrective Action
1. Decrease in paint flow
while spraying
Filter clogged. Clean the filter. Refer to Filter
Cleaning on page 10.
Paint viscosity too high. Thin out the paint to the proper
viscosity.
Fluid pressure too low. Increase fluid pressure.
2. Irregular fan pattern Nozzle clogged. Replace the nozzle.
Filter clogged. Clean the filter. Refer to Filter
Cleaning on page 10.
Nozzle too wide or worn. Replace the nozzle.
Paint viscosity too high. Thin out the paint to the proper
viscosity.
No atomizing air, or not enough. Increase atomizing air flow.
Check air supply.
Atomizing air pressure too high
or too low.
Adjust air supply pressure.
Refer to Specifications on page
.5
Air cap holes clogged. Clean air cap with solvent and a
soft brush. Do not use a wire
brush.
3. Spray gun still sprays when
trigger released
Seal or needle ball worn. Replace parts (3a, 32).
Needle spring worn. Replace spring (25).
Packing gland too tight, needle
cannot be moved by spring to
close valve.
Loosen packing gland (29). If
problem continues replace
needle cup seals and O-rings
(33, 34).
Needle and seal dirty. Clean needle, replace seal (3a,
32).
Continued...

TrilogyrAir-Assisted Airless LT Manual Spray Gun
12
Part 1601052-03 E2016 Nordson Corporation
Corrective ActionPossible CauseProblem
4. Spray gun leaks paint from
packing gland
Needle cup seals worn. Replace cup seals and O-rings
(33, 34).
Packing gland not tightened
enough.
Tighten packing gland (29).
5. Spray gun is leaking air Air valve spring weak Replace spring (36).
Air valve seal worn Replace seal (39).
Air valve defective Replace valve (37).
Repair
Preparation
WARNING: High Pressure Hazard! Always stop the pump and relieve
system fluid pressure before attempting to repair the spray gun. Failure to
observe this warning could result in severe personal injury or even death.
1. Supply solvent to the delivery pump and flush the spray gun.
2. Stop the pump and relieve the fluid pressure. Disconnect the fluid hose.
3. Shut off the air supply and relieve the air pressure. Disconnect the air
hose.
Air Cap and Nozzle Replacement
1. See Figure 4. Remove the air cap retainer, air cap, and nozzle (1, 2, 3).
2. Push the nozzle (3) out of the air cap (2).
3. Remove the seal (3a) from the nozzle.
4. Immerse the nozzle in solvent or waterborne cleaning solution. If
necessary, use an ultrasonic cleaner to clean the nozzle. Use only tools
designed for nozzle cleaning to clean the nozzle orifice. Contact your
Nordson representative for nozzle cleaning kits.
5. Install the seal on the cleaned nozzle.
6. Install a new or clean nozzle in the air cap.
7. Install the air cap on the gun. Adjust the air cap orientation and hold it
while tightening the air cap retainer.
Needle Replacement
1. See Figure 4. Unscrew and remove the spring cap, spring, and washers
(23, 24, 25, 26).
2. Loosen the needle packing gland (29).
3. Pull the needle assembly (27, 28, 32) out of the gun.
4. Install a new needle assembly in the gun, then screw the spring cap
back into the gun and tighten securely.
5. Tighten the needle packing gland. If paint leaks from the packing gland
when the gun is put back into service, tighten the packing gland further.

TrilogyrAir-Assisted Airless LT Manual Spray Gun 13
Part 1601052-03
E2016 Nordson Corporation
Needle Cup Seal Replacement
1. See Figure 4. Remove the needle as described in Needle
Replacement.
2. Remove the trigger screw, pin, and trigger (12, 13, 14).
3. Unscrew the chamber nut (22) and slide it off the packing gland.
4. Pull the atomizing chamber (21) off the front of the gun body. Note that
in the gun body are one small black O-ring and two larger white seals (6,
7). Inspect and replace them if damaged.
5. Unscrew the the packing gland (29) from the assembly. Remove the
gland collar (30), then pull the three O-rings and the three cup seals (33,
34) out of the gun body.
6. Install new cup seals and O-rings, gland collar, and packing gland in the
gun body. Leave the packing gland loose until the needle is installed.
7. Make sure the gun body O-ring and two seals are installed correctly.
Install the atomizing chamber on the gun body.
8. Install the chamber nut over the packing gland and thread it onto the
atomizing chamber. Tighten the nut securely.
9. Install the trigger on the gun.
10. Install the needle assembly into the gun as described in Needle
Replacement.
Air Valve Seal Replacement
1. See Figure 4. Remove the trigger screw, pin, and trigger (12, 13, 14).
2. Unscrew the valve packing gland (40).
3. Pull out the old valve seal (39) and replace it with a new one.
4. Install the valve packing gland and tighten by hand.
5. Turn on the air supply. Tighten packing gland further if air leaks from it.
Nozzle Seal Ring Replacement
1. See Figure 4. Remove the air cap retainer, air cap, and nozzle (1, 2, 3).
2. Loosen the needle packing gland (29).
3. Unscrew the spring cap (23) and remove the spring and washers (24,
25, 26).
4. Pull the needle assembly (27, 28, 32) out of the gun. Inspect the needle
ball and replace the needle if damaged.
5. Unscrew the seal retaining screw (4) with a 10-mm socket wrench, and
remove the aluminum seal ring (5).
6. Install a new seal ring and the seal retaining screw.
7. Install the needle assembly, springs and washers, and spring cap.
8. Tighten the needle packing gland.
9. Install the air cap and nozzle and secure them with the retainer.

TrilogyrAir-Assisted Airless LT Manual Spray Gun
14
Part 1601052-03 E2016 Nordson Corporation
Parts
To order parts, call the Nordson Industrial Coating Systems Customer
Support Center at [phone] or contact your local Nordson
representative. For customers outside the USA, refer to the list of Nordson
Global Locations at www.nordson.com.
Refer to the parts illustration and parts lists on the following pages.
TM
12 2a 3 3a 4567
21
20
19
18
16
17
41 42 33 43
40 39 38 37 36 35
8
11
10
9
12 13
14
15
22
32 31
33 34
30 29 28 27 26 25 24 23
44
45
Figure 4 Trilogy AAA LT Spray Gun Parts
Item Part Description Quantity Note
1 1601016 SRetainer, air cap, AAA LT, Trilogy NES 1
2 1600938 SAir cap, AAA LT, Trilogy NES 1
2a −−−−−− SRing, seal 1A, B
3 1600887 SNozzle, .33 mm, 50 degree, Trilogy, NES 1 C
3a −−−−−− SSeal 1A, B
4−−−−−− SScrew, seal retaining 1 B
5−−−−−− SRing, seal, aluminum 1A, B
6−−−−−− SO-ring, 3.5 x 1.0 mm, Viton 1A, B
7−−−−−− SSeal 2A, B
8−−−−−− SScrew, locking 1 B
9 1601143 SScrew, fan adjustment, AAA, Trilogy NES 1
10 −−−−−− SRegulator, air 1 B
11 −−−−−− SO-ring, 7.0 x 1.0 mm, Viton 1A, B
Continued...

TrilogyrAir-Assisted Airless LT Manual Spray Gun 15
Part 1601052-03
E2016 Nordson Corporation
NoteQuantityDescriptionPartItem
12 −−−−−− SScrew, flat head 1 B
13 −−−−−− SAxle, trigger 1 B
14 1601012 STrigger, AAA, Trilogy NES 1
15 1600939 SConnector, nipple, 1/4 G, AAA, Trilogy NES 1 D
15 1600940 SConnector, air, 1/4 NPT, AAA, Trilogy NES 1 D
16 1601021 SConnector, fluid, 1/4 NPS, AAA LT, Trilogy NES 1
17 1601020 SFilter, fluid, AAA LT, Trilogy NES 1
18 1601022 SHousing, filter, AAA LT, Trilogy NES 1
19 1601018 STube, paint, AAA LT, Trilogy NES 1
20 1601127 SNut, fluid tube, AAA LT, Trilogy NES 1
21 1601009 SChamber, atomizing, AAA Trilogy NES 1
22 1601001 SNut, chamber, AAA, Trilogy NES 1
23 1601017 SCap, spring, AAA LT, Trilogy NES 1
24 1600996 SWasher, small, needle, AAA, Trilogy NES 1
25 −−−−−− SSpring, compression 1 B
26 1600995 SWasher, large, needle, AAA, Trilogy NES 1
27 1601005 SExtension, needle, AAA, Trilogy NES 1
28 1601004 SCarrier, needle, AAA, Trilogy NES 1
29 1601003 SGland, packing, AAA, Trilogy NES 1
30 1601002 SCollar, gland, AAA, Trilogy NES 1
31 1601011 SSeal, packing, AAA, Trilogy NES 1
32 1600914 SNeedle, AAA, Trilogy NES 1 B
33 −−−−−− SO-ring, 4.0 x 1.2 mm, Viton 4A, B
34 −−−−−− SSeal, cup, inverted 3A, B
35 −−−−−− SScrew, locking 1 B
36 −−−−−− SSpring, compression 1 B
37 −−−−−− SValve, air 1A, B
38 −−−−−− SPin 1 B
39 −−−−−− SSeal, valve, packing gland 1A, B
40 −−−−−− SGland, packing, valve 1 B
41 1600868 SWasher, trigger lock, AAA, Trilogy NES 1
42 1600999 SLock, trigger, AAA, Trilogy NES 1
43 1600957 SScrew, trigger lock, AAA, Trilogy NES 1
44 1601019 SSupport, fluid tube, AAA LT, Trilogy NES 1
45 1601887 SConnector, straight, 1/2−20 JIC x 1/4 G 1
NOTE A: Included in 1601014 Kit, seal, AAA, Trilogy NES. This kit is also included in 1601024 repair kit.
B: Included in 1601024 Kit, repair, AAA LT, Trilogy NES. This kit also includes 1601014 seal kit.
C: Refer to Nozzles list for additional nozzles.
D: NPT fitting used in USA; G used in Europe.

TrilogyrAir-Assisted Airless LT Manual Spray Gun
16
Part 1601052-03 E2016 Nordson Corporation
Nozzles
Part Description Note
1600887 Nozzle, 0.33 mm, 50 degree, AAA LT, Trilogy A
1600888 Nozzle, 0.23 mm, 40 degree, AAA LT, Trilogy A
1600889 Nozzle, 0.23 mm, 50 degree, AAA LT, Trilogy A
1600890 Nozzle, 0.28 mm, 40 degree, AAA LT, Trilogy A
1600891 Nozzle, 0.28 mm, 50 degree, AAA LT, Trilogy A
1600892 Nozzle, 0.38 mm, 50 degree, AAA LT, Trilogy A
1600893 Nozzle, 0.38 mm, 60 degree, AAA LT, Trilogy A
1600894 Nozzle, 0.78 mm, 50 degree, AAA LT, Trilogy A
1600895 Nozzle, 0.78 mm, 60 degree, AAA LT, Trilogy A
NOTE A: For nozzle cleaning tools and kits, contact your Nordson representative.
